YOUR BOXER IN DETAIL57
GENERAL FUNCTIONS On / Off With the ignition key in the "ON"position, the audio/telephone/GPS comes on automatically.
Switching off is also automatic when the key is turned to the "STOP"position.
Y ou can also switch the audio/telephone/GPS on or off manually by pressing knob B.
In this case, the audio/telephone/GPS can operate for 20 minutes without the ignition being switched on. Notes:- the SIM card must only be removed or inserted after switching off the audio/telephone/GPS,
- when the audio-telephone/GPS is switched off after 20 minutes, communication is possible by pressing button O.
- after the ignition has been swiched off, the audio/telephone/GPS can be switched on again by pressing button Lor Oor
by inserting a CD in the player.
Anti-theft system The audio/telephone/GPS is coded so that it can only operate in your vehicle. If it is installed in another vehicle, contact yo ur
PEUGEOT dealer to have the system configured. The anti-theft system is automatic and does not require any intervention on your part. VOLUME ADJUSTMENT T urn knob Bclockwise to increase the volume of the audio-telephone/GPS or anti-clockwise to decrease the volume.
Note: the volume setting is specific to each source. It is posible to have a different setting for the radio, CD, telephone or
voice messages.
SOUND CUT-OFF/ RESTORATION
To gradually restore or cut off the volume of an audio source, press the " AUDIO OFF" button.
To gradually restore or cut off the volume of the navigation source voice messages, press the " NAV MUTE" button for more
than one second. Note : during telephone calls, the volume of the other sources is cut off automatically.

05-05-2003
YOUR BOXER IN DETAIL
66

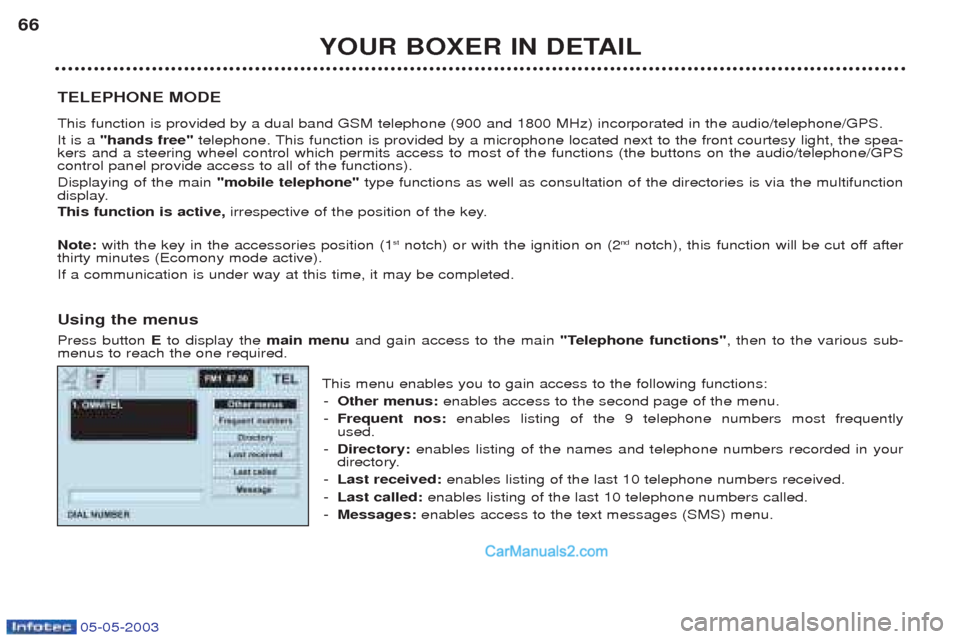

TELEPHONE MODE This function is provided by a dual band GSM telephone (900 and 1800 MHz) incorporated in the audio/telephone/GPS. It is a "hands free" telephone. This function is provided by a microphone located next to the front courtesy light, the spea-
kers and a steering wheel control which permits access to most of the functions (the buttons on the audio/telephone/GPS control panel provide access to all of the functions). Displaying of the main "mobile telephone"type functions as well as consultation of the directories is via the multifunction
display.This function is active, irrespective of the position of the key.
Note: with the key in the accessories position (1 st
notch) or with the ignition on (2 nd
notch), this function will be cut off after
thirty minutes (Ecomony mode active).If a communication is under way at this time, it may be completed. Using the menus Press button Eto display the main menuand gain access to the main "Telephone functions", then to the various sub-
menus to reach the one required.
This menu enables you to gain access to the following functions:- Other menus: enables access to the second page of the menu.
- Frequent nos: enables listing of the 9 telephone numbers most frequently
used.
- Directory: enables listing of the names and telephone numbers recorded in your
directory.
- Last received: enables listing of the last 10 telephone numbers received.
- Last called: enables listing of the last 10 telephone numbers called.
- Messages: enables access to the text messages (SMS) menu.

05-05-2003
YOUR BOXER IN DETAIL67

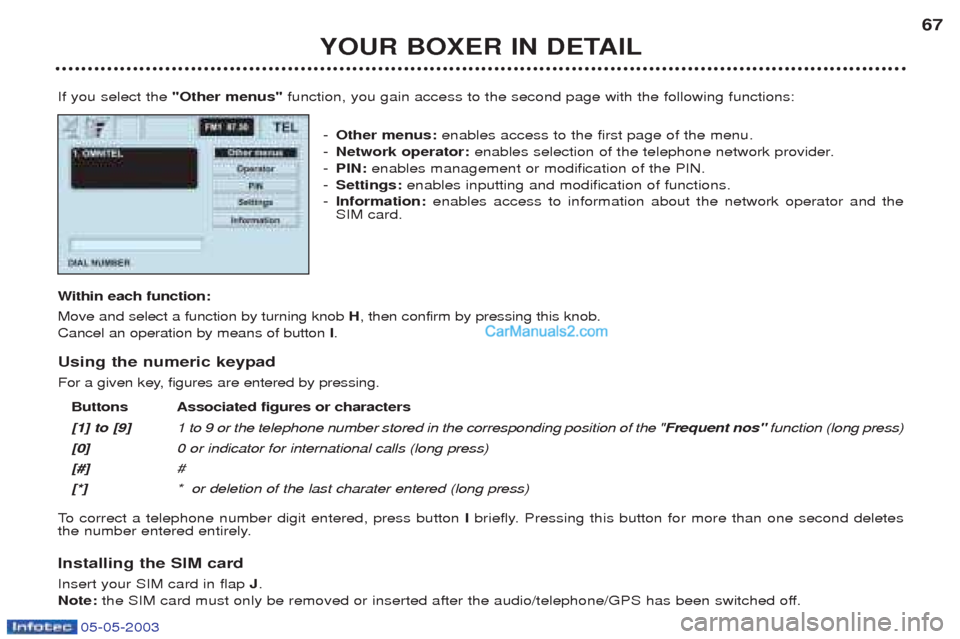

If you select the "Other menus" function, you gain access to the second page with the following functions:
- Other menus: enables access to the first page of the menu.
- Network operator: enables selection of the telephone network provider.
- PIN: enables management or modification of the PIN.
- Settings: enables inputting and modification of functions.
- Information: enables access to information about the network operator and the
SIM card.
W ithin each function:
Move and select a function by turning knob H, then confirm by pressing this knob.
Cancel an operation by means of button I.
Using the numeric keypad
For a given key, figures are entered by pressing. Buttons Associated figures or characters [1] to [9] 1 to 9 or the telephone number stored in the corresponding position of the " Frequent nos"function (long press)
[0] 0 or indicator for international calls (long press)
[#] #
[*] * or deletion of the last charater entered (long press)
To correct a telephone number digit entered, press button Ibriefly. Pressing this button for more than one second deletes
the number entered entirely.
Installing the SIM card Insert your SIM card in flap J.
Note: the SIM card must only be removed or inserted after the audio/telephone/GPS has been switched off.

05-05-2003
YOUR BOXER IN DETAIL
68

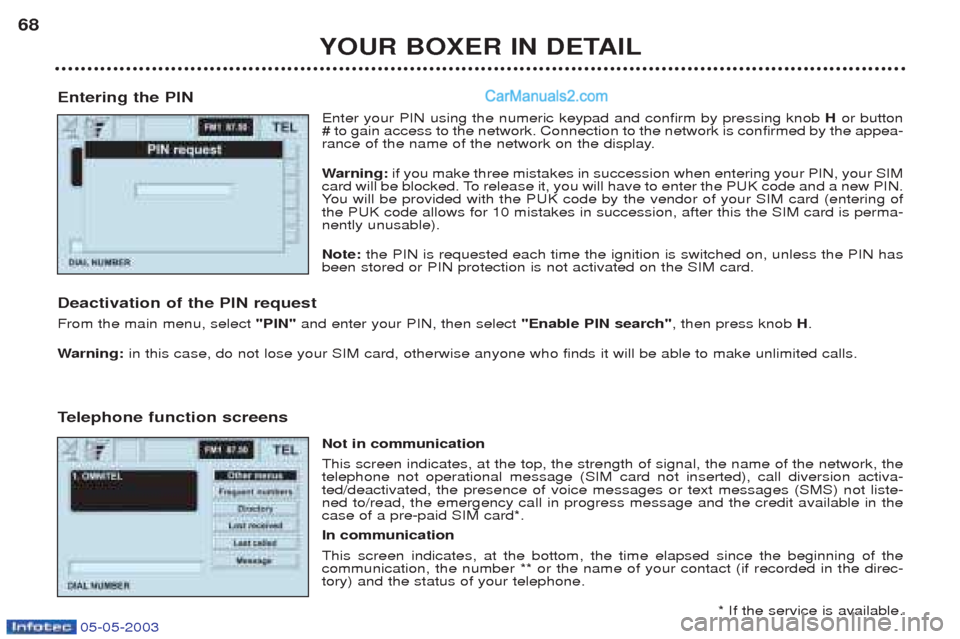

Entering the PIN Enter your PIN using the numeric keypad and confirm by pressing knob Hor button
# to gain access to the network. Connection to the network is confirmed by the appea-
rance of the name of the network on the display. W arning: if you make three mistakes in succession when entering your PIN, your SIM
card will be blocked. To release it, you will have to enter the PUK code and a new PIN. Y ou will be provided with the PUK code by the vendor of your SIM card (entering of
the PUK code allows for 10 mistakes in succession, after this the SIM card is perma-nently unusable). Note: the PIN is requested each time the ignition is switched on, unless the PIN has
been stored or PIN protection is not activated on the SIM card.
Deactivation of the PIN request From the main menu, select "PIN"and enter your PIN, then select "Enable PIN search", then press knobH.
W arning: in this case, do not lose your SIM card, otherwise anyone who finds it will be able to make unlimited calls.
T elephone function screens
Not in communicationThis screen indicates, at the top, the strength of signal, the name of the network, the telephone not operational message (SIM card not inserted), call diversion activa-ted/deactivated, the presence of voice messages or text messages (SMS) not liste-ned to/read, the emergency call in progress message and the credit available in thecase of a pre-paid SIM card*. In communication This screen indicates, at the bottom, the time elapsed since the beginning of the communication, the number ** or the name of your contact (if recorded in the direc-tory) and the status of your telephone.
* If the service is available.

05-05-2003
YOUR BOXER IN DETAIL69

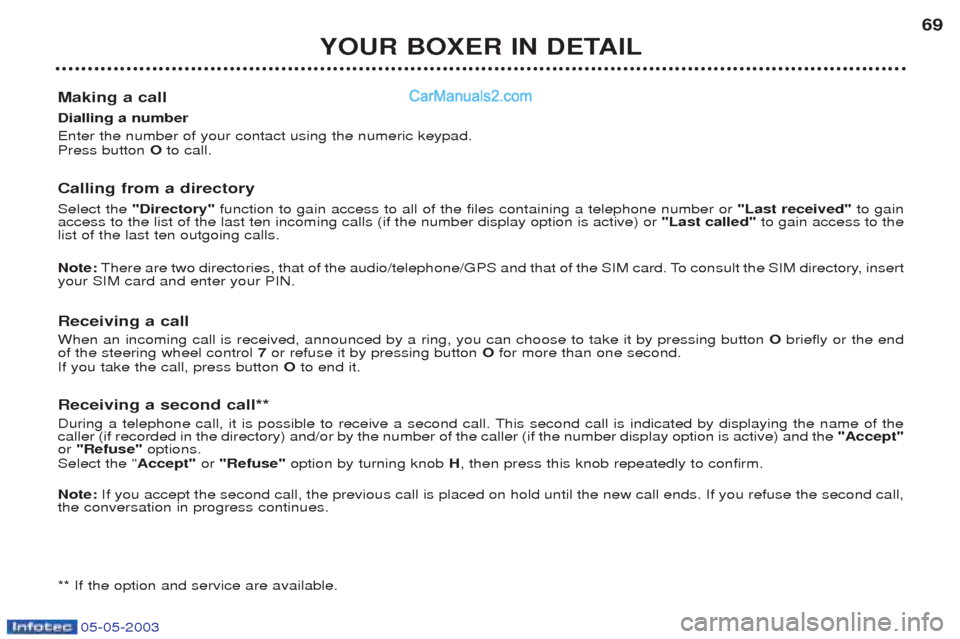

Making a call Dialling a number Enter the number of your contact using the numeric keypad. Press button Oto call.
Calling from a directory Select the "Directory" function to gain access to all of the files containing a telephone number or "Last received" to gain
access to the list of the last ten incoming calls (if the number display option is active) or "Last called"to gain access to the
list of the last ten outgoing calls. Note: There are two directories, that of the audio/telephone/GPS and that of the SIM card. To consult the SIM directory, insert
your SIM card and enter your PIN.
Receiving a call When an incoming call is received, announced by a ring, you can choose to take it by pressing button Obriefly or the end
of the steering wheel control 7or refuse it by pressing button Ofor more than one second.
If you take the call, press button Oto end it.
Receiving a second call**
During a telephone call, it is possible to receive a second call. This second call is indicated by displaying the name of the caller (if recorded in the directory) and/or by the number of the caller (if the number display option is active) and the "Accept"
or "Refuse" options.
Select the " Accept" or "Refuse" option by turning knob H, then press this knob repeatedly to confirm.
Note: If you accept the second call, the previous call is placed on hold until the new call ends. If you refuse the second call,
the conversation in progress continues. ** If the option and service are available.

05-05-2003
YOUR BOXER IN DETAIL75
V oice commands
The voice commands enable you to control a certain number of audio/telephone/GPS functions using pre-recorded words or expressions. The voice commands which you can send to the system are divided into two categories: - voice commands without voice identification which permit selection of the system's modes (TEL, RADIO, CD, ...),
- voice commands with voice identification which relate to the entering / recalling of names in the telephone directory
and/or navigation addresses.
Activation / Deactivation of the voice commands Press button Non the audio/telephone/GPS control panel or control 4on the steering wheel to activate or deactivate this
function. Notes: - in the absence of voice commands, this function will be deactivated after approximately ten seconds,
- if a voice command is not understood, a double bleep is emitted.
- the voice command operations are interrupted immediately if an incoming call is received; in this case, when the call ends, the entire operation must be repeated.
Example: to recall the radio station stored on button 3, the key words are: "Radio" "Memory" or"Station" "3" .
To use these key words, you must say the word "Radio", wait for the confirmation bleep, then say the word "Memory"or
"Station" , wait until the system asks "number please?", then end with the word "3", wait for the confirmation bleep which will
carry out the action requested.
List of recognisable commands available The voice commands (key words) which can be recognised by the system are organised into three levels (levels 1, 2 and 3). When a level 1 command is given, the system makes the level 2 commands available; when a level 2 command is given, the system makes the level 3 commands available. - the level 1 commands are the following:
"MEMO" / "RADIO" / "CD PLAYER" / "NAVIGATION" / "CALL" / "DIAL" / "REDIAL" / "PIN" / "DIRECTORY" / "INTERRUPT"

05-05-2003
YOUR BOXER IN DETAIL77

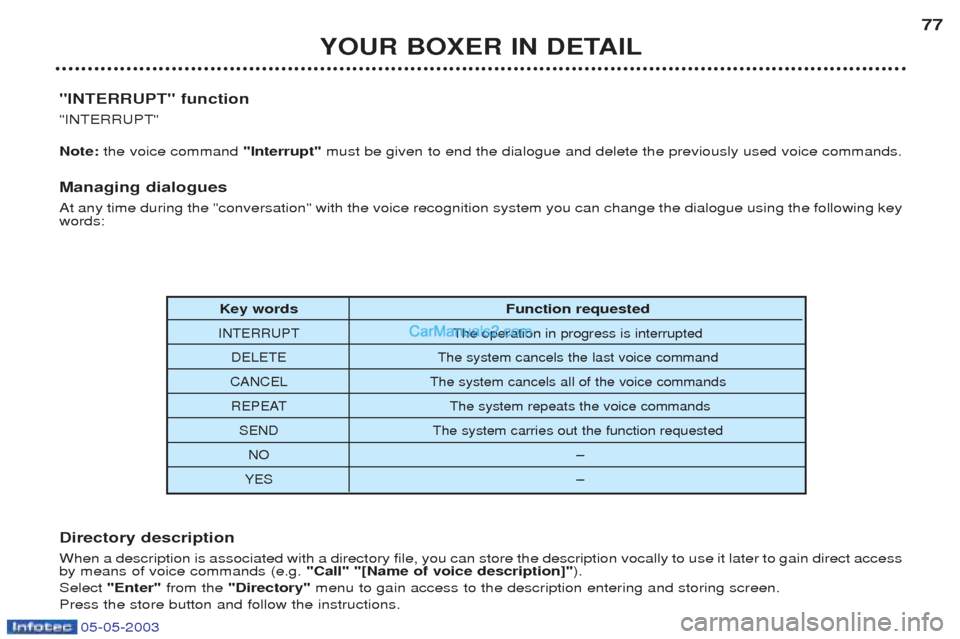

Key words Function requested
INTERRUPT The operation in progress is interrupted
DELETE The system cancels the last voice command
CANCEL The system cancels all of the voice commands REPEAT The system repeats the voice commands SEND The system carries out the function requested NO Ð
YES Ð
"INTERRUPT" function "INTERRUPT" Note: the voice command "Interrupt" must be given to end the dialogue and delete the previously used voice commands.
Managing dialogues At any time during the "conversation" with the voice recognition system you can change the dialogue using the following key words: Directory description When a description is associated with a directory file, you can store the description vocally to use it later to gain direct ac cess
by means of voice commands (e.g. "Call" "[Name of voice description]" ).
Select "Enter" from the "Directory" menu to gain access to the description entering and storing screen.
Press the store button and follow the instructions.

05-05-2003
YOUR BOXER IN DETAIL
78

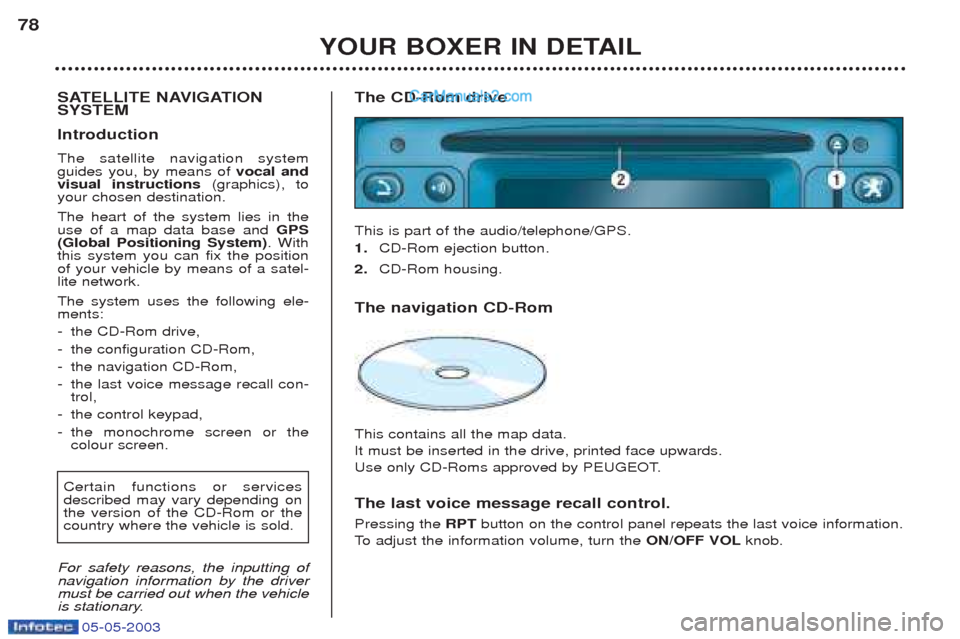

SATELLITE NAVIGATION SYSTEM Introduction The satellite navigation system guides you, by means of vocal and
visual instructions (graphics), to
your chosen destination. The heart of the system lies in the use of a map data base and GPS
(Global Positioning System) . With
this system you can fix the positionof your vehicle by means of a satel-lite network. The system uses the following ele- ments: - the CD-Rom drive,
- the configuration CD-Rom,
- the navigation CD-Rom,
- the last voice message recall con- trol,
- the control keypad,
- the monochrome screen or thecolour screen.
Certain functions or servicesdescribed may vary depending onthe version of the CD-Rom or thecountry where the vehicle is sold.
For safety reasons, the inputting of navigation information by the drivermust be carried out when the vehicle
is stationary. The CD-Rom drive This is part of the audio/telephone/GPS. 1.
CD-Rom ejection button.
2. CD-Rom housing.
The navigation CD-Rom This contains all the map data. It must be inserted in the drive, printed face upwards.
Use only CD-Roms approved by PEUGEOT. The last voice message recall control. Pressing the RPTbutton on the control panel repeats the last voice information.
To adjust the information volume, turn the ON/OFF VOLknob.

05-05-2003
YOUR BOXER IN DETAIL
90

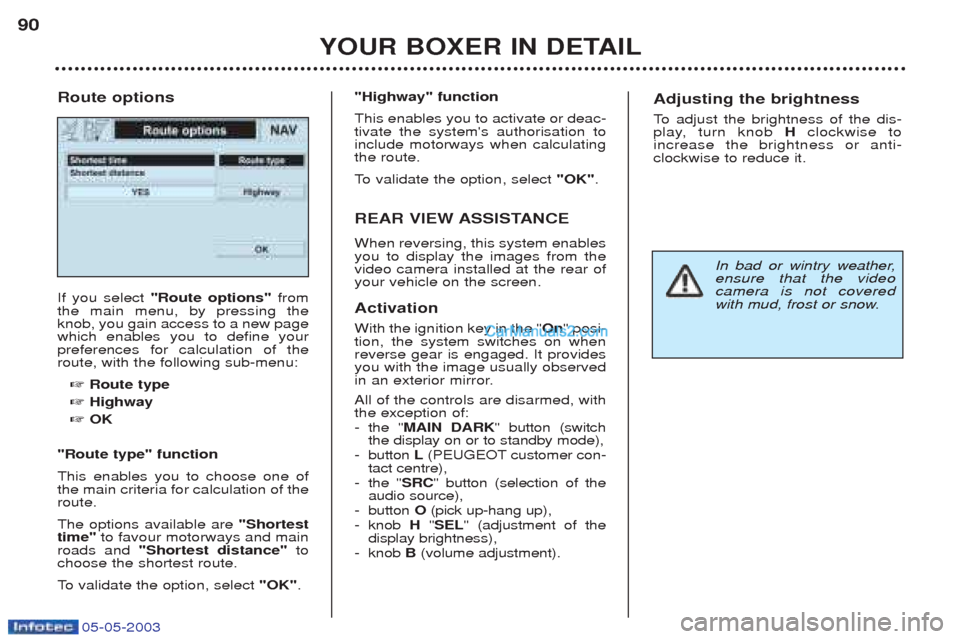

If you select
"Route options" from
the main menu, by pressing the knob, you gain access to a new pagewhich enables you to define yourpreferences for calculation of theroute, with the following sub-menu:
☞ Route type
☞ Highway
☞ OK
"Route type" function This enables you to choose one of the main criteria for calculation of theroute. The options available are "Shortest
time" to favour motorways and main
roads and "Shortest distance" to
choose the shortest route.
To validate the option, select "OK".
Route options
"Highway" function This enables you to activate or deac- tivate the system's authorisation toinclude motorways when calculatingthe route.
To
validate the option, select "OK".
REAR VIEW ASSISTANCE When reversing, this system enables you to display the images from thevideo camera installed at the rear ofyour vehicle on the screen. Activation With the ignition key in the " On" posi-
tion, the system switches on when reverse gear is engaged. It providesyou with the image usually observed
in an exterior mirror. All of the controls are disarmed, with the exception of: - the " MAIN DARK " button (switch
the display on or to standby mode),
- button L(PEUGEOT customer con-
tact centre),
- the " SRC" button (selection of the
audio source),
- button O(pick up-hang up),
- knob H"SEL " (adjustment of the
display brightness),
- knob B(volume adjustment).Adjusting the brightness
To adjust the brightness of the dis-
play, turn knob Hclockwise to
increase the brightness or anti- clockwise to reduce it.
In bad or wintry weather, ensure that the videocamera is not covered
with mud, frost or snow.
