Page 160 of 180
05-05-2003

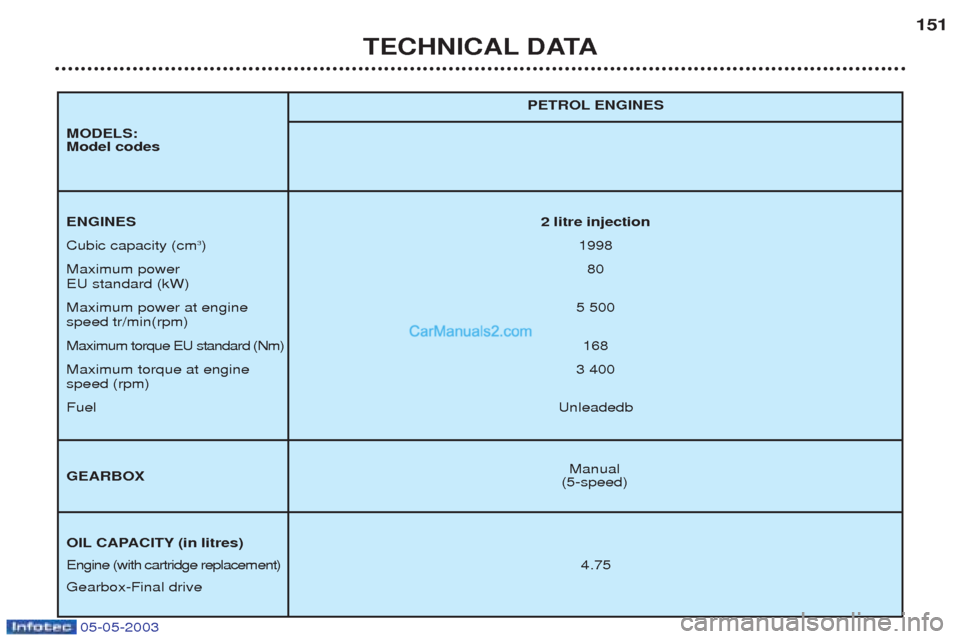

TECHNICAL DATA151
Manual
(5-speed)
PETROL ENGINES
ENGINES
2 litre injection
Cubic capacity (cm 3
) 1998
Maximum power 80
EU standard (kW) Maximum power at engine 5 500
speed tr/min(rpm)Maximum torque EU standard (Nm) 1 6 8
Maximum torque at engine 3 400
speed (rpm)Fuel Unleadedb
OIL CAPACITY (in litres) Engine (with cartridge replacement) 4 . 7 5
Gearbox-Final drive
MODELS: Model codes GEARBOX
Page 161 of 180
05-05-2003

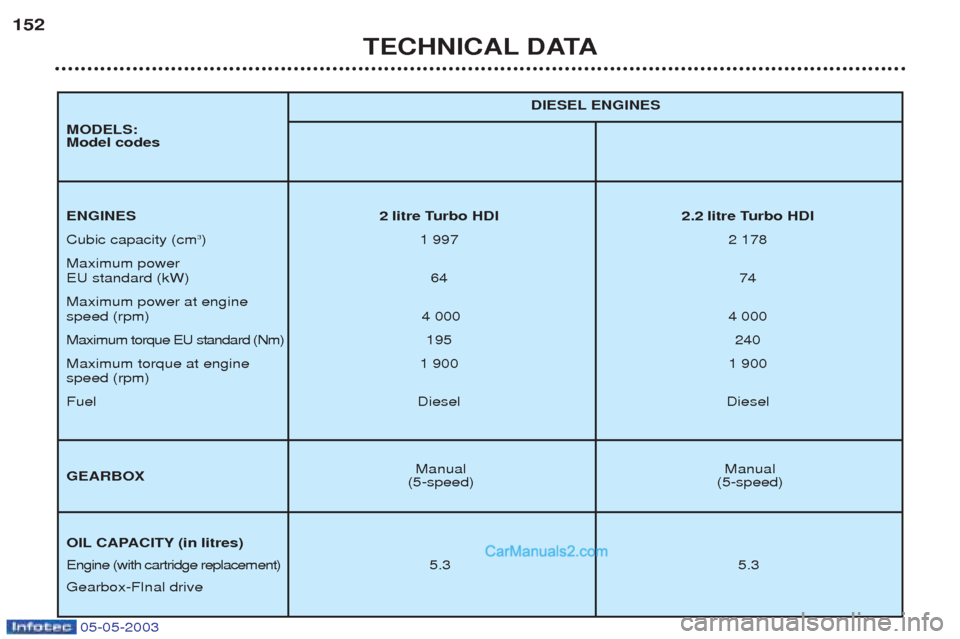

TECHNICAL DATA
152
Manual
Manual
(5-speed) (5-speed) DIESEL ENGINES
ENGINES 2 litre Turbo HDI 2.2 litre Turbo HDI Cubic capacity (cm
3
)1 997 2 178
Maximum power
EU standard (kW) 64 74
Maximum power at engine speed (rpm) 4 0004 000
Maximum torque EU standard (Nm) 1 9 5 2 4 0
Maximum torque at engine 1 900 1 900
speed (rpm) Fuel DieselDiesel
OIL CAPACITY (in litres)
Engine (with cartridge replacement) 5 . 3 5 . 3
Gearbox-FInal drive
MODELS: Model codes GEARBOX
Page 162 of 180
05-05-2003

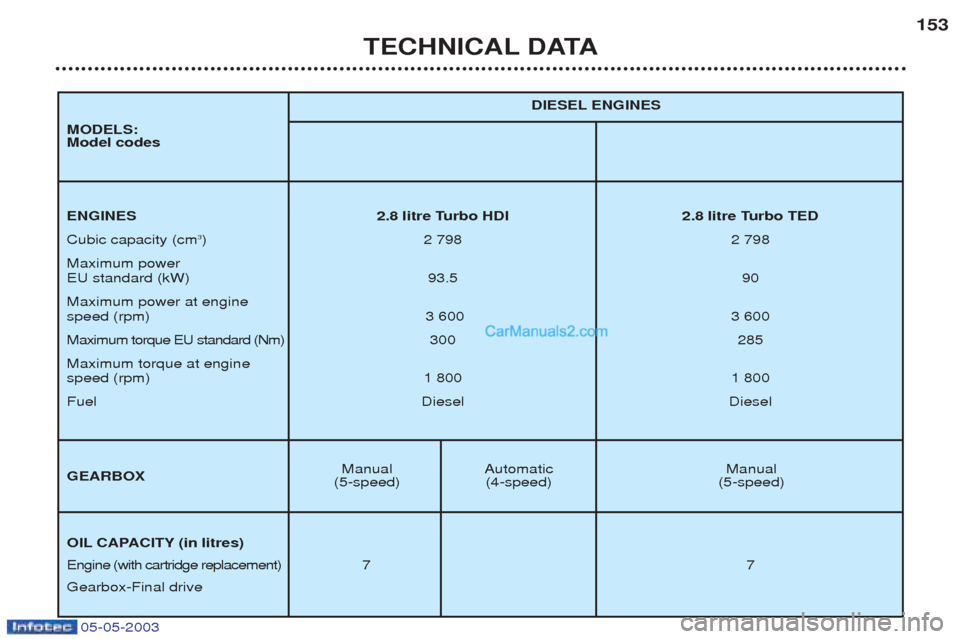

TECHNICAL DATA153
Manual Automatic Manual
(5-speed) (4-speed) (5-speed) DIESEL ENGINES
ENGINES 2.8 litre Turbo HDI 2.8 litre Turbo TED Cubic capacity (cm
3
)2 798 2 798
Maximum power
EU standard (kW) 93.5 90
Maximum power at engine speed (rpm) 3 6003 600
Maximum torque EU standard (Nm) 3 0 0 2 8 5
Maximum torque at engine speed (rpm) 1 8001 800
Fuel DieselDiesel
OIL CAPACITY (in litres)
Engine (with cartridge replacement) 7 7
Gearbox-Final drive
MODELS: Model codes GEARBOX
Page 163 of 180
05-05-2003

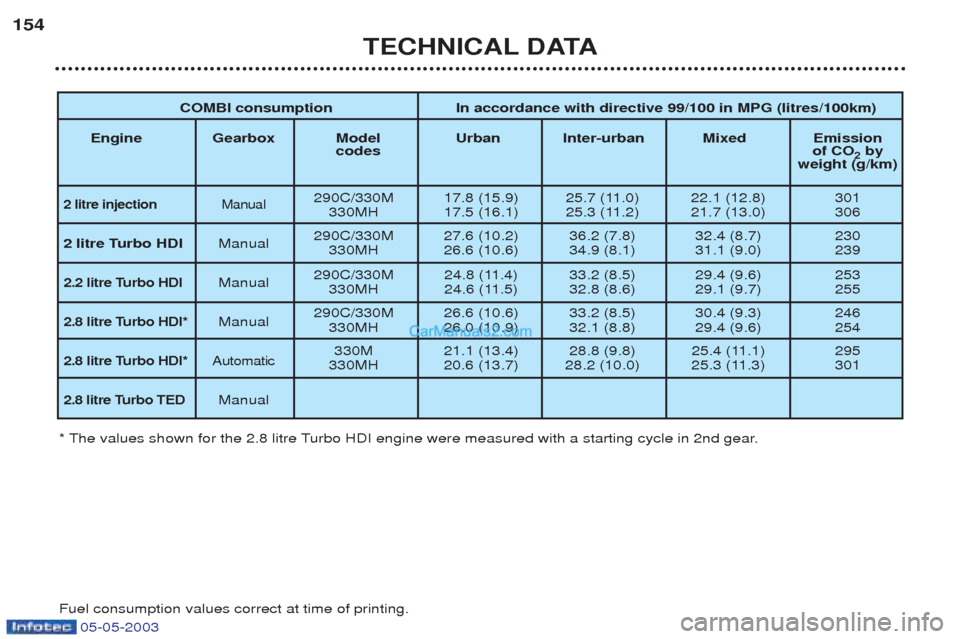

TECHNICAL DATA
154
COMBI consumption In accordance with directive 99/100 in MPG (litres/100km)
Engine Gearbox Model Urban Inter-urban Mixed Emission codes of CO
2by
weight (g/km)
2 litre injection Manual
2 litre Turbo HDIManual
2.2 litre Turbo HDIManual
2.8 litre Turbo HDI*Manual
2.8 litre Turbo HDI* Automatic
2.8 litre Turbo TED
Manual
* The values shown for the 2.8 litre Turbo HDI engine were measured with a starting cycle in 2nd gear. Fuel consumption values correct at time of printing. 290C/330M 27.6 (10.2) 36.2 (7.8) 32.4 (8.7) 230
330MH 26.6 (10.6) 34.9 (8.1) 31.1 (9.0) 239
290C/330M 17.8 (15.9) 25.7 (11.0) 22.1 (12.8) 301
330MH 17.5 (16.1) 25.3 (11.2) 21.7 (13.0) 306
290C/330M 24.8 (11.4) 33.2 (8.5) 29.4 (9.6) 253 330MH 24.6 (11.5) 32.8 (8.6) 29.1 (9.7) 255
290C/330M 26.6 (10.6) 33.2 (8.5) 30.4 (9.3) 246 330MH 26.0 (10.9) 32.1 (8.8) 29.4 (9.6) 254
330M 21.1 (13.4) 28.8 (9.8) 25.4 (11.1) 295
330MH 20.6 (13.7) 28.2 (10.0) 25.3 (11.3) 301
Page 164 of 180
05-05-2003

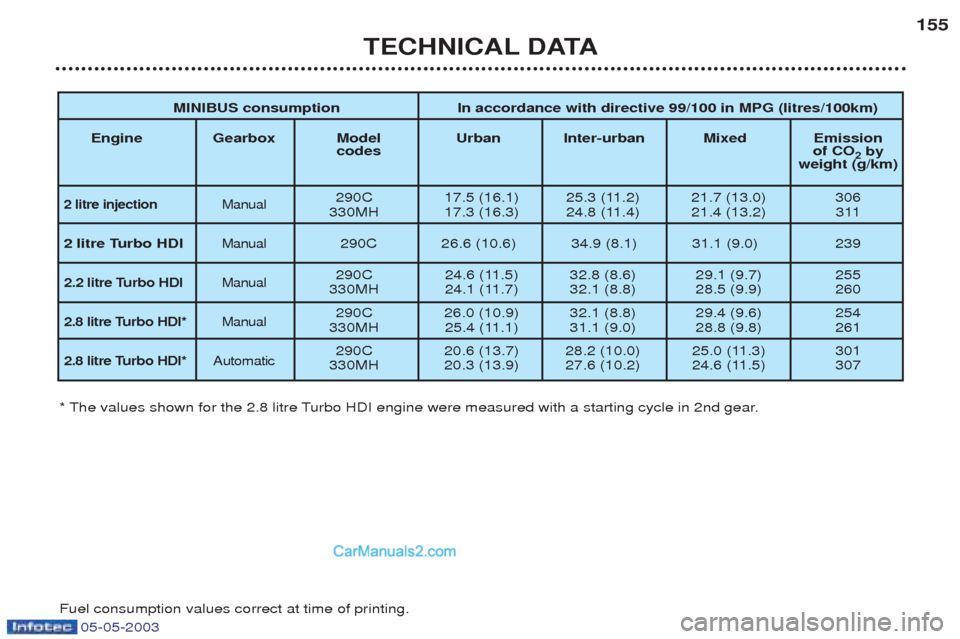

TECHNICAL DATA155
* The values shown for the 2.8 litre Turbo HDI engine were measured with a starting cycle in 2nd gear. Fuel consumption values correct at time of printing.
MINIBUS consumption In accordance with directive 99/100 in MPG (litres/100km)
Engine Gearbox Model Urban Inter-urban Mixed Emission codes of CO
2by
weight (g/km)
2 litre injection Manual
2 litre Turbo HDIManual290C 26.6 (10.6) 34.9 (8.1) 31.1 (9.0) 239
2.2 litre Turbo HDIManual
2.8 litre Turbo HDI*Manual
2.8 litre Turbo HDI*Automatic
290C 17.5 (16.1) 25.3 (11.2) 21.7 (13.0) 306
330MH 17.3 (16.3) 24.8 (11.4) 21.4 (13.2) 311
290C 24.6 (11.5) 32.8 (8.6) 29.1 (9.7) 255
330MH 24.1 (11.7) 32.1 (8.8) 28.5 (9.9) 260
290C 26.0 (10.9) 32.1 (8.8) 29.4 (9.6) 254
330MH 25.4 (11.1) 31.1 (9.0) 28.8 (9.8) 261
290C 20.6 (13.7) 28.2 (10.0) 25.0 (11.3) 301
330MH 20.3 (13.9) 27.6 (10.2) 24.6 (11.5) 307
Page 165 of 180
05-05-2003
2 LITRE INJECTIONVAN
Model codes:
290C 290CS 290M 290MH 290MHS 330C 330CS 330M 330MH 330MHS
¥ Kerb weight 1695 1730 1735 1745 1780 1695 1730 1735 1745 1780
¥ Gross vehicle weight (GVW) 2900 2900 2900 2900 2900 3300 3300 3300 3300 3300
¥ Payload 1205 1170 1165 1155 1120 1605 1570 1565 1555 1520
¥ Gross train weight (GTW)* Ð ÐÐÐÐ ÐÐ ÐÐ Ð
¥ Unbraked trailer 750 750 750 750 750 750 750 750 750 750
¥ Braked trailer (within GTW) 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000

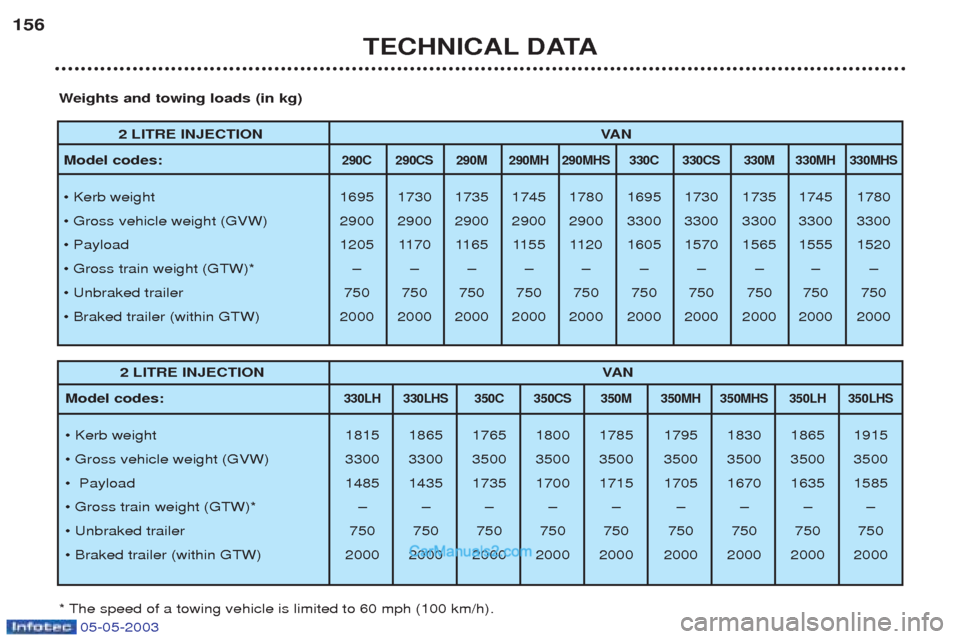

TECHNICAL DATA
156
Weights and towing loads (in kg)
* The speed of a towing vehicle is limited to 60 mph (100 km/h).
2 LITRE INJECTION VAN
Model codes:
330LH 330LHS 350C 350CS 350M 350MH 350MHS 350LH 350LHS
¥ Kerb weight 1815 1865 1765 1800 1785 1795 1830 1865 1915
¥ Gross vehicle weight (GVW) 3300 3300 3500 3500 3500 3500 3500 3500 3500
¥ Payload 1485 1435 1735 1700 1715 1705 1670 1635 1585
¥ Gross train weight (GTW)* ÐÐÐÐÐ ÐÐÐÐ
¥ Unbraked trailer 750 750 750 750 750 750 750 750 750
¥ Braked trailer (within GTW) 2000 2000 2000 2000 2000 2000 2000 2000 2000
Page 166 of 180
05-05-2003

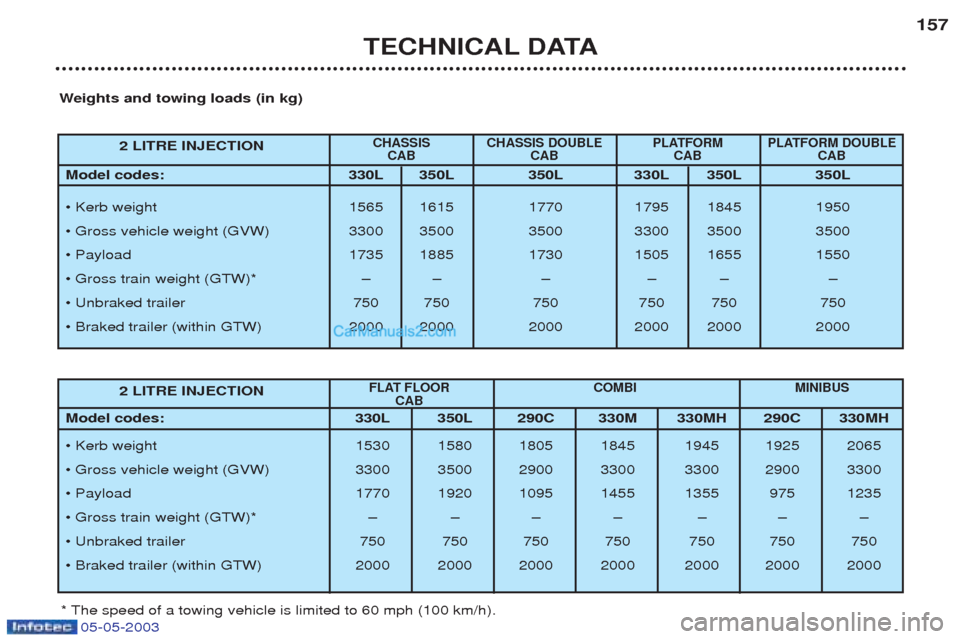

TECHNICAL DATA157
2 LITRE INJECTION
CHASSIS CHASSIS DOUBLE PLATFORM PLATFORM DOUBLE CAB CAB CAB CAB
Model codes: 330L 350L 350L 330L 350L 350L
¥ Kerb weight 1565 1615 1770 1795 1845 1950
¥ Gross vehicle weight (GVW) 3300 3500 3500 3300 3500 3500
¥ Payload 1735 1885 1730 1505 1655 1550
¥ Gross train weight (GTW)* Ð Ð Ð Ð Ð Ð
¥ Unbraked trailer 750 750 750 750 750 750
¥ Braked trailer (within GTW) 2000 2000 2000 2000 2000 2000
Weights and towing loads (in kg)
* The speed of a towing vehicle is limited to 60 mph (100 km/h).
2 LITRE INJECTIONFLAT FLOOR COMBI MINIBUS CAB
Model codes: 330L 350L 290C 330M 330MH 290C 330MH
¥ Kerb weight 1530 1580 1805 1845 1945 1925 2065
¥ Gross vehicle weight (GVW) 3300 3500 2900 3300 3300 2900 3300
¥ Payload 1770 1920 1095 1455 1355 975 1235
¥ Gross train weight (GTW)* Ð Ð Ð Ð Ð Ð Ð
¥ Unbraked trailer 750 750 750 750 750 750 750
¥ Braked trailer (within GTW) 2000 2000 2000 2000 2000 2000 2000
Page 167 of 180
05-05-2003

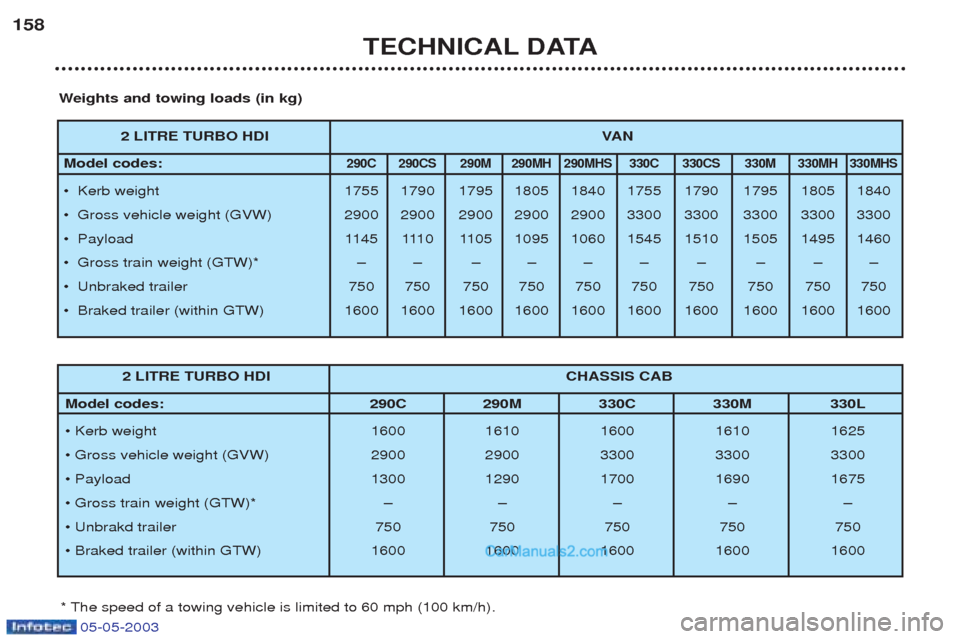

TECHNICAL DATA
158
2 LITRE TURBO HDI
VAN
Model codes:
290C 290CS 290M 290MH 290MHS 330C 330CS 330M 330MH 330MHS
¥ Kerb weight 1755 1790 1795 1805 1840 1755 1790 1795 1805 1840
¥ Gross vehicle weight (GVW) 2900 2900 2900 2900 2900 3300 3300 3300 3300 3300
¥ Payload 1145 1110 1105 1095 1060 1545 1510 1505 1495 1460
¥ Gross train weight (GTW)* Ð Ð Ð Ð Ð Ð Ð Ð Ð Ð
¥ Unbraked trailer 750 750 750 750 750 750 750 750 750 750
¥ Braked trailer (within GTW) 1600 1600 1600 1600 1600 1600 1600 1600 1600 1600
W eights and towing loads (in kg)
* The speed of a towing vehicle is limited to 60 mph (100 km/h). 2 LITRE TURBO HDI
CHASSIS CAB
Model codes: 290C 290M 330C 330M 330L
¥ Kerb weight 1600 1610 1600 1610 1625
¥ Gross vehicle weight (GVW) 2900 2900 3300 3300 3300
¥ Payload 1300 1290 1700 1690 1675
¥ Gross train weight (GTW)* Ð Ð Ð Ð Ð
¥ Unbrakd trailer 750 750 750 750 750
¥ Braked trailer (within GTW) 1600 1600 1600 1600 1600
Page 168 of 180
05-05-2003

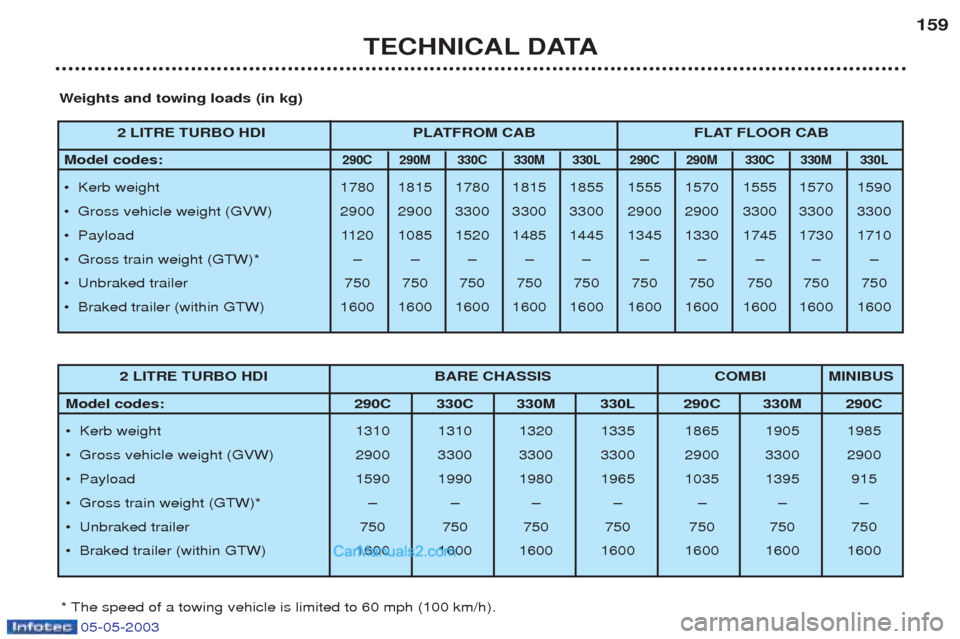

TECHNICAL DATA159
W eights and towing loads (in kg)
* The speed of a towing vehicle is limited to 60 mph (100 km/h). 2 LITRE TURBO HDI BARE CHASSIS COMBI MINIBUS
Model codes: 290C 330C 330M 330L 290C 330M 290C
¥ Kerb weight 1310 1310 1320 1335 1865 1905 1985
¥ Gross vehicle weight (GVW) 2900 3300 3300 3300 2900 3300 2900
¥ Payload 1590 1990 1980 1965 1035 1395 915
¥ Gross train weight (GTW)* Ð Ð Ð Ð Ð Ð Ð
¥ Unbraked trailer 750 750 750 750 750 750 750
¥ Braked trailer (within GTW) 1600 1600 1600 1600 1600 1600 1600
2 LITRE TURBO HDI PLATFROM CAB FLAT FLOOR CAB
Model codes:
290C 290M 330C 330M 330L 290C 290M 330C 330M 330L
¥ Kerb weight 1780 1815 1780 1815 1855 1555 1570 1555 1570 1590
¥ Gross vehicle weight (GVW) 2900 2900 3300 3300 3300 2900 2900 3300 3300 3300
¥ Payload 1120 1085 1520 1485 1445 1345 1330 1745 1730 1710
¥ Gross train weight (GTW)* Ð ÐÐÐÐ ÐÐ ÐÐ Ð
¥ Unbraked trailer 750 750 750 750 750 750 750 750 750 750
¥ Braked trailer (within GTW) 1600 1600 1600 1600 1600 1600 1600 1600 1600 1600
Page 169 of 180
05-05-2003

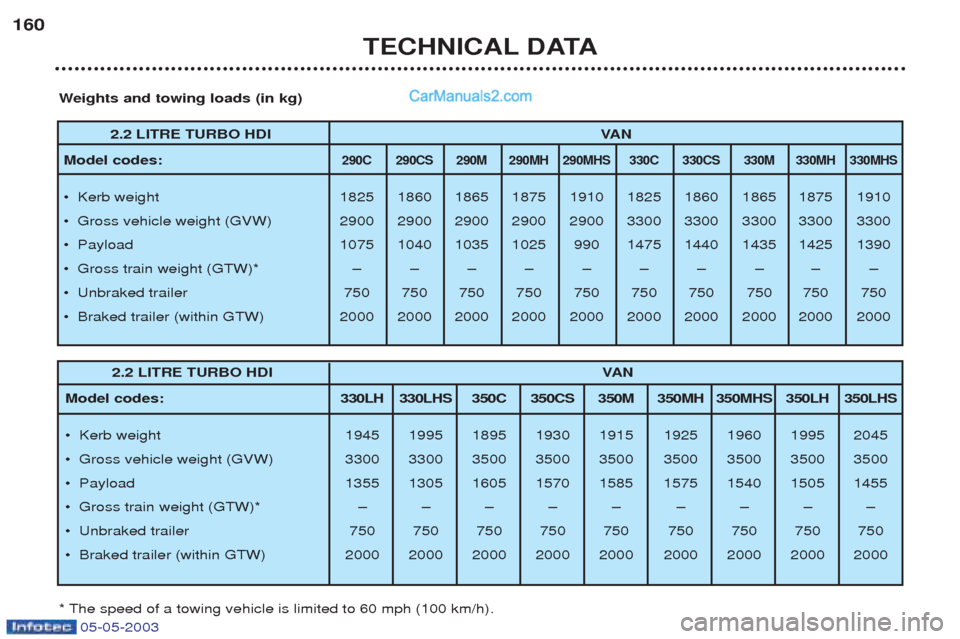

TECHNICAL DATA
160
2.2 LITRE TURBO HDI
VAN
Model codes:
290C 290CS 290M 290MH 290MHS 330C 330CS 330M 330MH 330MHS
¥ Kerb weight 1825 1860 1865 1875 1910 1825 1860 1865 1875 1910
¥ Gross vehicle weight (GVW) 2900 2900 2900 2900 2900 3300 3300 3300 3300 3300
¥ Payload 1075 1040 1035 1025 990 1475 1440 1435 1425 1390
¥ Gross train weight (GTW)* Ð Ð Ð Ð Ð Ð Ð Ð Ð Ð
¥ Unbraked trailer 750 750 750 750 750 750 750 750 750 750
¥ Braked trailer (within GTW) 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000
W eights and towing loads (in kg)
* The speed of a towing vehicle is limited to 60 mph (100 km/h).
2.2 LITRE TURBO HDI VAN
Model codes: 330LH 330LHS 350C 350CS 350M 350MH 350MHS 350LH 350LHS
¥ Kerb weight 1945 1995 1895 1930 1915 1925 1960 1995 2045
¥ Gross vehicle weight (GVW) 3300 3300 3500 3500 3500 3500 3500 3500 3500
¥ Payload 1355 1305 1605 1570 1585 1575 1540 1505 1455
¥ Gross train weight (GTW)* ÐÐÐÐÐ ÐÐÐÐ
¥ Unbraked trailer 750 750 750 750 750 750 750 750 750
¥ Braked trailer (within GTW) 2000 2000 2000 2000 2000 2000 2000 2000 2000
