PEUGEOT BOXER 2003 User Guide

Moving Off With the engine running, to move
off from position P:
☞ It is essential to press the
brake pedal to exit position P,
☞ Select the function R, D or M,
then gradually release thepressure on the brake pedal;
the vehicle will move off
immediately.
Y ou can also move off from posi-
tion N:
☞ Release the handbrake, withyour foot on the brake.
☞ Select function R, D or M, then
gradually release the pressureon the brake pedal; the vehicle
will move off immediately.
When the engine is idlingwith the brakes notapplied, if function R, Dor M is selected, the
vehicle moves without the acce-lerator being pressed. For this reason, do not leave
children unsupervised inside the vehicle, with theengine running .
10YOUR BOXER AT A GLANCE
AUTOMATIC GEARBOX "PORSCHE TIPTRONIC SYSTEM"
The four-speed automaticgearbox offers a choice between the comfort of
automatic integral regulation enhanced by a snow programme , or the
pleasure of manual gear changing .
Gear selection gate ☞ Move the lever in the gate to select one of the functions. Once the function is selected, the indicator light for that function is dis- played on the instrument panel screen.
W: snow programme.
P ark: to immobilise the vehicle or to start the
engine , with the handbrake on or off.
R everse: to reverse(select this function with the
vehicle stationary and the engine at idle).
N eutral: to start the engine or to park, with the
handbrake on. Note : if position Nis engaged by mistake while the
car is moving, allow the engine to return to idling speed before engaging function Dto accelerate.
D rive: for automatic gear changing.
M anual: for manualgear changing.
To change the four gearsmanually:
☞ Push the lever to the +symbol to change up a gear and pull the handle
towards the -symbol to change down a gear.
Note: the W(snow) programme does not operate when in manual mode.
122
05-05-2003

05-05-2003
1111
N¡ Symbol Function
HEATING / AIR CONDITIONING
92
Air intake control.
1
Air flow adjustment.
2
Rear air blower (additional heating).
3
Air distribution adjustment.
4 T
emperature
adjustment.
5 Air conditioning control.
6
YOUR BOXER AT A GLANCE

05-05-2003
12YOUR BOXER AT A GLANCE

05-05-2003
INTERIOR FITTINGS
1. STORAGE COMPARTMENTS IN THE DOORSA. Armrest.
B. Bottle holder.
C. Storage compartment.
2. GRAB HANDLE This is positioned for the centre front passenger.
3. SUN VISORS The sun visors have pockets for storing docu- ments.
4. WRITING TABLE (Folding) The table is in the centre of the instrument panel. Lift the table Dat the clip Fto open it.
The clip Fsecures documents.
To fold the table D, press the centre of bar Eand
fold the table.Note: the writing table is fixed if your vehicle is
fitted with a passenger air bag.
5. GLOVE BOX This has a lock.
To open the glove box, lift the handle. 6. LIGHTER
7. ASHTRAY
Pull the cover to open the ashtray.
To empty it, after opening, remove it by pulling
upwards.
8. 12 VOLT ACCESSORIES SOCKET This is at the bottom of the centre console.
9. STORAGE TRAY UNDER THE DRIVER AND PASSENGER SEAT
10. TABLE (2-seat bench seat) The table is in the seat back of the 2-seat bench seat. Pull the handle at the top of the seat back to fold the table. It has:- a document clip,
- a pen holder,- two can holders.
13
121
YOUR BOXER AT A GLANCE

05-05-2003
PEUGEOT SERVICING Your vehicle benefits from extended service intervals.
¥ For petrol engines: every 20,000 miles (30,000 km) or every two years.
¥ For dual-fuel Petrol or LPG*/UNG** engines: every 20,000 miles (30,000 km) or every two years. W arning, LPG/UNG checks every 10,000 miles (15,000 km) or every year.
¥ For direct injection diesel engines: every 12,000 miles (20,000 km) or every two years.
The extension of the service intervals means that the engine oil level must bechecked regularly: topping up of the oil between oil changes is normal. This is why the PEUGEOT network is offering you an intermediate service between regular services.
The date of this visit is not shown by the service indicator. It is to be carriedout at least every 10,000 miles (15,000 km) for petrol engines and dual-fuelpetrol or LPG/UNG engines; every 6,000 miles (10,000 km) for direct injectiondiesel engines. A Peugeot dealer will carry out a quick check and top up the levels if
necessary (oil, coolant, windscreen wash up to 2 litres).If the oil level is too low there is a risk of serious damage to the engine : check the engine oil level at least every 2,000 to 3,000 miles (3 000 to 5 000 km),depending on the conditions of use. This extended servicing has been made possible by modifications to our vehicles and to the lubricants:
THUS IT IS ESSENTIAL TO ONLY USE ENGINE LUBRICANTS THAT ARE
SUITABLE AND RECOMMENDED BY THE MANUFACTURER. * Liquid Petroleum Gas. ** Urban Natural Gas.
PEUGEOT SERVICING
18
SERVICE INDICATOR This informs you of the distance remaining to the service in conformi-ty with the manufacturer's servicingschedule. Operation For a few seconds after the ignition has been switched on, the spannersymbolising a service lights up; thedisplay for the total distance recordertells you the distance remaining befo-re your next service.The values displayed by the serviceindicator before the next service arethe following: 20 000 km, 2 000 km,200 km, 100 km and 50 km. Example:2 000 km remain before
the next service is due. When the ignition is switched on and for a fewseconds, the display shows:

05-05-2003
Zero re-set Your PEUGEOT dealer carries out
this operation after each service.
However, if you carry out the service yourself, the re-set procedure is asfollows: ☞ Switch off the ignition,
☞ Press and hold the trip recorder re-set button,
☞ Switch on the ignition.
The distance remaining to the nextservice flashes. ☞ Press and hold the trip distance recorder zero reset button untilthe display indicates " =0" and the
service spanner disappears.
Important: after this operation, if you
wish to disconnect the battery, lockthe vehicle and wait for at least fiveminutes, otherwise the zero re-setwill not be registered. MAINTENANCE OF PARTS SUBJECT TO WEAR
AND A CHECK OF
CONSUMABLES Certain essential components on your vehicle are subject to checks at specific frequencies. ¥ The brake fluid is to be replaced at a maximum of every 36,000/40,000 miles
(60 000km) or every 2 years;
¥ The coolant is to be replaced every 72,000/80,000 miles (120 000 km) or
every 5 years;
¥ The passenger compartment filter must be checked at each service
by a PEUGEOT dealer (services and intermediate visits) or more often,
depending on the environment (dust, pollution, etc.);
¥ Replacement of the timing belt: contact a PEUGEOT dealer.
¥ Air bags and pretensioning parts on seat belts must be checked every
10 years .
¥ The check on tyre pressuresmust be carried out cold at least once a month.
PEUGEOT SERVICING 19

05-05-2003
MILES (KM) 20 000 (30 000) 40 000 (60 000) 60 000 (90 000)
THE SERVICE LEVELS Each vehicle has its own servicing cycle, based upon the engine type.
This cycle consists of alternating 3 types of service, A, B and C, intermediate visits and a few additional operations specific to your vehicle; these correspond to key stages in the life of your vehicle. At your first and each subsequent service, your dealer will advise you of the type and content of the next service due.
PEUGEOT SERVICING
20
MAINTENANCE CYCLE FOR YOUR BOXER PETROL ENGINE
Service every 2 years or 20 000 miles (30 000 km) maximum
1st service at 6 000 miles (10 000 km) or 6 months*.
This is necessary in order to benefit from the warranty.
The services are to be carried out with at least synthetically based oil.
Synthetic oil (5W40) orFuel economy oil (5W30) may also be used.
Arduous conditions of use (see corresponding section).
* Whichever comes first.
Intermediate visit included in the fixed interval services.
80 000 (120 000) 100 000 (150 000) 120 000 (180 000) 140 000 (210 000) 160 000 (240 000)

05-05-2003
PEUGEOT SERVICING21
MAINTENANCE CYCLE FOR YOUR BOXER PETROL/LPG OR UNG ENGINE
Service every 2 years or 20 000 miles (30 000 km) maximum + LPG/UNG checks every 10 000 miles
(15 000 km) or every year.
LPG/UNG checks: - union sealing check.- LPG/UNG autodiagostic memories check.- adjustment of the pressure relief valve pressures. The services are to be carried out with at least synthetically based oil.
Synthetic oil (5W40) orFuel economy oil (5W30) may also be used.
Arduous conditions of use (see corresponding section).
* Whichever comes first.
Intermediate visit included in the fixed interval services + LPG/UNG checks.
MILES (KM) 20 000 (30 000) 40 000 (60 000) 60 000 (90 000)
1st service at 6 000 miles (10 000 km)
or 6 months*.
This is necessary in order to benefit from the warranty.
80 000 (120 000) 100 000 (150 000) 120 000 (180 000) 140 000 (210 000) 160 000 (240 000)
+ LPG/UNG checks + LPG/UNG checks
+ LPG/UNG solenoid valve filter replacement + LPG/UNG checks
+ LPG/UNG checks
+ LPG/UNG solenoid valve filter replacement + LPG/UNG checks
+ LPG/UNG checks
+ LPG/UNG solenoid valve filter replacement + LPG/UNG checks
+ LPG/UNG checks
+ LPG/UNG solenoid valve filter replacement

05-05-2003
PEUGEOT SERVICING
22
MAINTENANCE CYCLE FOR YOUR BOXER TURBO DIESEL HDI 2.0/2.2 LITRE ENGINE
Service every 2 years or 12 000 miles (20 000 km) maximum
Arduous conditions of use (see corresponding section)
* Whichever comes first.
Intermediate visit included in the fixed interval services.
MILES (KM)
12 000 (20 000) 24 000 (40 000) 36 000 (60 000) 48 000 (80 000) 60 000 (100 000)
First service at
6 000 miles (10 000 km) or 6 months*.
This is necessary
in order to benefit from the warranty
72 000 (120 000) 84 000 (140 000) 96 000 (160 000) 108 000 (180 000) 120 000 (200 000) 132 000 (220 000) 144 000 (240 000)
The services are to be carried out with at least synthetically based oil.
Synthetic oil (5W40) orFuel economy oil (5W30) may also be used.

05-05-2003
PEUGEOT SERVICING23

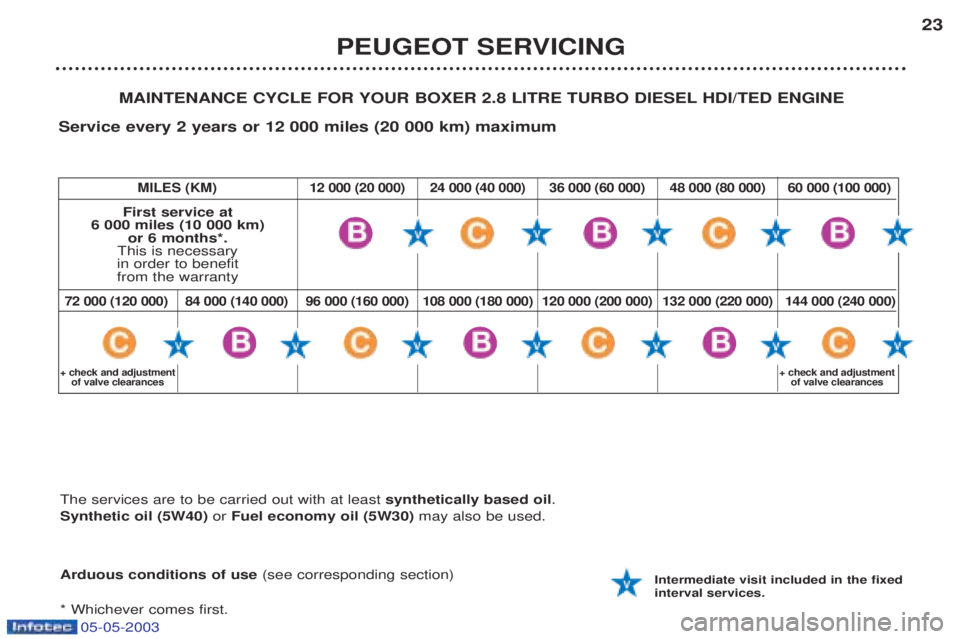

MAINTENANCE CYCLE FOR YOUR BOXER 2.8 LITRE TURBO DIESEL HDI/TED ENGINE
Service every 2 years or 12 000 miles (20 000 km) maximum
Arduous conditions of use (see corresponding section)
* Whichever comes first.
Intermediate visit included in the fixed interval services.
The services are to be carried out with at least
synthetically based oil.
Synthetic oil (5W40) orFuel economy oil (5W30) may also be used.
MILES (KM) 12 000 (20 000) 24 000 (40 000) 36 000 (60 000) 48 000 (80 000) 60 000 (100 000)
First service at
6 000 miles (10 000 km) or 6 months*.
This is necessary
in order to benefit from the warranty
72 000 (120 000) 84 000 (140 000) 96 000 (160 000) 108 000 (180 000) 120 000 (200 000) 132 000 (220 000) 144 000 (240 000)
+ check and adjustment of valve clearances + check and adjustment
of valve clearances
