Page 171 of 180

PEUGEOT BOXER 2003 Owners Manual 05-05-2003 TECHNICAL DATA 162 2.2 LITRE TURBO HDI FLAT FLOOR CAB Model codes: 330C 330M 330L 350C 350M 350L ¥ Kerb weight 1625 1640 1660 1675 1690 1710 ¥ Gross vehicle weight (GVW) 3300 3300 3300

Page 172 of 180

PEUGEOT BOXER 2003 Owners Manual 05-05-2003 TECHNICAL DATA163 W eights and towing loads (in kg) * The speed of a towing vehicle is limited to 60 mph (100 km/h). 2.2 LITRE TURBO HDI COMBI MINIBUS Model codes: 290C 330M 330MH 290C 33

Page 173 of 180

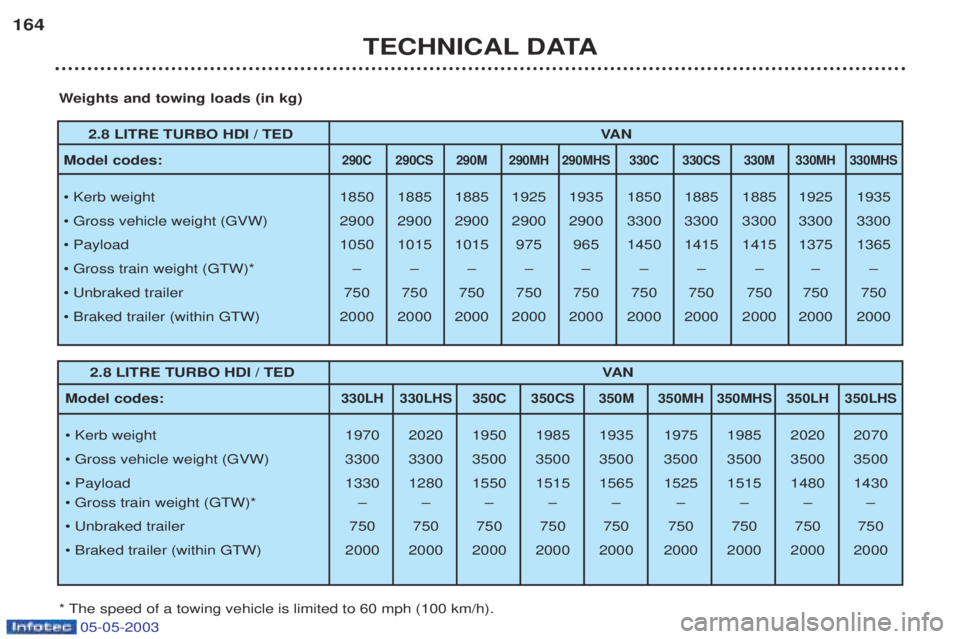

PEUGEOT BOXER 2003 Owners Manual 05-05-2003 TECHNICAL DATA 164 2.8 LITRE TURBO HDI / TED VAN Model codes: 290C 290CS 290M 290MH 290MHS 330C 330CS 330M 330MH 330MHS ¥ Kerb weight 1850 1885 1885 1925 1935 1850 1885 1885 1925 1935 ¥

Page 174 of 180

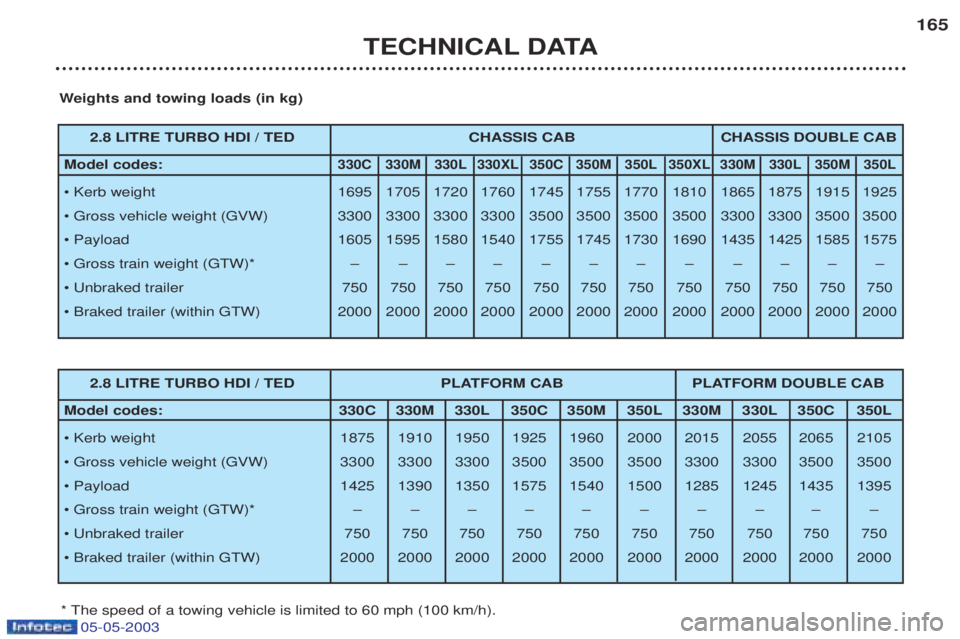

PEUGEOT BOXER 2003 Owners Manual 05-05-2003 TECHNICAL DATA165 W eights and towing loads (in kg) * The speed of a towing vehicle is limited to 60 mph (100 km/h). 2.8 LITRE TURBO HDI / TED CHASSIS CAB CHASSIS DOUBLE CAB Model codes: 3

Page 175 of 180

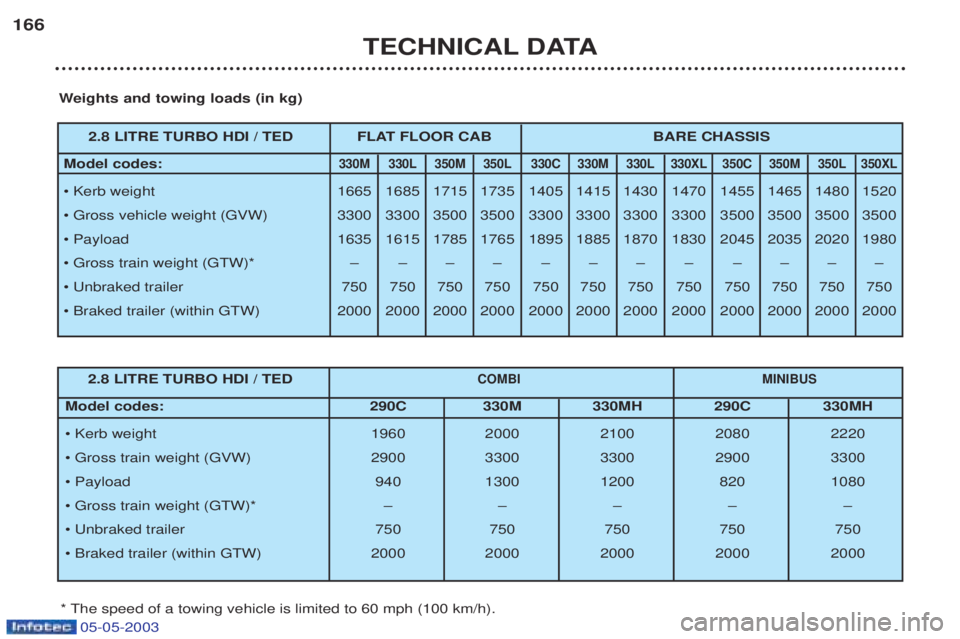

PEUGEOT BOXER 2003 Owners Manual 05-05-2003 TECHNICAL DATA 166 Weights and towing loads (in kg) * The speed of a towing vehicle is limited to 60 mph (100 km/h). 2.8 LITRE TURBO HDI / TED FLAT FLOOR CAB BARE CHASSIS Model codes: 330M

Page 176 of 180

PEUGEOT BOXER 2003 Owners Manual 05-05-2003 TECHNICAL DATA 168 EXTERIOR DIMENSIONS (in mm)

Page 177 of 180

PEUGEOT BOXER 2003 Owners Manual 05-05-2003 TECHNICAL DATA169 PLATFORM CHASSIS VA N CAB DOUBLE CAB DOUBLE FLAT FLOOR CAB CAB CAB CCSMMH MHS LH LHS C M L M L C M L XL M L C M L A 2850 2850 3200 3200 3200 3700 3700 2850 3200 3700 3200

Page 178 of 180

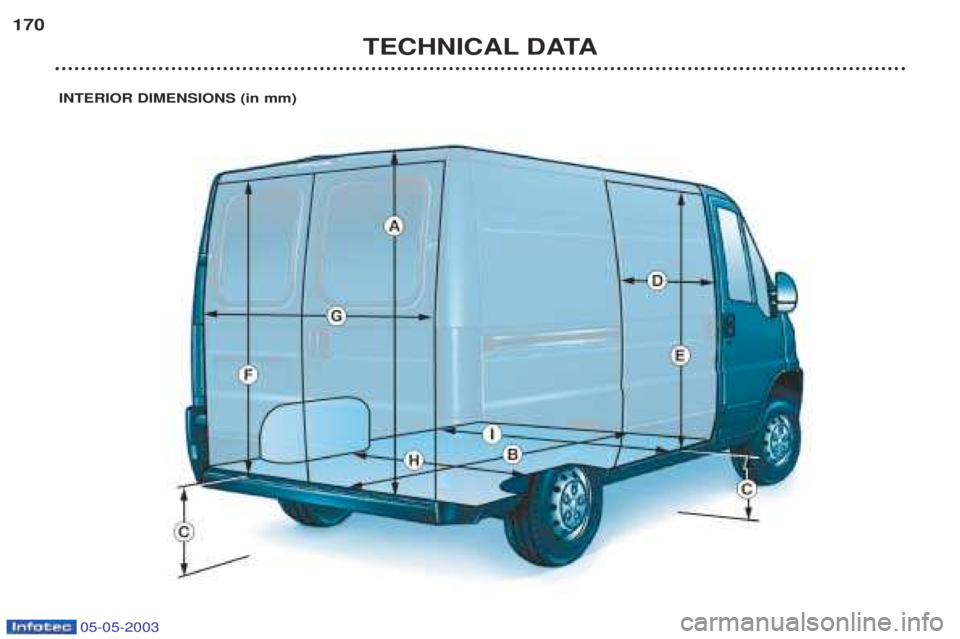

PEUGEOT BOXER 2003 Owners Manual 05-05-2003 TECHNICAL DATA 170 INTERIOR DIMENSIONS (in mm)

Page 179 of 180

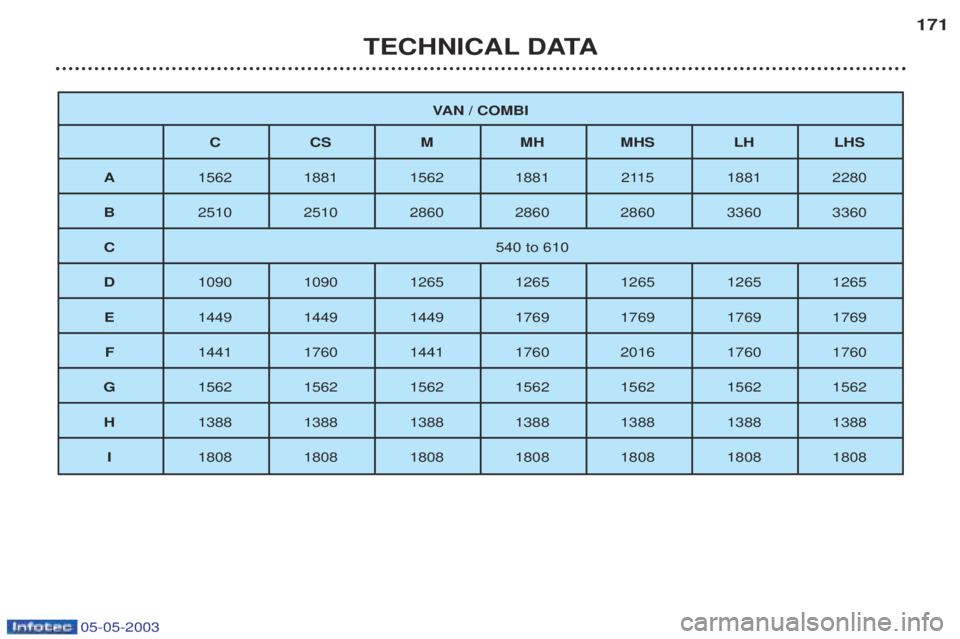

PEUGEOT BOXER 2003 Owners Manual 05-05-2003 TECHNICAL DATA171 V AN / COMBI CC SMM HMHS LH LHS A 1562 1881 1562 1881 2115 1881 2280 B 2510 2510 2860 2860 2860 3360 3360 C 540 to 610 D 1090 1090 1265 1265 1265 1265 1265 E 1449 1449 144

Page 180 of 180

PEUGEOT BOXER 2003 Owners Manual 05-05-2003 TECHNICAL DATA 172 THE IDENTIFICATION FEATURES OF YOUR BOXER A. Manufacturers plate.Plate Ais located to the left of the bonnet release system. B. Serial number (located on the left, by
