112

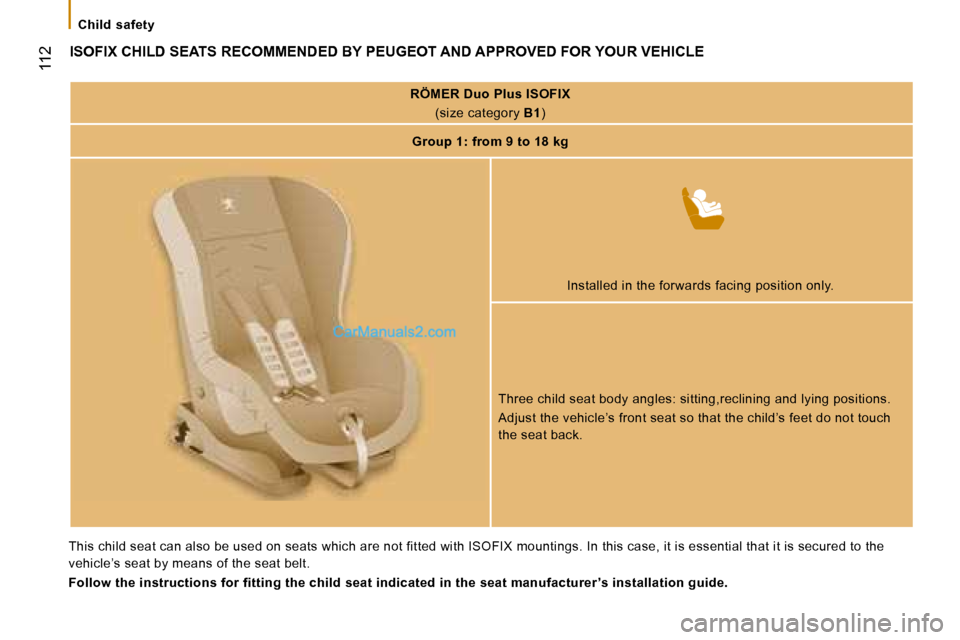

ISOFIX CHILD SEATS RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
RÖMER Duo Plus ISOFIX(size category B1)
Group 1: from 9 to 18 kg
Installed in the forwards facing position only.
Three child seat body angles: sitting,reclining and lying positions.
Adjust the vehicle’s front seat so that the child’s feet do not touch
the seat back.
This child seat can also be used on seats which are not fitted with ISOFIX mountings. In this case, it is essential that it is secured to the
vehicle’s seat by means of the seat belt.
Follow the instructions for fitting the child seat indicated in the seat manufacturer ’s installation g uide.
Child safety

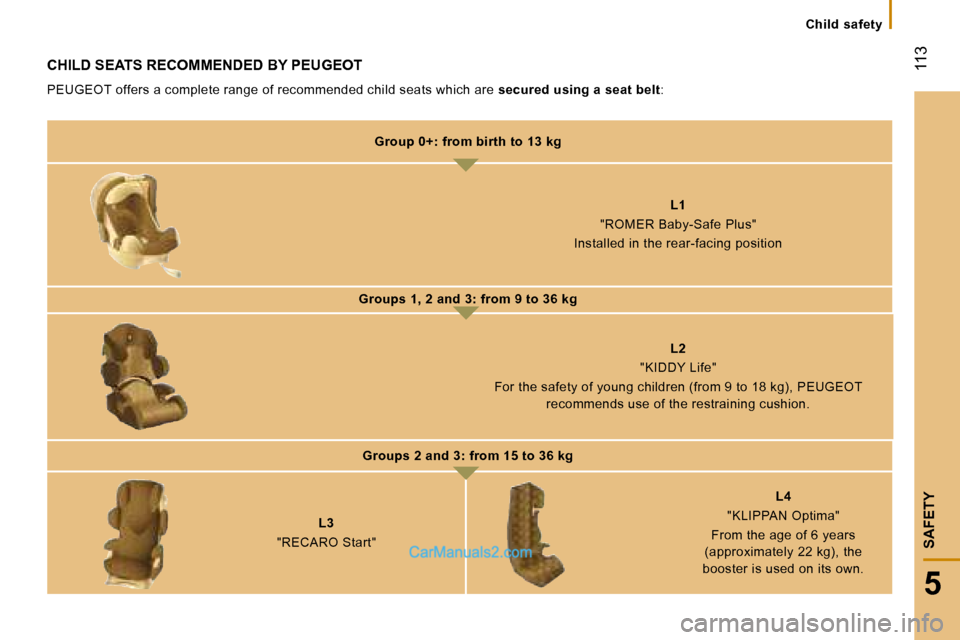

CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are secured using a seat belt :
Group 0+: from birth to 13 kg
L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position
Groups 1, 2 and 3: from 9 to 36 kg L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), PEUGEOT
recommends use of the restraining cushion.
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start" L4
"KLIPPAN Optima"
From the age of 6 years
(approximately 22 kg), the
booster is used on its own.
113
5
SAFETY
Child safety

114

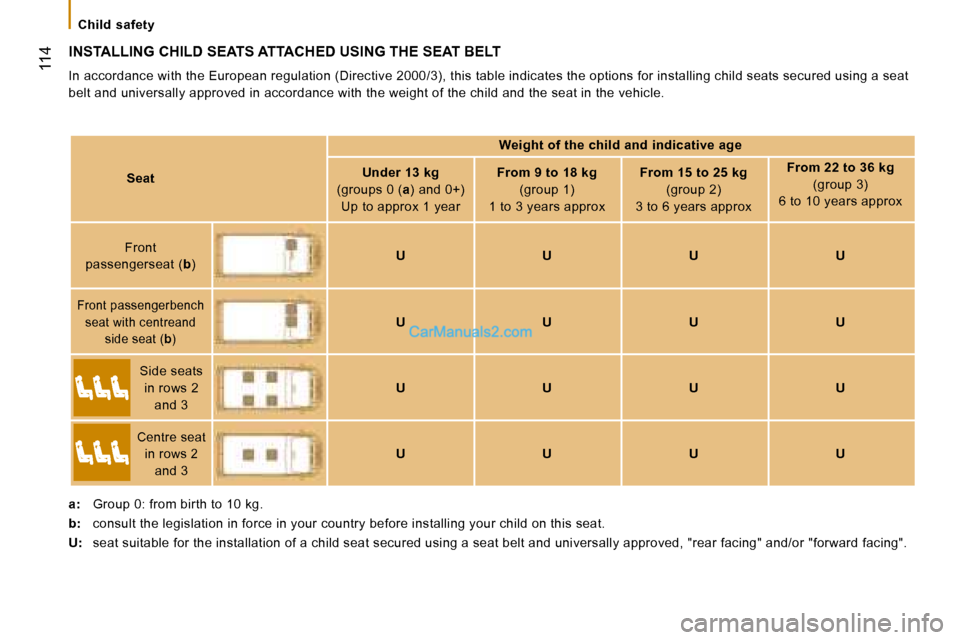

INSTALLING CHILD SEATS ATTACHED USING THE SEAT BELT
In accordance with the European regulation (Directive 2000/3), this table indicates the options for installing child seats secured using a seat
belt and universally approved in accordance with th e weight of the child and the seat in the vehicle.
Seat Weight of the child and indicative age
Under 13 kg
(groups 0 ( a) and 0+)
Up to approx 1 year From 9 to 18 kg

(group 1)
1 to 3 years approx From 15 to 25 kg

(group 2)
3 to 6 years approx From 22 to 36 kg

(group 3)
6 to 10 years approx
Front
passengerseat ( b) U U U U
Front passengerbench
seat with centreand side seat ( b)
U U U U
Side seats in rows 2 and 3 U U U U
Centre seat
in rows 2
and 3
U U U U
a: Group 0: from birth to 10 kg.
b: consult the legislation in force in your country b efore installing your child on this seat.
U: seat suitable for the installation of a child seat secured using a seat belt and universally approved , "rear facing" and/or "forward facing".
Child safety

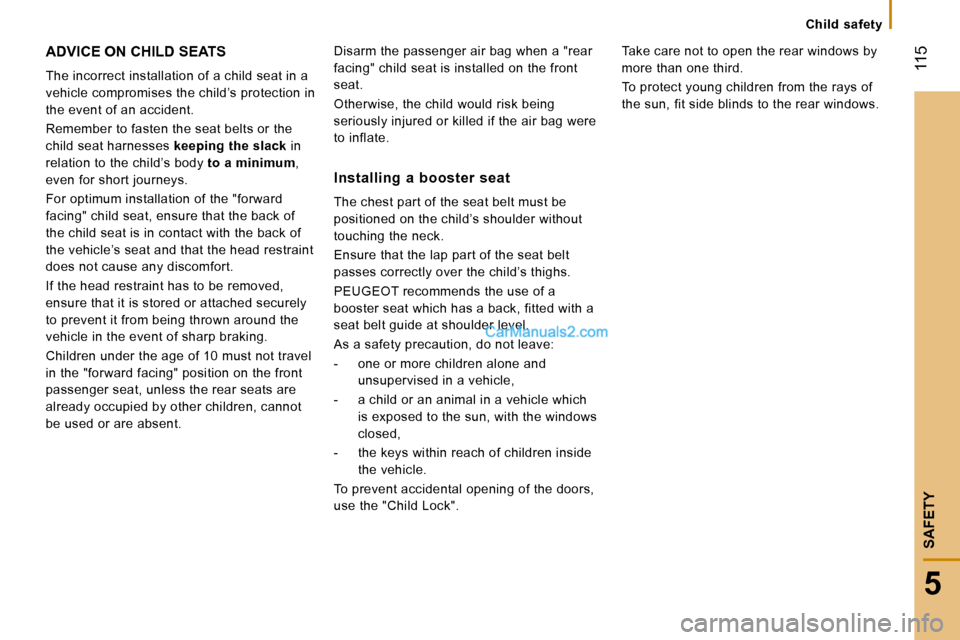

ADVICE ON CHILD SEATS
The incorrect installation of a child seat in a
vehicle compromises the child’s protection in
the event of an accident.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack in
relation to the child’s body to a minimum,
even for short journeys.
For optimum installation of the "forward
facing" child seat, ensure that the back of
the child seat is in contact with the back of
the vehicle’s seat and that the head restraint
does not cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached securely
to prevent it from being thrown around the
vehicle in the event of sharp braking.
Children under the age of 10 must not travel
in the "forward facing" position on the front
passenger seat, unless the rear seats are
already occupied by other children, cannot
be used or are absent. Disarm the passenger air bag when a "rear
facing" child seat is installed on the front
seat.
Otherwise, the child would risk being
seriously injured or killed if the air bag were
to inflate.
Installing a booster seat
The chest part of the seat belt must be
positioned on the child’s shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child’s thighs.
PEUGEOT recommends the use of a
booster seat which has a back, fitted with a
seat belt guide at shoulder level.
As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with the windows
closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the doors,
use the "Child Lock". Take care not to open the rear windows by
more than one third.
To protect young children from the rays of
the sun, fit side blinds to the rear windows. 115
5
SAFETY
Child safety

116

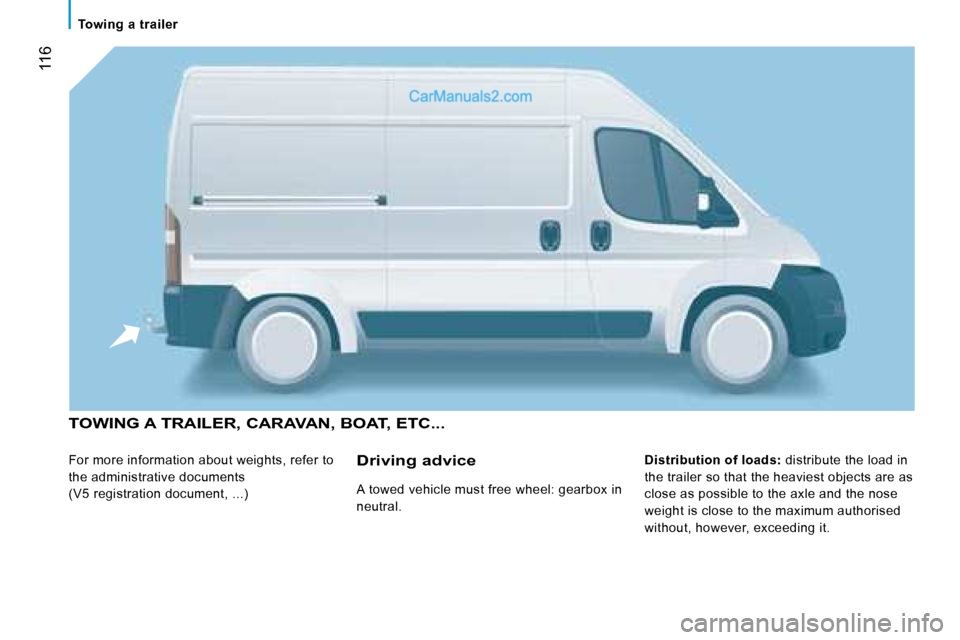

Towing a trailer
TOWING A TRAILER, CARAVAN, BOAT, ETC...
For more information about weights, refer to
the administrative documents
(V5 registration document, ...)Distribution of loads:
distribute the load in
the trailer so that the heaviest objects are as
close as possible to the axle and the nose
weight is close to the maximum authorised
without, however, exceeding it.Driving advice
A towed vehicle must free wheel: gearbox in
neutral.

117
6
ACCESSORIES
Towing a trailer

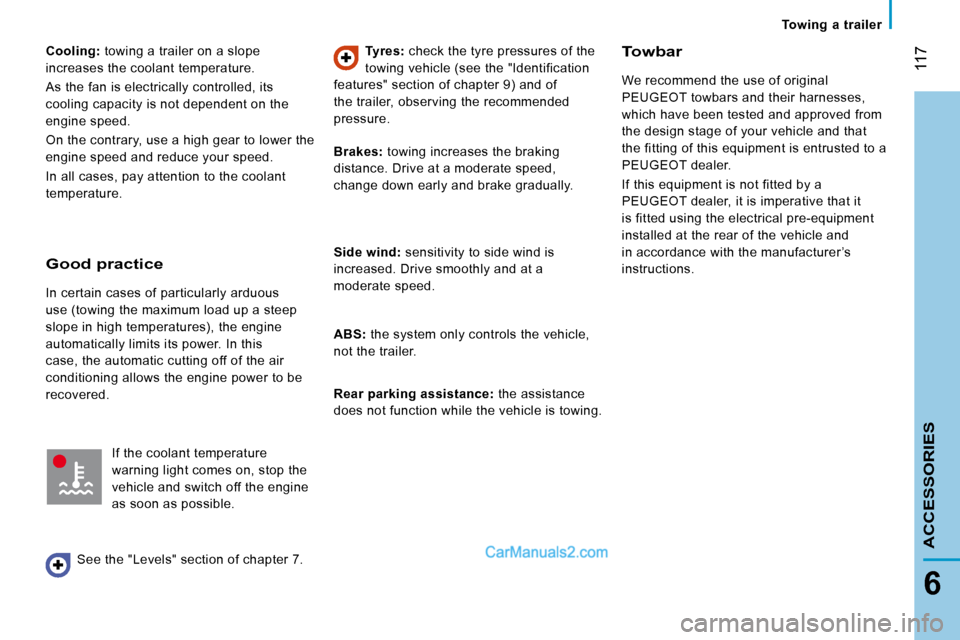

Cooling: towing a trailer on a slope
increases the coolant temperature.
As the fan is electrically controlled, its
cooling capacity is not dependent on the
engine speed.
On the contrary, use a high gear to lower the
engine speed and reduce your speed.
In all cases, pay attention to the coolant
temperature. Tyres:
check the tyre pressures of the
towing vehicle (see the "Identification
features" section of chapter 9) and of
the trailer, observing the recommended
pressure.Towbar
We recommend the use of original
PEUGEOT towbars and their harnesses,
which have been tested and approved from
the design stage of your vehicle and that
the fitting of this equipment is entrusted to a
PEUGEOT dealer.
If this equipment is not fitted by a
PEUGEOT dealer, it is imperative that it
is fitted using the electrical pre-equipment
installed at the rear of the vehicle and
in accordance with the manufacturer ’s
instructions.
Good practice
In certain cases of particularly arduous
use (towing the maximum load up a steep
slope in high temperatures), the engine
automatically limits its power. In this
case, the automatic cutting off of the air
conditioning allows the engine power to be
recovered.
If the coolant temperature
warning light comes on, stop the
vehicle and switch off the engine
as soon as possible.
See the "Levels" section of chapter 7. Brakes:
towing increases the braking
distance. Drive at a moderate speed,
change down early and brake gradually.
Side wind: sensitivity to side wind is
increased. Drive smoothly and at a
moderate speed.
ABS: the system only controls the vehicle,
not the trailer.
Rear parking assistance: the assistance
does not function while the vehicle is towing.

Equipment
118

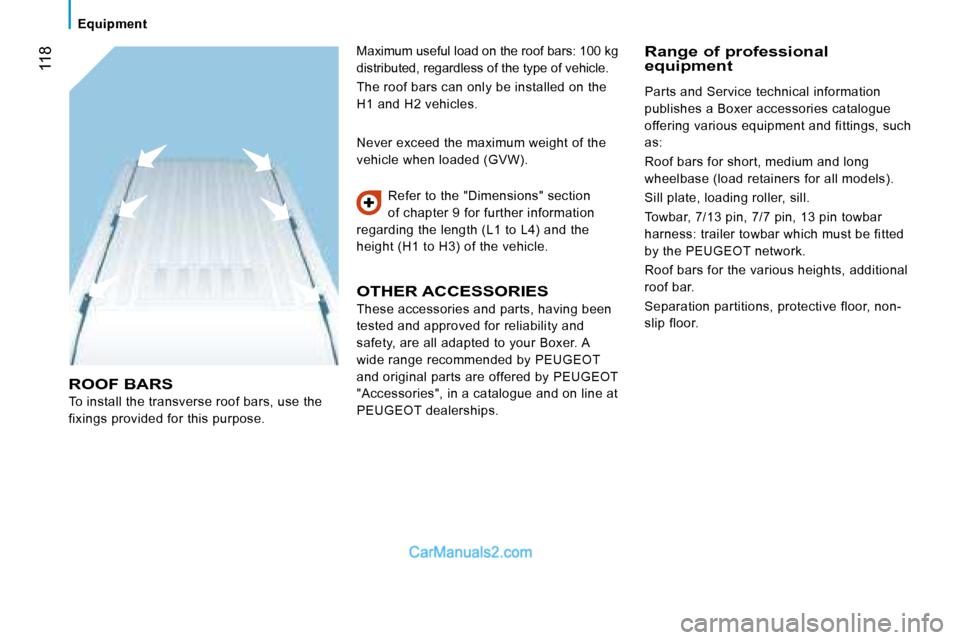

ROOF BARS
To install the transverse roof bars, use the
fixings provided for this purpose.Refer to the "Dimensions" section
of chapter 9 for further information
regarding the length (L1 to L4) and the
height (H1 to H3) of the vehicle.
Never exceed the maximum weight of the
vehicle when loaded (GVW).
OTHER ACCESSORIES
These accessories and parts, having been
tested and approved for reliability and
safety, are all adapted to your Boxer. A
wide range recommended by PEUGEOT
and original parts are offered by PEUGEOT
"Accessories", in a catalogue and on line at
PEUGEOT dealerships.
Range of professional
equipmentMaximum useful load on the roof bars: 100 kg
distributed, regardless of the type of vehicle.
The roof bars can only be installed on the
H1 and H2 vehicles.
Parts and Service technical information
publishes a Boxer accessories catalogue
offering various equipment and fittings, such
as:
Roof bars for short, medium and long
wheelbase (load retainers for all models).
Sill plate, loading roller, sill.
Towbar, 7/13 pin, 7/7 pin, 13 pin towbar
harness: trailer towbar which must be fitted
by the PEUGEOT network.
Roof bars for the various heights, additional
roof bar.
Separation partitions, protective floor, non-
slip floor.

Equipment
118
ROOF BARS
To install the transverse roof bars, use the
fixings provided for this purpose.Refer to the "Dimensions" section
of chapter 9 for further information
regarding the length (L1 to L4) and the
height (H1 to H3) of the vehicle.
Never exceed the maximum weight of the
vehicle when loaded (GVW).
OTHER ACCESSORIES
These accessories and parts, having been
tested and approved for reliability and
safety, are all adapted to your Boxer. A
wide range recommended by PEUGEOT
and original parts are offered by PEUGEOT
"Accessories", in a catalogue and on line at
PEUGEOT dealerships.
Range of professional
equipmentMaximum useful load on the roof bars: 100 kg
distributed, regardless of the type of vehicle.
The roof bars can only be installed on the
H1 and H2 vehicles.
Parts and Service technical information
publishes a Boxer accessories catalogue
offering various equipment and fittings, such
as:
Roof bars for short, medium and long
wheelbase (load retainers for all models).
Sill plate, loading roller, sill.
Towbar, 7/13 pin, 7/7 pin, 13 pin towbar
harness: trailer towbar which must be fitted
by the PEUGEOT network.
Roof bars for the various heights, additional
roof bar.
Separation partitions, protective floor, non-
slip floor.

119
6
ACCESSORIES
Equipment

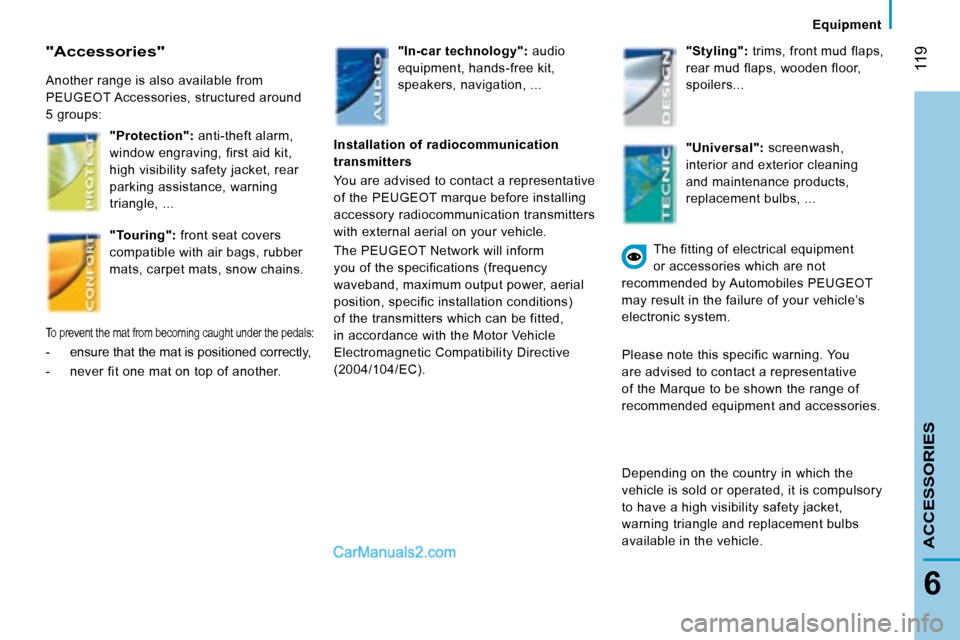

"Accessories"
Another range is also available from
PEUGEOT Accessories, structured around
5 groups:"Protection": anti-theft alarm,
window engraving, first aid kit,
high visibility safety jacket, rear
parking assistance, warning
triangle, ...
"Touring": front seat covers
compatible with air bags, rubber
mats, carpet mats, snow chains.
To prevent the mat from becoming caught under the p edals:
- ensure that the mat is positioned correctly,
- never fit one mat on top of another. "In-car technology":
audio
equipment, hands-free kit,
speakers, navigation, ... "Styling":
trims, front mud flaps,
rear mud flaps, wooden floor,
spoilers...
Installation of radiocommunication
transmitters
You are advised to contact a representative
of the PEUGEOT marque before installing
accessory radiocommunication transmitters
with external aerial on your vehicle.
The PEUGEOT Network will inform
you of the specifications (frequency
waveband, maximum output power, aerial
position, specific installation conditions)
of the transmitters which can be fitted,
in accordance with the Motor Vehicle
Electromagnetic Compatibility Directive
(2004/104/EC). "Universal":
screenwash,
interior and exterior cleaning
and maintenance products,
replacement bulbs, ...
The fitting of electrical equipment
or accessories which are not
recommended by Automobiles PEUGEOT
may result in the failure of your vehicle’s
electronic system.
Please note this specific warning. You
are advised to contact a representative
of the Marque to be shown the range of
recommended equipment and accessories.
Depending on the country in which the
vehicle is sold or operated, it is compulsory
to have a high visibility safety jacket,
warning triangle and replacement bulbs
available in the vehicle.

120
On the inside
This operation must only be carried out with
the vehicle stationary and the driver ’s door
open.
Pull the lever on the side of the fascia panel
towards you.
On the outside
Push the lever located above the grille to the
right and raise the bonnet.
To close
Lower the bonnet and release it at the end
of its travel. Check that the bonnet is locked.
OPENING THE BONNET
Bonnet strut
Unclip the strut and tilt it to insert it in the
first notch, then the second.
Before closing the bonnet, put the strut back
in its housing.If the bonnet is not closed
correctly, this warning light comes
on the instrument panel.
Opening the bonnet
