Peugeot Boxer 2008 Owner's Manual

153
9
TECHNICAL DATA
Diesel engines
DIESEL ENGINES AND GEARBOXES 2.2 HDi 100 2.2 HDi 120 3 HDi 160
Gearbox Manual Manual
Gears 5 6 6
Power (bhp) 100 120 157
EU standard maximum power (kW) 74 88 115.5
Cubic capacity (cm 3
) 2 198 2 198 2 999
Bore x stroke (mm) 86 x 94.6 86 x 94.6 95.8 x 104
Max power engine speed (rpm) 2 900 3 500 3 600
EU standard max torque (daNm) 25 32 40
Max torque engine speed (rpm) 1 500 2 000 1 600
Fuel Diesel Diesel Diesel
Catalytic converter Yes Yes Yes
Engine oil capacity (in litres) 6.4 6.4 -

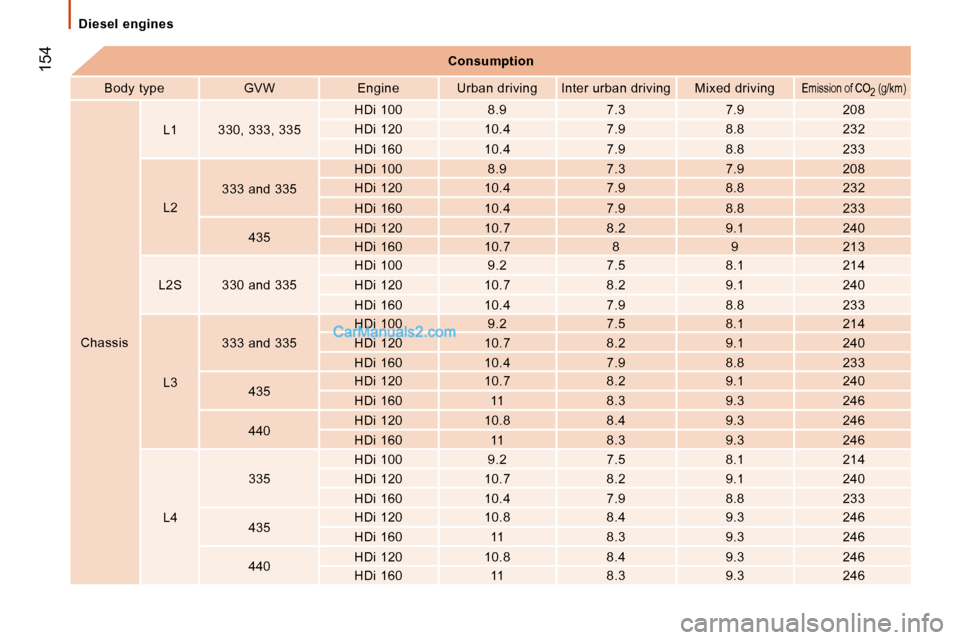

154
Diesel engines
Consumption
Body type GVW Engine Urban driving Inter urban driving M ixed driving
Emission of CO2 (g/km)
ChassisL1 330, 333, 335
HDi 100 8.9 7.3 7.9 208
HDi 120 10.4 7.9 8.8 232
HDi 160 10.4 7.9 8.8 233
L2 333 and 335 HDi 100 8.9 7.3 7.9 208
HDi 120 10.4 7.9 8.8 232
HDi 160 10.4 7.9 8.8 233
435 HDi 120 10.7 8.2 9.1 240
HDi 160 10.7 8 9 213
L2S 330 and 335 HDi 100 9.2 7.5 8.1 214
HDi 120 10.7 8.2 9.1 240
HDi 160 10.4 7.9 8.8 233
L3 333 and 335
HDi 100 9.2 7.5 8.1 214
HDi 120 10.7 8.2 9.1 240
HDi 160 10.4 7.9 8.8 233
435 HDi 120 10.7 8.2 9.1 240
HDi 160 11 8.3 9.3 246
440 HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246
L4 335
HDi 100 9.2 7.5 8.1 214
HDi 120 10.7 8.2 9.1 240
HDi 160 10.4 7.9 8.8 233
435 HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246
440 HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246

155
9
TECHNICAL DATA
Diesel engines
Consumption
Body type GVW Engine Urban driving Inter urban driving M ixed driving
Emission of CO2 (g/km)
Chassis
crew cab L2 333 and 335
HDi 100 9.2 7.5 8.1 214
HDi 120 10.7 8.2 9.1 240
HDi 160 10.8 8.1 9.1 241
L3 335
HDi 100 9.4 7.7 8.3 220
HDi 120 10.9 8.3 9.3 246
HDi 160 10.8 8.1 9.1 241
435 HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246
440 HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246
L4 435 HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246

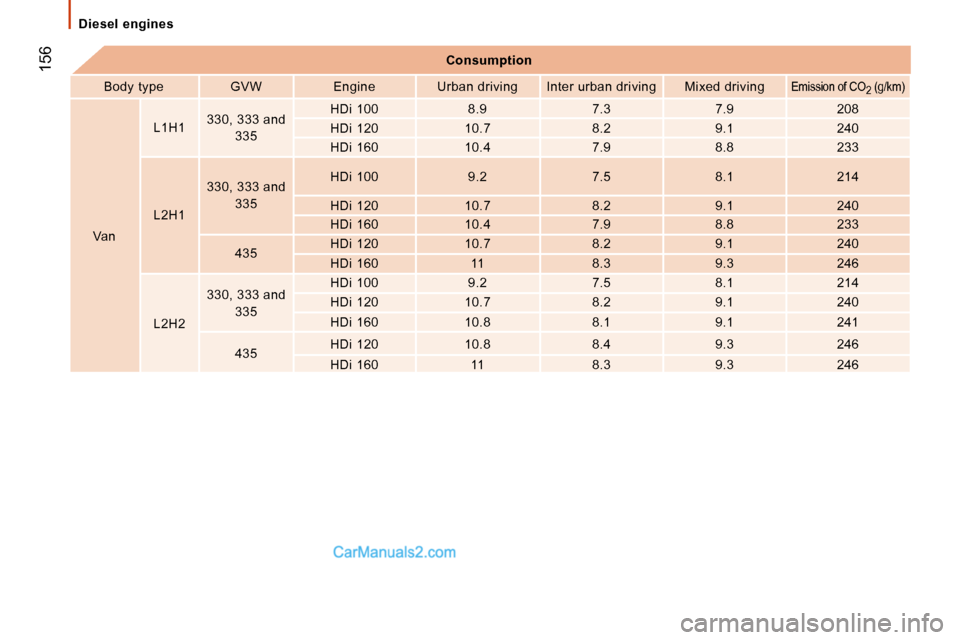

156
Diesel engines
Consumption
Body type GVW Engine Urban driving Inter urban driving M ixed driving
Emission of CO2 (g/km)
VanL1H1
330, 333 and
335 HDi 100 8.9 7.3 7.9 208
HDi 120 10.7 8.2 9.1 240
HDi 160 10.4 7.9 8.8 233
L2H1 330, 333 and
335 HDi 100 9.2 7.5 8.1 214
HDi 120 10.7 8.2 9.1 240
HDi 160 10.4 7.9 8.8 233
435 HDi 120 10.7 8.2 9.1 240
HDi 160 11 8.3 9.3 246
L2H2 330, 333 and
335 HDi 100 9.2 7.5 8.1 214
HDi 120 10.7 8.2 9.1 240
HDi 160 10.8 8.1 9.1 241
435 HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246

157
9
TECHNICAL DATA
Diesel engines
Consumption
Body type GVW Engine Urban driving Inter urban driving M ixed driving
Emission of CO2 (g/km)
VanL3H2
333 and 335
HDi 100 9.4 7.7 8.3 220
HDi 120 10.9 8.3 9.3 246
HDi 160 10.8 8.1 9.1 241
435 HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246
440 HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246
L3H3 333 and 335
HDi 100 9.4 7.7 8.3 220
HDi 120 10.9 8.3 9.3 246
HDi 160 10.8 8.1 9.1 241
435 HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246
440 HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246
L4H2 435
HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246
440 HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246
L4H3 435
HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246
440 HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246

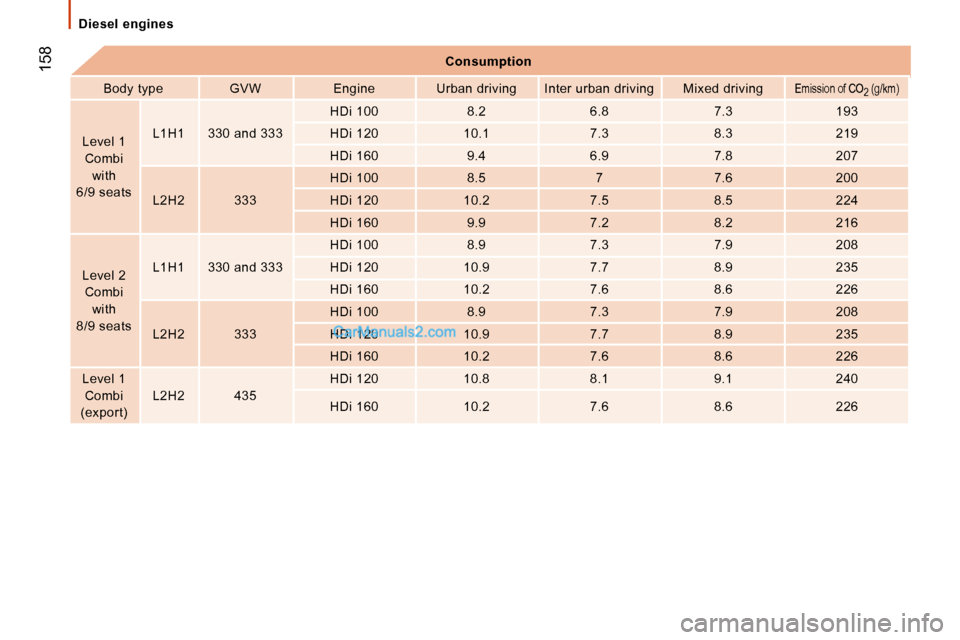

158
Diesel enginesConsumption
Body type GVW Engine Urban driving Inter urban driving M ixed driving
Emission of CO2 (g/km)
Level 1
Combi with
6/9 seats L1H1 330 and 333
HDi 100 8.2 6.8 7.3 193
HDi 120 10.1 7.3 8.3 219
HDi 160 9.4 6.9 7.8 207
L2H2 333 HDi 100 8.5 7 7.6 200
HDi 120 10.2 7.5 8.5 224
HDi 160 9.9 7.2 8.2 216
Level 2 Combi with
8/9 seats L1H1 330 and 333
HDi 100 8.9 7.3 7.9 208
HDi 120 10.9 7.7 8.9 235
HDi 160 10.2 7.6 8.6 226
L2H2 333 HDi 100 8.9 7.3 7.9 208
HDi 120 10.9 7.7 8.9 235
HDi 160 10.2 7.6 8.6 226
Level 1 Combi
(export) L2H2 435 HDi 120 10.8 8.1 9.1 240
HDi 160 10.2 7.6 8.6 226

159
9
TECHNICAL DATA
Weights
WEIGHTS
DimensionsNamesGVW in kg
L1 H1 330
3 000
333 3 300
L2 H1 333
3 300
335 3 500
L2 H2 330
3 000
333 3 300
335 3 500
L3 H2 330
3 000
335 3 500
435 3 500
440 4 000
L3 H3 330
3 000
335 3 500
435 3 500
440 4 000
L4 H3 4404 000
Consult your registration certificate.
In each country, it is imperative that the towed lo
ads permitted by local legislation are complied wit h. For information regarding your
vehicle’s towing possibilities and its gross train weight, contact a PEUGEOT dealer.
The speed of a towing vehicle must not exceed 60 mp h (100 km/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reductio n in the performance of the vehicle to protect the engine. When the exterior
temperature is higher than 37 °C, limit the weight towed.
This table indicates the gross vehicle weight (GVW) according to the dimensions and names of the vehic le.

Weights
160
* 15 inch wheel.
** 16 inch wheel.
Load transfer
If the towing vehicle has not reached the GVW, it i
s possible to transfer this weight to the trailer.
In all cases, do not exceed the trailer weight and GTW indicated.
Comply with the towing capacities of your vehicle.
TOWED LOADS
Body type Engine With braked trailer
Van 330
HDi 100
2 000
HDi 120 2 500
HDi 160 2 500
333 HDi 100
2 000
HDi 120 2 500
HDi 160 2 500
335 HDi 100
2 000
HDi 120 2 500*
3 000**
HDi 160 2 500*
3 000**
435/440 HDi 120
2 500
HDi 160 2 500

161
9
TECHNICAL DATA
Weights
TOWED LOADS
Body type Engine With braked trailer
Platform/Chassis 330
HDi 100
2 000
HDi 120 2 500
HDi 160 2 500
333 HDi 100
2 000
HDi 120 2 500
HDi 160 2 500
335 HDi 100
2 000
HDi 120 2 500*
3 000**
HDi 160 2 500*
3 000**
435/440 HDi 120
2 500
HDi 160 2 500
* 15 inch wheel.
** 16 inch wheel.

Weights
162TOWED LOADS
Body type Engine With braked trailer
Combi 330
HDi 100
2 000
HDi 120 2 500
HDi 160 2 500
333 HDi 100
2 000
HDi 120 2 500
HDi 160 2 500
