Peugeot Boxer 2008 Repair Manual

Initial settingsWith reverse gear not engaged,
press and hold the ON/OFF
button for approximately
3 seconds. The button flashes
twice to confirm the
reinitialisation.
Alarm display on the screen
In the ON position, information in text
format accompanies the manoeuvre and is
displayed on the screen:
- each time reverse gear is engaged, a message appears before the first view is
transmitted,
- at 11 mph (18 km/h) in reverse gear, the
rear view disappears and the screen
switches to "Stand by". The view appears
again when the vehicle returns to a speed
below 9 mph (15 km/h).
Change of language
With reverse gear not engaged, press
the ON/OFF button and any other button
simultaneously.
Scroll through the languages by pressing
ON/OFF.
When the language has been selected, wait
approximately 3 seconds for it to be stored. Good practice
When vehicle conditions are optimum
(position on the road, loading level) the
maximum area of visibility covered by the
camera has a field depth approximately
3 m long and 5.5 m wide.
The area of visibility may vary depending on
the external weather conditions (brightness,
rain, snow, fog, ...), the load in the vehicle
and the position of the vehicle on the road.
Please store the screen in its housing when
no longer in use.
When cleaning the camera and the screen,
avoid using a detergent or a tool which may
scratch the glass.
Use a non-abrasive cloth or a small brush.
Following a collision, if the screen glass has
cracked and allows liquid crystal to flow out:
do not touch it.
If you have come into contact with it, quickly
wash the contaminated part of the body with
soapy water.
Contact a PEUGEOT dealer to have the
screen repaired.
77
4
IN-CAR TECHNOLOGY
Reversing camera

78

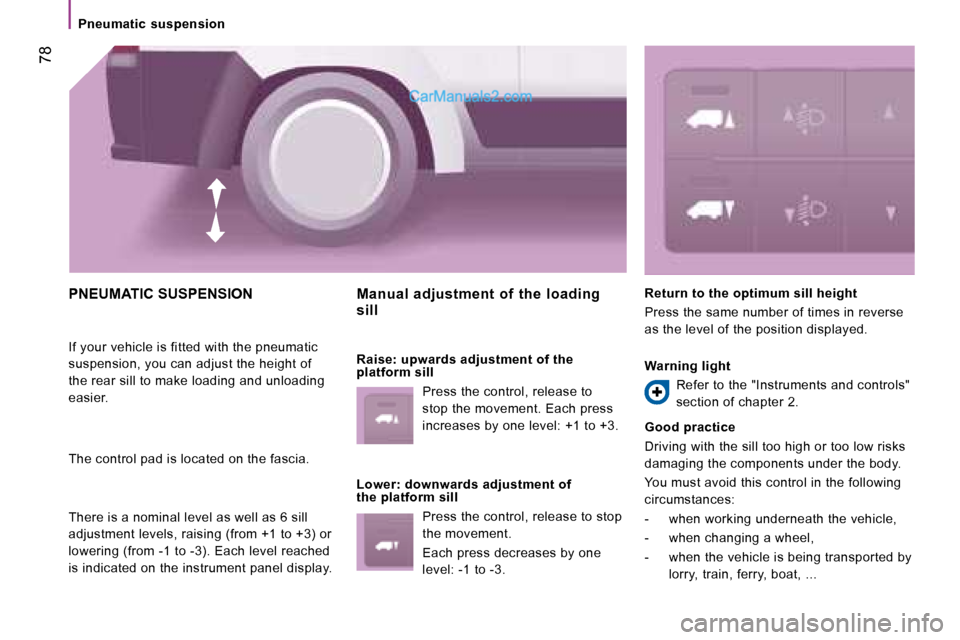

Pneumatic suspension
PNEUMATIC SUSPENSION
If your vehicle is fitted with the pneumatic
suspension, you can adjust the height of
the rear sill to make loading and unloading
easier.
The control pad is located on the fascia.
There is a nominal level as well as 6 sill
adjustment levels, raising (from +1 to +3) or
lowering (from -1 to -3). Each level reached
is indicated on the instrument panel display.Manual adjustment of the loading
sill
Raise: upwards adjustment of the
platform sill
Press the control, release to
stop the movement. Each press
increases by one level: +1 to +3.
Lower: downwards adjustment of
the platform sill Press the control, release to stop
the movement.
Each press decreases by one
level: -1 to -3. Return to the optimum sill height
Press the same number of times in reverse
as the level of the position displayed.
Warning light
Refer to the "Instruments and controls"
section of chapter 2.
Good practice
Driving with the sill too high or too low risks
damaging the components under the body.
You must avoid this control in the following
circumstances:
- when working underneath the vehicle,
- when changing a wheel,
- when the vehicle is being transported by lorry, train, ferry, boat, ...

CHRONOTACHOGRAPH
If your vehicle is fitted with a
chronotachograph, this permits storing of
all of the data relating to the vehicle in the
equipment and on a card inserted in it.
Example: at the beginning of each journey
or change of team.When the card is inserted, all of the data
can be:
- displayed on the tachograph screen,
- printed,
- transferred to external storage media via
an interface. For further information, refer to the
documents supplied by the manufacturer of
the chronotachograph.
If your vehicle is fitted with a
chronotachograph, disconnection of the
negative (-) terminal of the battery (located
under the floor on the left-hand side, in the
cab) is recommended if the vehicle is not to
be used for a period of more than 5 days.
79
4
IN-CAR TECHNOLOGY
Chronotachograph

80
Audio equipment
01 FIRST STEPS
Selection of the source: radio or CD/MP3.Scanning of radio stations (if PTY is not selected) or of
the CD/MP3 tracks.
Repeating of the CD/MP3
tracks. Random playing of the CD/
MP3 tracks.Access to the menu.
Scanning of the stored stations. Manual search for a lower/
higher radio frequency.
Selection of the PTY
(themed radio) programmes.
Previous/next menu function
settings.
Next/previous CD/MP3 track.
Fast backwards/forwards
playing of the current
CD/MP3 track.
Automatic search for a higher/
lower radio frequency.
Higher/lower audio settings.
Next/previous menu function.
CD eject.
Selection of wavebands FM1, FM2, FMt, MW and LW.
Automatic storing of stations (autostore).
1/2/3/4/5/6: selection of the stored
station. Storing of a station. Pausing/resuming of playing
of the CD/MP3 track. Clearing of the
programming of playing
of the CD or MP3.
Programming
of playing of the
CD or MP3.
Setting of the audio
options: bass, treble,
fader (front/rear),
balance (left/right).
Loudness.
Volume increase/
decrease.
Mute.
On. Off. PTY (themed
radio
programmes)
on/off.
EON (stations of the
same network) on/off.
RDS (AF) on/off.
Traffic information priority
(TA/TP).
Requires a
long press.

02 CONTROL SHORT-CUTS
Change of source: CD/
MP3 or radio.Automatic search for a
higher radio frequency.
Selection of the next CD/
MP3 track.
Automatic search for a lower
frequency.
Selection of the previous CD/
MP3 track.
Mute/Restoring of the
sound (or by pressing +
or -).
Volume increase.
Volume decrease.
81
4
IN-CAR TECHNOLOGY
Audio equipment

RADIOAccess to and exit from the menus.
Confirmation and storing of the choices from
the current menu.
Scrolling of the menus.
Selection of the letters (CD NAME).
Increasing or decreasing of an
equaliser band (EQ SET).
Selection of the choices from the current menu.
Switching from one band to another on the
equaliser (EQ SET).
MENU
SELECTING A STATION
Press the source SRC button
several times in succession and
select the radio.
Press the band BN button to
select a waveband: FM1, FM2,
FMt, MW, LW.
Briefly press one of the buttons
to carry out an automatic search
of the radio stations.
Press one of the buttons to carry
out a manual search of the radio
stations.
STORING A STATION Press one of the buttons for
more than 2 seconds to store the
frequency of the current station.
82
Audio equipment

RADIOAccess to and exit from the menus.
Confirmation and storing of the choices from
the current menu.
Scrolling of the menus.
Selection of the letters (CD NAME).
Increasing or decreasing of an
equaliser band (EQ SET).
Selection of the choices from the current menu.
Switching from one band to another on the
equaliser (EQ SET).
MENU
SELECTING A STATION
Press the source SRC button
several times in succession and
select the radio.
Press the band BN button to
select a waveband: FM1, FM2,
FMt, MW, LW.
Briefly press one of the buttons
to carry out an automatic search
of the radio stations.
Press one of the buttons to carry
out a manual search of the radio
stations.
STORING A STATION Press one of the buttons for
more than 2 seconds to store the
frequency of the current station.
82
Audio equipment

Scroll the
display
Select
Display
Select
Display
Select
Display
Select
DisplayEnables you to…
IGN TIME 20 MIN 00 MINSet the audio equipment play time after turning the
ignition key to the "STOP" position:
- 20 MIN to play for 20 minutes,
- 00 MIN to switch off immediately.
Place the key in the "RUNNING" position to switch t
he audio equipment back on.
NO HICUTHICUT
ON Select the dynamic reduction of the treble:
- ON,
- NO.
VOICE 22 21 ... OFF Select the volume setting:
- 1 to 66,
- OFF to cut off the sound.
SVC OFF SVC ON Select the automatic control of the volume in relat
ion
to the vehicle speed:
- ON,
- OFF.
CD NAME
XYZ23ABCSelect and programme the name of the CD, currently
being played, on the display:
- the name stored previously,
- 8 dashes if it does not have a name.
Use the 4 arrows to select letters then store using
MENU.
To clear the name, press and hold the "CLR"
button.
If a CD
has been
inserted,
this menu is
displayed.ouABCDEFG5MENU
_ _ _ _ _
_ _ _
83
4
TECHNOLOGIE À BORD
Audio equipment

84
Audio equipment
Scroll the
display
Select
Display
Select
Display
Select
Display
Select
DisplayEnables you
to…
SENS DX SENS LOSet the sensitivity of automatic reception of the r
adio
frequencies (tuner):
- DX (high) for a search of all of the surrounding transmitters,
- LO (low) for a search of the surrounding transmitters which have a strong signal.
MP3 DISP
If your
vehicle is
equipped
with MP3,
this menu is
displayed FILENAME TIME
TAG
INFODIRSelect the type of MP3 display for the current
track
- FILENAME for the name of the track (file),
- TIME for the time elapsed,
- TAG INFO for the title of the album and the name
of
the artist,
- DIR for the name of the directory (folder).
CD DISP NAME
Select the type of display for the current CD:
- for the name attributed to the CD,
- TIME for the time elapsed since the beginning of
the track.
TIME
REG OFF REG ON Select the reception of local or regional programme
s
(different from one region to another):
- ON for local programmes,
- OFF for no programmes.

Scroll the
display
Select
Display
Select
Display
Select
Display
Select
DisplayEnables you to…
PRESET USERCLASSICROCK JAZZSelect pre-defined equaliser settings.
Select USER to set the equaliser manually then go t
o
the EQ SET menu.
Bass and Treble adjustments are always possible.
EQ SET
EQ SET
If USER is
selected in
PRESET,
this
menu is
displayed. Programme the 7 bands of the equaliser manually.
To store the settings, press MENU.
85
4
IN-CAR TECHNOLOGY
Audio equipment
