Peugeot Boxer Dag 2003.5 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2003.5, Model line: Boxer Dag, Model: Peugeot Boxer Dag 2003.5Pages: 181, PDF Size: 2.88 MB
Page 111 of 181
17-11-2003
YOUR BOXER IN DETAIL109
THE ALARM This provides two types of protection:
Ð exterior protection: it sounds if a
door, the tailgate or the bonnet is opened.
Ð interior protection: it sounds if the volume inside the passenger com-partment changes (breaking of awindow or a movement inside thevehicle).
Setting the alarm Switch off the ignition and get out of the vehicle.
Set the alarm within five minutesof getting out of the vehicle, bylocking using the remote control(the red indicator light, located onthe fascia, visible from outside,flashes once per second).
Note: if you wish to lock your vehicle
without setting the alarm, use thedoor lock. When the alarm is triggered, thesiren sounds and the direction indi-cator lights flash for thirty seconds. After triggering, the alarm remains set.
Warning:
if the alarm has been trig-
gered ten times in succession, on the eleventh time it becomes inactive. Note: if the red warning light, located
on the fascia, flashes rapidly, the alarm has been triggered while you
were away from your vehicle. To stopit flashing, insert the remote controlkey and switch on the ignition. Disarming Unlock the vehicle with the remote control key (the red indicator light,located on the fascia, goes out).
To set the alarm with exterior protection only If, while you are away from the vehi- cle, you wish to leave a window par-
tially open or a pet inside the vehicle,you should choose exterior protec-
tion only. Switch off the ignition placing the key in the STOPposition.
Place the key in the ONposition.
Switch off the ignition placing thekey in the STOPposition.
Remove the key.
The interior protection is disarmedwhen the red indicator light located onthe fascia comes on for two seconds.
Get out of the vehicle.
Within the next five minutes, setthe alarm by locking using theremote control (the red indicatorlight, located on the fascia, flash-es once a second).
Note: when the alarm is set but the
remote control does not operate: Unlock the doors with the key
and open the door. The alarm istriggered.
Switch on the ignition in the next
ten seconds. The alarm is dis-armed.
Incorrect operation When the ignition is switched on, if the red indicator light, located on thefascia, comes on for ten seconds,there is a fault in the siren connection.
Contact a PEUGEOT dealer to have the system checked. Do not make any modifications to the alarm system, this could cause faults.
Page 112 of 181
17-11-2003

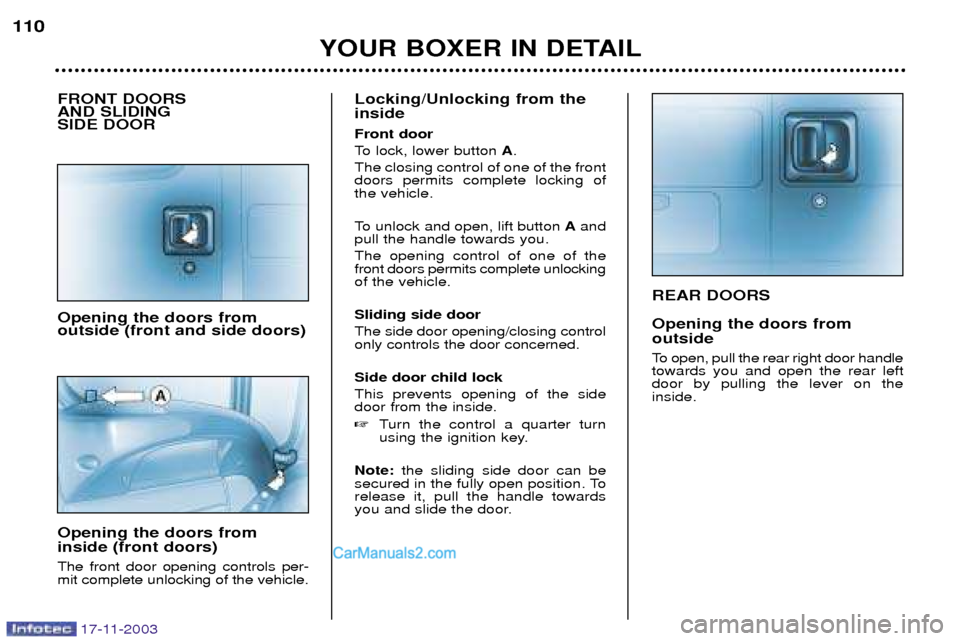

REAR DOORS Opening the doors from outside
To open, pull the rear right door handle towards you and open the rear leftdoor by pulling the lever on theinside.
YOUR BOXER IN DETAIL
110
FRONT DOORS AND SLIDING SIDE DOOR Opening the doors from outside (front and side doors) Opening the doors from inside (front doors) The front door opening controls per- mit complete unlocking of the vehicle. Locking/Unlocking from the inside Front door
To lock, lower button
A.
The closing control of one of the front doors permits complete locking ofthe vehicle.
To unlock and open, lift button Aand
pull the handle towards you. The opening control of one of the front doors permits complete unlockingof the vehicle. Sliding side door The side door opening/closing control only controls the door concerned. Side door child lock This prevents opening of the side door from the inside. Turn the control a quarter turn
using the ignition key.
Note: the sliding side door can be
secured in the fully open position. Torelease it, pull the handle towards
you and slide the door.
Page 113 of 181
17-11-2003

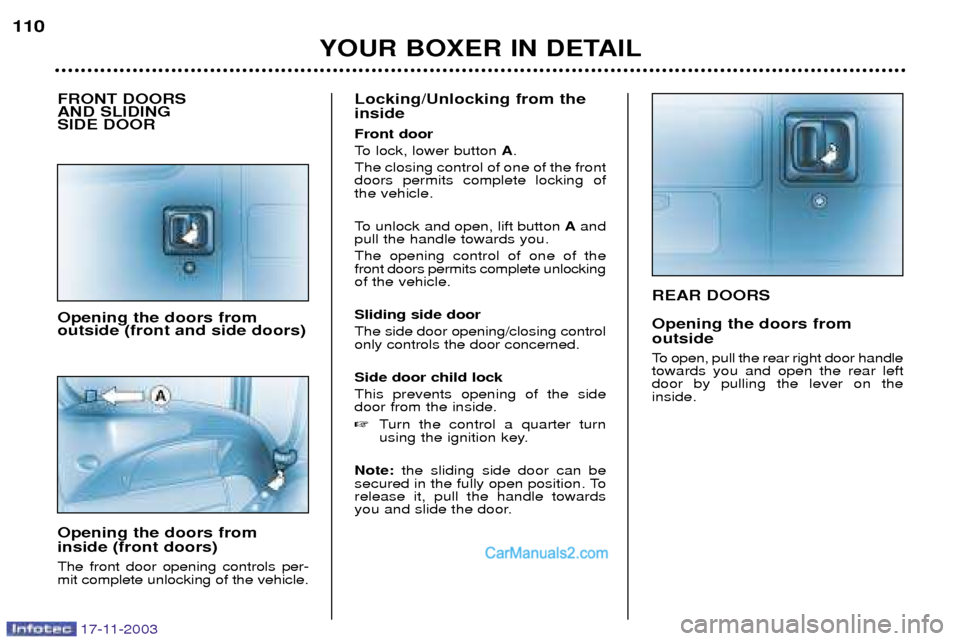

REAR DOORS Opening the doors from outside
To open, pull the rear right door handle towards you and open the rear leftdoor by pulling the lever on theinside.
YOUR BOXER IN DETAIL
110
FRONT DOORS AND SLIDING SIDE DOOR Opening the doors from outside (front and side doors) Opening the doors from inside (front doors) The front door opening controls per- mit complete unlocking of the vehicle. Locking/Unlocking from the inside Front door
To lock, lower button
A.
The closing control of one of the front doors permits complete locking ofthe vehicle.
To unlock and open, lift button Aand
pull the handle towards you. The opening control of one of the front doors permits complete unlockingof the vehicle. Sliding side door The side door opening/closing control only controls the door concerned. Side door child lock This prevents opening of the side door from the inside. Turn the control a quarter turn
using the ignition key.
Note: the sliding side door can be
secured in the fully open position. Torelease it, pull the handle towards
you and slide the door.
Page 114 of 181
17-11-2003
YOUR BOXER IN DETAIL111

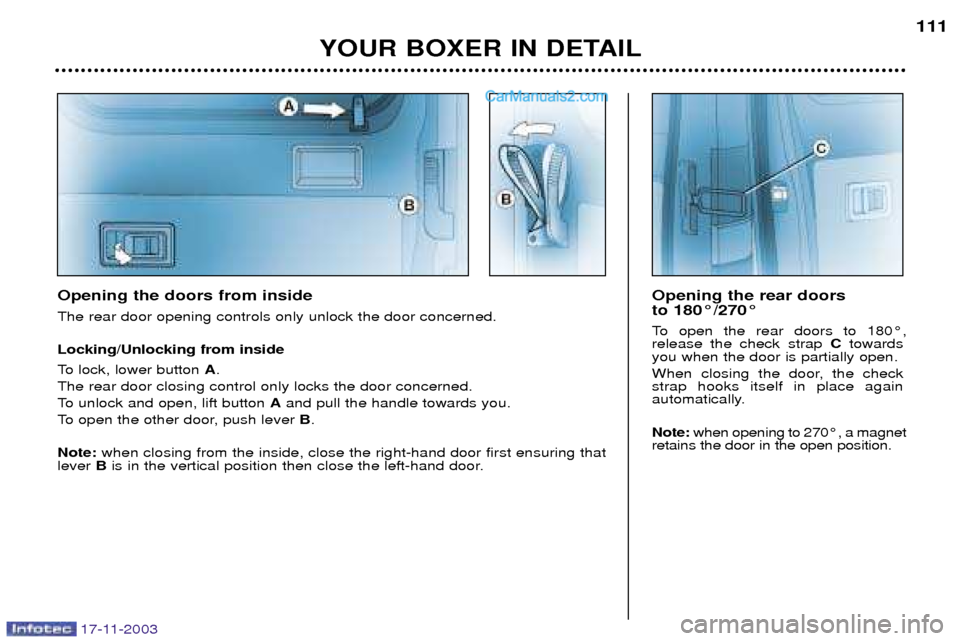

Opening the doors from inside The rear door opening controls only unlock the door concerned. Locking/Unlocking from inside
To lock, lower button
A.
The rear door closing control only locks the door concerned.
To unlock and open, lift button Aand pull the handle towards you.
To open the other door, push lever B.
Note: when closing from the inside, close the right-hand door first ensuring that
lever Bis in the vertical position then close the left-hand door.Opening the rear doors to 180¡/270¡
To open the rear doors to 180¡, release the check strap Ctowards
you when the door is partially open.
When closing the door, the check strap hooks itself in place again
automatically. Note: when opening to 270¡, a magnet
retains the door in the open position.
Page 115 of 181
17-11-2003
OPENING THE BONNET From inside: pull the handle on the
left-hand side under the fascia. From outside: lift the catch Aand
raise the bonnet. Bonnet strut Secure the strut to hold the bonnet open. Before closing the bonnet, replace the strut in its housing.
To close Lower the bonnet and release it at the end of its travel. Check that thebonnet is properly locked. FILLING WITH FUEL Low fuel level
When the minimum fuel level in the tank is reached, thiswarning light comes on.
You have approximately
8 litres of fuel left.
The engine must be switched offwhen filling with fuel.
Open the fuel filler flap by pressingthe front of it.
Insert the key then turn it to theleft.
Remove the cap and hang it onthe hook located on the inside ofthe flap.
An indication on the cap reminds youwhich type of fuel to use. When you fill your tank, do not con-
tinue after the third cut-off of the
pump. This could cause your vehicleto malfunction. The capacity of the tank is appro- ximately 70 litres. After filling the tank, lock the cap and close the fuel filler flap.
The key cannot be removed from thelock until the cap has been replacedon the fuel tank.
YOUR BOXER IN DETAIL
112
Page 116 of 181
17-11-2003
YOUR BOXER IN DETAIL113

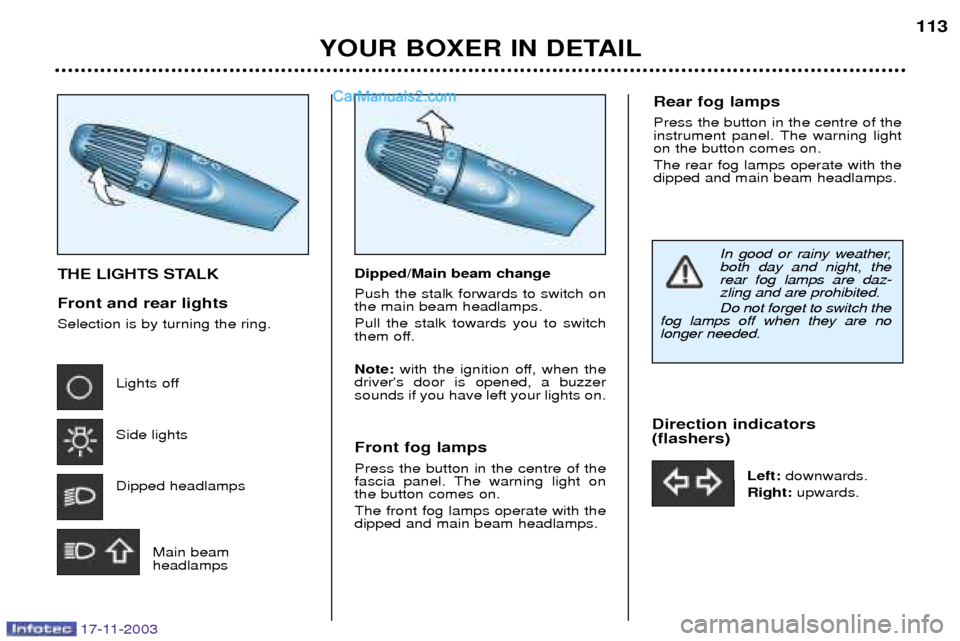

THE LIGHTS STALK Front and rear lights Selection is by turning the ring.
Lights off Side lights Dipped headlamps
Main beam headlamps Dipped/Main beam change Push the stalk forwards to switch on the main beam headlamps. Pull the stalk towards you to switch
them off. Note:
with the ignition off, when the
driver's door is opened, a buzzer sounds if you have left your lights on. Front fog lamps Press the button in the centre of the
fascia panel. The warning light onthe button comes on. The front fog lamps operate with the dipped and main beam headlamps. Direction indicators (flashers)
Left: downwards.
Right: upwards.
Rear fog lamps Press the button in the centre of the
instrument panel. The warning lighton the button comes on. The rear fog lamps operate with the dipped and main beam headlamps.
In good or rainy weather, both day and night, therear fog lamps are daz-zling and are prohibited. Do not forget to switch the
fog lamps off when they are no longer needed.
Page 117 of 181
17-11-2003
YOUR BOXER IN DETAIL
114

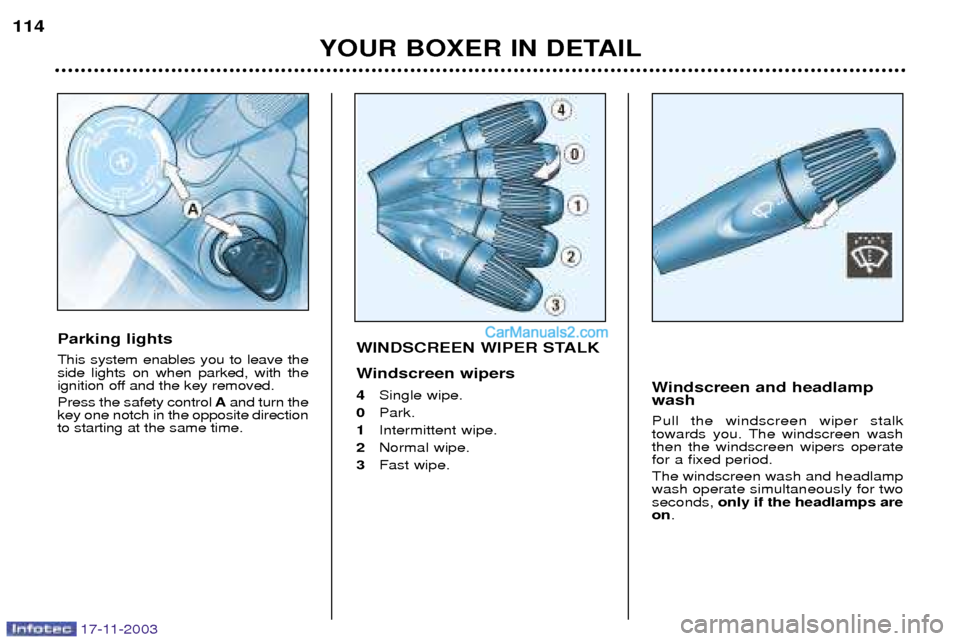

WINDSCREEN WIPER STALK
Windscreen wipers 4
Single wipe.
0 Park.
1 Intermittent wipe.
2 Normal wipe.
3 Fast wipe.
Windscreen and headlamp wash Pull the windscreen wiper stalk
towards you. The windscreen washthen the windscreen wipers operatefor a fixed period. The windscreen wash and headlamp wash operate simultaneously for twoseconds, only if the headlamps are
on .
Parking lights This system enables you to leave the side lights on when parked, with the
ignition off and the key removed. Press the safety control Aand turn the
key one notch in the opposite direction to starting at the same time.
Page 118 of 181
17-11-2003
YOUR BOXER IN DETAIL
114

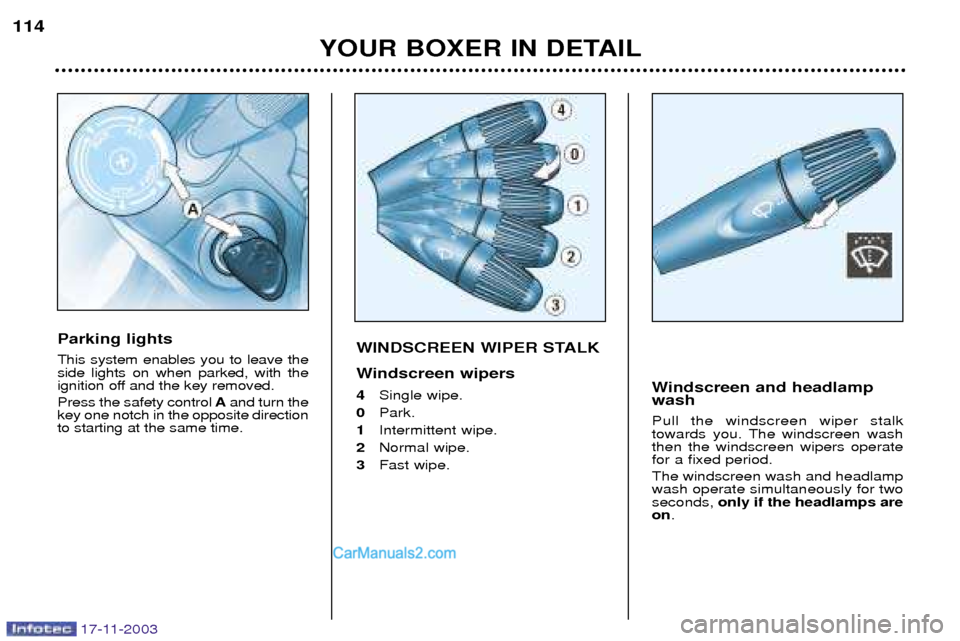

WINDSCREEN WIPER STALK
Windscreen wipers 4
Single wipe.
0 Park.
1 Intermittent wipe.
2 Normal wipe.
3 Fast wipe.
Windscreen and headlamp wash Pull the windscreen wiper stalk
towards you. The windscreen washthen the windscreen wipers operatefor a fixed period. The windscreen wash and headlamp wash operate simultaneously for twoseconds, only if the headlamps are
on .
Parking lights This system enables you to leave the side lights on when parked, with the
ignition off and the key removed. Press the safety control Aand turn the
key one notch in the opposite direction to starting at the same time.
Page 119 of 181
17-11-2003
YOUR BOXER IN DETAIL115

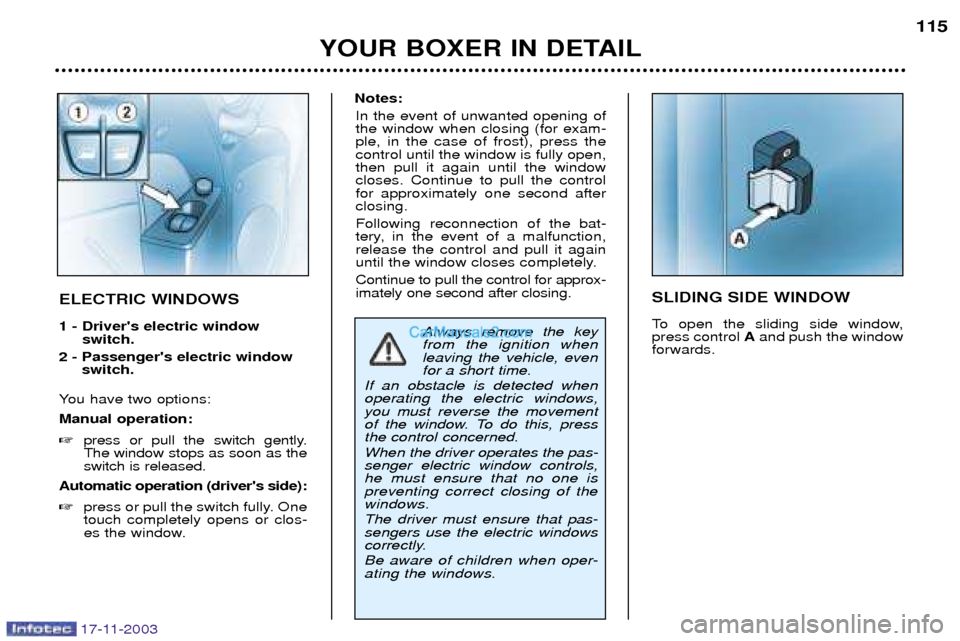

SLIDING SIDE WINDOW
To open the sliding side window, press control
Aand push the window
forwards.
ELECTRIC WINDOWS 1 - Driver's electric window
switch.
2 - Passenger's electric window switch.
You have two options: Manual operation: press or pull the switch gently. The window stops as soon as theswitch is released.
Automatic operation (driver's side): press or pull the switch fully. One touch completely opens or clos-
es the window.
Notes:
In the event of unwanted opening of the window when closing (for exam-ple, in the case of frost), press thecontrol until the window is fully open,then pull it again until the windowcloses. Continue to pull the controlfor approximately one second afterclosing. Following reconnection of the bat-
tery, in the event of a malfunction,release the control and pull it again
until the window closes completely. Continue to pull the control for approx- imately one second after closing.
Always remove the key from the ignition whenleaving the vehicle, evenfor a short time.
If an obstacle is detected whenoperating the electric windows,you must reverse the movement
of the window. To do this, pressthe control concerned. When the driver operates the pas- senger electric window controls,he must ensure that no one ispreventing correct closing of thewindows. The driver must ensure that pas- sengers use the electric windows
correctly. Be aware of children when oper- ating the windows.
Page 120 of 181
17-11-2003
YOUR BOXER IN DETAIL
116

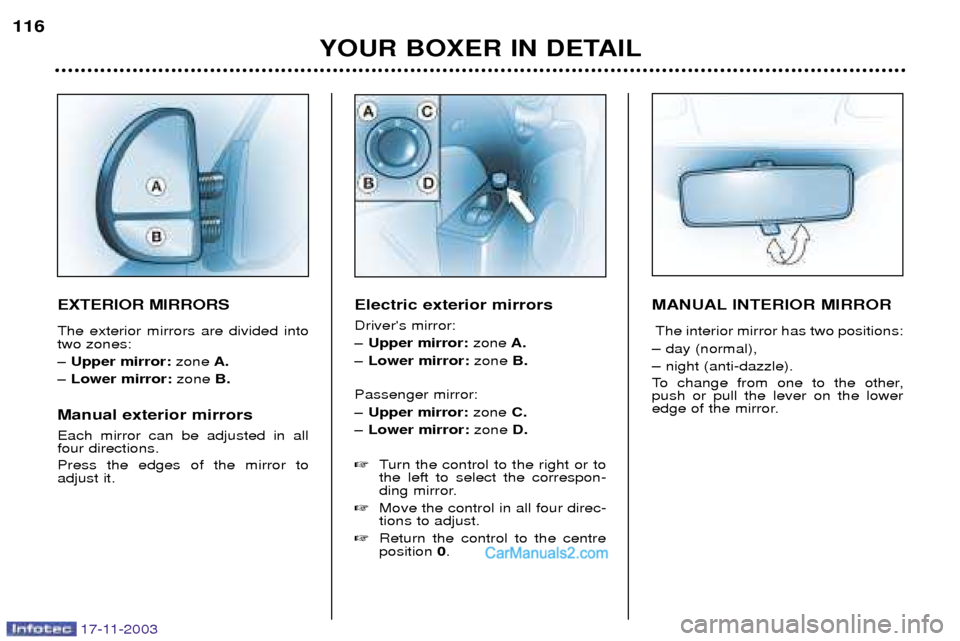

EXTERIOR MIRRORS The exterior mirrors are divided into two zones:
Ð Upper mirror:
zoneA.
Ð Lower mirror: zoneB.
Manual exterior mirrors Each mirror can be adjusted in all four directions. Press the edges of the mirror to adjust it. Electric exterior mirrors Driver's mirror:
Ð Upper mirror:
zoneA.
Ð Lower mirror: zoneB.
Passenger mirror:
Ð Upper mirror: zone C.
Ð Lower mirror: zone D.
Turn the control to the right or to the left to select the correspon-
ding mirror.
Move the control in all four direc-tions to adjust.
Return the control to the centreposition 0. MANUAL INTERIOR MIRROR
The interior mirror has two positions:
Ð day (normal),
Ð night (anti-dazzle).
To change from one to the other, push or pull the lever on the lower
edge of the mirror.
