1 -Coolant temperature gauge.
2 - Coolant temperature warning light.
3 - Speedometer.
4 - Left-hand direction indicator.
5 - Side lights and dipped beamheadlamps indicator light.
6 - Main beam headlamps indicatorlight.
7 - Right-hand direction indicator. 8 -
Rev counter.
9 - Low fuel level warning light.
10 - Fuel gauge.
11 - Brake fluid level warning light.
12 - Traction control (ASR) warninglight.
13 - Passenger air bag disarmedwarning light.
14 - Trip distance recorder displaycontrol and zero reset button. 15 -
Front air bags warning light.
16 - Anti-lock braking system (ABS) warning light.
17 - Automatic gearbox temperatureor fault warning light.
18 - Low coolant level warning light.
19 - Service indicator, oil levelgauge, automatic gearbox
display, clock and total distance
recorder.
20 - Diesel engine pre-heatingwarning light.
21 - Engine oil pressure warninglight.
22 - Battery charge warning light.
23 - Clock setting button.
24 - Engine diagnostics warninglight.
25 - Front brake pad wear warninglight.
26 - Handbrake warning light.
27 - Water in diesel filter warninglight.
28 - Electronic immobiliser keywarning light.
INSTRUMENTS AND CONTROLS
28
PETROL-DIESEL MANUAL AND AUTOMATIC GEARBOX
INSTRUMENT PANELS

17-11-2003
YOUR BOXER IN DETAIL57

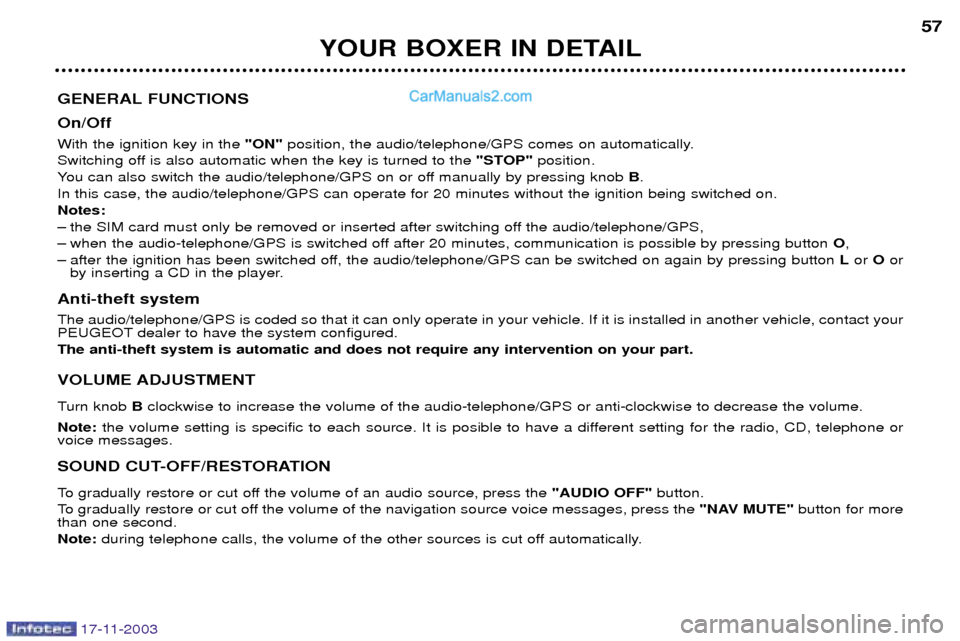

GENERAL FUNCTIONS On/Off With the ignition key in the "ON"position, the audio/telephone/GPS comes on automatically.
Switching off is also automatic when the key is turned to the "STOP"position.
You can also switch the audio/telephone/GPS on or off manually by pressing knob B.
In this case, the audio/telephone/GPS can operate for 20 minutes without the ignition being switched on. Notes:
Ð the SIM card must only be removed or inserted after switching off the audio/telephone/GPS,
Ð when the audio-telephone/GPS is switched off after 20 minutes, communication is possible by pressing button O,
Ð after the ignition has been switched off, the audio/telephone/GPS can be switched on again by pressing button Lor Oor
by inserting a CD in the player.
Anti-theft system The audio/telephone/GPS is coded so that it can only operate in your vehicle. If it is installed in another vehicle, contact yo ur
PEUGEOT dealer to have the system configured. The anti-theft system is automatic and does not require any intervention on your part. VOLUME ADJUSTMENT
Turn knob Bclockwise to increase the volume of the audio-telephone/GPS or anti-clockwise to decrease the volume.
Note: the volume setting is specific to each source. It is posible to have a different setting for the radio, CD, telephone or
voice messages.
SOUND CUT-OFF/RESTORATION
To gradually restore or cut off the volume of an audio source, press the "AUDIO OFF"button.
To gradually restore or cut off the volume of the navigation source voice messages, press the "NAV MUTE"button for more
than one second. Note: during telephone calls, the volume of the other sources is cut off automatically.

YOUR BOXER IN DETAIL
90

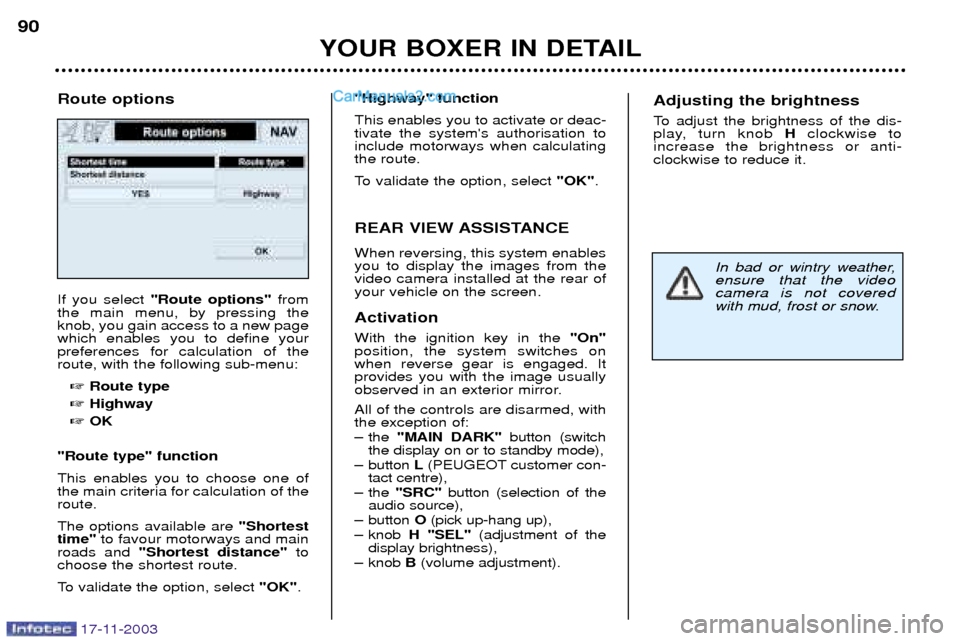

If you select
"Route options" from
the main menu, by pressing the knob, you gain access to a new pagewhich enables you to define yourpreferences for calculation of theroute, with the following sub-menu:
 Route type
 Highway
 OK
"Route type" function This enables you to choose one of the main criteria for calculation of theroute. The options available are "Shortest
time" to favour motorways and main
roads and "Shortest distance" to
choose the shortest route.
To validate the option, select "OK".
Route options
"Highway" function This enables you to activate or deac- tivate the system's authorisation toinclude motorways when calculatingthe route.
To validate the option, select
"OK".
REAR VIEW ASSISTANCE When reversing, this system enables you to display the images from thevideo camera installed at the rear ofyour vehicle on the screen. Activation With the ignition key in the "On"
position, the system switches on when reverse gear is engaged. Itprovides you with the image usually
observed in an exterior mirror. All of the controls are disarmed, with the exception of:
Ð the "MAIN DARK" button (switch
the display on or to standby mode),
Ð button L(PEUGEOT customer con-
tact centre),
Ð the "SRC" button (selection of the
audio source),
Ð button O(pick up-hang up),
Ð knob H "SEL" (adjustment of the
display brightness),
Ð knob B(volume adjustment). Adjusting the brightness
To adjust the brightness of the dis-
play, turn knob
Hclockwise to
increase the brightness or anti-clockwise to reduce it.
In bad or wintry weather, ensure that the videocamera is not covered
with mud, frost or snow.
17-11-2003

YOUR BOXER IN DETAIL
90
If you select
"Route options" from
the main menu, by pressing the knob, you gain access to a new pagewhich enables you to define yourpreferences for calculation of theroute, with the following sub-menu:
 Route type
 Highway
 OK
"Route type" function This enables you to choose one of the main criteria for calculation of theroute. The options available are "Shortest
time" to favour motorways and main
roads and "Shortest distance" to
choose the shortest route.
To validate the option, select "OK".
Route options
"Highway" function This enables you to activate or deac- tivate the system's authorisation toinclude motorways when calculatingthe route.
To validate the option, select
"OK".
REAR VIEW ASSISTANCE When reversing, this system enables you to display the images from thevideo camera installed at the rear ofyour vehicle on the screen. Activation With the ignition key in the "On"
position, the system switches on when reverse gear is engaged. Itprovides you with the image usually
observed in an exterior mirror. All of the controls are disarmed, with the exception of:
Ð the "MAIN DARK" button (switch
the display on or to standby mode),
Ð button L(PEUGEOT customer con-
tact centre),
Ð the "SRC" button (selection of the
audio source),
Ð button O(pick up-hang up),
Ð knob H "SEL" (adjustment of the
display brightness),
Ð knob B(volume adjustment). Adjusting the brightness
To adjust the brightness of the dis-
play, turn knob
Hclockwise to
increase the brightness or anti-clockwise to reduce it.
In bad or wintry weather, ensure that the videocamera is not covered
with mud, frost or snow.
17-11-2003

YOUR BOXER IN DETAIL
94

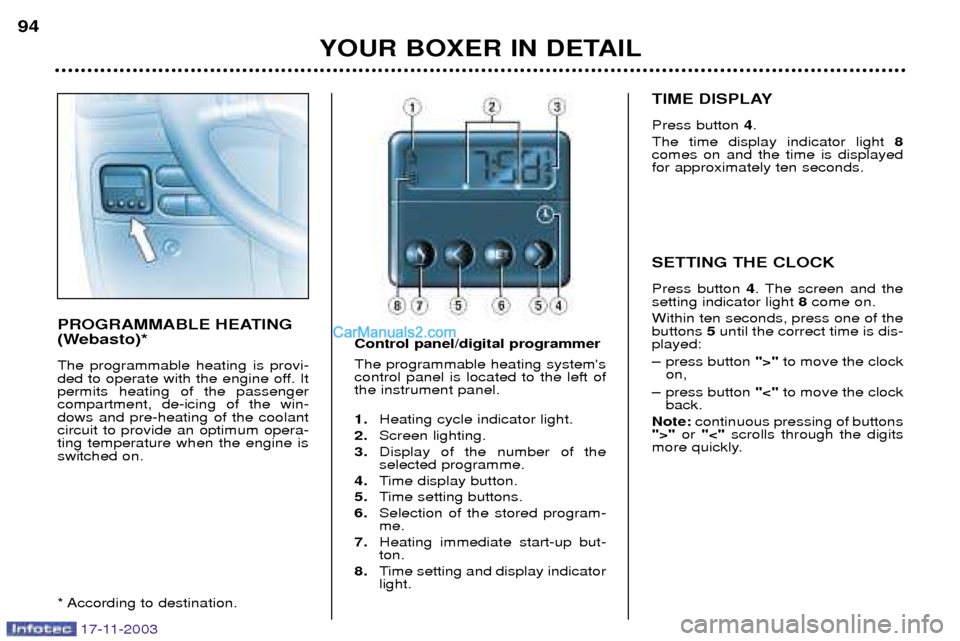

PROGRAMMABLE HEATING
(Webasto)* The programmable heating is provi-
ded to operate with the engine off. Itpermits heating of the passengercompartment, de-icing of the win-dows and pre-heating of the coolantcircuit to provide an optimum opera-ting temperature when the engine isswitched on.
* According to destination. Control panel/digital programmer The programmable heating system's control panel is located to the left ofthe instrument panel. 1.
Heating cycle indicator light.
2. Screen lighting.
3. Display of the number of the selected programme.
4. Time display button.
5. Time setting buttons.
6. Selection of the stored program-me.
7. Heating immediate start-up but-ton.
8. Time setting and display indicatorlight.
TIME DISPLAY Press button 4.
The time display indicator light 8
comes on and the time is displayed for approximately ten seconds. SETTING THE CLOCK Press button 4. The screen and the
setting indicator light 8come on.
Within ten seconds, press one of the buttons 5until the correct time is dis-
played:
Ð press button ">"to move the clock
on,
Ð press button "<"to move the clock
back.
Note: continuous pressing of buttons
">" or "<" scrolls through the digits
more quickly.
17-11-2003

17-11-2003
YOUR BOXER IN DETAIL
96
PROGRAMMED OPERATION Note:
before setting the program-
mable heating, ensure that the clock
is set correctly. Operation of the heating can be pro- grammed between one minute and24 hours in advance. Note: you can store three different
start-up time settings and program- me one deferred start-up. Note: if you wish to switch on the
heating at a set time every day, you must reprogramme the stored time
each day.
Press button 6. The screen comes
on. The segments "A"or the previous
stored time and the preselection number "B"are displayed for ten
seconds. Note: to display the other preselec-
ted times, press button 6several
times within ten seconds until the required preselection number "B"
appears.
To set the start-up time, press one of the buttons 5within ten seconds. The programming is stored when:
Ð the start-up time and the preselec-
tion number "B" disappear,
Ð the screen lighting switches off.

17-11-2003
Filling the LPG/CNG tank (Capacity of approximately 60 litres for the LPG and 160 litres for theCNG)
Ð switch off the ignition,
Ð unscrew the cap protecting the filleropening, turning it anticlockwise,
Ð lock the filler nozzle onto the opening (if necessary, screw the appropriate adapter* onto the filleropening first),
Ð push the button on the pump,
Ð once filling has stopped automati- cally, unlock the filler nozzle,
Ð screw the protective cap back onto the filler opening, turning it clock- wise.
* According to destination. Petrol gauge When the low petrol level indicator comes on, fill the tank without delayas the engine can only start usingpetrol. Furthermore, a low petrol levelmay result in fuel circuit faults. LPG/CNG gauge The LPG/CNG level in the tank is represented by a group
4, consisting
of four green indicator lights and a redindicator light. This red indicator light comes on to indicate use of the LPG/CNG reservewhich provides you with a range of
approximately 25 miles (40 km) .
If the outside temperature is high, theLPG/CNG gauge may indicate aslightly higher quantity of gas than theactual level.
PETROL/LPG OR CNG DUAL-FUEL VERSION
172
Safety advice The safety valve must be closed before any mainte-nance or repair work is
carried out on your vehicle. Toclose it, switch off the ignition. Ensure that there is no risk that the loads carried may damage thetank.
Testing the tank The service life of the tanks is
20 years. They are certified correctfor normal use during this period.
In application of regulation 110R00, a check must be carried out every3 years (visual inspection of thesolenoid valve and of the tank).The check must be carried out by
an approved body, in accordancewith the national regulations inforce. It is imperative that any work on the LPG/CNG feed system is carried
out by a PEUGEOT dealer.
