DASHBOARD*I-11
22
* According to model or country
123 4 567 8
16 15 14 13 12 11 10 9

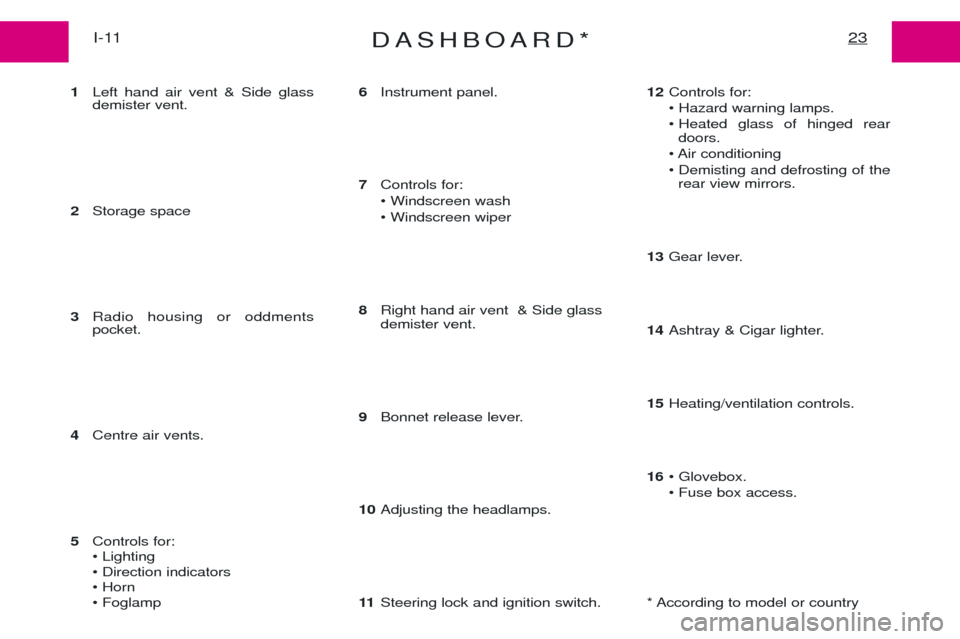

DASHBOARD*23I-11

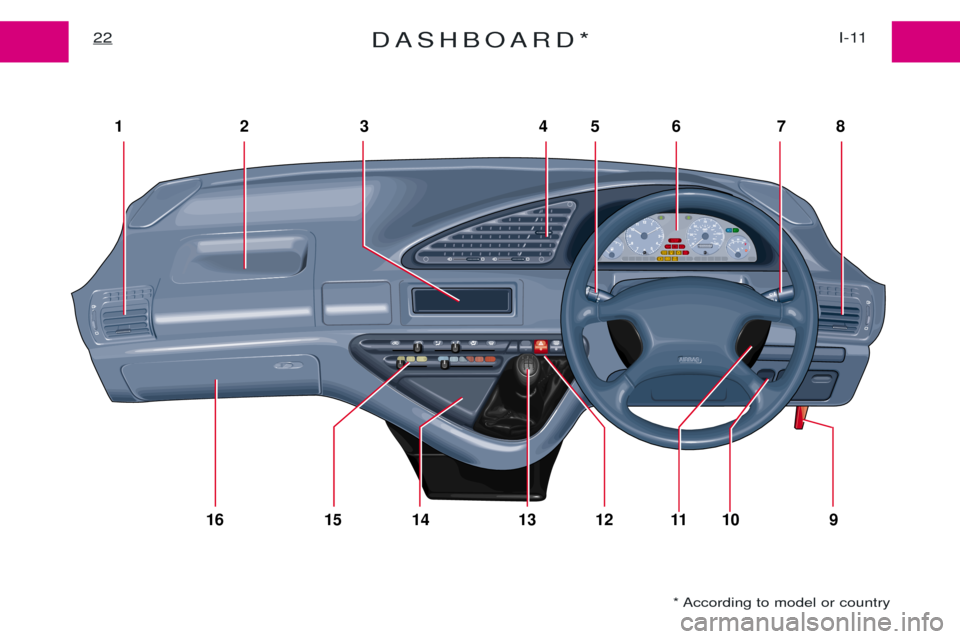

1 Left hand air vent & Side glass demister vent.
2 Storage space
3 Radio housing or oddments pocket.
4 Centre air vents.
5 Controls for: ¥ Lighting ¥ Direction indicators ¥ Horn ¥ Foglamp 6
Instrument panel.
7 Controls for: ¥ Windscreen wash ¥ Windscreen wiper
8 Right hand air vent & Side glass demister vent.
9 Bonnet release lever.
10 Adjusting the headlamps.
11 Steering lock and ignition switch. 12
Controls for: ¥ Hazard warning lamps.
¥ Heated glass of hinged rear
doors.
¥ Air conditioning
¥ Demisting and defrosting of the rear view mirrors.
13 Gear lever.
14 Ashtray & Cigar lighter.
15 Heating/ventilation controls.
16 ¥ Glovebox. ¥ Fuse box access.
* According to model or country

A
INSTRUMENT PANEL*I-12
24

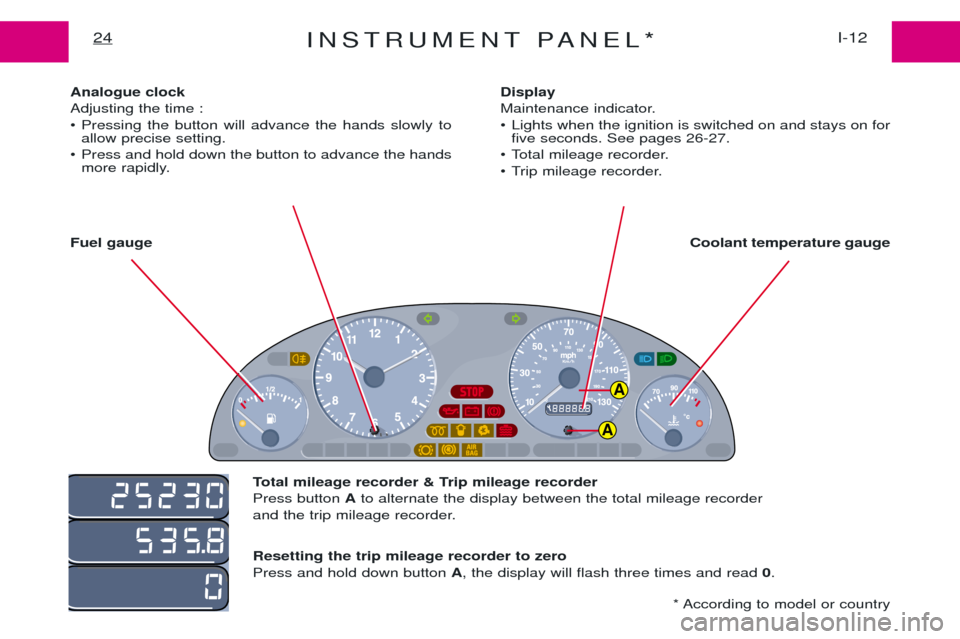

Analogue clock Adjusting the time :
¥ Pressing the button will advance the hands slowly to
allow precise setting.
¥ Press and hold down the button to advance the hands more rapidly.
Fuel gauge Coolant temperature gauge
Display
Maintenance indicator.
¥ Lights when the ignition is switched on and stays on for
five seconds. See pages 26-27.
¥ Total mileage recorder.
¥ Trip mileage recorder.
Total mileage recorder & Trip mileage recorder Press button Ato alternate the display between the total mileage recorder
and the trip mileage recorder. Resetting the trip mileage recorder to zero Press and hold down button A, the display will flash three times and read 0.
* According to model or country
A

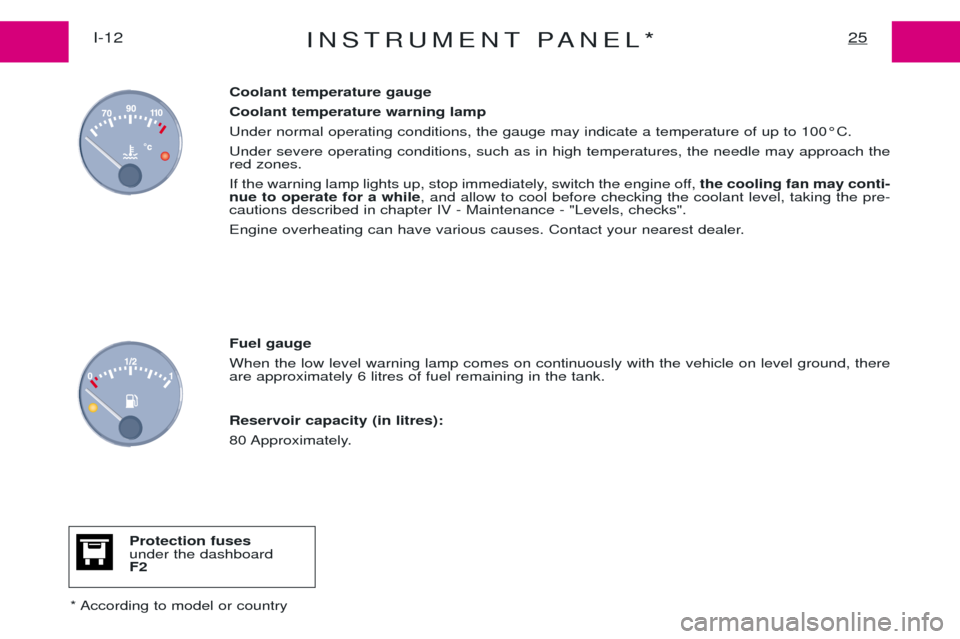

INSTRUMENT PANEL*25I-12Coolant temperature gauge Coolant temperature warning lampUnder normal operating conditions, the gauge may indicate a temperature of up to 100¡C.Under severe operating conditions, such as in high temperatures, the needle may approach the red zones.
If the warning lamp lights up, stop immediately, switch the engine off, the cooling fan may conti-
nue to operate for a while , and allow to cool before checking the coolant level, taking the pre-
cautions described in chapter IV - Maintenance - "Levels, checks".
Engine overheating can have various causes. Contact your nearest dealer.
Fuel gaugeWhen the low level warning lamp comes on continuously with the vehicle on level ground, there are approximately 6 litres of fuel remaining in the tank. Reservoir capacity (in litres):
80 Approximately.
* According to model or country
Protection fuses under the dashboardF2

INSTRUMENT PANEL*25I-12Coolant temperature gauge Coolant temperature warning lampUnder normal operating conditions, the gauge may indicate a temperature of up to 100¡C.Under severe operating conditions, such as in high temperatures, the needle may approach the red zones.
If the warning lamp lights up, stop immediately, switch the engine off, the cooling fan may conti-
nue to operate for a while , and allow to cool before checking the coolant level, taking the pre-
cautions described in chapter IV - Maintenance - "Levels, checks".
Engine overheating can have various causes. Contact your nearest dealer.
Fuel gaugeWhen the low level warning lamp comes on continuously with the vehicle on level ground, there are approximately 6 litres of fuel remaining in the tank. Reservoir capacity (in litres):
80 Approximately.
* According to model or country
Protection fuses under the dashboardF2

A
INSTRUMENT PANEL*I-12
24
Analogue clock Adjusting the time :
¥ Pressing the button will advance the hands slowly to
allow precise setting.
¥ Press and hold down the button to advance the hands more rapidly.
Fuel gauge Coolant temperature gauge
Display
Maintenance indicator.
¥ Lights when the ignition is switched on and stays on for
five seconds. See pages 26-27.
¥ Total mileage recorder.
¥ Trip mileage recorder.
Total mileage recorder & Trip mileage recorder Press button Ato alternate the display between the total mileage recorder
and the trip mileage recorder. Resetting the trip mileage recorder to zero Press and hold down button A, the display will flash three times and read 0.
* According to model or country
A

MAINTENANCE INDICATOR*I-12
26
The maintenance indicator displays the number of miles to be covered before the next service (in accordance with the servicing schedules which appear in the Maintenance Guide). Operation: On switching on the ignition, the maintenance indicator spannerappears in the display for severalseconds ; the mileage recorder dis-play indicates how many milesremain to be travelled before thenext service is due. For example: you have the follo-
wing distance left to travel before the next service: Five seconds after switching on the ignition, the total mileage recorderreverts to normal operation and thetotal or trip mileages appear on the
display. Distance to be covered beforethe next service is less than
1000 miles. For example:
you have the follo-
wing distance left to travel before the next service: 900 Miles. For five seconds on switching on the ignition, the display shows: Five seconds after switching on the ignition, the total mileage recorderreverts to normal operation and themaintenance spanner remains illu-minated. This signifies that the vehicle will be
due for a service shortly. The totalor trip mileages appear on the dis-
play. The pre-set service distance hasbeen exceeded. The spanner and total number of miles exceeded flash in the displayfor five seconds after the ignition isswitched on. For example:
the pre-set service
distance has been exceeded by
300 miles. Your vehicle must beserviced as soon as possible. Five seconds after switching on the ignition, the total mileage recorderreverts to normal operation and themaintenance spanner remains illu-minated.
* According to model or country

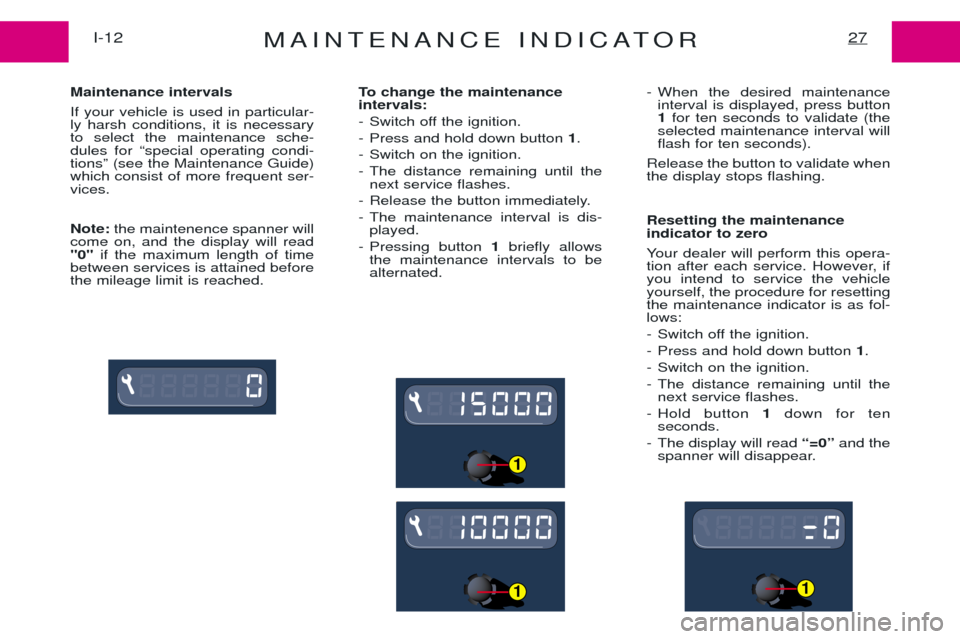

MAINTENANCE INDICATOR27I-12
Maintenance intervals If your vehicle is used in particular- ly harsh conditions, it is necessaryto select the maintenance sche-dules for Òspecial operating condi-tionsÓ (see the Maintenance Guide)which consist of more frequent ser-vices. Note: the maintenence spanner will
come on, and the display will read ''0'' if the maximum length of time
between services is attained beforethe mileage limit is reached. To change the maintenance intervals:
- Switch off the ignition.
- Press and hold down button
1.
- Switch on the ignition.
- The distance remaining until the next service flashes.
- Release the button immediately.
- The maintenance interval is dis- played.
- Pressing button 1briefly allows
the maintenance intervals to be alternated. - When the desired maintenance
interval is displayed, press button1 for ten seconds to validate (the
selected maintenance interval willflash for ten seconds).
Release the button to validate whenthe display stops flashing. Resetting the maintenance indicator to zero
Your dealer will perform this opera-
tion after each service. However, ifyou intend to service the vehicleyourself, the procedure for resettingthe maintenance indicator is as fol-lows:
- Switch off the ignition.
- Press and hold down button 1.
- Switch on the ignition.
- The distance remaining until the next service flashes.
- Hold button 1down for ten
seconds.
- The display will read Ò=0Óand the
spanner will disappear.
1
11

WARNING LAMPS*I-13
28

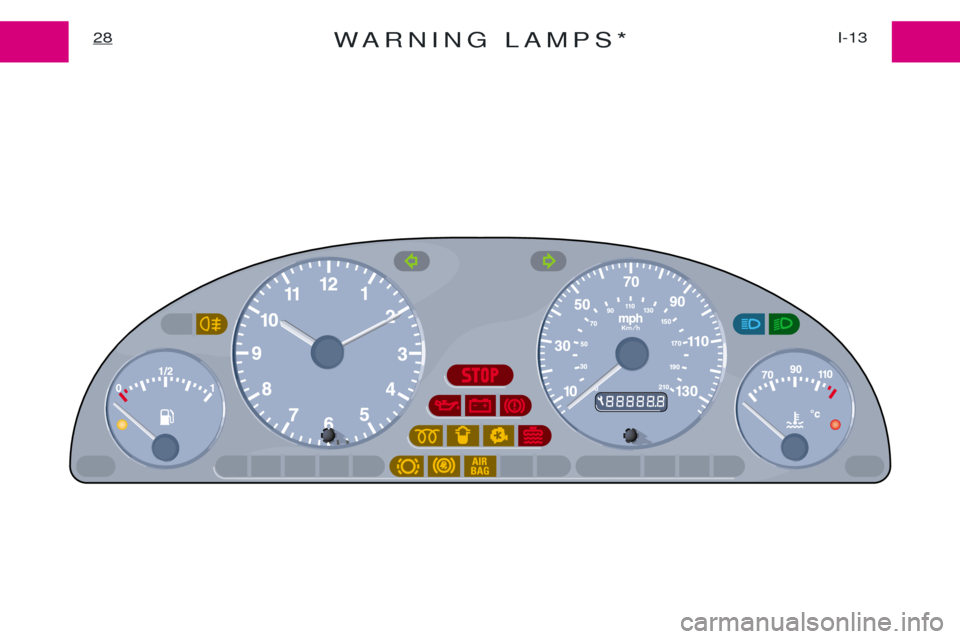

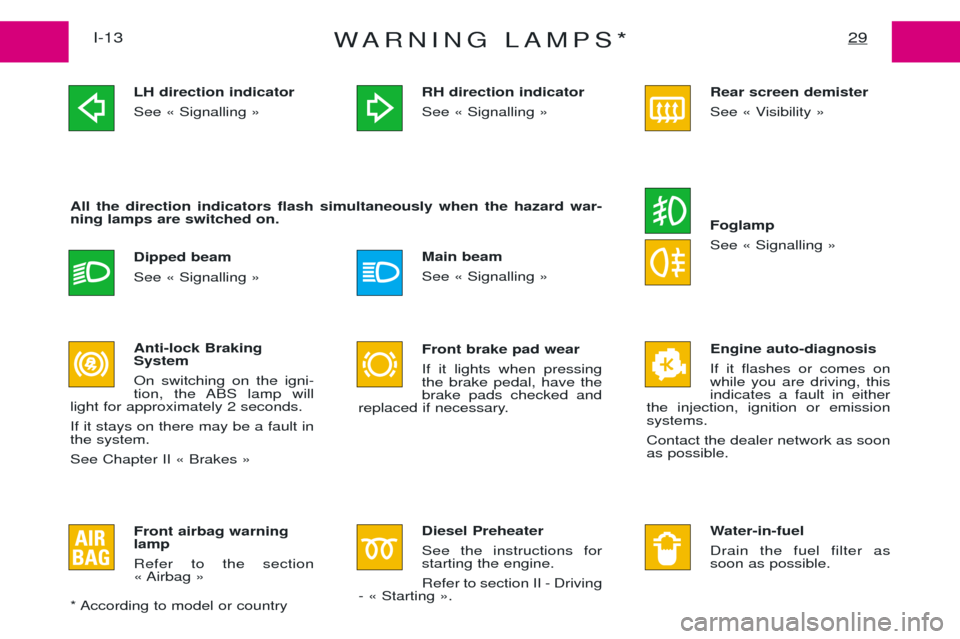

WARNING LAMPS*29I-13LH direction indicator See Ç Signalling È Dipped beam See Ç Signalling È
All the direction indicators flash simultaneously when the hazard war- ning lamps are switched on.
Anti-lock Braking System On switching on the igni-
tion, the ABS lamp will
light for approximately 2 seconds. If it stays on there may be a fault in the system. See Chapter II Ç Brakes È RH direction indicatorSee Ç Signalling È Main beam See Ç Signalling È Front brake pad wear If it lights when pressing the brake pedal, have thebrake pads checked and
replaced if necessary.
Diesel Preheater See the instructions for starting the engine. Refer to section II - Driving
- Ç Starting È. Rear screen demister
See Ç Visibility È Foglamp See Ç Signalling È Engine auto-diagnosis If it flashes or comes on while you are driving, thisindicates a fault in either
the injection, ignition or emissionsystems. Contact the dealer network as soon as possible.
Water-in-fuel Drain the fuel filter as soon as possible.
Front airbag warninglamp Refer to the section
Ç Airbag È
