TABLE OF FUSES
(According to model or country)V- 2
72

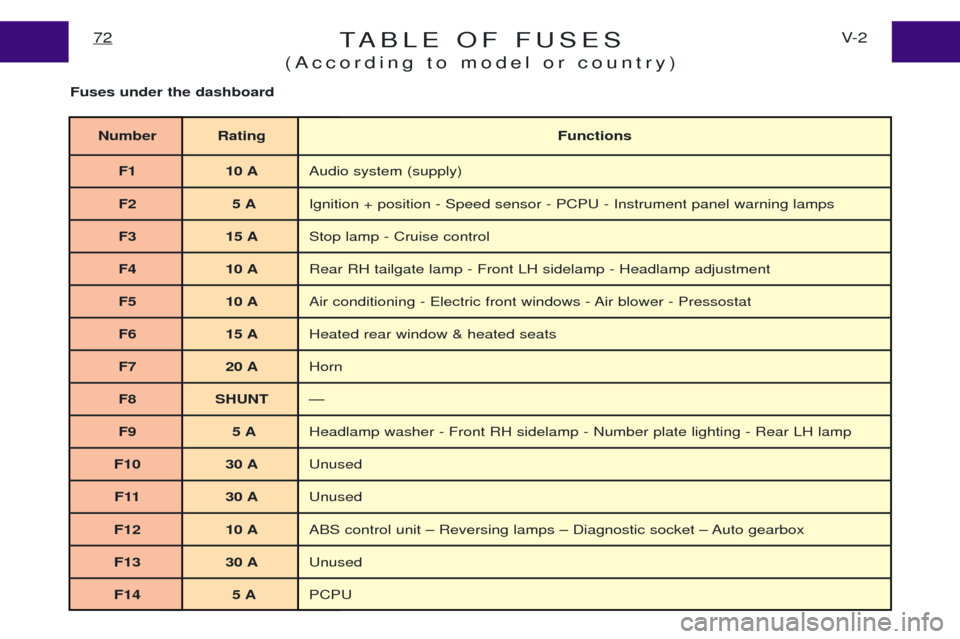

Fuses under the dashboard
Number Rating Functions
F1 10 A Audio system (supply)
F2 5 A Ignition + position - Speed sensor - PCPU - Instrument panel warning lamps
F3 15 A Stop lamp - Cruise control
F4 10 A Rear RH tailgate lamp - Front LH sidelamp - Headlamp adjustment
F5 10 A Air conditioning - Electric front windows - Air blower - Pressostat
F6 15 A Heated rear window & heated seats
F7 20 A Horn
F8 SHUNT Ñ
F9 5 A Headlamp washer - Front RH sidelamp - Number plate lighting - Rear LH lamp
F10 30 A Unused
F11 30 A Unused
F12 10 A ABS control unit Ð Reversing lamps Ð Diagnostic socket Ð Auto gearbox
F13 30 A Unused
F14 5 A PCPU

TABLE OF FUSES
(According to model or country)75V- 2

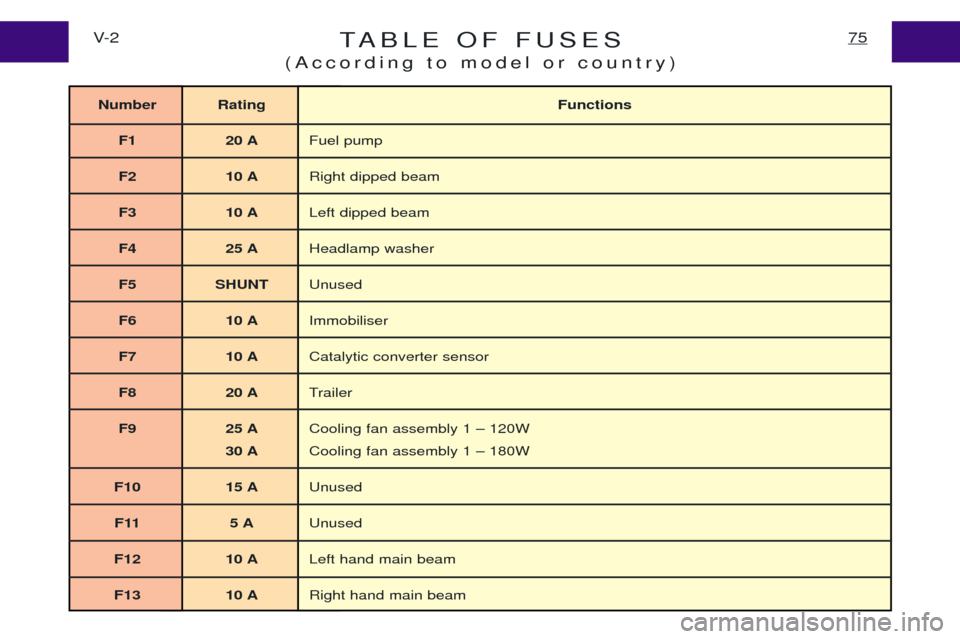

Number Rating Functions
F1 20 A Fuel pump
F2 10 A Right dipped beam
F3 10 A Left dipped beam
F4 25 A Headlamp washer
F5 SHUNT Unused
F6 10 A Immobiliser
F7 10 A Catalytic converter sensor
F8 20 A Trailer
F9 25 A Cooling fan assembly 1 Ð 120W
30 A Cooling fan assembly 1 Ð 180W
F10 15 A Unused
F11 5 A Unused
F12 10 A Left hand main beam
F13 10 A Right hand main beam

TABLE OF FUSES
(According to model or country)77V- 2
Number Rating Functions
F1 20 A Trailer
F2 15 ➟ 20 A Fuel pump
F3 10 A Left dipped beam
F4 10 A Right dipped beam
F5 10 A Diagnostic socket
F6 10 A Electronic injection - Immobiliser
F7 10 A Left hand main beam
F8 10 A Right hand main beam
F9 25 ➟ 40 A Engine cooling
F10 30 A Headlamp washers pump
F11 20 A Additional heating
F12 5 A Headlamp wash timer
F13 15 A Catalytic converter sensor - Air blower
F15 40 A Air blower - Air conditioning
F16 30 ➟ 50 A Engine cooling
MF1 20 A Injection relay
MF2 30 A Injection relay
MF4 60 A ABS ECU
