Access

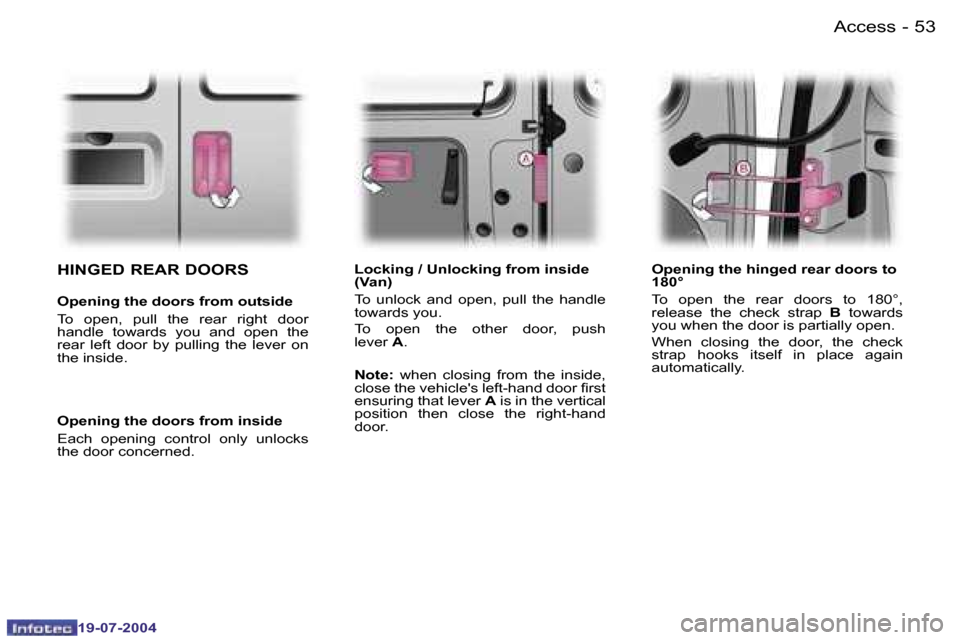

HINGED REAR DOORS
Opening the doors from outside
To open, pull the rear right door
handle towards you and open the
rear left door by pulling the lever on
the inside. Locking / Unlocking from inside
(Van)
To unlock and open, pull the handle
towards you.
To open the other door, push
lever
A.
Note: when closing from the inside,
close the vehicle's left-hand door irst
ensuring that lever A is in the vertical
position then close the right-hand
door. Opening the hinged rear doors to
180°
To open the rear doors to 180°,
release the check strap
B towards
you when the door is partially open.
When closing the door, the check
strap hooks itself in place again
automatically.
Opening the doors from inside
Each opening control only unlocks
the door concerned.

54 -
19-07-2004
55
-
19-07-2004
Access
OPENING THE BONNET
Inside the vehicle : pull the handle
on the right-hand side, under the
fascia.
BONNET STRUT
Secure the strut to hold the bonnet
open.
Before closing the bonnet, replace
the strut in its housing.
To close
Lower the bonnet and release it at
the end of its travel. Check that the
bonnet is locked.
Outside the vehicle
: lift the catch
and raise the bonnet.

54 -
19-07-2004
55
-
19-07-2004
Access
FILLING WITH FUEL
The engine must be switched off
when illing with fuel. F Insert the key then turn it to the
left.
F Remove the cap.
An indication on the cap reminds you
which type of fuel to use.
When you ill your tank, do not
continue after the third cut-off of the
pump. This could cause your vehicle
to malfunction.
The capacity of the tank is
approximately 80 litres. F After illing the tank, lock the cap.
Low fuel level When the minimum
fuel level in the tank is
reached, this warning
light comes on.
You have enough fuel remaining
to drive for approximately 30 miles
(50 km). Ensure that the right-hand
sliding side door is not
opened while you are illing
with fuel.
The key cannot be removed
from the lock until the cap has been
replaced on the fuel tank.
If the tank is illed with fuel which
does not conform to your vehicle's
engine, it is essential that the fuel
tank is drained before the engine is
switched on.

56 -
19-07-2004
57
-
19-07-2004
Visibility
In good or rainy weather,
both day and night, the
front fog lamps and the rear
fog lamp are dazzling and
are prohibited.
Do not forget to switch them off when
they are no longer needed.

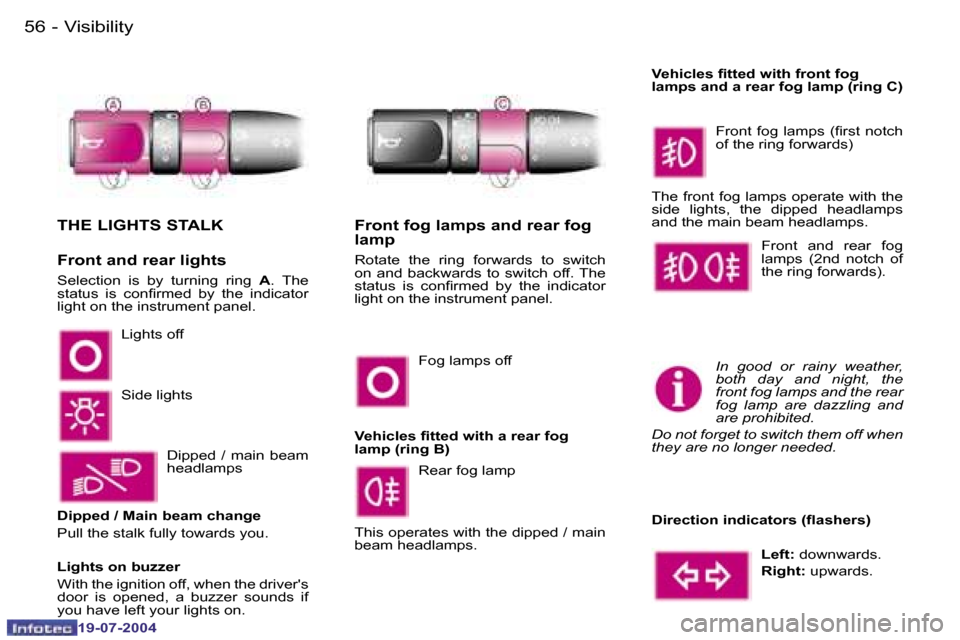

THE LIGHTS STALK
Front and rear lights
Selection is by turning ring A. The
status is conirmed by the indicator
light on the instrument panel.
Lights off
Side lights
Dipped / main beam
headlamps
Dipped / Main beam change
Pull the stalk fully towards you.
Lights on buzzer
With the ignition off, when the driver's
door is opened, a buzzer sounds if
you have left your lights on.
Front fog lamps and rear fog
lamp
Rotate the ring forwards to switch
on and backwards to switch off. The
status is conirmed by the indicator
light on the instrument panel.
Fog lamps off
Vehicles itted with a rear fog
lamp (ring B) Rear fog lamp
This operates with the dipped / main
beam headlamps. The front fog lamps operate with the
side lights, the dipped headlamps
and the main beam headlamps.
Front and rear fog
lamps (2nd notch of
the ring forwards).
Front fog lamps (irst notch
of the ring forwards)
Vehicles itted with front fog
lamps and a rear fog lamp (ring C)
Direction indicators (lashers)
Left: downwards.
Right: upwards.

56 -
19-07-2004
57
-
19-07-2004
Visibility
When using a car wash,
switch off the ignition or
check that the windscreen
wipers stalk is in position
0
-Off.
In winter, you are advised to wait until
the windscreen has been de-iced
fully before operating the windscreen
wipers stalk.
WINDSCREEN WIPER STALK
Front windscreen wiper
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
l Intermittent wipe.
0 Off.
â Single wipe
(press downwards). Operation
In position
1 or 2, when the vehicle
stops, the windscreen wiper changes
to a lower wiping speed, then
resumes its initial speed when the
vehicle starts again.
In the Intermittent position, the wiping
speed is proportional to the speed of
the vehicle. Windscreen wash
Pull the wiper stalk towards you.

The windscreen wash, then the
windscreen wipers, operate for a
speciied time.

58 -
19-07-2004
59
-
19-07-2004
Visibility

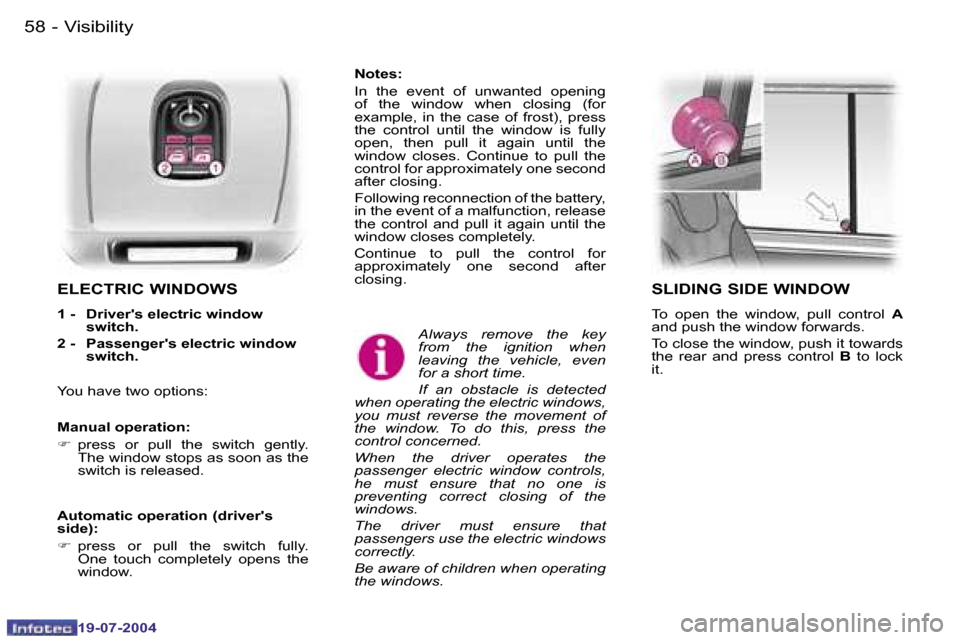

ELECTRIC WINDOWS
1 - Driver's electric window switch.
2 - Passenger's electric window switch.
SLIDING SIDE WINDOW
To open the window, pull control A
and push the window forwards.
To close the window, push it towards
the rear and press control B to lock
it.
Always remove the key
from the ignition when
leaving the vehicle, even
for a short time.
If an obstacle is detected
when operating the electric windows,
you must reverse the movement of
the window. To do this, press the
control concerned.
When the driver operates the
passenger electric window controls,
he must ensure that no one is
preventing correct closing of the
windows.
The driver must ensure that
passengers use the electric windows
correctly.
Be aware of children when operating
the windows.
Notes:
In the event of unwanted opening
of the window when closing (for
example, in the case of frost), press
the control until the window is fully
open, then pull it again until the
window closes. Continue to pull the
control for approximately one second
after closing.
Following reconnection of the battery,
in the event of a malfunction, release
the control and pull it again until the
window closes completely.
Continue to pull the control for
approximately one second after
closing.
Automatic operation
(driver's
side): F press or pull the switch fully.
One touch completely opens the
window.
You have two options:
Manual operation: F
press or pull the switch gently.
The window stops as soon as the
switch is released.

58 -
19-07-2004
59
-
19-07-2004
Visibility
MIRRORS
Electric exterior mirrors F Move switch A to the right or to
the left to select the corresponding
mirror.
F Move switch A in all four directions
to adjust.
F Return switch A to the centre
position.
When parked, the mirrors can be
folded back manually. Manual exterior mirrors
Move the lever in all four directions
to adjust.
When the vehicle is parked, the
exterior mirrors can be folded back
manually.
Manual interior mirror
The interior mirror has two positions:
- day (normal),
- night (anti-dazzle).
To change from one to the other,
push or pull the lever on the lower
edge of the mirror.
AREAS FOR TOLL CARDS /
CAR PARK TICKETS
The athermic windscreen has two
non-relective zones located either
side of the base of the interior
mirror.
They are intended for afixing toll
cards and/or car park tickets.

60 -
19-07-2004
61
-
19-07-2004
Comfort and safety
HEADLAMP ADJUSTMENT
Depending on the load or the
number of people in your vehicle, it
is recommended that the headlamp
beam is adjusted.
0 Empty / Driver only.
- 2 or 3 people.
1 Minimal load / 5 or 6 people.
2 Medium load / 7 to 9 people.
3 Maximum load / 1 to 3 people in
the front + maximum authorised
loads.
Initial setting is position 0.
STEERING WHEEL HEIGHT
ADJUSTMENT
When stationary, push the handle
A fowards to unlock the steering
wheel.
Adjust it to the desired height.
Pull the handle A towards you fully to
lock the steering wheel.
HAZARD WARNING LIGHTS
Press the button, the direction
indicators lash.
They can operate with the ignition
off.
HORN
Press the end of the lights
and direction indicators
stalk.

60 -
19-07-2004
61
-
19-07-2004
Comfort and safety

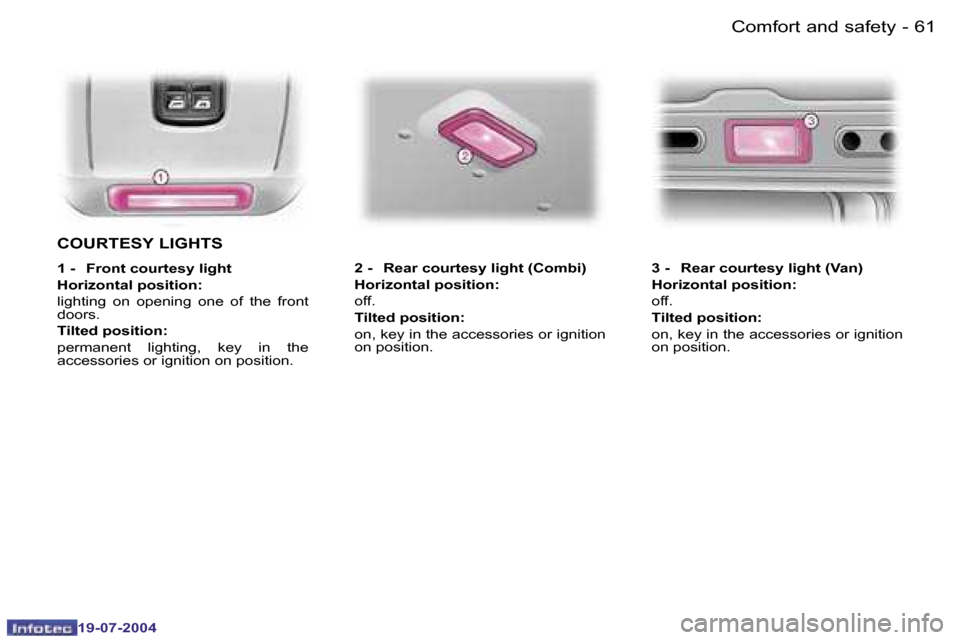

COURTESY LIGHTS
1 - Front courtesy light
Horizontal position:
lighting on opening one of the front
doors.
Tilted position:
permanent lighting, key in the
accessories or ignition on position. 2 - Rear courtesy light (Combi)
Horizontal position:
off.
Tilted position:
on, key in the accessories or ignition
on position.
3 - Rear courtesy light (Van)
Horizontal position:
off.
Tilted position:
on, key in the accessories or ignition
on position.

62 -
19-07-2004
63
-
19-07-2004
Comfort and safety

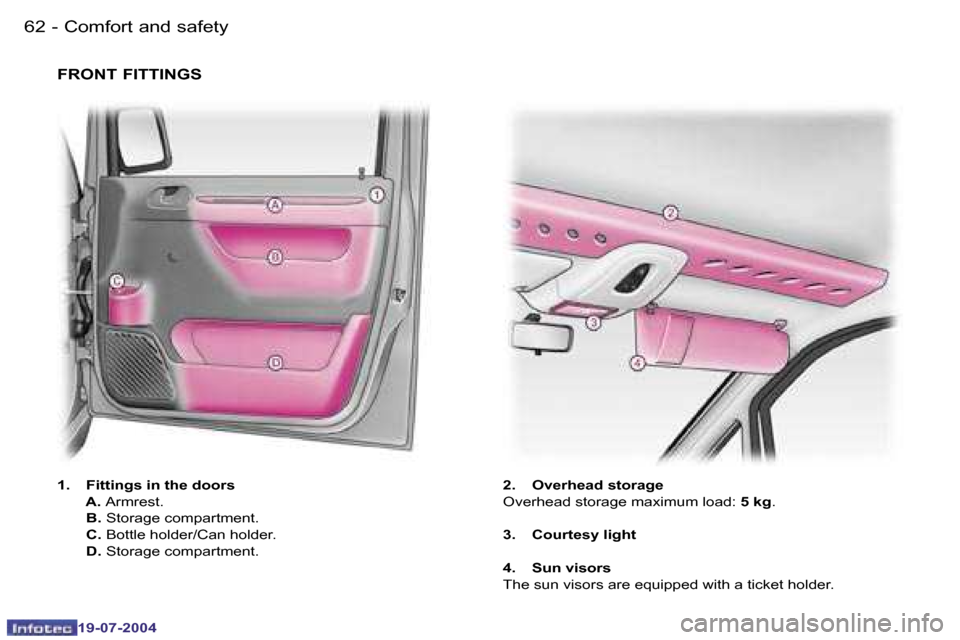

1. Fittings in the doors
A.
Armrest.
B. Storage compartment.
C. Bottle holder/Can holder.
D. Storage compartment. 2. Overhead storage
Overhead storage maximum load:
5 kg.
3. Courtesy light
4. Sun visors
The sun visors are equipped with a ticket holder.
FRONT FITTINGS
