Peugeot Expert 2019 Manual PDF

69
F From the rear, pull the strap without going beyond the point of resistance and push the
seat for ward or pull it backward.
F

F
rom the front, raise the control and slide
the seat for ward or backward.
Moving the seat along the
full length of the rail
F Place the seat backrest in the table position.
F S lide the seat by pulling on the front control
or rear strap.
Folding the backrest to the
table position
(example for an individual seat)
F

P
ut the head restraints in the low position.
F

F
rom the rear, lower the handle to release
the backrest.
F

F
rom the front, raise the handle to release
the backrest.
F

F
old the backrest onto the cushion.
Do not leave objects (such as a bag or
toys) on the cushion when folding the
backrest. To return the backrest to the normal position,
the seat must be positioned between the
markings.
The arrow must not be outside the markings.
Returning the backrest
to the normal position
(between the markings)
3
Ease of use and comfort

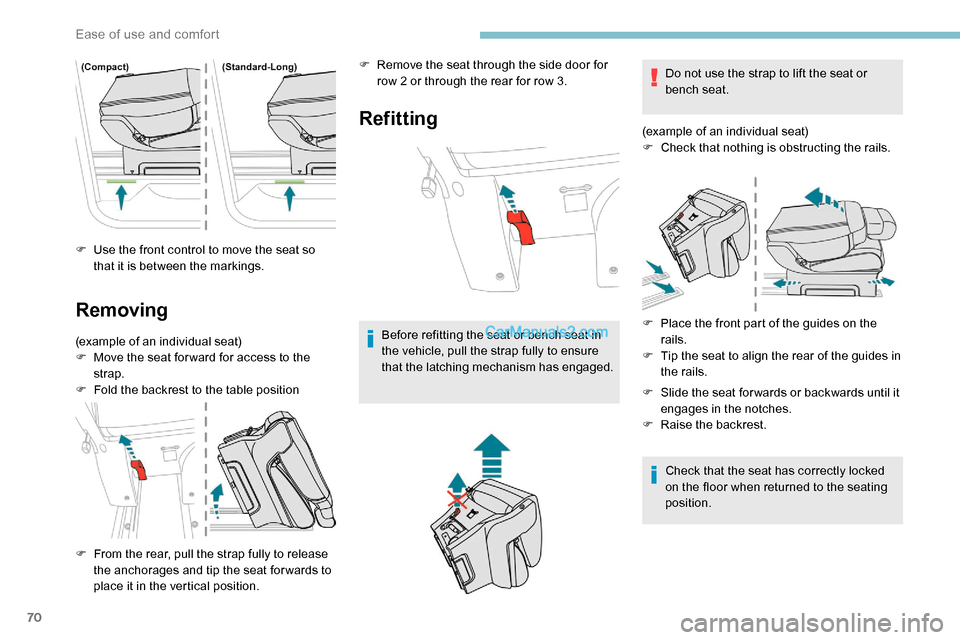

70
F Use the front control to move the seat so that it is between the markings.
Removing
(example of an individual seat)
F M ove the seat for ward for access to the
strap.
F

F
old the backrest to the table position
Refitting
Before refitting the seat or bench seat in
the vehicle, pull the strap fully to ensure
that the latching mechanism has engaged.
F

F

rom the rear, pull the strap fully to release
the anchorages and tip the seat for wards to
place it in the vertical position. F

R
emove the seat through the side door for
row 2 or through the rear for row 3. Do not use the strap to lift the seat or
bench seat.
(example of an individual seat)
F
C
heck that nothing is obstructing the rails.
F P lace the front part of the guides on the
rails.
F

T
ip the seat to align the rear of the guides in
the rails.
F

S
lide the seat for wards or backwards until it
engages in the notches.
F

Ra
ise the backrest.
Check that the seat has correctly locked
on the floor when returned to the seating
position.
Ease of use and comfort

71

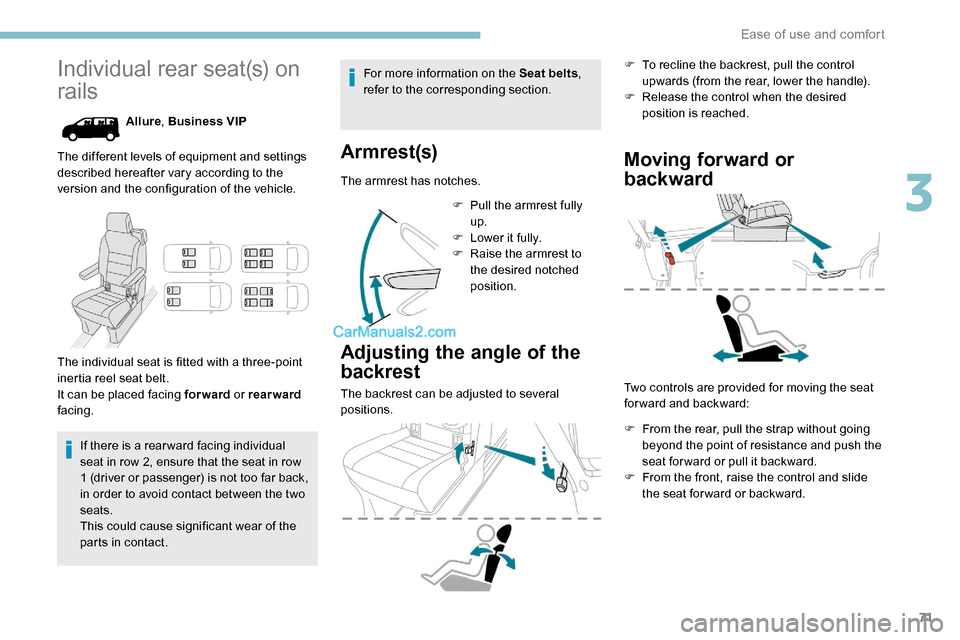

Individual rear seat(s) on
rails
Allure, Business VIP
The different levels of equipment and settings
described hereafter vary according to the
version and the configuration of the vehicle.
The individual seat is fitted with a three-point
inertia reel seat belt.
It can be placed facing forward or rearward
facing.
If there is a rear ward facing individual
seat in row 2, ensure that the seat in row
1 (driver or passenger) is not too far back,
in order to avoid contact between the two
seats.
This could cause significant wear of the
parts in contact. The backrest can be adjusted to several
positions.
Moving forward or
backward
Ar mrest(s)
The armrest has notches.
Adjusting the angle of the
backrest
F Pull the armrest fully
up.
F

L
ower it fully.
F

R
aise the armrest to
the desired notched
position.
For more information on the Seat belts
,
refer to the corresponding section. F
T
o recline the backrest, pull the control
upwards (from the rear, lower the handle).
F
R
elease the control when the desired
position is reached.
Two controls are provided for moving the seat
forward and backward:
F
F
rom the rear, pull the strap without going
beyond the point of resistance and push the
seat for ward or pull it backward.
F

F
rom the front, raise the control and slide
the seat for ward or backward.
3
Ease of use and comfort

72
Folding the backrest to the
table position
Ensure that nothing (examples: bag, case,
toy, folding and sliding table) is inter fering
with the operation to fold the backrest.
F

P
ut the head restraints in the low position.
F

F
rom the rear, lower the handle to release
the backrest.
F

F
rom the front, raise the handle to release
the backrest.
F

F
old the backrest onto the cushion.
Removing
F Move the seat for wards for access to the strap.
F

F
old the backrest to the table position.
F

F
rom the rear, pull the strap beyond
the point of resistance to release the
anchorages and tip the seat for wards to
place it in the vertical position.
F

R
emove the seat through the side door for
row 2 or through the rear for row 3.
Changing the direction of
the seat Refitting
When the seat is removed, your can rotate it
by 18 0 °.
Before refitting the seat in the vehicle, pull
the strap fully to ensure that the latching
mechanism has engaged.
Do not use the strap to lift the seat.

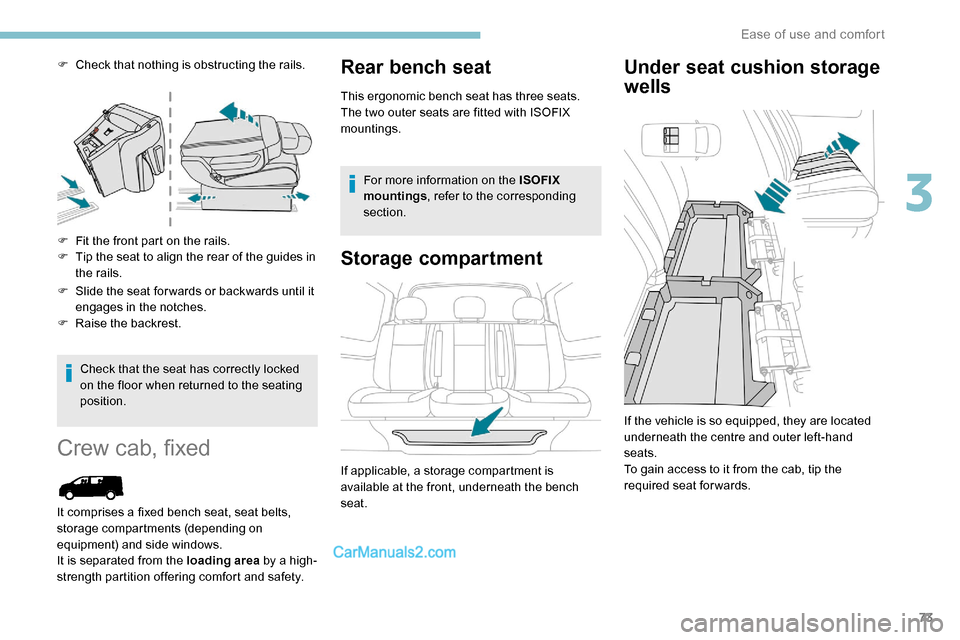

Ease of use and comfort

73
F Check that nothing is obstructing the rails.
F
F
it the front part on the rails.
F

T
ip the seat to align the rear of the guides in
the rails.
F

S
lide the seat for wards or backwards until it
engages in the notches.
F

Ra
ise the backrest.
Check that the seat has correctly locked
on the floor when returned to the seating
position.
Crew cab, fixed
It comprises a fixed bench seat, seat belts,
storage compartments (depending on
equipment) and side windows.
It is separated from the loading area by a high-
strength partition offering comfort and safety.
Rear bench seat
This ergonomic bench seat has three seats.
The two outer seats are fitted with ISOFIX
mountings.
For more information on the ISOFIX
mountings , refer to the corresponding
section.
Storage compartment Under seat cushion storage
wells
If the vehicle is so equipped, they are located
underneath the centre and outer left-hand
seats.
To gain access to it from the cab, tip the
required seat forwards.
If applicable, a storage compartment is
available at the front, underneath the bench
seat.
3
Ease of use and comfort

74
Depending on the country of sale, the wells can
be dismantled and removed through the rear so
that bulky objects can be stowed underneath
the bench seat.Do not attach anything to the cab fixing
structure.
Do not exceed the number of passengers
indicated on the registration certificate.
In the rear, the loading area is intended
for carrying goods only.
You are advised to place the goods or
heavy objects as far for wards as possible
in the loading area (towards the cab) and
secure them by means of straps using the
stowing rings on the floor.
The rear seat belt frames are not designed
to secure the load being carried.
Crew cab, folding
It comprises a folding bench seat, seat belts
and side windows.
It is separated from the loading area by a
bench seat with a high-strength partition
offering comfort and safety.
Folded position
F Using one hand only, pull up one of the straps A to fold the bench seat.
F

Us
ing the handle B , guide the movement
of the bench seat until it locks in the folded
position.
F

T
o put the bench seat back in place, pull
the strap C to unlock the bench seat, then
release the strap.
F

T
hen, using only the handle B , guide the
descent of the backrest to tip the assembly
until it locks in the bench seat position.
Bench seat position
Ease of use and comfort

75
Never put your hand underneath the
bench seat to guide it downwards, as you
could get your fingers trapped.
Ensure there are no objects or feet
beneath the bench seat or obstructing
the anchorage system, preventing the
assembly from being correctly locked.
Do not attach anything to the cab fixing
structure.
Do not exceed the number of passengers
indicated on the registration certificate.
In the rear, the load space is intended for
carrying goods only.
It is recommended to place goods or
heavy objects as far for wards as possible
in the load space (towards the cab) and
secure them by means of straps using the
stowing rings on the floor.
The rear seat belt frames are not designed
to secure the load being carried.Interior fittings
Mats
Fitting
When fitting the mat for the first time, on the
driver's side, use only the fixings provided in
the wallet attached.
Removing/refitting
F To remove it on the driver's side, move the seat fully back and turn the fixings by a
quarter turn. F

T
o refit it, position the mat and refit the
fixings by turning them by a quarter turn.
To avoid any risk of jamming the pedals:
-
o
nly use mats which are suited to the
fixings already present in the vehicle;
these fixings must be used,
-
n
ever fit one mat on top of another.
The use of mats not approved by
PEUGEOT may inter fere with access to
the pedals and hinder the operation of the
cruise control/speed limiter.
The mats approved by PEUGEOT have
two fixings located below the seat.
In rows 2 and 3
3
Ease of use and comfort

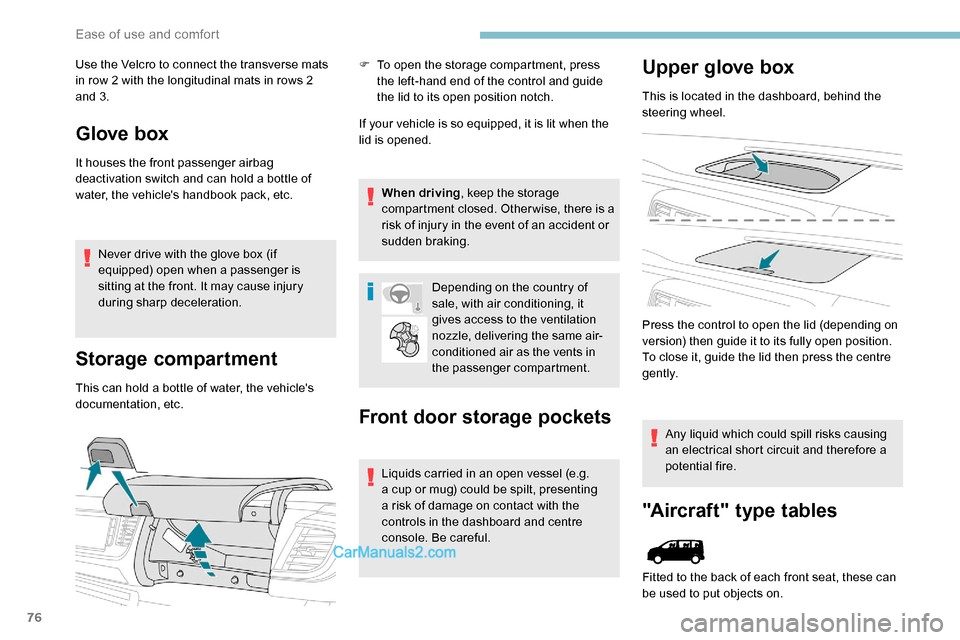

76
Use the Velcro to connect the transverse mats
in row 2 with the longitudinal mats in rows 2
and 3.
Glove box
It houses the front passenger airbag
deactivation switch and can hold a bottle of
water, the vehicle's handbook pack, etc.Never drive with the glove box (if
equipped) open when a passenger is
sitting at the front. It may cause injury
during sharp deceleration.
Storage compartment
This can hold a bottle of water, the vehicle's
documentation, etc. F

T
o open the storage compartment, press
the left-hand end of the control and guide
the lid to its open position notch.
If your vehicle is so equipped, it is lit when the
lid is opened.
When driving , keep the storage
compartment closed. Otherwise, there is a
risk of injury in the event of an accident or
sudden braking.
Depending on the country of
sale, with air conditioning, it
gives access to the ventilation
nozzle, delivering the same air-
conditioned air as the vents in
the passenger compartment.
Front door storage pockets
Liquids carried in an open vessel (e.g.
a cup or mug) could be spilt, presenting
a risk of damage on contact with the
controls in the dashboard and centre
console. Be careful.
Upper glove box
This is located in the dashboard, behind the
steering wheel.
Press the control to open the lid (depending on
version) then guide it to its fully open position.
To close it, guide the lid then press the centre
g e nt l y.
Any liquid which could spill risks causing
an electrical short circuit and therefore a
potential fire.
"Aircraft" type tables
Fitted to the back of each front seat, these can
be used to put objects on.
Ease of use and comfort

77
On the passenger side, do not forget to
fold it before placing the seat in the "table"
position.
Do not place hard or heavy objects on
the table. They could become dangerous
projectiles in the event of emergency
braking or impact.
For more information on the Front seats
and, in particular, the "table" position of
the backrest, refer to the corresponding
section.
12 V socket(s)
Depending on version.
F
T
o connect a 12 V accessory (maximum
power: 120 Watts), lift the cover and plug in
a suitable adapter.
Obser ve the maximum power rating to
avoid damaging the accessory. The connection of an electrical device
not approved by PEUGEOT, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or inter ference with displays in
the screens.
USB socketF To use the table, lower it fully until it locks in
the low position.
F

T
o store it, raise the table, passing the point
of resistance, to the high position.
It allows the connection of a portable device or
a USB memory stick.
It reads the audio files which are sent to your
audio system and played via the vehicle's
speakers.
It is also possible to manage these files using
the steering mounted controls or the audio
system.
3
Ease of use and comfort

78
When the USB socket is used, the
portable device charges automatically.
While charging, a message is displayed
if the power consumption of the portable
device exceeds the amperage supplied by
the vehicle.
For more information on the use of this
equipment, refer to the Audio equipment
and telematics section.
JACK socket
This allows the connection of a portable device
for listening to audio files via the vehicle's
speakers.
The files are managed using the portable
device.
For more details on how to use this
equipment, refer to the Audio equipment
and telematics section.
220 V socket
If your vehicle is so equipped, a 220 V/50 Hz
socket (maximum power: 150 W) is located
underneath the front right-hand seat and is
therefore accessible from the second row.
It operates with the engine running, as well as
in STOP mode of Stop & Start.
F

Ra
ise the cover.
F

C
heck that the indicator lamp is on in green.
F

C
onnect your multimedia or other electrical
device (telephone charger, laptop computer,
CD-DVD player, bottle warmer, etc.).
In the event of a fault, the warning lamp flashes
green.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
Luggage retaining net
Attached to the stowing rings on the rear floor,
it allows objects to be held down. Connect only one device at a time to the
socket (no extension lead or multi-socket
connector).
Connect only devices with class II
insulation (shown on the device).
Do not use a device with a metal case.
As a safety measure, when electrical
consumption is high and when required by
the vehicle's electrical system (particular
weather conditions, electrical overload,
etc.), the current supply to the socket will
be cut off; the green indicator lamp goes
of f.
Ease of use and comfort
