Peugeot Expert 2019 Service Manual

39
F To deadlock it, turn the key towards the rear again within 5 seconds of locking
(confirmed by the temporary lighting of the
direction indicators).
If the vehicle is fitted with an alarm, this
function will not be activated when locking
with the key.
If the alarm is activated, the siren sounds
on opening the door; switch on the ignition
to stop it.Central locking not
functioning
Use these procedures in the following cases:
- c entral locking fault,
-
b

attery disconnected or discharged.
In the event of a malfunction with the
central locking system, the battery must
be disconnected to lock the boot and thus
ensure that the vehicle is locked fully.
Driver's door
F Turn the key towards the rear of the vehicle to lock it, or towards the front to unlock it.
If unlocking using the key in the lock
takes place after locking using the
remote control or the Keyless Entr y
and Starting
, all of the accesses are
unlocked.
If unlocking using the key in the lock
takes place after locking using the
key , only the doors are unlocked (front
doors, sliding side doors(s)). The hinged
doors and the tailgate are not unlocked.
Switching on the ignition unlocks them.
Front passenger door and sliding
side door
Unlocking
F P ull the interior door opening handle.
Locking
F

O
pen the door.
F

F
or the side door, check that the child
lock is not on. Refer to the corresponding
section. Front passenger door
Sliding side door
F
R
emove the black cap on the edge of the
door, using the key.
F
I
nsert the key in the aperture without forcing
it, then without turning it, move the latch
sideways towards the inside of the door.
F
R
emove the key and refit the black cap.
F
C
lose the doors and check from the outside
that the vehicle is locked.Side-hinged doors
Unlocking
F U se the interior opening handle.
Locking
F

I
f the vehicle is so equipped, check that the
electric child lock is not on.
F

O
pen the left-hand side-hinged door.
2
Access

40
Unlocking the tailgate
F Insert the key into the latch aperture on the edge of the door (without forcing), then slide
the assembly upward.
F

R
emove the key.
F

C
lose the door and check from the outside
that it has locked correctly.
If the fault persists after closing again, the
tailgate will remain locked.
F

F
rom inside the vehicle, insert a small
screwdriver into hole A of the lock to unlock
the tailgate.
F

M
ove the latch to the left.
Changing the battery
If the battery is discharged,
this warning lamp comes on,
accompanied by an audible signal
and the display of a message.
Without Keyless Entr y and Star ting
Batter y ref.: CR1620/3 Volts.
With Keyless Entr y and Star ting
Batter y ref.: CR2032/3 Volts. F

U
nclip the cover by inserting a small
screwdriver in the slot and raise the cover.
F R emove the discharged battery from its
housing.
F

I
nsert the new battery, observing the
polarity, and clip the cover onto the housing.
F

R
einitialise the remote control.
For more information on Reinitialising the
remote control , refer to the corresponding
section.
Do not throw remote control batteries
away as they contain metals which are
harmful to the environment. Take them
to an approved collection point.
Reinitialising the remote
control
Following replacement of the battery or in
the event of a remote control fault, it may be
necessary to reinitialise the remote control.If the problem persists, contact a
PEUGEOT dealer or a qualified workshop
as soon as possible.
Access

41
Without Keyless Entry and
Starting
With Keyless Entry and Starting
F Switch on the ignition by pressing the "START/STOP " button.
F

W
ith a manual gearbox , place the
gear lever in neutral then fully depress
the clutch pedal.
F

Wi
th an automatic gearbox, from
mode P , fully depress the brake pedal.
F

W
ith an electronic gearbox, from
mode N , fully depress the brake pedal.
If the fault persists after reinitialisation, contact
a PEUGEOT dealer or a qualified workshop
without delay.
F

S

witch off the ignition.
F

R

eturn the key to position 2 (Ignition on) .
F

I

mmediately press the closed padlock
button for a few seconds.
F

S

witch off the ignition and remove the key
from the switch.
The remote control is now fully operational
again. F

I
nsert the mechanical key (integral with
the remote control) in the lock to open the
vehicle.=
F
P
lace the electronic key against the back-up
reader on the steering column and hold it
there until the ignition is switched on.
Central locking / unlocking
Manual
F Press this button to operate the central locking of the vehicle (doors, tailgate or
side-hinged doors) from inside the vehicle.
The indicator lamp in the button comes on.
F

P
ressing the button again unlocks the
vehicle completely. The indicator lamp in
the button goes off.
The indicator lamp also goes off when
unlocking one or more doors.
The central locking does not take place if
one of the doors is open.
2
Access

42
Locking / unlocking the
loading area
This button is unavailable if the vehicle
has been locked or deadlocked from
outside (using the key, remote control or
Keyless Entry and Starting, depending on
equipment) or if one of the doors is still
open.
Automatic (anti-intrusion
security)
The doors and the tailgate or the side-hinged
doors can lock automatically while driving
(speed above 6 mph (10 km/h)).
To deactivate/reactivate this function (activated
by default):
F

P
ress the button until an audible signal is
heard and/or a message appears in the
screen.
When locking/deadlocking from the
outside
When the vehicle is locked or deadlocked
from the outside, the indicator lamp
flashes and the button is inoperative.
F

A

fter normal locking, pull one of the
interior door controls to unlock the
vehicle.
F

A

fter deadlocking, it is necessary to
use the remote control, Keyless Entry
and Starting or the integral key to
unlock the vehicle.
Driving with the doors locked could make
it more difficult for the emergency ser vices
to enter the vehicle in an emergency. When carrying large objects
with the tailgate or side-
hinged doors open, press
the button to lock just the
cab doors.
When carrying large objects
with the tailgate or side-
hinged doors open, press
the button to lock just the
front and rear doors (sliding
side door).
If one of the doors is open, the central
locking from the inside does not function.
This is signalled by a mechanical noise
from the locks.
If the tailgate or the side-hinged doors are
open, only the other doors are locked. The
indicator lamp in the button remains off. When locking from inside, the door mirrors
do not fold.
Access

43

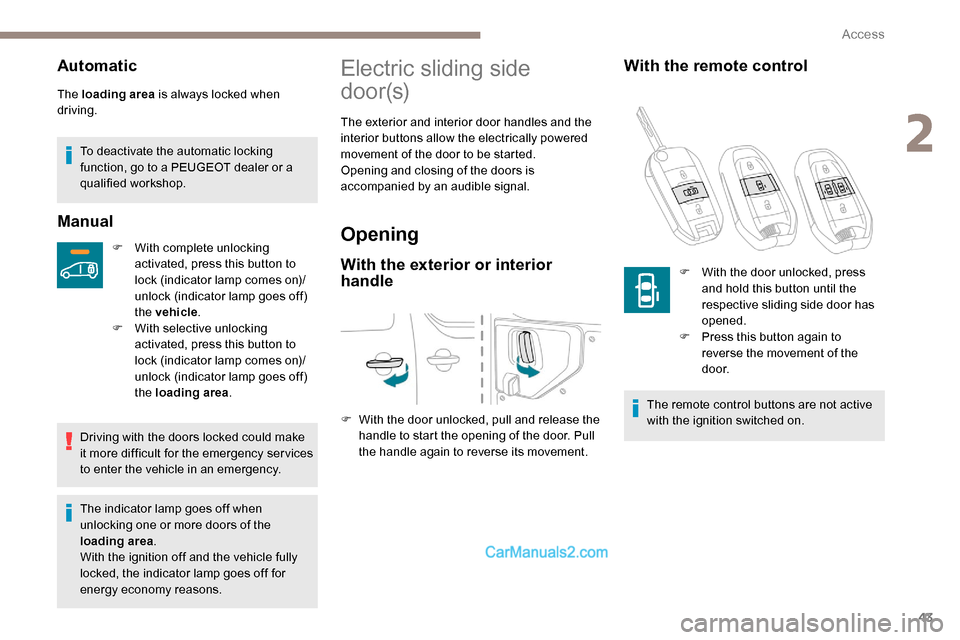

Automatic
The loading area is always locked when
driving.
To deactivate the automatic locking
function, go to a PEUGEOT dealer or a
qualified workshop.
Manual
F With complete unlocking activated, press this button to
lock (indicator lamp comes on)/
unlock (indicator lamp goes off)
the vehicle .
F

W
ith selective unlocking
activated, press this button to
lock (indicator lamp comes on)/
unlock (indicator lamp goes off)
the loading area .
Electric sliding side
d o o r (s)
Opening
With the exterior or interior
handle
F With the door unlocked, pull and release the
handle to start the opening of the door. Pull
the handle again to reverse its movement.
Driving with the doors locked could make
it more difficult for the emergency ser vices
to enter the vehicle in an emergency.
The indicator lamp goes off when
unlocking one or more doors of the
loading area .
With the ignition off and the vehicle fully
locked, the indicator lamp goes off for
energy economy reasons. The exterior and interior door handles and the
interior buttons allow the electrically powered
movement of the door to be started.
Opening and closing of the doors is
accompanied by an audible signal.
With the remote control
F With the door unlocked, press
and hold this button until the
respective sliding side door has
opened.
F

P
ress this button again to
reverse the movement of the
d o o r.
The remote control buttons are not active
with the ignition switched on.
2
Access

44
Using the button(s) on the door
pillar
Using the button(s) at the front
F With complete unlocking activated and the child lock deactivated, to unlock the vehicle
and start the opening of a door, press the
button for the corresponding door.
F

W
ith selective unlocking activated, to
unlock just the loading area and start the
opening of a door, press the button for the
corresponding door.
F

I
n both cases, pressing the button again
reverses the movement of the door.
Closing
With the exterior handle
With the remote control
F Press and hold this button until the respective sliding door has
closed. Press it again to reverse
the movement.
The remote control buttons are not active
with the ignition switched on.
With the button(s) on the door
pillar
With the button(s) at the front
F To start the closing of a door, press the button for the corresponding door. Pressing
it again reverses the movement.
F

P

ull and release the handle to start the
closing of the door. Pull again to reverse the
movement.
Access

45

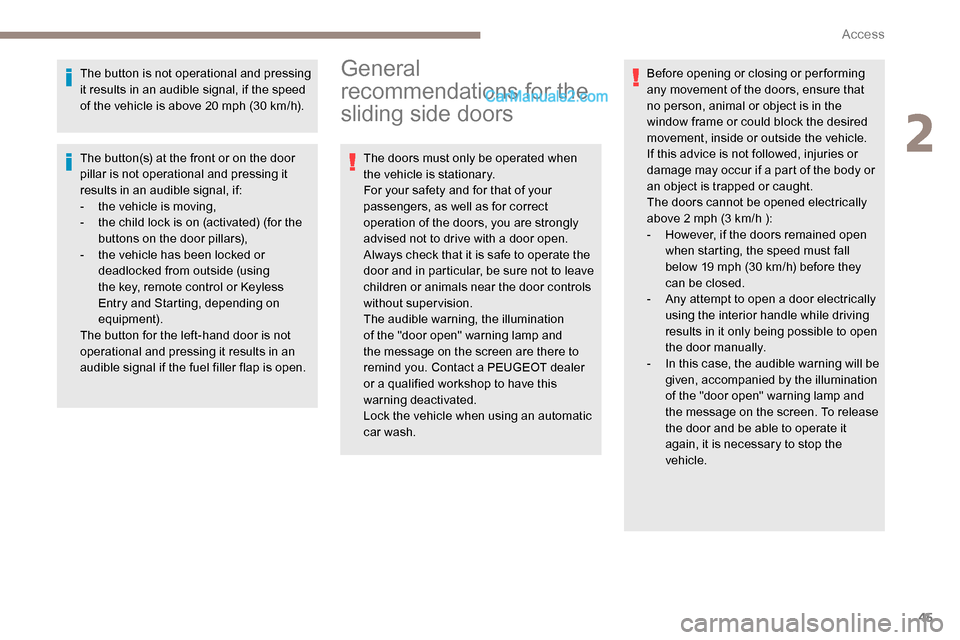

The button is not operational and pressing
it results in an audible signal, if the speed
of the vehicle is above 20 mph (30 km/h).
The button(s) at the front or on the door
pillar is not operational and pressing it
results in an audible signal, if:
-
t
he vehicle is moving,
-

t
he child lock is on (activated) (for the
buttons on the door pillars),
-

t
he vehicle has been locked or
deadlocked from outside (using
the key, remote control or Keyless
Entry and Starting, depending on
equipment).
The button for the left-hand door is not
operational and pressing it results in an
audible signal if the fuel filler flap is open.General
recommendations for the
sliding side doors
The doors must only be operated when
the vehicle is stationary.
For your safety and for that of your
passengers, as well as for correct
operation of the doors, you are strongly
advised not to drive with a door open.
Always check that it is safe to operate the
door and in particular, be sure not to leave
children or animals near the door controls
without supervision.
The audible warning, the illumination
of the "door open" warning lamp and
the message on the screen are there to
remind you. Contact a PEUGEOT dealer
or a qualified workshop to have this
warning deactivated.
Lock the vehicle when using an automatic
car wash. Before opening or closing or per forming
any movement of the doors, ensure that
no person, animal or object is in the
window frame or could block the desired
movement, inside or outside the vehicle.
If this advice is not followed, injuries or
damage may occur if a part of the body or
an object is trapped or caught.
The doors cannot be opened electrically
above 2 mph (3
km/h ):
-

H
owever, if the doors remained open
when starting, the speed must fall
below 19 mph (30
km/h) before they
can be closed.
-

A
ny attempt to open a door electrically
using the interior handle while driving
results in it only being possible to open
the door manually.
-

I
n this case, the audible warning will be
given, accompanied by the illumination
of the "door open" warning lamp and
the message on the screen. To release
the door and be able to operate it
again, it is necessary to stop the
vehicle.
2
Access

46

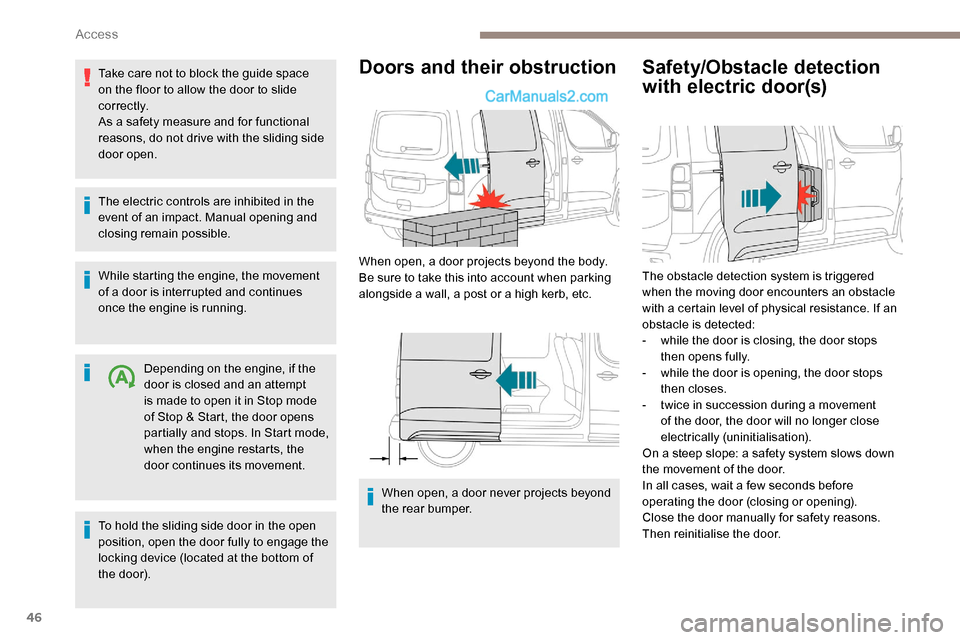

Take care not to block the guide space
on the floor to allow the door to slide
c o r r e c t l y.
As a safety measure and for functional
reasons, do not drive with the sliding side
door open.
The electric controls are inhibited in the
event of an impact. Manual opening and
closing remain possible.
While starting the engine, the movement
of a door is interrupted and continues
once the engine is running.Depending on the engine, if the
door is closed and an attempt
is made to open it in Stop mode
of Stop & Start, the door opens
partially and stops. In Start mode,
when the engine restarts, the
door continues its movement.
To hold the sliding side door in the open
position, open the door fully to engage the
locking device (located at the bottom of
the door).Doors and their obstruction Safety/Obstacle detection
with electric door(s)
When open, a door projects beyond the body.
Be sure to take this into account when parking
alongside a wall, a post or a high kerb, etc.
When open, a door never projects beyond
the rear bumper. The obstacle detection system is triggered
when the moving door encounters an obstacle
with a certain level of physical resistance. If an
obstacle is detected:
-

w
hile the door is closing, the door stops
then opens fully.
-

w
hile the door is opening, the door stops
then closes.
-

t
wice in succession during a movement
of the door, the door will no longer close
electrically (uninitialisation).
On a steep slope: a safety system slows down
the movement of the door.
In all cases, wait a few seconds before
operating the door (closing or opening).
Close the door manually for safety reasons.
Then reinitialise the door.
Access

47

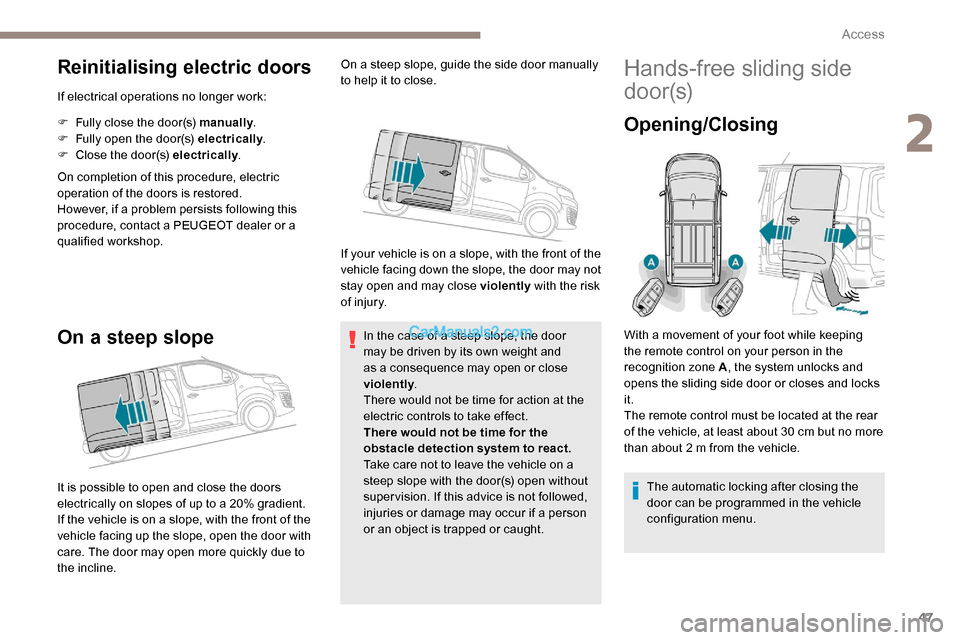

Reinitialising electric doors
If electrical operations no longer work:
F
F
ully close the door(s) manually .
F

F
ully open the door(s) electrically .
F

C
lose the door(s) electrically .
On completion of this procedure, electric
operation of the doors is restored.
However, if a problem persists following this
procedure, contact a PEUGEOT dealer or a
qualified workshop.
On a steep slope
It is possible to open and close the doors
electrically on slopes of up to a 20% gradient.
If the vehicle is on a slope, with the front of the
vehicle facing up the slope, open the door with
care. The door may open more quickly due to
the incline. On a steep slope, guide the side door manually
to help it to close.
If your vehicle is on a slope, with the front of the
vehicle facing down the slope, the door may not
stay open and may close violently
with the risk
of injury.
In the case of a steep slope, the door
may be driven by its own weight and
as a consequence may open or close
violently .
There would not be time for action at the
electric controls to take effect.
There would not be time for the
obstacle detection system to react.
Take care not to leave the vehicle on a
steep slope with the door(s) open without
supervision. If this advice is not followed,
injuries or damage may occur if a person
or an object is trapped or caught.
Hands-free sliding side
d o o r (s)
Opening/Closing
The automatic locking after closing the
door can be programmed in the vehicle
configuration menu.
With a movement of your foot while keeping
the remote control on your person in the
recognition zone A
, the system unlocks and
opens the sliding side door or closes and locks
it.
The remote control must be located at the rear
of the vehicle, at least about 30 cm but no more
than about 2 m from the vehicle.
2
Access

48
Before making the movement with your
foot, ensure that you are steady and well
positioned, so that you do not lose your
balance (rain, snow, ice, mud, etc.).
Take care not to touch the exhaust tailpipe
when making the movement with your foot
- risk of burns.
Make the movement without interruption
and do not repeat it immediately
after wards or several times.
If the door does not open, wait about
2
seconds before trying again.
Do not keep the foot in the air.
Automatic locking
The vehicle locks itself following the hands-free
closing of the sliding door.
Activation/Deactivation
With audio system or touch
screen
By default, hands-free access is activated.
The "Hands-Free Tailgate Access"
function or automatic vehicle locking
when the sliding door is closed is
activated and deactivated via the
vehicle configuration menu.
Operating fault
An audible signal repeated three times
indicates a fault with the system.
Contact a PEUGEOT dealer or a qualified
workshop to have the system checked.
F

P

ut your foot beneath the corner of the rear
bumper, then move the foot at normal speed
with a sweeping side movement.
The sensor detects the foot approaching and
leaving and triggers the opening or closing of
the side door. Confirmation that the door is going to
open or close is signalled by the direction
indicators flashing for a few seconds,
accompanied by an audible signal.
The movement of the door is reversed
if the movement of the foot takes place
during the manoeuvre.
If the vehicle is so equipped, the electric
door mirrors fold/unfold on locking/
unlocking the vehicle.
If your vehicle is not fitted with an alarm,
locking is confirmed by fixed illumination
of the direction indicators for about two
seconds.
Depending on your version, the door
mirrors fold at the same time.
Access
