COMBI 8/9-SEATER21I-10

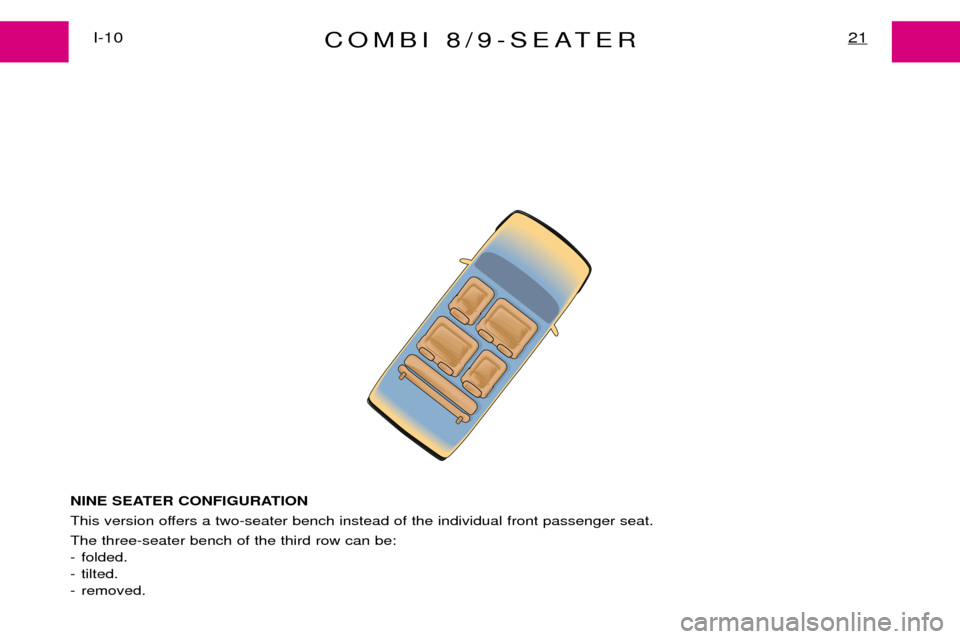

NINE SEATER CONFIGURATION
This version offers a two-seater bench instead of the individual front passenger seat.The three-seater bench of the third row can be:
- folded.
- tilted.
- removed.

DASHBOARD*I-11
22
18 17 16 15
12 3 45 6 7
14 13 12 11 10 9 8* According to model or country

DASHBOARD*23I-11

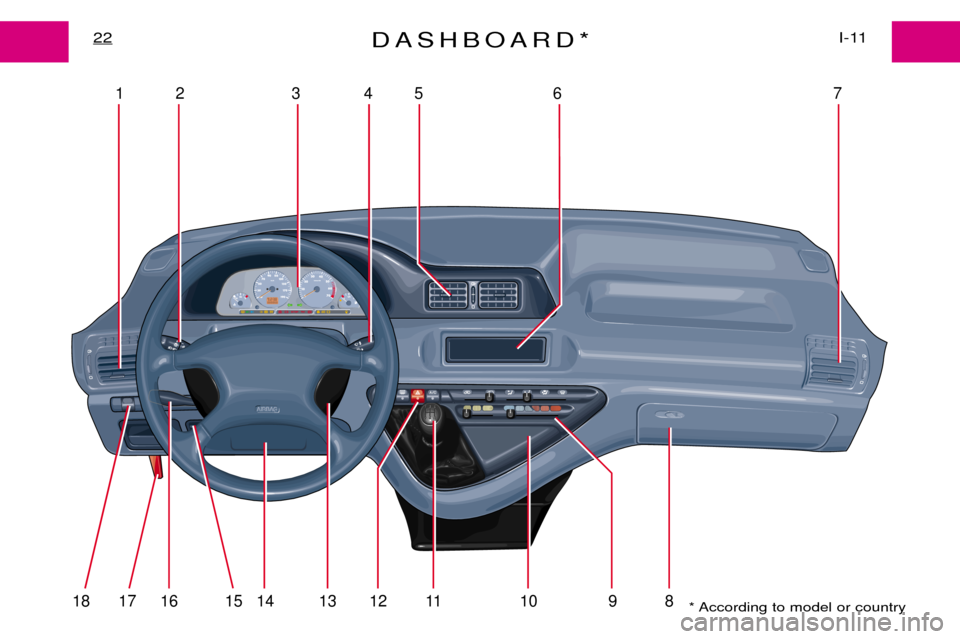

1Left hand air vent & Side glass demister vent.
2 Controls for: ¥ Lighting ¥ Direction indicators ¥ Horn ¥ Foglamp
3 Instrument panel.
4 Controls for: ¥ Windscreen wash ¥ Windscreen wiper
5 Centre air vents. 6
Radio housing or oddments pocket.
7 Right hand air vent & Side glassdemister vent.
8 Glovebox.
9 Heating/ventilation controls.
10 Ashtray & Cigar lighter.
11 Gear lever. 12
Controls for: ¥ Hazard warning lamps.
¥ Heated glass of hinged rear
doors.
¥ Air conditioning
¥ Demisting and defrosting of the rear view mirrors.
13 Steering lock and ignition switch.
14 Fuse box access.
15 Adjusting the headlamps.
16 Cruise control lever.
17 Bonnet release lever.
18 Cruise control switch.
* According to model or country

INSTRUMENT PANEL*I-12
24

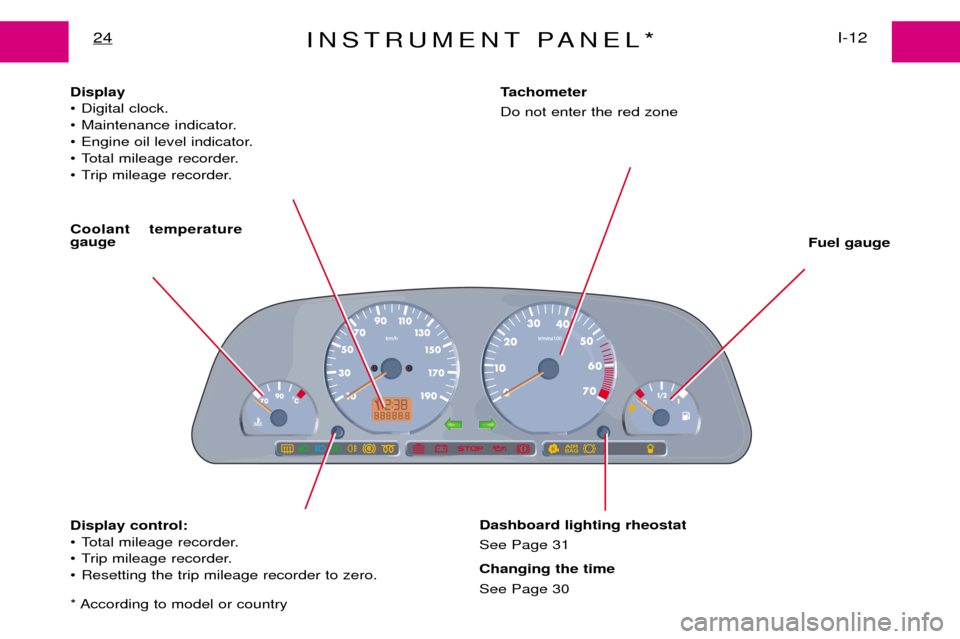

Display
¥ Digital clock.
¥ Maintenance indicator.
¥ Engine oil level indicator.
¥ Total mileage recorder.
¥ Trip mileage recorder.
Coolant temperature gauge Fuel gauge
Dashboard lighting rheostat See Page 31 Changing the time See Page 30
Display control:
¥ Total mileage recorder.
¥ Trip mileage recorder.
¥ Resetting the trip mileage recorder to zero. Tachometer Do not enter the red zone
* According to model or country

INSTRUMENT PANEL*25I-12

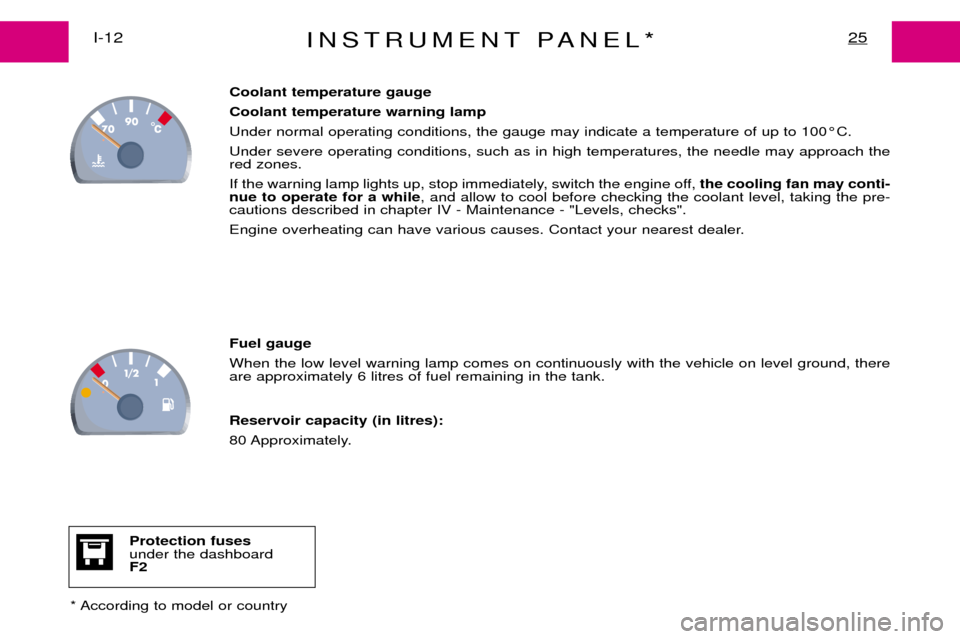

Coolant temperature gauge Coolant temperature warning lampUnder normal operating conditions, the gauge may indicate a temperature of up to 100¡C.Under severe operating conditions, such as in high temperatures, the needle may approach the red zones.
If the warning lamp lights up, stop immediately, switch the engine off, the cooling fan may conti-
nue to operate for a while , and allow to cool before checking the coolant level, taking the pre-
cautions described in chapter IV - Maintenance - "Levels, checks".
Engine overheating can have various causes. Contact your nearest dealer.
Fuel gaugeWhen the low level warning lamp comes on continuously with the vehicle on level ground, there are approximately 6 litres of fuel remaining in the tank. Reservoir capacity (in litres):
80 Approximately.
* According to model or country
Protection fuses under the dashboardF2

INSTRUMENT PANEL*25I-12
Coolant temperature gauge Coolant temperature warning lampUnder normal operating conditions, the gauge may indicate a temperature of up to 100¡C.Under severe operating conditions, such as in high temperatures, the needle may approach the red zones.
If the warning lamp lights up, stop immediately, switch the engine off, the cooling fan may conti-
nue to operate for a while , and allow to cool before checking the coolant level, taking the pre-
cautions described in chapter IV - Maintenance - "Levels, checks".
Engine overheating can have various causes. Contact your nearest dealer.
Fuel gaugeWhen the low level warning lamp comes on continuously with the vehicle on level ground, there are approximately 6 litres of fuel remaining in the tank. Reservoir capacity (in litres):
80 Approximately.
* According to model or country
Protection fuses under the dashboardF2

INSTRUMENT PANEL*I-12
26
Multifunction Display On switching the ignition on, the display shows in turn:
- Maintenance indicator.
- Engine oil level indicator.

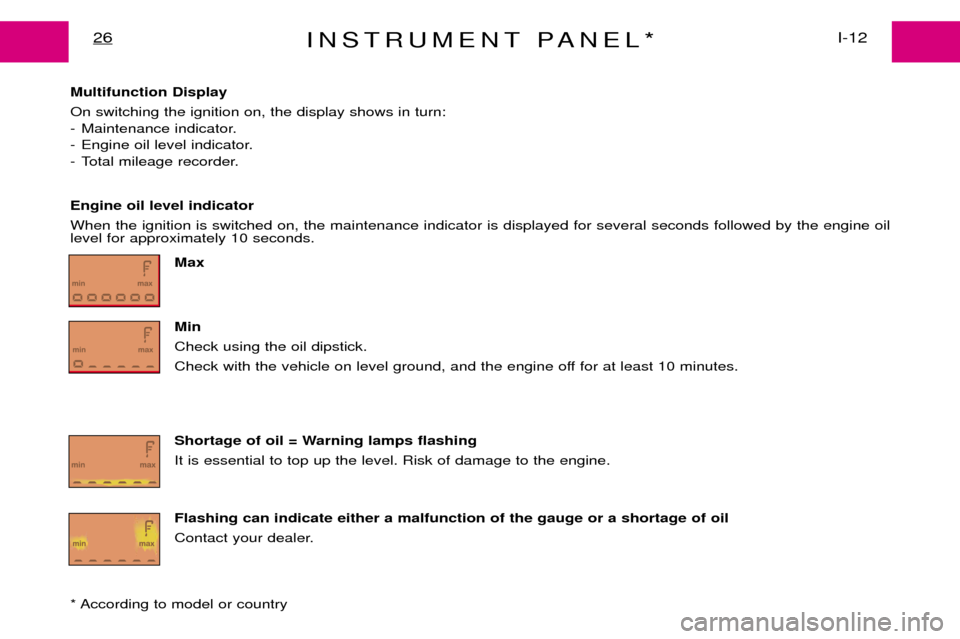

- Total mileage recorder. Engine oil level indicator When the ignition is switched on, the maintenance indicator is displayed for several seconds followed by the engine oil level for approximately 10 seconds.
Max Min Check using the oil dipstick.
Check with the vehicle on level ground, and the engine off for at least 10 minutes.
Shortage of oil = Warning lamps flashing It is essential to top up the level. Risk of damage to the engine. Flashing can indicate either a malfunction of the gauge or a shortage of oil
Contact your dealer.
* According to model or country

INSTRUMENT PANEL*27I-12

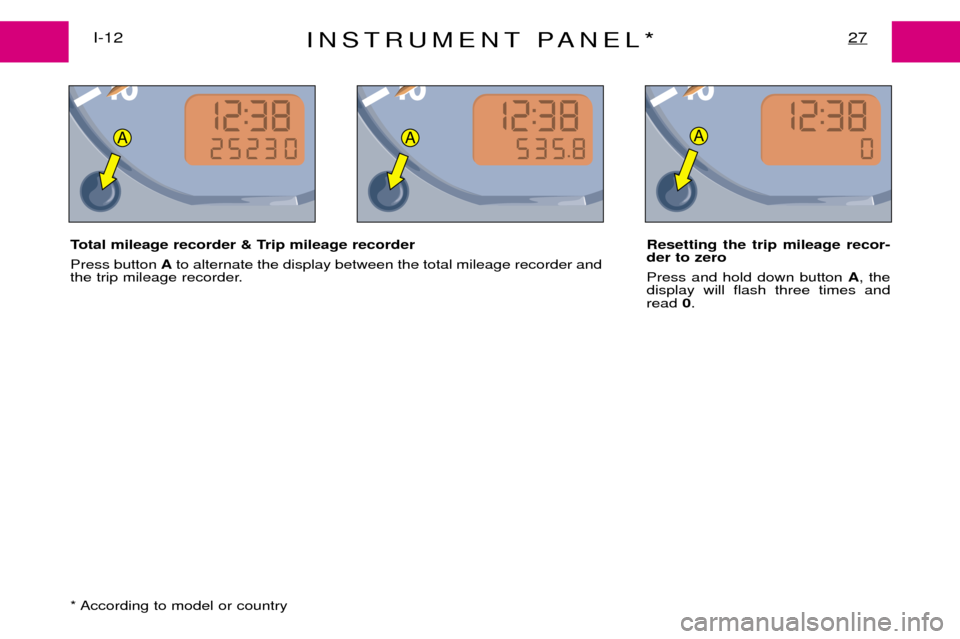

Total mileage recorder & Trip mileage recorder Press button Ato alternate the display between the total mileage recorder and
the trip mileage recorder. Resetting the trip mileage recor- der to zero Press and hold down button
A, the
display will flash three times and read 0.
* According to model or country
AAA

INSTRUMENT PANEL*I-12
28

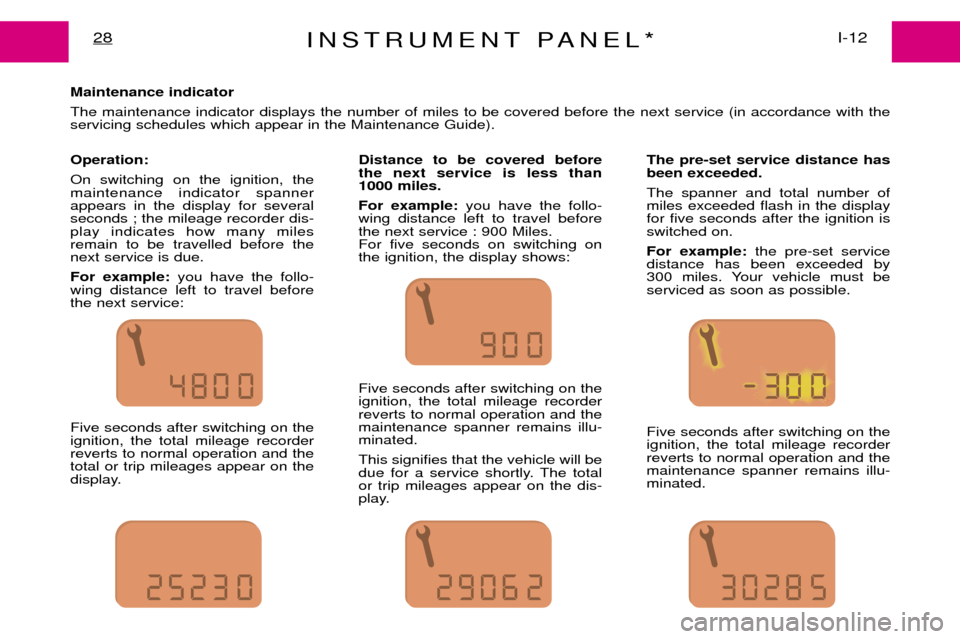

Maintenance indicator The maintenance indicator displays the number of miles to be covered before the next service (in accordance with the servicing schedules which appear in the Maintenance Guide). Operation: On switching on the ignition, the maintenance indicator spannerappears in the display for severalseconds ; the mileage recorder dis-play indicates how many milesremain to be travelled before thenext service is due. For example: you have the follo-
wing distance left to travel before the next service: Five seconds after switching on the ignition, the total mileage recorderreverts to normal operation and thetotal or trip mileages appear on the
display. Distance to be covered beforethe next service is less than
1000 miles. For example:
you have the follo-
wing distance left to travel before the next service : 900 Miles.For five seconds on switching onthe ignition, the display shows: Five seconds after switching on the ignition, the total mileage recorderreverts to normal operation and themaintenance spanner remains illu-minated. This signifies that the vehicle will be
due for a service shortly. The totalor trip mileages appear on the dis-
play. The pre-set service distance hasbeen exceeded. The spanner and total number of miles exceeded flash in the displayfor five seconds after the ignition isswitched on. For example:
the pre-set service
distance has been exceeded by
300 miles. Your vehicle must beserviced as soon as possible. Five seconds after switching on the ignition, the total mileage recorderreverts to normal operation and themaintenance spanner remains illu-minated.

INSTRUMENT PANEL*29I-12
Maintenance intervals If your vehicle is used in particular- ly harsh conditions, it is necessaryto select the maintenance sche-dules for Òarduous conditions ofuseÓ (see the Maintenance Guide)which consist of more frequent ser-vices. Note:the maintenence spanner will
come on, and the display will read ''0'' if the maximum length of time
between services is attained beforethe mileage limit is reached. To change the maintenance intervals:
- Switch off the ignition.
- Press and hold down button
1.
- Switch on the ignition.
- The distance remaining until the next service flashes.
- Release the button immediately.

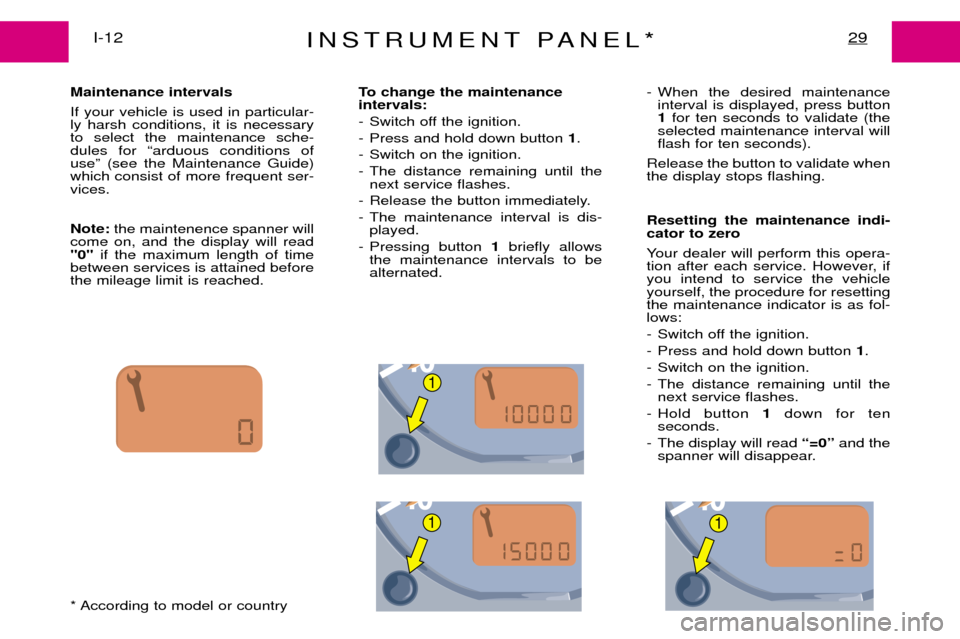

- The maintenance interval is dis- played.
- Pressing button 1briefly allows
the maintenance intervals to be alternated. - When the desired maintenance
interval is displayed, press button1 for ten seconds to validate (the
selected maintenance interval willflash for ten seconds).
Release the button to validate whenthe display stops flashing. Resetting the maintenance indi- cator to zero
Your dealer will perform this opera-
tion after each service. However, ifyou intend to service the vehicleyourself, the procedure for resettingthe maintenance indicator is as fol-lows:
- Switch off the ignition.
- Press and hold down button 1.
- Switch on the ignition.
- The distance remaining until the next service flashes.
- Hold button 1down for ten
seconds.
- The display will read Ò=0Óand the
spanner will disappear.
