MAINTENANCE INDICATORI-12
38
Maintenance intervals If your vehicle is used in particular- ly harsh conditions, it is necessaryto select the maintenance sche-dules for Òspecial operating condi-tionsÓ (see the Maintenance Guide)which consist of more frequent ser-vices. Note: the maintenence spanner will
come on, and the display will read ''0'' if the maximum length of time
between services is attained beforethe mileage limit is reached. To change the maintenance intervals:
- Switch off the ignition.
- Press and hold down button
1.
- Switch on the ignition.
- The distance remaining until the next service flashes.
- Release the button immediately.
- The maintenance interval is dis- played.
- Pressing button 1briefly allows
the maintenance intervals to be alternated. - When the desired maintenance
interval is displayed, press button1 for ten seconds to validate (the
selected maintenance interval willflash for ten seconds).
Release the button to validate whenthe display stops flashing. Resetting the maintenance indicator to zero
Your dealer will perform this opera-
tion after each service. However, ifyou intend to service the vehicleyourself, the procedure for resettingthe maintenance indicator is as fol-lows:
- Switch off the ignition.
- Press and hold down button 1.
- Switch on the ignition.
- The distance remaining until the next service flashes.
- Hold button 1down for ten
seconds.
- The display will read Ò=0Óand the
spanner will disappear.
1
11
Page 42 of 149
WARNING LAMPS*39I-13LH direction indicator See Ç Signalling È Dipped beam See Ç Signalling È
All the direction indicators flash simultaneously when the hazard war- ning lamps are switched on.
Anti-lock Braking Sys-tem On switching on the igni-
tion, the ABS lamp will
light for approximately 2 seconds. If it stays on there may be a fault in the system. See Chapter II Ç Brakes È RH direction indicatorSee Ç Signalling È Main beam See Ç Signalling È Front brake pad wear If it lights when pressing the brake pedal, have thebrake pads checked and
replaced if necessary.
Diesel Preheater See the instructions for starting the engine. Refer to section II - Driving
- Ç Starting È. Rear screen demister
See Ç Visibility È Foglamp See Ç Signalling È Engine auto-diagnosis If it flashes or comes on while you are driving, thisindicates a fault in either
the injection, ignition or emissionsystems. Contact the dealer network as soon as possible.
Water-in-fuel Drain the fuel filter as soon as possible.
Front airbag warninglamp Refer to the section
Ç Airbag È
* According to model or country
Page 43 of 149
WARNING LAMPS*I-13
40
Immediate STOP command Lights simultaneous- ly with another war-
ning lamp.
Handbrake and lowbrake fluid level war-ning With the engine running,
the warning lamp indicates that the handbrake is on, or is not fullyreleased, or that the brake fluid
level is too low. See Chapter II - Ç Brakes È and Chapter IV Ç Levels È.
Battery charge Must not light when the engine is running. If it
lights continuously, con-
tact your nearest dealer. Low coolant level If the warning lamp comes on: stop the vehicle.
Check the level (see chapter IV -Maintenance - Ç Levels È).
Engine oil pressure If it comes on while driving, stop the engine and checkthe level (refer to section IV
Ð Maintenance Ç Levels È). If it remains on, despite the level being correct, contact the nearest
dealer.
Low level fuel warning
When it comes on conti-
nuously, there areapproximately 6 litres offuel left in the tank. Coolant temperaturewarning lamp If the warning lamp
comes on, stop immediately, switch
off the engine - the cooling fan maycontinue to operate for a period
after switching off - and allow tocool before checking the coolantlevel, taking the necessary precau-tions (refer to section IV ÐMaintenance - Ç Levels È). Engine overheating can have various causes. Contact your nea-
rest dealer.
On TURBO DIESEL versions:
¥ Orange lamp on = warning.
Reduce speed, the lamp should go out.
¥ STOP and orange warning lamps
on = Danger (stop immediately).
* According to model or country
Page 44 of 149
SIGNALLING*41I-14
Horn Press the end of the stalk. Headlamp flash Pull the stalk towards you to flash headlamps.
The headlamp flash operates even with the ignition off. Direction indicators Left: move the stalk downwards.Right: move the stalk upwards.
Movement of the steering wheel returns the stalk to the off position automati-
cally. Hazard warning lamps
Operates the direction indicators simultaneously.
Use only in case of danger, emergency stop or in hazardous conditions.
Also operates with the ignition off.The direction indicators will not work when the hazard warning lamps are in use.
* According to model or country
Protection fuses under the dashboardF7 - F26 - F30Protection fuses under the dashboardF4 - F9 - F18 - F19
(under the bonnet)
F3 - F4 - F7 - F8 (with ABS)
F2 - F3 - F12 - F13 (without ABS)
Page 45 of 149
Vehicles fitted with front fog lamps and a rear fog lamp (ring C)Front fog lamps.
These function with the side lightsand the dipped beam headlamps.
Front fog lampsand rear fog lamp
These function with the side lightsand the dipped and main beamheadlamps.
Fog lamps off.
Vehicles fitted with a rear foglamp (ring B) Rear fog lamp.
This operates with the dipped/mainbeam headlamps.
THE LIGHTS STALK Front and rear lights Selection is by turning ring
A.
Lights off Side lights on
Dipped/main beam headlamps
Dipped/ main beam change Pull the stalk fully towards you. Note: with the ignition off, an
audible signal will sound upon ope-
ning the driverÕs door, if you haveleft your lights on. Front fog lamps* and rear fog lamp Rotate the ring forwards to switch
on and backwards to switch off. Thestatus is confirmed by the light onthe instrument panel.
SIGNALLING*I-14
42
BA
In good or rainy weather, both day and night, the rear foglamp is dazzling and is prohi-bited. Do not forget to switch it off as soon as it is no longer needed.
C
* According to model or country
Page 46 of 149
SIGNALLING*43I-14
Adjusting the headlamps
You are advised to adjust the beam of the headlamps in accor- dance with vehicle load. Electrically operated adjustments* In the dashboard on the right hand side of the steering column.0 Empty
1 Lightly laden
2 Half laden
3 Fully laden
Manual adjustments*Using the controls located in the engine compartment behind eachheadlamp.
* According to model or country
Protection fuses under the dashboardF4
Page 47 of 149
VISIBILITYI-15
44
Windscreen wiper
3 High speed
2 Normal speed
1 Intermittent wipe
0 Stop
4 Single wipe - Press the stalk down
By pulling the stalk towards you:
Windscreen wash And headlamp washers if the dipped beams are on*.
Two headlamp wash operations at an interval of less than 10 seconds will pro-
vide effective cleaning of the headlamps.
BEWARE: When washing the vehicle, with the ignition on (for example when using an automatic car wash):
- ensure that the stalk is returned to position 0-Off.
* According to model or country
Protection fuses under the dashboardF9 - F24
(under the bonnet)
F10 - F12 (with ABS)
F4 (without ABS)
1
2
3
4
0
Page 48 of 149
VISIBILITY45I-15
Rear screen demister* Can only be operated with the engine running.
Press the button to switch on the rear screen (and door mirrors) electric demister.
The demister switches off automatically after approximately twelve minutes of operation to avoid excessive current consumption. Press the button to cancel the demisting function.Press the button again to re-activate the demisting function for another twelve minutes.* According to model or country
Protection fuses under the dashboardF6 - F27
Page 49 of 149
WINDOWS*I-16
46
ALWAYS PAY ATTENTION TO WHERE CHILDREN
ARE WHEN OPENING OR CLOSING WINDOWS.
Sequential control*
One touch on the switch to its first position offers partial opening of the driverÕs
window.
Pressing the switch to its second position fully opens or closes the window. Child safety precaution Always remove the ignition key when leaving the vehicle, even for short periods. Electric control The switches mounted in the roof
console control the vehicleÕs frontwindows.
Glazed or Combi versions Sliding side window in second row
To open, pull Aand slide the win-
dow towards the front.
To close, slide the window towards
the rear, then press Bto lock it.
* According to model or countryProtection fuses under the dashboardF5 - F28 - F29
AB
Page 50 of 149
REAR VIEW MIRRORS*47I-17
Interior rear view mirror

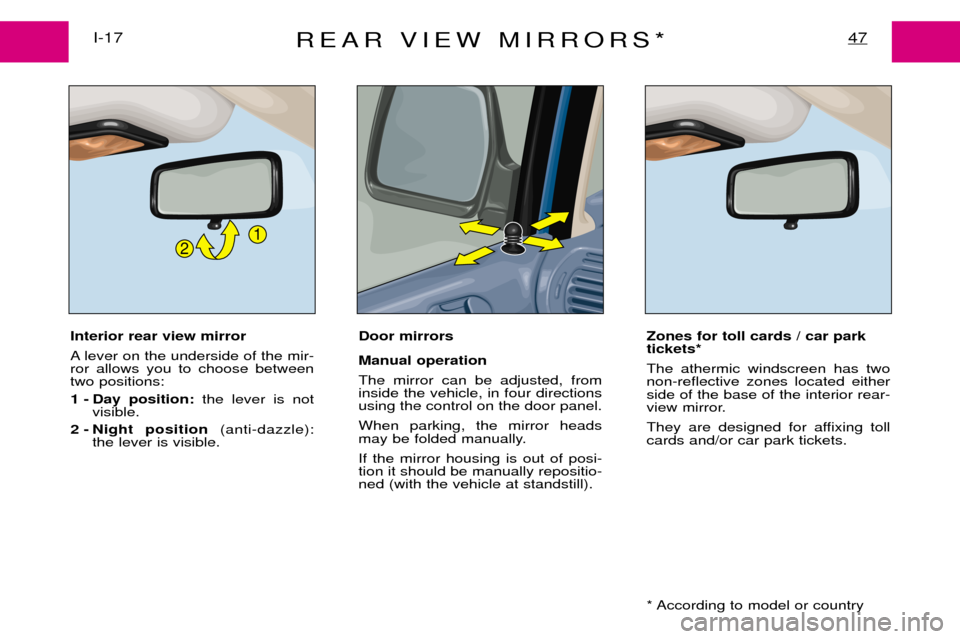

A lever on the underside of the mir- ror allows you to choose betweentwo positions:1 - Day position: the lever is not
visible.
2 - Night position (anti-dazzle):
the lever is visible. Door mirrors Manual operation The mirror can be adjusted, from inside the vehicle, in four directionsusing the control on the door panel. When parking, the mirror heads
may be folded manually. If the mirror housing is out of posi- tion it should be manually repositio-ned (with the vehicle at standstill). Zones for toll cards / car parktickets* The athermic windscreen has two non-reflective zones located eitherside of the base of the interior rear-
view mirror.
They are designed for affixing toll cards and/or car park tickets.
21
