Page 51 of 149
REAR VIEW MIRRORS*I-17
48
Electrically - controlled door mirrors If your vehicle is fitted with two electrically controlled rear view mirrors, turn lever Ato select the desired rear view mirror:
- to the right for the right hand rear view mirror,
- to the left for the left hand rear view mirror. Adjust the rear view mirror using lever A.
* According to model or country
Protection fuses under the dashboardF30
A
Page 52 of 149
2.0i 16V ENGINEIV-1
74
B
Page 53 of 149
CHECKS*
Beware:When working under the bonnet, the cooling fan could operate if
the engine is hot (even when switched off). The engine oil level should be checked frequently between services (as recommended by the manufacturer), as well as before long journeys.
Air filter Follow the recommenda- tions in the maintenanceguide. Coolant The level should be bet- ween the maximum andminimum marks on the
reservoir. If the engine is hot, wait 15 minutes.Oil quality: see Ç Lubricants and
fluids È. Never work on the cooling sys- tem if the engine is hot. (see
Ç Levels È).
Windscreen, rear screenand headlamp washerfluid It is recommended to use
manufacturer approved products.
12 volt batterySee Ç Emergency starting with a slave battery È. Engine oil Check with the vehicle on level ground, and the
engine off for at least
10 minutes. Level: see Ç Levels È.
Oil quality: see Ç Lubricants and
fluids È.
Take out the oil dipstick.The level must be bet- ween the MAX and MINmarks on the dipstick.
It must not exceed
the maximum mark. Brake fluid The level should be bet- ween the maximum andminimum marks on the
reservoir. Level: see Ç Levels È.
Oil quality: see Ç Lubricants and
fluids È.
If the warning lamp comes on: stop the vehicle
Power steering oilCheck the level with the
engine switched off. Level: see Ç Levels È.
Oil quality: see Ç Lubricants and
fluids È.
MaxMin
* According to model or country
75IV-1
B
Page 54 of 149
1.9 D ENGINEIV-2
76
B
A
Page 55 of 149
CHECKS*77IV-2Beware:When working under the bonnet, the cooling fan could operate if
the engine is hot (even when switched off). The engine oil level should be checked frequently between services (as recommended by the manufacturer), as well as before long journeys.
Priming pump Refer to the section Ç Diesel injection equipment È. Coolant The level should be bet- ween the maximum andminimum marks on the
reservoir. If the engine is hot, wait 15 minutes.Oil quality: see Ç Lubricants and
fluids È. Never work on the cooling sys- tem if the engine is hot. (see
Ç Levels È).
Windscreen, rear screenand headlamp washerfluid It is recommended to use
manufacturer approved products.
12 volt batterySee Ç Emergency starting with a slave battery È. Engine oil Check with the vehicle on level ground, and the
engine off for at least
10 minutes. Level: see Ç Levels È.
Oil quality: see Ç Lubricants and
fluids È.
Take out the oil dipstick.The level must be bet- ween the MAX and MINmarks on the dipstick.
It must not exceed
the maximum mark. Brake fluid The level should be bet- ween the maximum andminimum marks on the
reservoir. Level: see Ç Levels È.
Oil quality: see Ç Lubricants and
fluids È.
If the warning lamp comes on: stop the vehicle
Power steering oilCheck the level with the
engine switched off. Level: see Ç Levels È.
Oil quality: see Ç Lubricants and
fluids È.
Air filterFollow the recommendations in the maintenance guide.
Max Min
* According to model or country
A
B
Page 56 of 149
2.0 HDi ENGINEIV-2
78
The 2.0 HDi engine makes use of advanced technology.
Any repair work must be carried out by suitably qualified
personnel, such as can be provided by the dealer network.
Due to the fact that the diesel sys- tem is a high pressure system:
IT IS FORBIDDEN TO CARRY OUT
ANY REPAIRS TO THE SYSTEM.
B
Page 57 of 149
CHECKS*79IV-2Beware:When working under the bonnet, the cooling fan could operate if
the engine is hot (even when switched off). The engine oil level should be checked frequently between services (as recommended by the manufacturer), as well as before long journeys.
Air filter Follow the recommenda- tions in the maintenanceguide. Coolant The level should be bet- ween the maximum andminimum marks on the
reservoir. If the engine is hot, wait 15 minutes.Oil quality: see Ç Lubricants and
fluids È. Never work on the cooling sys- tem if the engine is hot. (see
Ç Levels È).
Windscreen, rear screenand headlamp washerfluid It is recommended to use
manufacturer approved products.
12 volt batterySee Ç Emergency starting with a slave battery È. Engine oil Check with the vehicle on level ground, and the
engine off for at least
10 minutes. Level: see Ç Levels È.
Oil quality: see Ç Lubricants and
fluids È.
Take out the oil dipstick.The level must be bet- ween the MAX and MINmarks on the dipstick.
It must not exceed
the maximum mark. Brake fluid The level should be bet- ween the maximum andminimum marks on the
reservoir. Level: see Ç Levels È.
Oil quality: see Ç Lubricants and
fluids È.
If the warning lamp comes on: stop the vehicle
Power steering oilCheck the level with the
engine switched off. Level: see Ç Levels È.
Oil quality: see Ç Lubricants and
fluids È.
MaxMin
* According to model or country
B
Page 58 of 149
DIESEL INJECTIONEQUIPMENT*IV-3
80
The 2.0 HDi engine makes use of advanced technology.
Any repair work must be carried out by suitably qualified
personnel, such as can be provided by the dealer network.
Priming the fuel system In the event of running out of fuel:
A 1.9 D ENGINE: - After filling (5 litres minimum), operate the manual priming pump untilsome resistance is felt.
- Operate the starter motor while depressing the accelerator pedal slightly until the engine starts.
If the engine fails to start at the first attempt, wait 15 seconds before trying again. If the engine fails to start after several attempts, repeat the procedure from the beginning. When the engine is idling, accelerate slightly to complete the bleeding of the circuit. Engine 2.0 HDi: After adding fuel, turn the ignition key to position M, then operate the star-
ter motor until the engine starts. Injection pump Do not remove the seals on the pump setting screws under any circum- stances. Alteration of the settings might lead to early engine failure and loss of war-
ranty cover.
B Draining water from the fuel filter Bleed regularly (each time the engine is drained).
To remove the water, loosen the bleed screw at the bottom of the filter.Operate until all the water has been expelled.
A
B
* According to model or country
Page 59 of 149

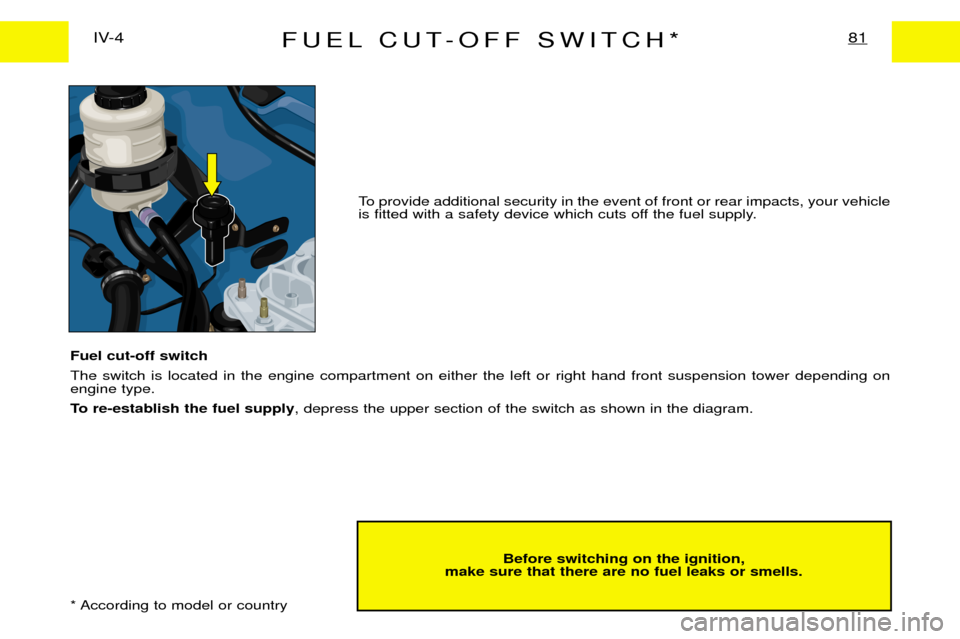

FUEL CUT-OFF SWITCH*81IV-4
Before switching on the ignition,
make sure that there are no fuel leaks or smells.
To provide additional security in the event of front or rear impacts, your vehicle
is fitted with a safety device which cuts off the fuel supply.
Fuel cut-off switch The switch is located in the engine compartment on either the left or right hand front suspension tower depending on engine type.
To re-establish the fuel supply , depress the upper section of the switch as shown in the diagram.
* According to model or country
Page 60 of 149
LEVELSIV-5
82
Beware: When working under the bonnet, the cooling fan could operate if the engi-
ne is hot (even when switched off).
Power steering oil Check the level with the engine
switched off. The level should be between the maximum
and minimum marks on
the reservoir. Never run the engine without oil in the pump reservoir; the pump willbe severely damaged and couldseize. Oil quality: see Ç Lubricants and
fluids È. Engine oilCheck with the vehicle on level
ground, and the engine off for atleast 10 minutes.
Take out the oil dipstick.The level must be between the MAX
and MIN marks on the dips-
tick. Adding engine oil Remove the dipstick before topping up. Check the level after filling.It must not exceed the maximum mark. The oil level should be topped up between services (up to 0.5 l every600 miles). Screw on the cap before shutting the bonnet. Oil quality:
see Ç Lubricants and
fluids È.
