Dimensions
TECHNICAL DATA
8

SLIDING SIDE DOOR (mm)
L1 L2
H1 H1 H2
P Height 1 293 1 301
Q Width 924

128
Dimensions

129
Dimensions
TECHNICAL DATA
8

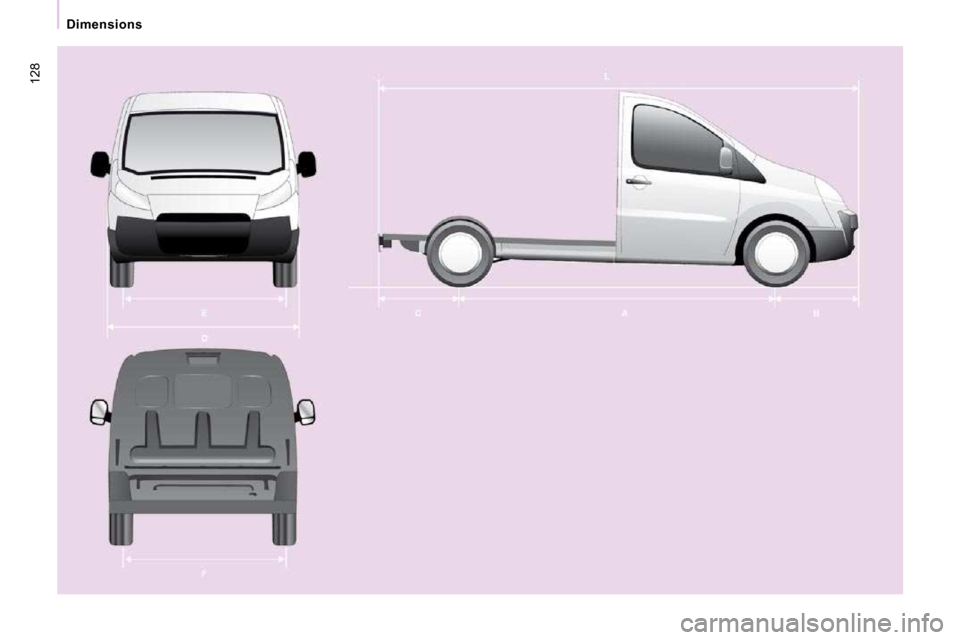

PLATFORM CAB (mm)
L2
L Overall length 5 016
A Wheelbase 3 122
B Front overhang 975
C Rear overhang 920
Max passable rear overhang 1 420
D Overall width (excluding mirrors) 1 895
E Width of front tracks 1 574
F Width of rear tracks 1 574
- Gross vehicle weight -
- Max weight at the front 1 400
- Max weight at the rear 1 700

Weights
WEIGHTS AND TOWED LOADS (KG)
For further information, refer to your registration certificate.
In each country, it is imperative that the towed l oads permitted by local legislation are complied wi th. To find out your vehicle's towing
capabilities and its gross train weight, contact a PEUGEOT dealer.
Load transfer
If the towing vehicle has not reached the GVW, it is possible to transfer this weight to the trailer.
In all cases, do not exceed the weight of the trai ler and the GTW, indicated on your registration cer tificate.
Comply with the towing capacities of your vehicle.

Engine Body type
Number of
seats
Kerb
weight
Maximum
weight (1)
Maximum
payload
Payload
without driver
Braked towed
weight (2)
1.6 HDi 90 Short (L1-H1)
227 2 1 661 2 661 1 000 925 1 672
3 1 673 2 661 988 913 1 672
Short (L1-H1) 229 2 1 661 2 861 1 200 1 125 1 472
3 1 673 2 861 1 188 1 113 1 472
Long (L2-H1) 229 2 1 680 2 880 1 200 1 125 1 453
3 1 692 2 880 1 188 1 113 1 453
Raised
(L2-H2)
229 2 1 700 2 900 1 200 1 125 1 433
3 1 712 2 900 1 188 1 113 1 433

131
Weights
TECHNICAL DATA
8

(1) Gross vehicle weight (GVW).

(2) Braked towed weight with load transfer: this can be increased on condition that the equivalent of t his load is removed from the vehicle so
that the GTW is not exceeded.
High exterior temperatures may result in a reducti on in the performance of the vehicle to protect the engine. When the exterior temperature
is higher than 37 °C, limit the towed weight to 700 kg, without load transfer.
The speed of a towing vehicle must not exceed 60 m ph (100 km/h) (comply with the legislation in force in your country).

Engine Body type
Number of
seats
Kerb weight
Maximum
weight (1)
Maximum
payload
Payload
without driver
Braked towed
weight (2)
2.0 HDi 120 Short (L1-H1)
227 2 1 702 2 702 1 000 925 2 000
3 1 714 2 702 988 913 2 000
Short (L1-H1) 229 2 1 702 2 902 1 200 1 125 1 998
3 1 714 2 902 1 188 1 113 1 998
Long (L2-H1) 229 2 1 732 2 932 1 200 1 125 1 968
3 1 744 2 932 1 188 1 113 1 968
Raised
(L2-H2)
229 2 1 763 2 963 1 200 1 125 1 937
3 1 775 2 963 1 188 1 113 1 937

132
Weights

(1) Gross vehicle weight (GVW).

(2) Braked towed weight with load transfer: this can be increased on condition that the equivalent of t his load is removed from the vehicle so
that the GTW is not exceeded.
High exterior temperatures may result in a reducti on in the performance of the vehicle to protect the engine. When the exterior temperature
is higher than 37 °C, limit the towed weight to 700 kg, without load transfer.
The speed of a towing vehicle must not exceed 60 m ph (100 km/h) (comply with the legislation in force in your country).

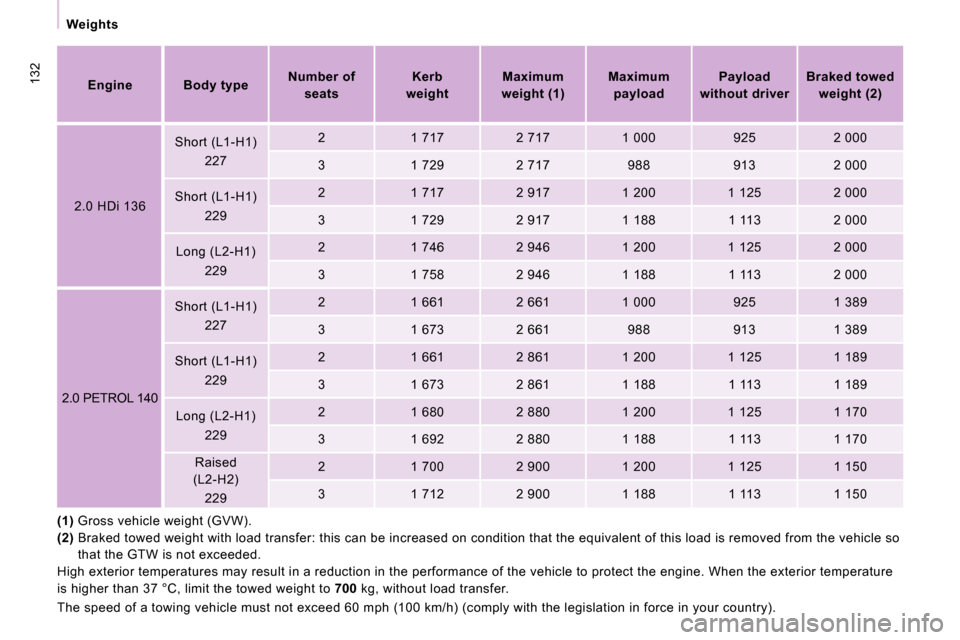

Engine Body type
Number of
seats
Kerb
weight
Maximum
weight (1)
Maximum
payload
Payload
without driver
Braked towed
weight (2)
2.0 HDi 136 Short (L1-H1)
227 2 1 717 2 717 1 000 925 2 000
3 1 729 2 717 988 913 2 000
Short (L1-H1) 229 2 1 717 2 917 1 200 1 125 2 000
3 1 729 2 917 1 188 1 113 2 000
Long (L2-H1) 229 2 1 746 2 946 1 200 1 125 2 000
3 1 758 2 946 1 188 1 113 2 000
2.0 PETROL 140 Short (L1-H1)
227 2 1 661 2 661 1 000 925 1 389
3 1 673 2 661 988 913 1 389
Short (L1-H1) 229 2 1 661 2 861 1 200 1 125 1 189
3 1 673 2 861 1 188 1 113 1 189
Long (L2-H1) 229 2 1 680 2 880 1 200 1 125 1 170
3 1 692 2 880 1 188 1 113 1 170
Raised
(L2-H2)
229 2 1 700 2 900 1 200 1 125 1 150
3 1 712 2 900 1 188 1 113 1 150

133

Diesel - Petrol engines
TECHNICAL DATA
8
Diesel Petrol
1.6 HDi 90 2.0 HDi 120 2.0 HDi 120 PEF 2 .0 HDi 136 2.0 PETROL 140
Gearbox Manual
Gears 5 6 6 5
Power (bhp) 90 120 136 138
Power (DIN) 92 122 138 143
Cubic capacity (cm 3
) 1 560 1 997 1 997 1 997
Bore x stroke (mm) 75 x 88 85 x 88 85 x 88 85 x 88
EU standard maximum power (kW) 66 88 100 103
Max power engine speed (rpm) 4 000 4 000 4 000 6 000
EU standard max torque (Nm) 180 300 320 180
Max torque engine speed (rpm) 1 750 2 000 2 000 2 500
Fuel Diesel Diesel Diesel Diesel Unleaded
Particle emission filter No No Yes Yes /
Catalytic converter Yes Yes Yes Yes -
ENGINES AND GEARBOXES
For further information, consult the SERVICEBOX s ite at the address: http://public.servicebox.peugeot.com

134

Diesel - Petrol engines

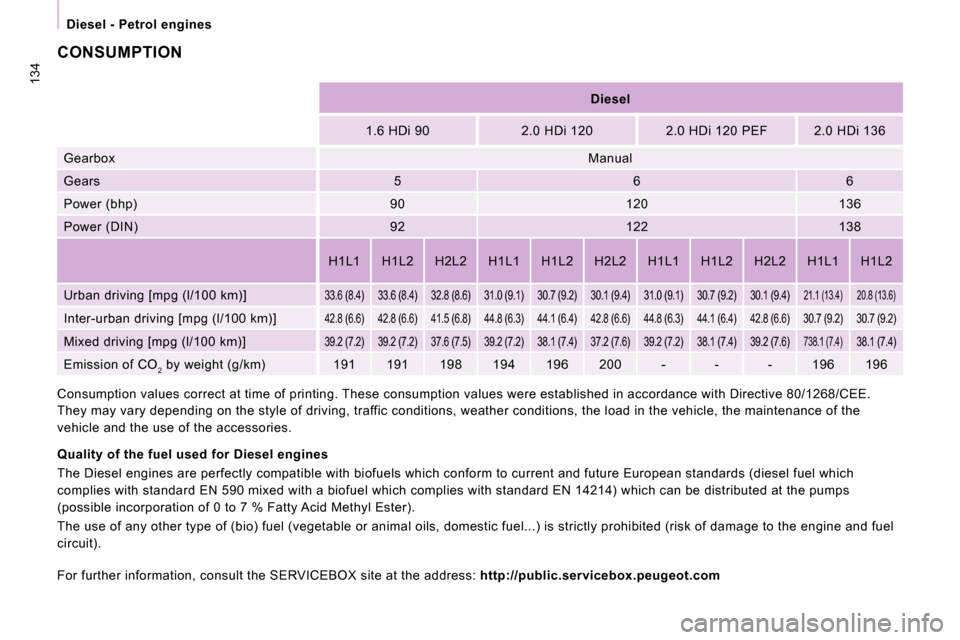

Diesel
1.6 HDi 90 2.0 HDi 120 2.0 HDi 120 PEF 2 .0 HDi 136
Gearbox Manual
Gears 5 6 6
Power (bhp) 90 120 136
Power (DIN) 92 122 138
H1L1 H1L2 H2L2 H1L1 H1L2 H2L2 H 1L1 H1L2 H2L2 H1L1 H1L2
Urban driving [mpg (l/100 km)]
33.6 (8.4) 33.6 (8.4) 32.8 (8.6) 31.0 (9.1) 30.7 (9.2) 30.1 (9.4) 31.0 (9.1) 30.7 (9.2 ) 30.1 (9.4) 21.1 (13.4) 20.8 (13.6)
Inter-urban driving [mpg (l/100 km)] 42.8 (6.6) 42.8 (6.6) 41.5 (6.8) 44.8 (6.3) 44.1 (6.4) 42.8 (6.6) 44.8 (6.3) 44.1 (6.4 ) 42.8 (6.6) 30.7 (9.2) 30.7 (9.2)
Mixed driving [mpg (l/100 km)] 39.2 (7.2) 39.2 (7.2) 37.6 (7.5) 39.2 (7.2) 38.1 (7.4) 37.2 (7.6) 39.2 (7.2) 38.1 (7.4 ) 39.2 (7.6) 738.1 (7.4) 38.1 (7.4)
Emission of CO
2 by weight (g/km) 191 191 198 194 196
200 - - - 196 196
Consumption values correct at time of printing. Th ese consumption values were established in accordan ce with Directive 80/1268/CEE.
They may vary depending on the style of driving, tr affic conditions, weather conditions, the load in the vehicle, the maintenance of the
vehicle and the use of the accessories.
For further information, consult the SERVICEBOX s ite at the address: http://public.servicebox.peugeot.com
CONSUMPTION
Quality of the fuel used for Diesel engines
The Diesel engines are perfectly compatible with b iofuels which conform to current and future Europea n standards (diesel fuel which
complies with standard EN 590 mixed with a biofuel which complies with standard EN 14214) which can be distributed at the pumps
(possible incorporation of 0 to 7 % Fatty Acid Meth yl Ester).
The use of any other type of (bio) fuel (vegetable or animal oils, domestic fuel...) is strictly prohibited (risk of damage to the engine and fuel
circuit).

135

Diesel - Petrol engines
TECHNICAL DATA
8
Petrol
2.0 PETROL 140
Gearbox Manual
Gears 5
Power (bhp) 140
Power (DIN) 143
H1L1 H1L2 H2L2
Urban driving [mpg (l/100 km)] 21.5 (13.2) 21. 5 (13.2) 121.1 (13.4)
Inter-urban driving [mpg (l/100 km)] 35.7 (8) 35.7 (8) 33.2 (8.5)
Mixed driving [mpg (l/100 km)] 28.5 (9.9) 28.5 (9.9) 27.4 (10.3)
Emission of CO 2 by weight (g/km) 235 235 246
Quality of the fuel used for petrol engines
The petrol engines are perfectly compatible with E 5 type petrol biofuels (containing 5 % ethanol), conforming to European standard EN 228.
E85 type fuels (containing up to 85 % ethanol) are reserved exclusively for vehicles marketed for the use of this type of fuel (BioFlex
vehicles). The quality of the ethanol must comply w ith European standard EN 15376.
For Brazil only, special vehicles are marketed to run on fuels containing up to 100 % ethanol (type E 100).

136

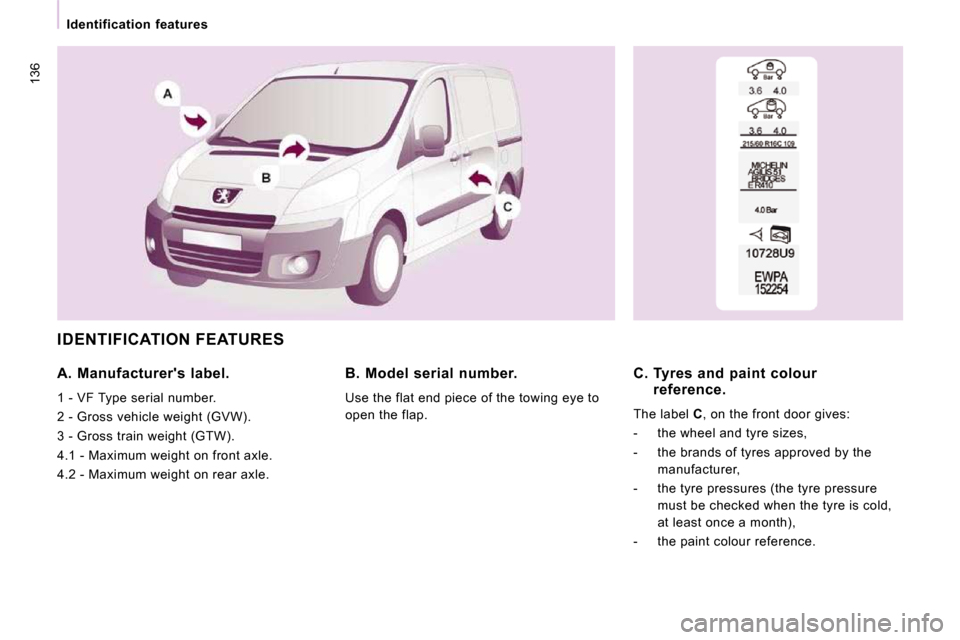

Identification features
IDENTIFICATION FEATURES
A. Manufacturer's label.
1 - VF Type serial number.
2 - Gross vehicle weight (GVW).
3 - Gross train weight (GTW).
4.1 - Maximum weight on front axle.
4.2 - Maximum weight on rear axle. B. Model serial number.
Use the flat end piece of the towing eye to
open the flap.
C. Tyres and paint colour
reference.
The label C , on the front door gives:
- the wheel and tyre sizes,
- the brands of tyres approved by the manufacturer,
- the tyre pressures (the tyre pressure must be checked when the tyre is cold,
at least once a month),
- the paint colour reference.
