Peugeot Expert VU 2009 Owners Manual

87
Child safety
SAFETY
4
GENERAL POINTS RELATING TO CHILD SEATS
"Rearwards-facing"
Recommended on the rear seats up to the
age of 2.
When a "rearwards-facing" child seat is
installed on the front passenger seat,
it is essential that the passenger air bag is
disarmed. Otherwise, the child would risk
being seriously injured or killed if the air bag
were to inflate. "Forwards-facing"
Recommended on the rear seats over the
age of 2.
When a "forwards-facing" child seat is
installed on the front passenger seat, leave
the passenger air bag armed.
INSTALLING A CHILD SEAT USING A THREE POINT SEAT
BELT
The rules for transporting children are
specific to each country. Consult the current
legislation in your country.
Please consult the list of seats approved
in your country. The isofix mountings,
the rear seats, the passenger air bag and
the disarming of this air bag depend on the
version sold.
Although one of PEUGEOT's main criteria
when designing your vehicle, the safety of
your children also depends on you.
For maximum safety, please follow these
precautions:
- all children under the age of 12 or less
than one metre fifty tall must travel in
approved child seats suited to their
weight, on seats fitted with a seat belt or
ISOFIX mountings,
- statistically, the safest seats in your vehicle for the transportation of children
are the rear seats,
- a child weighing less than 9 kg must travel in the "rearwards-facing" position
both in the front and in the rear,
- the passenger must not travel with a child on his lap.

88

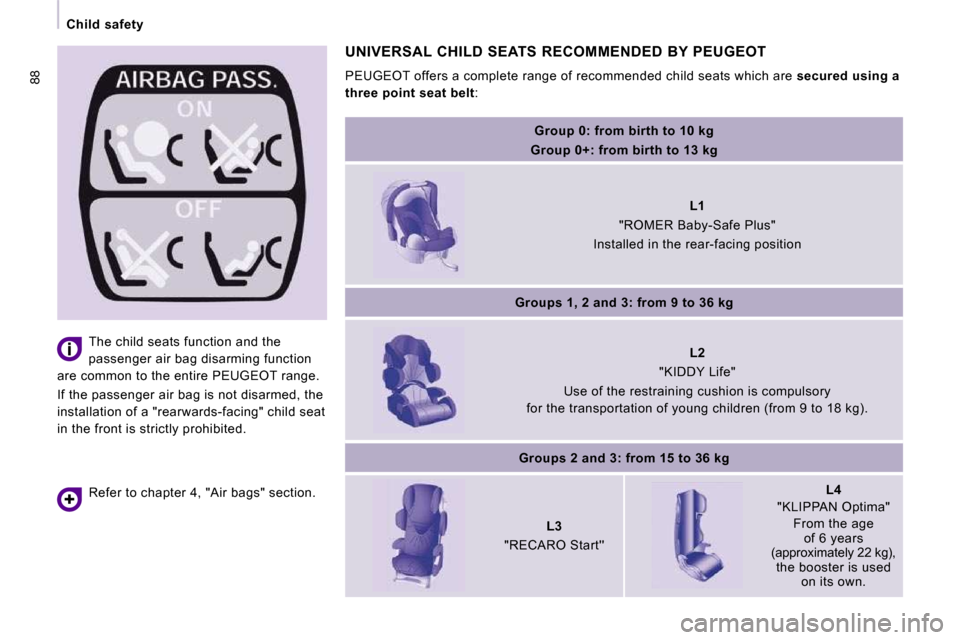

Child safety UNIVERSAL CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended chi ld seats which are secured using a
three point seat belt :
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg


L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position

Groups 1, 2 and 3: from 9 to 36 kg


L2
"KIDDY Life"
Use of the restraining cushion is compulsory
for the transportation of young children (from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

L3
"RECARO Start''


L4
"KLIPPAN Optima" From the age of 6 years
(approximately 22 kg), the booster is used on its own.
The child seats function and the
passenger air bag disarming function
are common to the entire PEUGEOT range.
If the passenger air bag is not disarmed, the
installation of a "rearwards-facing" child seat
in the front is strictly prohibited.
Refer to chapter 4, "Air bags" section.

88
Child safety UNIVERSAL CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended chi ld seats which are secured using a
three point seat belt :
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg


L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position

Groups 1, 2 and 3: from 9 to 36 kg


L2
"KIDDY Life"
Use of the restraining cushion is compulsory
for the transportation of young children (from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

L3
"RECARO Start''


L4
"KLIPPAN Optima" From the age of 6 years
(approximately 22 kg), the booster is used on its own.
The child seats function and the
passenger air bag disarming function
are common to the entire PEUGEOT range.
If the passenger air bag is not disarmed, the
installation of a "rearwards-facing" child seat
in the front is strictly prohibited.
Refer to chapter 4, "Air bags" section.

Child safety
SAFETY
4
a: Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front pas senger seat.
b: consult the legislation in force in your countr y before installing your child on this seat.

U: seat suitable for the installation of a child sea t secured using a seat belt and universally approve d, "rear facing" and/or "forward facing".
INSTALLING CHILD SEATS ATTACHED USING THE SEAT BEL T
This table indicates the options for installing child seats secured using a seat belt and universally approved in accordance with the weight of
the child and the seat in the vehicle.

Seat
Weight of the child and indicative age

Under 13 kg
(groups 0 (a) and 0+)
Up to approx 1 year
From 9 to 18 kg
(group 1)
1 to 3 years approx
From 15 to 25 kg
(group 2)
3 to 6 years approx
From 22 to 36 kg
(group 3)
6 to 10 years approx
Row 1 (b) Individual seat
U U U U
Bench, side seat U U U U
Bench, centre seat
L1 L2 L2, L3, L4 L2, L3, L4

90
Child safety
ADVICE ON CHILD SEATS
The incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack in
relation to the child's body to a minimum ,
even for short journeys.
For optimum installation of the "forward
facing" child seat, ensure that the back of
the child seat is in contact with the back of
the vehicle's seat and that the head restraint
does not cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached securely
to prevent it from being thrown around the
vehicle in the event of sharp braking.
Children under the age of 10 must not travel
in the "forward facing" position on the front
passenger seat, unless the rear seats are
already occupied by other children, cannot
be used or are absent.
Disarm the passenger air bag when a "rear
facing" child seat is installed on the front
seat.
Otherwise, the child would risk being
seriously injured or killed if the air bag were
to inflate. As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the doors,
use the "Child Lock".
Take care not to open the rear windows by
more than one third.
To protect young children from the rays of
the sun, fit side blinds to the rear windows. Installing a booster seat
The chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
PEUGEOT recommends the use of a
booster seat which has a back, fitted with a
seat belt guide at shoulder level.

91
Towing a trailer
ACCESSORIES
5
For more information about weights,
refer to the administrative documents
(V5 registration document, ...) or to the
"Weights" section of chapter 8.
TOWING A TRAILER, CARAVAN, BOAT, ETC...

Distribution of loads
Distribute the load in the trailer so that the
heaviest objects are as close as possible
to the axle and the nose weight is close to
the maximum authorised without, however,
exceeding it.
Cooling
Towing a trailer on a slope increases the
coolant temperature.
As the fan is electrically controlled, its
cooling capacity is not dependent on the
engine speed.
Driving advice
A towed vehicle must free wheel: gearbox in
neutral.

92
Towing a trailer
On the contrary, use a high gear to lower the
engine speed and reduce your speed.
In all cases, pay attention to the coolant
temperature. Tyres: check the tyre pressures of the
towing vehicle (see the "Identification
features" section of chapter 8) and of
the trailer, observing the recommended
pressure. Towbar
We recommend the use of original
PEUGEOT towbars and their harnesses,
which have been tested and approved from
the design stage of your vehicle, and that
you entrust the fitting of this equipment to a
PEUGEOT dealer.
If this equipment is not fitted by a PEUGEOT
dealer, it is imperative that it is fitted using
the electrical pre-equipment installed at the
rear of the vehicle and in accordance with
the manufacturer's instructions.
In accordance with the general instructions
a reminder of which has been given above,
we draw your attention to the risk linked with
fitting a towbar or electrical accessory not
recommended by PEUGEOT.
Fitting such equipment could result in the
failure of your vehicle's electronic system.
Please contact a PEUGEOT dealer for
information before fitting this type of
equipment.
See the "Levels" section of chapter 6.
Good Practice
In certain cases of particularly arduous
use (towing the maximum load up a steep
slope in high temperatures), the engine
automatically limits its power. In this
case, the automatic cutting off of the air
conditioning allows the engine power to be
recovered.
If the coolant temperature warning
light comes on, stop the vehicle
and switch off the engine as soon
as possible.
Brakes
Towing increases the braking distance. Drive
at a moderate speed, change down early
and brake gradually.

Side wind
Sensitivity to side wind is increased. Drive
smoothly and at a moderate speed.

ABS/ESP
The ABS or ESP systems only control the
vehicle, not the trailer or caravan.

Rear parking assistance
The assistance does not function while the
vehicle is towing.

93
Equipment
ACCESSORIES
5
OTHER ACCESSORIES
These accessories and parts, having been
tested and approved for reliability and
safety, are all adapted to your vehicle.
A wide range of recommended products and
original parts is offered. Anti-theft alarm, window engraving,
first aid kit, high visibility safety
jacket, rear parking assistance,
warning triangle,
Another range is also available, structured
around comfort, leisure and maintenance:
Audio equipment, hands-free
kit, speakers, CD changer,
navigation, ...
Regardless of the audio and telematic
equipment offered on the market, the
technical constraints linked with the fitting
of equipment of these families of products
mean that the special features of the
equipment and its compatibility with the
capacities of the your vehicle's standard
equipment must be taken into account.
Please contact a PEUGEOT dealer for
information before fitting such equipment. Installation of radiocommunication
transmitters
Before installing accessory
radiocommunication transmitters with an
external aerial on your vehicle, you are
advised to contact a representative of the
PEUGEOT marque.
The PEUGEOT Network will inform
you of the specifications (frequency
band, maximum output power, aerial
position, specific installation conditions)
of the transmitters which can be fitted,
in accordance with the Motor Vehicle
Electromagnetic Compatibility Directive
(2004/104/CE).
Range of professional equipment
Parts and Service technical information
publishes an accessories catalogue offering
various equipment and fittings, such as:
Roof bars for short, medium and long
wheelbase (load retainers for all models).
Sill plate, loading roller, sill.
Towbar, towbar harness: trailer towbar which
must be fitted by the PEUGEOT network.
Roof bars for the various heights, roof bars,
ladder.
Separation partitions and grilles, smooth,
non-slip wooden protective floor.
Protective grilles, multimedia. Front seat covers compatible with
air bags, bench, rubber mats, carpet
mats, snow chains.
To prevent the mat from becoming
caught under the pedals:
- ensure that the mat and its fixings are positioned correctly,
- never fit one mat on top of another.

94
Equipment The fitting of electrical equipment
or accessories which are not
recommended by PEUGEOT may result
in the failure of your vehicle's electronic
system. Please note this specific warning.
You are advised to contact a representative
of the Marque to be shown the range of
recommended equipment and accessories.
Depending on the country in which the
vehicle is sold or operated, it is compulsory
to have a high visibility safety jacket,
warning triangle and replacement bulbs
available in the vehicle.
ROOF BARS
To install the transverse roof bars, use the
fixings provided for this purpose.
Maximum load: 170 kilogrammes.
Front mud flaps, rear mud flaps, ...
Screenwash, interior and exterior
cleaning and maintenance products,
replacement bulbs, ...

94
Equipment The fitting of electrical equipment
or accessories which are not
recommended by PEUGEOT may result
in the failure of your vehicle's electronic
system. Please note this specific warning.
You are advised to contact a representative
of the Marque to be shown the range of
recommended equipment and accessories.
Depending on the country in which the
vehicle is sold or operated, it is compulsory
to have a high visibility safety jacket,
warning triangle and replacement bulbs
available in the vehicle.
ROOF BARS
To install the transverse roof bars, use the
fixings provided for this purpose.
Maximum load: 170 kilogrammes.
Front mud flaps, rear mud flaps, ...
Screenwash, interior and exterior
cleaning and maintenance products,
replacement bulbs, ...
