Peugeot Expert VU 2011 Owner's Manual

9.27
06
1
2
4
3
6
5

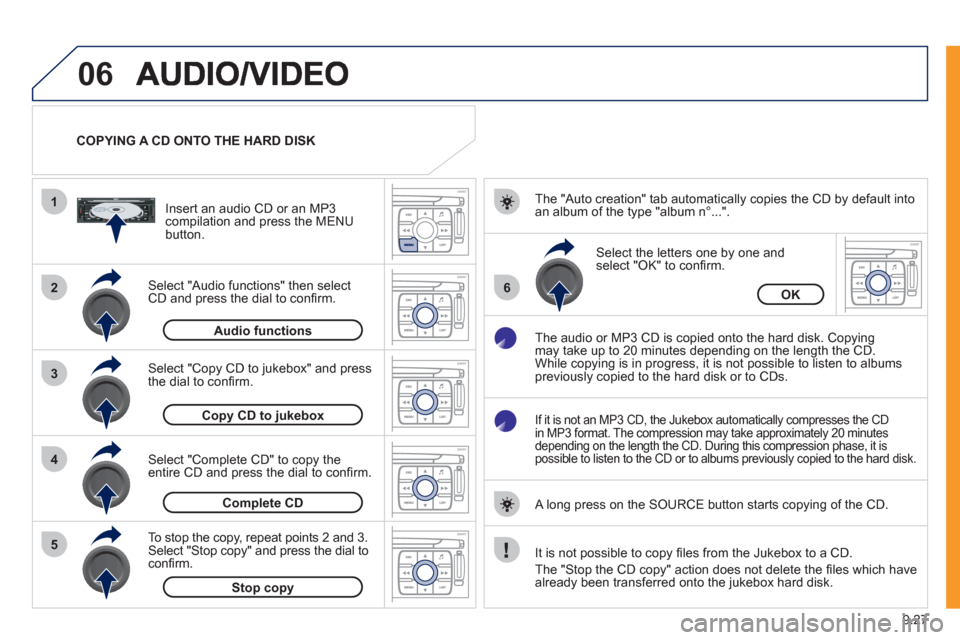

COPYING A CD ONTO THE HARD DISK
Select "Audio functions" then select
CD and press the dial to confi rm.
Insert an audio
CD or an MP3compilation and press the MENU button.
Select "Copy CD to jukebox" and press
the dial to confi rm.
Select the letters one b
y one and select "OK" to confi rm.
The "Auto creation" tab automaticall
y copies the CD by default into
an album of the type "album n∞...".

The audio or MP3
CD is copied onto the hard disk. Copying
may take up to 20 minutes depending on the length the CD.
While copying is in progress, it is not possible to listen to albums
previously copied to the hard disk or to CDs.


If it is not an MP3 CD, the Jukebox automatically compresses the CD
in MP3 format. The compression may take approximately 20 minutes
depending on the length the CD. During this compression phase, it is possible to listen to the CD or to albums previously copied to the hard disk.


A long press on the SOURCE button starts copying of the CD.
Audiofunctions
OK
Copy CD to jukebox
Select "Complete CD" to copy the entire CD and press the dial to confi rm.
Complete CD
To stop the cop
y, repeat points 2 and 3.Select "Stop copy" and press the dial to confi rm.
Stop copy

It is not possible to copy fi les from the Jukebox to a CD.
The "
Stop the CD copy" action does not delete the fi les which have
already been transferred onto the jukebox hard disk.

9.28
06
1
2
3
4
1
2
3
AUDIO/VIDEO

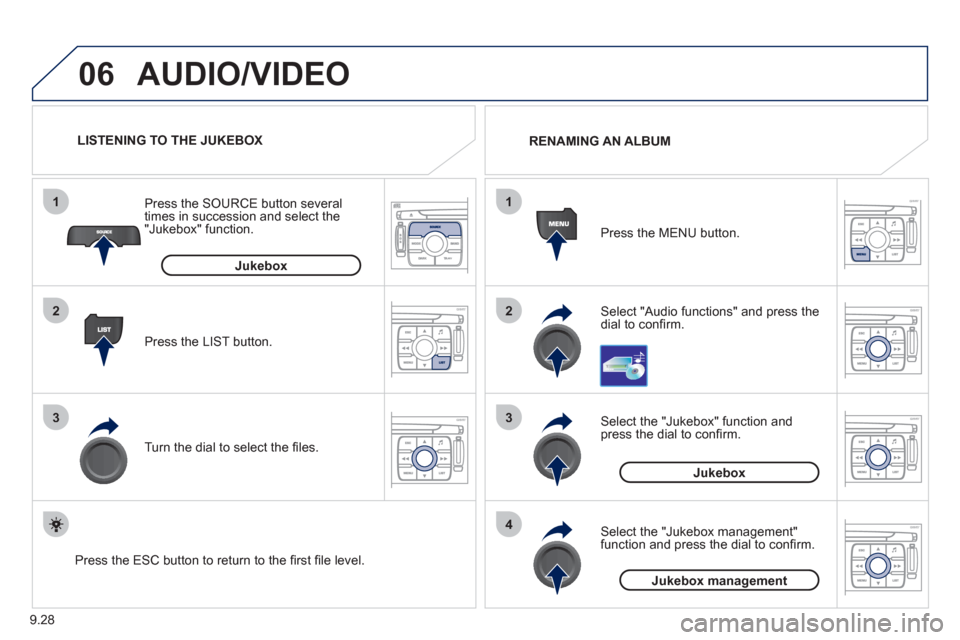

Select "Audio functions" and press the dial to confi rm. Press the MEN
U button. RENAMING AN ALBUM

Select the "Jukebox" function andpress the dial to confi rm.
Jukebox

Select the "Jukebox management"function and press the dial to confi rm.
Jukeboxmanagement
Press the LIST button. Press the
SOURCE button several
times in succession and select the"Jukebox" function.
T
urn the dial to select the fi les.
LISTENING TO THE JUKEBOX
Jukebox


Press the ESC button to return to the fi rst fi le level.

9.29
06
5
6
7
8
AUDIO/VIDEO

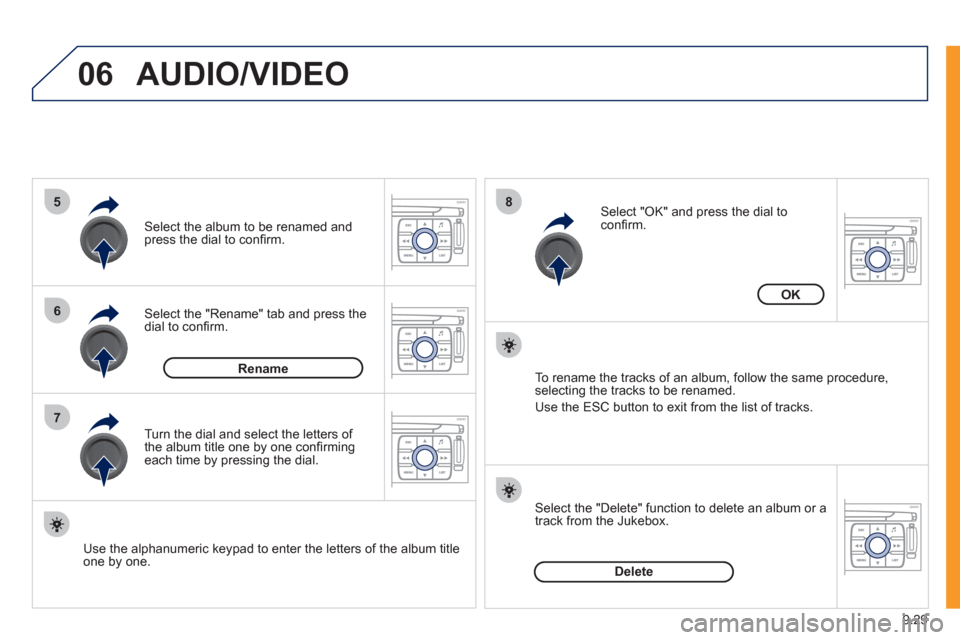

Select the "Rename" tab and press the dial to confi rm.
Select the album to be renamed andpress the dial to confi rm.

Use the alphanumeric keypad to enter the letters o
f the album title one by one.T
urn the dial and select the letters of
the album title one by one confi rming each time by pressing the dial.
Rename

To rename the tracks of an album, follow the same procedure,selecting the tracks to be renamed.

Use the ESC button to exit from the list of tracks.
Select "OK" and press the dial toconfi rm.
OK

Select the "Delete" function to delete an album or a
track from the Jukebox.
Delete

9.30
06
1
2
AUDIO/VIDEO

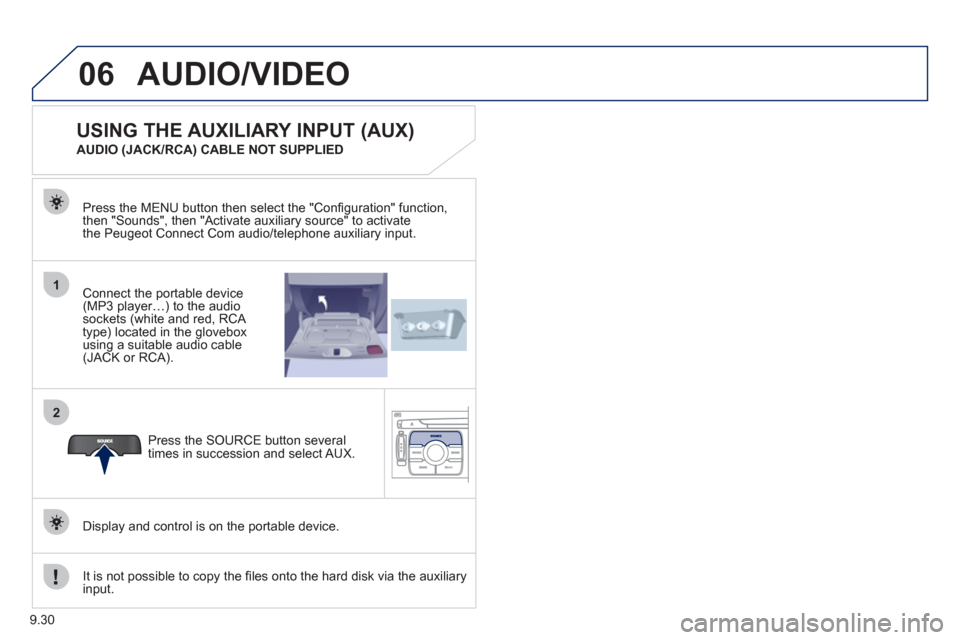

Connect the portable device (MP3 player…) to the audio
sockets (white and red, RCA
type) located in the glovebox using a suitable audio cable (JACK or RCA). Press the MENU button then select the "
Confi guration" function,
then "Sounds", then "Activate auxiliary source" to activatethe Peugeot Connect Com audio/telephone auxiliary input.
It is not possible to cop
y the fi les onto the hard disk via the auxiliary input.Pr
ess the SOURCE button several
times in succession and select AUX.









USING THE AUXILIARY INPUT (AUX)
AUDIO (JACK/RCA) CABLE NOT SUPPLIED
Displa
y and control is on the portable device.

9.31
06
1
2
4
3
7
5
6
AUDIO/VIDEO

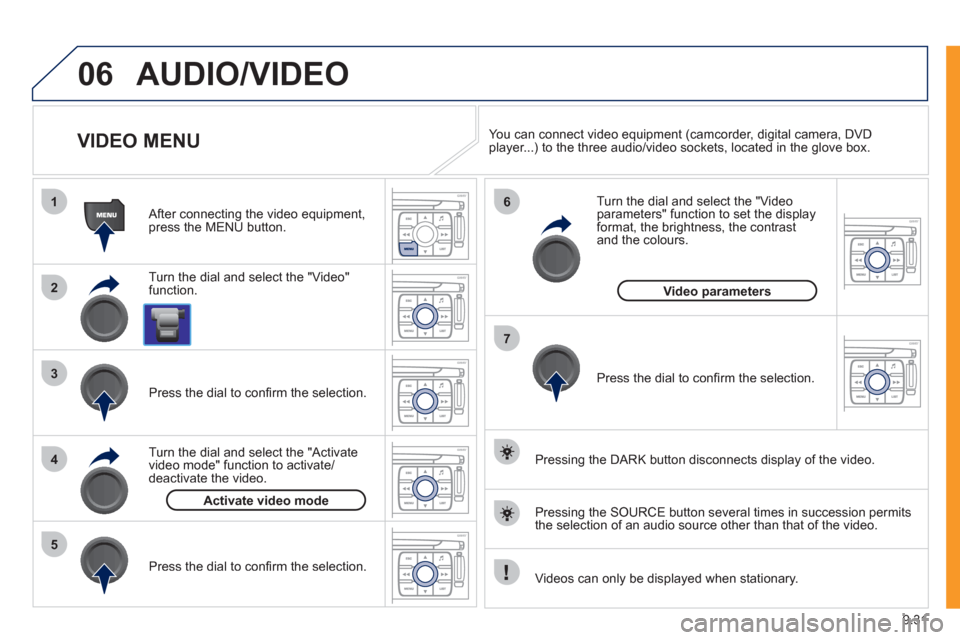

VIDEO MENU


Turn the dial and select the "Video"
function.
After connecting the video equipment,press the MENU button.

Pr
ess the dial to confi rm the selection.
T
urn the dial and select the "Activatevideo mode" function to activate/deactivate the video.
Pr
ess the dial to confi rm the selection.
T
urn the dial and select the "Video parameters" function to set the displayformat, the brightness, the contrast and the colours.

Videos can only be displayed when stationary.

Pressin
g the DARK button disconnects display of the video.
You can connect video equipment
(camcorder, digital camera, DVDplayer...) to the three audio/video sockets, located in the glove box.

Pressin
g the SOURCE button several times in succession permits
the selection of an audio source other than that of the video.
Pr
ess the dial to confi rm the selection.
Activate video mode
Video parameters

9.32
07
1
2
1
2
3

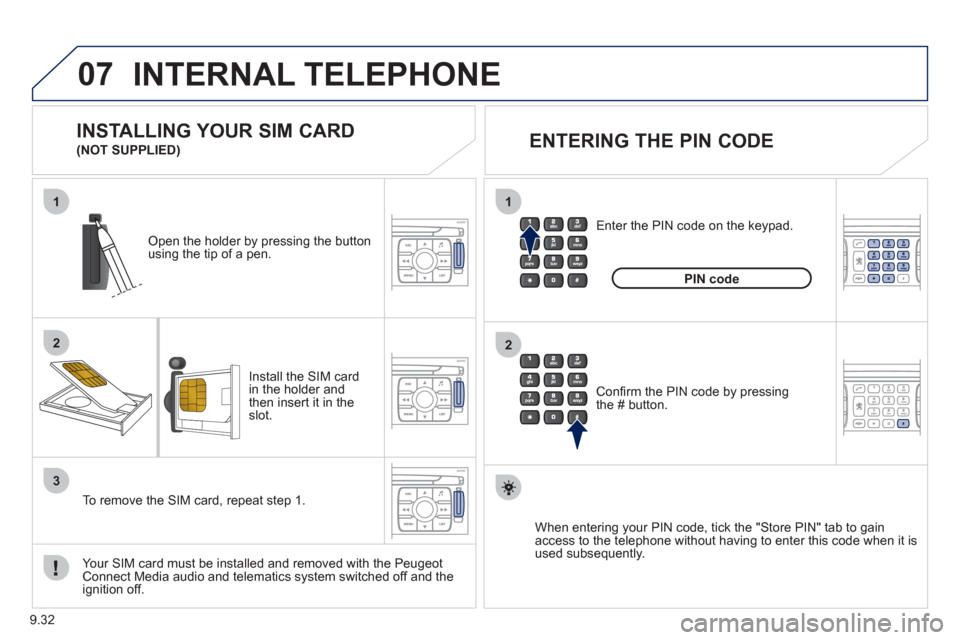

INTERNAL TELEPHONE
Install the SIM card
in the holder andthen insert it in theslot.
Open the holder by pressing the buttonusing the tip of a pen.

Your
SIM card must be installed and removed with the Peugeot Connect Media audio and telematics system switched off and the
ignition off.
To remove the
SIM card, repeat step 1.
Confi rm the PIN code by pressingthe # button.
Enter the PIN code on the ke
ypad.

When enterin
g your PIN code, tick the "Store PIN" tab to gain
access to the telephone without having to enter this code when it is
used subsequently.





INSTALLING YOUR SIM CARD
(NOT SUPPLIED)

ENTERING THE PIN CODE
PINcode

9.33
07
1
2
3
4
INTERNAL TELEPHONE

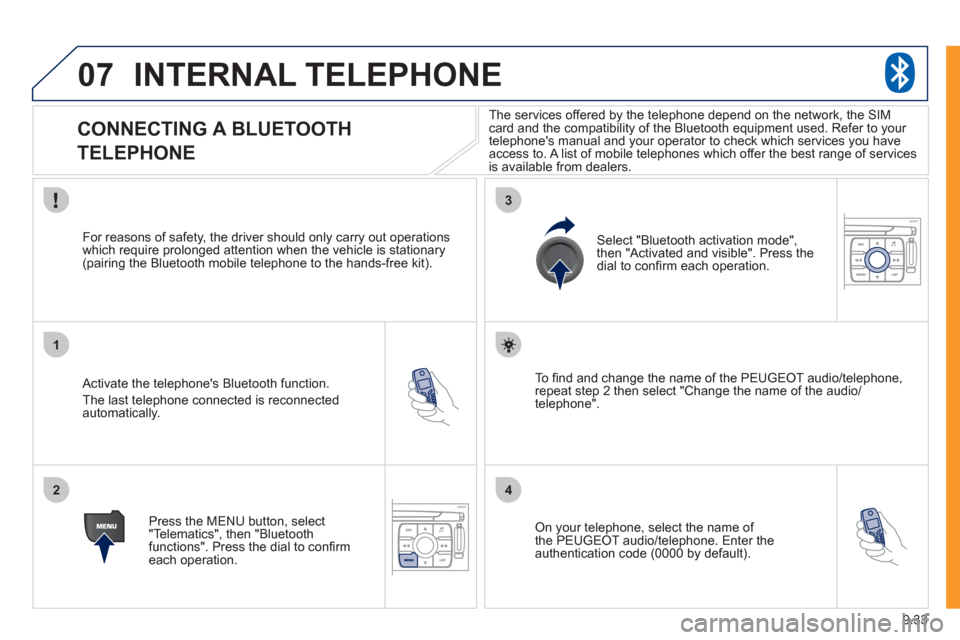

CONNECTING A BLUETOOTH
TELEPHONE
Activate the telephone's Bluetooth function.

The last telephone connected is reconnectedautomatically.
For reasons o
f safety, the driver should only carry out operations
which require prolonged attention when the vehicle is stationary (pairing the Bluetooth mobile telephone to the hands-free kit).

Press the MENU button, select
"Telematics", then "Bluetoothfunctions". Press the dial to confi rmeach operation.
To fi nd and chan
ge the name of the PEUGEOT audio/telephone,
repeat step 2 then select "Change the name of the audio/
telephone".
Select "Bluetooth activation mode"
,
then "Activated and visible". Press thedial to confi rm each operation.

On your telephone, select the name of
the PEUGEOT audio/telephone. Enter the
authentication code (0000 by default).
The services offered b
y the telephone depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. Refer to your
telephone's manual and your operator to check which services you have
access to. A list of mobile telephones which offer the best range of services
is available from dealers.

9.34
07INTERNAL TELEPHONE

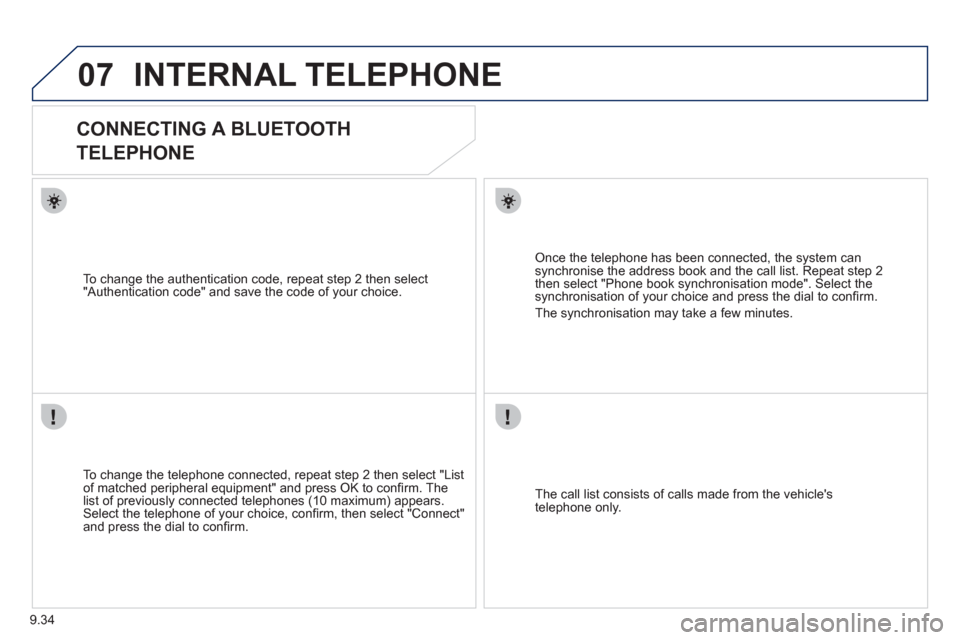

CONNECTING A BLUETOOTH
TELEPHONE

To change the telephone connected, repeat step 2 then select "Listof matched peripheral equipment" and press OK to confi rm. The
list of previously connected telephones (10 maximum) appears. Select the telephone of your choice, confi rm, then select "Connect"
and press the dial to confi rm.
To chan
ge the authentication code, repeat step 2 then select
"Authentication code" and save the code of your choice.

Th
e call list consists of calls made from the vehicle'stelephone only.

Once the telephone has been connected, the system can synchronise the address book and the call list. Repeat step 2then select "Phone book synchronisation mode". Select thesynchronisation of your choice and press the dial to confi rm.
The s
ynchronisation may take a few minutes.

9.35
07
1
2
4
3
6
5

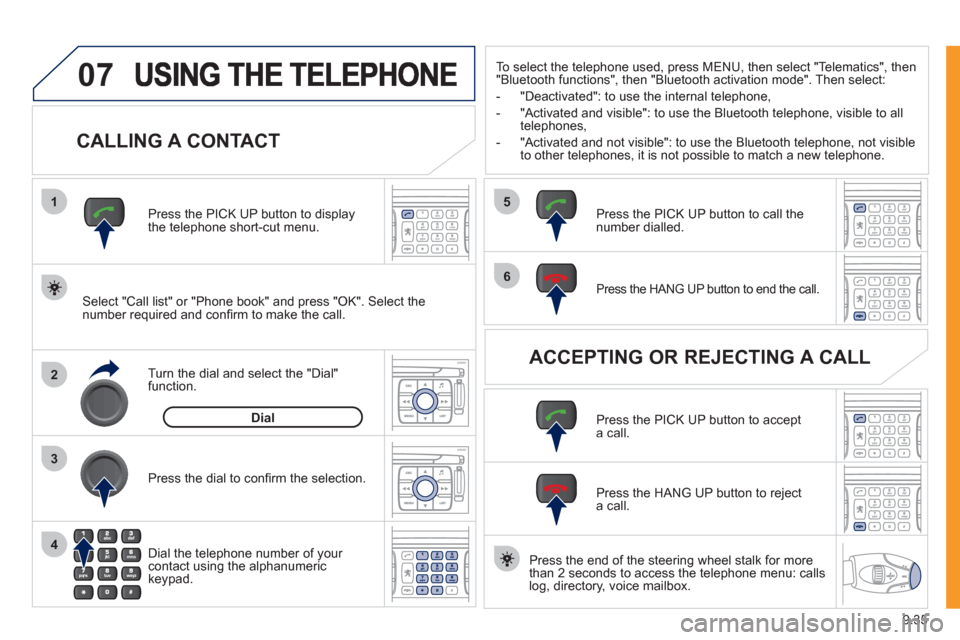

CALLING A CONTACT


Select "Call list" or "Phone book" and press "OK". Select thenumber required and confi rm to make the call. Press the PICK UP button to displa
ythe telephone short-cut menu.
Dial the telephone number of
your contact using the alphanumeric keypad. Pr
ess the dial to confi rm the selection.

Press the HANG UP button to end the call.



Press the PICK UP button to call thenumber dialled.

Press the HANG UP button to re
ject a call.
Press the PI
CK UP button to accept a call.


ACCEPTING OR REJECTING A CALL Turn the dial and select the "Dial" function.
Dial
To select the telephone used, press MENU, then select "Telematics", then
"Bluetooth functions", then "Bluetooth activation mode". Then select:


-
"Deactivated": to use the internal telephone,

- "Activated and visible": to use the Bluetooth telephone, visible to all
telephones,

- "Activated and not visible": to use the Bluetooth tele
phone, not visible
to other telephones, it is not possible to match a new telephone.
Press the end of the steerin
g wheel stalk for more
than 2 seconds to access the telephone menu: calls
log, directory, voice mailbox.

9.36
08
- The "vehicle" tab: the range, the current
fuel consumption and the distance
remaining to the destination.
- Tab "1"
(route 1) with: the average speed,
the average fuel consumption and the distance travelled calculated over route "1".
- Tab "2"
(route 2) with the same functions for a second route.


A FEW DEFINITIONS
Range:
displays the distance which can travelled with the remaining fuel
detected in the tank, basd on the average consumption over the last few
miles (kilometres).
This displayed value may vary signi
fi cantly following a change in the
vehicle speed or the relief of the route.
When the ran
ge falls below 20 miles (30 km), dashes are displayed.
After fi lling with at least 10 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km).
If, whilst drivin
g, dashes are displayed continuously in place of the digits,contact a PEUGEOT dealer.
Current fuel consumption:only calculated and displayed above 20 mph (30 km/h).
Average fuel consumption: this is the average fuel consumption since
the last trip computer zero reset.
Distance travelled: calculated since the last trip computer zero reset.
Distance remaining to the destination:calculated with reference to
the fi nal destination, entered by the user. If guidance is activated, the
navigation system calculates it as a current value.
Average speed: this is the average speed calculated since the last trip computer zero reset (ignition on).
On-board computer
Route
Distance km
km/h l/100
740
6.5
31
