Changing a fuse

QUICK HELP
7

FUSES UNDER THE BONNET



- After opening the bonnet, slide the
screenwash support to make access
easier.

- Unclip and tilt the box to access the
fuses.

Fuses


A (amps)

Allocation


1


20
Engine control unit, Fuel supply and air supply systems,
Fan assembly


2


15
Horn


3


10
Front and rear screenwash pump


4


20
Headlamp wash pump


5


15
Fuel supply system


6


10
Power steering, Secondary brake pedal switch


7


10
Braking system (ABS/ESP)


8


20
Starter motor control


9


10
Main brake pedal switch


10


30
Fuel supply and air supply systems, Emissions control systems


11


40
Front ventilation


12


30 Windscreen wipers


13


40
Built-in systems interface


14


30
Free

130


Changing a fuse


TOWING/TOWBAR/
COACHBUILDERS/PLATFORM
CAB FUSES
The descriptions communicated are an
indication only as this additional box
relates to other information which depends
on the coachbuilder/vehicle convertor for
which this document cannot act
as a technical support.

Fuses


A (amps)

Allocation


1


15
Free


2


15
Ignition relay and optional generator


3


15
Trailer 12 V supply


4


15
Permanent supply for vehicle convertors


5


10
Hazard warning lamps

131


Changing a wiper blade

QUICK HELP
7


Placing the wiper blades in the
special position


- Less than a minute after switching
off the ignition, press the wipers stalk
downwards to position the wiper
blades along the windscreen uprights
(special position).
Changing a front wiper blade


- Lift the wiper arm.

- Unclip the blade and remove it.

- Fit the new blade.

- Push back the wiper arm.
Changing the rear wiper blade


- Lift the wiper arm, then unclip
the blade and remove it.

- Fit the new blade and push back
the wiper arm.

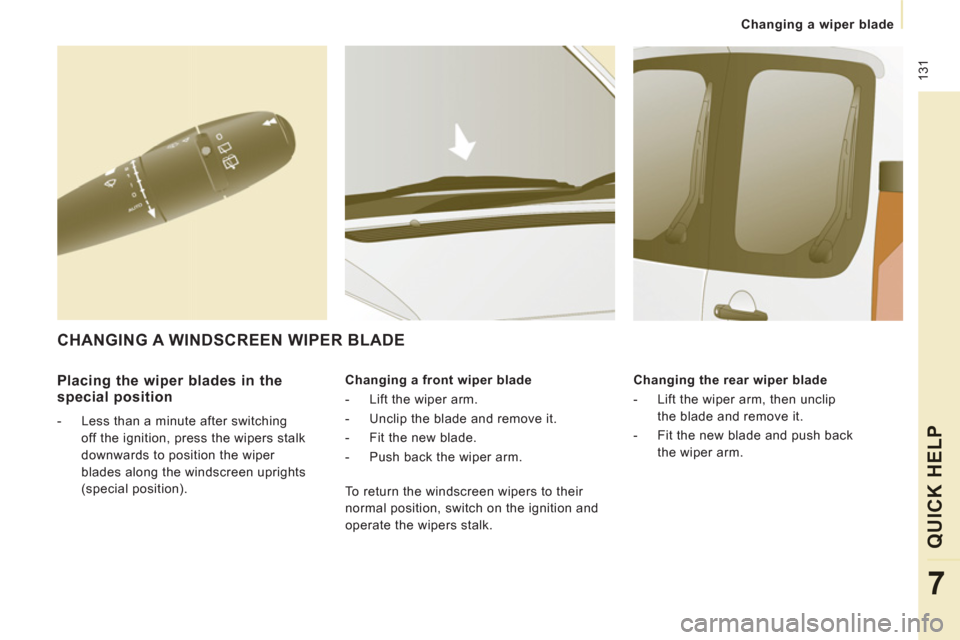

CHANGING A WINDSCREEN WIPER BLADE

To return the windscreen wipers to their
normal position, switch on the ignition and
operate the wipers stalk.

132


Having your vehicle towed



Without lifting (4 wheels on the road)

You should always use a towing bar.


From the front



- Unclip the cover by pressing the
bottom part.

- Fully screw in the removable towing eye.

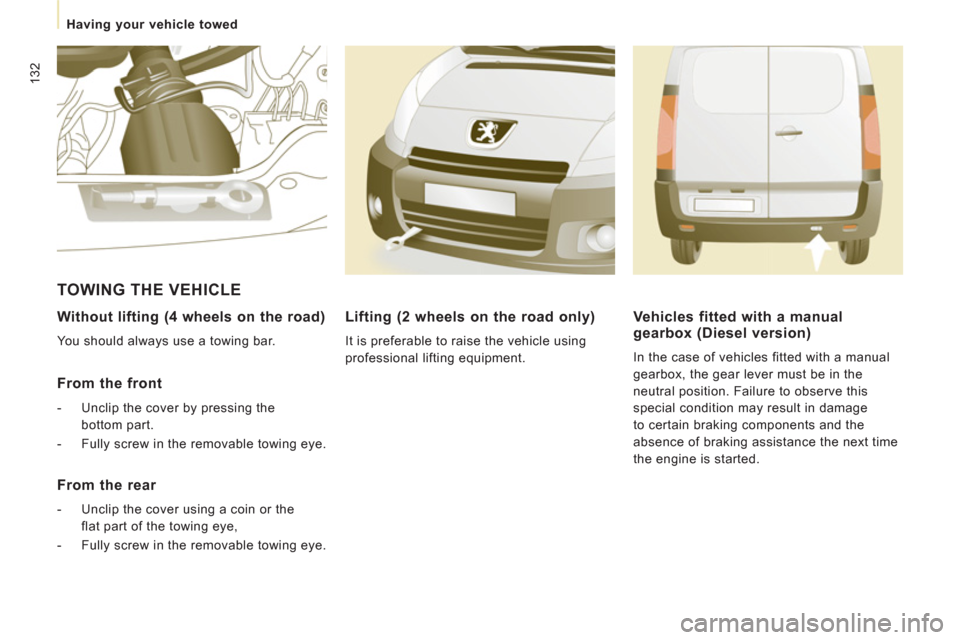

TOWING THE VEHICLE


Lifting (2 wheels on the road only)

It is preferable to raise the vehicle using
professional lifting equipment.


From the rear



- Unclip the cover using a coin or the
flat part of the towing eye,

- Fully screw in the removable towing eye.



Vehicles fitted with a manual
gearbox (Diesel version)
In the case of vehicles fitted with a manual
gearbox, the gear lever must be in the
neutral position. Failure to observe this
special condition may result in damage
to certain braking components and the
absence of braking assistance the next time
the engine is started.

133


Having your vehicle towed

QUICK HELP
7


General recommendations

Observe the legislation in force in your
country.
Ensure that the weight of the towing vehicle
is higher than that of the towed vehicle.
The driver must stay at the wheel of the
towed vehicle.
Driving on motorways and fast roads is
prohibited when towing.
When towing a vehicle with all four wheels
on the ground, always use an approved
towing bar; rope and straps are prohibited.
When towing a vehicle with the engine off,
there is no longer any power assistance for
braking or steering.
In the following cases, you must always call
on a professional recovery service:


- vehicle broken down on a motorway or
fast road,

- when it is not possible to put the
gearbox into neutral, unlock the
steering, or release the parking brake,

- towing with only two wheels on the
ground,

- where there is no approved towing bar
available...

134


Dimensions

Dimensions

TECHNI
CAL DAT
A
8


*
Value for rear suspension.
L1
L2

H1
H1
H2

L Overall length
4 805 to 4 813
5 135 to 5 143

H Overall height
1 894 * /1 942
2 204 * /2 276

A Wheelbase
3 000
3 122

B Front overhang

975

C Rear overhang
830 to 838
1 038 to 1 046

D Overall width:
on panel

1 870
with mouldings

1 895
with mirrors folded

1 986
with mirrors unfolded
2 194

E Width of front tracks
1 562 to 1 570

F Width of rear tracks
1 596 to 1 604

I Length of interior floor
2 254
2 584

J Maximum interior height under roof
1 449
1 750

K Maximum interior width
1 600

M Interior width between wheel arches
1 245
Turning circle pitch diameter between kerbs (m)
12.18
12.59
Maximum loads (kg)
Payload

1 000 to 1 200
On roof

170
m
3

5
6
7

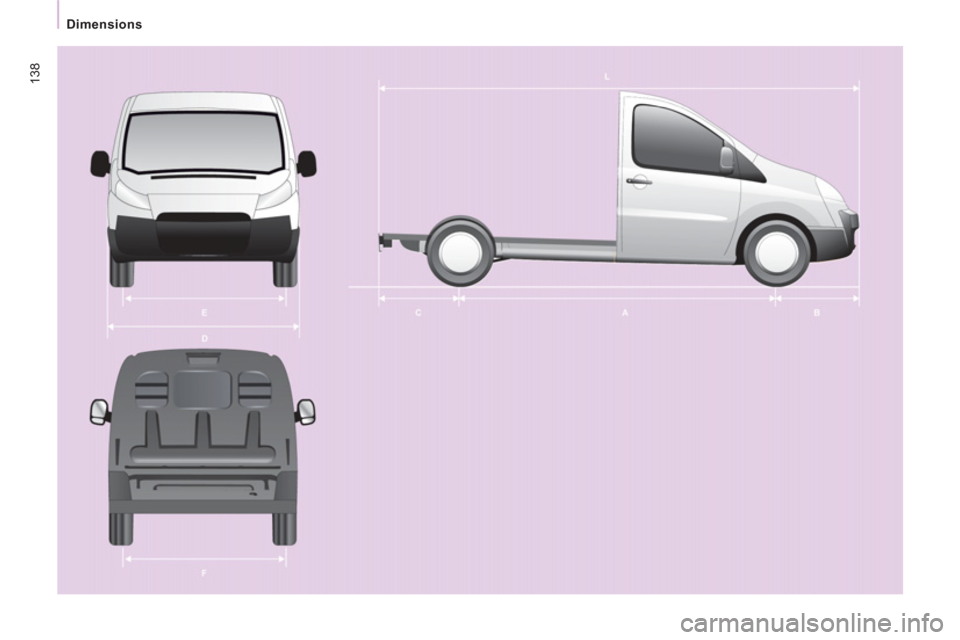

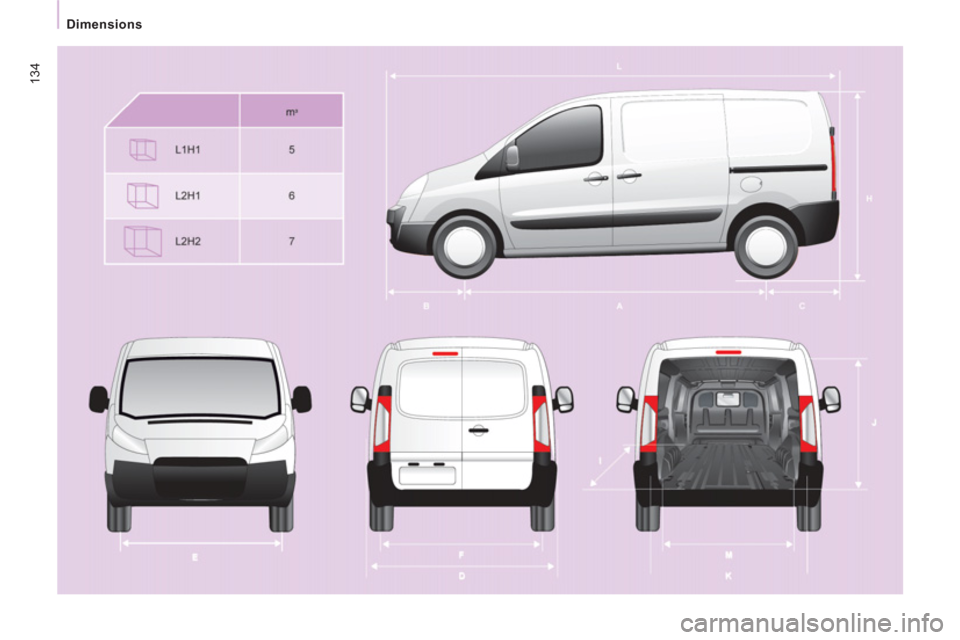

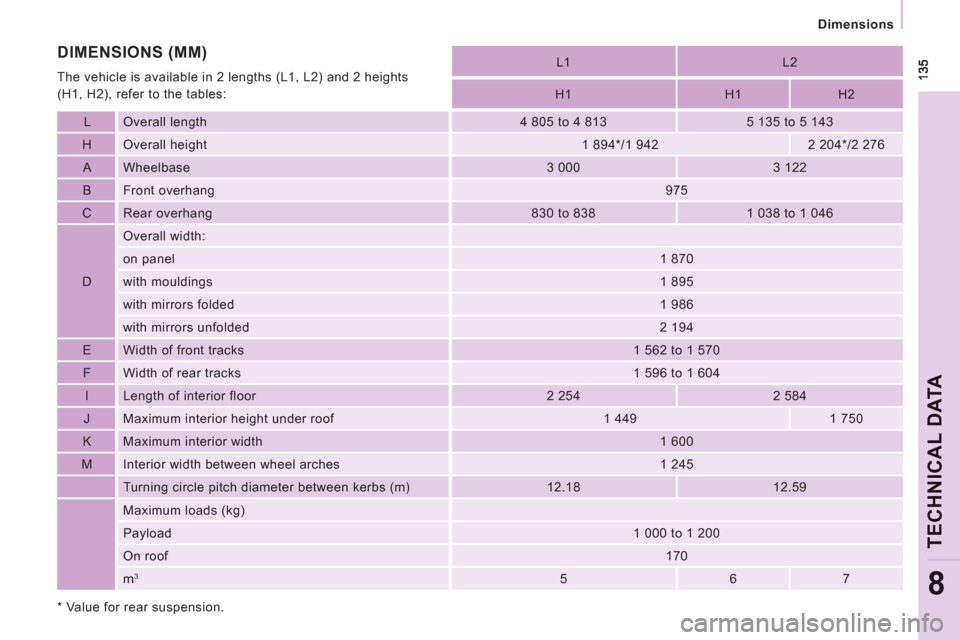

DIMENSIONS (MM)

The vehicle is available in 2 lengths (L1, L2) and 2 heights
(H1, H2), refer to the tables:

136


Dimensions

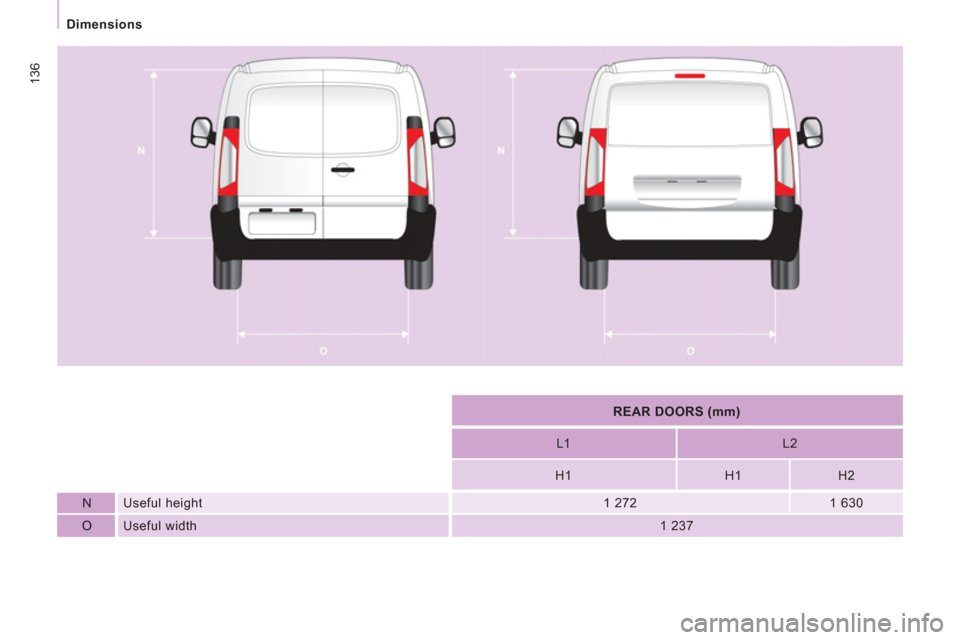

REAR DOORS (mm)


L1
L2

H1
H1
H2

N Useful height
1 272
1 630

O Useful width

1 237

Dimensions

TECHNI
CAL DAT
A
8

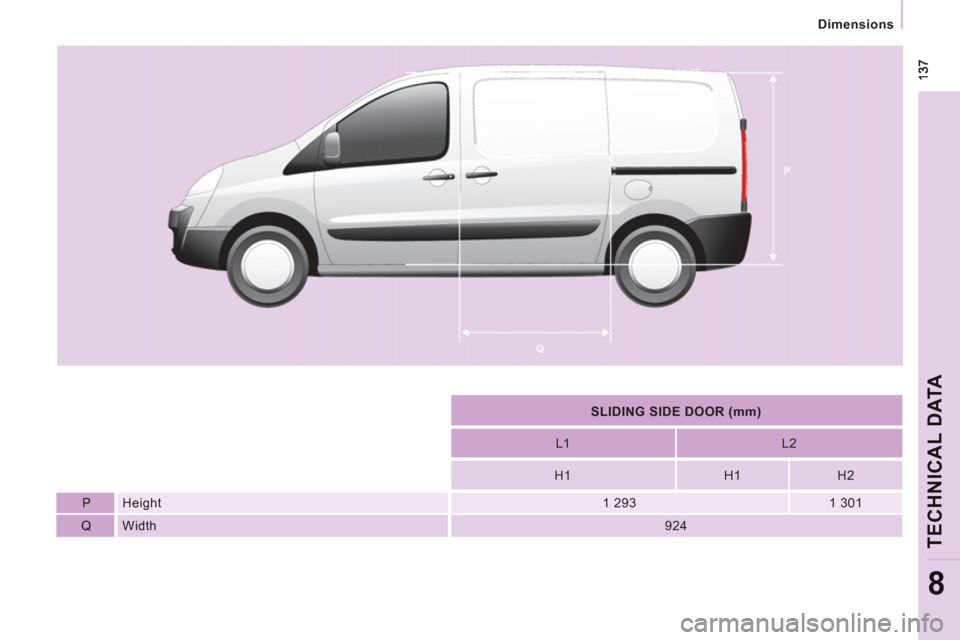

SLIDING SIDE DOOR (mm)


L1
L2

H1
H1
H2

P
Height

1 293
1 301

Q
Width

924

138
