Peugeot Expert VU 2016 Owner's Manual - RHD (UK, Australia)

189

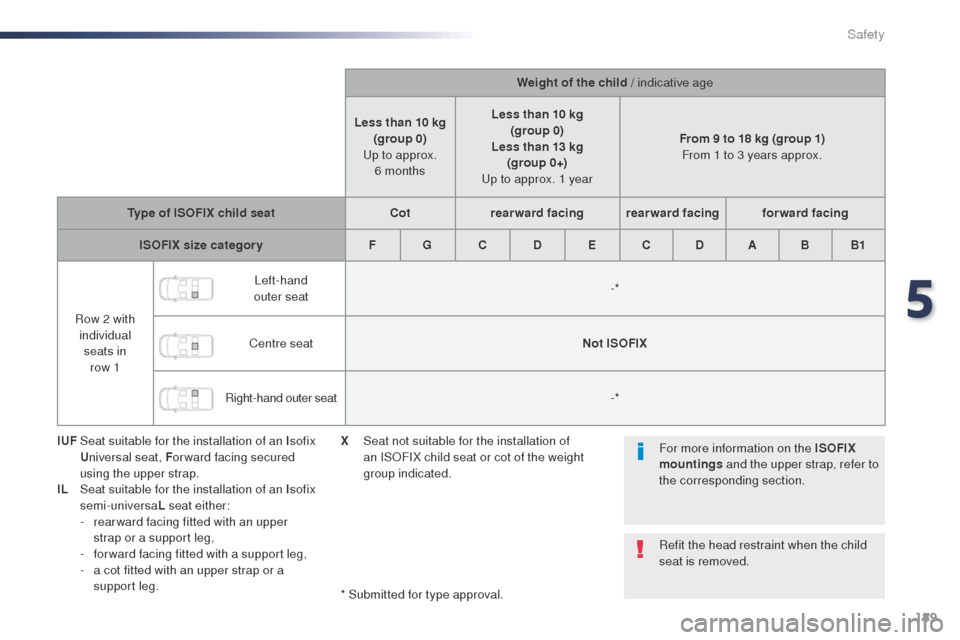

Weight of the child / indicative age
Less than 10 kg (group 0)
u

p to approx. 6 months Less than 10 kg
(group 0)
Less than 13 kg (group 0+)
up t

o approx. 1 year From 9 to 18 kg (group 1)
From 1 to 3 years approx.
Type of ISOFIX child seat Cotrearward facing rearward facing forward facing
ISOFIX size categor y F G C D E C D A B B1
Row 2 with individual seats in row 1 Left-hand
outer seat -*
Centre seat Not ISOFIX
Right-hand outer seat -*
IUF
S

eat suitable for the installation of an I sofix
U niversal seat, F or ward facing secured
using the upper strap.
IL
S

eat suitable for the installation of an I sofix
semi-universa L seat either:
-

r

ear ward facing fitted with an upper
strap or a support leg,
-

f

or ward facing fitted with a support leg,
-

a c

ot fitted with an upper strap or a
support leg. * Submitted for type approval. For more information on the ISOFIX
mountings
and the upper strap, refer to
the corresponding section.
Refit the head restraint when the child
seat is removed.
X

S

eat not suitable for the installation of
an IS
oF

IX child seat or cot of the weight
group indicated.
5
Safety

190

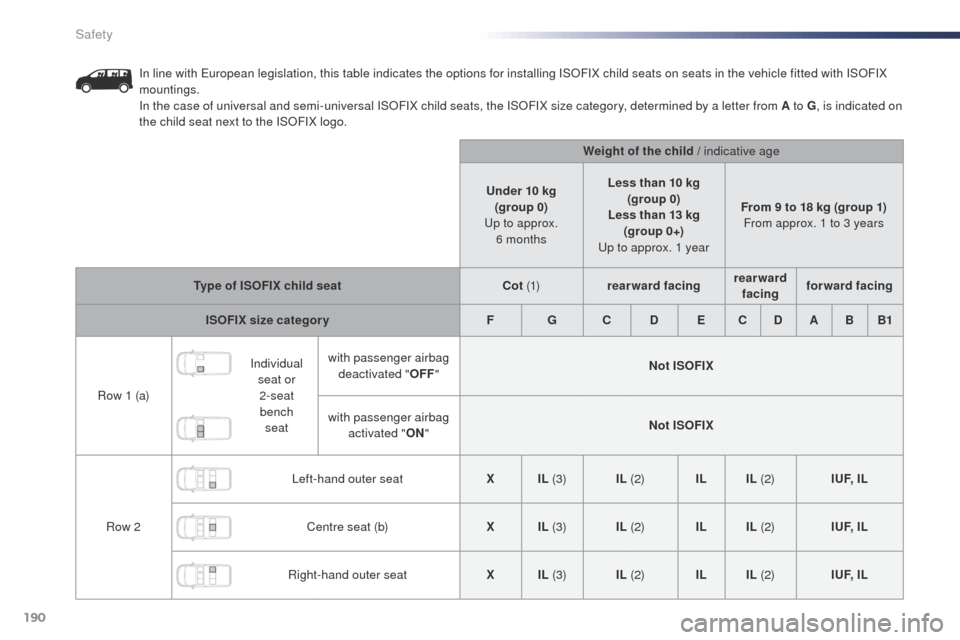

In line with european legislation, this table indicates the options for installing ISoF IX child seats on seats in the vehicle fitted with ISoF IX
mountings.
In the case of universal and semi-universal IS
oF

IX child seats, the IS
oF
IX size category, determined by a letter from A to G, is indicated on
the child seat next to the IS
oF

IX logo. Weight of the child / indicative age
Under 10 kg
(group 0)
u

p to approx. 6
monthsLess than 10 kg
(group 0)
Less than 13 kg (group 0+)
up t

o approx. 1 yearFrom 9 to 18 kg (group 1)
From approx. 1 to 3 years
Type of ISOFIX child seat Cot (1) rearward facing rearward
facing forward facing
ISOFIX size categor y F G C D E C D A B B1
Row 1 (a) Individual
seat or 2-seat bench seat with passenger airbag
deactivated " OFF" Not ISOFIX
with passenger airbag activated " ON" Not ISOFIX
Row 2 Left-hand outer seat
XIL (3) IL (2) IL IL (2) I U F, I L
Centre seat (b) XIL (3) IL (2) IL IL (2) I U F, I L
Right-hand outer seat XIL (3) IL (2) IL IL (2) I U F, I L
Safety

191

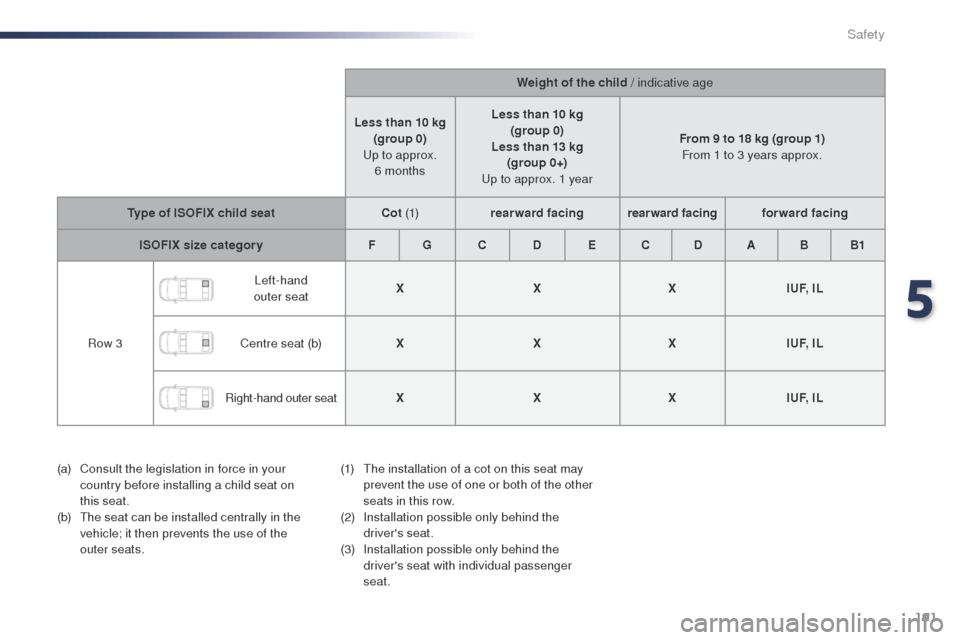

Weight of the child / indicative age
Less than 10 kg (group 0)
u

p to approx. 6 months Less than 10 kg
(group 0)
Less than 13 kg (group 0+)
up t

o approx. 1 year From 9 to 18 kg (group 1)
From 1 to 3 years approx.
Type of ISOFIX child seat Cot (1) rearward facing rearward facingforward facing
ISOFIX size categor y F G C D E C D A B B1
Row 3 Left-hand
outer seat X
XXI U F, I L
Centre seat (b) XXXI U F, I L
Right-hand outer seat XXXI U F, I L
(a)

C

onsult the legislation in force in your
country before installing a child seat on
this


seat.
(b)
t
h

e seat can be installed centrally in the
vehicle; it then prevents the use of the
outer seats. (1)
t
h

e installation of a cot on this seat may
prevent the use of one or both of the other
seats in this row.
(2)

I

nstallation possible only behind the
driver's seat.
(3)

I

nstallation possible only behind the
driver's seat with individual passenger
seat.
5
Safety

192

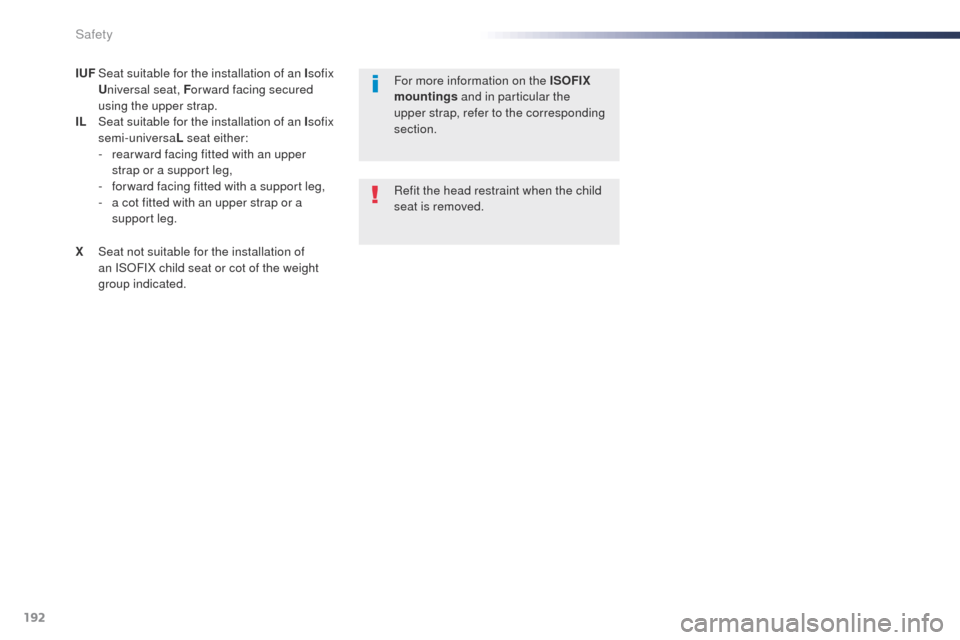

IUF Seat suitable for the installation of an Isofix
U niversal seat, F or ward facing secured
using the upper strap.
IL
S

eat suitable for the installation of an I sofix
semi-universa L seat either:
-

r
ear ward facing fitted with an upper
strap or a support leg,
-

f
or ward facing fitted with a support leg,
-

a c
ot fitted with an upper strap or a
support leg.
X

S
eat not suitable for the installation of
an IS
oF

IX child seat or cot of the weight
group indicated. Refit the head restraint when the child
seat is removed. For more information on the ISOFIX
mountings
and in particular the
upper strap, refer to the corresponding
section.
Safety

193

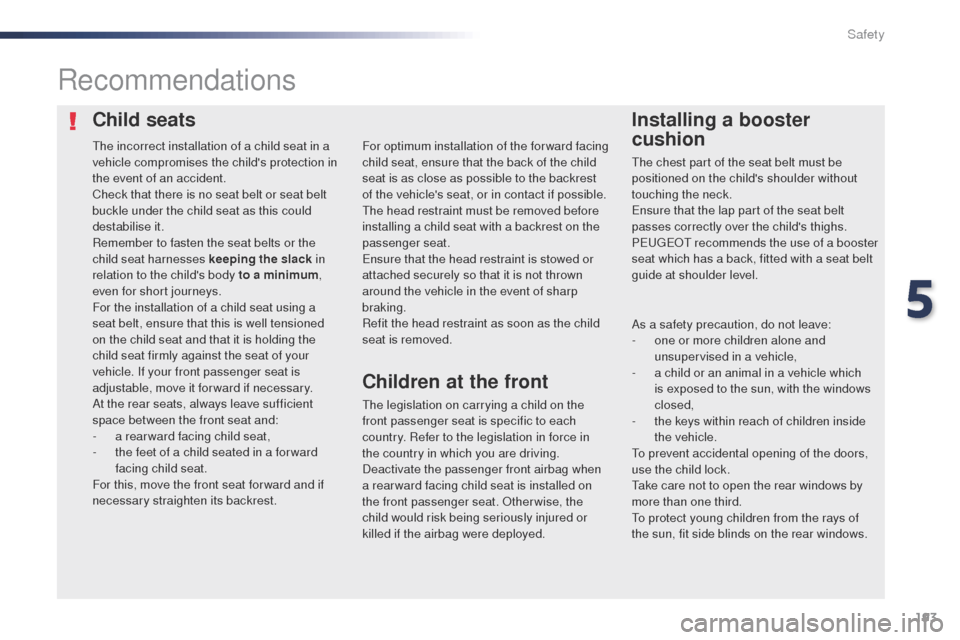

Child seatsInstalling a booster
cushion
Recommendations
the legislation on carrying a child on the
front passenger seat is specific to each
country. Refer to the legislation in force in
the country in which you are driving.
Deactivate the passenger front airbag when
a rear ward facing child seat is installed on
the front passenger seat.
o
t
herwise, the
child would risk being seriously injured or
killed if the airbag were deployed. For optimum installation of the forward facing
child seat, ensure that the back of the child
seat is as close as possible to the backrest
of the vehicle's seat, or in contact if possible.
th
e head restraint must be removed before
installing a child seat with a backrest on the
passenger seat.
en
sure that the head restraint is stowed or
attached securely so that it is not thrown
around the vehicle in the event of sharp
braking.
Refit the head restraint as soon as the child
seat is removed.
th

e incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Check that there is no seat belt or seat belt
buckle under the child seat as this could
destabilise it.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack in
relation to the child's body to a minimum ,
even for short journeys.
For the installation of a child seat using a
seat belt, ensure that this is well tensioned
on the child seat and that it is holding the
child seat firmly against the seat of your
vehicle. If your front passenger seat is
adjustable, move it forward if necessary.
At the rear seats, always leave sufficient
space between the front seat and:
-

a r

ear ward facing child seat,
-

t

he feet of a child seated in a for ward
facing child seat.
For this, move the front seat for ward and if
necessary straighten its backrest.
Children at the front
the chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
en

sure that the lap part of the seat belt
passes correctly over the child's thighs.
P
e

ugeot recommends the use of a booster
seat which has a back, fitted with a seat belt
guide at shoulder level.
As a safety precaution, do not leave:
-

o
ne or more children alone and
unsupervised in a vehicle,
-

a c
hild or an animal in a vehicle which
is exposed to the sun, with the windows
closed,
-

t
he keys within reach of children inside
the vehicle.
to p

revent accidental opening of the doors,
use the child lock.
ta

ke care not to open the rear windows by
more than one third.
to p

rotect young children from the rays of
the sun, fit side blinds on the rear windows.
5
Safety

194
Manual child
lock
Locking
Unlocking
Mechanical system to prevent opening of the
sliding side door using its interior lever.
electric child lock
Remote control system to prevent opening of the rear doors (sliding side door(s), side-
hinged rear doors or tailgate) using their interior controls.
th

e indicator lamp in the button comes on,
accompanied by a message to confirm that the
child lock is on.
th

is indicator lamp remains on until the child
lock is switched off.
It is still possible to open the doors from the
outside.
th

e indicator lamp in the button goes off,
accompanied by a message to confirm that the
child lock is off.
th

is indicator lamp remains off while the child
lock is switched off.
Switching on
F With the ignition on, press this button. F

W
ith the ignition on, press this
button again.
Switching off
F turn the control on the edge of the side door upwards.
F
t
u
rn the control on the edge of
the side door downwards. Remote control system to prevent opening of the electric sliding side door(s) by their
interior controls.
Safety

195

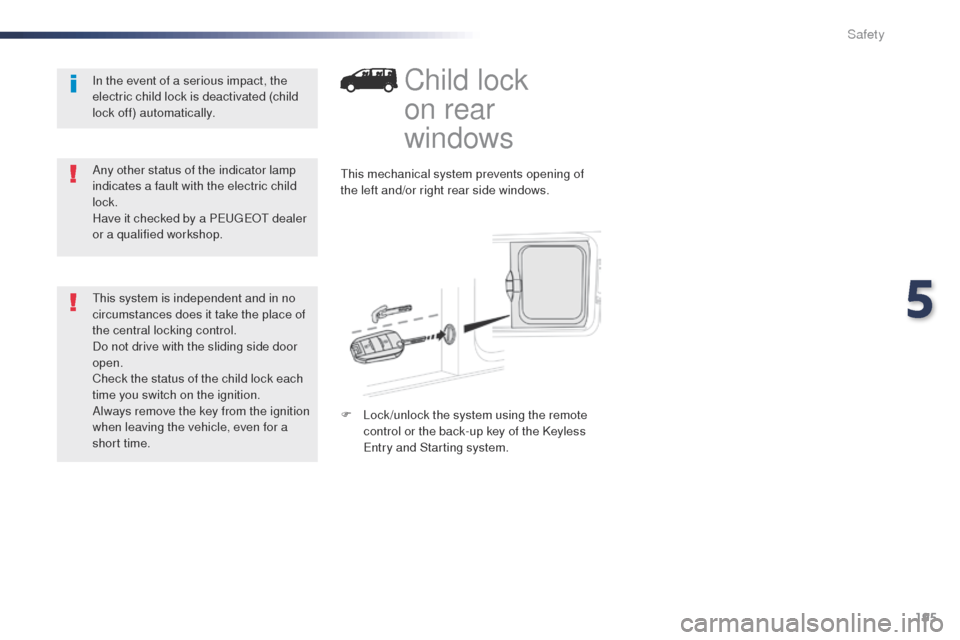

Child lock
on rear
windows
this mechanical system prevents opening of
the left and/or right rear side windows.
F
L
ock /unlock the system using the remote
control or the back-up key of the Keyless
en

try and Starting system.
Any other status of the indicator lamp
indicates a fault with the electric child
lock.
Have it checked by a P
e

ugeot
dealer
or a qualified workshop. In the event of a serious impact, the
electric child lock is deactivated (child
lock off) automatically.
th

is system is independent and in no
circumstances does it take the place of
the central locking control.
Do not drive with the sliding side door
open.
Check the status of the child lock each
time you switch on the ignition.
Always remove the key from the ignition
when leaving the vehicle, even for a
short time.
5
Safety

196

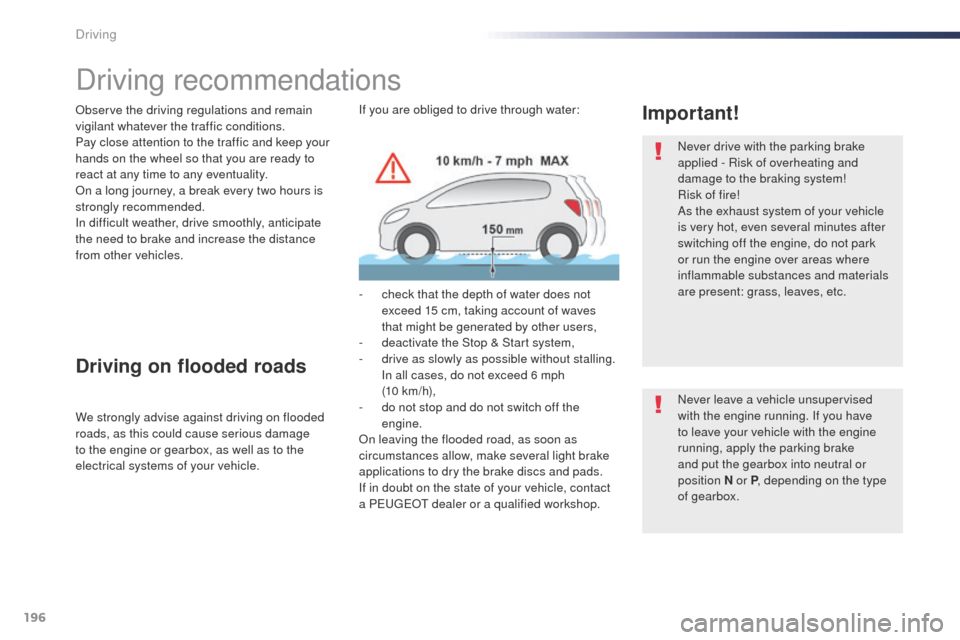

Driving recommendations
observe the driving regulations and remain
vigilant whatever the traffic conditions.
Pay close attention to the traffic and keep your
hands on the wheel so that you are ready to
react at any time to any eventuality.
on a l
ong journey, a break every two hours is
strongly recommended.
In difficult weather, drive smoothly, anticipate
the need to brake and increase the distance
from other vehicles. Never drive with the parking brake
applied - Risk of overheating and
damage to the braking system!
Risk of fire!
As the exhaust system of your vehicle
is very hot, even several minutes after
switching off the engine, do not park
or run the engine over areas where
inflammable substances and materials
are present: grass, leaves, etc.
Never leave a vehicle unsupervised
with the engine running. If you have
to leave your vehicle with the engine
running, apply the parking brake
and put the gearbox into neutral or
position


N or P, depending on the type
of gearbox.
Driving on flooded roads
We strongly advise against driving on flooded
roads, as this could cause serious damage
to the engine or gearbox, as well as to the
electrical systems of your vehicle.
Important!If you are obliged to drive through water:
-

c
heck that the depth of water does not
exceed 15 cm, taking account of waves
that might be generated by other users,
-

d
eactivate the Stop & Start system,
-

d
rive as slowly as possible without stalling.
In all cases, do not exceed 6 mph
(10 km/h),
-

d
o not stop and do not switch off the
engine.
on l

eaving the flooded road, as soon as
circumstances allow, make several light brake
applications to dry the brake discs and pads.
If in doubt on the state of your vehicle, contact
a P
e

ugeot dealer or a qualified workshop.
Driving

197

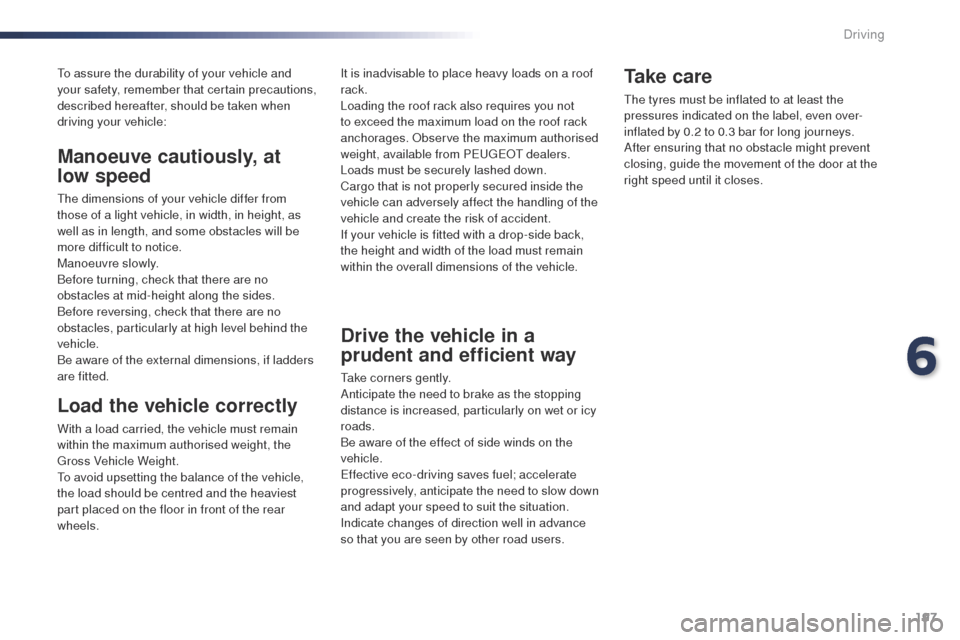

to assure the durability of your vehicle and
your safety, remember that certain precautions,
described hereafter, should be taken when
driving your vehicle:
Load the vehicle correctly
With a load carried, the vehicle must remain
within the maximum authorised weight, the
gro
ss Vehicle Weight.
to a

void upsetting the balance of the vehicle,
the load should be centred and the heaviest
part placed on the floor in front of the rear
wheels.
Manoeuve cautiously, at
low speed
the dimensions of your vehicle differ from
those of a light vehicle, in width, in height, as
well as in length, and some obstacles will be
more difficult to notice.
Manoeuvre slowly.
Before turning, check that there are no
obstacles at mid-height along the sides.
Before reversing, check that there are no
obstacles, particularly at high level behind the
vehicle.
Be aware of the external dimensions, if ladders
are fitted. It is inadvisable to place heavy loads on a roof
rack.
Loading the roof rack also requires you not
to exceed the maximum load on the roof rack
anchorages.
o
b
serve the maximum authorised
weight, available from P
e
ugeot
d
ealers.
Loads must be securely lashed down.
Cargo that is not properly secured inside the
vehicle can adversely affect the handling of the
vehicle and create the risk of accident.
If your vehicle is fitted with a drop-side back,
the height and width of the load must remain
within the overall dimensions of the vehicle.
Drive the vehicle in a
prudent and efficient way
take corners gently.
Anticipate the need to brake as the stopping
distance is increased, particularly on wet or icy
roads.
Be aware of the effect of side winds on the
vehicle.
ef

fective eco-driving saves fuel; accelerate
progressively, anticipate the need to slow down
and adapt your speed to suit the situation.
Indicate changes of direction well in advance
so that you are seen by other road users.
Take care
the tyres must be inflated to at least the
pressures indicated on the label, even over-
inflated by 0.2 to 0.3 bar for long journeys.
After ensuring that no obstacle might prevent
closing, guide the movement of the door at the
right speed until it closes.
6
Driving

198
When towing
Distribution of loads
F Distribute the load in the trailer so that the
heaviest items are as close as possible to
the axle and the nose weight approaches
the maximum permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towed load must
be reduced by 10
% for every 1 000 metres of
altitude.
Side wind
F take into account the increased sensitivity to side wind.
Cooling
towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its cooling
capacity is not dependent on the engine speed.
F
t
o l
ower the engine speed, reduce your
speed.
th

e maximum towed load on a long incline
depends on the gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.
F

I
f the warning lamp and the
STOP warning lamp come on,
stop the vehicle and switch off
the engine as soon as possible.
Braking
towing a trailer increases the braking distance.to a void overheating of the brakes, the use of
engine braking is recommended.
Ty r e s
F Check the tyre pressures of the towing vehicle and of the trailer, observing the
recommended pressures.
Lighting
F Check the electrical lighting and signalling on the trailer and the headlamp beam
height of your vehicle.
For more information on Weights
, refer
to the corresponding section.
th

e rear parking sensors will be
deactivated automatically to avoid the
audible signal if a genuine P
e

ugeot
towbar is used.
If the ambient temperature is high, it
is recommended that the engine be
allowed to idle for 1 to 2 minutes after
the vehicle comes to a stop, to facilitate
its cooling. For more information on Adjusting the
headlamp beam height
, refer to the
corresponding section.
Driving
