PEUGEOT LANDTREK 2023 Owner's Guide

29
Access
2window must be reversed. To do this, press
the relevant control.
When the driver operates the passengers’
electric window controls, it is important to
ensure that nothing can prevent the window
from closing properly.
It is important to ensure that passengers use
the electric windows correctly.
Pay particular attention to children when
operating the windows.
Be aware of passengers and/or other persons
present when closing windows remotely using
the electronic key.
Do not put your head or arms through the
open windows when the vehicle is moving -
risk of serious injury! CarM an uals 2 .c o m

30
Ease of use and comfort
Correct driving position
For safety reasons, adjustments must
only be made when the vehicle is
stationary.
Before taking to the road and to make the most
of the ergonomic layout of the instruments and
controls, carry out these adjustments in the
following order:
–

head restraint height.
–


seat backrest angle.
–


seat cushion height.
–


longitudinal seat position.
–


steering wheel height and reach.
–


rear view mirror and door mirrors.

Once these adjustments have been
made, check that the instrument panel
can be viewed correctly from your driving
position.
Front seats
Front head restraints
Adjusting the height

Upwards:
â–º Pull the head restraint up to the desired
position; you can feel the head restraint clicking
into position.
Downwards:
â–º

Press lug
A to lower the head restraint.
The head restraint is correctly adjusted when its upper edge is level with the top
of the occupant's head.
Adjusting the angle
(Depending on equipment)
â–º Move the upper part of the head restraint
forwards or backwards to adjust the angle.
Removing a head restraint
â–º Pull the head restraint fully up.
â–º Press lug A to release the head restraint and
raise it fully.
â–º

Stow the head restraint securely
.
Refitting a head restraint
â–º Insert the head restraint rods into the guides
in the corresponding seat backrest.
â–º

Push the head restraint fully down.
â–º


Press the lug
A to release the head restraint
and push it down.
â–º

Adjust the height of the head restraint.
Never drive with the head restraints
removed; they should be in place and
adjusted for the occupant of the seat.
Manually-adjustable seats
Longitudinal
CarM an uals 2 .c o m

31
Ease of use and comfort
3â–º Raise the control bar and slide the seat
forwards or backwards.
â–º

Release the control bar to lock the seat in
position on one of the notches.
Backrest angle

â–º Pull the control all the way up and tilt the
backrest forwards or backwards to adjust it.
Height
(driver only)

â–º Pull the control upwards to raise or push it
downwards to lower , until you obtain the position
required.
Electrically-adjustable seats
Longitudinal

â–º Push the control forwards or backwards to
slide the seat.
Backrest angle

â–º Tilt the control forwards or rearwards.
Cushion height and angle
(driver only)

â–º Tilt the rear of the control upwards or
downwards to obtain the required height and
angle.
Electric lumbar adjustment
(driver only)

â–º Press and hold the front or rear of the
control to increase or reduce the lumbar
support.
2-seat front bench seat
It includes 2 fixed cushions with 2 independent
backrests (adjustable and foldable in the table
position).
The backrest of the seat located next to the
driver, once in the table position, can also be
used as an armrest and has 2 cup/can holders
and a support strap.
For more information on the Seat belts,
refer to the corresponding section. CarM an uals 2 .c o m

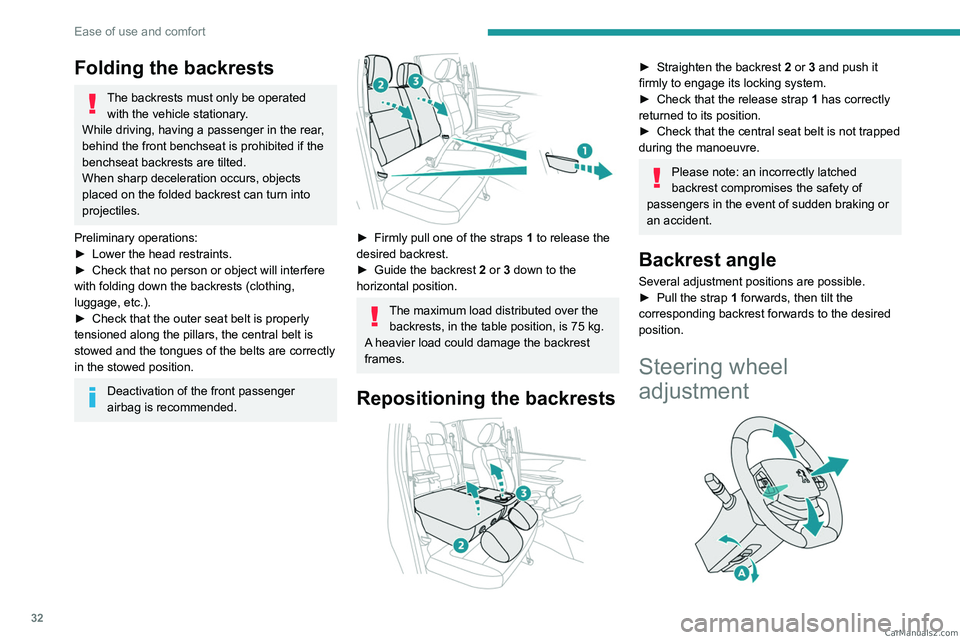

32
Ease of use and comfort
Folding the backrests
The backrests must only be operated with the vehicle stationary.
While driving, having a passenger in the rear,
behind the front benchseat is prohibited if the
benchseat backrests are tilted.
When sharp deceleration occurs, objects
placed on the folded backrest can turn into
projectiles.
Preliminary operations:
â–º

Lower the head restraints.
â–º


Check that no person or object will interfere
with folding down the backrests (clothing,
luggage, etc.).
â–º


Check that the outer seat belt is properly
tensioned along the pillars, the central belt is
stowed and the tongues of the belts are correctly
in the stowed position.
Deactivation of the front passenger
airbag is recommended.


â–º Firmly pull one of the straps 1 to release the
desired backrest.
â–º

Guide the backrest
2 or 3 down to the
horizontal position.
The maximum load distributed over the backrests, in the table position, is 75 kg.
A heavier load could damage the backrest
frames.
Repositioning the backrests

â–º Straighten the backrest 2 or 3 and push it
firmly to engage its locking system.
â–º

Check that the release strap 1

has correctly
returned to its position.
â–º

Check that the central seat belt is not trapped
during the manoeuvre.
Please note: an incorrectly latched
backrest compromises the safety of
passengers in the event of sudden braking or
an accident.
Backrest angle
Several adjustment positions are possible.
â–º Pull the strap 1 forwards, then tilt the
corresponding backrest forwards to the desired
position.
Steering wheel
adjustment

CarM an uals 2 .c o m

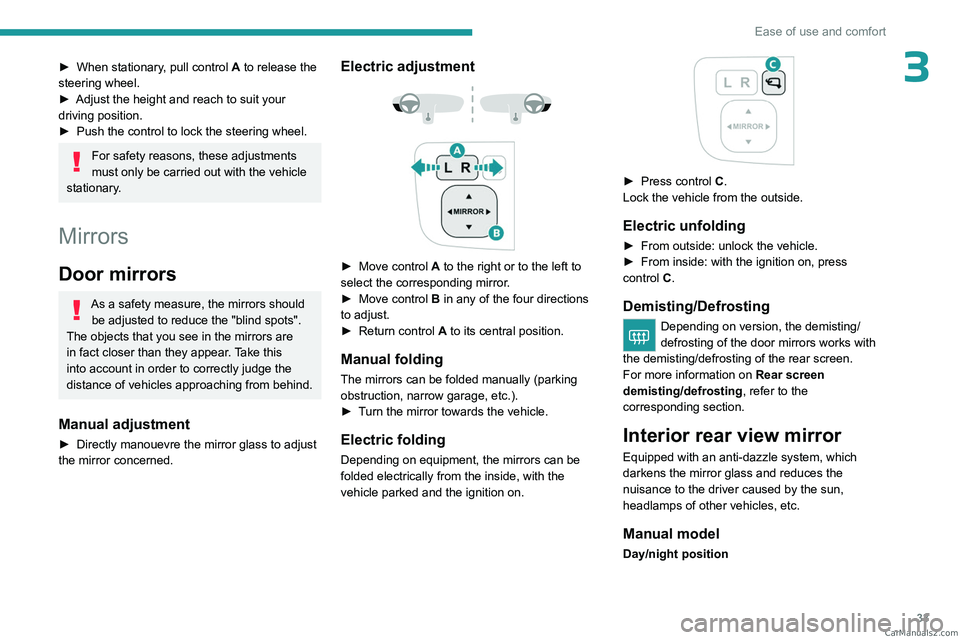

33
Ease of use and comfort
3â–º When stationary, pull control A to release the
steering wheel.
â–º

Adjust the height and reach to suit your
driving position.
â–º


Push the control to lock the steering wheel.
For safety reasons, these adjustments
must only be carried out with the vehicle
stationary.
Mirrors
Door mirrors
As a safety measure, the mirrors should be adjusted to reduce the "blind spots".
The objects that you see in the mirrors are
in fact closer than they appear. Take this
into account in order to correctly judge the
distance of vehicles approaching from behind.
Manual adjustment
â–º Directly manouevre the mirror glass to adjust
the mirror concerned.
Electric adjustment



â–º Move control A to the right or to the left to
select the corresponding mirror.
â–º

Move control
B in any of the four directions
to adjust.
â–º

Return control A

to its central position.
Manual folding
The mirrors can be folded manually (parking
obstruction, narrow garage, etc.).
â–º
T
urn the mirror towards the vehicle.
Electric folding
Depending on equipment, the mirrors can be
folded electrically from the inside, with the
vehicle parked and the ignition on.


â–º Press control C.
Lock the vehicle from the outside.
Electric unfolding
â–º From outside: unlock the vehicle.
â–º From inside: with the ignition on, press
control
C.
Demisting/Defrosting
Depending on version, the demisting/
defrosting of the door mirrors works with
the demisting/defrosting of the rear screen.
For more information on Rear screen
demisting/defrosting , refer to the
corresponding section.
Interior rear view mirror
Equipped with an anti-dazzle system, which
darkens the mirror glass and reduces the
nuisance to the driver caused by the sun,
headlamps of other vehicles, etc.
Manual model
Day/night position CarM an uals 2 .c o m

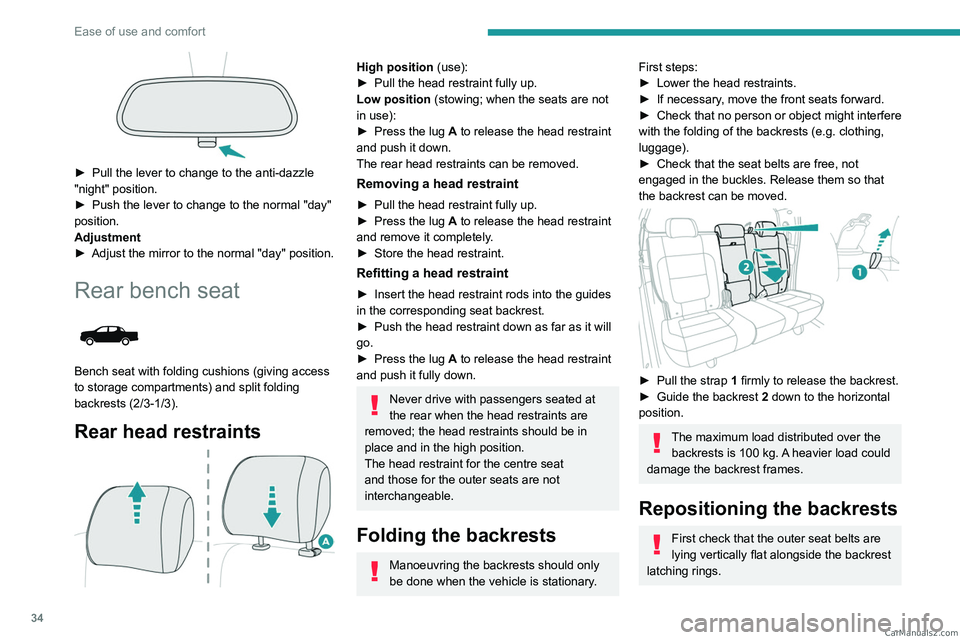

34
Ease of use and comfort

â–º Pull the lever to change to the anti-dazzle
"night" position.
â–º

Push the lever to change to the normal "day"
position.
Adjustment
â–º


Adjust the mirror to the normal "day" position.
Rear bench seat

Bench seat with folding cushions (giving access
to storage compartments) and split folding
backrests (2/3-1/3).
Rear head restraints

High position (use):
â–º Pull the head restraint fully up.
Low position (stowing; when the seats are not
in use):
â–º

Press the lug
A to release the head restraint
and push it down.
The rear head restraints can be removed.
Removing a head restraint
â–º Pull the head restraint fully up.
â–º Press the lug A to release the head restraint
and remove it completely.
â–º

Store the head restraint.
Refitting a head restraint
â–º Insert the head restraint rods into the guides
in the corresponding seat backrest.
â–º

Push the head restraint down as far as it will
go.
â–º


Press the lug
A to release the head restraint
and push it fully down.
Never drive with passengers seated at
the rear when the head restraints are
removed; the head restraints should be in
place and in the high position.
The head restraint for the centre seat
and those for the outer seats are not
interchangeable.
Folding the backrests
Manoeuvring the backrests should only
be done when the vehicle is stationary.
First steps:
â–º Lower the head restraints.
â–º

If necessary
, move the front seats forward.
â–º

Check
that no person or object might interfere
with the folding of the backrests (e.g.
clothing,
luggage).
â–º

Check that the seat belts are free, not
engaged in the buckles. Release them so that
the backrest can be moved.


â–º Pull the strap 1 firmly to release the backrest.
â–º Guide the backrest 2 down to the horizontal
position.
The maximum load distributed over the backrests is 100 kg. A heavier load could
damage the backrest frames.
Repositioning the backrests
First check that the outer seat belts are
lying vertically flat alongside the backrest
latching rings. CarM an uals 2 .c o m

35
Ease of use and comfort
3

â–º Put the backrest 2 in the upright position and
push it firmly to latch it home.
â–º

Check that the release strap 1

has correctly
returned to its position.
â–º

Ensure that the outer seat belts were not
trapped during the operation.
Please note: an incorrectly latched
backrest compromises the safety of
passengers in the event of sudden braking or
an accident.
Tilting the seat cushions
Manoeuvring the seat cushions must
only be done with the vehicle stationary.
First steps:
â–º

If necessary
, move the front seats forward. â–º

Check that no person or object could interfere
with the tilting of the seat cushions (clothing,
luggage, etc.).
â–º

Check that the seat belts are free, not
engaged in the buckles.


â–º Take strap 1 out of the case (located under
the seat cushion) and pull it firmly to release the
seat cushion.
â–º

T
ilt the seat cushion 2 to the vertical position
(against the backrest).


â–º Attach hook 3 of strap 1 onto the head
restraint rod.
Under-seat storage boxes
Storage boxes are accessible under the
cushions of the rear bench seat.


â–º With the cushion raised, lift the carpet to
access the storage compartments and the tool
kit (depending on version). CarM an uals 2 .c o m

36
Ease of use and comfort
For more information on the Tool kit,
refer to the corresponding section.
Repositioning the seat
cushions
Before lowering the seat cushion to the
normal position, make sure that you take
the seat belt buckle and hold it during the
operation.


â–º Remove hook 3 from the head restraint rod.
â–º Guide seat cushion 2
to the horizontal
position and push it firmly to lock it.
â–º

Check that the release strap 1

has correctly
returned to its position, then store it in its case.
â–º

Check that the seat belt buckles did not slip
under the seat cushions during the manoeuvre.
Heating and Ventilation
Air intake
The air circulating in the passenger compartment
is filtered and originates either from the
exterior, via the grille located at the base of the
windscreen, or from the inside in air recirculation
mode.
Controls
The controls are grouped together on the centre
console panel.
Air distribution

1. Windscreen demisting/de-icing vents
2. Front side window demisting/de-icing vents
3. Adjustable and closable side air vents
4. Adjustable and closable central air vents
5. Air outlets to the front footwells
6.Air outlets to the rear footwells (depending on
version)
7. Adjustable and closable air vents, with blower
(depending on version)
Advice
Using the ventilation and air
conditioning system
â–º

T

o ensure that air is distributed evenly,
keep the external air intake grilles at the base
of the windscreen, the nozzles, the vents, the
air outlets and the air extractor in the boot
free from obstructions.
â–º

Do not cover the sunshine sensor located
on the dashboard; this sensor is used to
regulate the automatic air conditioning
system.
â–º


Operate the air conditioning system for at
least 5 to 10 minutes once or twice a month to
keep it in good working order

.
â–º

If the system does not produce cold air
,
switch it off and contact a PEUGEOT dealer
or a qualified workshop.
When towing a large load on a steep gradient
in high temperatures, switching off the air
conditioning increases the available engine
power, enhancing the towing capacity.
Avoid driving for too long with the ventilation off or with prolonged operation CarM an uals 2 .c o m

37
Ease of use and comfort
3of interior air recirculation. Risk of misting and
deterioration of the air quality!
If the interior temperature is very high
after the vehicle has stood for a long
time in the sunshine, air the passenger
compartment for a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.
Condensation created by the air
conditioning results in a discharge of
water underneath the vehicle. This is perfectly
normal.
Servicing the ventilation and air
conditioning system
â–º

Ensure that the passenger compartment
filter is in good condition and have the filter
elements replaced regularly

.
We recommend using a composite passenger
compartment filter. Its specific active additive
helps protect against polluting gases and bad
smells.
â–º

T

o ensure correct operation of the
air conditioning system, have it checked
according to the recommendations in the
Manufacturer’s service schedule.
Heating

Manual air conditioning
1. Temperature.
2. Air flow/System switch-off.
3. Air distribution.
4. Interior air recirculation.
5. Front demisting/de-icing on/off.
6. Demisting/de-icing of rear screen and door
mirrors on/off (depending on version).
7. Air conditioning on/off.
8. Maximum air conditioning.
The air conditioning system only operates with
the engine running.
Temperature
â–º Turn the thumbwheel 1 from "Blue" (cold)
to "Red" (hot) to adjust the temperature to your
requirements.
Air flow
â–º Turn the thumbwheel 2 to obtain a sufficient
air flow to ensure your comfort.
If the air flow control is in
the minimum position (system
deactivated), the temperature in the vehicle
will no longer be controlled. A slight flow of air
can still be felt, due to the forward movement
of the vehicle.
Air distribution
â–º Press one of the buttons 3 to direct the air
flow in turn towards:
–

windscreen, side windows and footwells,
–


central and side vents,
–

footwells,
–

central vents, side vents and footwells.
The air distribution can be adapted by combining
the corresponding buttons.
Air conditioning on/off
The air conditioning system is designed to
operate effectively in all seasons, with the
windows closed:
–

It lowers the temperature in summer
.
–

It increases the effectiveness of the demisting,
in winter

, above 3°C.
â–º

Press button
7 to activate/deactivate the air
conditioning system. CarM an uals 2 .c o m

38
Ease of use and comfort
Air conditioning does not operate when the air flow is deactivated.
To obtain cool air more quickly, enable interior
air recirculation for a brief period. Then return
to the intake of exterior air.
Switching off the air conditioning may result in
some discomfort (humidity or misting).
Maximum air conditioning
The system automatically adjusts the
temperature setting to the lowest possible, the
air distribution towards the central and side air
vents, the air flow to maximum and activates
recirculation of interior air.
â–º

Press button
8 to activate/deactivate the
function (confirmed by the indicator lamp coming
on/going off).
Once the function is deactivated, the system
returns to the previous settings.
Dual-zone automatic air
conditioning
1. Temperature.
2. Air flow.
3. Air distribution.
4. Interior air recirculation.
5.Visibility programme.
6. Demisting/de-icing of rear screen and door
mirrors on/off (depending on version).
7. Air conditioning on/off.
8. Maximum air conditioning.
9. System switch-off.
10. Automatic comfort mode.
11 . "Dual" function.
The selected settings and the
temperature values are displayed in the
upper banner of the touch screen.
Temperature
The driver and front passenger can each set the
temperature to suit their preferences.
The value shown on the touch screen is a level
of comfort, not a temperature in Celsius or
Fahrenheit.
â–º

T
urn the thumbwheel 1 from "Blue" (cold)
to "Red" (hot) to adjust the temperature to your
requirements.
Air flow
â–º Press the buttons 2 to increase/decrease the
air flow.
The air flow symbol (a fan) appears. It is filled in
or emptied gradually, according to the value set.
Air distribution
â–º Press button 3 to direct the air flow in turn
towards:
– windscreen, side windows and footwells,
– footwells,
–

central vents, side vents and footwells,
–


windscreen, side windows, central vents, side
vents and footwells,
–


central and side vents,
–


windscreen and side windows (demisting or
defrosting).
Air conditioning on/ off
The air conditioning system is designed to
operate effectively in all seasons, with the
windows closed:
–

It lowers the temperature in summer
.
–

It increases the effectiveness of the demisting,
in winter

, above 3°C.
â–º

Press button
7 to activate/deactivate the air
conditioning system.
Air conditioning does not operate when the air flow is deactivated.
To obtain cool air more quickly, enable interior
air recirculation for a brief period. Then return
to the intake of exterior air.
Switching off the air conditioning may result in
some discomfort (humidity or misting).
Automatic Comfort programme
â–º Press button 10 to activate or deactivate the
air conditioning system’s automatic mode. CarM an uals 2 .c o m
