Levels
116
Oil change
It is imperative that this is carried
o u t a t t h e i n t e r v a l s s p e c i fi e d a n d t h e
viscosity grade of the oil selected must
f u l fi l t h e r e q u i r e m e n t s i n a c c o r d a n c e
with the manufacturer’s servicing
schedule. Consult the instructions at a
PEUGEOT dealer .
R e m o v e t h e d i p s t i c k b e f o r e fi l l i n g .
C h e c k t h e l e v e l a f t e r fi l l i n g ( n e v e r
exceed the max mark).
Screw the cap back onto the sump
before closing the bonnet. Changing the brake fluid
T h e b r a k e fl u i d m u s t b e c h a n g e d a t
the intervals stated, according to the
manufacturer’s servicing schedule.
U s e fl u i d s r e c o m m e n d e d b y t h e
m a n u f a c t u r e r , w h i c h f u l fi l D O T 4
standards.
The level must be between the MIN
and MAX marks on the reservoir.
I f fl u i d h a s t o b e a d d e d f r e q u e n t l y ,
this indicates a failure which must be
checked by a PEUGEOT dealer as
soon as possible.
Warning lights
I f y o u h a v e t o r e m o v e / r e fi t t h e
engine style cover, handle it with
c a r e t o a v o i d d a m a g i n g t h e fi x i n g
clips.
Oil level
Check the level regularly and top up
between changes. The maximum
consumption is 0.5 litre per 600 miles
(1 000 km).
Check the level with the vehicle level,
engine cold, using the dipstick.
Dipstick
There are two marks on
the dipstick:
A = maximum
I f y o u fi l l p a s t t h i s m a r k ,
consult a PEUGEOT
dealer .
B = minimum
Never allow the level to
fall below this mark.
To maintain the reliability
of engines and emission
control systems, the use
of additives in engine oil
is prohibited. Viscosity selection
In all cases, the oil selected must meet
the manufacturer’s requirements.
These regular maintenance
operations will keep your vehicle
in good running order. Consult the
instructions at a PEUGEOT dealer or
in the servicing booklet enclosed in the
handbook pack.
Checking by means of the warning
lights on the instrument panel is
described in chapter 2, refer to the
"Instruments and controls" section.
Page 122 of 153
CHECKS
Levels
117
77
Cooling system
O n l y u s e t h e fl u i d r e c o m m e n d e d b y t h e
manufacturer.
Otherwise, you risk seriously damaging
your engine.
When the engine is warm, the
temperature of the coolant is controlled
by the engine fan. As this fan can
operate with the ignition key removed
and because the cooling system is
pressurised, wait for at least one hour
after the engine has stopped before
carrying out any work.
Slacken the cap by 1/4 of a turn to
release the pressure to prevent any
risk of scalding. When the pressure
has dropped, remove the cap and top
up the level with coolant.
I f fl u i d h a s t o b e a d d e d f r e q u e n t l y ,
this indicates a failure which must be
checked by a PEUGEOT dealer as
soon as possible. Power steering fluid level
The vehicle must be parked on level
ground with the engine cold. Unscrew
the cap integrated with the gauge and
check the level which must be between
the MIN and MAX marks.
I n o r d e r t o r e g e n e r a t e t h e fi l t e r , y o u
are advised to drive at a speed higher
t h a n 4 0 m p h ( 6 0 k m / h ) f o r a t l e a s t fi v e
minutes as soon as possible, when
t r a f fi c c o n d i t i o n s p e r m i t ( u n t i l t h e
message disappears and the service
warning light is switched off).
During regeneration of the particle
e m i s s i o n fi l t e r , r e l a y n o i s e m a y b e
heard under the fascia.
If the message is still displayed and if
the service warning light remains on,
consult a PEUGEOT dealer .
Topping up
The level must be between the MIN
and MAX marks on the expansion
b o t t l e . I f m o r e t h a n 1 l i t r e o f fl u i d i s
required to top up the level, have
the system checked by a PEUGEOT
dealer . Windscreen wash and headlamp
wash level
For best quality cleaning and for your
safety, we would advise that you use
products of the PEUGEOT range.
For optimum cleaning and to avoid
f r e e z i n g , t h i s fl u i d m u s t n o t b e t o p p e d
up or replaced with water.
Capacity of the screenwash reservoir:
approximately 4.5 litres.
I f y o u r v e h i c l e i s fi t t e d w i t h h e a d l a m p
washers, the capacity of the reservoir
is 7.5 litres.
Diesel additive level
(Diesel with particle
emission filter)
The minimum level of this
additive is indicated by lighting of the
service warning light, accompanied by
an audible signal and a message on
the display.
When this occurs with the engine
running it is due to the start of
s a t u r a t i o n o f t h e p a r t i c l e e m i s s i o n fi l t e r
(exceptionally prolonged urban type
driving conditions: low speed, long
t r a f fi c j a m s , . . . ) . Topping up
It is imperative that this additive is
topped up by a PEUGEOT dealer
without delay.
Used oil
Avoid prolonged contact of used oil
with the skin.
B r a k e fl u i d i s h a r m f u l t o h e a l t h a n d
very corrosive.
D o n o t d i s p o s e o f u s e d o i l , b r a k e fl u i d
or coolant into drains or into the ground
but into the containers dedicated to this
use at PEUGEOT dealer .
Page 123 of 153
Checks
118
CHECKS
Carbon filter and passenger
compartment filter
A n a c c e s s fl a p b e l o w t h e g l o v e b o x
p e r m i t s r e p l a c e m e n t o f t h e fi l t e r s .
T h e c a r b o n fi l t e r p e r m i t s c o n t i n u o u s
a n d e f f e c t i v e fi l t e r i n g o f d u s t .
I f t h e p a s s e n g e r c o m p a r t m e n t fi l t e r
becomes clogged, this may reduce
the performance of the air conditioning
system and generate unpleasant
odours.
We recommend the use of a combined
p a s s e n g e r c o m p a r t m e n t fi l t e r . B y
means of its second special active
fi l t e r , i t c o n t r i b u t e s t o t h e p u r i fi c a t i o n
of the air breathed by the occupants
and the cleanness of the passenger
compartment (reduction of allergic
symptoms, unpleasant odours and
greasy deposits). Particle emission filter (Diesel)
It is imperative that particle emission
fi l t e r m a i n t e n a n c e i s c a r r i e d o u t b y a
PEUGEOT dealer .
On acceleration after the vehicle has
been running for a prolonged period
at very low speed or at idle, you may,
in exceptional circumstances, notice
the emission of water vapour at the
exhaust. This water vapour does not
have any adverse effect on vehicle
handling or the environment.
Battery
At the start of winter, have your battery
checked by a PEUGEOT dealer .
Brake pads
Brake pad wear depends on the style
of driving, in particular for vehicles
which are used in town, over short
distances. It may be necessary to
check the thickness of the pads, even
between services.
Unless there is a leak on the circuit, a
d r o p i n t h e b r a k e fl u i d l e v e l i n d i c a t e s
that the brake pads are worn.
Brake disc/drum wear status
For any information relating to
checking the brake disc/drum wear
status, consult a PEUGEOT dealer .
Handbrake
Where the handbrake travel is too
great or there is a reduction in the
performance of the system, the
handbrake should be adjusted, even
between services.
Have the system checked by a
PEUGEOT dealer .
Oil filter
C h a n g e t h e fi l t e r r e g u l a r l y i n
accordance with the servicing
schedule.
R e f e r t o t h e s e r v i c i n g b o o k l e t t o fi n d
out the replacement interval for these
components.
Depending on the environment (dusty
atmosphere...) and the use of the
vehicle (urban driving...), change them
twice as often if necessary.
Page 124 of 153
CHECKS
Checks
119
77
To check the main levels
and certain components,
in accordance with the
manufacturer’s servicing schedule,
refer to the pages of the servicing
booklet which correspond to your
vehicle’s engine.
Bleeding the water contained in
the diesel filter
Manual gearbox
Have the level checked in accordance
with the manufacturer’s servicing
schedule.
Only use products recommended
by PEUGEOT or products
of equivalent quality and
characteristics.
In order to optimise the operation
of units as important as the braking
circuit, PEUGEOT selects and offers
s p e c i fi c p r o d u c t s .
In order to avoid damaging the
electrical units, high pressure washing
to clean the engine compartment is
strictly prohibited.
If this warning light comes
o n , b l e e d t h e fi l t e r . O t h e r w i s e
bleed regularly each time the
engine is drained.
To evacuate the water,
unscrew the bleed screw located on
t h e fi l t e r .
Operate until all of the water in the
transparent pipe has been drained out
then tighten the bleed screw.
HDi engines use advanced technology.
A l l w o r k r e q u i r e s a s p e c i a l q u a l i fi c a t i o n
which is guaranteed by a PEUGEOT
dealer .
According to country.
Page 125 of 153
Fuel
120
FILLING WITH FUEL
Low fuel level T h e f u e l t a n k m u s t b e fi l l e d
with the
engine off .
- O p e n t h e f u e l fi l l e r fl a p .
- Insert the key, then turn it a quarter turn.
- Remove the cap and hook it onto the clip located on the inside of the
fl a p .
A l a b e l a f fi x e d t o t h e i n s i d e o f t h e fl a p
reminds you of the type of fuel to be
used.
W h e n fi l l i n g t h e f u e l t a n k , d o n o t
continue after the 3 rd cut-off of the
nozzle. This could cause malfunctions.
The capacity of the fuel tank is
approximately 60 litres.
- A f t e r fi l l i n g t h e f u e l t a n k , l o c k t h e c a p a n d c l o s e t h e fl a p .
FUEL CIRCUIT DISARMED
In a serious collision, a mechanism
automatically prevents fuel from
reaching the engine.
T h e fl a s h i n g o f t h i s w a r n i n g
light is accompanied by a
message on the display.
Check that there is no odour or
leakage of fuel outside the vehicle and
re-establish the fuel supply:
-
switch off the ignition (STOP position).
- remove the key.
- put the key back in the ignition.
- switch on the ignition and start.
DIESEL REPRIMING PUMP
If you should run out of fuel, it is
necessary to re-prime the circuit:
- fi l l t h e f u e l t a n k w i t h a t l e a s t fi v e litres of diesel,
- squeeze and release the manual re-priming pump, under the bonnet
under the protective cover,
- operate the starter until the engine starts.
Refer to the "Under the bonnet"
section of chapter 7.
W h e n fi l l i n g w i t h f u e l , w i t h t h e f u e l
fi l l e r fl a p o p e n , e n s u r e t h a t n o o n e
attempts to open the sliding side
door.
When the minimum fuel tank
level is reached, this warning
light comes on.
You then have
approximately 8 litres of
fuel remaining. Fill up without delay to
avoid running out of fuel.
Page 126 of 153
121
Battery
TROUBLESHOOTING
8
BATTERY
Before disconnecting the battery, you
must wait for 2 minutes after switching
off the ignition.
Never disconnect a terminal when the
engine is running.
N e v e r c h a r g e a b a t t e r y w i t h o u t fi r s t
disconnecting the terminals.
After every reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to allow the electronic
systems to be initialised. If slight
d i f fi c u l t i e s a r e e x p e r i e n c e d a f t e r t h i s ,
please contact a PEUGEOT dealer.
After changing bulbs, wait
approximately 3 minutes before
reconnecting the battery. I
t is advisable to disconnect the
battery if the vehicle is not to be used
for a period of more than one month.
ECONOMY MODE
To charge the battery using a
battery charger
- Disconnect the battery,
- Follow the instructions for use given by the battery charger
manufacturer,
- Reconnect starting with the negative (-) terminal,
- Check that the terminals and connectors are clean. If they are
covered with sulphate (white or
greenish deposit), disconnect them
and clean them.
To start the vehicle from
another battery
- Connect the red cable to the positive (+) terminals of the two
batteries,
- Connect one end of the green or black cable to the negative (-)
terminal of the slave battery,
- Connect the other end of the green or black cable to an earth point on
the broken down vehicle as far as
possible from the battery,
- Operate the starter, let the engine run,
- Wait for the engine to return to idle, then disconnect the cables. After the engine has stopped, with
the key in the ignition position, certain
functions (windscreen wiper, electric
windows, courtesy lights, audio
equipment, etc.) can only be used for a
cumulative duration of thirty minutes, to
prevent discharging of the battery.
Once the thirty minutes are over, the
active functions are put on standby
a n d t h e b a t t e r y w a r n i n g l i g h t fl a s h e s
accompanied by a message on the
display.
To resume the use of these functions
immediately, start the engine and let it
run for a few minutes.
The time available will then be double
the time for which the engine was left
running. However, this time will always
b e b e t w e e n fi v e a n d t h i r t y m i n u t e s .
A fl a t b a t t e r y w i l l p r e v e n t t h e e n g i n e
from starting.
Page 127 of 153
122
Changing a wheel

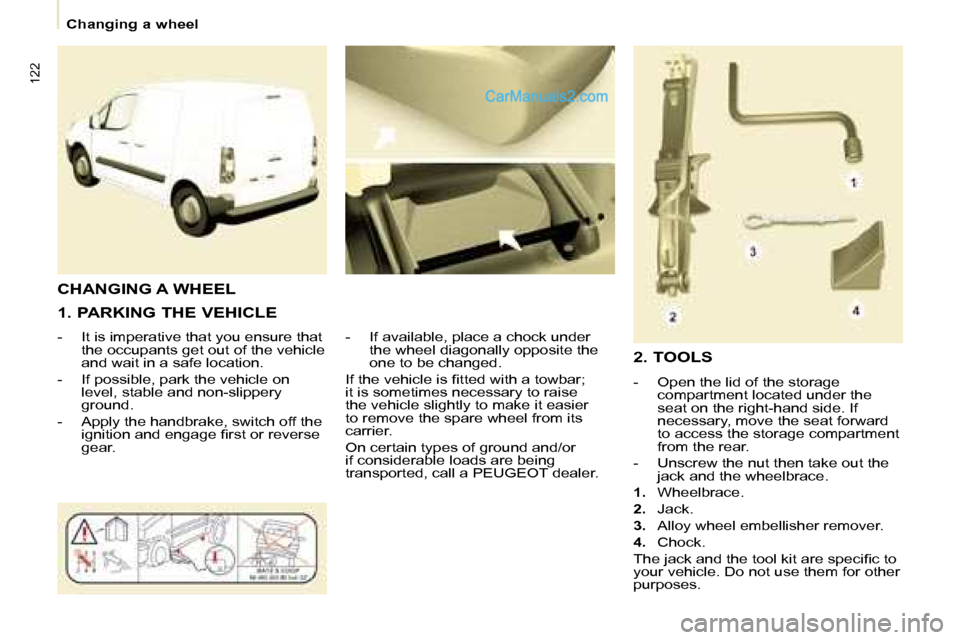

1. PARKING THE VEHICLE
- It is imperative that you ensure that the occupants get out of the vehicle
and wait in a safe location.
- If possible, park the vehicle on level, stable and non-slippery
ground.
- Apply the handbrake, switch off the i g n i t i o n a n d e n g a g e fi r s t o r r e v e r s e
gear. - If available, place a chock under
the wheel diagonally opposite the
one to be changed.
I f t h e v e h i c l e i s fi t t e d w i t h a t o w b a r ;
it is sometimes necessary to raise
the vehicle slightly to make it easier
to remove the spare wheel from its
carrier.
On certain types of ground and/or
if considerable loads are being
transported, call a PEUGEOT dealer.
CHANGING A WHEEL
2. TOOLS
- Open the lid of the storage compartment located under the
seat on the right-hand side. If
necessary, move the seat forward
to access the storage compartment
from the rear.
- Unscrew the nut then take out the jack and the wheelbrace.
1. Wheelbrace.
2. Jack.
3. Alloy wheel embellisher remover.
4. Chock.
T h e j a c k a n d t h e t o o l k i t a r e s p e c i fi c t o
your vehicle. Do not use them for other
purposes.
Page 128 of 153
123
TROUBLESHOOTING
8
Changing a wheel

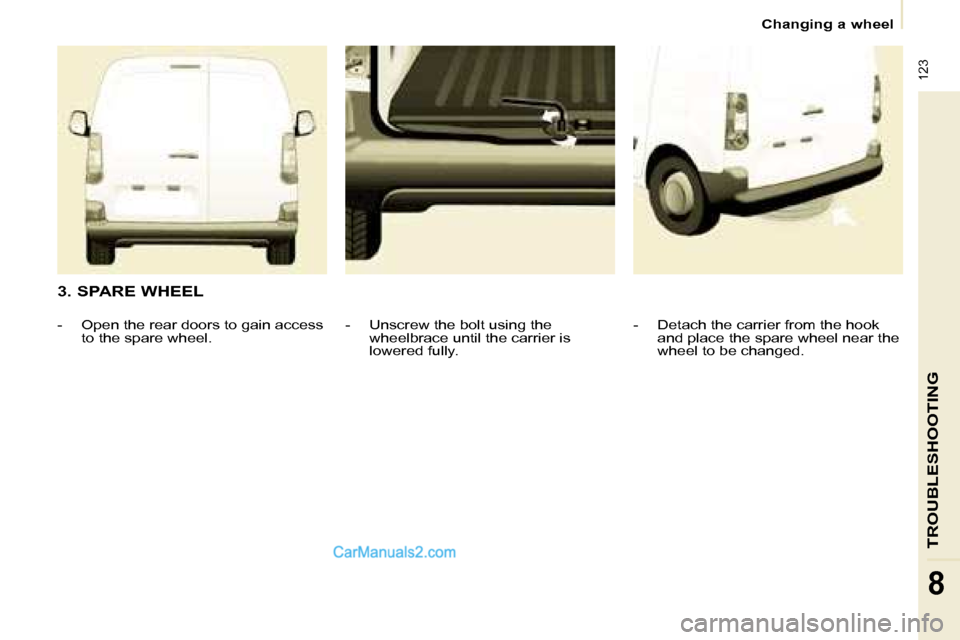

3. SPARE WHEEL - Detach the carrier from the hook and place the spare wheel near the
wheel to be changed.
- Unscrew the bolt using the
wheelbrace until the carrier is
lowered fully.
- Open the rear doors to gain access
to the spare wheel.
Page 129 of 153
124
Changing a wheel

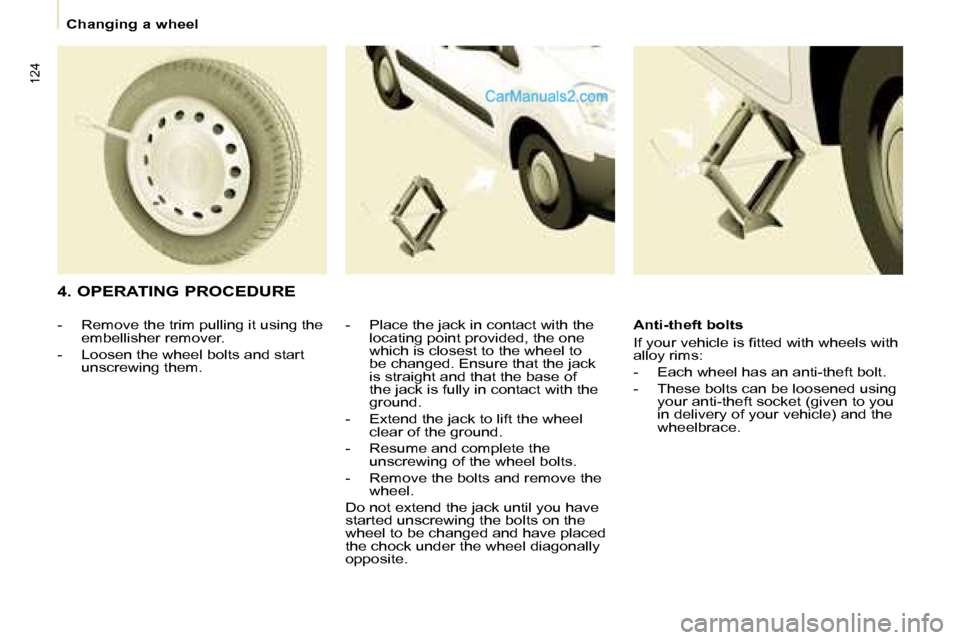

4. OPERATING PROCEDURE - Place the jack in contact with the locating point provided, the one
which is closest to the wheel to
be changed. Ensure that the jack
is straight and that the base of
the jack is fully in contact with the
ground.
- Extend the jack to lift the wheel clear of the ground.
- Resume and complete the unscrewing of the wheel bolts.
- Remove the bolts and remove the wheel.
Do not extend the jack until you have
started unscrewing the bolts on the
wheel to be changed and have placed
the chock under the wheel diagonally
opposite.
- Remove the trim pulling it using the
embellisher remover.
- Loosen the wheel bolts and start unscrewing them. Anti-theft bolts
I f y o u r v e h i c l e i s fi t t e d w i t h w h e e l s w i t h
alloy rims:
- Each wheel has an anti-theft bolt.
- These bolts can be loosened using
your anti-theft socket (given to you
in delivery of your vehicle) and the
wheelbrace.
Page 130 of 153
125
TROUBLESHOOTING
8
Changing a wheel
- Lower the vehicle completely by folding the jack, then remove the
jack.
- Tighten the bolts again using the wheelbrace, tighten them fully
without forcing them.
- Place the wheel to be repaired in the carrier. - Secure the carrier on the hook then
raise the carrier using the bolt and
the wheelbrace.
Never go underneath a vehicle
that is supported only by a
jack (use a ramp). Never use
a screwdriver in place of the
wheelbrace

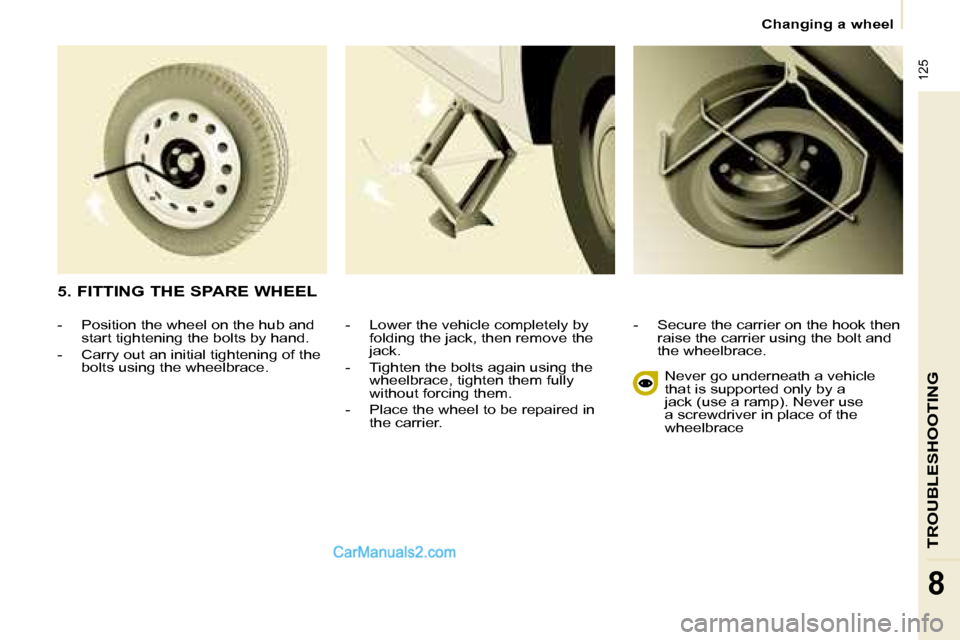

5. FITTING THE SPARE WHEEL
- Position the wheel on the hub and
start tightening the bolts by hand.
- Carry out an initial tightening of the bolts using the wheelbrace.
