Peugeot Partner 2008.5 Owner's Manual

135
TROUBLESHOOTING
8

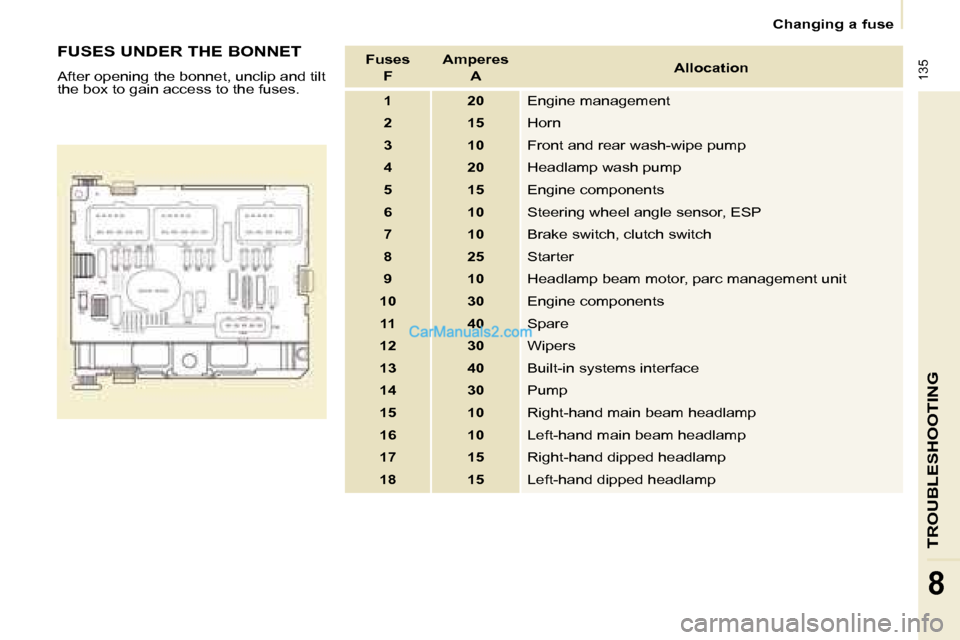

Changing a fuse
FUSES UNDER THE BONNET
After opening the bonnet, unclip and tilt
the box to gain access to the fuses. Fuses
F Amperes
A Allocation
1 20 Engine management
2 15 Horn
3 10 Front and rear wash-wipe pump
4 20 Headlamp wash pump
5 15 Engine components
6 10 Steering wheel angle sensor, ESP
7 10 Brake switch, clutch switch
8 25 Starter
9 10 Headlamp beam motor, parc management unit
10 30 Engine components
11 40 Spare
12 30 Wipers
13 40 Built-in systems interface
14 30 Pump
15 10 Right-hand main beam headlamp
16 10 Left-hand main beam headlamp
17 15 Right-hand dipped headlamp
18 15 Left-hand dipped headlamp

136

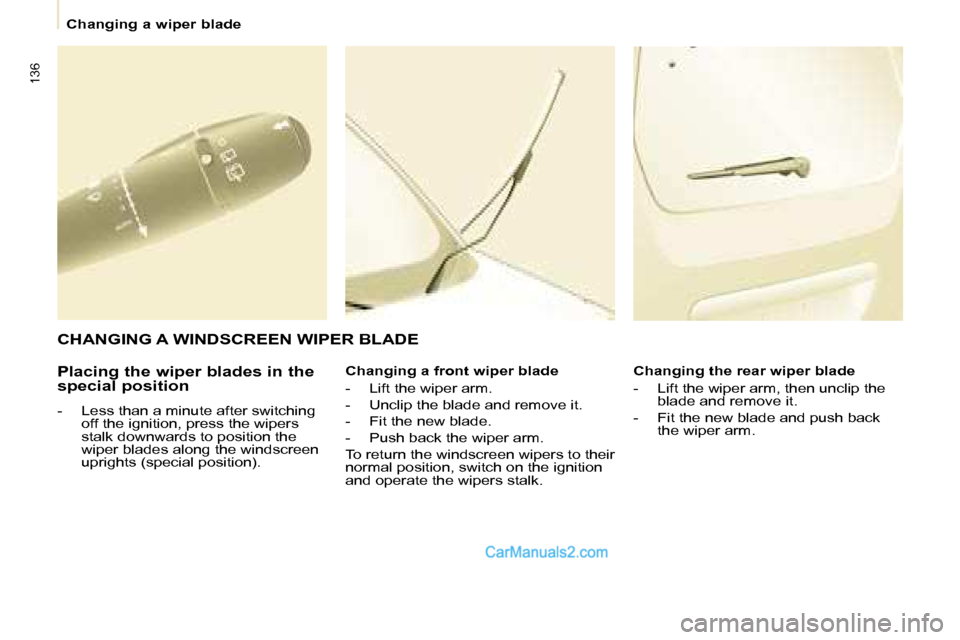

Changing a wiper blade
Placing the wiper blades in the
special position
- Less than a minute after switching off the ignition, press the wipers
stalk downwards to position the
wiper blades along the windscreen
uprights (special position). Changing a front wiper blade
- Lift the wiper arm.
- Unclip the blade and remove it.
- Fit the new blade.
- Push back the wiper arm.
To return the windscreen wipers to their
normal position, switch on the ignition
and operate the wipers stalk. Changing the rear wiper blade
- Lift the wiper arm, then unclip the
blade and remove it.
- Fit the new blade and push back the wiper arm.
CHANGING A WINDSCREEN WIPER BLADE

137
TROUBLESHOOTING
8

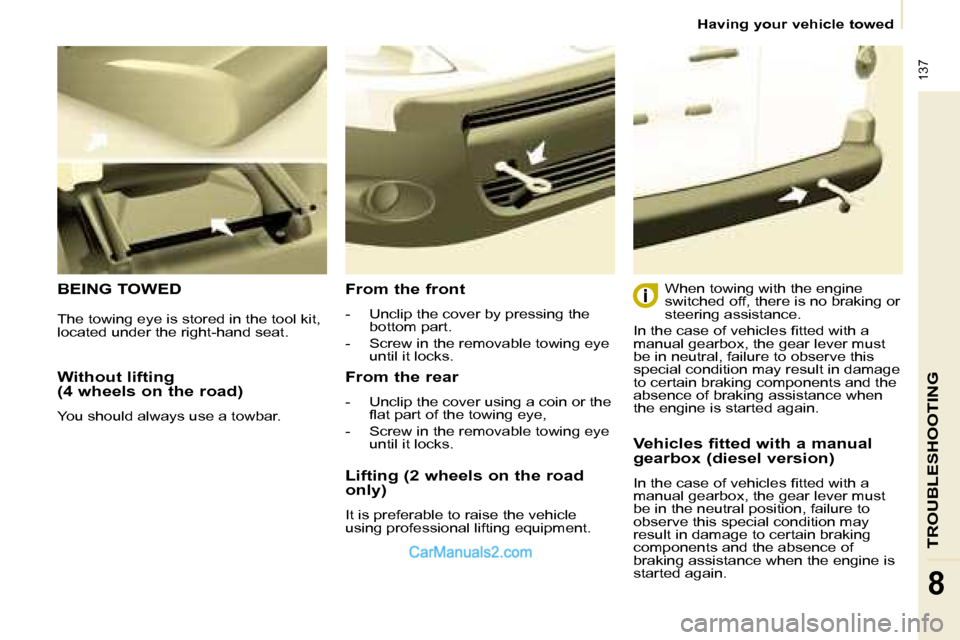

Having your vehicle towed
Without lifting
(4 wheels on the road)
You should always use a towbar.
BEING TOWED From the front
- Unclip the cover by pressing the bottom part.
- Screw in the removable towing eye until it locks.
From the rear
- Unclip the cover using a coin or the fl at part of the towing eye,
- Screw in the removable towing eye until it locks. When towing with the engine
switched off, there is no braking or
steering assistance.
In the case of vehicles fi tted with a
manual gearbox, the gear lever must
be in neutral, failure to observe this
special condition may result in damage
to certain braking components and the
absence of braking assistance when
the engine is started again.
Lifting (2 wheels on the road
only)
It is preferable to raise the vehicle
using professional lifting equipment.
The towing eye is stored in the tool kit,
located under the right-hand seat.
Vehicles fitted with a manual
gearbox (diesel version)
In the case of vehicles fi tted with a
manual gearbox, the gear lever must
be in the neutral position, failure to
observe this special condition may
result in damage to certain braking
components and the absence of
braking assistance when the engine is
started again.

138

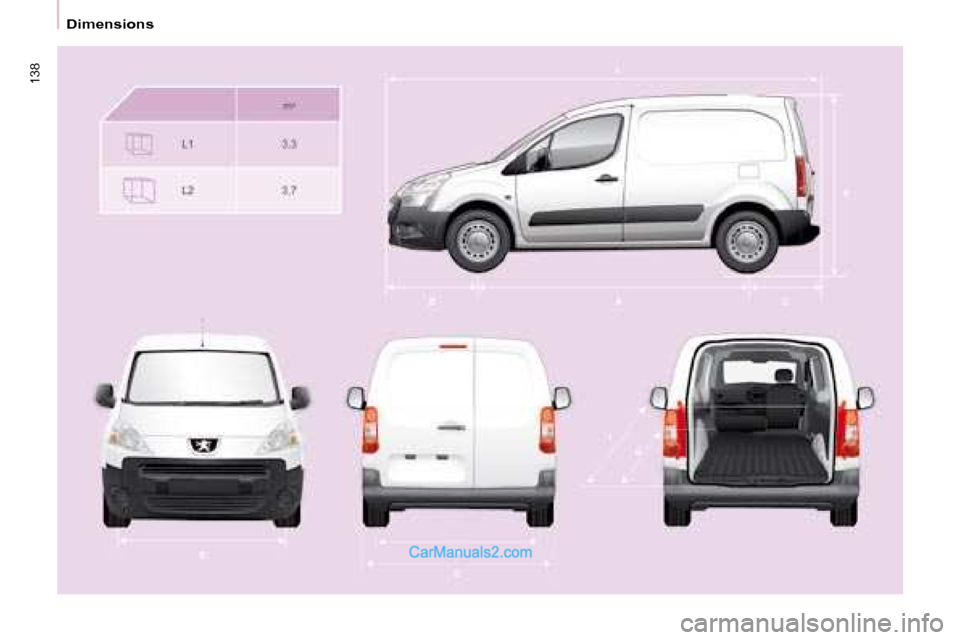

Dimensions

139

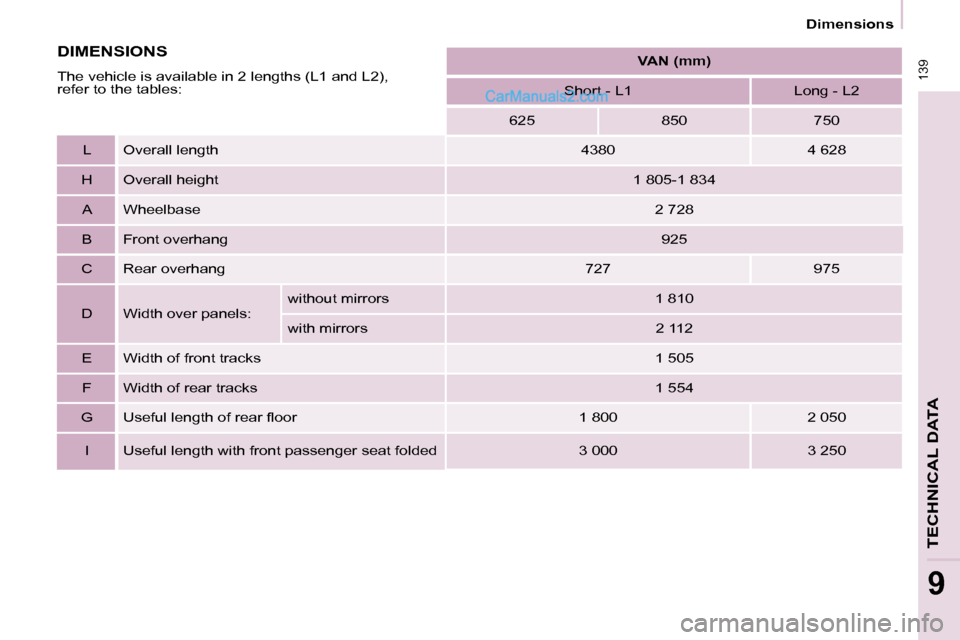

Dimensions
TECHNICAL DATA
9

VAN (mm)
Short - L1 Long - L2
625 850 750
L Overall length 4380 4 628
H Overall height 1 805-1 834
A Wheelbase 2 728
B Front overhang 925
C Rear overhang 727 975
D Width over panels: without mirrors
1 810
with mirrors 2 112
E Width of front tracks 1 505
F Width of rear tracks 1 554
G Useful length of rear fl oor 1 800 2 050
I Useful length with front passenger seat folded 3 000 3 250
DIMENSIONS DIMENSIONS
The vehicle is available in 2 lengths (L1 and L2),
refer to the tables:

140
Dimensions
REAR DOORS (mm)
L1 - 625 L1 - 850 L2
M Maximum threshold with 195/65 R15 tyre 584 609 612
Hinged doors Tailgate
Small Large
N Useful opening height (under panel) 1 148 1 313
O Width 495 543 1 582

Dimensions
TECHNICAL DATA
9

SLIDING SIDE DOOR (mm)
L1 L2
P Useful height 1 100
Q Useful width 650
- Height under raised tailgate 1 892

142
Dimensions

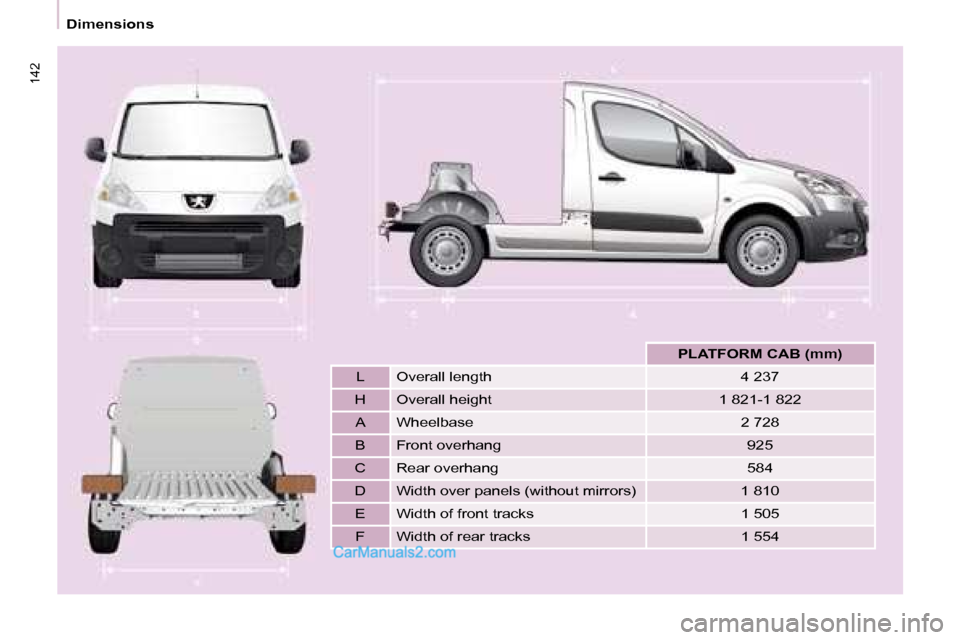

PLATFORM CAB (mm)
L Overall length 4 237
H Overall height 1 821-1 822 A Wheelbase 2 728
B Front overhang 925
C Rear overhang 584
D Width over panels (without mirrors) 1 810 E Width of front tracks 1 505
F Width of rear tracks 1 554

143
TECHNICAL DATA
9
Weights

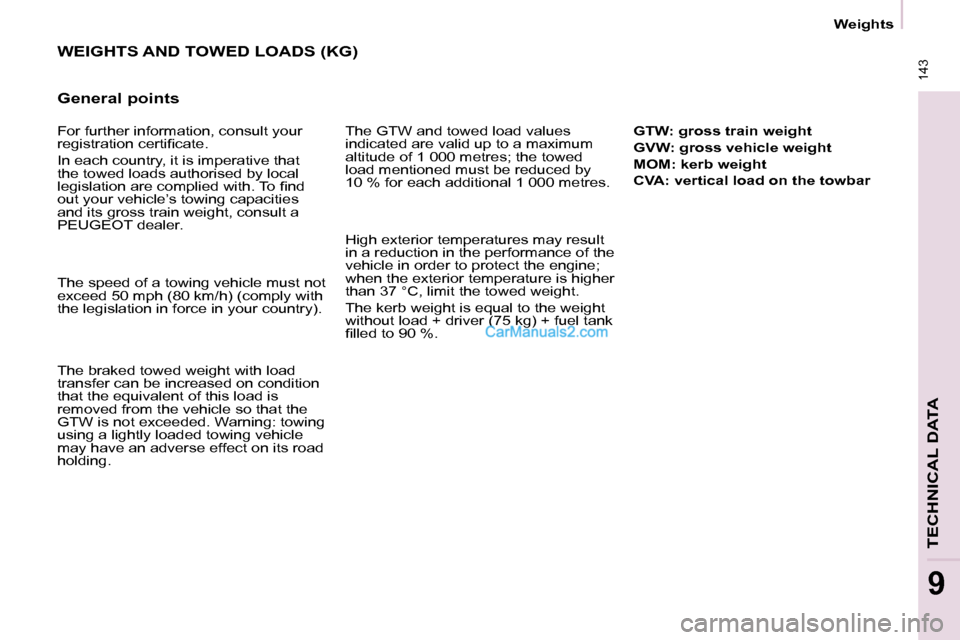

WEIGHTS AND TOWED LOADS (KG)
General points The GTW and towed load values
indicated are valid up to a maximum
altitude of 1 000 metres; the towed
load mentioned must be reduced by
10 % for each additional 1 000 metres.
GTW: gross train weight

GVW: gross vehicle weight

MOM: kerb weight

CVA: vertical load on the towbar
The speed of a towing vehicle must not
exceed 50 mph (80 km/h) (comply with
the legislation in force in your country).
The braked towed weight with load
transfer can be increased on condition
that the equivalent of this load is
removed from the vehicle so that the
GTW is not exceeded. Warning: towing
using a lightly loaded towing vehicle
may have an adverse effect on its road
holding. High exterior temperatures may result
in a reduction in the performance of the
vehicle in order to protect the engine;
when the exterior temperature is higher
than 37 °C, limit the towed weight.
The kerb weight is equal to the weight
without load + driver (75 kg) + fuel tank
fi lled to 90 %.
For further information, consult your
registration certifi cate.
In each country, it is imperative that
the towed loads authorised by local
legislation are complied with. To fi nd
out your vehicle’s towing capacities
and its gross train weight, consult a
PEUGEOT dealer.

144
Weights

Weights
Model codes

Number
of seats
Engine GTW GVW MOM CVA Body type
Engine
code
Gearbox

Van L1 -
625 kg 2

1.6 Petrol 90 2 935 1 960 1 413 40

7A NFR
C
1.6 HDi 75 2 935 1 960 1 411 40 9H T
1.6 HDi 90 3 135 1 960 1 411 50 9H X
3
1.6 Petrol 90 2 955 1 980 1 430 40

7B NFR
C
1.6 HDi 75 2 955 1 980 1 429 40 9H T
1.6 HDi 90 3 105 1 980 1 429 50 9H X
L1 -
850 kg 2

1.6 Petrol 90 2 935 2 185 1 413 30

7C NFR
C
1.6 HDi 75 2 935 2 185 1 411 30 9H T
1.6 HDi 90 3 135 2 185 1 411 40 9H X
3
1.6 Petrol 90 2 955 2 205 1 430 30

7D NFR
C
1.6 HDi 75 2 955 2 205 1 429 30 9H T
1.6 HDi 90 3 105 2 205 1 429 40 9H X
L2 -
750 kg 2 1.6 HDi 90 3 130 2 130 1 459 40
7E 9HX C
3 1.6 HDi 90 3 100 2 150 1 476 40 7F 9HX C

Platform
cab L1 -
1 000 kg 2 1.6 HDi 90 3 127 2 227 1 302 40
7G 9HX C
