Peugeot Partner 2008.5 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2008.5, Model line: Partner, Model: Peugeot Partner 2008.5Pages: 153, PDF Size: 3.77 MB

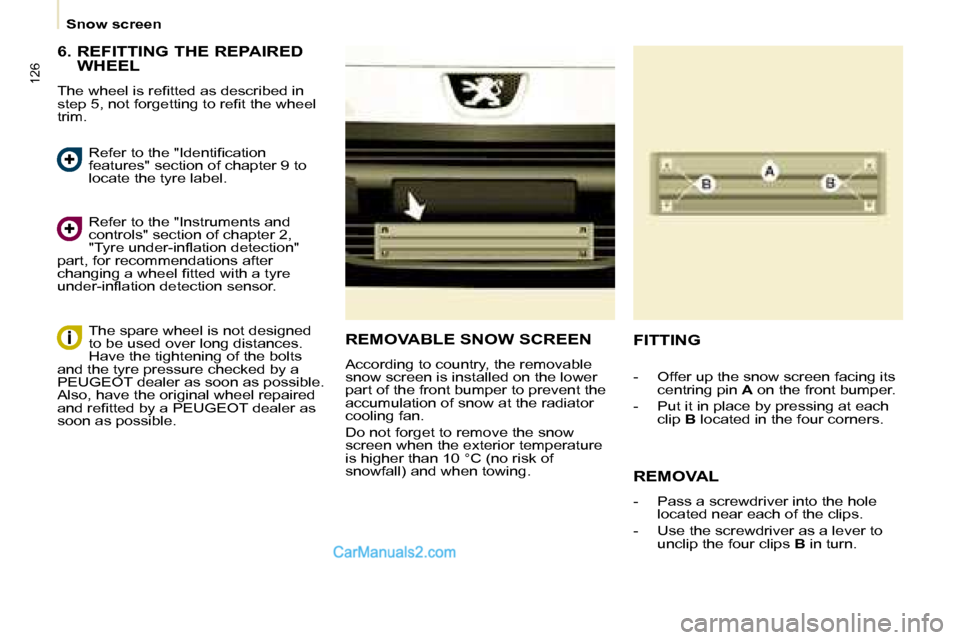

Page 131 of 153
126
Snow screen
6. REFITTING THE REPAIRED WHEEL
T h e w h e e l i s r e fi t t e d a s d e s c r i b e d i n
s t e p 5 , n o t f o r g e t t i n g t o r e fi t t h e w h e e l
trim.
Refer to the "Instruments and
controls" section of chapter 2,
" T y r e u n d e r - i n fl a t i o n d e t e c t i o n "
part, for recommendations after
c h a n g i n g a w h e e l fi t t e d w i t h a t y r e
u n d e r - i n fl a t i o n d e t e c t i o n s e n s o r . R e f e r t o t h e " I d e n t i fi c a t i o n
features" section of chapter 9 to
locate the tyre label.
REMOVABLE SNOW SCREEN
According to country, the removable
snow screen is installed on the lower
part of the front bumper to prevent the
accumulation of snow at the radiator
cooling fan.
Do not forget to remove the snow
screen when the exterior temperature
is higher than 10 °C (no risk of
snowfall) and when towing.
FITTING
REMOVAL
- Pass a screwdriver into the hole
located near each of the clips.
- Use the screwdriver as a lever to unclip the four clips B in turn.
- Offer up the snow screen facing its
centring pin A on the front bumper.
- Put it in place by pressing at each clip B located in the four corners.
The spare wheel is not designed
to be used over long distances.
Have the tightening of the bolts
and the tyre pressure checked by a
PEUGEOT dealer as soon as possible.
Also, have the original wheel repaired
a n d r e fi t t e d b y a P E U G E O T d e a l e r a s
soon as possible.

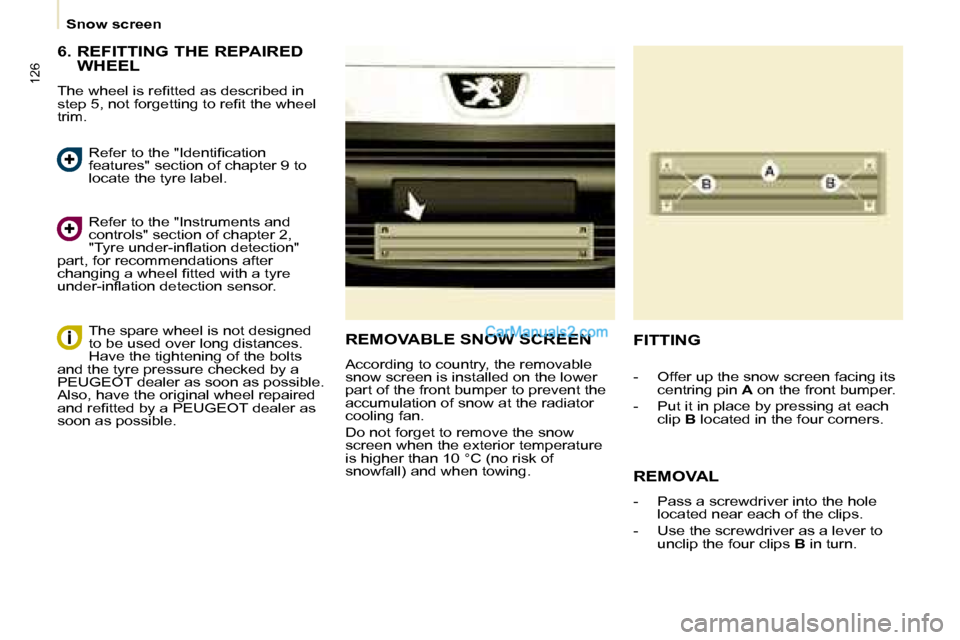

Page 132 of 153
126
Snow screen
6. REFITTING THE REPAIRED WHEEL
T h e w h e e l i s r e fi t t e d a s d e s c r i b e d i n
s t e p 5 , n o t f o r g e t t i n g t o r e fi t t h e w h e e l
trim.
Refer to the "Instruments and
controls" section of chapter 2,
" T y r e u n d e r - i n fl a t i o n d e t e c t i o n "
part, for recommendations after
c h a n g i n g a w h e e l fi t t e d w i t h a t y r e
u n d e r - i n fl a t i o n d e t e c t i o n s e n s o r . R e f e r t o t h e " I d e n t i fi c a t i o n
features" section of chapter 9 to
locate the tyre label.
REMOVABLE SNOW SCREEN
According to country, the removable
snow screen is installed on the lower
part of the front bumper to prevent the
accumulation of snow at the radiator
cooling fan.
Do not forget to remove the snow
screen when the exterior temperature
is higher than 10 °C (no risk of
snowfall) and when towing.
FITTING
REMOVAL
- Pass a screwdriver into the hole
located near each of the clips.
- Use the screwdriver as a lever to unclip the four clips B in turn.
- Offer up the snow screen facing its
centring pin A on the front bumper.
- Put it in place by pressing at each clip B located in the four corners.
The spare wheel is not designed
to be used over long distances.
Have the tightening of the bolts
and the tyre pressure checked by a
PEUGEOT dealer as soon as possible.
Also, have the original wheel repaired
a n d r e fi t t e d b y a P E U G E O T d e a l e r a s
soon as possible.
Page 133 of 153
127
TROUBLESHOOTING
8
Changing a bulb
CHANGING A BULB
Type B
Bayonet bulb: press
on the bulb then turn it
anticlockwise.
Type A
Entirely glass bulb: pull
g e n t l y a s i t i s fi t t e d b y
pressure.
Open the bonnet. To access the bulbs,
reach behind the headlamp unit.
Carry out the operations in reverse
o r d e r t o r e fi t e a c h b u l b a n d c h e c k t h a t
the bonnet is closed securely.
Type C
Halogen bulb: release
the retaining spring from
its housing.
Halogen bulbs must be changed
with the headlamp off. Wait a few
minutes (risk of serious burns).
Do not touch the bulb directly with your
fi n g e r s , u s e l i n t - f r e e c l o t h s .
It is normal for condensation to form
inside the headlamps. Regular use of
the vehicle eliminates this misting. The bulbs must be changed with
the ignition off or with the battery
disconnected. Wait approximately
3 minutes after changing the bulb
before reconnecting the battery.
Check that the lights operate correctly
after each operation.
High pressure washing
Types of bulb
Various types of bulb are installed on
your vehicle. To remove them:
When using this type of washing
on stubborn dirt, do not persist
on the headlamps, the lights and
their surround to avoid damaging their
coating and their seal.
Page 134 of 153
128
Changing a bulb
3. Direction indicators
Type B, PY 21 W - 21 W (amber)
- Remove the cover by pulling the fl e x i b l e r u b b e r t a b .
- Turn the bulb holder a quarter turn anticlockwise.
- Remove the bulb by pressing it lightly while turning it
anticlockwise.
- Change the bulb.
- E n s u r e t h a t t h e c o v e r i s r e fi t t e d correctly over its entire periphery
to guarantee sealing.
2. Side lights
Type A, W 5 W - 5 W
- Remove the cover by pulling the fl e x i b l e r u b b e r t a b .
- R e m o v e t h e b u l b h o l d e r fi t t e d b y pressure by pulling the connector.
- Change the bulb.
- E n s u r e t h a t t h e c o v e r i s r e fi t t e d correctly over its entire periphery
to guarantee sealing.
FRONT LIGHTS
1. Dipped headlamps/Main beam
headlamps
Type C, H4 - 55 W
- Remove the centre cover by p u l l i n g t h e fl e x i b l e r u b b e r t a b .
- Disconnect the electrical connector.
- Release the retaining tab.
- Change the bulb taking care to align the metal part with the
grooves on the light.
- Reposition the retaining tab.
- E n s u r e t h a t t h e c o v e r i s r e fi t t e d correctly over its entire periphery
to guarantee sealing.

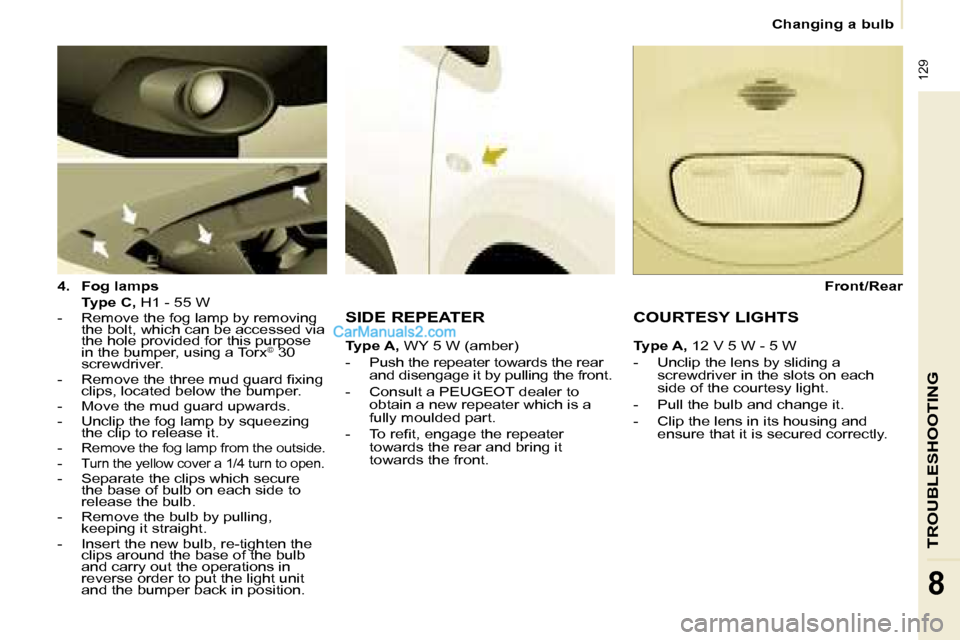

Page 135 of 153
129
TROUBLESHOOTING
8
Changing a bulb
4. Fog lamps
Type C, H1 - 55 W
- Remove the fog lamp by removing the bolt, which can be accessed via
the hole provided for this purpose
in the bumper, using a Torx ©
30
screwdriver.
- R e m o v e t h e t h r e e m u d g u a r d fi x i n g clips, located below the bumper.
- Move the mud guard upwards.
- Unclip the fog lamp by squeezing the clip to release it.
-
Remove the fog lamp from the outside. - Turn the yellow cover a 1/4 turn to open. - Separate the clips which secure the base of bulb on each side to
release the bulb.
- Remove the bulb by pulling, keeping it straight.
- Insert the new bulb, re-tighten the clips around the base of the bulb
and carry out the operations in
reverse order to put the light unit
and the bumper back in position. SIDE REPEATER
Type A, WY 5 W (amber)
- Push the repeater towards the rear and disengage it by pulling the front.
- Consult a PEUGEOT dealer to obtain a new repeater which is a
fully moulded part.
- T o r e fi t , e n g a g e t h e r e p e a t e r towards the rear and bring it
towards the front.
Front/Rear
COURTESY LIGHTS
Type A, 12 V 5 W - 5 W
- Unclip the lens by sliding a screwdriver in the slots on each
side of the courtesy light.
- Pull the bulb and change it.
- Clip the lens in its housing and ensure that it is secured correctly.

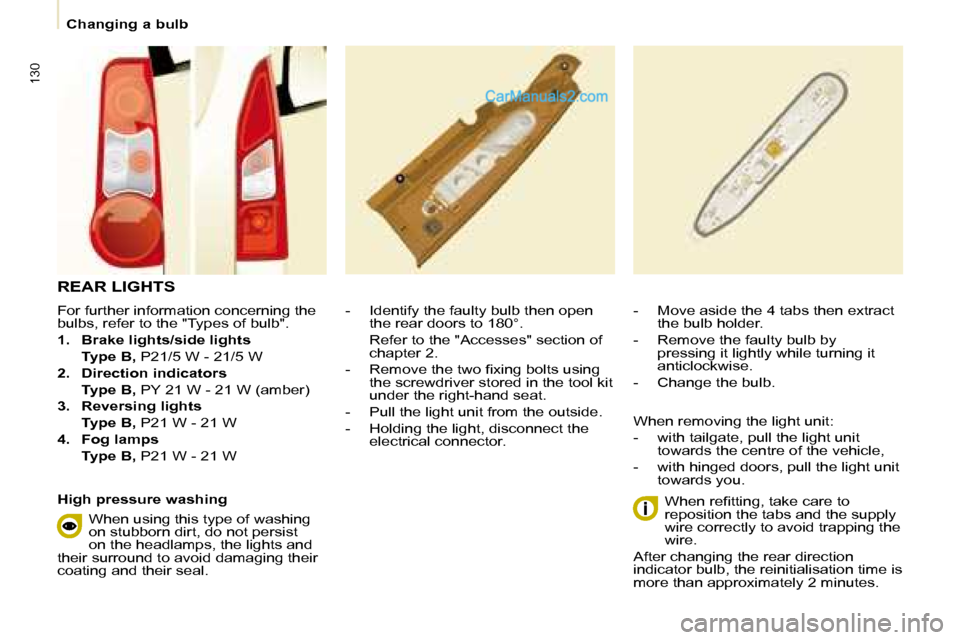

Page 136 of 153
130
Changing a bulb
For further information concerning the
bulbs, refer to the "Types of bulb".
1. Brake lights/side lights
Type B, P21/5 W - 21/5 W
2. Direction indicators
Type B, PY 21 W - 21 W (amber)
3. Reversing lights
Type B, P21 W - 21 W
4. Fog lamps
Type B, P21 W - 21 W - Identify the faulty bulb then open
the rear doors to 180°.
Refer to the "Accesses" section of chapter 2.
- R e m o v e t h e t w o fi x i n g b o l t s u s i n g the screwdriver stored in the tool kit
under the right-hand seat.
- Pull the light unit from the outside.
- Holding the light, disconnect the electrical connector. - Move aside the 4 tabs then extract
the bulb holder.
- Remove the faulty bulb by pressing it lightly while turning it
anticlockwise.
- Change the bulb.
When removing the light unit:
- with tailgate, pull the light unit
towards the centre of the vehicle,
- with hinged doors, pull the light unit towards you.
W h e n r e fi t t i n g , t a k e c a r e t o
reposition the tabs and the supply
wire correctly to avoid trapping the
wire.
After changing the rear direction
indicator bulb, the reinitialisation time is
more than approximately 2 minutes.
REAR LIGHTS
High pressure washing
When using this type of washing
on stubborn dirt, do not persist
on the headlamps, the lights and
their surround to avoid damaging their
coating and their seal.

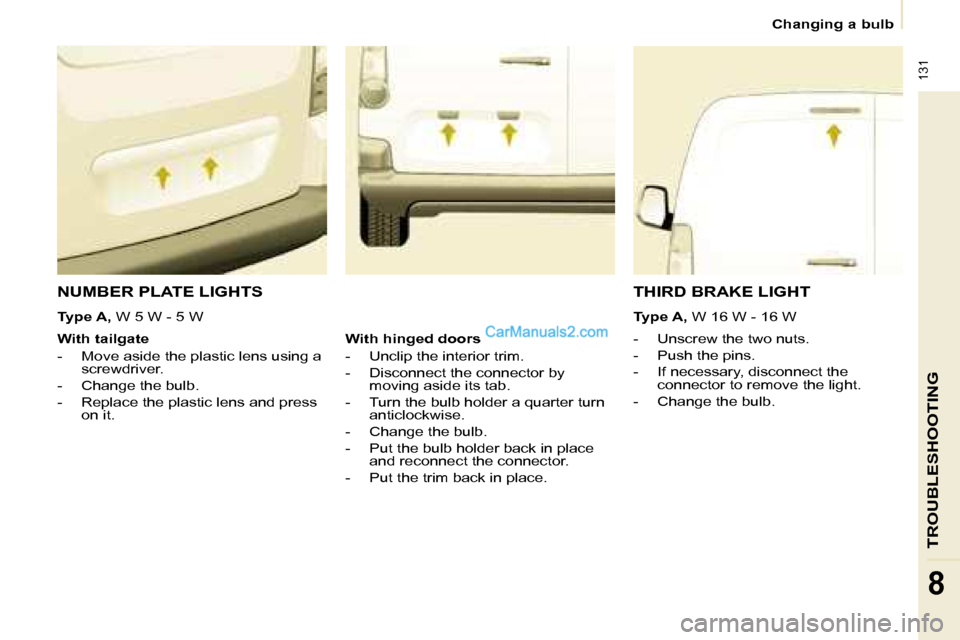

Page 137 of 153
131
TROUBLESHOOTING
8
Changing a bulb
NUMBER PLATE LIGHTS
- Unscrew the two nuts.
- Push the pins.
- If necessary, disconnect the connector to remove the light.
- Change the bulb.
With tailgate
- Move aside the plastic lens using a
screwdriver.
- Change the bulb.
- Replace the plastic lens and press on it.
THIRD BRAKE LIGHT
Type A, W 16 W - 16 W
With hinged doors
- Unclip the interior trim.
- Disconnect the connector by moving aside its tab.
- Turn the bulb holder a quarter turn anticlockwise.
- Change the bulb.
- Put the bulb holder back in place and reconnect the connector.
- Put the trim back in place.
Type A, W 5 W - 5 W

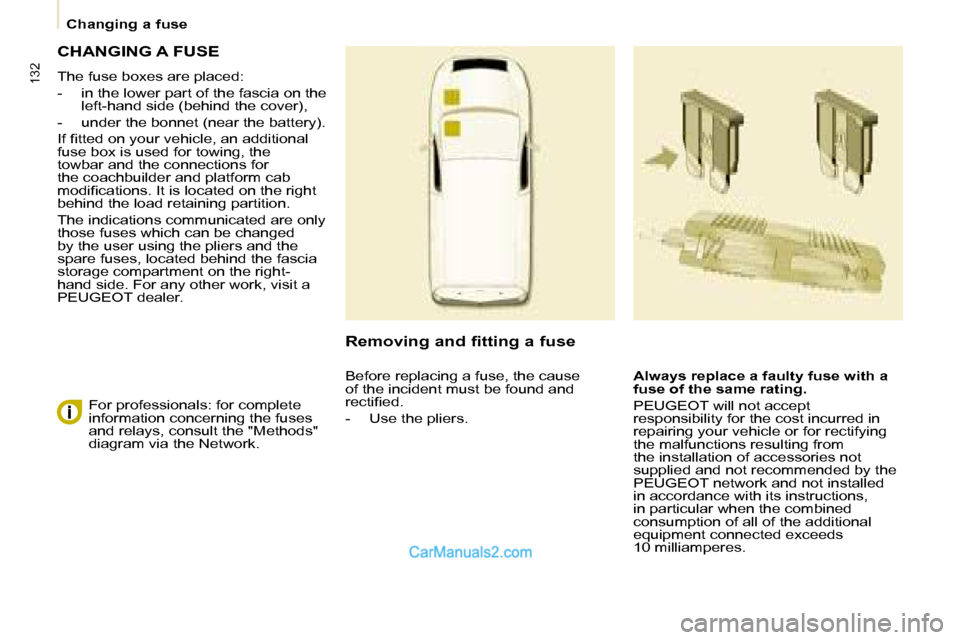

Page 138 of 153
132
Changing a fuse
CHANGING A FUSE
The fuse boxes are placed:
- in the lower part of the fascia on the left-hand side (behind the cover),
- under the bonnet (near the battery).
I f fi t t e d o n y o u r v e h i c l e , a n a d d i t i o n a l
fuse box is used for towing, the
towbar and the connections for
the coachbuilder and platform cab
m o d i fi c a t i o n s . I t i s l o c a t e d o n t h e r i g h t
behind the load retaining partition.
The indications communicated are only
those fuses which can be changed
by the user using the pliers and the
spare fuses, located behind the fascia
storage compartment on the right-
hand side. For any other work, visit a
PEUGEOT dealer.
Removing and fitting a fuse
Always replace a faulty fuse with a
fuse of the same rating.
PEUGEOT will not accept
responsibility for the cost incurred in
repairing your vehicle or for rectifying
the malfunctions resulting from
the installation of accessories not
supplied and not recommended by the
PEUGEOT network and not installed
in accordance with its instructions,
in particular when the combined
consumption of all of the additional
equipment connected exceeds
10 milliamperes.
For professionals: for complete
information concerning the fuses
and relays, consult the "Methods"
diagram via the Network.
Before replacing a fuse, the cause
of the incident must be found and
r e c t i fi e d .
- Use the pliers.

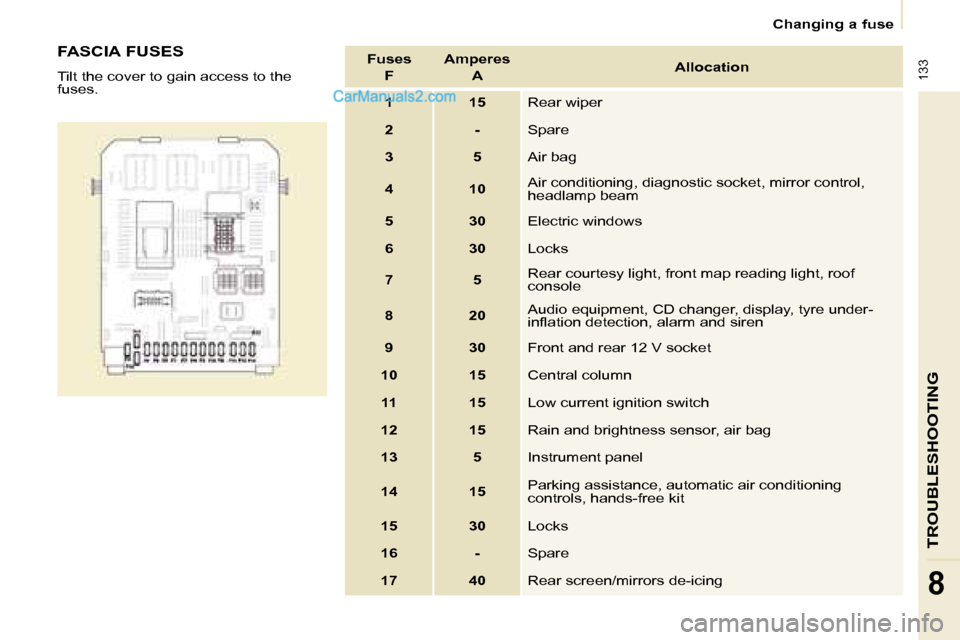

Page 139 of 153
133
TROUBLESHOOTING
8
Changing a fuse
FASCIA FUSES
Tilt the cover to gain access to the
fuses. Fuses
F Amperes
A Allocation
1 15 Rear wiper
2 - Spare
3 5 Air bag
4 10 Air conditioning, diagnostic socket, mirror control,
headlamp beam
5 30 Electric windows
6 30 Locks
7 5 Rear courtesy light, front map reading light, roof
console
8 20 Audio equipment, CD changer, display, tyre under-
i n fl a t i o n d e t e c t i o n , a l a r m a n d s i r e n
9 30 Front and rear 12 V socket
10 15 Central column
11 15 Low current ignition switch
12 15 Rain and brightness sensor, air bag
13 5 Instrument panel
14 15 Parking assistance, automatic air conditioning
controls, hands-free kit
15 30 Locks
16 - Spare
17 40 Rear screen/mirrors de-icing

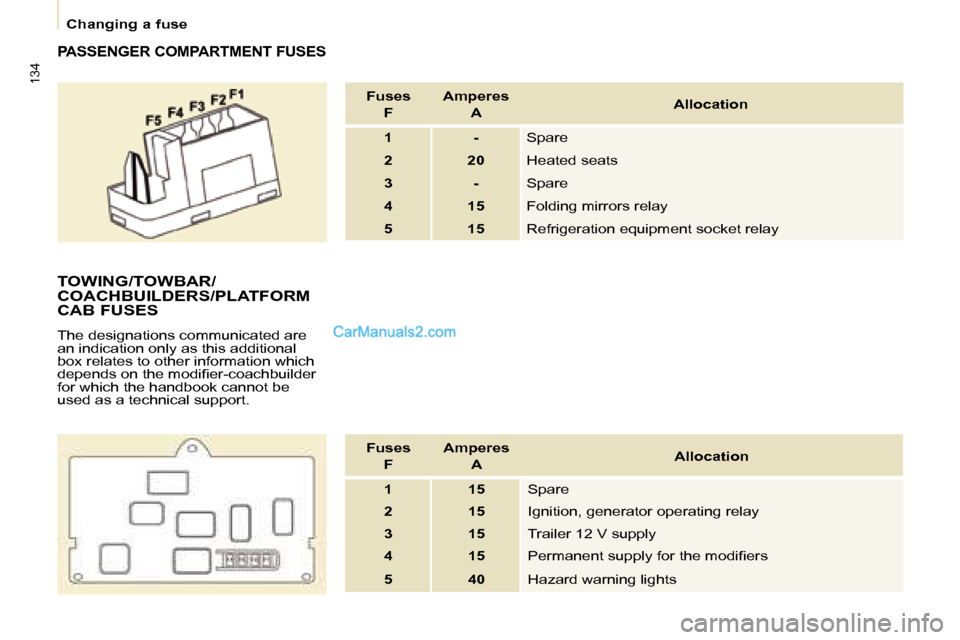

Page 140 of 153
134
Changing a fuse
PASSENGER COMPARTMENT FUSES
Fuses F Amperes
A Allocation
1 - Spare
2 20 Heated seats
3 - Spare
4 15 Folding mirrors relay
5 15 Refrigeration equipment socket relay
TOWING/TOWBAR/
COACHBUILDERS/PLATFORM
CAB FUSES
The designations communicated are
an indication only as this additional
box relates to other information which
d e p e n d s o n t h e m o d i fi e r - c o a c h b u i l d e r
for which the handbook cannot be
used as a technical support. Fuses F Amperes
A Allocation
1 15 Spare
2 15 Ignition, generator operating relay
3 15 Trailer 12 V supply
4 15 P e r m a n e n t s u p p l y f o r t h e m o d i fi e r s
5 40 Hazard warning lights
