Peugeot Partner 2008.5 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2008.5, Model line: Partner, Model: Peugeot Partner 2008.5Pages: 153, PDF Size: 3.77 MB
Page 151 of 153
145
TECHNICAL DATA
9

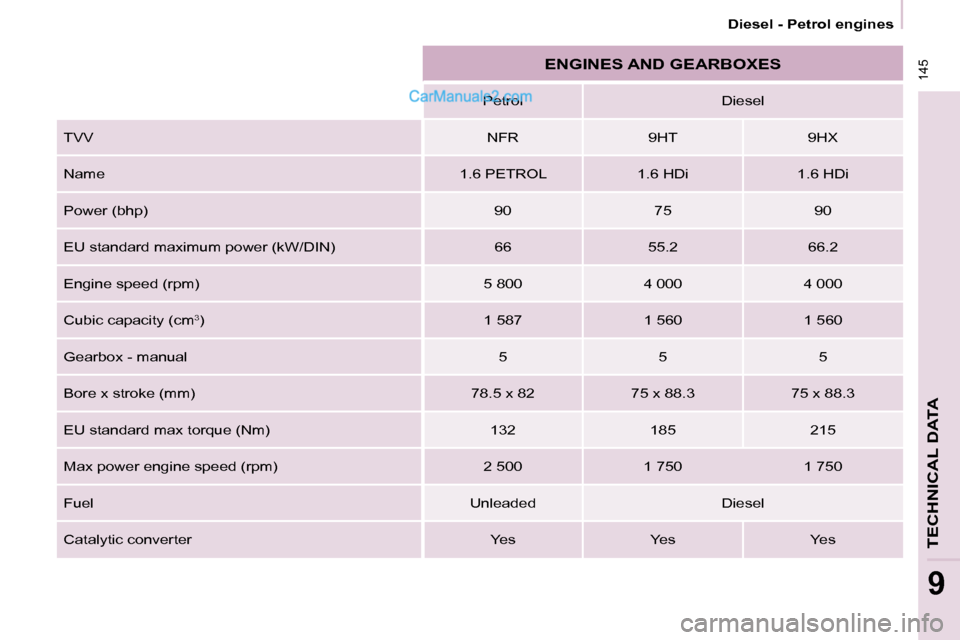

Diesel - Petrol engines
ENGINES AND GEARBOXES
Petrol Diesel
TVV NFR 9HT 9HX
Name 1.6 PETROL 1.6 HDi 1.6 HDi
Power (bhp) 90 75 90
EU standard maximum power (kW/DIN) 66 55.2 66.2
Engine speed (rpm) 5 800 4 000 4 000
Cubic capacity (cm 3
) 1 587 1 560 1 560
Gearbox - manual 5 5 5
Bore x stroke (mm) 78.5 x 82 75 x 88.3 75 x 88.3
EU standard max torque (Nm) 132 185 215
Max power engine speed (rpm) 2 500 1 750 1 750
Fuel Unleaded Diesel
Catalytic converter Yes Yes Yes
Page 152 of 153
146

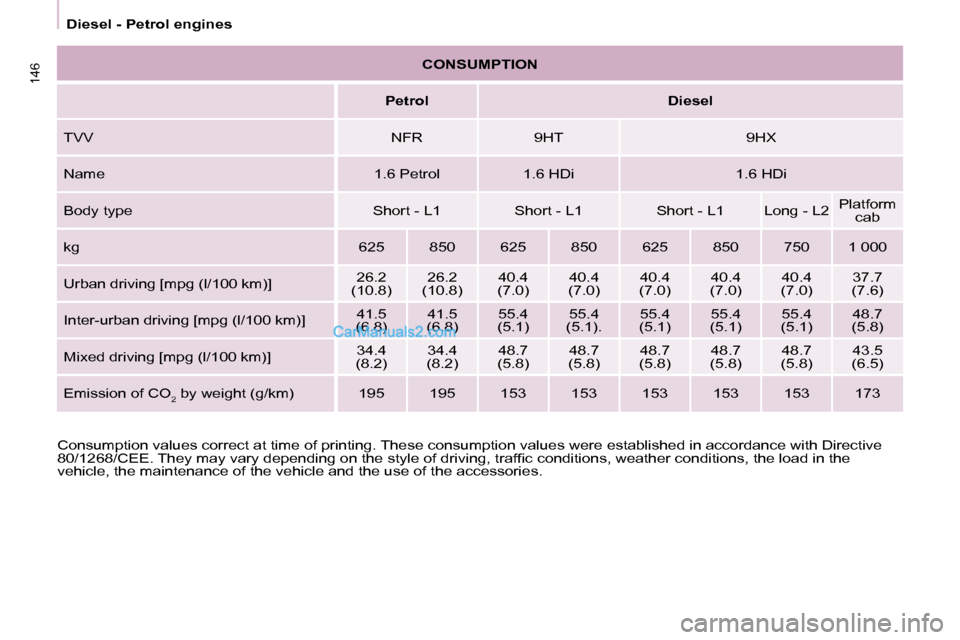

Diesel - Petrol engines
Consumption values correct at time of printing. These consumptio n values were established in accordance with Directive
8 0 / 1 2 6 8 / C E E . T h e y m a y v a r y d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e
vehicle, the maintenance of the vehicle and the use of the accessories.
CONSUMPTION
Petrol Diesel
TVV NFR 9HT 9HX
Name 1.6 Petrol 1.6 HDi 1.6 HDi
Body type Short - L1 Short - L1 Short - L1 Long - L2 Platform
cab
kg 625 850 625 850 625 850 750 1 000
Urban driving [mpg (l/100 km)] 26.2
(10.8) 26.2
(10.8) 40.4
(7.0) 40.4
(7.0) 40.4
(7.0) 40.4
(7.0) 40.4
(7.0) 37.7
(7.6)
Inter-urban driving [mpg (l/100 km)] 41.5
(6.8) 41.5
(6.8) 55.4
(5.1) 55.4
(5.1). 55.4
(5.1) 55.4
(5.1) 55.4
(5.1) 48.7
(5.8)
Mixed driving [mpg (l/100 km)] 34.4
(8.2) 34.4
(8.2) 48.7
(5.8) 48.7
(5.8) 48.7
(5.8) 48.7
(5.8) 48.7
(5.8) 43.5
(6.5)
Emission of CO 2 by weight (g/km) 195 195 153 153 153 1
53 153 173
Page 153 of 153
147
TECHNICAL DATA
9

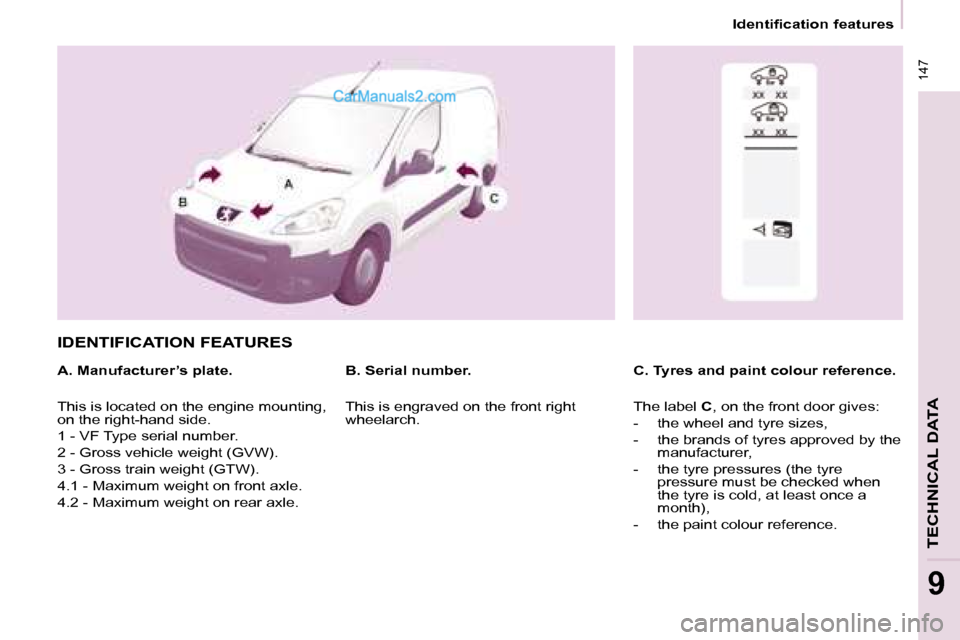

Identification features
IDENTIFICATION FEATURES
A. Manufacturer’s plate. C. Tyres and paint colour reference.
B. Serial number.
This is located on the engine mounting,
on the right-hand side.
1 - VF Type serial number.
2 - Gross vehicle weight (GVW).
3 - Gross train weight (GTW).
4.1 - Maximum weight on front axle.
4.2 - Maximum weight on rear axle. This is engraved on the front right
wheelarch.
The label
C , on the front door gives:
- the wheel and tyre sizes,
- the brands of tyres approved by the manufacturer,
- the tyre pressures (the tyre pressure must be checked when
the tyre is cold, at least once a
month),
- the paint colour reference.
