ERGONOMICS and COMFORT
33
Practical information

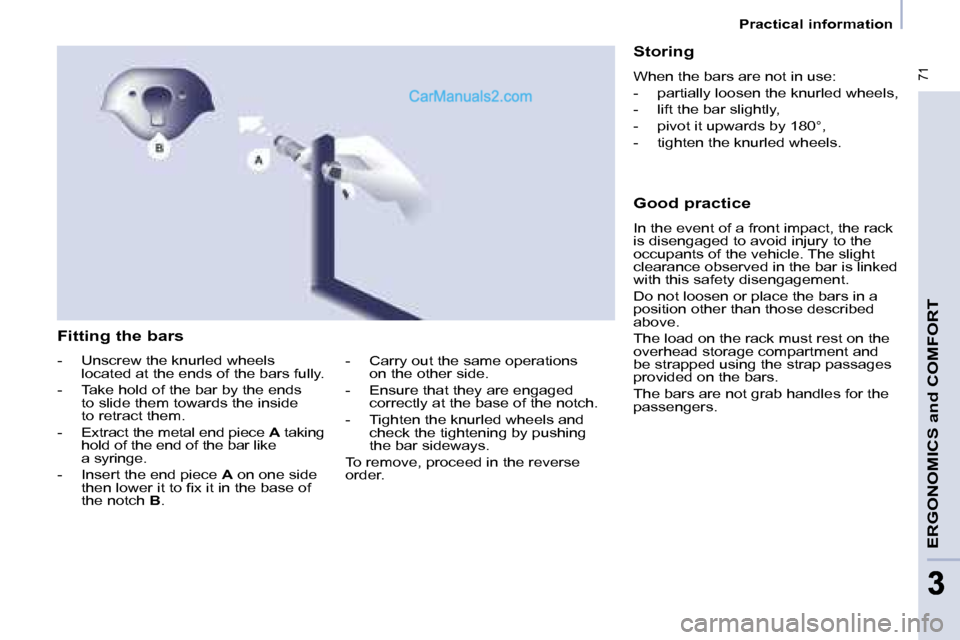

Fitting the bars
- Unscrew the knurled wheels located at the ends of the bars fully.
- Take hold of the bar by the ends to slide them towards the inside
to retract them.
- Extract the metal end piece A taking
hold of the end of the bar like
a syringe.
- Insert the end piece A on one side
then lower it to fi x it in the base of
the notch B . Storing
When the bars are not in use:
- partially loosen the knurled wheels,
- lift the bar slightly,
- pivot it upwards by 180°,
- tighten the knurled wheels.
Good practice
In the event of a front impact, the rack
is disengaged to avoid injury to the
occupants of the vehicle. The slight
clearance observed in the bar is linked
with this safety disengagement.
Do not loosen or place the bars in a
position other than those described
above.
The load on the rack must rest on the
overhead storage compartment and
be strapped using the strap passages
provided on the bars.
The bars are not grab handles for the
passengers.
- Carry out the same operations
on the other side.
- Ensure that they are engaged correctly at the base of the notch.
- Tighten the knurled wheels and check the tightening by pushing
the bar sideways.
To remove, proceed in the reverse
order.

72
Practical information

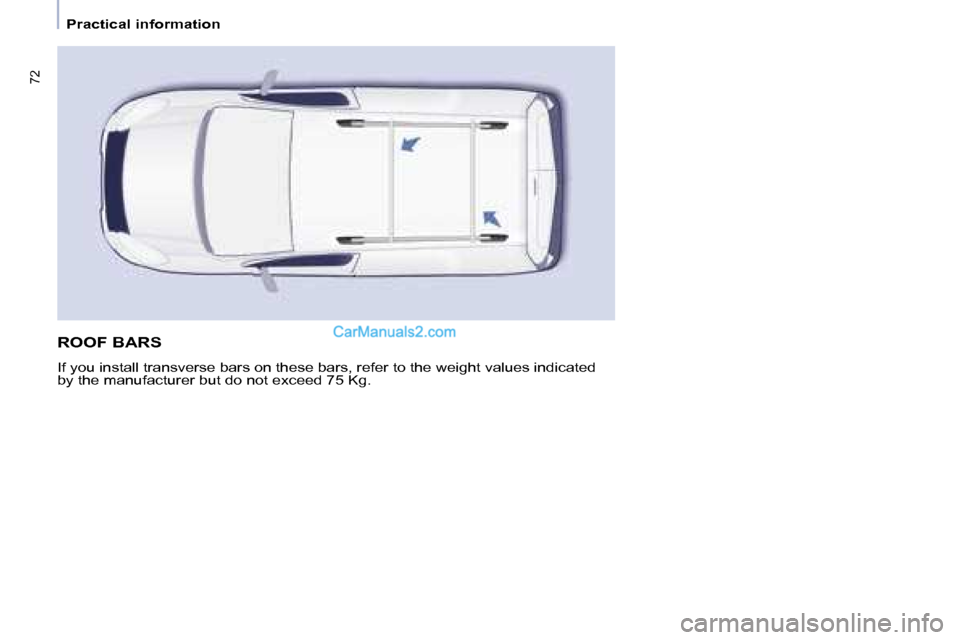

ROOF BARS
If you install transverse bars on these bars, refer to the weight values indicated
by the manufacturer but do not exceed 75 Kg.

73
ERGONOMICS and COMFORT
33
Mirrors and windows
Electric exterior mirrors
- Move the control to the right or to the left to select the corresponding
mirror.
- Move the control in all four directions to adjust.
- Return the control to the central position. Electric folding/unfolding
The mirrors can be folded or unfolded
electrically from the inside, with the
vehicle parked and the ignition on:
- Place the control in the central
position.
- Turn the control downwards.

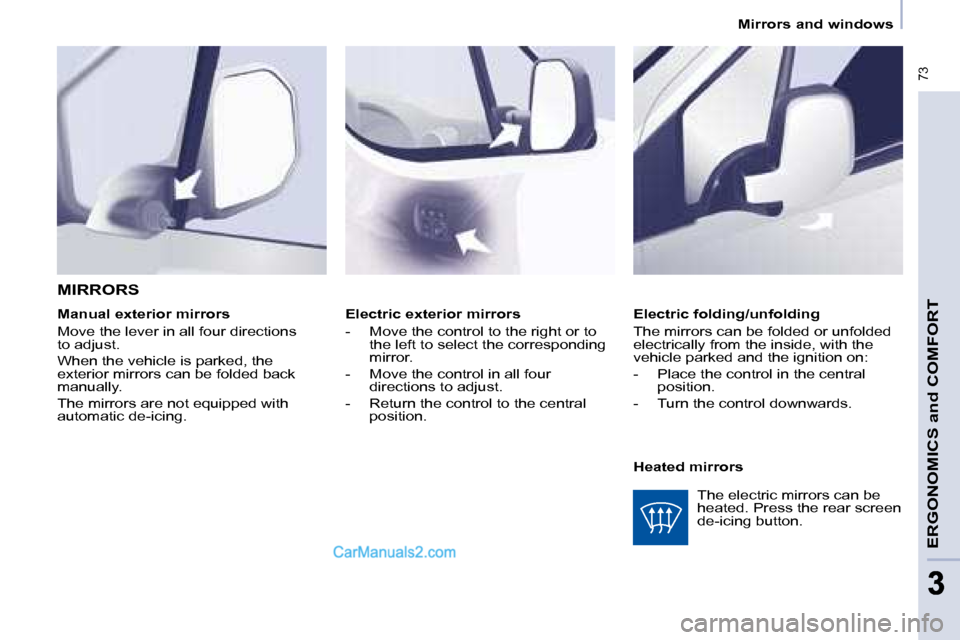

MIRRORS
Heated mirrors
Manual exterior mirrors
Move the lever in all four directions
to adjust.
When the vehicle is parked, the
exterior mirrors can be folded back
manually.
The mirrors are not equipped with
automatic de-icing.
The electric mirrors can be
heated. Press the rear screen
de-icing button.

74
Mirrors and windows

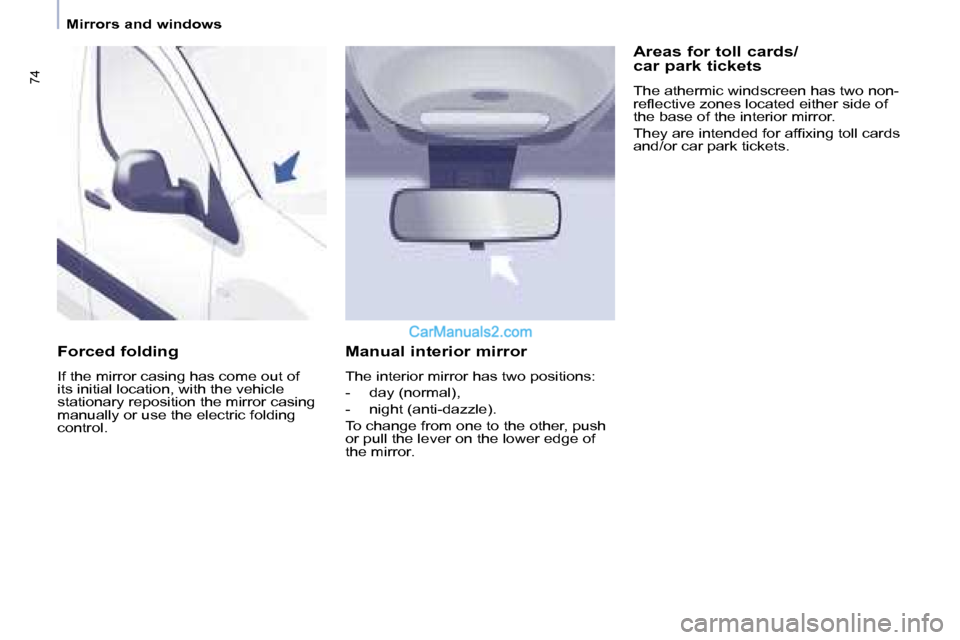

Forced folding
If the mirror casing has come out of
its initial location, with the vehicle
stationary reposition the mirror casing
manually or use the electric folding
control. Manual interior mirror
The interior mirror has two positions:
- day (normal),
- night (anti-dazzle).
To change from one to the other, push
or pull the lever on the lower edge of
the mirror. Areas for toll cards/
car park tickets
The athermic windscreen has two non-
refl ective zones located either side of
the base of the interior mirror.
They are intended for affi xing toll cards
and/or car park tickets.

75
ERGONOMICS and COMFORT
33
Mirrors and windows
ELECTRIC WINDOWS

1. Driver’s electric window control

2. Passenger electric window control
There are two operating modes:
Safety auto-reverse
When the window rises and meets an
obstacle, it stops and partially lowers.
Automatic mode
Press or pull the control, beyond the
point of resistance. The window opens
or closes fully when the control is
released. Pressing the control again
stops the movement of the window.
The electrical functions of the electric
windows are deactivated:
- approximately 45 seconds after
the ignition is switched off,
- after one of the front doors is opened, if the ignition is off.
Manual mode
Press or pull the control, without passing
the point of resistance. The window
stops when you release the control.
Reinitialisation
Following reconnection of the battery,
or in the event of a malfunction, the
safety auto-reverse function must be
reinitialised. Good practice
If the electric windows meet an
obstacle during operation, you must
reverse the movement of the window.
To do this, press the control concerned.
When the driver operates the
passenger electric window controls, he
must ensure that no one is preventing
correct closing of the windows.
The driver must ensure that the
passengers use the electric windows
correctly.
Be aware of children when operating
the windows.
Following several consecutive closing/
opening operations of the electric
window control, a protection system is
triggered which only authorises closing
of the window. After closing, wait
approximately 40 minutes. Once this
time has elapsed, the control becomes
operational again.
Lower the window fully, then raise it, it
will rise in steps of a few centimetres
each time the control is pressed.
Repeat the operation until the window
is fully closed.
Continue to press the control for at
least one second after the window
closed position has been reached.
The safety auto-reverse does not
operate during these operations.

76

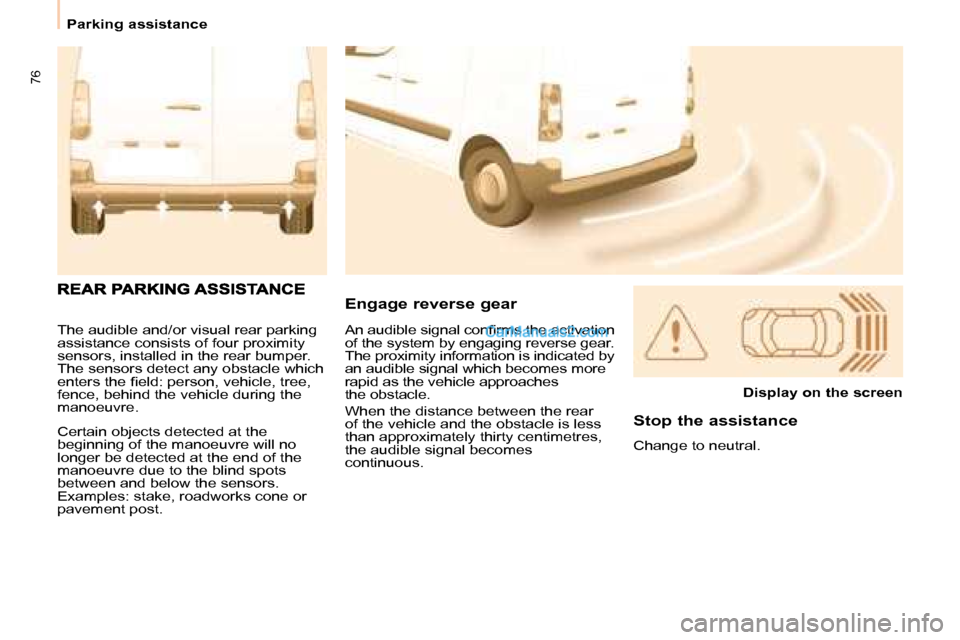

Parking assistance
The audible and/or visual rear parking
assistance consists of four proximity
sensors, installed in the rear bumper.
The sensors detect any obstacle which
enters the fi eld: person, vehicle, tree,
fence, behind the vehicle during the
manoeuvre.
Certain objects detected at the
beginning of the manoeuvre will no
longer be detected at the end of the
manoeuvre due to the blind spots
between and below the sensors.
Examples: stake, roadworks cone or
pavement post. Engage reverse gear
Display on the screen
Stop the assistance
Change to neutral.
An audible signal confi rms the activation
of the system by engaging reverse gear.
The proximity information is indicated by
an audible signal which becomes more
rapid as the vehicle approaches
the obstacle.
When the distance between the rear
of the vehicle and the obstacle is less
than approximately thirty centimetres,
the audible signal becomes
continuous.

77
IN-CAR TECHNOLOGY
4
Parking assistance

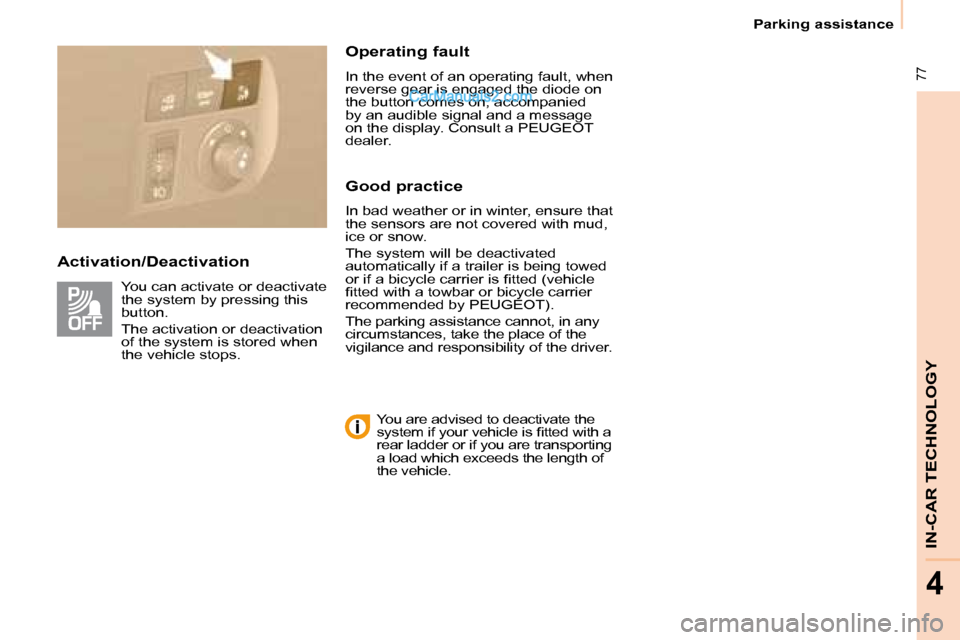

Activation/Deactivation Operating fault
In the event of an operating fault, when
reverse gear is engaged the diode on
the button comes on, accompanied
by an audible signal and a message
on the display. Consult a PEUGEOT
dealer.
Good practice
In bad weather or in winter, ensure that
the sensors are not covered with mud,
ice or snow.
The system will be deactivated
automatically if a trailer is being towed
or if a bicycle carrier is fi tted (vehicle
fi tted with a towbar or bicycle carrier
recommended by PEUGEOT ).
The parking assistance cannot, in any
circumstances, take the place of the
vigilance and responsibility of the driver.
You can activate or deactivate
the system by pressing this
button.
The activation or deactivation
of the system is stored when
the vehicle stops.
You are advised to deactivate the
system if your vehicle is fi tted with a
rear ladder or if you are transporting
a load which exceeds the length of
the vehicle.

78
WIP Sound
AUDIO EQUIPMENT/HANDS-FREE KIT
CONTENTS

01
79

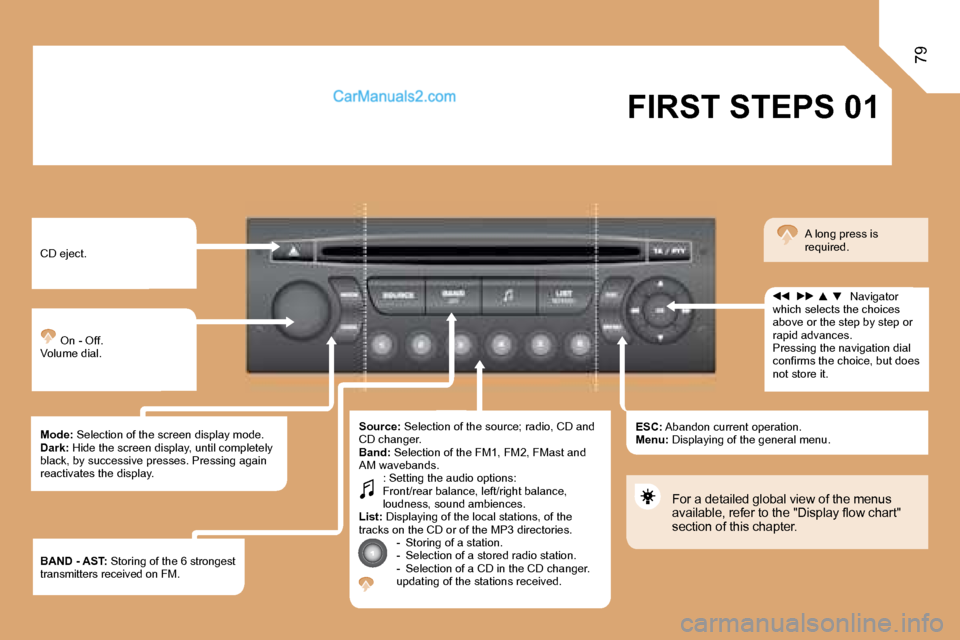

FIRST STEPS
CD eject.
On - Off. Volume dial.
Mode: Selection of the screen display mode. Dark: Hide the screen display, until completely black, by successive presses. Pressing again reactivates the display.
Source: Selection of the source; radio, CD and CD changer. Band: Selection of the FM1, FM2, FMast and AM wavebands. : Setting the audio options: Front/rear balance, left/right balance, loudness, sound ambiences. List: Displaying of the local stations, of the tracks on the CD or of the MP3 directories. - Storing of a station. - Selection of a stored radio station. - Selection of a CD in the CD changer. updating of the stations received.
ESC: Abandon current operation. Menu: Displaying of the general menu.
Navigator which selects the choices above or the step by step or rapid advances. Pressing the navigation dial confi rms the choice, but does not store it.
A long press is required.
For a detailed global view of the menus available, refer to the "Display fl ow chart" section of this chapter.
BAND - AST: Storing of the 6 strongest transmitters received on FM.

80

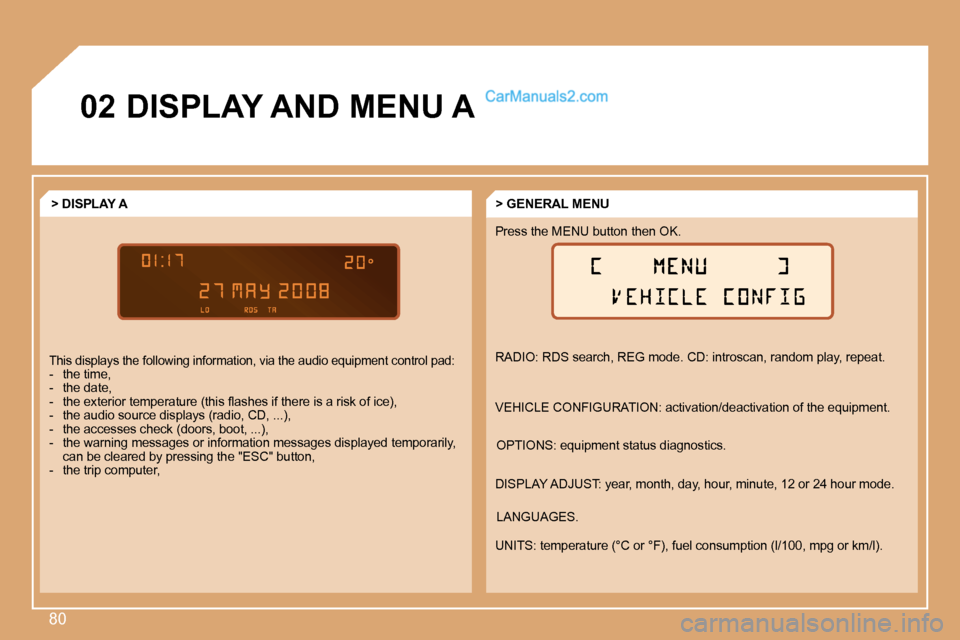

02 DISPLAY AND MENU A
RADIO: RDS search, REG mode. CD: introscan, random play, repeat.
VEHICLE CONFIGURATION: activation/deactivation of the equipment.
DISPLAY ADJUST: year, month, day, hour, minute, 12 or 24 hour mode.
> GENERAL MENU > DISPLAY A
This displays the following information, via the audio equipment control pad: - the time, - the date, - the exterior temperature (this fl ashes if there is a risk of ice), - the audio source displays (radio, CD, ...), - the accesses check (doors, boot, ...), - the warning messages or information messages d isplayed temporarily, can be cleared by pressing the "ESC" button, - the trip computer,
OPTIONS: equipment status diagnostics.
Press the MENU button then OK.
LANGUAGES.
UNITS: temperature (°C or °F), fuel consumption (l/100, mpg or km/l).
