Steering wheel controls
ERGONOMICS and COMFORT
3
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
l Intermittent wipe.
0 Off.
Single wipe
(press downwards).
In the I ntermittent position, the wiping
speed is in proportion to the vehicle
speed.

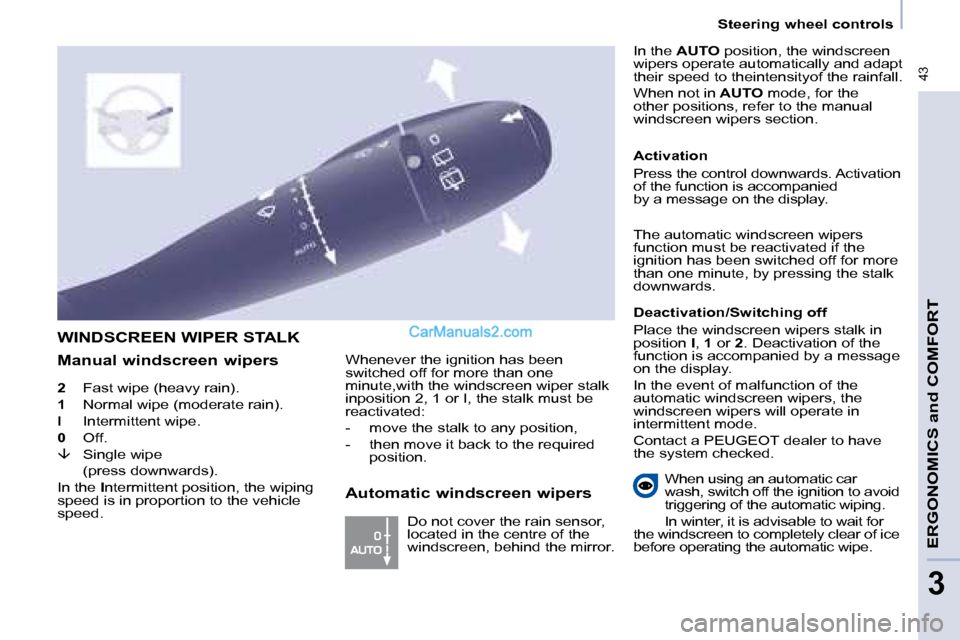

WINDSCREEN WIPER STALK
Manual windscreen wipers Whenever the ignition has been
switched off for more than one
minute, with the windscreen wiper stalk
in position 2, 1 or I, the stalk must be
reactivated:
- move the stalk to any position,
- then move it back to the required
position.
Do not cover the rain sensor,
located in the centre of the
windscreen, behind the mirror. Activation
Press the control downwards. Activation
of the function is accompanied
by a message on the display.
Deactivation/Switching off
Place the windscreen wipers stalk in
position
I , 1 or 2 . Deactivation of the
function is accompanied by a message
on the display.
In the event of malfunction of the
automatic windscreen wipers, the
windscreen wipers will operate in
intermittent mode.
Contact a PEUGEOT dealer to have
the system checked.
In the
AUTO position, the windscreen
wipers operate automatically and adapt
their speed to the intensity of the rainfall.
When not in AUTO mode, for the
other positions, refer to the manual
windscreen wipers section.
The automatic windscreen wipers
function must be reactivated if the
ignition has been switched off for more
than one minute, by pressing the stalk
downwards.
When using an automatic car
wash, switch off the ignition to avoid
triggering of the automatic wiping.
In winter, it is advisable to wait for
the windscreen to completely clear of ice
before operating the automatic wipe.
Automatic windscreen wipers
Page 42 of 153
44
Steering wheel controls

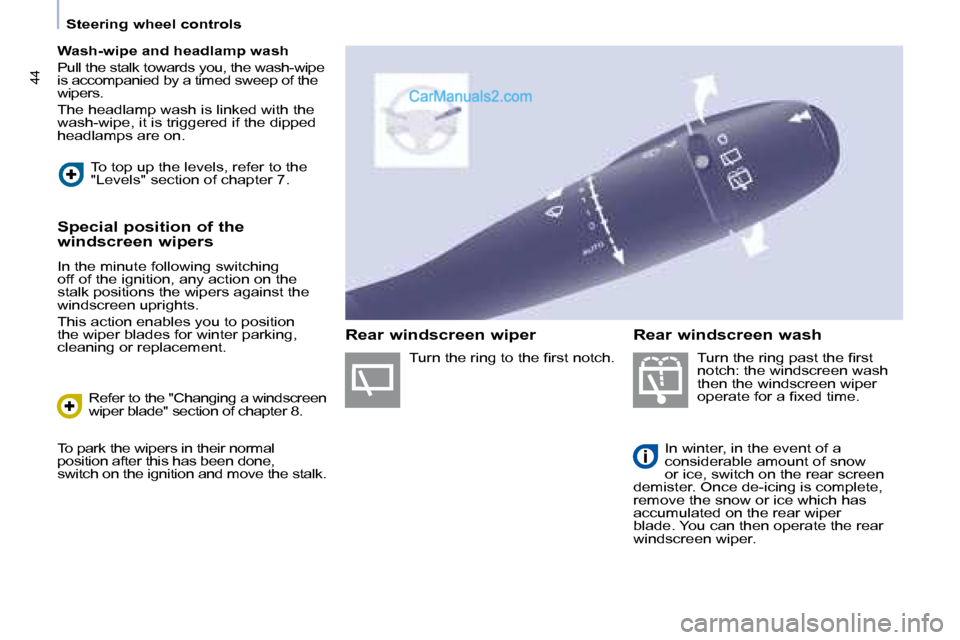

Wash-wipe and headlamp wash
Pull the stalk towards you, the wash-wipe
is accompanied by a timed sweep of the
wipers.
The headlamp wash is linked with the
wash-wipe, it is triggered if the dipped
headlamps are on.
T u r n t h e r i n g p a s t t h e fi r s t
notch: the windscreen wash
then the windscreen wiper
o p e r a t e f o r a fi x e d t i m e .
In winter, in the event of a
considerable amount of snow
or ice, switch on the rear screen
demister. Once de-icing is complete,
remove the snow or ice which has
accumulated on the rear wiper
blade. You can then operate the rear
windscreen wiper.
To top up the levels, refer to the
"Levels" section of chapter 7.
Special position of the
windscreen wipers
In the minute following switching
off of the ignition, any action on the
stalk positions the wipers against the
windscreen uprights.
This action enables you to position
the wiper blades for winter parking,
cleaning or replacement.
Refer to the "Changing a windscreen
wiper blade" section of chapter 8.
To park the wipers in their normal
position after this has been done,
switch on the ignition and move the stalk. T u r n t h e r i n g t o t h e fi r s t n o t c h .
Rear windscreen wash
Rear windscreen wiper
Page 43 of 153
45
Steering wheel controls
ERGONOMICS and COMFORT
3
CRUISE CONTROL "CRUISE"
In order for it to be programmed or
activated, the vehicle speed must be
greater than 25 mph (40 km/h) with at
least 4th gear engaged. This cruise control shows the function
selection status on the instrument
panel and displays the programmed
speed:
Function selected,
displaying of the
"Cruise Control"
symbol.
Function deactivated,
OFF (example at
107 km/h).
Function activated
(example at
107 km/h).
Vehicle speed above
(e.g. 118 km/h),
the programmed
speed is displayed
fl a s h i n g .
Operating fault
detected,
OFF - the dashes
fl a s h .
"This is the speed at which the driver
wishes to drive".
T h i s a i d t o d r i v i n g i n f r e e - fl o w i n g
t r a f fi c e n a b l e s t h e v e h i c l e t o m a i n t a i n
the speed programmed by the driver,
unless a steep gradient makes this
impossible.
Page 44 of 153
46
Steering wheel controls

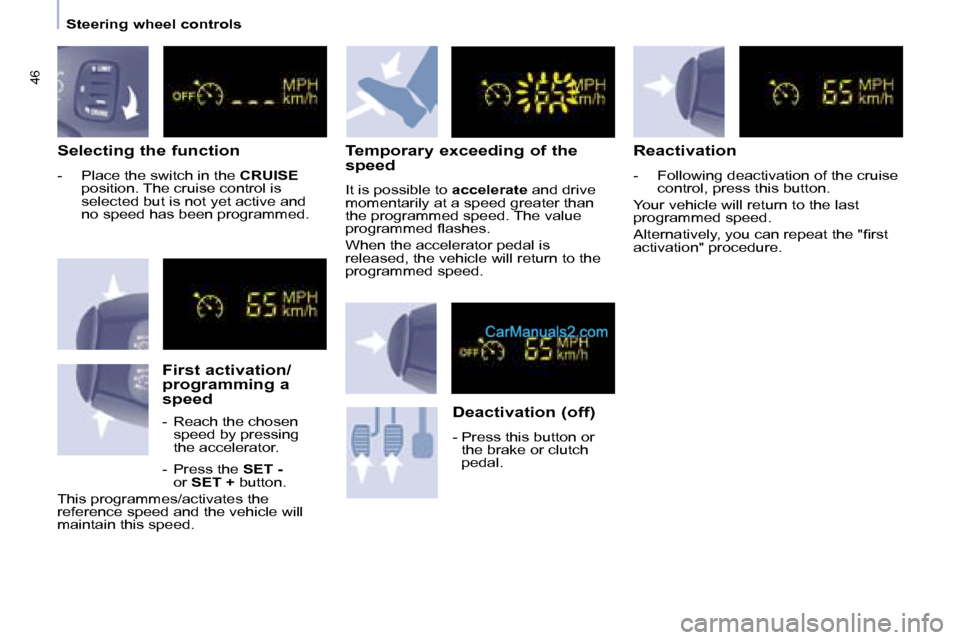

Selecting the function
- Place the switch in the CRUISE
position. The cruise control is
selected but is not yet active and
no speed has been programmed.
First activation/
programming a
speed
- Reach the chosen speed by pressing
the accelerator.
- Press the SET -
or SET + button.
This programmes/activates the
reference speed and the vehicle will
maintain this speed. Temporary exceeding of the
speed
It is possible to
accelerate and drive
momentarily at a speed greater than
the programmed speed. The value
p r o g r a m m e d fl a s h e s .
When the accelerator pedal is
released, the vehicle will return to the
programmed speed.
Deactivation (off)
- Press this button or the brake or clutch
pedal. Reactivation
- Following deactivation of the cruise
control, press this button.
Your vehicle will return to the last
programmed speed.
A l t e r n a t i v e l y , y o u c a n r e p e a t t h e " fi r s t
activation" procedure.
Page 45 of 153
47
Steering wheel controls
ERGONOMICS and COMFORT
3
Changing the
programmed speed
There are two methods
of memorising a
speed higher than the
previous one: Switching the function off
Operating fault
The programmed speed is cleared then
replaced by three dashes. Contact a
PEUGEOT dealer to have the system
checked.
Cancelling the programmed
reference speed
When the vehicle becomes stationary,
after switching off the ignition, the
system no longer memorises a speed.
Without using the accelerator:
- press the
Set + button.
A brief press increases the speed
by 1 mph (km/h).
A maintained press increases
the speed in steps of 5 mph (km/h).
Using the accelerator:
- exceed the memorised speed until the speed required is reached,
- press the Set + or Set - button.
To memorise a speed lower than the
previous one:
- press the Set - button.
A brief press decreases the speed
by 1 mph (km/h).
A maintained press decreases the
speed in steps of 5 mph (km/h). - Place the dial in position
0 or switch
off the ignition to switch everything off. Good practice
When changing the programmed
reference speed by means of a
maintained press, pay attention as
the speed can increase or decrease
rapidly.
Do not use the cruise control on
s l i p p e r y r o a d s o r i n h e a v y t r a f fi c .
In the event of a steep slope, the cruise
control cannot prevent the vehicle from
exceeding the programmed speed.
In any event, the cruise control cannot
replace the need to observe the speed
limits, nor can it replace the need for
vigilance and responsibility on the part
of the driver.
It is advisable to leave your feet near
the pedals.
To avoid any jamming under the
pedals:
- e n s u r e t h a t t h e m a t a n d i t s fi x i n g s
o n t h e fl o o r a r e p o s i t i o n e d c o r r e c t l y ,
- never place one mat on top of another.
Page 46 of 153
48
Steering wheel controls However, pressing the pedal beyond
t h i s p o i n t o f r e s i s t a n c e t o t h e fl o o r
permits exceeding of the programmed
speed. To resume use of the limiter,
simply reduce the pressure on the
accelerator pedal gradually and return
to a speed below that programmed.
The operating actions may be
carried out when stationary, with the
engine running, or with the vehicle
moving. This speed limiter shows the function
selection status on the instrument
panel and displays the programmed
speed:
SPEED LIMITER "LIMIT"
Function selected,
displaying of the
"Speed Limiter"
symbol.
Function deactivated,
last programmed
speed - OFF
(example at 65 mph
(107 km/h)).
Function activated
(example at 65 mph
(107 km/h)).
Vehicle speed above
(example 70 mph
(118 km/h)),
the programmed
speed is displayed
fl a s h i n g .
Operating fault
detected,
OFF - the dashes
fl a s h .
"This is the selected speed which the
driver does not wish to exceed".
This selection is made with the engine
running while stationary or with the
vehicle moving. The minimum speed
which can be programmed is 20 mph
(30 km/h).
The speed of the vehicle responds
to the pressure of the driver’s foot as
far as the accelerator pedal point of
resistance which indicates that the
programmed speed has been reached.
Page 47 of 153
49
Steering wheel controls
3

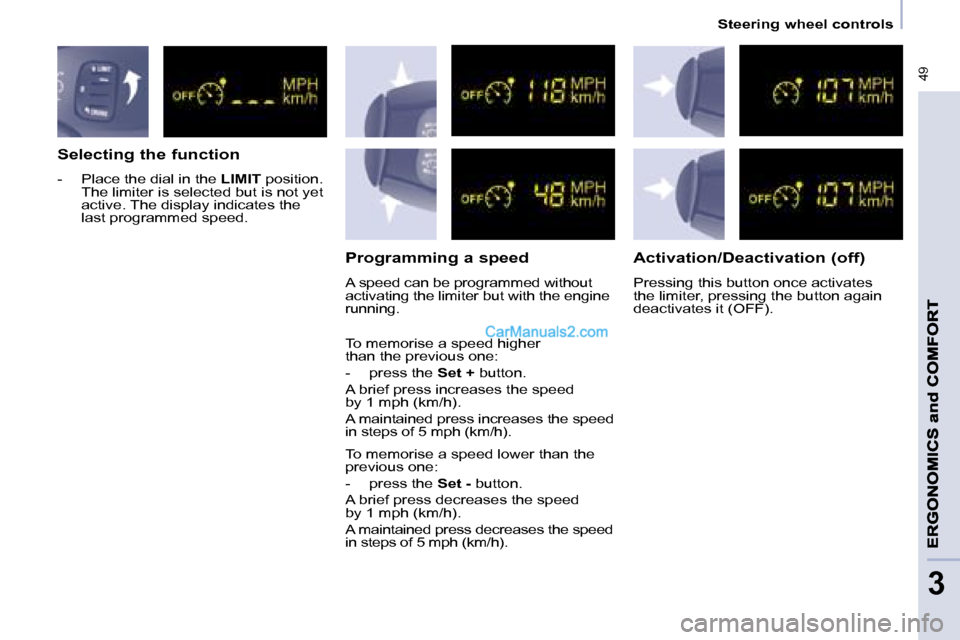

Selecting the function
- Place the dial in the LIMIT position.
The limiter is selected but is not yet
active. The display indicates the
last programmed speed.
Programming a speed
A speed can be programmed without
activating the limiter but with the engine
running. Activation/Deactivation (off)
Pressing this button once activates
the limiter, pressing the button again
deactivates it (OFF).
To memorise a speed higher
than the previous one:
- press the Set + button.
A brief press increases the speed
by 1 mph (km/h).
A maintained press increases the speed
in steps of 5 mph (km/h).
To memorise a speed lower than the
previous one:
- press the Set - button.
A brief press decreases the speed
by 1 mph (km/h).
A maintained press decreases the speed
in steps of 5 mph (km/h).
Page 48 of 153
50
Steering wheel controls

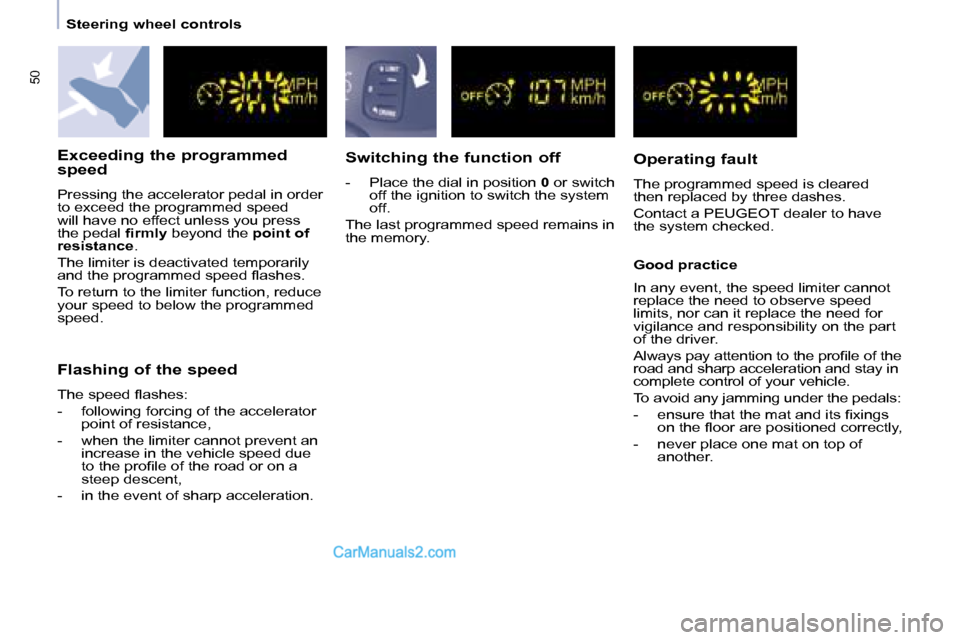

Exceeding the programmed
speed
Pressing the accelerator pedal in order
to exceed the programmed speed
will have no effect unless you press
the pedal fi r m l y beyond the point of
resistance .
The limiter is deactivated temporarily
a n d t h e p r o g r a m m e d s p e e d fl a s h e s .
To return to the limiter function, reduce
your speed to below the programmed
speed. Switching the function off
- Place the dial in position
0 or switch
off the ignition to switch the system
off.
The last programmed speed remains in
the memory. Operating fault
The programmed speed is cleared
then replaced by three dashes.
Contact a PEUGEOT dealer to have
the system checked.
Good practice
Flashing of the speed
T h e s p e e d fl a s h e s :
- following forcing of the accelerator point of resistance,
- when the limiter cannot prevent an increase in the vehicle speed due
t o t h e p r o fi l e o f t h e r o a d o r o n a
steep descent,
- in the event of sharp acceleration. In any event, the speed limiter cannot
replace the need to observe speed
limits, nor can it replace the need for
vigilance and responsibility on the part
of the driver.
A l w a y s p a y a t t e n t i o n t o t h e p r o fi l e o f t h e
road and sharp acceleration and stay in
complete control of your vehicle.
To avoid any jamming under the pedals:
- e n s u r e t h a t t h e m a t a n d i t s fi x i n g s
o n t h e fl o o r a r e p o s i t i o n e d c o r r e c t l y ,
- never place one mat on top of another.
Page 49 of 153
51
ERGONOMICS and COMFORT
33
Ventilation

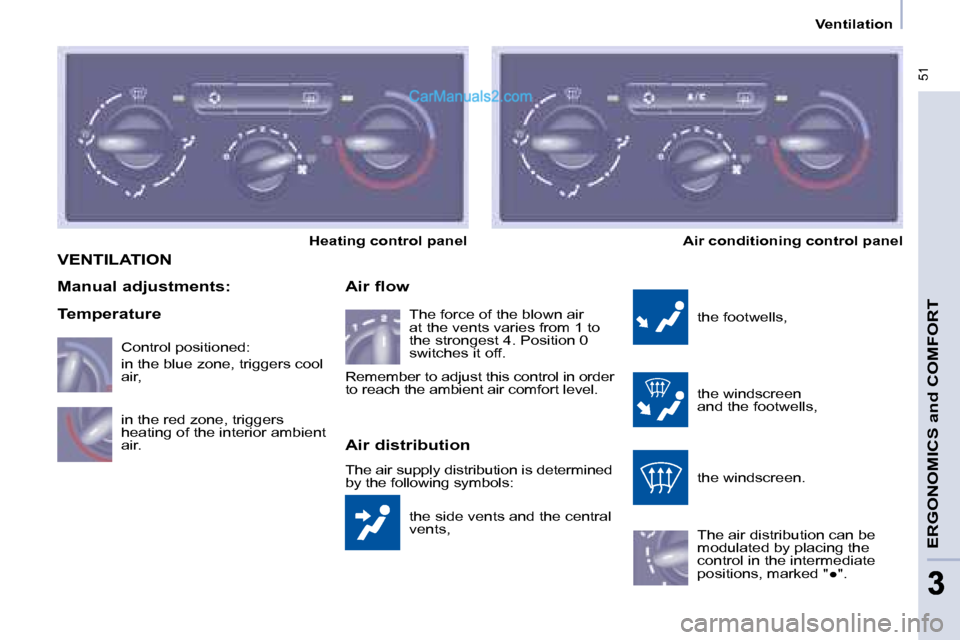

VENTILATION
the side vents and the central
vents,
Air flow
the footwells,
the windscreen
and the footwells,
the windscreen.
The air distribution can be
modulated by placing the
control in the intermediate
p o s i t i o n s , m a r k e d "
Page 50 of 153
52
Ventilation
Intake of exterior air
Recirculation of interior air Air conditioning A/C
The diode on the button
is off. This is the preferred
operating position. Pressing the button triggers
the operation of the air
conditioning, the diode is lit.
Pressing the button again
switches the function off and
the diode is switched off.
The air conditioning does not operate
i f t h e a i r fl o w i s s e t t o 0 .
The air conditioning can only operate
with the engine running.
The diode on the button is
lit. Recirculation temporarily
prevents exterior odours
and smoke from entering the
passenger compartment.
Used with the setting of the force of
blown air (from 1 to 4), recirculation
enables you to obtain the required
ambient air comfort level more quickly
with both hot or cold settings.
This position should only be temporary.
When your ambient air comfort level
has been reached, return to the
intake of exterior air position to permit
renewal of the air in the passenger
compartment and avoid misting.
This operating mode is preferable.
