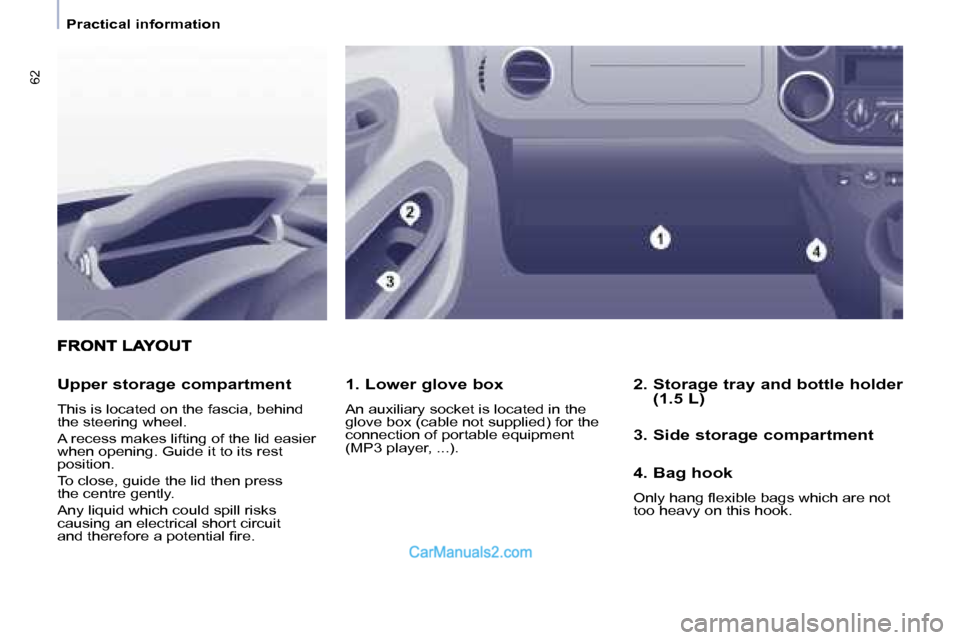

Practical information
1. Lower glove box
An auxiliary socket is located in the
glove box (cable not supplied) for the
connection of portable equipment
(MP3 player, ...).
Upper storage compartment
This is located on the fascia, behind
the steering wheel.
A recess makes lifting of the lid easier
when opening. Guide it to its rest
position.
To close, guide the lid then press
the centre gently.
Any liquid which could spill risks
causing an electrical short circuit
and therefore a potential fi re. 3. Side storage compartment
4. Bag hook
Only hang fl exible bags which are not
too heavy on this hook.
2. Storage tray and bottle holder
(1.5 L)

63
ERGONOMICS and COMFORT
33
Practical information
Overhead storage unit
This is located above the sun visors
and can accommodate various objects
(a jumper, fi le, gloves...).
The openings concealed by the sun
visors allow you to see and access
the objects stored in the overhead
storage unit.
The maximum weight permitted
in the overhead storage unit is 5 Kg.
Do not place objects in this storage
unit which could present a risk to the
occupants.
Central storage console
This console offers an appreciable
additional storage area: it can be
removed and clips onto a base which
also incorporates two cup holders at
the rear.
Ensure that the object (bottle, can...)
placed in the cup holder is retained
securely and does not risk being
dislodged while driving.
Any liquid which could spill presents
a risk of damage on contact with the
instrument panel and centre console
controls.
Take care.
Sun visor
To prevent dazzle from ahead, fold the
sun visor down.
A pocket is provided in the driver’s sun
visor for storing toll cards, tickets, ... Storage compartments under
seats
Storage compartments may be
provided in the fl oor under the front
seats.
The tool kit and the jack are stored
under the right-hand seat. Move the seat
forward for easier access to the storage
compartment.

64
Practical information
Automatic switching on/off
The front courtesy light comes on when
the key is removed from the ignition,
when the vehicle is unlocked, when
one of the front doors is opened and for
location of the vehicle using the remote
control.
It switches off gradually after the
ignition is switched on and when the
vehicle is locked. Cab: comes on when one of
the front doors is opened.
These are switched on and off
by means of a manual switch,
with the ignition on.
Load space: comes on when
one of the rear doors
is opened.
If the doors remain open for
a few minutes, the courtesy
lights are switched off.
Permanently off.
Permanently on, ignition on. Front courtesy light

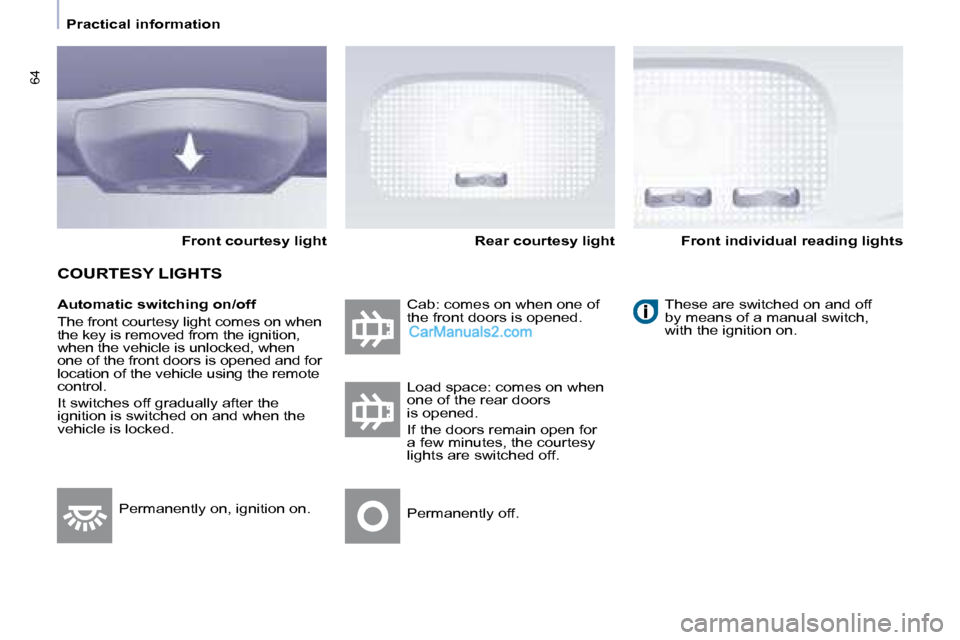

COURTESY LIGHTS
Rear courtesy light Front individual reading ligh
ts

65
33
Practical information
TORCH
A removable torch, incorporated in the
wall of the boot, carries out two functions:
- boot light,
- torch.
The boot light operates automatically
when the boot is opened.
The torch operates with NiMH type
storage batteries.
Observe the polarities when fi tting
these storage batteries. Using the torch
Remove it from its location by pulling
from the top.
Press the switch, located on the back
of the torch, to switch it on or off.
The retaining clip allows you to position
the torch for precise use (for example,
lighting while changing a wheel).
Storing the torch
Always put the torch back starting by
positioning the lower part in its location.
If it is not engaged correctly it may not
charge and may not come on when the
boot is opened.
Putting the torch back in place
switches it off automatically if it has not
been switched off already.
The torch has a maximum operating
time of 45 minutes and charges within
a few hours while driving.
Never replace the storage batteries
with conventional batteries.

66
Practical information

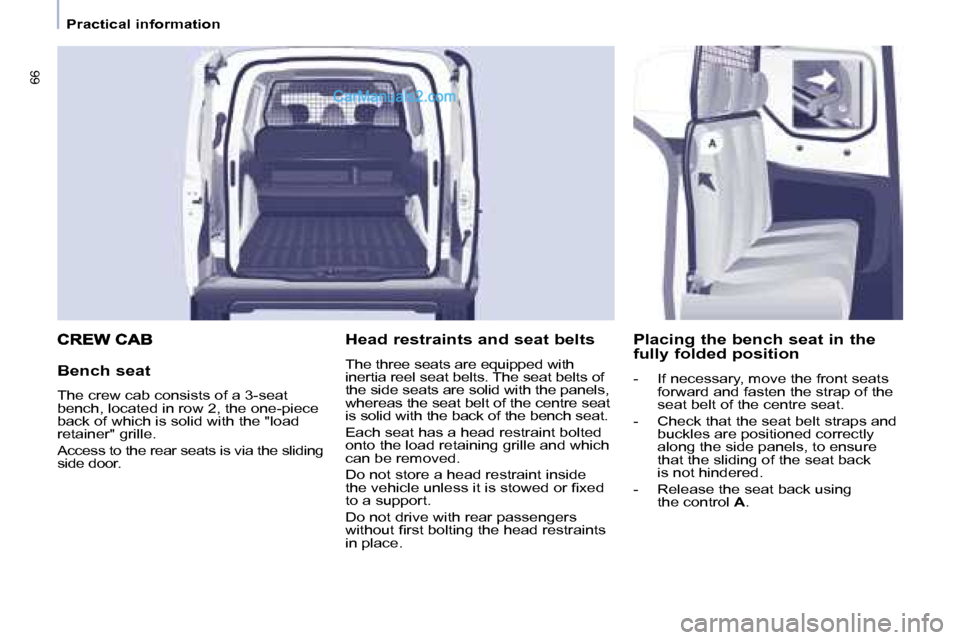

Bench seat
The crew cab consists of a 3-seat
bench, located in row 2, the one-piece
back of which is solid with the "load
retainer" grille.
Access to the rear seats is via the sliding
side door. Head restraints and seat belts
The three seats are equipped with
inertia reel seat belts. The seat belts of
the side seats are solid with the panels,
whereas the seat belt of the centre seat
is solid with the back of the bench seat.
Each seat has a head restraint bolted
onto the load retaining grille and which
can be removed.
Do not store a head restraint inside
the vehicle unless it is stowed or fi xed
to a support.
Do not drive with rear passengers
without fi rst bolting the head restraints
in place. Placing the bench seat in the
fully folded position
- If necessary, move the front seats
forward and fasten the strap of the
seat belt of the centre seat.
- Check that the seat belt straps and buckles are positioned correctly
along the side panels, to ensure
that the sliding of the seat back
is not hindered.
- Release the seat back using the control A .

67
ERGONOMICS and COMFORT
33
Practical information
Putting the bench seat back
in the seat position
- In a single movement: take hold of the red strap and pull
the assembly horizontally towards
the rear. Guide the movement until
the feet of the bench seat lock on
the fl oor.
- Raise the seat back. The control A locks automatically.
- Check that the bench is locked on the fl oor correctly once it has been
returned to the seat position.
Do not let the assembly fall sharply. Good practice
There is no need to assist, guide or
support using the arm which remains
free during the tilting movement.
The rear seat belt casings are not
designed for securing the load
transported. Use the stowing rings
on the fl oor only.
The bench seat of the crew cab is not
suitable for the installation of a child
seat.
- Using the same hand, fold the seat back and the associated grille onto
the seat cushion.
- Take hold of the red strap (like a handle) and lift and assembly
vertically, guiding the movement
to the fully folded position.
The raised seat rests against the backs
of the seats of row 1.

68
Practical information
LOAD SPACE LAYOUT
12 volt socket
Associated with the torch, it is
advisable to limit its use to avoid
discharging the battery. Maximum
power: 120 W. Stowing rings
Use the stowing rings on the rear fl oor
to secure your loads.
As a safety precaution in case of sharp
braking, you are advised to immobilise
the load by securing it fi rmly using the
stowing rings and place heavy objects
as far forwards as possible (towards
the cab). Trims
The lower parts of the sides are fi tted
with load protection trims.

69
ERGONOMICS and COMFORT
33
Practical information
Ladder Partition with fl ap
Mid-height partition
Load retainers
Your vehicle can be equipped with a
wide range of load retainers to effectively
protect the driver and front passenger(s),
while maintaining the loading adaptability. Removable flap
The fl ap located on the panel section
of the mid-height partition, behind
the passenger seat(s), can be removed
to permit the loading of long objects.
- Turn the control located at the top
of the fl ap to release it.
- Lift the fl ap to remove it from its location.
- Pivot the fl ap by 90° to the right.
- Store it behind the driver’s seat, clipping it into the securing lugs.
Contact a PEUGEOT dealer for
information about the different
accessory load retainer models.

68
Practical information
LOAD SPACE LAYOUT
12 volt socket
Associated with the torch, it is
advisable to limit its use to avoid
discharging the battery. Maximum
power: 120 W. Stowing rings
Use the stowing rings on the rear fl oor
to secure your loads.
As a safety precaution in case of sharp
braking, you are advised to immobilise
the load by securing it fi rmly using the
stowing rings and place heavy objects
as far forwards as possible (towards
the cab). Trims
The lower parts of the sides are fi tted
with load protection trims.

70
Practical information
The two interior bars are covered
with rubber and incorporate a strap
passage to secure the loaded objects.
The interior rack consists of two bars
to be installed at the top of the space
leaving the lower area of the passenger
compartment free.
It permits the transportation of long loads
(2 metres maximum) with the doors or
tailgate closed. The long load must rest
on the overhead storage compartment
and the two bars. However, be sure to comply with
the loads and weights permitted.
Maximum load: 10 kilogrammes per bar.
