103
Driving safety
SAFETY
4
TRACTION CONTROL (ASR)
AND DYNAMIC STABILITY
CONTROL (ESP)
These systems are linked and
complement the ABS.
The ASR system is very useful for
maintaining optimum drive and
avoiding losses of control of the vehicle
on acceleration.
The system optimises drive to prevent
the wheels skidding, by acting on the
brakes of the drive wheels and on the
engine. It also allows the directional
stability of the vehicle to be improved
on acceleration.
Use the ESP to hold your course
without attempting to countersteer.
If there is a variation between the
trajectory followed by the vehicle and
that required by the driver, the ESP
system automatically acts on the
engine and the brake of one or more
wheels, in order to put the vehicle back
on course. Disarming the ASR/
ESP systems

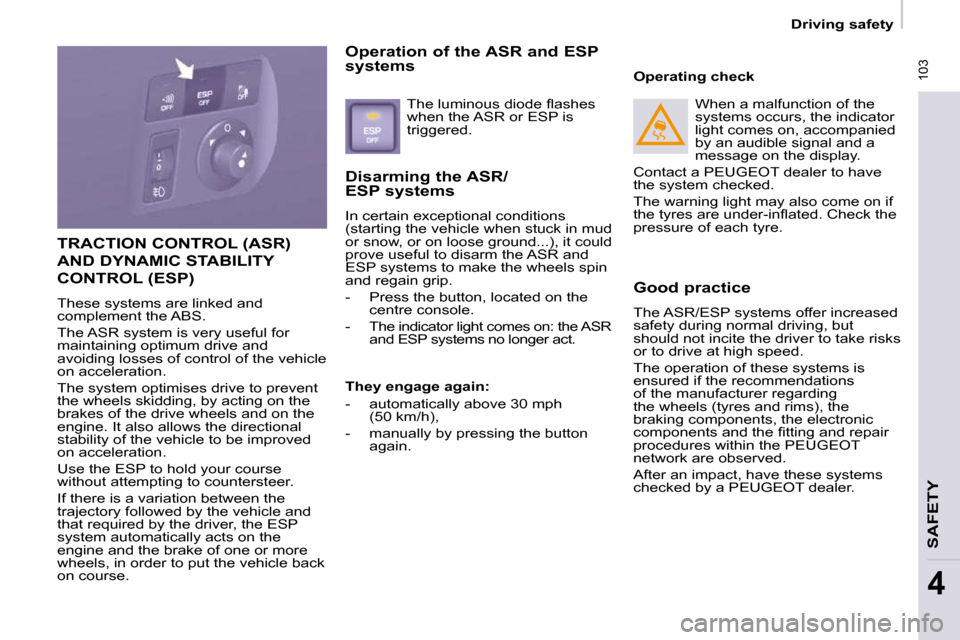

In certain exceptional conditions
( s t a r t i n g t h e v e h i c l e w h e n s t u c k i n m u d
or snow, or on loose ground...), it could
prove useful to disarm the ASR and
ESP systems to make the wheels spin
and regain grip.
- Press the button, located on the
centre console.
- T h e i n d i c a t o r l i g h t c o m e s o n : t h e A S R and ESP systems no longer act. Operating check
Good practice
The ASR/ESP systems offer increased
safety during normal driving, but
should not incite the driver to take risks
or to drive at high speed.
The operation of these systems is
ensured if the recommendations
of the manufacturer regarding
t h e w h e e l s ( t y r e s a n d r i m s ) , t h e
braking components, the electronic
c o m p o n e n t s a n d t h e fi t t i n g a n d r e p a i r
procedures within the PEUGEOT
network are observed.
After an impact, have these systems
checked by a PEUGEOT dealer.
Operation of the ASR and ESP
systems
T h e l u m i n o u s d i o d e fl a s h e s
when the ASR or ESP is
triggered.
They engage again:
- automatically above 30 mph ( 5 0 k m / h ) ,
- manually by pressing the button again. When a malfunction of the
systems occurs, the indicator
light comes on, accompanied
by an audible signal and a
message on the display.
Contact a PEUGEOT dealer to have
the system checked.
The warning light may also come on if
t h e t y r e s a r e u n d e r - i n fl a t e d . C h e c k t h e
pressure of each tyre.
Page 92 of 197
104104
Seat belts
SEAT BELTS

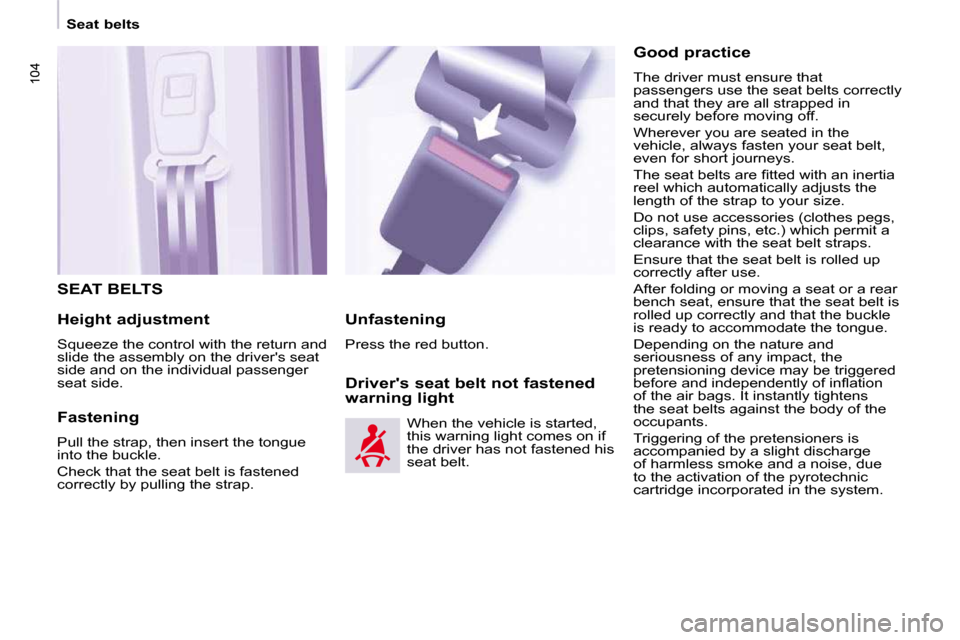

Height adjustment
Squeeze the control with the return and
slide the assembly on the driver's seat
side and on the individual passenger
seat side.
Fastening
Pull the strap, then insert the tongue
into the buckle.
Check that the seat belt is fastened
correctly by pulling the strap. Driver's seat belt not fastened
warning light
Unfastening
Press the red button.
When the vehicle is started,
this warning light comes on if
the driver has not fastened his
seat belt. Good practice
The driver must ensure that
passengers use the seat belts correctly
and that they are all strapped in
securely before moving off.
Wherever you are seated in the
vehicle, always fasten your seat belt,
even for short journeys.
T h e s e a t b e l t s a r e fi t t e d w i t h a n i n e r t i a
reel which automatically adjusts the
length of the strap to your size.
D o n o t u s e a c c e s s o r i e s ( c l o t h e s p e g s ,
clips, safety pins, etc.) which permit a
clearance with the seat belt straps.
Ensure that the seat belt is rolled up
correctly after use.
After folding or moving a seat or a rear
bench seat, ensure that the seat belt is
rolled up correctly and that the buckle
is ready to accommodate the tongue.
Depending on the nature and
seriousness of any impact, the
pretensioning device may be triggered
b e f o r e a n d i n d e p e n d e n t l y o f i n fl a t i o n
of the air bags. It instantly tightens
the seat belts against the body of the
occupants.
Triggering of the pretensioners is
accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
Page 93 of 197
1 0 5
SAFETY
4
Seat belts
Recommendations for children:
- use a suitable child seat if the passenger is less than 12 years old
o r s h o r t e r t h a n o n e m e t r e fi f t y ,
- never allow a child to travel on your lap, even with the seat belt
fastened.
For further information regarding
child seats, refer to the "Children
on board" section of chapter 4.
Clean the seat belt straps with
soapy water or a textile cleaning
product, sold by PEUGEOT
dealers.
In accordance with current safety
regulations, your PEUGEOT dealer
guarantees all work or any checks,
from testing to maintenance, on your
seat belt equipment.
Have the seat belts checked regularly
( e v e n a f t e r a m i n o r i m p a c t ) b y a
P E U G E O T d e a l e r : t h e y m u s t n o t s h o w
any signs of wear, cutting or fraying
and they must not be transformed or
m o d i fi e d .
The force limiter reduces the pressure
of the seat belt against the body of the
occupants.
The pretensioning seat belts are active
when the ignition is switched on.
T h e i n e r t i a r e e l s a r e fi t t e d w i t h a d e v i c e
which automatically locks the strap in
the event of a collision or emergency
braking or if the vehicle rolls over.
You can unfasten the seat belt by
pressing the red button on the buckle.
Guide the seat belt after unfastening.
The air bag warning light comes on
if the pretensioners are triggered.
Consult a PEUGEOT dealer.
In order to be effective, a seat belt
m u s t :
- restrain one person only,
- must not be twisted, check by
pulling in front of you with an even
movement,
- be tightened as close to the body as possible.
The upper part of the seat belt should
be positioned in the hollow of the
shoulder.
The lap part should be placed as low
as possible on the pelvis.
Do not invert the seat belt buckles as
t h e y w i l l n o t f u l fi l t h e i r r o l e c o m p l e t e l y .
I f t h e s e a t s a r e fi t t e d w i t h a r m r e s t s , t h e
lap part of the seat belt should always
pass under the armrest.
Check that the seat belt is fastened
c o r r e c t l y b y p u l l i n g t h e s t r a p fi r m l y . Front seat belts
T h e f r o n t s e a t s a r e fi t t e d w i t h
pretensioners and force limiters.
Rear seat belts
(5 seat version)
T h e r e a r s e a t s a r e fi t t e d w i t h
three-point inertia reel seat belts.
Page 94 of 197
106106
Seat belts
Rear seat belts
(7 seat version)

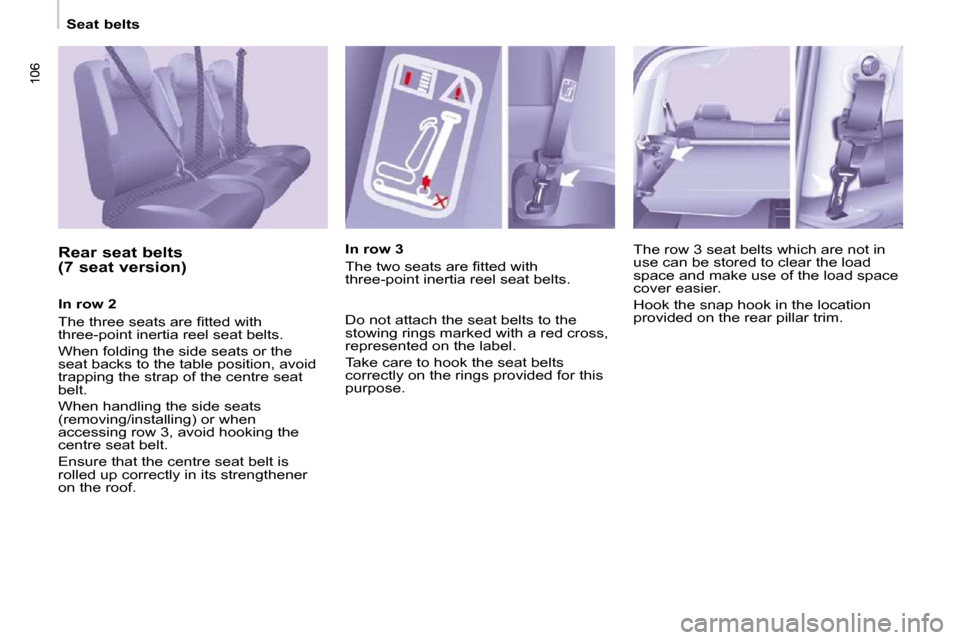

In row 2
T h e t h r e e s e a t s a r e fi t t e d w i t h
three-point inertia reel seat belts.
When folding the side seats or the
seat backs to the table position, avoid
trapping the strap of the centre seat
belt.
When handling the side seats
( r e m o v i n g / i n s t a l l i n g ) o r w h e n
accessing row 3, avoid hooking the
centre seat belt.
Ensure that the centre seat belt is
rolled up correctly in its strengthener
on the roof. In row 3
T h e t w o s e a t s a r e fi t t e d w i t h
three-point inertia reel seat belts.
Do not attach the seat belts to the
stowing rings marked with a red cross,
represented on the label.
Take care to hook the seat belts
correctly on the rings provided for this
purpose.
The row 3 seat belts which are not in
use can be stored to clear the load
space and make use of the load space
cover easier.
Hook the snap hook in the location
provided on the rear pillar trim.
Page 95 of 197
107
SAFETY
4
107
Air bags
AIR BAGS

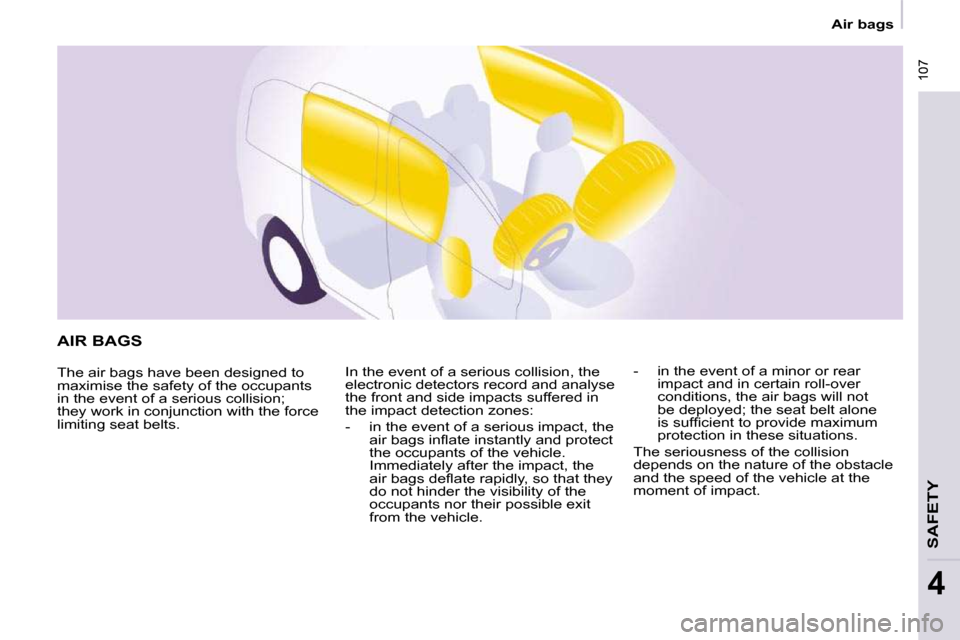

The air bags have been designed to
maximise the safety of the occupants
in the event of a serious collision;
they work in conjunction with the force
limiting seat belts. In the event of a serious collision, the
electronic detectors record and analyse
the front and side impacts suffered in
t h e i m p a c t d e t e c t i o n z o n e s :
- in the event of a serious impact, the
a i r b a g s i n fl a t e i n s t a n t l y a n d p r o t e c t
the occupants of the vehicle.
Immediately after the impact, the
a i r b a g s d e fl a t e r a p i d l y , s o t h a t t h e y
do not hinder the visibility of the
occupants nor their possible exit
from the vehicle. - in the event of a minor or rear
impact and in certain roll-over
conditions, the air bags will not
be deployed; the seat belt alone
i s s u f fi c i e n t t o p r o v i d e m a x i m u m
protection in these situations.
The seriousness of the collision
depends on the nature of the obstacle
and the speed of the vehicle at the
moment of impact.
Page 96 of 197
108108
Air bags
Good practice
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
o c c u p a n t s a n d t h e a i r b a g s ( a c h i l d ,
pet, object...). This could hamper the
operation of the air bags or injure the
occupants.
After an accident or if the vehicle has
been stolen or broken into, have the air
bag systems checked.
All work on the air bag system is strictly
forbidden unless it is carried out by
q u a l i fi e d p e r s o n n e l o f t h e P E U G E O T
network.
Even if all of the precautions
mentioned are observed, a risk of
injury or of minor burns to the head,
chest or arms when an air bag is
triggered cannot be ruled out. In fact,
t h e b a g i n fl a t e s a l m o s t i n s t a n t l y ( w i t h i n
a f e w m i l l i s e c o n d s ) t h e n d e fl a t e s w i t h i n
the same time discharging the hot gas

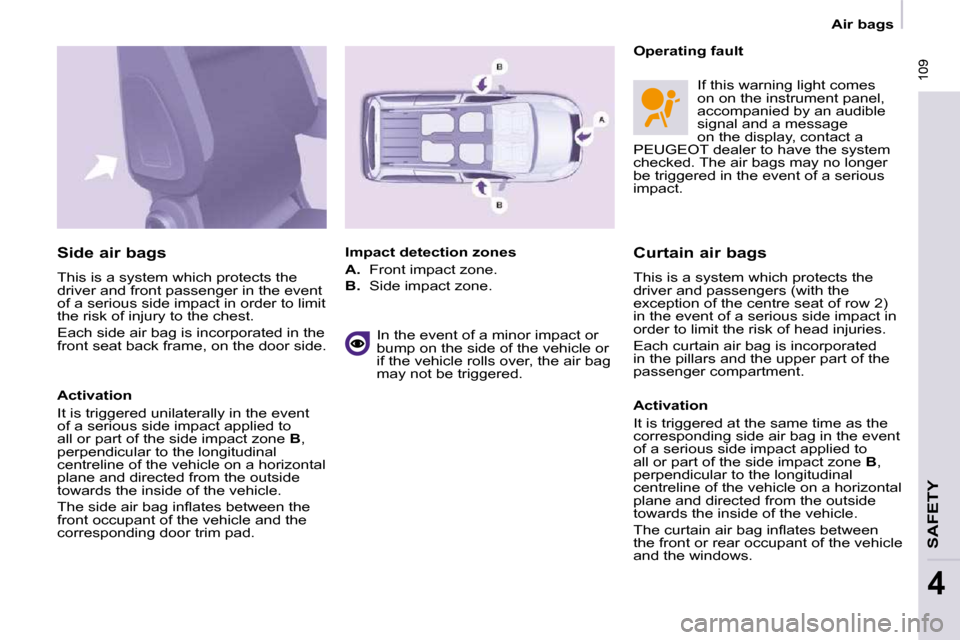

via openings provided for this purpose. Side air bags
Only put recommended covers on the
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a t i o n o f
the side air bags. Consult a PEUGEOT
dealer.
D o n o t fi x o r g l u e a n y t h i n g t o t h e s e a t
backs. This could cause injury to the
chest or arms when the side air bag
i n fl a t e s .
Do not sit with the upper part of the
body any nearer to the door than
necessary.
Front air bags
Do not drive holding the steering wheel
by its spokes or resting your hands on
the centre part of the wheel.
Do not allow passengers to place their
feet on the fascia, they risk serious
injury if the air bag is triggered.
Smoke as little as possible as
deployment of the air bags can cause
burns or the risk of injury from a
cigarette or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Air bags only operate when the
ignition is switched on.
This equipment only operates once.
I f a s e c o n d i m p a c t o c c u r s ( d u r i n g t h e
same or a subsequent accident), the
air bag will not operate.
The triggering of an air bag or air bags
is accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
This smoke is not harmful, but
sensitive individuals may experience
some irritation.
The noise of the detonation may result
in a slight loss of hearing for a short
time.

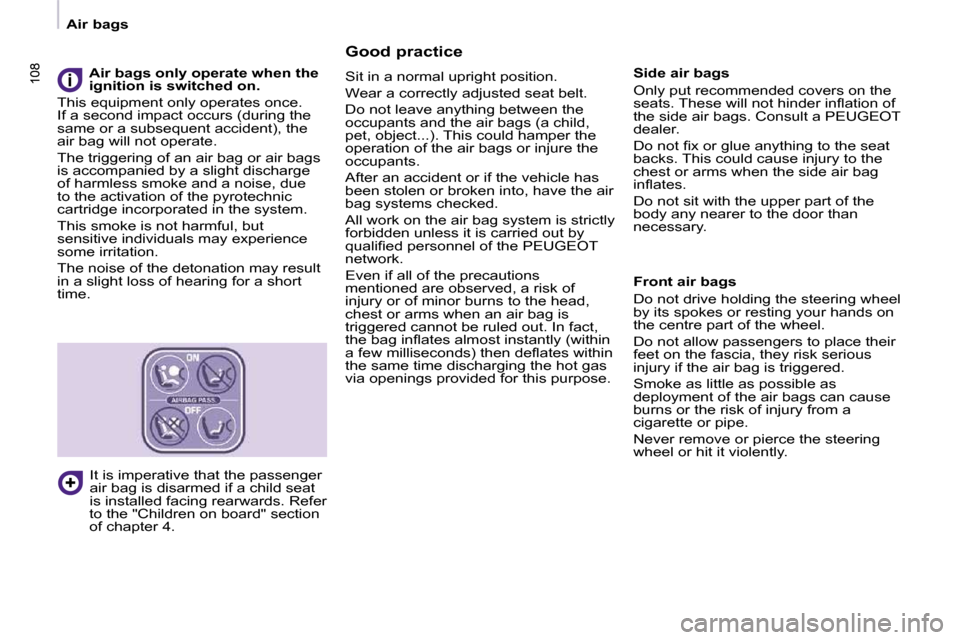

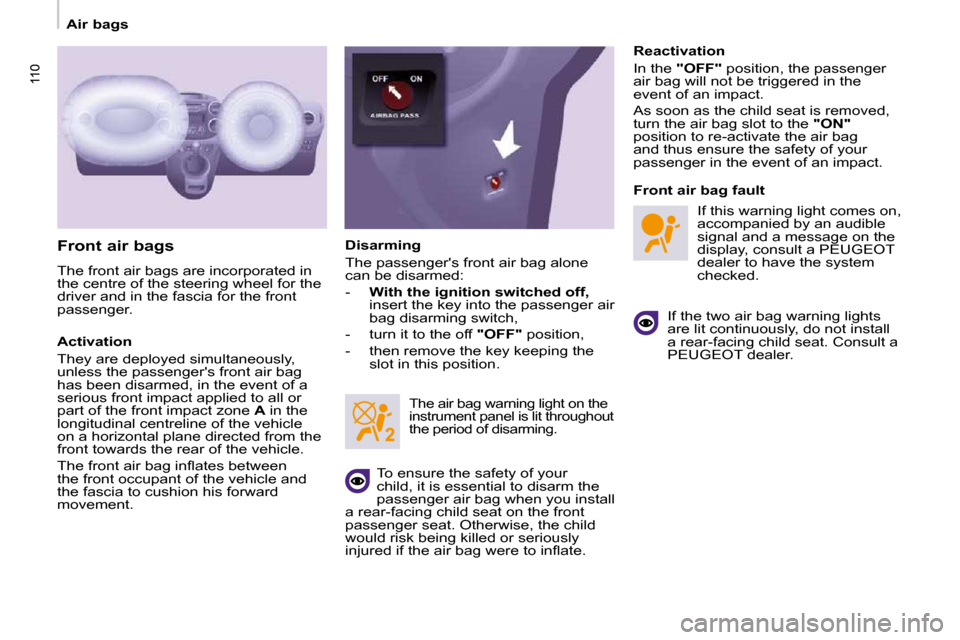

It is imperative that the passenger
air bag is disarmed if a child seat
is installed facing rearwards. Refer
to the "Children on board" section
of chapter 4.
Page 97 of 197
110110
Air bags
Front air bags
The front air bags are incorporated in
the centre of the steering wheel for the
driver and in the fascia for the front
passenger.
Activation
They are deployed simultaneously,
unless the passenger's front air bag
has been disarmed, in the event of a
serious front impact applied to all or
part of the front impact zone A in the
longitudinal centreline of the vehicle
on a horizontal plane directed from the
front towards the rear of the vehicle.
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n
the front occupant of the vehicle and
the fascia to cushion his forward
movement. Disarming
The passenger's front air bag alone
c a n b e d i s a r m e d :
-
With the ignition switched off,
insert the key into the passenger air
bag disarming switch,
- turn it to the off "OFF" position,
- then remove the key keeping the slot in this position.
The air bag warning light on the
instrument panel is lit throughout
the period of disarming.
If the two air bag warning lights
are lit continuously, do not install
a rear-facing child seat. Consult a
PEUGEOT dealer.
Front air bag fault
To ensure the safety of your
child, it is essential to disarm the
passenger air bag when you install
a rear-facing child seat on the front
passenger seat. Otherwise, the child
would risk being killed or seriously
i n j u r e d i f t h e a i r b a g w e r e t o i n fl a t e . Reactivation
In the
"OFF" position, the passenger
air bag will not be triggered in the
event of an impact.
As soon as the child seat is removed,
turn the air bag slot to the "ON"
position to re-activate the air bag
and thus ensure the safety of your
passenger in the event of an impact.
If this warning light comes on,
accompanied by an audible
signal and a message on the
display, consult a PEUGEOT
dealer to have the system
checked.
Page 98 of 197
107
SAFETY
4
107
Air bags
AIR BAGS
The air bags have been designed to
maximise the safety of the occupants
in the event of a serious collision;
they work in conjunction with the force
limiting seat belts. In the event of a serious collision, the
electronic detectors record and analyse
the front and side impacts suffered in
t h e i m p a c t d e t e c t i o n z o n e s :
- in the event of a serious impact, the
a i r b a g s i n fl a t e i n s t a n t l y a n d p r o t e c t
the occupants of the vehicle.
Immediately after the impact, the
a i r b a g s d e fl a t e r a p i d l y , s o t h a t t h e y
do not hinder the visibility of the
occupants nor their possible exit
from the vehicle. - in the event of a minor or rear
impact and in certain roll-over
conditions, the air bags will not
be deployed; the seat belt alone
i s s u f fi c i e n t t o p r o v i d e m a x i m u m
protection in these situations.
The seriousness of the collision
depends on the nature of the obstacle
and the speed of the vehicle at the
moment of impact.
Page 99 of 197
108108
Air bags
Good practice
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
o c c u p a n t s a n d t h e a i r b a g s ( a c h i l d ,
pet, object...). This could hamper the
operation of the air bags or injure the
occupants.
After an accident or if the vehicle has
been stolen or broken into, have the air
bag systems checked.
All work on the air bag system is strictly
forbidden unless it is carried out by
q u a l i fi e d p e r s o n n e l o f t h e P E U G E O T
network.
Even if all of the precautions
mentioned are observed, a risk of
injury or of minor burns to the head,
chest or arms when an air bag is
triggered cannot be ruled out. In fact,
t h e b a g i n fl a t e s a l m o s t i n s t a n t l y ( w i t h i n
a f e w m i l l i s e c o n d s ) t h e n d e fl a t e s w i t h i n
the same time discharging the hot gas
via openings provided for this purpose. Side air bags
Only put recommended covers on the
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a t i o n o f
the side air bags. Consult a PEUGEOT
dealer.
D o n o t fi x o r g l u e a n y t h i n g t o t h e s e a t
backs. This could cause injury to the
chest or arms when the side air bag
i n fl a t e s .
Do not sit with the upper part of the
body any nearer to the door than
necessary.
Front air bags
Do not drive holding the steering wheel
by its spokes or resting your hands on
the centre part of the wheel.
Do not allow passengers to place their
feet on the fascia, they risk serious
injury if the air bag is triggered.
Smoke as little as possible as
deployment of the air bags can cause
burns or the risk of injury from a
cigarette or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Air bags only operate when the
ignition is switched on.
This equipment only operates once.
I f a s e c o n d i m p a c t o c c u r s ( d u r i n g t h e
same or a subsequent accident), the
air bag will not operate.
The triggering of an air bag or air bags
is accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
This smoke is not harmful, but
sensitive individuals may experience
some irritation.
The noise of the detonation may result
in a slight loss of hearing for a short
time.
It is imperative that the passenger
air bag is disarmed if a child seat
is installed facing rearwards. Refer
to the "Children on board" section
of chapter 4.
Page 100 of 197
109
SAFETY
4
109
Air bags
Curtain air bags
This is a system which protects the
d r i v e r a n d p a s s e n g e r s ( w i t h t h e
exception of the centre seat of row 2)
in the event of a serious side impact in
order to limit the risk of head injuries.
Each curtain air bag is incorporated
in the pillars and the upper part of the
passenger compartment.
Activation
It is triggered at the same time as the
corresponding side air bag in the event
of a serious side impact applied to
all or part of the side impact zone B ,
perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside
towards the inside of the vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n
the front or rear occupant of the vehicle
and the windows.
Side air bags
This is a system which protects the
driver and front passenger in the event
of a serious side impact in order to limit
the risk of injury to the chest.
Each side air bag is incorporated in the
front seat back frame, on the door side.
Activation
It is triggered unilaterally in the event
of a serious side impact applied to
all or part of the side impact zone
B ,
perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside
towards the inside of the vehicle.
T h e s i d e a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
corresponding door trim pad. Impact detection zones
A. Front impact zone.
B. Side impact zone. Operating fault
If this warning light comes
on on the instrument panel,
accompanied by an audible
signal and a message
on the display, contact a
PEUGEOT dealer to have the system
checked. The air bags may no longer
be triggered in the event of a serious
impact.
In the event of a minor impact or
bump on the side of the vehicle or
if the vehicle rolls over, the air bag
may not be triggered.
