Peugeot Partner Tepee 2009 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2009, Model line: Partner Tepee, Model: Peugeot Partner Tepee 2009Pages: 197, PDF Size: 6.66 MB
Page 101 of 197
111
SAFETY
4
111
Child safety
GENERAL POINTS RELATING
TO CHILD SEATS
Although one of PEUGEOT's main
criteria when designing your vehicle,
the safety of your children also
depends on you.
For maximum safety, please follow
t h e s e p r e c a u t i o n s :
- all children under the age of 12 or l e s s t h a n o n e m e t r e fi f t y t a l l m u s t
travel in approved child seats suited
t o t h e i r w e i g h t , o n s e a t s fi t t e d w i t h
a seat belt or ISOFIX mountings,
- statistically, the safest seats in your vehicle for the transportation of
children are the rear seats,
- a child weighing less than 9 kg must travel in the
"rearwards-facing" position
both in the front and in the rear,
- the passenger must not travel with a child on his lap. INSTALLING A CHILD SEAT USING A THREE POINT SEAT BELT
"Rearwards-facing"
Recommended on the rear seats up to
the age of 2.
When a "rearwards-facing" child seat is
installed on the front passenger seat, it
is essential that the passenger air bag
is disarmed. Otherwise, the child would
risk being seriously injured or killed if
t h e a i r b a g w e r e t o i n fl a t e .
"Forwards-facing"
Recommended on the rear seats over
the age of 2.
When a "forwards-facing" child seat is
installed on the front passenger seat,
leave the passenger air bag armed.
The rules for transporting children
a r e s p e c i fi c t o e a c h c o u n t r y .
Consult the current legislation in
your country.
Please consult the list of seats
a p p r o v e d i n y o u r c o u n t r y . T h e i s o fi x
mountings, the rear seats, the
passenger air bag and the disarming of
this air bag depend on the version sold.
Page 102 of 197
112112
Child safety
Refer to chapter 4, "Air bags"
section.
The child seats function and the
passenger air bag disarming
function are common to the entire
PEUGEOT range.
If the passenger air bag is not
disarmed, the installation of a
"rearwards-facing" child seat in the

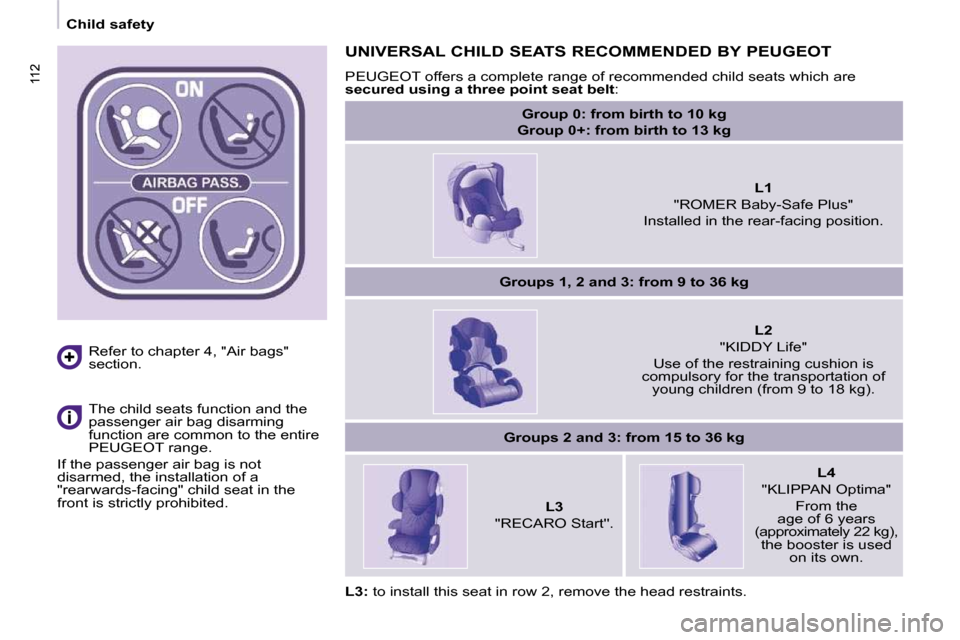

front is strictly prohibited. UNIVERSAL CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which a
re
secured using a three point seat belt :
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position.
Groups 1, 2 and 3: from 9 to 36 kg
L2
"KIDDY Life"
Use of the restraining cushion is
compulsory for the transportation of y o u n g c h i l d r e n ( f r o m 9 t o 1 8 k g ) .
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start'' .
L4
"KLIPPAN Optima" From the
age of 6 years
( a p p r o x i m a t e l y 2 2 k g ) , the booster is used on its own.
L3: to install this seat in row 2, remove the head restraints.
Page 103 of 197
117
4
117
Child safety
ADVICE ON CHILD SEATS
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack in relation to the child's body
to a minimum , even for short
journeys.
For optimum installation of the "forward
facing" child seat, ensure that the back
of the child seat is in contact with the
back of the vehicle's seat and that the
head restraint does not cause any
discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached
securely to prevent it from being
thrown around the vehicle in the event
of sharp braking.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
absent.
Disarm the passenger air bag when a
"rear facing" child seat is installed on
the front seat.
Otherwise, the child would risk being
seriously injured or killed if the air bag
w e r e t o i n fl a t e .
A s a s a f e t y p r e c a u t i o n , d o n o t l e a v e :
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle. Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
PEUGEOT recommends the use of a
b o o s t e r s e a t w h i c h h a s a b a c k , fi t t e d
with a seat belt guide at shoulder level.
CHILD LOCK
This prevents opening of the side
doors from the inside. Manual mode
A label indicates the location of the
child lock.
- Open fully past the point of
resistance.
- Tilt the lever, located on the rear section of the door.
Electric mode With the ignition on, press this
button. The diode comes on.
W a r n i n g : t h i s s y s t e m i s
independent of the central
locking control.
Always remove the ignition key when
leaving the vehicle, even for a short
time.
It is advisable to check the activation of
the child lock each time the ignition is
switched on.
In the event of a serious impact the
electric child lock is deactivated
automatically.
To prevent accidental opening of the
doors, use the "Child Lock".
Take care not to open the rear windows
by more than one third.
To protect young children from the rays
o f t h e s u n , fi t s i d e b l i n d s t o t h e r e a r
windows.
Page 104 of 197
112112
Child safety
Refer to chapter 4, "Air bags"
section.
The child seats function and the
passenger air bag disarming
function are common to the entire
PEUGEOT range.
If the passenger air bag is not
disarmed, the installation of a
"rearwards-facing" child seat in the
front is strictly prohibited. UNIVERSAL CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which a
re
secured using a three point seat belt :
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position.
Groups 1, 2 and 3: from 9 to 36 kg
L2
"KIDDY Life"
Use of the restraining cushion is
compulsory for the transportation of y o u n g c h i l d r e n ( f r o m 9 t o 1 8 k g ) .
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start'' .
L4
"KLIPPAN Optima" From the
age of 6 years
( a p p r o x i m a t e l y 2 2 k g ) , the booster is used on its own.
L3: to install this seat in row 2, remove the head restraints.
Page 105 of 197
113
SAFETY
4
113
Child safety

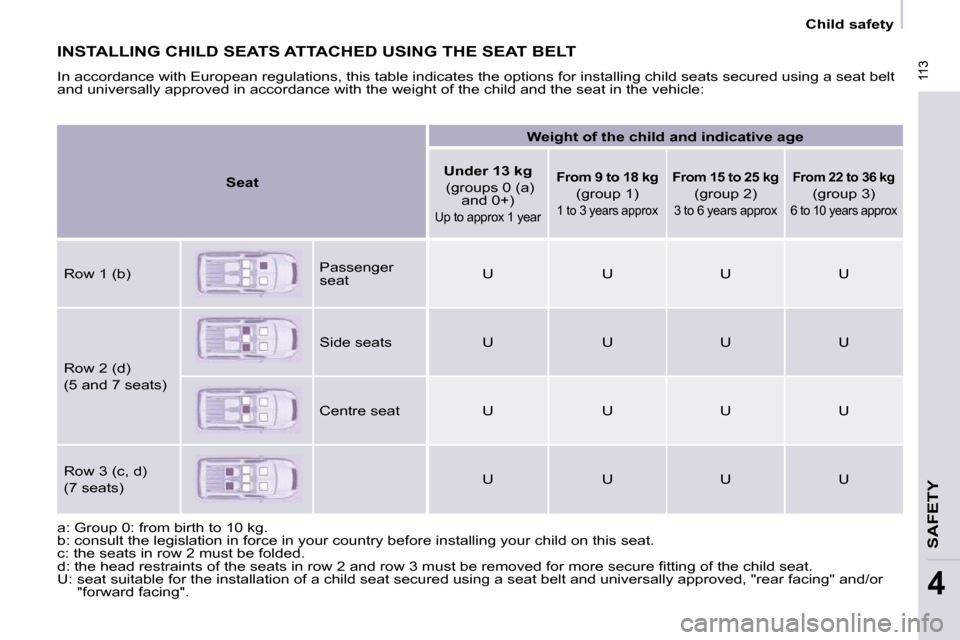

INSTALLING CHILD SEATS ATTACHED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt
a n d u n i v e r s a l l y a p p r o v e d i n a c c o r d a n c e w i t h t h e w e i g h t o f t h e c h i l d a n d t h e s e a t i n t h e v e h i c l e :
a : G r o u p 0 : f r o m b i r t h t o 1 0 k g .
b : c o n s u l t t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y b e f o r e i n s t a l l i n g y o u r c h i l d o n t h i s s e a t .
c : t h e s e a t s i n r o w 2 m u s t b e f o l d e d .
d : t h e h e a d r e s t r a i n t s o f t h e s e a t s i n r o w 2 a n d r o w 3 m u s t b e r e m o v e d f o r m o r e s e c u r e fi t t i n g o f t h e c h i l d s e a t .
U : s e a t s u i t a b l e f o r t h e i n s t a l l a t i o n o f a c h i l d s e a t s e c u r e d u s i n g a s e a t b e l t a n d u n i v e r s a l l y a p p r o v e d , " r e a r f a c i n g " a n d / o r
"forward facing".
Seat
Weight of the child and indicative age
Under 13 kg
( g r o u p s 0 ( a ) and 0+)
Up to approx 1 year
From 9 to 18 kg
( g r o u p 1 )
1 to 3 years approx
From 15 to 25 kg
( g r o u p 2 )
3 to 6 years approx
From 22 to 36 kg
( g r o u p 3 )
6 to 10 years approx
R o w 1 ( b ) Passenger
seat U U U U
R o w 2 ( d )
( 5 a n d 7 s e a t s ) Side seats U U U U
Centre seat U U U U
R o w 3 ( c , d )
( 7 s e a t s )
U U U U
Page 106 of 197
114114
Child safety
Your vehicle has been approved in
accordance with the new ISOFIX
regulation.
The mountings comprise three rings for
e a c h s e a t : - two front rings
A and B , located
between the vehicle seat back and
cushion, - a rear ring
C , located on the back
of the vehicle's seat back, for
securing the upper strap referred to
as the TOP TETHER.
This ISOFIX mounting system
guarantees you fast, reliable and safe
fi t t i n g o f t h e c h i l d s e a t i n y o u r v e h i c l e
on the side seats.
T h e I S O F I X c h i l d s e a t s a r e fi t t e d w i t h
two locks which are secured easily on
the two front rings.
Some also have an upper strap which
is attached to the rear ring C .
To attach this strap, raise the
vehicle seat's head restraint then
pass the hook between its rods.
T h e n fi x t h e h o o k o n t h e r e a r r i n g a n d
tighten the upper strap.
I s o fi x s e a t w i t h s u p p o r t
I S O F I X c h i l d s e a t s fi t t e d w i t h a
s u p p o r t ( w h i c h r e s t s o n t h e fl o o r
of your vehicle) cannot be installed on
r e a r s e a t s e q u i p p e d w i t h fl o o r b o x e s
( u n d e r t h e f o o t w e l l s ) .
Page 107 of 197
1 1 5
SAFETY
4
1 1 5
Child safety
This child seat can also be used on
s e a t s w h i c h a r e n o t fi t t e d w i t h I S O F I X
mountings.
In this case, it must be attached to the
vehicle seat using the three point seat
belt.
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g
the child seat given in the seat
manufacturer's installation guide.

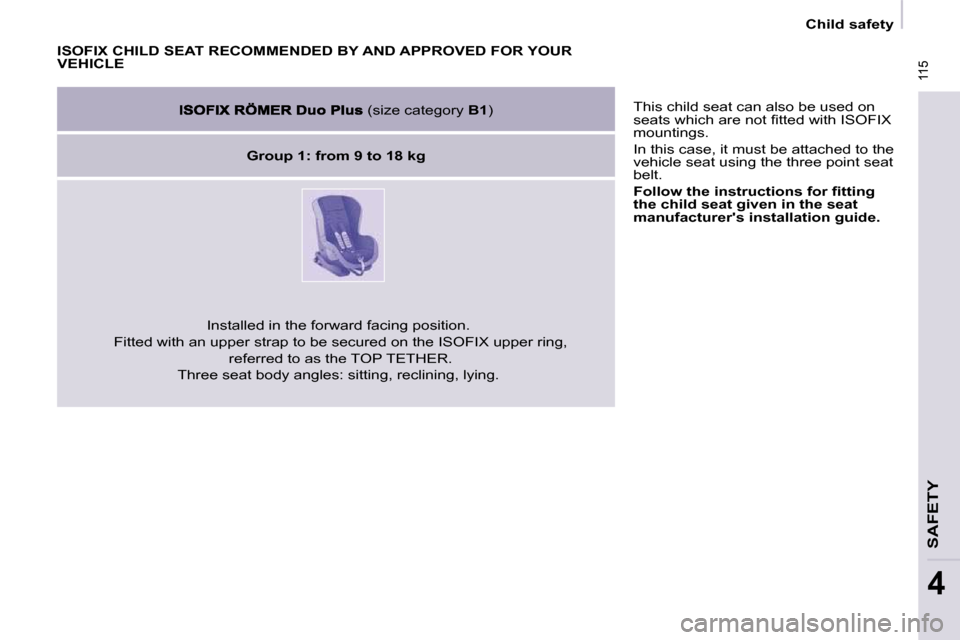

ISOFIX CHILD SEAT RECOMMENDED BY AND APPROVED FOR YOUR
VEHICLE
( s i z e c a t e g o r y B1 )
Group 1: from 9 to 18 kg
Installed in the forward facing position.
Fitted with an upper strap to be secured on the ISOFIX upp
er ring,
referred to as the TOP TETHER.
T h r e e s e a t b o d y a n g l e s : s i t t i n g , r e c l i n i n g , l y i n g .
Page 108 of 197
116116
Child safety

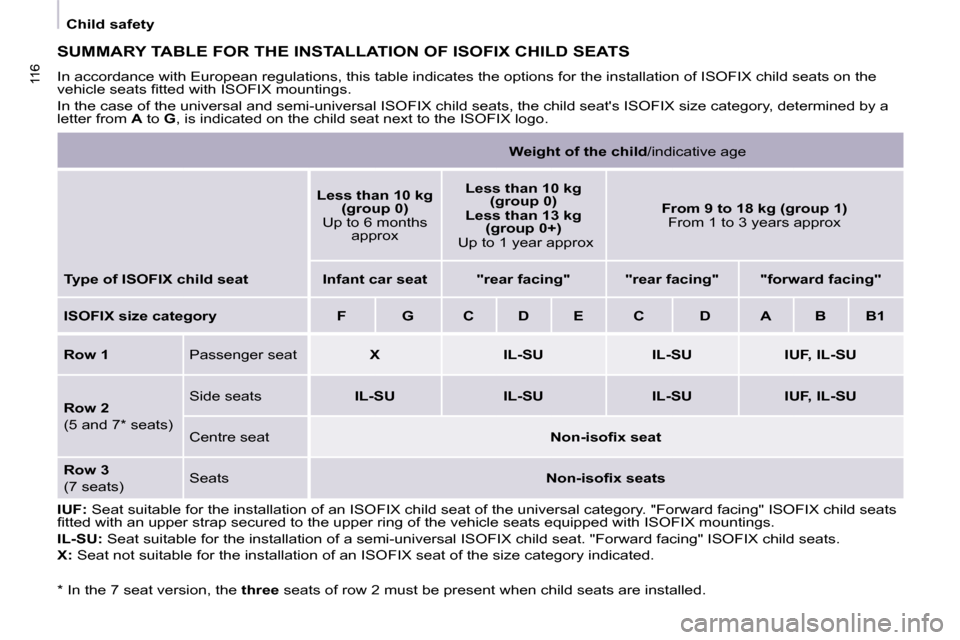

SUMMARY TABLE FOR THE INSTALLATION OF ISOFIX CHILD SEATS
In accordance with European regulations, this table indicates the options for the installation of ISOFIX child seats on the
v e h i c l e s e a t s fi t t e d w i t h I S O F I X m o u n t i n g s .
In the case of the universal and semi-universal ISOFIX child seat s, the child seat's ISOFIX size category, determined by a
letter from A to G , is indicated on the child seat next to the ISOFIX logo.
Weight of the child /indicative age
Less than 10 kg
(group 0)
Up to 6 months approx
Less than 10 kg
(group 0)
Less than 13 kg (group 0+)
Up to 1 year approx
From 9 to 18 kg (group 1)
From 1 to 3 years approx
Type of ISOFIX child seat Infant car seat "rear facing" "rear facing" "forward facing"
ISOFIX size category F G C D E C D A B B1
Row 1 Passenger seat X IL-SU IL-SU IUF, IL-SU
Row 2
( 5 a n d 7 * s e a t s ) Side seats
IL-SU IL-SU IL-SU IUF, IL-SU
Centre seat
N
o n - i s o fi x s e a t
Row 3
( 7 s e a t s ) Seats
N o n - i s o fi x s e a t s
IUF: Seat suitable for the installation of an ISOFIX child sea t of the universal category. "Forward facing" ISOFIX child seats
fi t t e d w i t h a n u p p e r s t r a p s e c u r e d t o t h e u p p e r r i n g o f t h e v e h i c l e s e a t s e q u i p p e d w i t h I S O F I X m o u n t i n g s .
IL-SU: Seat suitable for the installation of a semi-universal ISOFI X child seat. "Forward facing" ISOFIX child seats.
X: Seat not suitable for the installation of an ISOFIX seat of the size category indicated.
* I n t h e 7 s e a t v e r s i o n , t h e three seats of row 2 must be present when child seats are installed .
Page 109 of 197
117
4
117
Child safety
ADVICE ON CHILD SEATS
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack in relation to the child's body
to a minimum , even for short
journeys.
For optimum installation of the "forward
facing" child seat, ensure that the back
of the child seat is in contact with the
back of the vehicle's seat and that the
head restraint does not cause any
discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached
securely to prevent it from being
thrown around the vehicle in the event
of sharp braking.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
absent.
Disarm the passenger air bag when a
"rear facing" child seat is installed on
the front seat.
Otherwise, the child would risk being
seriously injured or killed if the air bag
w e r e t o i n fl a t e .
A s a s a f e t y p r e c a u t i o n , d o n o t l e a v e :
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle. Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
PEUGEOT recommends the use of a
b o o s t e r s e a t w h i c h h a s a b a c k , fi t t e d
with a seat belt guide at shoulder level.
CHILD LOCK
This prevents opening of the side
doors from the inside. Manual mode
A label indicates the location of the
child lock.
- Open fully past the point of
resistance.
- Tilt the lever, located on the rear section of the door.
Electric mode With the ignition on, press this
button. The diode comes on.
W a r n i n g : t h i s s y s t e m i s
independent of the central
locking control.
Always remove the ignition key when
leaving the vehicle, even for a short
time.
It is advisable to check the activation of
the child lock each time the ignition is
switched on.
In the event of a serious impact the
electric child lock is deactivated
automatically.
To prevent accidental opening of the
doors, use the "Child Lock".
Take care not to open the rear windows
by more than one third.
To protect young children from the rays
o f t h e s u n , fi t s i d e b l i n d s t o t h e r e a r
windows.
Page 110 of 197
118

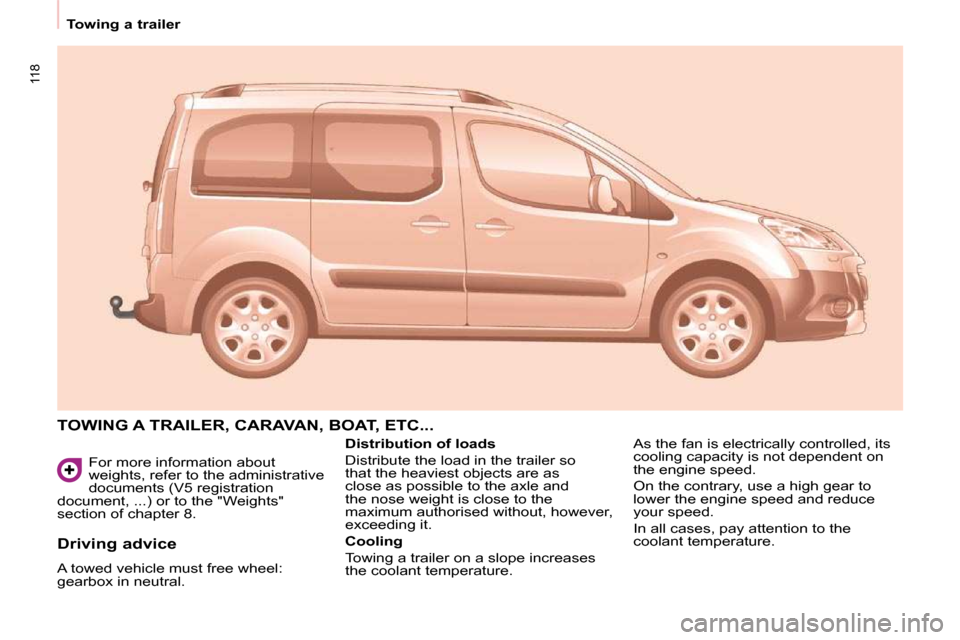

Towing a trailer For more information about
weights, refer to the administrative
documents (V5 registration
document, ...) or to the "Weights"
section of chapter 8.
TOWING A TRAILER, CARAVAN, BOAT, ETC...
Distribution of loads
Distribute the load in the trailer so
that the heaviest objects are as
close as possible to the axle and
the nose weight is close to the
maximum authorised without, however,
exceeding it.
Cooling
Towing a trailer on a slope increases
the coolant temperature. As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
On the contrary, use a high gear to
lower the engine speed and reduce
your speed.
In all cases, pay attention to the
coolant temperature.
Driving advice
A towed vehicle must free wheel:
gearbox in neutral.
