Page 81 of 197
9 4
Practical information
T h e i n t e r i o r r a c k c o n s i s t s o f t w o
b a r s t o b e i n s t a l l e d a t t h e t o p o f t h e
s p a c e l e a v i n g t h e l o w e r a r e a o f t h e
p a s s e n g e r c o m p a r t m e n t f r e e .
I t p e r m i t s t h e t r a n s p o r t a t i o n o f l o n g
l o a d s ( 2 m e t r e s m a x i m u m ) w i t h t h e
d o o r s o r t a i l g a t e c l o s e d . T h e l o n g l o a d
m u s t r e s t o n t h e o v e r h e a d s t o r a g e
c o m p a r t m e n t a n d t h e t w o b a r s . M a x i m u m l o a d : 1 0 k i l o g r a m m e s p e r
b a r .
T h e t w o i n t e r i o r b a r s a r e c o v e r e d
w i t h r u b b e r a n d i n c o r p o r a t e a s t r a p
p a s s a g e t o s e c u r e t h e l o a d e d o b j e c t s .
However, be sure to comply with the
l o a d s a n d w e i g h t s p e r m i t t e d .
Page 82 of 197
9 5
ERGONOMICS AND COMFORT
33
Practical information
T h e i n t e r i o r r a c k i s n o t c o m p a t i b l e
w i t h t h e Z e n i t h r o o f .
Fitting the bars
- U n c l i p t h e p l a s t i c c o v e r s
C .
- U n s c r e w t h e k n u r l e d w h e e l s l o c a t e d a t t h e e n d s o f t h e b a r s f u l l y .
- T a k e h o l d o f t h e b a r b y t h e e n d s t o s l i d e t h e m t o w a r d s t h e i n s i d e t o
r e t r a c t t h e m .
- E x t r a c t t h e m e t a l e n d p i e c e A
t a k i n g h o l d o f t h e e n d o f t h e b a r l i k e
a s y r i n g e .
- Insert the end piece A on one side
t h e n l o w e r i t t o fi x i t i n t h e b a s e o f
the notch B . Storing
W h e n t h e b a r s a r e n o t i n u s e :
- p a r t i a l l y l o o s e n t h e k n u r l e d w h e e l s ,
- l i f t t h e b a r s l i g h t l y ,
- p i v o t i t u p w a r d s b y 1 8 0 ° ,
- t i g h t e n t h e k n u r l e d w h e e l .
Good practice
I n t h e e v e n t o f a f r o n t i m p a c t , t h e r a c k
i s d i s e n g a g e d t o a v o i d i n j u r y t o t h e
o c c u p a n t s o f t h e v e h i c l e . T h e s l i g h t
c l e a r a n c e o b s e r v e d i n t h e b a r i s l i n k e d
w i t h t h i s s a f e t y d i s e n g a g e m e n t .
D o n o t l o o s e n o r p l a c e t h e b a r s i n a
p o s i t i o n o t h e r t h a n t h o s e d e s c r i b e d
a b o v e .
T h e l o a d o n t h e r a c k m u s t r e s t o n t h e
o v e r h e a d s t o r a g e c o m p a r t m e n t a n d
b e s t r a p p e d u s i n g t h e s t r a p p a s s a g e s
p r o v i d e d o n t h e b a r s .
T h e b a r s a r e n o t g r a b h a n d l e s f o r t h e
p a s s e n g e r s .
- C a r r y o u t t h e s a m e o p e r a t i o n s o n
the other side.
- E n s u r e t h a t t h e y a r e e n g a g e d c o r r e c t l y a t t h e b a s e o f t h e n o t c h .
- T i g h t e n t h e k n u r l e d w h e e l s a n d c h e c k t h e t i g h t e n i n g b y p u s h i n g t h e
b a r s i d e w a y s .
T o r e m o v e , p r o c e e d i n t h e r e v e r s e
order.
Page 83 of 197
9 6
Mirrors and windows
Electric exterior mirrors
- Move the control to the right or to the left to select the corresponding
mirror.
- M o v e t h e c o n t r o l i n a l l f o u r d i r e c t i o n s t o a d j u s t .
- R e t u r n t h e c o n t r o l t o t h e c e n t r a l position.
Electric folding/unfolding
T h e m i r r o r s c a n b e f o l d e d o r u n f o l d e d
e l e c t r i c a l l y f r o m t h e i n s i d e , w i t h t h e
v e h i c l e p a r k e d a n d t h e i g n i t i o n o n :
- P l a c e t h e c o n t r o l i n t h e c e n t r a l position.
- T u r n t h e c o n t r o l d o w n w a r d s .
MIRRORS
Heated mirrors
T h e e l e c t r i c m i r r o r s c a n b e h e a t e d .
Manual exterior mirrors
M o v e t h e l e v e r i n a l l f o u r d i r e c t i o n s t o
a d j u s t .
W h e n t h e v e h i c l e i s p a r k e d , t h e
e x t e r i o r m i r r o r s c a n b e f o l d e d b a c k
m a n u a l l y .
T h e m i r r o r s a r e n o t e q u i p p e d w i t h
a u t o m a t i c d e - i c i n g .
Forced folding
I f t h e m i r r o r c a s i n g h a s c o m e o u t o f i t s
i n i t i a l l o c a t i o n , w i t h t h e v e h i c l e s t a t i o n a r y
r e p o s i t i o n t h e m i r r o r c a s i n g m a n u a l l y o r
use the electric folding control. P r e s s t h e r e a r s c r e e n
de-icing button.
Page 84 of 197
9 7
ERGONOMICS AND COMFORT
33
Mirrors and windows

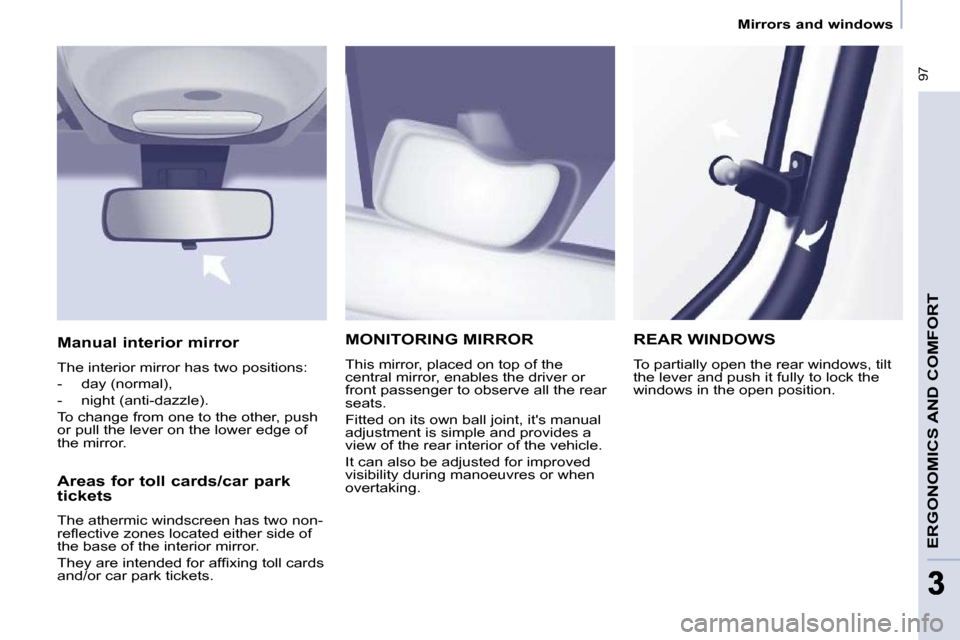

MONITORING MIRROR
T h i s m i r r o r , p l a c e d o n t o p o f t h e
c e n t r a l m i r r o r , e n a b l e s t h e d r i v e r o r
f r o n t p a s s e n g e r t o o b s e r v e a l l t h e r e a r
s e a t s .
F i t t e d o n i t s o w n b a l l j o i n t , i t ' s m a n u a l
a d j u s t m e n t i s s i m p l e a n d p r o v i d e s a
v i e w o f t h e r e a r i n t e r i o r o f t h e v e h i c l e .
I t c a n a l s o b e a d j u s t e d f o r i m p r o v e d
v i s i b i l i t y d u r i n g m a n o e u v r e s o r w h e n
o v e r t a k i n g .
Areas for toll cards/car park
tickets
T h e a t h e r m i c w i n d s c r e e n h a s t w o n o n -
r e fl e c t i v e z o n e s l o c a t e d e i t h e r s i d e o f
t h e b a s e o f t h e i n t e r i o r m i r r o r .
T h e y a r e i n t e n d e d f o r a f fi x i n g t o l l c a r d s
a n d / o r c a r p a r k t i c k e t s .
REAR WINDOWS
T o p a r t i a l l y o p e n t h e r e a r w i n d o w s , t i l t
t h e l e v e r a n d p u s h i t f u l l y t o l o c k t h e
windows in the open position.
Manual interior mirror
T h e i n t e r i o r m i r r o r h a s t w o p o s i t i o n s :
- d a y ( n o r m a l ) ,
- n i g h t ( a n t i - d a z z l e ) .
T o c h a n g e f r o m o n e t o t h e o t h e r , p u s h
or pull the lever on the lower edge of
the mirror.
Page 85 of 197
9 7
ERGONOMICS AND COMFORT
33
Mirrors and windows
MONITORING MIRROR
T h i s m i r r o r , p l a c e d o n t o p o f t h e
c e n t r a l m i r r o r , e n a b l e s t h e d r i v e r o r
f r o n t p a s s e n g e r t o o b s e r v e a l l t h e r e a r
s e a t s .
F i t t e d o n i t s o w n b a l l j o i n t , i t ' s m a n u a l
a d j u s t m e n t i s s i m p l e a n d p r o v i d e s a
v i e w o f t h e r e a r i n t e r i o r o f t h e v e h i c l e .
I t c a n a l s o b e a d j u s t e d f o r i m p r o v e d
v i s i b i l i t y d u r i n g m a n o e u v r e s o r w h e n
o v e r t a k i n g .
Areas for toll cards/car park
tickets
T h e a t h e r m i c w i n d s c r e e n h a s t w o n o n -
r e fl e c t i v e z o n e s l o c a t e d e i t h e r s i d e o f
t h e b a s e o f t h e i n t e r i o r m i r r o r .
T h e y a r e i n t e n d e d f o r a f fi x i n g t o l l c a r d s
a n d / o r c a r p a r k t i c k e t s .
REAR WINDOWS
T o p a r t i a l l y o p e n t h e r e a r w i n d o w s , t i l t
t h e l e v e r a n d p u s h i t f u l l y t o l o c k t h e
windows in the open position.
Manual interior mirror
T h e i n t e r i o r m i r r o r h a s t w o p o s i t i o n s :
- d a y ( n o r m a l ) ,
- n i g h t ( a n t i - d a z z l e ) .
T o c h a n g e f r o m o n e t o t h e o t h e r , p u s h
or pull the lever on the lower edge of
the mirror.
Page 86 of 197
9 8
Mirrors and windows

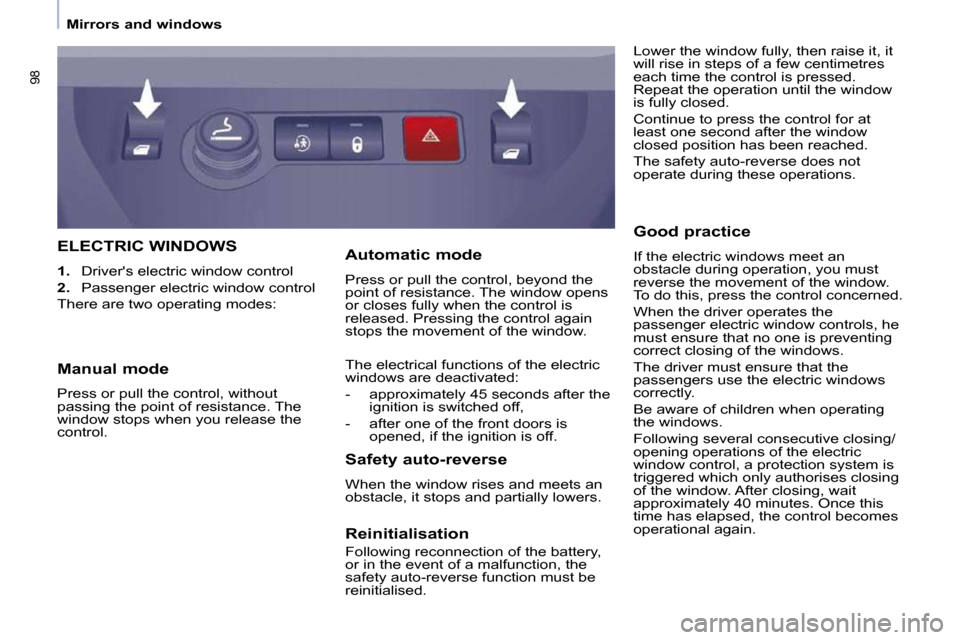

ELECTRIC WINDOWS
1. Driver's electric window control
2. P a s s e n g e r e l e c t r i c w i n d o w c o n t r o l
T h e r e a r e t w o o p e r a t i n g m o d e s : L o w e r t h e w i n d o w f u l l y , t h e n r a i s e i t , i t
w i l l r i s e i n s t e p s o f a f e w c e n t i m e t r e s
e a c h t i m e t h e c o n t r o l i s p r e s s e d .
R e p e a t t h e o p e r a t i o n u n t i l t h e w i n d o w
is fully closed.
C o n t i n u e t o p r e s s t h e c o n t r o l f o r a t
l e a s t o n e s e c o n d a f t e r t h e w i n d o w
c l o s e d p o s i t i o n h a s b e e n r e a c h e d .
T h e s a f e t y a u t o - r e v e r s e d o e s n o t
o p e r a t e d u r i n g t h e s e o p e r a t i o n s .
Safety auto-reverse
W h e n t h e w i n d o w r i s e s a n d m e e t s a n
o b s t a c l e , i t s t o p s a n d p a r t i a l l y l o w e r s .
Automatic mode
Press or pull the control, beyond the
p o i n t o f r e s i s t a n c e . T h e w i n d o w o p e n s
or closes fully when the control is
r e l e a s e d . P r e s s i n g t h e c o n t r o l a g a i n
stops the movement of the window.
T h e e l e c t r i c a l f u n c t i o n s o f t h e e l e c t r i c
w i n d o w s a r e d e a c t i v a t e d :
- a p p r o x i m a t e l y 4 5 s e c o n d s a f t e r t h e
ignition is switched off,
- a f t e r o n e o f t h e f r o n t d o o r s i s opened, if the ignition is off. Good practice
I f t h e e l e c t r i c w i n d o w s m e e t a n
o b s t a c l e d u r i n g o p e r a t i o n , y o u m u s t
reverse the movement of the window.
T o d o t h i s , p r e s s t h e c o n t r o l c o n c e r n e d .
W h e n t h e d r i v e r o p e r a t e s t h e
p a s s e n g e r e l e c t r i c w i n d o w c o n t r o l s , h e
m u s t e n s u r e t h a t n o o n e i s p r e v e n t i n g
correct closing of the windows.
T h e d r i v e r m u s t e n s u r e t h a t t h e
p a s s e n g e r s u s e t h e e l e c t r i c w i n d o w s
correctly.
B e a w a r e o f c h i l d r e n w h e n o p e r a t i n g
the windows.
F o l l o w i n g s e v e r a l c o n s e c u t i v e c l o s i n g /
o p e n i n g o p e r a t i o n s o f t h e e l e c t r i c
w i n d o w c o n t r o l , a p r o t e c t i o n s y s t e m i s
t r i g g e r e d w h i c h o n l y a u t h o r i s e s c l o s i n g
o f t h e w i n d o w . A f t e r c l o s i n g , w a i t
a p p r o x i m a t e l y 4 0 m i n u t e s . O n c e t h i s
t i m e h a s e l a p s e d , t h e c o n t r o l b e c o m e s
o p e r a t i o n a l a g a i n .
Manual mode
Press or pull the control, without
p a s s i n g t h e p o i n t o f r e s i s t a n c e . T h e
w i n d o w s t o p s w h e n y o u r e l e a s e t h e
control.
Reinitialisation
F o l l o w i n g r e c o n n e c t i o n o f t h e b a t t e r y ,
o r i n t h e e v e n t o f a m a l f u n c t i o n , t h e
s a f e t y a u t o - r e v e r s e f u n c t i o n m u s t b e
r e i n i t i a l i s e d .
Page 87 of 197
99
Driving safety
SAFETY
4
DRIVING SAFETY
HORN
Press the centre of the steering wheel.

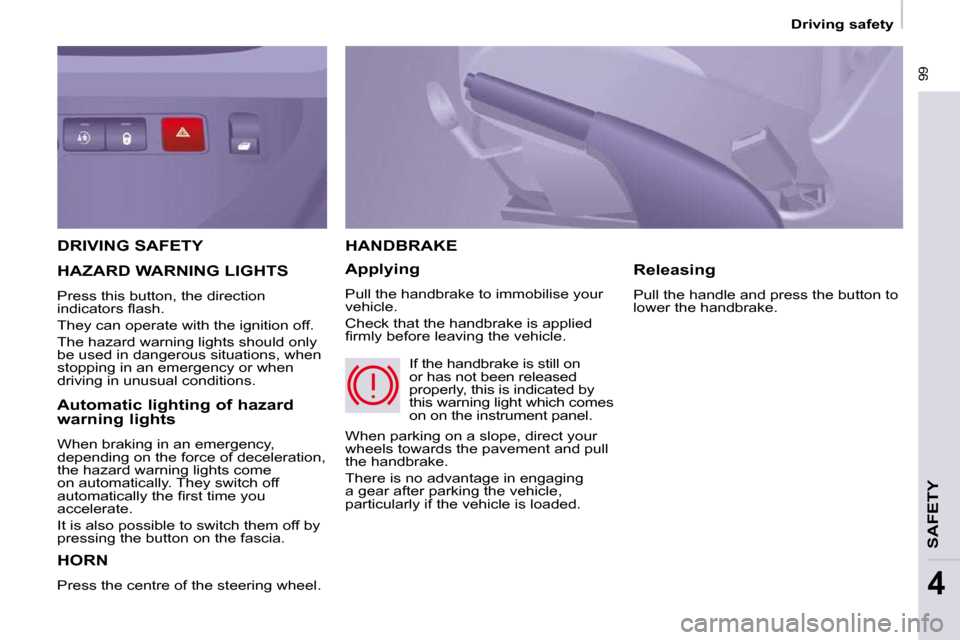

HANDBRAKE
Applying
Pull the handbrake to immobilise your
vehicle.
Check that the handbrake is applied
fi r m l y b e f o r e l e a v i n g t h e v e h i c l e . Releasing
Pull the handle and press the button to
lower the handbrake. HAZARD WARNING LIGHTS
Press this button, the direction
i n d i c a t o r s fl a s h .
They can operate with the ignition off.
The hazard warning lights should only
be used in dangerous situations, when
stopping in an emergency or when
driving in unusual conditions.
When parking on a slope, direct your
wheels towards the pavement and pull
the handbrake.
There is no advantage in engaging
a gear after parking the vehicle,
particularly if the vehicle is loaded. If the handbrake is still on
or has not been released
properly, this is indicated by
this warning light which comes
on on the instrument panel.
Automatic lighting of hazard
warning lights
When braking in an emergency,
depending on the force of deceleration,
the hazard warning lights come
on automatically. They switch off
a u t o m a t i c a l l y t h e fi r s t t i m e y o u
accelerate.
It is also possible to switch them off by
pressing the button on the fascia.
Page 88 of 197
100

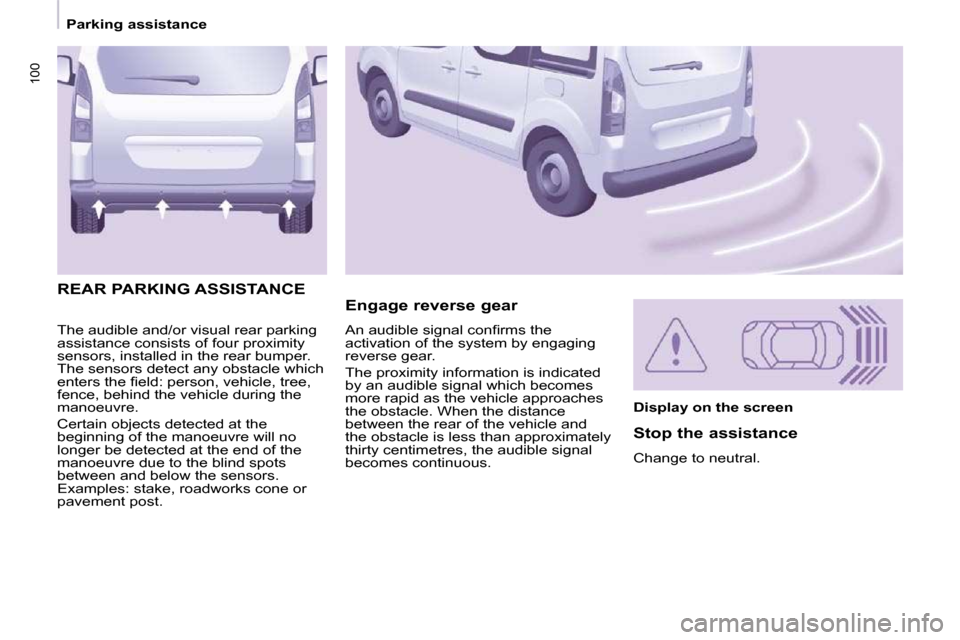

Parking assistance
The audible and/or visual rear parking assistance consists of four proximity sensors, installed in the rear bumper. The sensors detect any obstacle which e n t e r s t h e fi e l d : p e r s o n , v e h i c l e , t r e e , fence, behind the vehicle during the manoeuvre.
Certain objects detected at the beginning of the manoeuvre will no longer be detected at the end of the manoeuvre due to the blind spots between and below the sensors. E x a m p l e s : s t a k e , r o a d w o r k s c o n e o r pavement post.
Engage reverse gear
REAR PARKING ASSISTANCE
Display on the screen
Stop the assistance
Change to neutral.
A n a u d i b l e s i g n a l c o n fi r m s t h e activation of the system by engaging reverse gear.
The proximity information is indicated by an audible signal which becomes more rapid as the vehicle approaches the obstacle. When the distance between the rear of the vehicle and the obstacle is less than approximately thirty centimetres, the audible signal becomes continuous.
Page 89 of 197
101
Parking assistance
SAFETY
4
Activation/Deactivation Operating fault
In the event of an operating fault, when reverse gear is engaged the diode on the button comes on, accompanied by an audible signal and a message on the display. Consult a PEUGEOT dealer.
Good practice
In bad weather or in winter, ensure that the sensors are not covered with mud, ice or snow.
The system will be deactivated automatically if a trailer is being towed o r i f a b i c y c l e c a r r i e r i s fi t t e d ( v e h i c l e fi t t e d w i t h a t o w b a r o r b i c y c l e c a r r i e r recommended by PEUGEOT ).
The parking assistance cannot, in any circumstances, take the place of the vigilance and responsibility of the driver.

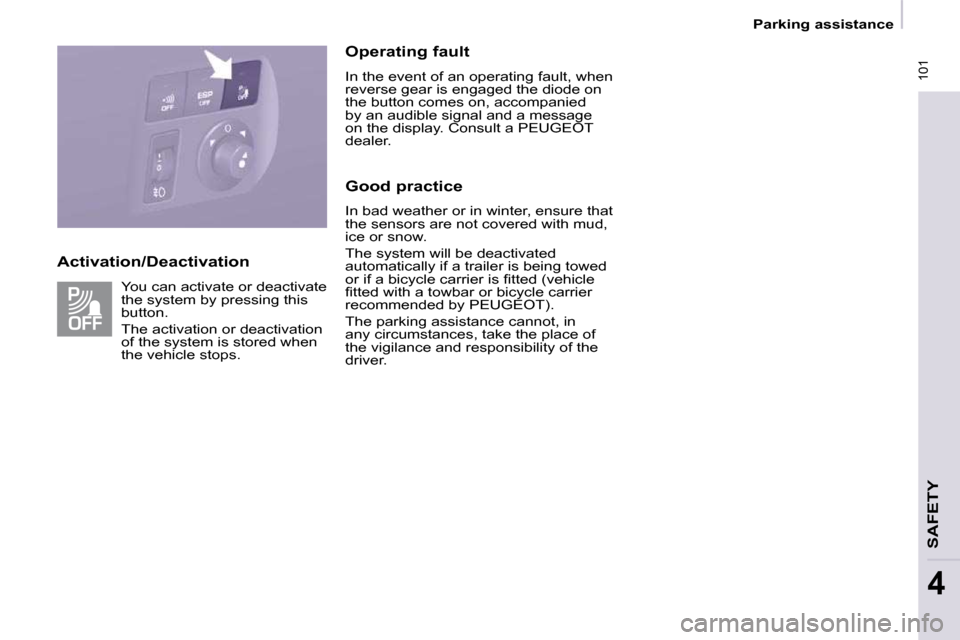

You can activate or deactivate the system by pressing this button.
The activation or deactivation of the system is stored when the vehicle stops.
Page 90 of 197
ABS
ABS
102
Driving safety
(ABS - EBFD)
T h e A B S a n d E B F D ( e l e c t r o n i c b r a k e
force distribution) systems improve the
stability and manoeuvrability of your
vehicle on braking, in particular on
poor or slippery surfaces.
The ABS prevents locking of the
wheels, the EBFD provides control of
the braking pressure wheel by wheel. If this warning light comes on,
accompanied by an audible
signal and a message on
the display, it indicates a
malfunction of the ABS which
could result in a loss of control of the
vehicle on braking.
If this warning light comes
on, together with the brake
and STOP warning lights,
accompanied by an audible
signal and a message on the
display, it indicates a malfunction of
the electronic brake force distribution
which could result in a loss of control of
the vehicle on braking.
EMERGENCY BRAKING
ASSISTANCE SYSTEM (EBA)
In an emergency, this system enables
the optimum braking pressure to be
reached more quickly, press the pedal
fi r m l y w i t h o u t r e l e a s i n g i t .
It is triggered by the speed at which the
brake pedal is activated.
This alters the resistance of the brake
pedal under your foot.
To prolong the operation of the
e m e r g e n c y b r a k i n g a s s i s t a n c e s y s t e m :
keep your foot on the brake pedal.
Good practice
The anti-lock braking system comes
into operation automatically when
there is a risk of wheel lock. It does not
reduce the braking distance.
O n v e r y s l i p p e r y s u r f a c e s ( i c e , o i l ,
etc...) the ABS may increase the
braking distance. When braking in
an emergency, do not hesitate to
p r e s s t h e b r a k e p e d a l fi r m l y , w i t h o u t
releasing the pressure, even on a
slippery surface, you will then be able
to continue to manoeuvre the vehicle
to avoid an obstacle.
Normal operation of the ABS may be
felt by slight vibration of the brake
pedal.
W h e n c h a n g i n g w h e e l s ( t y r e s
and rims), ensure that these are
recommended by PEUGEOT.
Stop immediately.
In both cases, contact a PEUGEOT
dealer.
