Towing a trailer
ACCESSORIES
5
Good Practice
In certain cases of particularly arduous
use (towing the maximum load up a
steep slope in high temperatures), the
engine automatically limits its power. In
this case, the automatic cutting off of
the air conditioning allows the engine
power to be recovered.
Tyres
Check the tyre pressures of the
t o w i n g v e h i c l e ( s e e t h e " I d e n t i fi c a t i o n
features" section of chapter 8) and of
the trailer, observing the recommended
pressure.
See the "Levels" section of chapter 6.
If the coolant temperature
warning light comes on, stop
the vehicle and switch off the
engine as soon as possible.
Brakes
Towing increases the braking distance.
Drive at a moderate speed, change
down early and brake gradually. Towbar
We recommend the use of original
PEUGEOT towbars and their
harnesses, which have been tested
and approved from the design stage of
your vehicle, and that you entrust the
fi t t i n g o f t h i s e q u i p m e n t t o a P E U G E O T
dealer.
I f t h i s e q u i p m e n t i s n o t fi t t e d b y a
PEUGEOT dealer, it is imperative that
i t i s fi t t e d u s i n g t h e e l e c t r i c a l p r e -
e q u i p m e n t i n s t a l l e d a t t h e r e a r o f t h e
vehicle and in accordance with the
manufacturer's instructions.
In accordance with the general
instructions a reminder of which has
been given above, we draw your
a t t e n t i o n t o t h e r i s k l i n k e d w i t h fi t t i n g
a towbar or electrical accessory not
recommended by PEUGEOT. Fitting
s u c h e q u i p m e n t c o u l d r e s u l t i n t h e
failure of your vehicle's electronic
system. Please contact a PEUGEOT
d e a l e r f o r i n f o r m a t i o n b e f o r e fi t t i n g t h i s
t y p e o f e q u i p m e n t .
Side wind
Sensitivity to side wind is increased.
Drive smoothly and at a moderate
speed.
ABS/ESP
The ABS or ESP systems only control
the vehicle, not the trailer or caravan.
Rear parking assistance
The assistance does not function while
the vehicle is towing.
Page 112 of 197
120
Equipment
A further range is also available, structured around comfort, leisure and maintenance:
A n t i - t h e f t a l a r m , w i n d o w e n g r a v i n g , fi r s t a i d k i t , h i g h visibility jacket, rear parking assistance, warning triangle, ...
Seat covers compatible with air bags for the front seats, bench seat, rubber mats, carpet mats, snow chains, blinds, tailgate bicycle carrier, ...
A u d i o e q u i p m e n t , h a n d s - f r e e kit, speakers, CD changer, navigation, ...
Regardless of the audio and t e l e m a t i c e q u i p m e n t o f f e r e d o n the market, the technical constraints l i n k e d w i t h t h e fi t t i n g o f e q u i p m e n t o f these product groups mean that the s p e c i a l f e a t u r e s o f t h e e q u i p m e n t a n d its compatibility with the capacities o f y o u r v e h i c l e ' s s t a n d a r d e q u i p m e n t must be taken into account. Please ask a PEUGEOT dealer for further i n f o r m a t i o n b e f o r e fi t t i n g s u c h e q u i p m e n t .
To prevent the mat from becoming caught under the pedals:
- e n s u r e t h a t t h e m a t a n d i t s fi x i n g s are positioned correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
Maximum weights on bars
- ZénithTransverse bars on longitudinal bars: 75 Kg (these bars are not compatible with the Modutop roof).
OTHER ACCESSORIES
These accessories and parts, having
been tested and approved for reliability
and safety, are all adapted to your
vehicle. A wide range of recommended
accessories and original parts is offered.
Installing radiocommunication transmitters
You are advised to contact a PEUGEOT dealer before installing accessory radiocommunication transmitters with external aerial on your vehicle.
The PEUGEOT network will inform you o f t h e c h a r a c t e r i s t i c s ( f r e q u e n c y b a n d , maximum output power, aerial position, s p e c i fi c c o n d i t i o n s o f i n s t a l l a t i o n ) o f t h e t r a n s m i t t e r s w h i c h c a n b e fi t t e d , in accordance with the Motor Vehicle Electromagnetic Compatibility Directive (2004/104/EC).
Page 113 of 197
121
ACCESSORIES
5
Equipment
T h e fi t t i n g o f e l e c t r i c a l e q u i p m e n t or accessories which are not recommended by PEUGEOT may result in a failure of your vehicle's electronic system. Please note this s p e c i fi c w a r n i n g . Y o u a r e a d v i s e d to contact a dealer to be shown the r a n g e o f r e c o m m e n d e d e q u i p m e n t o r accessories.
Depending on the country in which the vehicle is sold, it is compulsory to have a high visibility jacket, warning triangle and spare bulbs available in the vehicle.
"Active Fleet Data" telematic unit
Connected directly to the heart of the vehicle (multiplexed network: "Full CAN"), the telematic unit, by means of a "ready to use" service, permits the sending in real time of information such as:
- distance travelled,
- distance remaining before the next service,
- warnings and faults (oil level, coolant level, oil temperature, coolant temperature, etc...).
This enables "Fleet" managers to optimise the monitoring and management of their professional vehicles.
Depending on country, contact a PEUGEOT dealer for further information.
F r o n t m u d fl a p s , r e a r m u d fl a p s , 1 5 / 1 7 i n c h a l l o y w h e e l s , wheelarch trim, leather steering wheel, ...
Screenwash, interior and exterior cleaning and maintenance products, spare bulbs, ...
Page 114 of 197
123
Opening the bonnet
CHECKS
6
OPENING THE BONNET

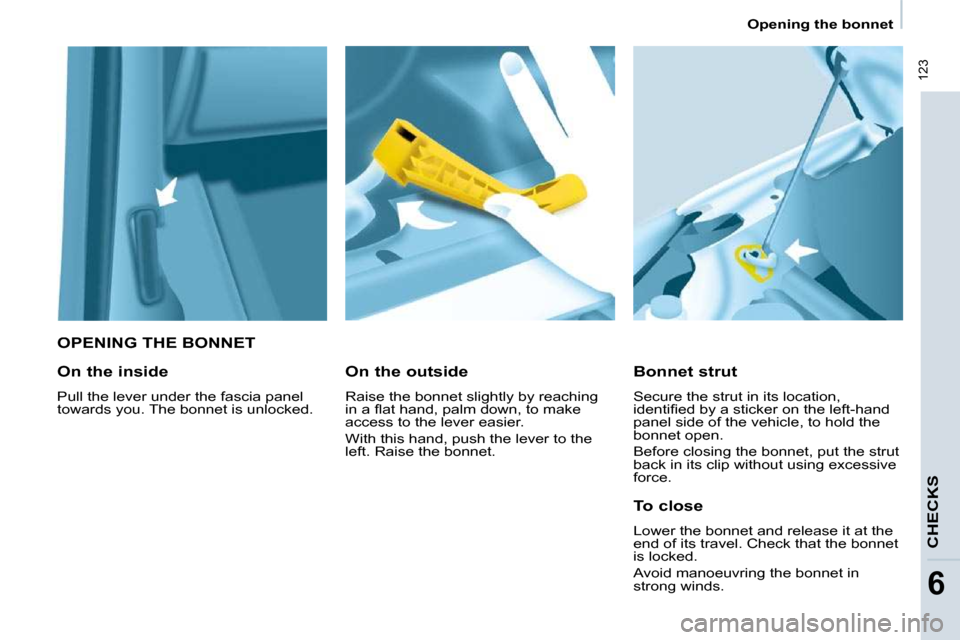

Bonnet strut
Secure the strut in its location,
i d e n t i fi e d b y a s t i c k e r o n t h e l e f t - h a n d
panel side of the vehicle, to hold the
bonnet open.
Before closing the bonnet, put the strut
b a c k i n i t s c l i p w i t h o u t u s i n g e x c e s s i v e
force.
On the outside
Raise the bonnet slightly by reaching
i n a fl a t h a n d , p a l m d o w n , t o m a k e
access to the lever easier.
With this hand, push the lever to the
left. Raise the bonnet.
On the inside

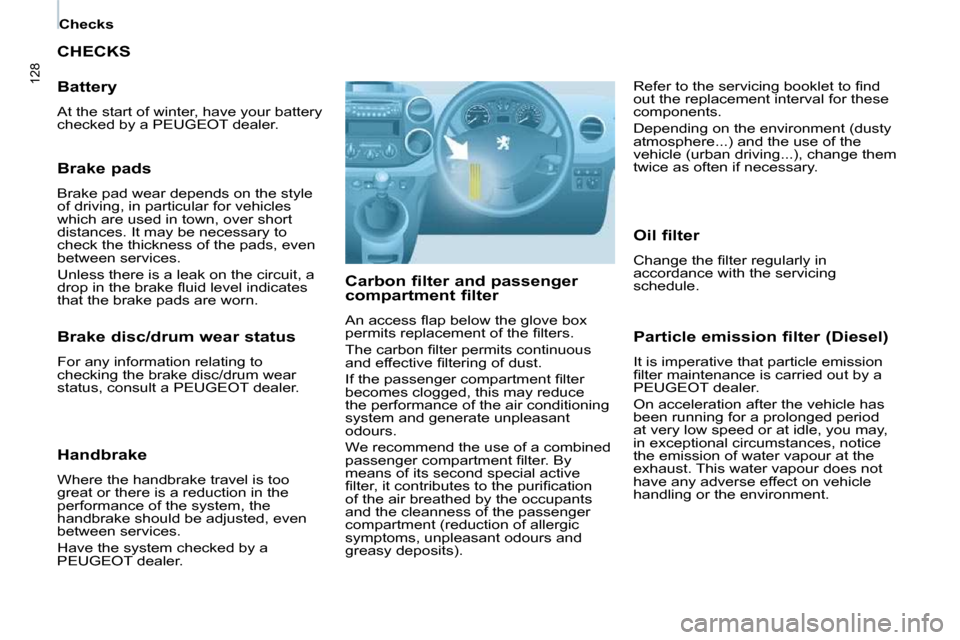

Pull the lever under the fascia panel
t o w a r d s y o u . T h e b o n n e t i s u n l o c k e d .
To close
Lower the bonnet and release it at the
e n d o f i t s t r a v e l . C h e c k t h a t t h e b o n n e t
i s l o c k e d .
Avoid manoeuvring the bonnet in
strong winds.
Page 115 of 197
124
Under the bonnet

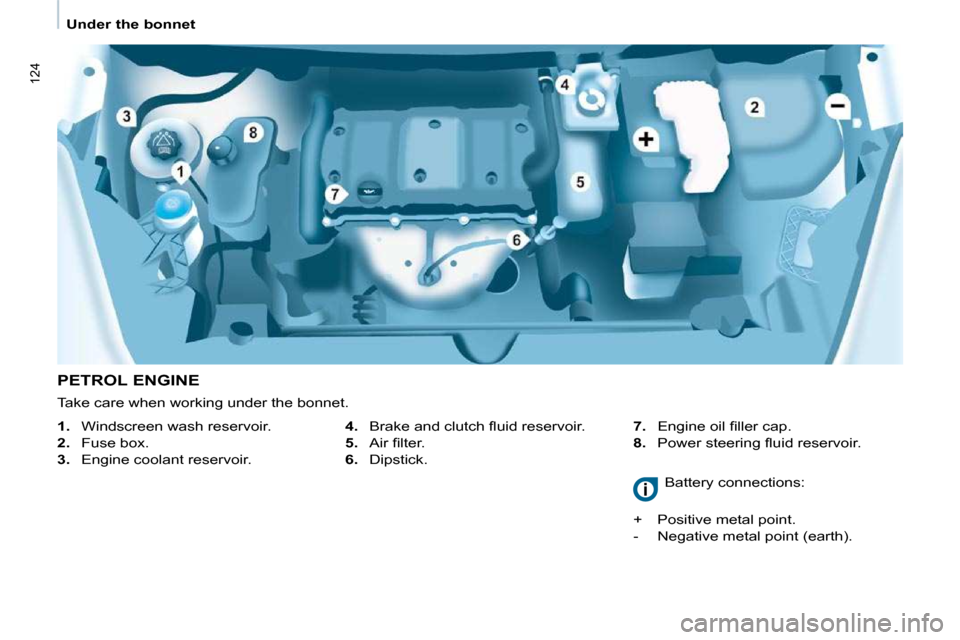

PETROL ENGINE
4. B r a k e a n d c l u t c h fl u i d r e s e r v o i r .
5. A i r fi l t e r .
6. D i p s t i c k .
7. E n g i n e o i l fi l l e r c a p .
8. P o w e r s t e e r i n g fl u i d r e s e r v o i r .
1. Windscreen wash reservoir.
2. F u s e b o x .
3. Engine coolant reservoir.
Battery connections:
+ Positive metal point.
- N e g a t i v e m e t a l p o i n t ( e a r t h ) .
T a k e c a r e w h e n w o r k i n g u n d e r t h e b o n n e t .
Page 116 of 197
125
CHECKS
6
Under the bonnet

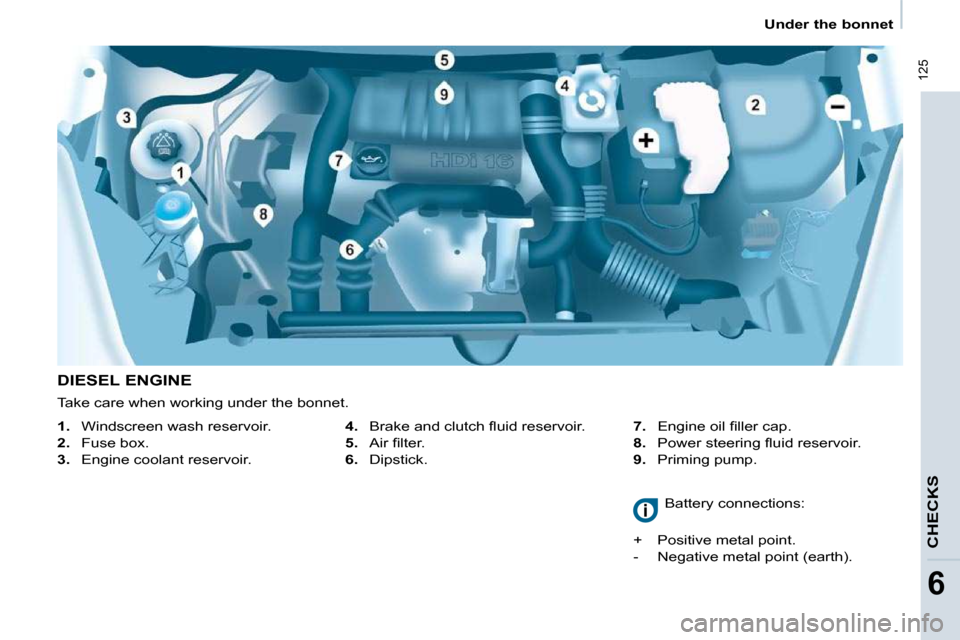

DIESEL ENGINE
4. B r a k e a n d c l u t c h fl u i d r e s e r v o i r .
5. A i r fi l t e r .
6. D i p s t i c k .
7. E n g i n e o i l fi l l e r c a p .
8. P o w e r s t e e r i n g fl u i d r e s e r v o i r .
9. Priming pump.
1. Windscreen wash reservoir.
2. F u s e b o x .
3. Engine coolant reservoir.
Battery connections:
+ Positive metal point.
- N e g a t i v e m e t a l p o i n t ( e a r t h ) .
T a k e c a r e w h e n w o r k i n g u n d e r t h e b o n n e t .
Page 117 of 197
126
Levels
Oil change
It is imperative that this is carried
o u t a t t h e i n t e r v a l s s p e c i fi e d a n d t h e
viscosity grade of the oil selected must
f u l fi l t h e r e q u i r e m e n t s i n a c c o r d a n c e
with the manufacturer's servicing
schedule. Consult the instructions at a
PEUGEOT dealer .
R e m o v e t h e d i p s t i c k b e f o r e fi l l i n g .
C h e c k t h e l e v e l a f t e r fi l l i n g ( n e v e r
e x c e e d t h e m a x m a r k ) .
S c r e w t h e c a p b a c k o n t o t h e s u m p
before closing the bonnet. Changing the brake fluid
T h e b r a k e fl u i d m u s t b e c h a n g e d a t
the intervals stated, according to the
manufacturer's servicing schedule.
U s e fl u i d s r e c o m m e n d e d b y t h e
m a n u f a c t u r e r , w h i c h f u l fi l D O T 4
standards.
T h e l e v e l m u s t b e b e t w e e n t h e M I N
a n d M A X m a r k s o n t h e r e s e r v o i r .
I f fl u i d h a s t o b e a d d e d f r e q u e n t l y ,
this indicates a failure which must be
c h e c k e d b y a P E U G E O T d e a l e r a s
soon as possible.
Warning lights
I f y o u h a v e t o r e m o v e / r e fi t t h e
engine style cover, handle it with
c a r e t o a v o i d d a m a g i n g t h e fi x i n g
clips.
Oil level
C h e c k t h e l e v e l r e g u l a r l y a n d t o p u p
b e t w e e n c h a n g e s . T h e m a x i m u m
consumption is 0.5 litre per 600 miles
( 1 0 0 0 k m ) .
C h e c k t h e l e v e l w i t h t h e v e h i c l e l e v e l ,
e n g i n e c o l d , u s i n g t h e d i p s t i c k .
Dipstick
T h e r e a r e t w o m a r k s o n
t h e d i p s t i c k :
A = m a x i m u m
I f y o u fi l l p a s t t h i s m a r k ,
consult a PEUGEOT
dealer .
B = minimum
N e v e r a l l o w t h e l e v e l t o
f a l l b e l o w t h i s m a r k .
To maintain the reliability
of engines and emission
control systems, the use
of additives in engine oil
is prohibited. Viscosity selection
In all cases, the oil selected must meet
the manufacturer's requirements.
These regular maintenance
o p e r a t i o n s w i l l k e e p y o u r v e h i c l e i n
good running order.
Consult the instructions at a PEUGEOT
d e a l e r o r i n t h e s e r v i c i n g b o o k l e t
e n c l o s e d i n t h e h a n d b o o k p a c k .
C h e c k i n g b y m e a n s o f t h e
warning lights on the instrument
panel is described in chapter
2,
refer to the "Instruments and
controls" section.
Page 118 of 197
127
CHECKS
6
Levels
Cooling system
O n l y u s e t h e fl u i d r e c o m m e n d e d b y t h e
manufacturer.
O t h e r w i s e , y o u r i s k s e r i o u s l y d a m a g i n g
your engine.
When the engine is warm, the
temperature of the coolant is controlled
by the engine fan. As this fan can
o p e r a t e w i t h t h e i g n i t i o n k e y r e m o v e d
and because the cooling system is
pressurised, wait for at least one hour
after the engine has stopped before
c a r r y i n g o u t a n y w o r k .
S l a c k e n t h e c a p b y 1 / 4 o f a t u r n t o
release the pressure to prevent any
r i s k o f s c a l d i n g . W h e n t h e p r e s s u r e
has dropped, remove the cap and top
up the level with coolant.
I f fl u i d h a s t o b e a d d e d f r e q u e n t l y ,
this indicates a failure which must be
c h e c k e d b y a P E U G E O T d e a l e r a s
soon as possible. Power steering fluid level
T h e v e h i c l e m u s t b e p a r k e d o n l e v e l
ground with the engine cold. Unscrew
the cap integrated with the gauge and
c h e c k t h e l e v e l w h i c h m u s t b e b e t w e e n
t h e M I N a n d M A X m a r k s .
I n o r d e r t o r e g e n e r a t e t h e fi l t e r , y o u
are advised to drive at a speed higher
t h a n 4 0 m p h ( 6 0 k m / h ) f o r a t l e a s t fi v e
minutes as soon as possible, when
t r a f fi c c o n d i t i o n s p e r m i t ( u n t i l t h e
message disappears and the service
w a r n i n g l i g h t i s s w i t c h e d o f f ) .
During regeneration of the particle
e m i s s i o n fi l t e r , r e l a y n o i s e m a y b e
heard under the fascia.
If the message is still displayed and if
the service warning light remains on,
consult a PEUGEOT dealer .
Topping up
T h e l e v e l m u s t b e b e t w e e n t h e M I N a n d
M A X m a r k s o n t h e e x p a n s i o n b o t t l e .
I f m o r e t h a n 1 l i t r e o f fl u i d i s r e q u i r e d
to top up the level, have the system
c h e c k e d b y a P E U G E O T d e a l e r . Windscreen wash and headlamp
wash level
For best quality cleaning and for your
safety, we would advise that you use
products of the PEUGEOT range.
For optimum cleaning and to avoid
f r e e z i n g , t h i s fl u i d m u s t n o t b e t o p p e d
up or replaced with water.
Capacity of the screenwash reservoir:
a p p r o x i m a t e l y 4 . 5 l i t r e s .
I f y o u r v e h i c l e i s fi t t e d w i t h h e a d l a m p
washers, the capacity of the reservoir
is 7.5 litres.
Diesel additive level
(Diesel with particle
emission filter)
The minimum level of this additive
is indicated by lighting of the service
warning light, accompanied by an
audible signal and a message on the
display.
When this occurs with the engine
running it is due to the start of
s a t u r a t i o n o f t h e p a r t i c l e e m i s s i o n fi l t e r
( e x c e p t i o n a l l y p r o l o n g e d u r b a n t y p e
driving conditions: low speed, long
t r a f fi c j a m s , . . . ) . Topping up
It is imperative that this additive is
topped up by a PEUGEOT dealer
without delay.
Used oil
Avoid prolonged contact of used oil
w i t h t h e s k i n .
B r a k e fl u i d i s h a r m f u l t o h e a l t h a n d
very corrosive.
D o n o t d i s p o s e o f u s e d o i l , b r a k e fl u i d
or coolant into drains or into the ground
but into the containers dedicated to this
use at PEUGEOT dealer .
Page 119 of 197
128
Checks
CHECKS
Carbon filter and passenger
compartment filter
A n a c c e s s fl a p b e l o w t h e g l o v e b o x
p e r m i t s r e p l a c e m e n t o f t h e fi l t e r s .
T h e c a r b o n fi l t e r p e r m i t s c o n t i n u o u s
a n d e f f e c t i v e fi l t e r i n g o f d u s t .
I f t h e p a s s e n g e r c o m p a r t m e n t fi l t e r
becomes clogged, this may reduce
the performance of the air conditioning
system and generate unpleasant
odours.
We recommend the use of a combined
p a s s e n g e r c o m p a r t m e n t fi l t e r . B y
means of its second special active
fi l t e r , i t c o n t r i b u t e s t o t h e p u r i fi c a t i o n
of the air breathed by the occupants
and the cleanness of the passenger
c o m p a r t m e n t ( r e d u c t i o n o f a l l e r g i c
symptoms, unpleasant odours and
g r e a s y d e p o s i t s ) . Particle emission filter (Diesel)
It is imperative that particle emission
fi l t e r m a i n t e n a n c e i s c a r r i e d o u t b y a
PEUGEOT dealer .
On acceleration after the vehicle has
been running for a prolonged period
at very low speed or at idle, you may,
i n e x c e p t i o n a l c i r c u m s t a n c e s , n o t i c e
the emission of water vapour at the
e x h a u s t . T h i s w a t e r v a p o u r d o e s n o t
have any adverse effect on vehicle
handling or the environment.
Battery
At the start of winter, have your battery
c h e c k e d b y a P E U G E O T d e a l e r .
Brake pads
B r a k e p a d w e a r d e p e n d s o n t h e s t y l e
of driving, in particular for vehicles
which are used in town, over short
distances. It may be necessary to
c h e c k t h e t h i c k n e s s o f t h e p a d s , e v e n
between services.
U n l e s s t h e r e i s a l e a k o n t h e c i r c u i t , a
d r o p i n t h e b r a k e fl u i d l e v e l i n d i c a t e s
t h a t t h e b r a k e p a d s a r e w o r n .
Brake disc/drum wear status
For any information relating to
c h e c k i n g t h e b r a k e d i s c / d r u m w e a r
status, consult a PEUGEOT dealer .
Handbrake
W h e r e t h e h a n d b r a k e t r a v e l i s t o o
great or there is a reduction in the
performance of the system, the
h a n d b r a k e s h o u l d b e a d j u s t e d , e v e n
between services.
H a v e t h e s y s t e m c h e c k e d b y a
PEUGEOT dealer .
Oil filter
C h a n g e t h e fi l t e r r e g u l a r l y i n
accordance with the servicing
schedule.
R e f e r t o t h e s e r v i c i n g b o o k l e t t o fi n d
out the replacement interval for these
components.
D e p e n d i n g o n t h e e n v i r o n m e n t ( d u s t y
a t m o s p h e r e . . . ) a n d t h e u s e o f t h e
v e h i c l e ( u r b a n d r i v i n g . . . ) , c h a n g e t h e m
twice as often if necessary.
Page 120 of 197
129
CHECKS
6
Checks
T o c h e c k t h e m a i n l e v e l s
and certain components,
in accordance with the
manufacturer's servicing schedule,
refer to the pages of the Maintenance
and Warranty Guide which correspond
to your vehicle's engine.
Bleeding the water contained in
the diesel filter
Manual gearbox
H a v e t h e l e v e l c h e c k e d i n a c c o r d a n c e w i t h
the manufacturer's servicing schedule.
Only use products recommended
by PEUGEOT or products
of equivalent quality and
s p e c i fi c a t i o n .
In order to optimise the operation
o f u n i t s a s i m p o r t a n t a s t h e b r a k i n g
system, PEUGEOT selects and offers
s p e c i fi c p r o d u c t s .
In order to avoid damaging the
electrical units, high pressure washing
to clean the engine compartment is
strictly prohibited.
If this warning light comes
o n , b l e e d t h e fi l t e r . O t h e r w i s e
bleed regularly each time the
engine is drained.
To evacuate the water, unscrew the
b l e e d s c r e w l o c a t e d o n t h e fi l t e r .
Operate until all of the water in the
transparent pipe has been drained out
then tighten the bleed screw.
HDi engines use advanced technology.
A l l w o r k r e q u i r e s a s p e c i a l q u a l i fi c a t i o n
which is guaranteed by a PEUGEOT
dealer .
According to country.
