Page 161 of 214
155
Dimensions
TECHNICAL DATA
8

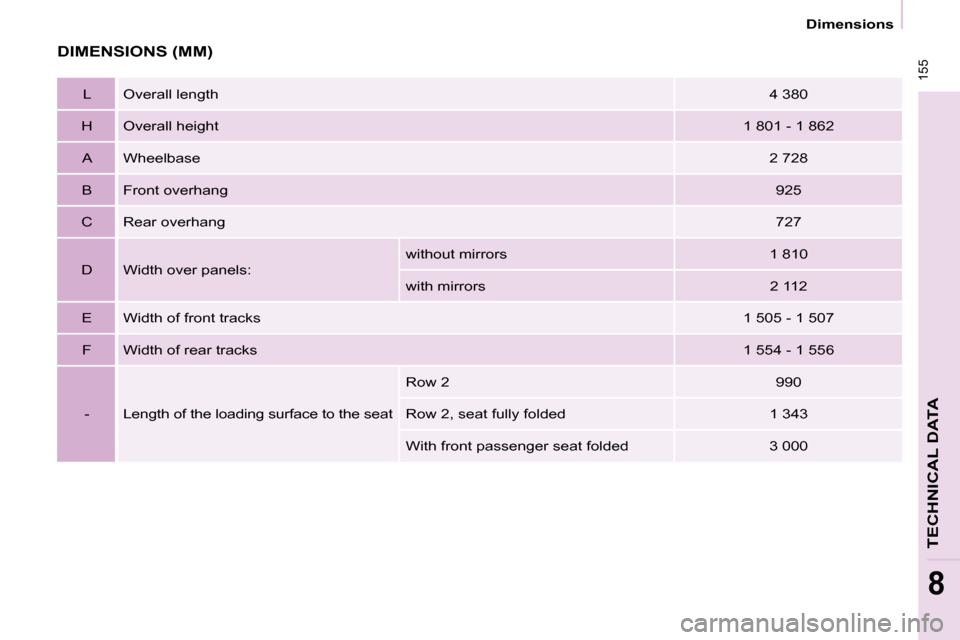

DIMENSIONS (MM)
L Overall length 4 380
H Overall height 1 801 - 1 862
A Wheelbase 2 728
B Front overhang 925
C Rear overhang 727
D Width over panels: without mirrors
1 810
with mirrors 2 112
E Width of front tracks 1 505 - 1 507
F Width of rear tracks 1 554 - 1 556
- Length of the loading surface to the seat Row 2
990
Row 2, seat fully folded 1 343
With front passenger seat folded 3 000
Page 162 of 214
156
Dimensions

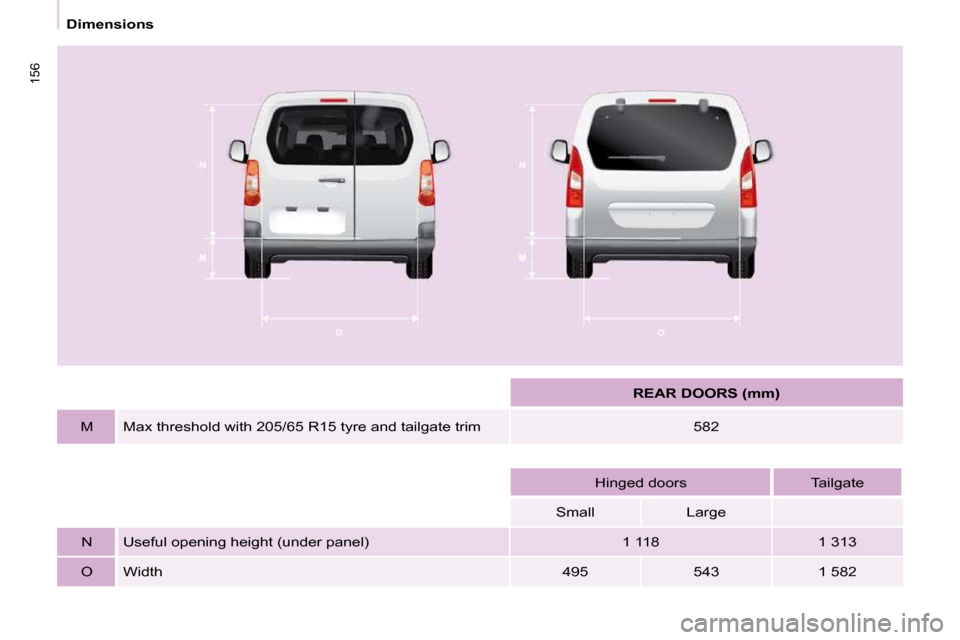

REAR DOORS (mm)
M Max threshold with 205/65 R15 tyre and tailgate trim 582
Hinged doors Tailgate
Small Large
N Useful opening height (under panel) 1 118 1 313
O Width 495 543 1 582
Page 163 of 214
157
Dimensions
TECHNICAL DATA
8

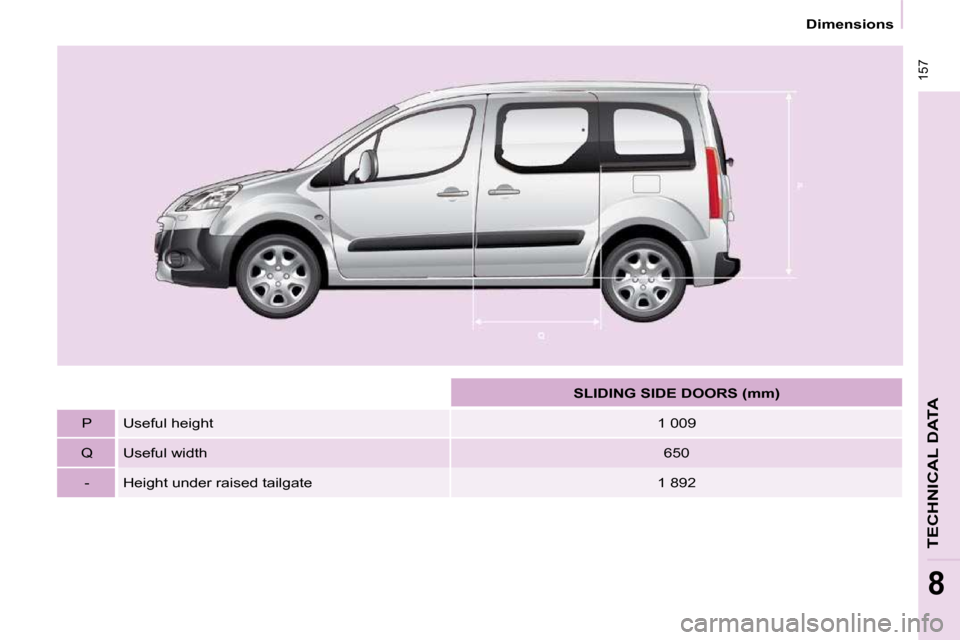

SLIDING SIDE DOORS (mm)
P Useful height 1 009
Q Useful width 650
- Height under raised tailgate 1 892
Page 164 of 214
158

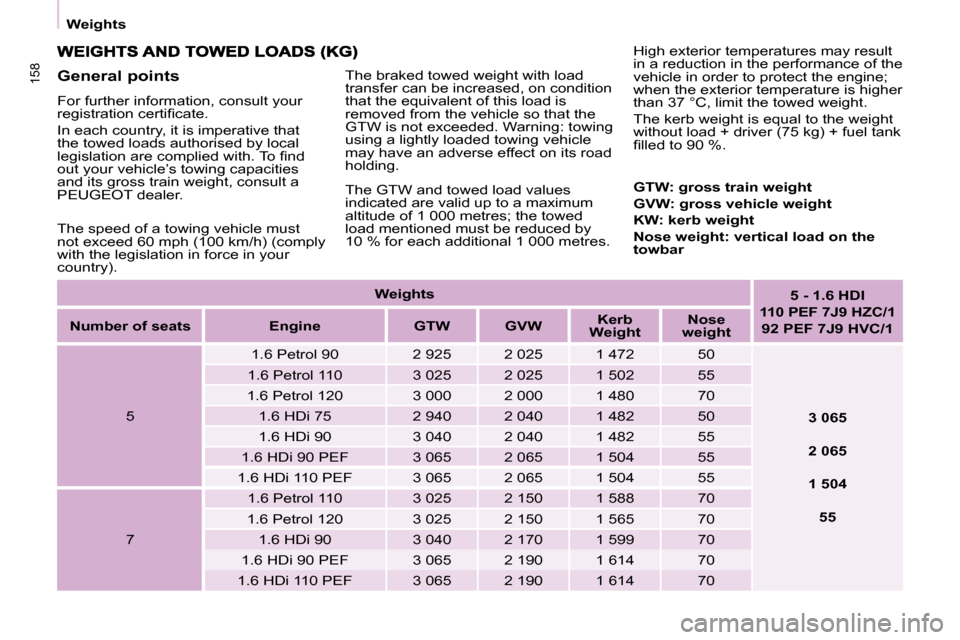

Weights
Weights
5 - 1.6 HDI
110 PEF 7J9 HZC/1
92 PEF 7J9 HVC/1
Number of seats Engine GTW GVW
Kerb
W
eight
Nose
weight
5 1.6 Petrol 90 2 925 2 025 1 472 50
3 065
2 065
1 504
55
1.6 Petrol 110 3 025 2 025 1 502 55
1.6 Petrol 120 3 000 2 000 1 480 70 1.6 HDi 75 2 940 2 040 1 482 50
1.6 HDi 90 3 040 2 040 1 482 55
1.6 HDi 90 PEF 3 065 2 065 1 504 55
1.6 HDi 110 PEF 3 065 2 065 1 504 55
7 1.6 Petrol 110 3 025 2 150 1 588 70
1.6 Petrol 120 3 025 2 150 1 565 70 1.6 HDi 90 3 040 2 170 1 599 70
1.6 HDi 90 PEF 3 065 2 190 1 614 70
1.6 HDi 110 PEF 3 065 2 190 1 614 70
General points
For further information, consult your
r e g i s t r a t i o n c e r t i fi c a t e .
In each country, it is imperative that
the towed loads authorised by local
l e g i s l a t i o n a r e c o m p l i e d w i t h . T o fi n d
out your vehicle’s towing capacities
and its gross train weight, consult a
PEUGEOT dealer. The braked towed weight with load
transfer can be increased, on condition
that the equivalent of this load is
removed from the vehicle so that the
GTW is not exceeded. Warning: towing
using a lightly loaded towing vehicle
may have an adverse effect on its road
holding.
GTW: gross train weight
GVW: gross vehicle weight
KW: kerb weight
Nose weight: vertical load on the
towbar
The speed of a towing vehicle must
not exceed 60 mph (100 km/h) (comply
with the legislation in force in your
country). High exterior temperatures may result
in a reduction in the performance of the
vehicle in order to protect the engine;
when the exterior temperature is higher
than 37 °C, limit the towed weight.
The kerb weight is equal to the weight
without load + driver (75 kg) + fuel tank
fi l l e d t o 9 0 % .
The GTW and towed load values
indicated are valid up to a maximum
altitude of 1 000 metres; the towed
load mentioned must be reduced by
1 0 % f o r e a c h a d d i t i o n a l 1 0 0 0 m e t r e s .
Page 165 of 214
159
TECHNICAL DATA
8
Diesel - Petrol engines

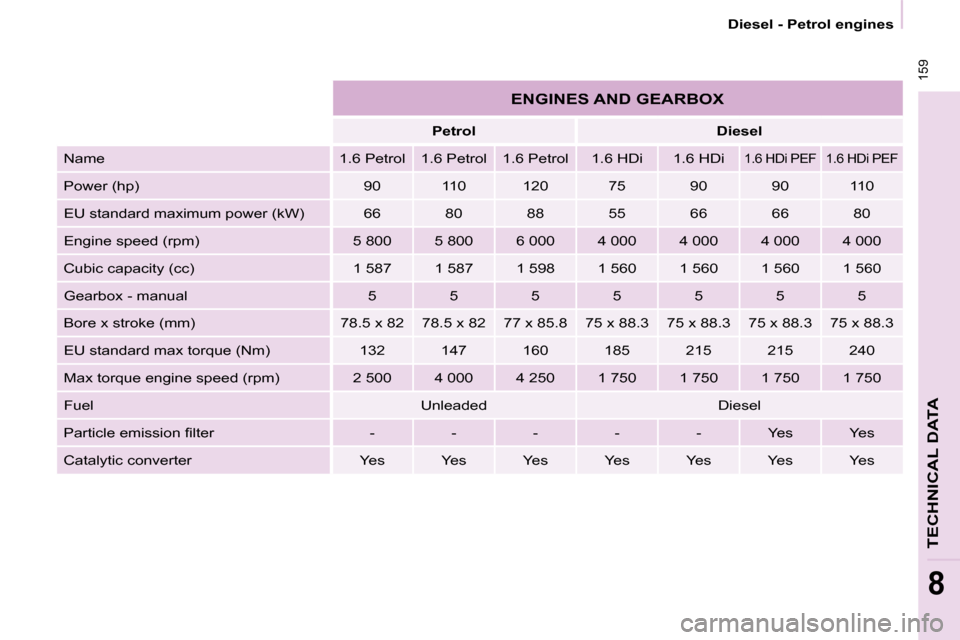

ENGINES AND GEARBOX
Petrol Diesel
Name 1.6 Petrol 1.6 Petrol 1.6 Petrol 1.6 HDi 1.6 HDi
1.6 HDi PEF 1.6 HDi PEF
Power (hp) 90 110 120 75 90 90 110
EU standard maximum power (kW) 66 80 88 55 66 66 80
Engine speed (rpm) 5 800 5 800 6 000 4 000 4 000 4 000 4 000
Cubic capacity (cc) 1 587 1 587 1 598 1 560 1 560 1 560 1 560
Gearbox - manual 5 5 5 5 5 5 5
Bore x stroke (mm) 78.5 x 82 78.5 x 82 77 x 85.8 75 x 88.3 75 x 88.3 75 x 88.3 75 x 88.3
EU standard max torque (Nm) 132 147 160 185 2 15 215 240
Max torque engine speed (rpm) 2 500 4 000 4 250 1 750 1 750 1 750 1 750
Fuel Unleaded Diesel
P a r t i c l e e m i s s i o n fi l t e r - - - - - Yes Yes
Catalytic converter Yes Yes Yes Yes Yes Yes Yes
Page 166 of 214
161
TECHNICAL DATA
8

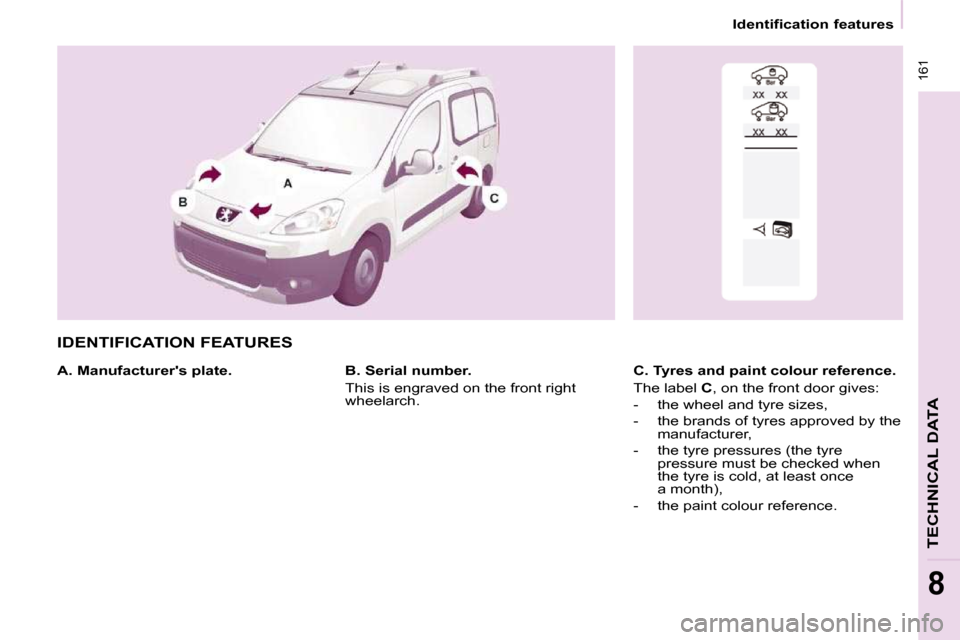

Identification features
IDENTIFICATION FEATURES
A. Manufacturer's plate. C. Tyres and paint colour reference.
The label C , on the front door gives:
- the wheel and tyre sizes,
- the brands of tyres approved by the manufacturer,
- the tyre pressures (the tyre pressure must be checked when
the tyre is cold, at least once
a month),
- the paint colour reference.
B. Serial number.
This is engraved on the front right
wheelarch.
Page 167 of 214

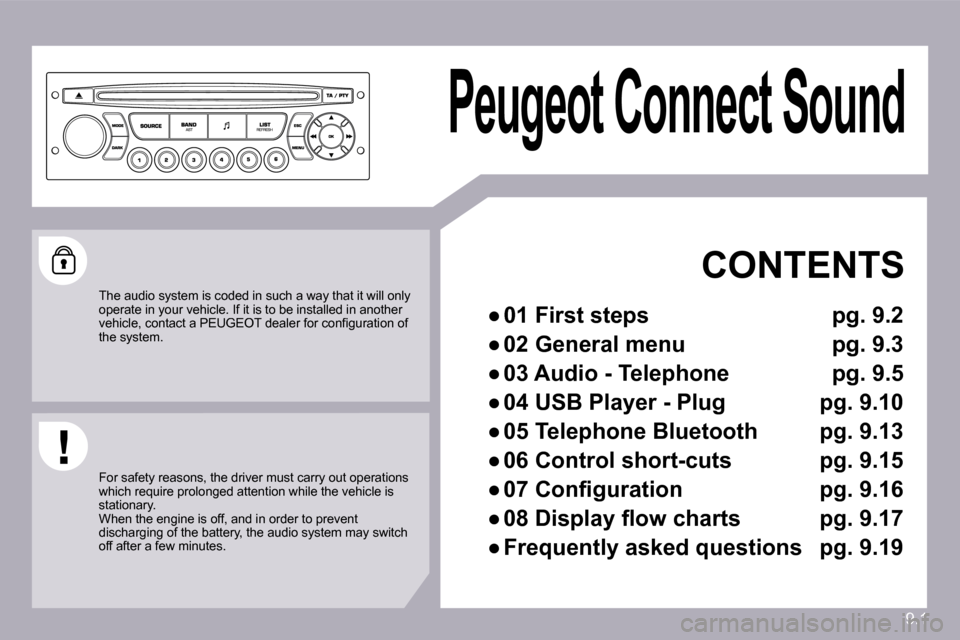

9.1
Peugeot Connect Sound
CONTENTS
Page 168 of 214
9.2
1 1
2 2
1 0 1 0 1 1 1 1
1 3 1 3 1 4 1 4 1 5 1 5
3 3 4 4 5 5 6 6 7 7 8 8 9 9
1 2 1 2

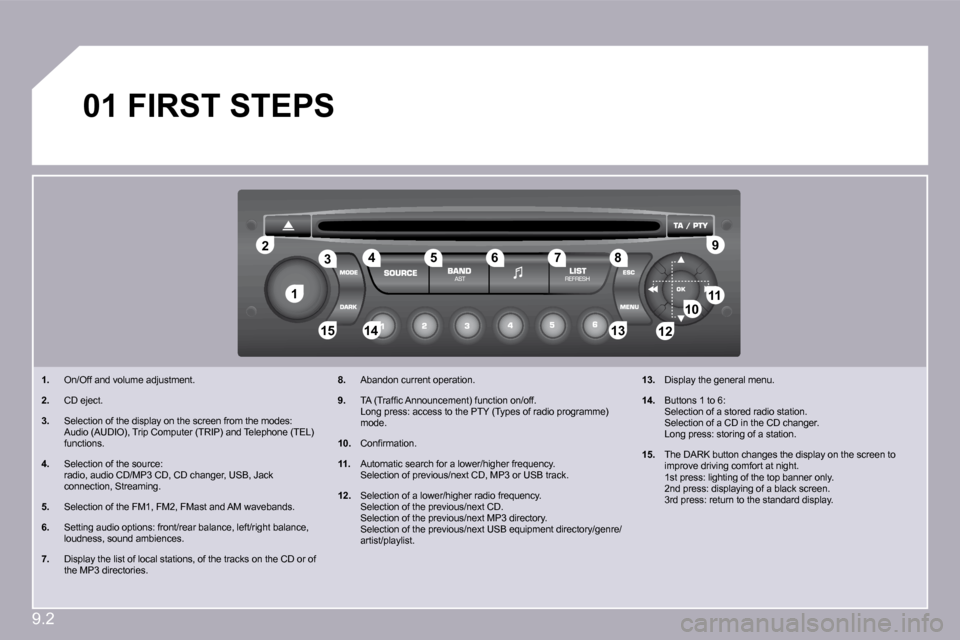

0 1 F I R S T S T E P S
1 . On/Off and volume adjustment.
2 . CD eject.
3 . Selection of the display on the screen from the modes: Audio (AUDIO), Trip Computer (TRIP) and Telephone (TEL) functions.
4 . Selection of the source: r a d i o , a u d i o C D / M P 3 C D , C D c h a n g e r , U S B , J a c k c o n n e c t i o n , S t r e a m i n g .
5 . Selection of the FM1, FM2, FMast and AM wavebands.
6 . S e t t i n g a u d i o o p t i o n s : f r o n t / r e a r b a l a n c e , l e f t / r i g h t b a l a n c e , loudness, sound ambiences.
7 . D i s p l a y t h e l i s t o f l o c a l s t a t i o n s , o f t h e t r a c k s o n t h e C D o r o f the MP3 directories.
8 . Abandon current operation.
9 . T A ( T r a f fi c A n n o u n c e m e n t ) f u n c t i o n o n / o f f . L o n g p r e s s : a c c e s s t o t h e P T Y ( T y p e s o f r a d i o p r o g r a m m e ) mode.
1 0 . C o n fi r m a t i o n .
1 1 . A u t o m a t i c s e a r c h f o r a l o w e r / h i g h e r f r e q u e n c y . S e l e c t i o n o f p r e v i o u s / n e x t C D , M P 3 o r U S B t r a c k .
1 2 . S e l e c t i o n o f a l o w e r / h i g h e r r a d i o f r e q u e n c y . Selection of the previous/next CD. Selection of the previous/next MP3 directory. S e l e c t i o n o f t h e p r e v i o u s / n e x t U S B e q u i p m e n t d i r e c t o r y / g e n r e /artist/playlist.
1 3 . D i s p l a y t h e g e n e r a l m e n u .
1 4 . B u t t o n s 1 t o 6 : Selection of a stored radio station. S e l e c t i o n o f a C D i n t h e C D c h a n g e r . L o n g p r e s s : s t o r i n g o f a s t a t i o n .
1 5 . T h e D A R K b u t t o n c h a n g e s t h e d i s p l a y o n t h e s c r e e n t o i m p r o v e d r i v i n g c o m f o r t a t n i g h t . 1 s t p r e s s : l i g h t i n g o f t h e t o p b a n n e r o n l y . 2 n d p r e s s : d i s p l a y i n g o f a b l a c k s c r e e n . 3rd press: return to the standard display.
Page 169 of 214
9.3

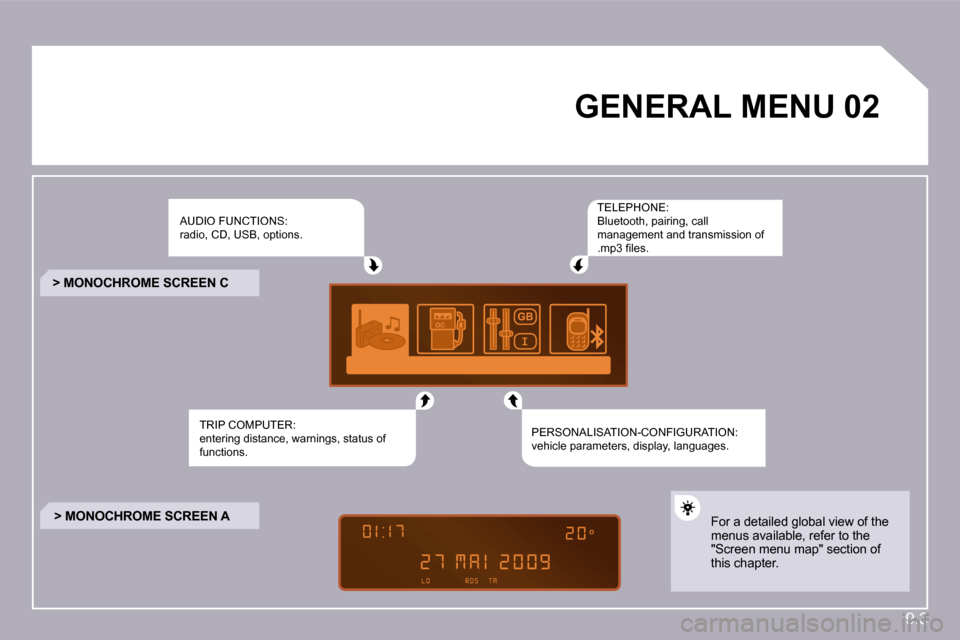

0 2 G E N E R A L M E N U
AUDIO FUNCTIONS: r a d i o , C D , U S B , o p t i o n s .
TRIP COMPUTER: e n t e r i n g d i s t a n c e , w a r n i n g s , s t a t u s o f functions.
TELEPHONE: B l u e t o o t h , p a i r i n g , c a l l m a n a g e m e n t a n d t r a n s m i s s i o n o f . m p 3 fi l e s .
PERSONALISATION-CONFIGURATION: v e h i c l e p a r a m e t e r s , d i s p l a y , l a n g u a g e s .
> M O N O C H R O M E S C R E E N C
> M O N O C H R O M E S C R E E N A F o r a d e t a i l e d g l o b a l v i e w o f t h e menus available, refer to the "Screen menu map" section of this chapter.
Page 170 of 214
9.5
1
2 2
3 3
4 4
2 2
4 4
3 3
1 1

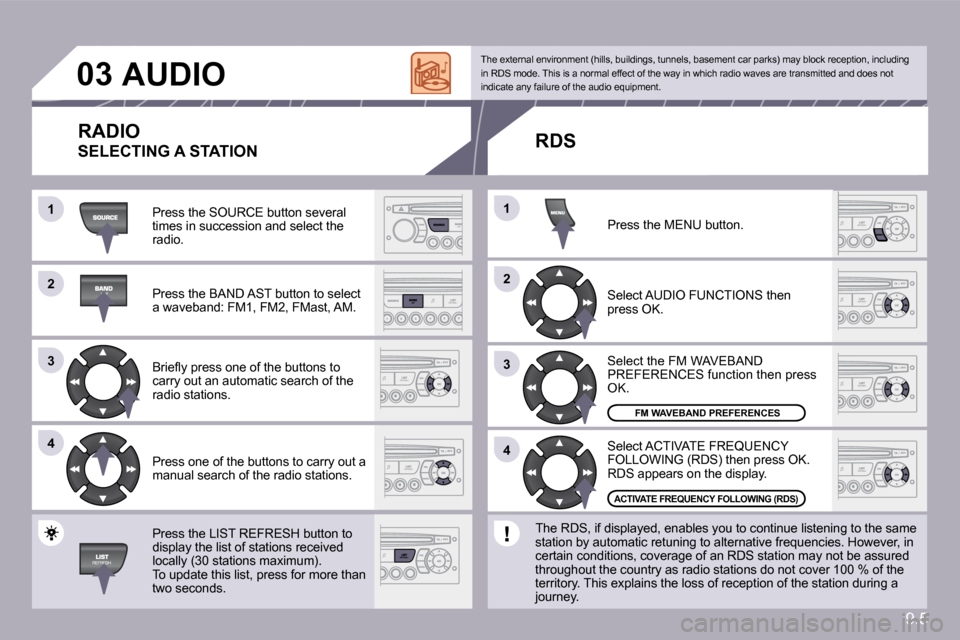

0 3 A U D I O
Press the SOURCE button several times in succession and select the radio.
P r e s s t h e B A N D A S T b u t t o n t o s e l e c t a waveband: FM1, FM2, FMast, AM.
B r i e fl y p r e s s o n e o f t h e b u t t o n s t o carry out an automatic search of the radio stations.
Press one of the buttons to carry out a manual search of the radio stations.
Press the LIST REFRESH button to display the list of stations received locally (30 stations maximum). To update this list, press for more than two seconds.
S e l e c t A C T I V A T E F R E Q U E N C Y FOLLOWING (RDS) then press OK. RDS appears on the display.
S e l e c t t h e F M W A V E B A N D PREFERENCES function then press OK.
Select AUDIO FUNCTIONS then press OK.
Press the MENU button.
F M W A V E B A N D P R E F E R E N C E S
A C T I V A T E F R E Q U E N C Y F O L L O W I N G ( R D S )
T h e e x t e r n a l e n v i r o n m e n t ( h i l l s , b u i l d i n g s , t u n n e l s , b a s e m e n t c a r p a r k s ) m a y b l o c k r e c e p t i o n , i n c l u d i n g in RDS mode. This is a normal effect of the way in which radio waves are transmitted and does not indicate any failure of the audio equipment.
R D S
T h e R D S , i f d i s p l a y e d , e n a b l e s y o u t o c o n t i n u e l i s t e n i n g t o t h e s a m e s t a t i o n b y a u t o m a t i c r e t u n i n g t o a l t e r n a t i v e f r e q u e n c i e s . H o w e v e r , i n c e r t a i n c o n d i t i o n s , c o v e r a g e o f a n R D S s t a t i o n m a y n o t b e a s s u r e d t h r o u g h o u t t h e c o u n t r y a s r a d i o s t a t i o n s d o n o t c o v e r 1 0 0 % o f t h e t e r r i t o r y . T h i s e x p l a i n s t h e l o s s o f r e c e p t i o n o f t h e s t a t i o n d u r i n g a journey.
R A D I O
S E L E C T I N G A S T A T I O N
