Peugeot Partner Tepee 2010 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2010, Model line: Partner Tepee, Model: Peugeot Partner Tepee 2010Pages: 214, PDF Size: 7.17 MB
Page 121 of 214
1 1 5
SAFETY
4
1 1 5
Child safety
Refer to chapter 4, "Airbags" section.
The child seats function and the
passenger air bag disarming
function are common to the entire
PEUGEOT range.
If the passenger air bag is not
disarmed, the installation of a
"rearwards-facing" child seat in the
front is strictly prohibited. UNIVERSAL CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which a
re
secured using a three point seat belt :
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position.
Groups 1, 2 and 3: from 9 to 36 kg
L2
"KIDDY Life"
Use of the restraining cushion is
compulsory for the transportation of y o u n g c h i l d r e n ( f r o m 9 t o 1 8 k g ) .
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start'' .
L4
"KLIPPAN Optima" From the
age of 6 years
( a p p r o x i m a t e l y 2 2 k g ) , the booster is used on its own.
L3: to install this seat in row 2, remove the head restraints.
Page 122 of 214
116116
Child safety

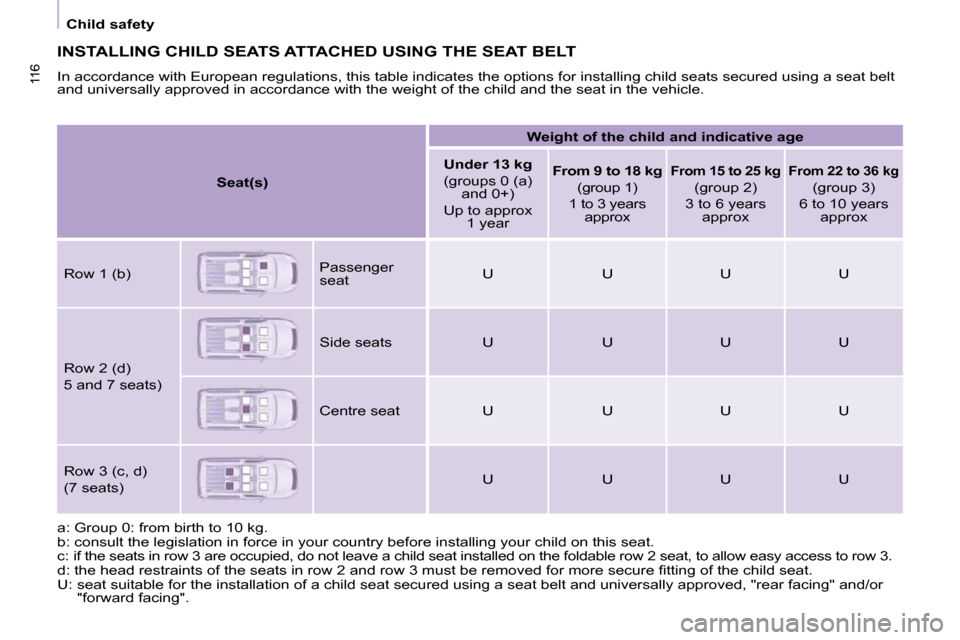

INSTALLING CHILD SEATS ATTACHED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt
and universally approved in accordance with the weight of the child and the seat in the vehicle.
a : G r o u p 0 : f r o m b i r t h t o 1 0 k g .
b : c o n s u l t t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y b e f o r e i n s t a l l i n g y o u r c h i l d o n t h i s s e a t .
c : i f t h e s e a t s i n r o w 3 a r e o c c u p i e d , d o n o t l e a v e a c h i l d s e a t i n s t a l l e d o n t h e f o l d a b l e r o w 2 s e a t , t o a l l o w e a s y a c c e s s t o r o w 3 .
d : t h e h e a d r e s t r a i n t s o f t h e s e a t s i n r o w 2 a n d r o w 3 m u s t b e r e m o v e d f o r m o r e s e c u r e fi t t i n g o f t h e c h i l d s e a t .
U : s e a t s u i t a b l e f o r t h e i n s t a l l a t i o n o f a c h i l d s e a t s e c u r e d u s i n g a s e a t b e l t a n d u n i v e r s a l l y a p p r o v e d , " r e a r f a c i n g " a n d / o r
"forward facing".
Seat(s)
Weight of the child and indicative age
Under 13 kg
( g r o u p s 0 ( a ) and 0+)
Up to approx 1 year
From 9 to 18 kg
( g r o u p 1 )
1 to 3 years approx
From 15 to 25 kg
( g r o u p 2 )
3 to 6 years approx
From 22 to 36 kg
( g r o u p 3 )
6 to 10 years approx
R o w 1 ( b ) Passenger
seat U U U U
R o w 2 ( d )
5 a n d 7 s e a t s ) Side seats U U U U
Centre seat U U U U
R o w 3 ( c , d )
( 7 s e a t s )
U U U U
Page 123 of 214
117
SAFETY
4
117
Child safety
"ISOFIX" MOUNTINGS
Your vehicle has been approved in
accordance with the new ISOFIX
regulation.
The mountings comprise three rings for
e a c h s e a t : - two front rings
A and B , located
between the vehicle seat back and
cushion, - a rear ring
C , located on the back
of the vehicle's seat back, for
securing the upper strap referred to
as the TOP TETHER.
This ISOFIX mounting system
guarantees you fast, reliable and safe
fi t t i n g o f t h e c h i l d s e a t i n y o u r v e h i c l e
on the side seats.
T h e I S O F I X c h i l d s e a t s a r e fi t t e d w i t h
two locks which are secured easily on
the two front rings.
Some also have an upper strap which
is attached to the rear ring C .
To attach this strap, raise the
vehicle seat's head restraint then
pass the hook between its rods.
T h e n fi x t h e h o o k o n t h e r e a r r i n g a n d
tighten the upper strap.
I s o fi x s e a t w i t h s u p p o r t
I S O F I X c h i l d s e a t s fi t t e d w i t h a
s u p p o r t ( w h i c h r e s t s o n t h e fl o o r
of your vehicle) cannot be installed on
r e a r s e a t s e q u i p p e d w i t h fl o o r b o x e s
( u n d e r t h e f o o t w e l l s ) .
Page 124 of 214
118118
Child safety
This child seat can also be used on
s e a t s w h i c h a r e n o t fi t t e d w i t h I S O F I X
mountings.
In this case, it must be attached to
the vehicle seat using the three point
seat belt.
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g
the child seat given in the seat
manufacturer's installation guide.
ISOFIX CHILD SEAT RECOMMENDED BY AND APPRO
VED FOR YOUR
VEHICLE
ISOFIX RÖMER Duo Plus ( s i z e c a t e g o r y B1 )
Group 1: from 9 to 18 kg
Installed in the forward facing position.
Fitted with an upper strap to be secured on the ISOFIX upp er ring,
referred to as the TOP TETHER.
T h r e e s e a t b o d y a n g l e s : s i t t i n g , r e c l i n i n g , l y i n g .
Page 125 of 214
119
SAFETY
4
119
Child safety
SUMMARY TABLE FOR THE INSTALLATION OF ISOFIX CHILD SEATS
In accordance with European regulations, this table indicates the options for the installation of ISOFIX child seats on
t h e v e h i c l e s e a t s fi t t e d w i t h I S O F I X m o u n t i n g s .
In the case of the universal and semi-universal ISOFIX child seat s, the child seat's ISOFIX size category, determined by
a letter from A to G , is indicated on the child seat next to the ISOFIX logo.
Weight of the child /indicative age
Less than 10 kg
(group 0)
Up to 6 months approx
Less than 10 kg
(group 0)
Less than 13 kg (group 0+)
Up to 1 year approx
From 9 to 18 kg (group 1)
From 1 to 3 years approx
Type of ISOFIX child seat Infant car seat "rear facing" "rear facing" "forward facing"
ISOFIX size category F G C D E C D A B B1
Row 2
( 5 a n d 7 * s e a t s ) Side seats
IL-SU IL-SU IL-SU IUF, IL-SU
Centre seat
N o n - I s o fi x s e a t
Row 3
( 7 s e a t s ) Seats
N o n - I s o fi x s e a t s
IUF: Seat suitable for the installation of an ISOFIX child sea t of the universal category. "Forward facing" ISOFIX child seats
fi t t e d w i t h a n u p p e r s t r a p s e c u r e d t o t h e u p p e r r i n g o f t h e v e h i c l e s e a t s e q u i p p e d w i t h I S O F I X m o u n t i n g s .
IL-SU: Seat suitable for the installation of a semi-universal ISOFI X child seat. "Forward facing" ISOFIX child seats.
* I n t h e 7 s e a t v e r s i o n , t h e three seats of row 2 must be present when child seats are installed.
Page 126 of 214
120120
Child safety
ADVICE ON CHILD SEATS
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack in relation to the child's body
to a minimum , even for short
journeys.
For optimum installation of the "forward
facing" child seat, ensure that the back
of the child seat is in contact with the
back of the vehicle's seat and that the
head restraint does not cause any
discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached
securely to prevent it from being
thrown around the vehicle in the event
of sharp braking.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
absent.
Disarm the passenger air bag when a
"rear facing" child seat is installed on
the front seat.
Otherwise, the child would risk being
seriously injured or killed if the air bag
w e r e t o i n fl a t e .
A s a s a f e t y p r e c a u t i o n , d o n o t l e a v e :
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle. Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
PEUGEOT recommends the use of a
b o o s t e r s e a t w h i c h h a s a b a c k , fi t t e d
with a seat belt guide at shoulder level.
CHILD LOCK
This prevents opening of the side
doors from the inside. Manual mode
A label indicates the location of the
child lock.
- Open fully past the point of
resistance.
- Tilt the lever, located on the rear section of the door.
Electric mode With the ignition on, press this
button. The diode comes on.
W a r n i n g : t h i s s y s t e m i s
independent of the central
locking control.
Always remove the ignition key when
leaving the vehicle, even for a short
time.
It is advisable to check the activation of
the child lock each time the ignition is
switched on.
In the event of a serious impact the
electric child lock is deactivated
automatically.
To prevent accidental opening of the
doors, use the "Child Lock".
Take care not to open the rear windows
by more than one third.
To protect young children from the rays
o f t h e s u n , fi t s i d e b l i n d s t o t h e r e a r
windows.
Page 127 of 214
121
Towing a trailer
ACCESSORIES
5
For more information about
weights, refer to the administrative
documents (V5 registration
document, ...) or to the "Weights"
section of chapter 8.
TOWING A TRAILER, CARAVAN, BOAT, ETC...
Distribution of loads
Distribute the load in the trailer so
that the heaviest objects are as
close as possible to the axle and
the nose weight is close to the
maximum authorised without, however,
exceeding it.
Cooling
Towing a trailer on a slope increases
the coolant temperature. As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
On the contrary, use a high gear to
lower the engine speed and reduce
your speed.
In all cases, pay attention to the
coolant temperature.
Driving advice
A towed vehicle must free wheel:
gearbox in neutral.
Page 128 of 214
122
Towing a trailer
Good Practice
In certain cases of particularly arduous
use (towing the maximum load up a
steep slope in high temperatures), the
engine automatically limits its power. In
this case, the automatic cutting off of
the air conditioning allows the engine
power to be recovered.
Tyres:
check the tyre pressures of the
t o w i n g v e h i c l e ( s e e t h e " I d e n t i fi c a t i o n
features" section of chapter 8) and of
the trailer, observing the recommended
pressure. See the "Levels" section of chapter 6.
If the coolant temperature
warning light comes on, stop
the vehicle and switch off the
engine as soon as possible.
Brakes
Towing increases the braking distance.
Drive at a moderate speed, change
down early and brake gradually. Towbar
We recommend the use of original
PEUGEOT towbars and their
harnesses, which have been tested
and approved from the design stage of
your vehicle, and that you entrust the
fi t t i n g o f t h i s e q u i p m e n t t o a P E U G E O T
dealer.
I f t h i s e q u i p m e n t i s n o t fi t t e d b y a
PEUGEOT dealer, it is imperative that
i t i s fi t t e d u s i n g t h e e l e c t r i c a l p r e -
e q u i p m e n t i n s t a l l e d a t t h e r e a r o f t h e
vehicle and in accordance with the
manufacturer’s instructions.
In accordance with the general
instructions a reminder of which has
been given above, we draw your
a t t e n t i o n t o t h e r i s k l i n k e d w i t h fi t t i n g
a towbar or electrical accessory not
recommended by PEUGEOT. Fitting
s u c h e q u i p m e n t c o u l d r e s u l t i n t h e
failure of your vehicle’s electronic
system. Please contact a PEUGEOT
d e a l e r f o r i n f o r m a t i o n b e f o r e fi t t i n g t h i s
t y p e o f e q u i p m e n t .
Side wind
Sensitivity to side wind is increased.
Drive smoothly and at a moderate
speed.
ABS/ESP
The ABS or ESP systems only control
the vehicle, not the trailer or caravan.
Rear parking assistance
The assistance does not function while
the vehicle is towing.
Page 129 of 214
123
5
Equipment
A further range is also available,
structured around comfort, leisure and
maintenance: A n t i - t h e f t a l a r m , w i n d o w
e n g r a v i n g , fi r s t a i d k i t , h i g h
visibility jacket, rear parking
assistance, warning triangle, ...
Seat covers compatible with air
bags for the front seats, bench
seat, rubber mats, carpet mats,
snow chains, blinds, tailgate
bicycle carrier, ... A u d i o e q u i p m e n t , h a n d s - f r e e
kit, speakers, CD changer,
navigation, ...
Regardless of the audio and
t e l e m a t i c e q u i p m e n t o f f e r e d o n
the market, the technical constraints
l i n k e d w i t h t h e fi t t i n g o f e q u i p m e n t o f
these product groups mean that the
s p e c i a l f e a t u r e s o f t h e e q u i p m e n t a n d
its compatibility with the capacities
o f y o u r v e h i c l e ' s s t a n d a r d e q u i p m e n t
must be taken into account. Please
ask a PEUGEOT dealer for further
i n f o r m a t i o n b e f o r e fi t t i n g s u c h
e q u i p m e n t .
To prevent the mat from becoming
caught under the pedals:
- e n s u r e t h a t t h e m a t a n d i t s fi x i n g s are positioned correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r . Maximum weights on bars
- Z é n i t h T r a n s v e r s e b a r s o n
longitudinal bars: 75 Kg (these
bars are not compatible with the
Modutop roof).
These accessories and parts, having
been tested and approved for reliability
and safety, are all adapted to your
vehicle. A wide range of recommended
accessories and original parts is offered. Installing radiocommunication
transmitters
You are advised to contact a
PEUGEOT dealer before installing
accessory radiocommunication
transmitters with external aerial on
your vehicle.
The PEUGEOT network will inform you
o f t h e c h a r a c t e r i s t i c s ( f r e q u e n c y b a n d ,
maximum output power, aerial position,
s p e c i fi c c o n d i t i o n s o f i n s t a l l a t i o n ) o f
t h e t r a n s m i t t e r s w h i c h c a n b e fi t t e d ,
in accordance with the Motor Vehicle
Electromagnetic Compatibility Directive
(2004/104/EC).
Page 130 of 214
124
Equipment T h e fi t t i n g o f e l e c t r i c a l e q u i p m e n t
or accessories which are not
recommended by PEUGEOT
may result in a failure of your vehicle's
electronic system. Please note this
s p e c i fi c w a r n i n g . Y o u a r e a d v i s e d
to contact a dealer to be shown the
r a n g e o f r e c o m m e n d e d e q u i p m e n t o r
accessories.
Depending on the country in which
the vehicle is sold, it is compulsory to
have a high visibility jacket, warning
triangle and spare bulbs available in
the vehicle. "Active Fleet Data" telematic
unit
Connected directly to the heart of the
vehicle (multiplexed network: "Full
CAN"), the telematic unit, by means of
a "ready to use" service, permits the
sending in real time of information such
as:
- d i s t a n c e t r a v e l l e d ,
- d i s t a n c e r e m a i n i n g b e f o r e t h e n e x t
service,
- w a r n i n g s a n d f a u l t s ( o i l l e v e l , coolant level, oil temperature,
coolant temperature, etc...).
This enables "Fleet" managers
to optimise the monitoring and
management of their professional
vehicles.
Depending on country, contact a
PEUGEOT dealer for further information.
F r o n t m u d fl a p s , r e a r m u d
fl a p s , 1 5 / 1 7 i n c h a l l o y w h e e l s ,
wheelarch trim, leather steering
wheel, ...
Screenwash, interior and
exterior cleaning and
maintenance products, spare
bulbs, ...
