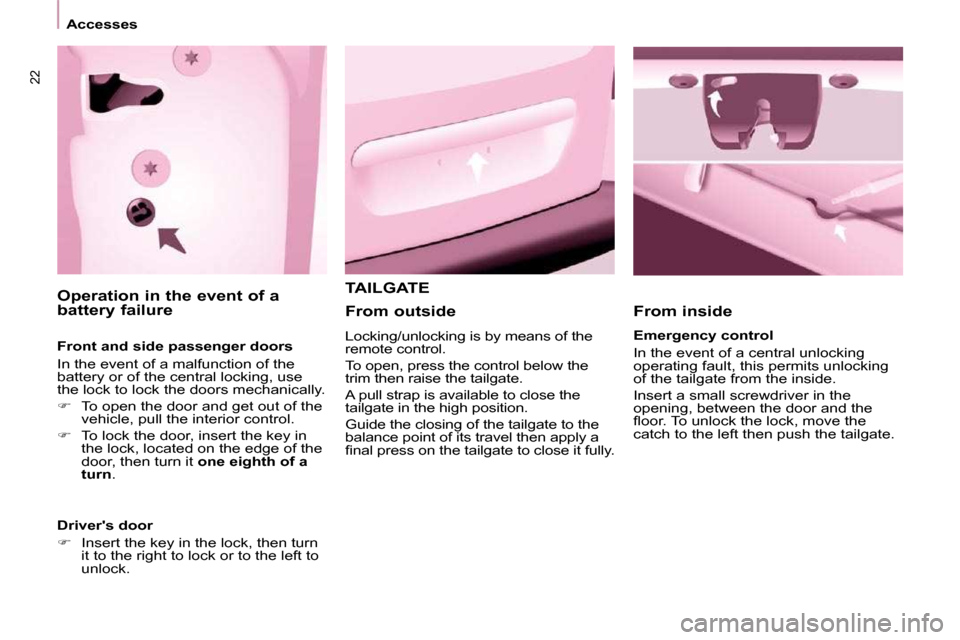

Accesses TAILGATE From inside
Emergency control
In the event of a central unlocking
operating fault, this permits unlocking
of the tailgate from the inside.
Insert a small screwdriver in the
opening, between the door and the
fl o o r . T o u n l o c k t h e l o c k , m o v e t h e
catch to the left then push the tailgate.
From outside
Locking/unlocking is by means of the
remote control.
To open, press the control below the
trim then raise the tailgate.
A pull strap is available to close the
tailgate in the high position.
Guide the closing of the tailgate to the
balance point of its travel then apply a
fi n a l p r e s s o n t h e t a i l g a t e t o c l o s e i t f u l l y .
Operation in the event of a
battery failure
Front and side passenger doors
In the event of a malfunction of the
battery or of the central locking, use
the lock to lock the doors mechanically.
To open the door and get out of the
vehicle, pull the interior control.
To lock the door, insert the key in
the lock, located on the edge of the
door, then turn it one eighth of a
turn .
Driver's door
Insert the key in the lock, then turn
it to the right to lock or to the left to
unlock.
Page 22 of 214
23
Accesses
READY TO SET OFF
2
Tailgate screen

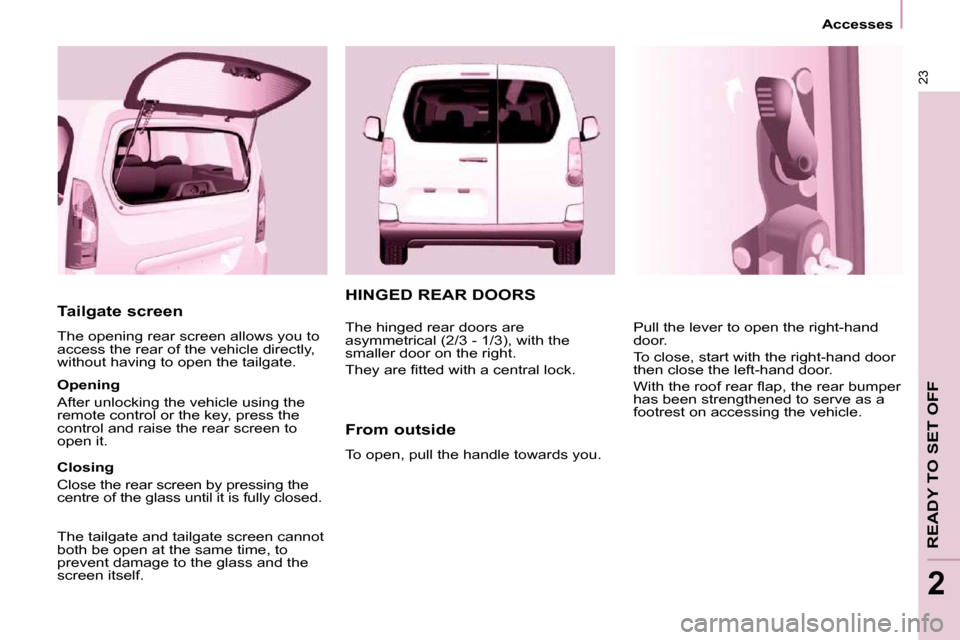

The opening rear screen allows you to
access the rear of the vehicle directly,
without having to open the tailgate.
Opening
After unlocking the vehicle using the
remote control or the key, press the
control and raise the rear screen to
open it.
Closing
Close the rear screen by pressing the
centre of the glass until it is fully closed. HINGED REAR DOORS
From outside
To open, pull the handle towards you.
Pull the lever to open the right-hand
door.
To close, start with the right-hand door
then close the left-hand door.
W i t h t h e r o o f r e a r fl a p , t h e r e a r b u m p e r
has been strengthened to serve as a
footrest on accessing the vehicle.
The tailgate and tailgate screen cannot
both be open at the same time, to
prevent damage to the glass and the
screen itself. The hinged rear doors are
asymmetrical (2/3 - 1/3), with the
smaller door on the right.
T h e y a r e fi t t e d w i t h a c e n t r a l l o c k .
Page 23 of 214
23
Accesses
READY TO SET OFF
2
Tailgate screen
The opening rear screen allows you to
access the rear of the vehicle directly,
without having to open the tailgate.
Opening
After unlocking the vehicle using the
remote control or the key, press the
control and raise the rear screen to
open it.
Closing
Close the rear screen by pressing the
centre of the glass until it is fully closed. HINGED REAR DOORS
From outside
To open, pull the handle towards you.
Pull the lever to open the right-hand
door.
To close, start with the right-hand door
then close the left-hand door.
W i t h t h e r o o f r e a r fl a p , t h e r e a r b u m p e r
has been strengthened to serve as a
footrest on accessing the vehicle.
The tailgate and tailgate screen cannot
both be open at the same time, to
prevent damage to the glass and the
screen itself. The hinged rear doors are
asymmetrical (2/3 - 1/3), with the
smaller door on the right.
T h e y a r e fi t t e d w i t h a c e n t r a l l o c k .
Page 24 of 214
24

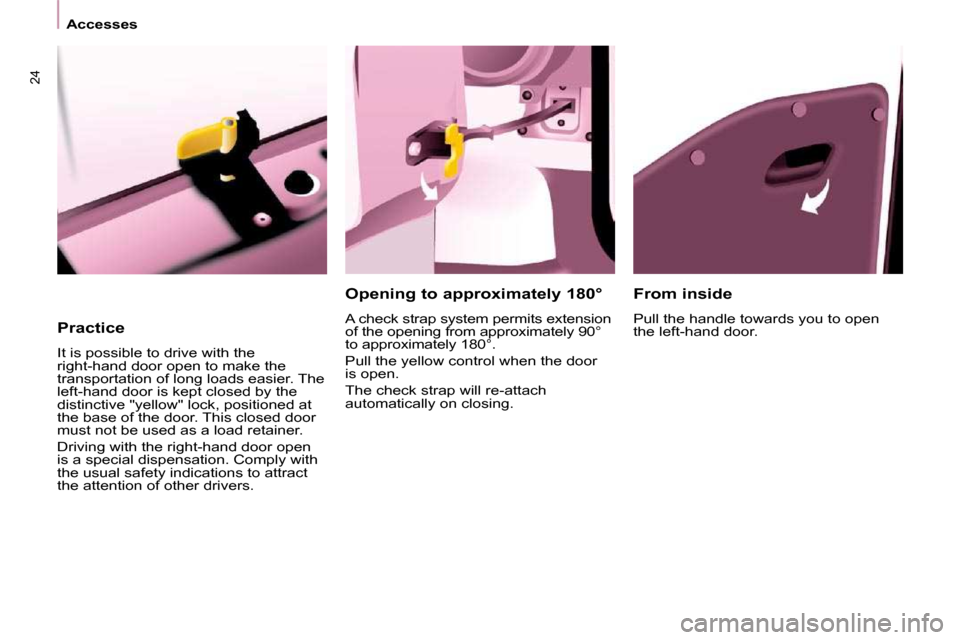

Accesses From inside
Pull the handle towards you to open
the left-hand door.
Opening to approximately 180°
A c h e c k s t r a p s y s t e m p e r m i t s e x t e n s i o n
o f t h e o p e n i n g f r o m a p p r o x i m a t e l y 9 0 °
t o a p p r o x i m a t e l y 1 8 0 ° .
Pull the yellow control when the door
is open.
The check strap will re-attach
automatically on closing.
Practice
It is possible to drive with the
right-hand door open to make the
transportation of long loads easier. The
left-hand door is kept closed by the
distinctive "yellow" lock, positioned at
the base of the door. This closed door
must not be used as a load retainer.
Driving with the right-hand door open
is a special dispensation. Comply with
the usual safety indications to attract
the attention of other drivers.
Page 25 of 214
25
Accesses
READY TO SET OFF
2

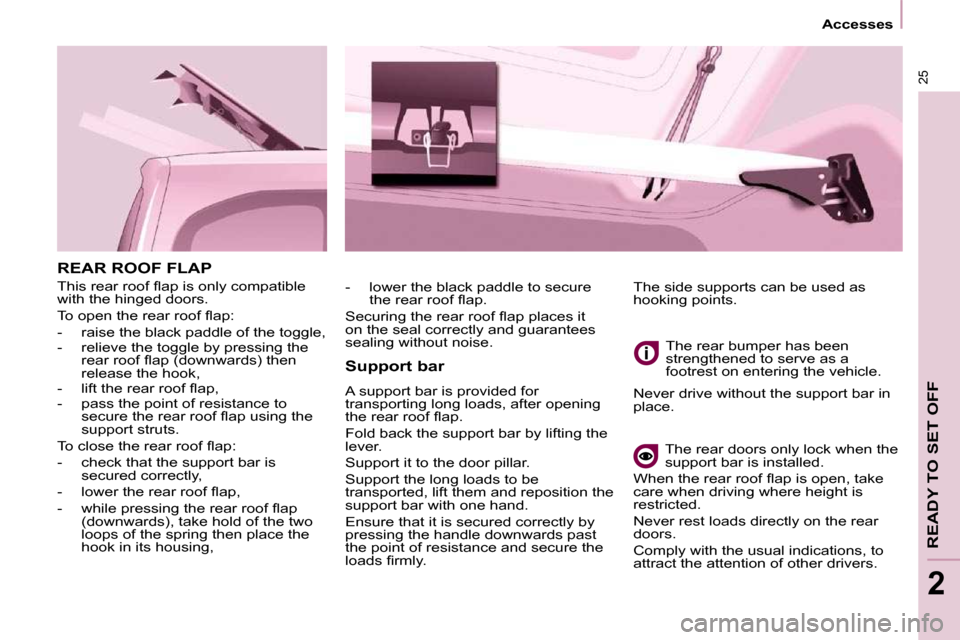

REAR ROOF FLAP
T h i s r e a r r o o f fl a p i s o n l y c o m p a t i b l e
with the hinged doors.
T o o p e n t h e r e a r r o o f fl a p :
- raise the black paddle of the toggle,
- relieve the toggle by pressing the r e a r r o o f fl a p ( d o w n w a r d s ) t h e n
release the hook,
- l i f t t h e r e a r r o o f fl a p ,
- pass the point of resistance to s e c u r e t h e r e a r r o o f fl a p u s i n g t h e
support struts.
T o c l o s e t h e r e a r r o o f fl a p :
- check that the support bar is secured correctly,
- l o w e r t h e r e a r r o o f fl a p ,
- w h i l e p r e s s i n g t h e r e a r r o o f fl a p (downwards), take hold of the two
loops of the spring then place the
hook in its housing, Support bar
A support bar is provided for
transporting long loads, after opening
t h e r e a r r o o f fl a p .
Fold back the support bar by lifting the
lever.
Support it to the door pillar.
Support the long loads to be
transported, lift them and reposition the
support bar with one hand.
Ensure that it is secured correctly by
pressing the handle downwards past
the point of resistance and secure the
l o a d s fi r m l y . The rear bumper has been
strengthened to serve as a
footrest on entering the vehicle.
Never drive without the support bar in
place.
The rear doors only lock when the
support bar is installed.
W h e n t h e r e a r r o o f fl a p i s o p e n , t a k e
care when driving where height is
restricted.
Never rest loads directly on the rear
doors.
Comply with the usual indications, to
attract the attention of other drivers.
The side supports can be used as
hooking points.
- lower the black paddle to secure
t h e r e a r r o o f fl a p .
S e c u r i n g t h e r e a r r o o f fl a p p l a c e s i t
on the seal correctly and guarantees
sealing without noise.
Page 26 of 214
26
Accesses

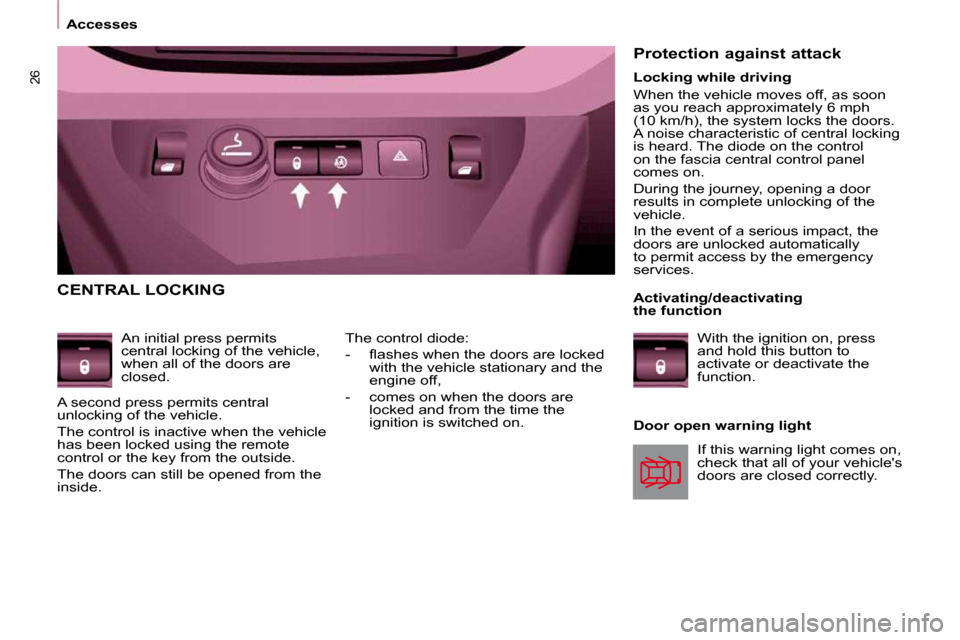

CENTRAL LOCKING An initial press permits
central locking of the vehicle,
when all of the doors are
closed.
A second press permits central
unlocking of the vehicle.
The control is inactive when the vehicle
has been locked using the remote
control or the key from the outside.
The doors can still be opened from the
inside.
Door open warning light
The control diode:
- fl a s h e s w h e n t h e d o o r s a r e l o c k e d
with the vehicle stationary and the
engine off,
- comes on when the doors are locked and from the time the
ignition is switched on. Protection against attack
If this warning light comes on,
check that all of your vehicle's
doors are closed correctly.
Locking while driving
When the vehicle moves off, as soon
a s y o u r e a c h a p p r o x i m a t e l y 6 m p h
(10 km/h), the system locks the doors.
A noise characteristic of central locking
is heard. The diode on the control
on the fascia central control panel
comes on.
During the journey, opening a door
results in complete unlocking of the
vehicle.
In the event of a serious impact, the
doors are unlocked automatically
to permit access by the emergency
services.
Activating/deactivating
the function
With the ignition on, press
and hold this button to
activate or deactivate the
function.
Page 27 of 214
READY TO SET OFF
22
Instruments and controls

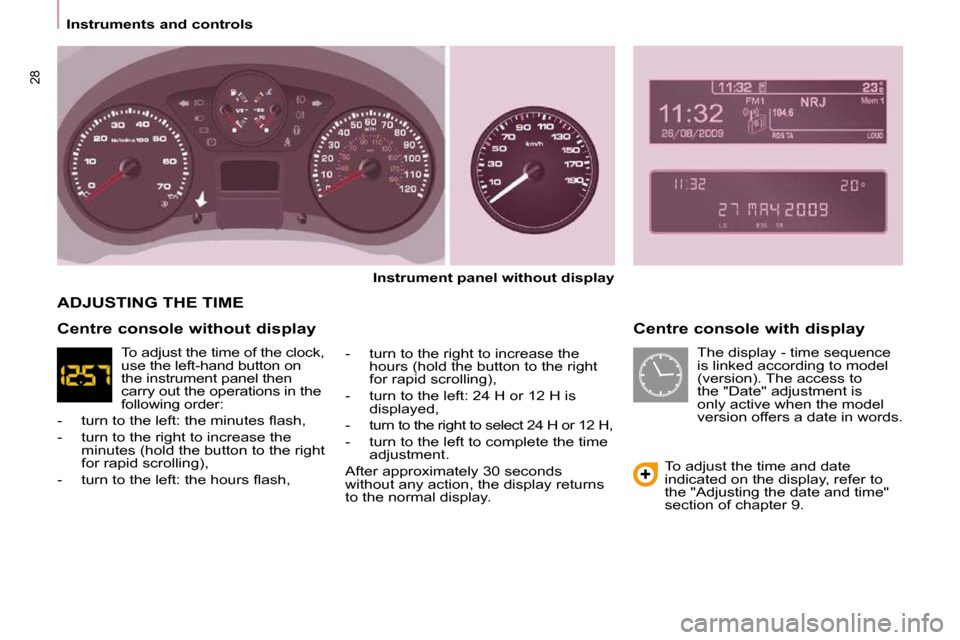

INSTRUMENT PANEL Displays
INSTRUMENTS AND CONTROLS
Screens
The information is presented on board
the vehicle in different display formats
according to the vehicle's equipment.
Dials
1.
Distance recorder in kilometres/miles.
2. Display.
3. Fuel level, coolant temperature.
4. Rev counter.
5. Trip distance recorder/service
indicator zero reset.
6. Instrument panel lighting rheostat. - Speed limiter/cruise control.
- Kilometres/Miles travelled.
- Service indicator, engine oil level
indicator, total kilometres/miles.
- Presence of water in the diesel fi l t e r .
- Diesel pre-heating.
Page 28 of 214
28
Instruments and controls Centre console with display
Instrument panel without display
- turn to the right to increase the hours (hold the button to the right
for rapid scrolling),
- turn to the left: 24 H or 12 H is displayed,
- turn to the right to select 24 H or 12 H,
- turn to the left to complete the time adjustment.
A f t e r a p p r o x i m a t e l y 3 0 s e c o n d s
without any action, the display returns
to the normal display.
ADJUSTING THE TIME
To adjust the time and date
indicated on the display, refer to
the "Adjusting the date and time"
section of chapter 9.
Centre console without display
The display - time sequence
is linked according to model
(version). The access to
the "Date" adjustment is
only active when the model
version offers a date in words.
To adjust the time of the clock,
use the left-hand button on
the instrument panel then
carry out the operations in the
following order:
- t u r n t o t h e l e f t : t h e m i n u t e s fl a s h ,
- turn to the right to increase the minutes (hold the button to the right
for rapid scrolling),
- t u r n t o t h e l e f t : t h e h o u r s fl a s h ,
Page 29 of 214
29
READY TO SET OFF
22
Instruments and controls

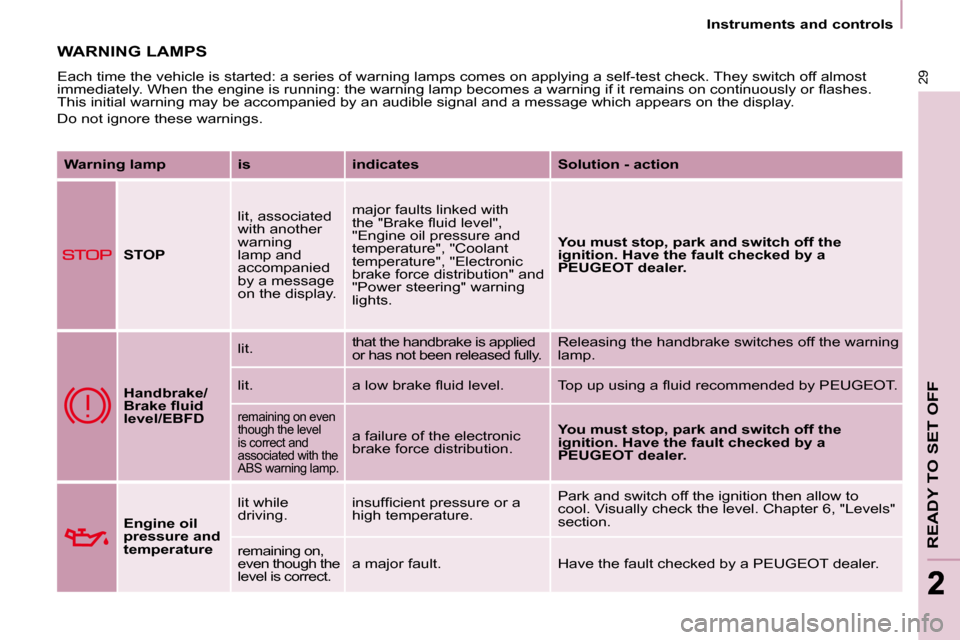

WARNING LAMPS
Each time the vehicle is started: a series of warning lamps comes o n applying a self-test check. They switch off almost
i m m e d i a t e l y . W h e n t h e e n g i n e i s r u n n i n g : t h e w a r n i n g l a m p b e c o m e s a w a r n i n g i f i t r e m a i n s o n c o n t i n u o u s l y o r fl a s h e s .
This initial warning may be accompanied by an audible signal and a message which appears on the display.
Do not ignore these warnings.
Warning lamp is indicates Solution - action
STOP lit, associated
with another
warning
lamp and
accompanied
by a message
on the display. major faults linked with
t h e " B r a k e fl u i d l e v e l " ,
"Engine oil pressure and
temperature", "Coolant
temperature", "Electronic
brake force distribution" and
"Power steering" warning
lights.
You must stop, park and switch off the
ignition. Have the fault checked by a
PEUGEOT dealer.
Handbrake/
B r a k e fl u i d
level/EBFD lit.
that the handbrake is applied
or has not been released fully. Releasing the handbrake switches off the warning
lamp.
lit. a l o w b r a k e fl u i d l e v e l . T o p u p u s i n g a fl u i d r e c o m m e n d e d b y P E U G E O T .
remaining on even
though the level
is correct and
associated with the
ABS warning lamp.
a failure of the electronic
brake force distribution.
You must stop, park and switch off the
ignition. Have the fault checked by a
PEUGEOT dealer.
Engine oil
pressure and
temperature lit while
driving.
i n s u f fi c i e n t p r e s s u r e o r a
high temperature. Park and switch off the ignition then allow to
cool. Visually check the level. Chapter 6, "Levels"
section.
remaining on,
even though the
level is correct. a major fault. Have the fault checked by a PEUGEOT dealer.
Page 30 of 214
30
Instruments and controls

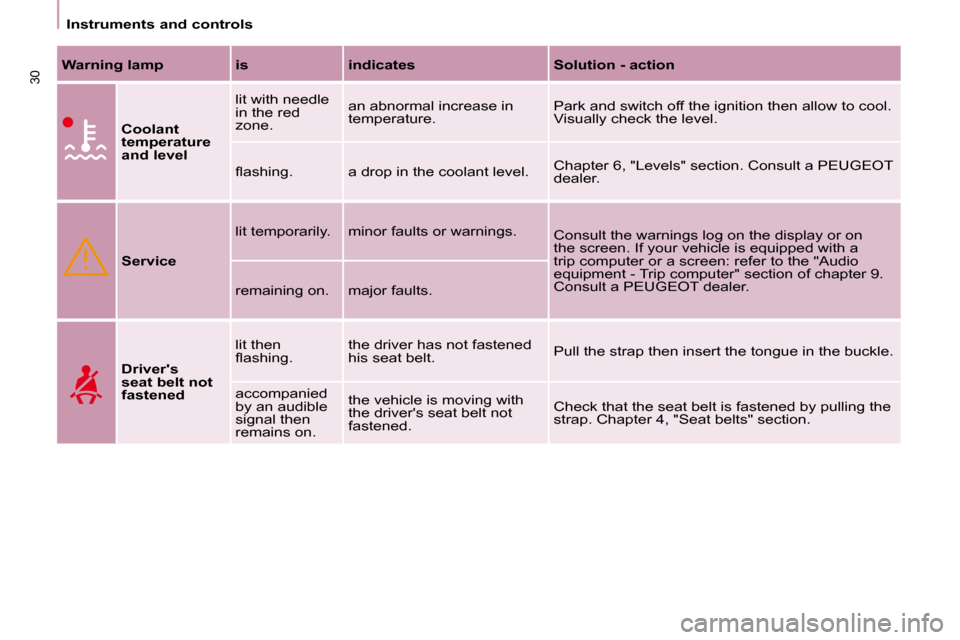

Warning lamp is indicates Solution - action
Coolant
temperature
and level lit with needle
in the red
zone.
an abnormal increase in
temperature.
Park and switch off the ignition then allow to cool.
Visually check the level.
fl a s h i n g . a drop in the coolant level. Chapter 6, "Levels" section. Consult a PEUGEOT
dealer.
Service lit temporarily. minor faults or warnings.
Consult the warnings log on the display or on
the screen. If your vehicle is equipped with a
trip computer or a screen: refer to the "Audio
equipment - Trip computer" section of chapter 9.
Consult a PEUGEOT dealer.
remaining on. major faults.
Driver's
seat belt not
fastened lit then
fl a s h i n g .
the driver has not fastened
his seat belt.
Pull the strap then insert the tongue in the buckle.
accompanied
by an audible
signal then
remains on. the vehicle is moving with
the driver's seat belt not
fastened.
Check that the seat belt is fastened by pulling the
strap. Chapter 4, "Seat belts" section.
