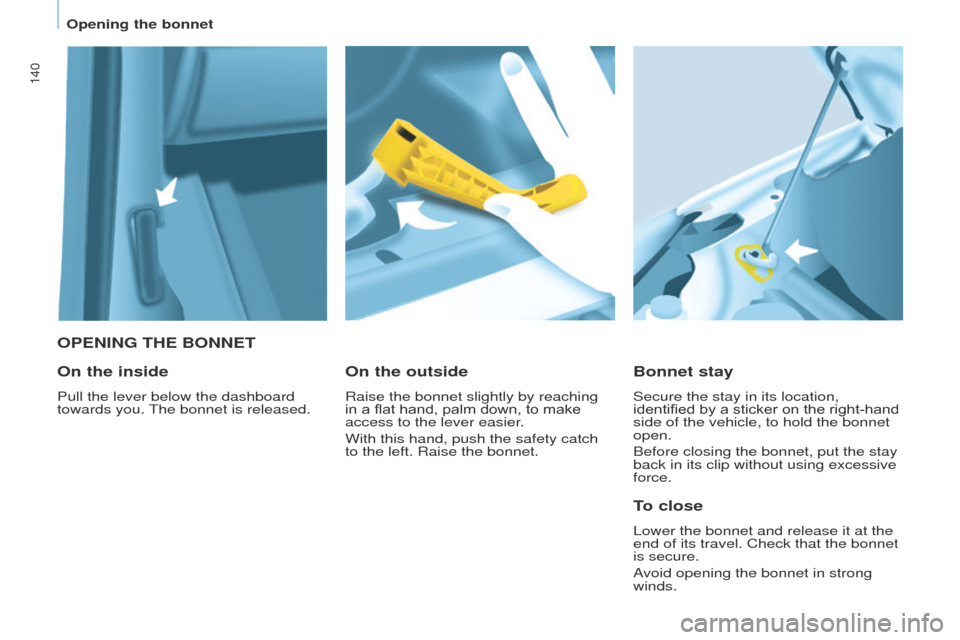

OPENING THE BONNETBonnet stay
Secure the stay in its location,
identified by a sticker on the right-hand
side of the vehicle, to hold the bonnet
open.
Before closing the bonnet, put the stay
back in its clip without using excessive
force.
On the outside
Raise the bonnet slightly by reaching
in a flat hand, palm down, to make
access to the lever easier.
With this hand, push the safety catch
to the left. Raise the bonnet.
On the inside
Pull the lever below the dashboard
towards you. the bonnet is released.
To close
Lower the bonnet and release it at the
end of its travel. Check that the bonnet
is secure.
Avoid opening the bonnet in strong
winds.
Opening the bonnet

141
Partner_2_VP_en_Chap07_Verification_ed02-2014
PETROL ENGINE
1. Screenwash reservoir.
2.
Fusebox.
3.

e ngine coolant header tank.
Battery connections:
+ Positive terminal.
- Negative point (earth).
take care when working under the bonnet. 4.
Brake and clutch fluid reservoir .
5.
Air filter
.
6.
e ngine oil dipstick.7.
Engine oil filler cap.
8.
Power steering fluid reservoir
.
under the bonnet
CHeCKS
7

142
Partner_2_VP_en_Chap07_Verification_ed02-2014
DIESEL ENGINE
4. Brake and clutch fluid reservoir.
5.
Air filter
.
6.
e ngine oil dipstick. 7.
Engine oil filler cap.
8.
Power steering fluid reservoir
.
9.

Priming pump.
1.

Screenwash reservoir
.
2.

Fusebox.
3.

e
ngine coolant header tank.
Battery connections:
+ Positive terminal.
- Negative point (earth).
take care when working under the bonnet.
under the bonnet

143
Partner_2_VP_en_Chap07_Verification_ed02-2014

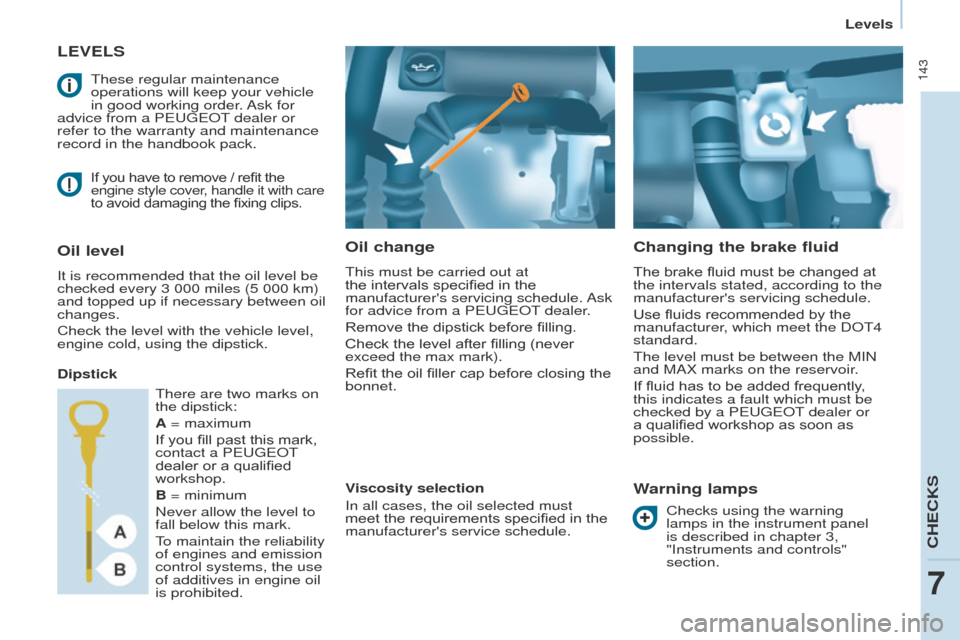

LEVELSOil change
this must be carried out at
the intervals specified in the
manufacturer's servicing schedule.
Ask
for advice from a P
euge O t
dealer
.
Remove the dipstick before filling.
Check the level after filling (never
exceed the max mark).
Refit the oil filler cap before closing the
bonnet.
Changing the brake fluid
The brake fluid must be changed at
the intervals stated, according to the
manufacturer's servicing schedule.
Use fluids recommended by the
manufacturer, which meet the DO
t 4
standard.
t

he level must be between the MIN
and MAX marks on the reservoir.
If fluid has to be added frequently,
this indicates a fault which must be
checked by a P
euge O t
dealer or
a qualified workshop as soon as
possible.
Warning lamps
If you have to remove / refit the
engine style cover, handle it with care
to avoid damaging the fixing clips.
Oil level
It is recommended that the oil level be
checked every 3 000 miles (5 000 km)
and topped up if necessary between oil
changes.
Check the level with the vehicle level,
engine cold, using the dipstick.
Dipstick
Viscosity selection
In all cases, the oil selected must
meet the requirements specified in the
manufacturer's service schedule.
t
hese regular maintenance
operations will keep your vehicle
in good working order. Ask for
advice from a P euge O t
dealer or
refer to the warranty and maintenance
record in the handbook pack.
Checks using the warning
lamps in the instrument panel
is described in chapter 3,
"Instruments and controls"
section.
t
here are two marks on
the dipstick:
A = maximum
If you fill past this mark,
contact a P
euge O t

dealer or a qualified
workshop.
B

= minimum
Never allow the level to
fall below this mark.
to maintain the reliability
of engines and emission
control systems, the use
of additives in engine oil
is prohibited.
Levels
CHeCKS
7

144
Partner_2_VP_en_Chap07_Verification_ed02-2014
Cooling system
Only use the fluid recommended by the
manufacturer.
Otherwise, you risk seriously damaging
your engine.
When the engine is warm, the
temperature of the coolant is controlled
by the engine fan. As this fan can
operate with the ignition key removed
and because the cooling system is
pressurised, wait for at least one hour
after the engine has stopped before
carrying out any work.
Slacken the cap by 1/4 of a turn to
release the pressure to prevent any
risk of scalding. When the pressure
has dropped, remove the cap and top
up the level with coolant.
If fluid has to be added frequently,
this indicates a fault which must be
checked by a Peuge O t
dealer as
soon as possible.
Power steering fluid level
the vehicle must be parked on level
ground with the engine cold. u nscrew
the cap integrated with the gauge and
check the level which must be between
the MIN and MAX marks. In order to regenerate the filter, you
are advised to drive at a speed higher
than 40 mph (60 km/h) for at least five
minutes as soon as possible, when
traffic conditions permit (until the
message disappears and the service
warning lamp goes off).
During regeneration of the particle
emission filter, the noise of a relay
operating may be heard under the
dashboard.
If the message is still displayed and
if the service warning lamp remains
on, contact a P
euge O t
dealer or a
qualified workshop.
T

opping up
t

he level must be between the MIN
and MAX marks on the expansion
bottle. If more than 1 litre of fluid is
required to top up the level, have
the system checked by a P
euge
O
t

dealer or a qualified workshop.
Screenwash and headlamp
wash level
For best quality cleaning and for your
safety, we would advise that you use
products of the P
euge O t
range.
For optimum cleaning and to avoid
freezing, this fluid must not be topped
up or replaced with plain water

.
Capacity of the screenwash reservoir:
approximately 3 litres.
If your vehicle is fitted with headlamp
washers, the capacity of the reservoir
is 6 litres.
Diesel additive level
(Diesel with particle
emission filter)
Topping up
t

his additive must be topped up by
a PEUGEOT dealer or a qualified
workshop without delay.
Waste products
Avoid prolonged contact of used oil
with the skin.
Brake fluid is harmful to health and
very corrosive.
Do not dispose of used oil, brake fluid
or coolant into drains or into the ground
but into the containers dedicated to this
use at a P
euge O t
dealer (France) or
an authorised waste disposal site.
t

he minimum level of this additive
is indicated by lighting of the service
warning lamp, accompanied by an
audible signal and a message in the
screen.
When this occurs with the engine
running it is due to the start of
saturation of the particle emission filter
(exceptionally prolonged urban type
driving conditions: low speed, long
traffic jams, ...).
Levels

145
Partner_2_VP_en_Chap07_Verification_ed02-2014
CHECKSCarbon filter and passenger compartment filterParticle filter (Diesel)
Maintenance of the particle filter must
be carried out by a Peuge O t dealer .
On acceleration after the vehicle has
been running for a prolonged period
at very low speed or at idle, you may,
in exceptional circumstances, notice
the emission of water vapour at the
exhaust.
t

his water vapour does not
have any adverse effect on vehicle
handling or the environment.
Battery
At the start of summer or winter, have
your battery checked by a P euge O t
dealer or a qualified workshop.
Brake pads
Brake pad wear depends on the style
of driving, in particular for vehicles
which are used in town, over short
distances. It may be necessary to
check the thickness of the pads, even
between services.
u

nless there is a leak on the circuit, a
drop in the brake fluid level indicates
that the brake pads are worn.
Brake disc / drum wear
For information on checking the brake
disc / drum wear, contact a P euge O t
dealer
.
Parking brake
Where the parking brake travel is too great
or there is a reduction in the performance
of the system, the parking brake should be
adjusted, even between services.
Have the system checked by a P
euge O t

dealer or a qualified workshop.
Oil filter
Change the filter regularly in
accordance with the manufacturer's
servicing schedule.
An access flap allows replacement of
the filters.
The carbon filter permits continuous
and effective filtering of dust.
If the passenger compartment filter
becomes blocked, this may reduce the
performance of the air conditioning
system and generate unpleasant
odours.
We recommend the use of a combined
passenger compartment filter. By
means of its second special active
filter, it contributes to the purification
of the air breathed by the occupants
and the cleanness of the passenger
compartment (reduction of allergic
symptoms, unpleasant odours and
greasy deposits).
Refer to theservicing and warranty
booklet for the replacement interval for
these components. Depending on the environment (dusty
atmosphere...) and the use of the
vehicle (urban driving...), change them
twice as often if necessary.
Checks
CHeCKS
7

146
Partner_2_VP_en_Chap07_Verification_ed02-2014
Bleeding water from the Diesel
filterManual gearbox
Have the level checked in accordance
with the manufacturer's servicing
schedule.
Only use products recommended
by P
euge O t
or products
of equivalent quality and
specification.
In order to optimise the operation
of units as important as the braking
system, P

euge O t
selects and of
fers
specific products.
In order to avoid damaging the
electrical units, high pressure washing
to clean the engine compartment is
strictly prohibited.
After washing the vehicle dampness,
or in winter, ice may form on the brake
discs and pads: braking efficiency may
be reduced. Make some light brake
applications to dry and de-ice the
brakes.
If this warning lamp comes
on, bleed the filter. Otherwise
bleed regularly each time the
engine oil is changed.
HDi engines use advanced
technology. All work requires
special training, which is assured
by a P
euge
O
t
dealer

.
Depending on country of sale.
to drain the water

, unscrew the bleed
screw located on the filter.
Operate until all of the water no longer
flows in the transparent pipe, then
tighten the bleed screw.
Checks

147
Partner_2_VP_en_Chap07_Verification_ed02-2014
FILLING WITH FUEL
Low fuel level
Filling
The fuel tank must be filled with the
engine off.
-
Open the fuel filler flap.
-


Insert the key
, then turn it a quarter
turn.
-

Remove the cap and hook it onto
the clip located on the inside of the
flap.
When fillin

g with fuel, a
mechanical system prevents
opening of the left-hand side door.
When the fuel filler flap is open, ensure
that no one tries to slide this door.
Once the flap has been closed, the
sliding side door may jam, push the
door to close it then open it.
When the minimum fuel tank
level is reached, this warning
lamp comes on.
You then have
approximately 8 litres of
fuel remaining. Fill up without delay to
avoid running out of fuel.
Never risk driving until you run out of
fuel as this may damage the emissions
control and injection systems. A label affixed to the inside of the flap
reminds you of the type of fuel to be
used.
You must fill with at least 5 litres of fuel
for it to be registered by the fuel gauge.
When the fuel filler cap is opened,
there may be a slight air suction noise.
t

his vacuum is entirely normal and is
due to the sealing of the fuel circuit.
When filling the fuel tank, do not
continue after the 3
rd cut-off of the
nozzle. t
his could cause malfunctions.
t

he capacity of the fuel tank is
approximately 60 litres.
-

After fillin

g the fuel tank, lock the
cap and close the flap.
Fuel used for petrol engines
the petrol engines are compatible
with e 10 bio-petrol (containing
10
% ethanol), conforming to e uropean
standards EN 228 and EN 15376.
e

85 type fuels (containing up to
85
% ethanol) are reserved exclusively
for vehicles marketed for the use of
this type of fuel (BioFlex vehicles).
t

he
quality of the ethanol must comply with
e

uropean standard e N 15293.
Fuel
CHeCKS
7

DIESEL
148
Partner_2_VP_en_Chap07_Verification_ed02-2014
FUEL CUT-OFF
In a serious collision, a mechanism
automatically prevents fuel from
reaching the engine.The flashing of this warning
lamp is accompanied by a
message in the screen.
Check that there is no odour or
leakage of fuel outside the vehicle and
re-establish the fuel supply:
-

switch of
f the ignition
(S
t
OP
position),
-

remove the key
,
-

put the key back in the ignition,
-


switch on the ignition and start.
DIESEL PRIMING PUMP
If you should run out of fuel, it is
necessary to prime the fuel circuit:
-
fill the fuel tank with at least five
litres of Diesel,
-


squeeze and release the manual
priming pump, under the bonnet
under the protective cover

,
-

operate the starter until the engine
starts. Refer to chapter 7: "

u nder the
bonnet" section.
Fuel used for Diesel engines
the Diesel engines are compatible with
biofuels which conform to current and
future
e uropean standards (Diesel fuel
which complies with standard
e N 590
mixed with a biofuel which complies
with standard
e N 14214) available at
the pumps (containing up to 7 % Fatty
Acid Methyl
e ster).
t

he B30 biofuel can be used in certain
Diesel engines; however, this use
is subject to strict application of the
special servicing conditions indicated
in the warranty and maintenance
record. Contact a P
euge O t
dealer or
a qualified workshop.
t

he use of any other type of (bio)
fuel (vegetable or animal oils, pure
or diluted, domestic fuel...) is strictly
prohibited (risk of damage to the
engine and fuel system).
Fuel
