Peugeot Partner Tepee 2015 Owner's Manual

129
Partner_2_VP_en_Chap05_Securite_ed02-2014
(a) universal child seat: child seat
that can be installed in any vehicle
using the seat belt.
(b)
g roup 0: from birth to 10 kg.
(c)

Refer to the legislation in force in
your country before installin

g your
child on this seat.
(d) When a "rearward facing" child seat is installed on a front passenger
seat, the passenger's front airbag
must be deactivated. Otherwise,
the child would risk being
seriously injured or killed if the
airbag is deployed.
When a "forward facing" child seat
is installed on a

front passenger
seat, the passenger's front airbag
must remain active. Remove and stow the heads
restraint, before installing a child
seat with backrest on a passenger
seat.
Refit the head restraint once the child
seat has been removed.
(e) When a child seat is installed at the
rear, forward facing or rearward
facing, move the vehicle's seats
in the row in front forwards and
straighten their backrests to leave
enough space for the child seat or
the child's legs.
(f) Put the backrests of the outer and centre seats in row 2, located in
front of seat occupied by a child
seat, in the table position, or if this
is not sufficient, remove the seats
in row 2, so that the child seat or
the child's legs do not touch the
seats in row 2.
(g): if the seats in row 3 are occupied, do not leave a child seat installed
on the foldable row 2 seat, to allow
easy access to row 3.
Child safety
SAFetY
5

130
Partner_2_VP_en_Chap05_Securite_ed02-2014
"ISOFIX" MOUNTINGS
Your vehicle has been approved in
accordance with the latest ISOFIX
regulation.
t
he mountings comprise three rings for
each seat:
-

two front rings
A, located between
the vehicle seat backrest and
cushion, indicated by a marking -
a rear ring B, located on the back
of the vehicle's seat backrest, for
securing the upper strap referred to
as the
t
op
t
ether
.
t

he
top tether is used to secure the
upper strap of child seats that have
one.
t

his arrangement limits the
forward tipping of the child seat in the
event of a frontal impact.
t

his ISOFIX mounting system
guarantees you fast, reliable and safe
fitting of the child seat in your vehicle.
The ISOFIX child seats are fitted with
two latches which are secured on the
two front rings A.
Some also have an upper strap which
is attached to the rear ring B. Follow strictly the instructions for
fitting child seats contained in the
manufacturer's installation guide.
to secure the child seat to the top tether:
-

remove and stow the head restraint
before installin

g the child seat in
this seating position (refit it once
the child seat has been removed),
-
pass the upper strap of the child
seat over the top of the seat
backrest, between the apertures for
the head restraint rods,
-
secure the hook on the upper strap
to the rear ring,
-

tighten the upper strap.
t

he incorrect installation of a child
seat in a vehicle compromises the
protection of the child in the event
of an accident.
Refer to the table for information on
the installation of ISOFIX child seats in
your vehicle.
Child safety

131
Partner_2_VP_en_Chap05_Securite_ed02-2014
This child seat can also be used on seats which are not fitted with ISOFIX
mountings.
In this case, it must be attached to the vehicle seat using the three po\
int seat
belt.
Follow the instructions for fitting the child seat given in the seat
manufacturer's installation guide.

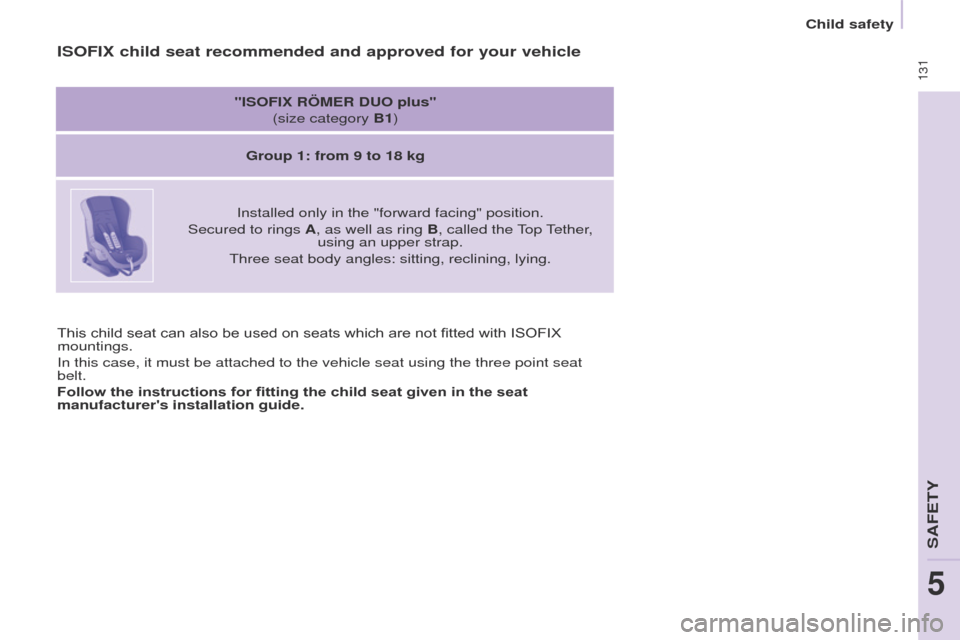

ISOFIX child seat recommended and approved for your vehicle
"ISOFIX RÖMER DUO plus" (size category B1)
Group 1: from 9 to 18 kg
Installed only in the "forward facing" position.
Secured to rings A, as well as ring B, called the
t
op
t
ether
,
using an upper strap.
t

hree seat body angles: sitting, reclining, lying.
Child safety
SAFetY
5

132
Partner_2_VP_en_Chap05_Securite_ed02-2014

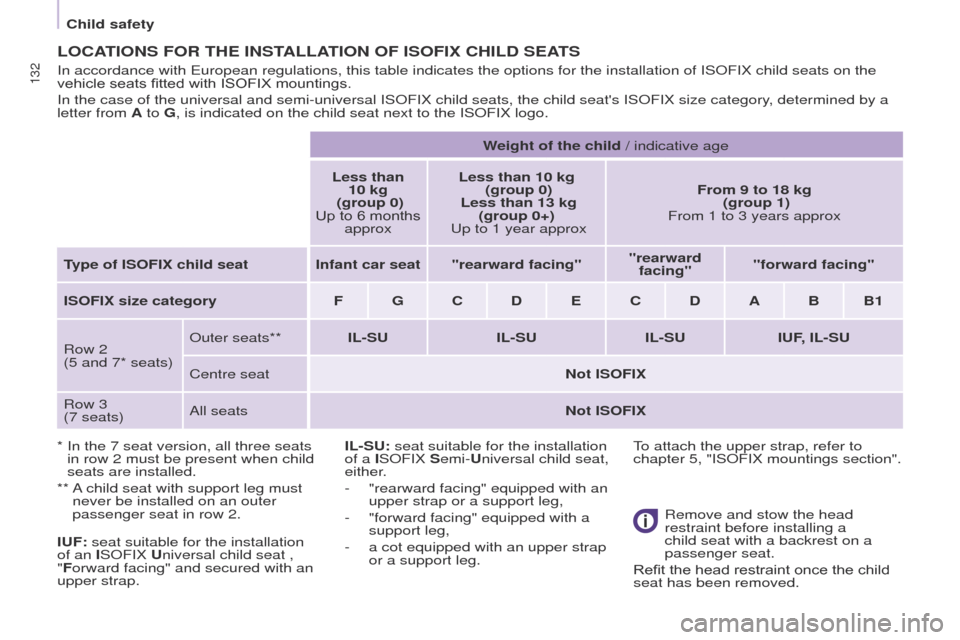

LOCATIONS FOR THE INSTALLATION OF ISOFIX CHILD SEATS
* In the 7 seat version, all three seats
in row 2 must be present when child
seats are installed.
**
A

child seat with support leg must
never be installed on an outer
passenger seat in row 2.
In accordance with
e uropean regulations, this table indicates the options for the installati\
on of ISOFIX child seats on the
vehicle seats fitted with ISOFIX mountings.
In the case of the universal and semi-universal ISOFIX child seats, the \
child seat's ISOFIX size category, determined by a
letter from A to G, is indicated on the child seat next to the ISOFIX logo.
Weight of the child / indicative age
Less than 10 kg
(group 0)
Up to 6 months approx Less than 10 kg
(group 0)
Less than 13 kg (group 0+)
u p to 1 year approx
From 9 to 18 kg
(group 1)
From 1 to 3 years approx
Type of ISOFIX child seat Infant car seat "rearward facing" "rearward
facing" "forward facing"
ISOFIX size category F G C D E C D A B B1
Row 2
(5 and 7* seats) Outer seats**
IL-SUIL-SUIL-SUIUF, IL-SU
Centre seat Not ISOFIX
Row 3
(7 seats) All seats
Not ISOFIX
IL-SU: seat suitable for the installation
of a ISOFIX Semi-Universal child seat,
either.
-

"rearward facing" equipped with an
upper strap or a support leg,
-


"forward facing" equipped with a
support leg,
-


a cot equipped with an upper strap
or a support leg. Remove and stow the head
restraint before installin

g a
child seat with a backrest on a
passenger seat.
Refit the head restraint once the child
seat has been removed.
IUF: seat suitable for the installation
of an ISOFIX Universal child seat ,
"Forward facing" and secured with an
upper strap.to attach the upper strap, refer to
chapter 5, "ISOFIX mountings section".
Child safety

133
Partner_2_VP_en_Chap05_Securite_ed02-2014
ADVICE ON CHILD SEATS
At the rear, always leave sufficient
space between the front seat and:
-
a "rearward facing" child seat,
-


the feet of a child seated in a
"forward facing" child seat.
For this, move the front seat forward
and, if necessary

, straighten its
backrest as well.
t
he incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
Check that there is no seat belt or seat
belt buckle under the child seat, as this
could destabilise the seat.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack relative to the child's body to a
minimum, even for short journeys.
For the installation of a child seat using
the seat belt, ensure that the seat belt
is well tensioned on the child seat
and that it is holding the child seat
firmly against the vehicle's seat. If the
passenger seat is adjustable, move it
forward if necessary. For the optimum installation of a
"forward facing" child seat, ensure that
the back of the child seat is as close as
possible to the backrest of the vehicle's
seat, or in contact if possible.
t
he head restraint must be removed
before installing a child seat with a
backrest on the passenger seat.
e
nsure that the head restraint is
stowed or attached securely so that it
is not thrown around the vehicle in the
event of sharp braking.
Refit the head restraint as soon as the
child seat is removed.Children at the front
the legislation on carrying a child on
the front passenger seat is specific to
each country
. Refer to the legislation in
force in your country.
Deactivate the passenger's airbag
when a "rearward facing" child seat is
installed on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were deployed.
Installing a booster seat
the chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
e

nsure that the lap part of the seat belt
passes correctly over the child's thighs.
P
euge O t
recommends the use of a
booster seat which has a back, fitted
with a seat belt guide at shoulder level.
As a safety precaution, never leave:
-


one or more children alone and
unsupervised in a vehicle,
-


a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,
-


the keys within reach of children
inside the vehicle.
to prevent accidental opening of the
doors, use the "Child Lock".
take care not to open the rear windows
by more than one third.
to protect young children from the rays
of the sun, fit side blinds to the rear
windows.
For an installation in row 3, put the
backrests of the outer and centre
seats in row 2 in the table position, or
remove these seats in row 2, so that
the child seat or the child's legs do not
touch the seats in row 2.
Child safety
SAFetY
5

134
Partner_2_VP_en_Chap05_Securite_ed02-2014
CHILD LOCK
this prevents opening of the side
doors from the inside.
Manual mode
A
label indicates the location of the
child lock.
-

Open fully past the point of
resistance.
-

t
ilt the lever
, located on the rear
section of the door. Electric mode
With the ignition on, press this
button. t
he L e D comes on.
W

arning: this system is
independent of the central
locking control.
Always remove the ignition key
when leaving the vehicle, even for
a short time.
It is advisable to check the activation of
the child lock each time the ignition is
switched on.
In the event of a serious impact the
electric child lock is deactivated
automatically.
Child safety

135
Partner_2_VP_en_Chap06_Accessoire_ed02-2014
For more information about
weights and towed loads, refer to
chapter 9, "Weights" section.

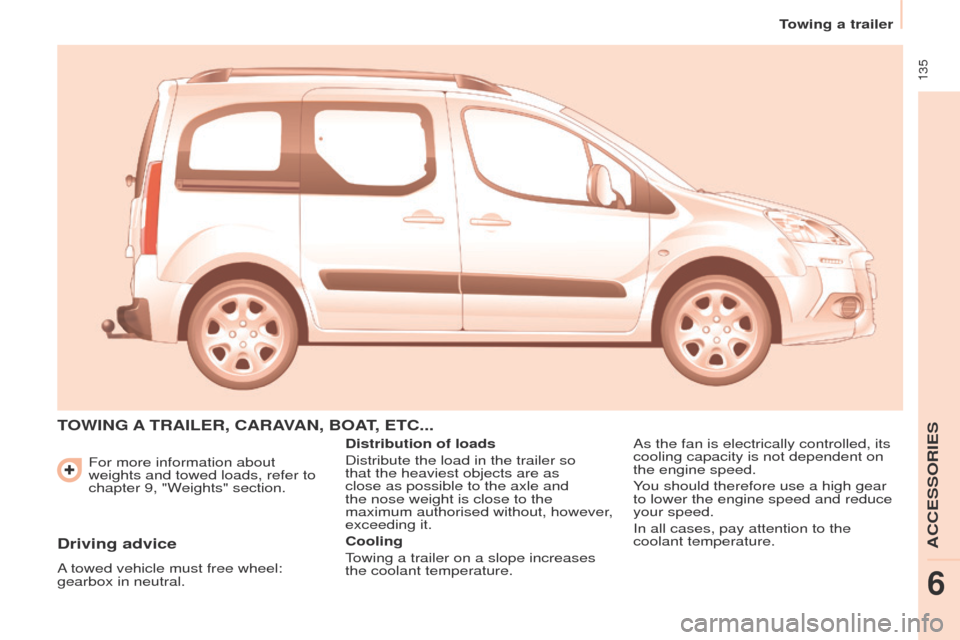

TOWING A TRAILER, CARAVAN, BOAT, ETC...
Distribution of loads
Distribute the load in the trailer so
that the heaviest objects are as
close as possible to the axle and
the nose weight is close to the
maximum authorised without, however,
exceeding it.
Cooling
towing a trailer on a slope increases
the coolant temperature. As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
Y

ou should therefore use a high gear
to lower the engine speed and reduce
your speed.
In all cases, pay attention to the
coolant temperature.
Driving advice
A towed vehicle must free wheel:
gearbox in neutral.
towing a trailer
ACCeSSORIeS
6

136
Partner_2_VP_en_Chap06_Accessoire_ed02-2014
Good Practice
In certain cases of particularly arduous
use (towing the maximum load up a
steep slope in high temperatures), the
engine automatically limits its power.
In this case, the air conditioning is
automatically cut off to save engine
power.
Tyres
Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures. Chapter 7, "Levels" section.If the coolant temperature
warning lamp comes on, stop
the vehicle and switch off the
engine as soon as possible. Brakestowing increases the braking distance.
Drive at a moderate speed, change
down early and brake gradually
.
Towbar
We recommend the use of genuine
Peuge O t towbars and their
harnesses, which have been tested
and approved from the design stage of
your vehicle, and that you entrust the
fitting of this equipment to a PEUGEOT

dealer.
If this equipment is not fitted by a
P
euge O t
dealer
, it is imperative that
it is fitted using the electrical pre-
equipment installed at the rear of the
vehicle and in accordance with the
manufacturer's instructions.
In accordance with the general
instructions a reminder of which has
been given above, we draw your
attention to the risk associated with
fitting a towbar or electrical accessory
not recommended by P
euge O t
.
Fitting such equipment could result in
the failure of your vehicle's electronic
system. Please obtain information from
the Manufacturer before fitting this type
of equipment.
Side wind
Sensitivity to side wind is increased.
Drive smoothly and at a moderate
speed.
ABS/DSC
t

he ABS or DSC systems only control
the vehicle, not the trailer or caravan.
Parking sensors
t

he rear parking sensors system does
not function while the vehicle is towing.
Chapter 9, "Identification
markings" section.
Towing a trailer

137
Partner_2_VP_en_Chap06_Accessoire_ed02-2014
OTHER ACCESSORIES
these accessories and parts, having
been tested and approved for reliability
and safety
, are all adapted to your
vehicle. A wide range of recommended
accessories and genuine parts is
available.
A further range is also available,
structured around comfort, leisure and
maintenance:
Anti-theft alarm, window etching, first
aid kit, high visibility vest, front and
rear parking sensors, warning triangle,
security bolts for alloy wheels, ...
Seat covers compatible with airbags
for the front seats, bench seat, rubber
mats, carpet mats, snow chains, blinds,
tailgate bicycle carrier, ...
to prevent the mat from becoming
caught under the pedals:
-


ensure that the mat and its fixings
are positioned correctly

,
-

never fit one mat on top of another
.Audio equipment, hands-free kit,
speakers, CD changer, satellite
navigation system, u
SB box, Video kit, ...
Regardless of the audio and telematic
equipment offered on the market, the
technical constraints associated with
the fitting of equipment of these product
groups mean that the special features
of the equipment and its compatibility
with the capacities of your vehicle's
standard equipment must be taken into
account. Please ask a P
euge O t
dealer

for more information before fitting such
equipment.
Maximum weights on bars
-
t
ransverse bars on longitudinal
bars: 75 Kg (these bars are not
compatible with the Zénith roof). Installing radiocommunication
transmitters
Y

ou are advised to contact a
P
euge O t
dealer before installin
g
accessory radiocommunication
transmitters with external aerial on
your vehicle.
t

he P euge O t dealer network
will inform you of the specification
(frequency band, maximum output
power, aerial position, specific
conditions of installation) of the
transmitters which can be fitted, in
accordance with the Motor Vehicle
e

lectromagnetic Compatibility Directive
(2004/104/
e C).
Front mud flaps, rear mud flaps,
15/17 inch alloy wheels, wheelarch
trim, leather steering wheel, ...
Screenwash, interior and exterior
cleaning and maintenance products,
spare bulbs, ...
equipment
ACCeSSORIeS
6

138
Partner_2_VP_en_Chap06_Accessoire_ed02-2014

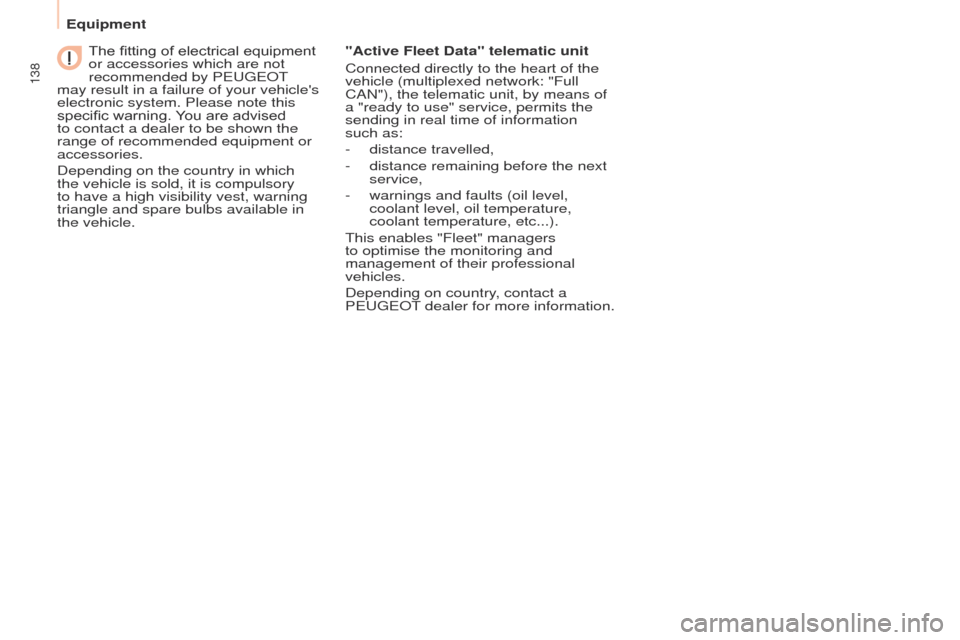

The fitting of electrical equipment
or accessories which are not
recommended by Peuge O t

may result in a failure of your vehicle's
electronic system. Please note this
specific warning.

You are advised
to contact a dealer to be shown the
range of recommended equipment or
accessories.
Depending on the country in which
the vehicle is sold, it is compulsory
to have a high visibility vest, warning
triangle and spare bulbs available in
the vehicle. "Active Fleet Data" telematic unit
Connected directly to the heart of the
vehicle (multiplexed network: "Full
CAN"), the telematic unit, by means of
a "ready to use" service, permits the
sending in real time of information
such as:
-

distance travelled,
-


distance remaining before the next
service,
-


warnings and faults (oil level,
coolant level, oil temperature,
coolant temperature, etc...).
t

his enables "Fleet" managers
to optimise the monitoring and
management of their professional
vehicles.
Depending on country, contact a
P
euge O t dealer for more information.
equipment
