Dimensions

181
Partner_2_VP_en_Chap09_Caract-technique_ed02-2014

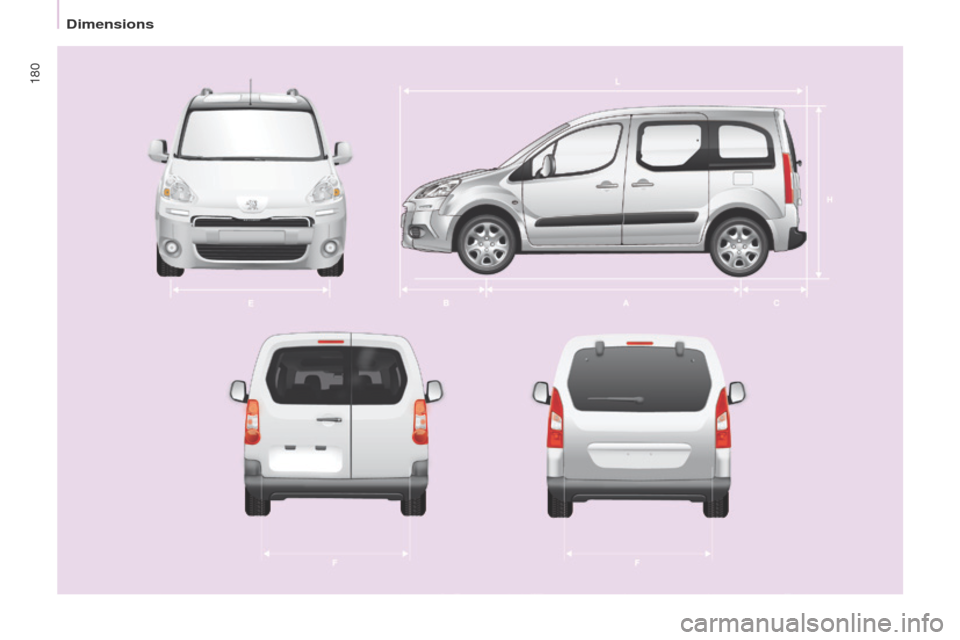

DIMENSIONS (MM)
L Overall length4380
H Overall height 1801-1862
A Wheelbase 2728
B Front overhang 925
C Rear overhang 727
D Width over panels: without mirrors
1810
with mirrors 2112
eWidth of front tracks 1505-1507
F Width of rear tracks 1554-1556
- Length of the loading surface to
the

seat Row 2
990
Row 2, seat fully folded 1343
With front passenger seat folded 3000
Dimensions
teCHNICAL DAtA
9

182
Partner_2_VP_en_Chap09_Caract-technique_ed02-2014

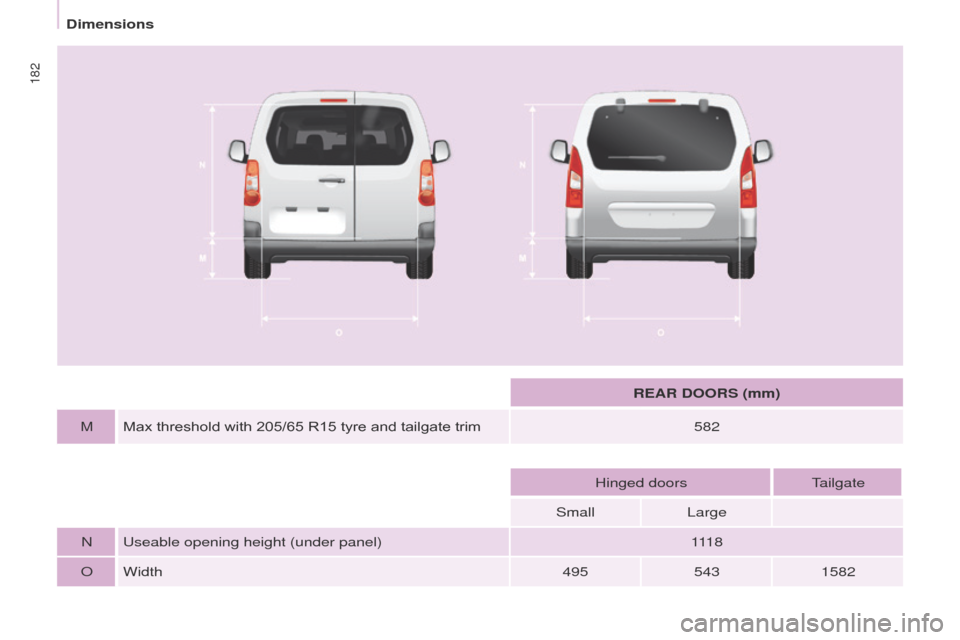

REAR DOORS (mm)
M Max threshold with 205/65 R15 tyre and tailgate trim 582
Hinged doors
tailgate
Small Large
N
u

seable opening height (under panel) 111 8
O Width 4955431582
Dimensions

183
Partner_2_VP_en_Chap09_Caract-technique_ed02-2014
SLIDING SIDE DOORS (mm)
P
u

seable height 1009
Q
u

seablewidth 640
- Height under raised tailgate 1892
Dimensions
teCHNICAL DAtA
9

184
Partner_2_VP_en_Chap09_Caract-technique_ed02-2014
ENGINE CHARACTERISTICS
the engine characteristics (capacity,
maximum power , maximum power
speed, fuel, CO
2 emissions...) for your
vehicle are given in the registration
document.
t

hese characteristics correspond
to the values type-approved
on a test bed, under conditions
defined in European legislation
(Directive

1999/99/ e C).
For more information, refer to the
manufacturer's website or sales
brochure for the model. Contact
a PEUGEOT dealer or a qualified
workshop.
WEIGHTS AND TOWED LOADS
the weights and towable loads for your
vehicle can be found on the vehicle's
registration certificate.
t

hese values, expressed in kg, are
laos present on the manufacturer's
plate or label.
t

he kerb weight is equal to the weight
without load + driver (75 kg) + fuel tank
filled to 90%.
t

he gt W and towed load values
indicated are valid up to a maximum
altitude of 1000 metres.
t

he value of
the towed load mentioned must be
reduced by 10 % for each additional
1000 metres.
With load transfer, the braked trailer
weight can be increased, on condition
that the equivalent of this load is
removed from the vehicle so that the
gt

W is not exceeded. High ambient temperatures
may result in a reduction in the
performance of the vehicle in
order to protect the engine. When the
ambient temperature is higher than
37
°C, limit the towed weight.
towing with a lightly loaded
vehicle can adversely af

fect road
holding.
towing a trailer increases braking
distances.
When towing, the maximum permitted
speed is reduced (comply with the
legislation in force in the country).
t he recommended nose weight is
the downward force on the towball
(removable with or without tools).
GVW: gross vehicle weight, the
maximum authorised weight.
GTW: gross train weight, the maximum
weight for vehicle plus trailer.
Refer to chapter 9, "Identification
markings" section.
In each country, it is imperative that
the towed loads authorised by local
legislation are complied with. To find
out your vehicle's towing capacities
and its gross train weight, consult a
P
euge O t
dealer
.
Weights

185
Partner_2_VP_en_Chap09_Caract-technique_ed02-2014
Petrol Engines / Weights
5-seatEngine Gearbox GearsEngine oil
capacity* (litres) Unbraked
trailer (kg) Recommended
nose weight (kg)
1.6 90 hp Manual 53.25 735 50
1.6 110 hp Manual53.25 750 55
1.6 VTi 100 hp Manual54.25 690 70
1.6 VTi 120 hp Manual54.25 690 70
7-seat Engine Gearbox GearsEngine oil
capacity* (litres) Unbraked trailer
(kg) Recommended
nose weight (kg)
1.6 110 hp Manual53.25 750 70
1.6 VTi 120 hp Manual54.25 750 70
* Capacity with filter replacement.
teCHNICAL DAtA
9
Weights

186
Partner_2_VP_en_Chap09_Caract-technique_ed02-2014

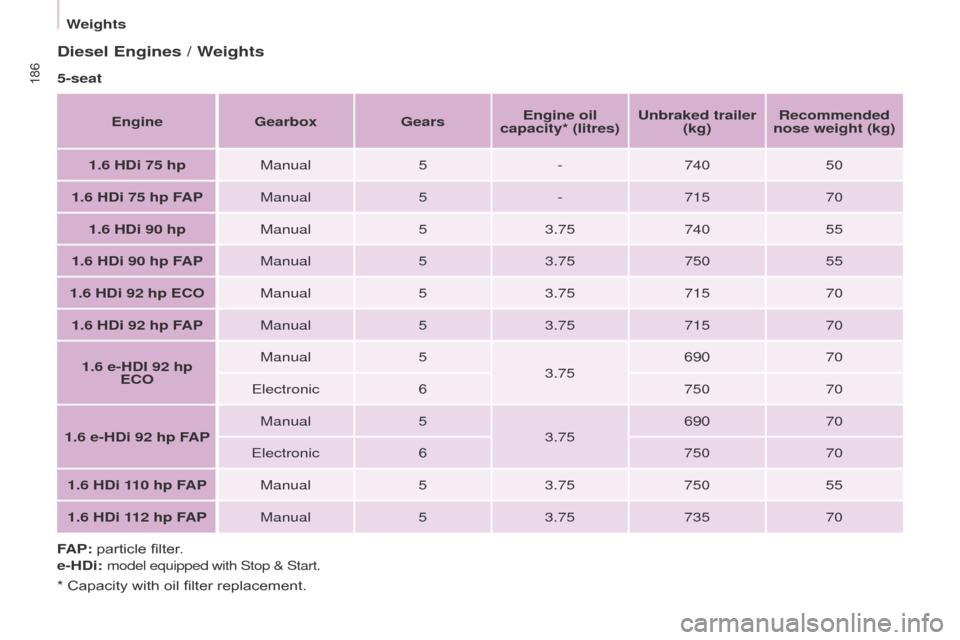

Diesel Engines / Weights
5-seatEngine Gearbox GearsEngine oil
capacity* (litres) Unbraked trailer
(kg) Recommended
nose weight (kg)
1.6 HDi 75 hp Manual5-740 50
1.6 HDi 75 hp FAP Manual5-715 70
1.6 HDi 90 hp Manual53.75 740 55
1.6 HDi 90 hp FAP Manual53.75 750 55
1.6 HDi 92 hp ECO Manual53.75 715 70
1.6 HDi 92 hp FAP Manual53.75 715 70
1.6 e-HDI 92 hp ECO Manual
5
3.75 690
70
e

lectronic6 75070
1.6 e-HDi 92 hp FAP Manual
5
3.75 690
70
e

lectronic6 75070
1.6 HDi 110 hp FAP Manual53.75 750 55
1.6 HDi 112 hp FAP Manual53.75 735 70
FAP: particle filter.
e-HDi:
model equipped with Stop & Start.
* Capacity with oil filter replacement.
Weights

187
Partner_2_VP_en_Chap09_Caract-technique_ed02-2014
7-seatEngine Gearbox GearsEngine oil
capacity* (litres) Unbraked
trailer (kg) Recommended
nose weight (kg)
1.6 HDi 90 hp Manual53.75 750 70
1.6 HDi 90 hp FAP Manual53.75 750 70
1.6 HDi 92 hp FAP Manual53.75 750 70
1.6 e-HDI 92 hp FAP Manual53.75 750 70
1.6 HDi 110 hp FAP Manual53.75 750 70
1.6 HDi 112 hp FAP Manual53.75 750 70
FAP: particle filter.
e-HDi: model equipped with Stop & Start.
* Capacity with oil filter replacement.
teCHNICAL DAtA
9
Weights

188
Partner_2_VP_en_Chap09_Caract-technique_ed02-2014

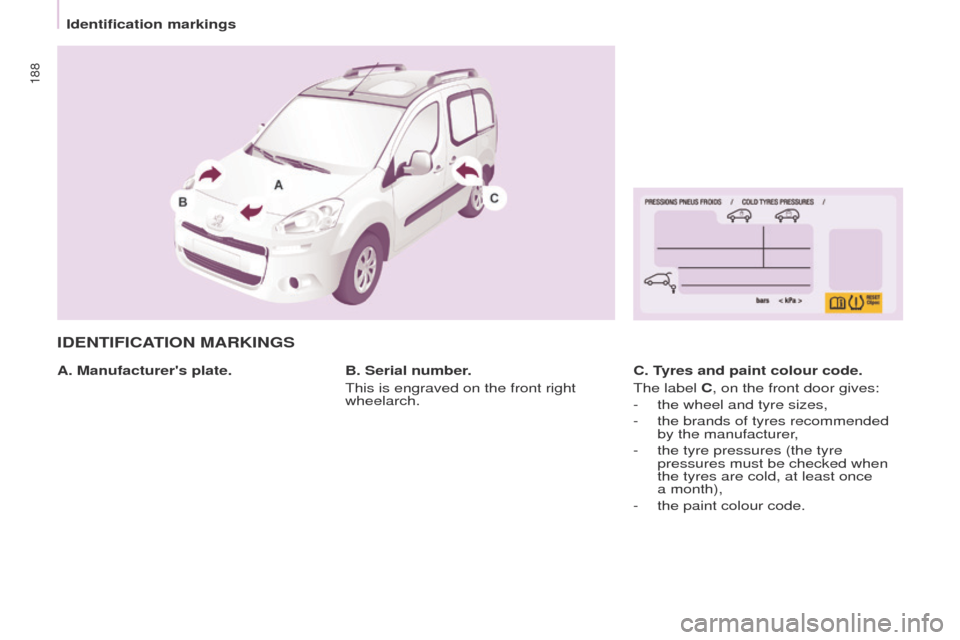

IDENTIFICATION MARKINGS
A. Manufacturer's plate.C. Tyres and paint colour code.
t

he label C, on the front door gives:
-

the wheel and tyre sizes,
-


the brands of tyres recommended
by the manufacturer

,
-

the tyre pressures (the tyre
pressures must be checked when
the tyres are cold, at least once
a

month),
-

the paint colour code.
B. Serial number

.
t

his is engraved on the front right
wheelarch.
Identification markings
