SNoW CHAINS
In wintry conditions, snow chains
improve traction as well as the
behaviour of the vehicle when braking.
The snow chains must be fitted
only to the driving wheels.
They
must never be fitted to "space-
saver" type spare wheels.
T

ake account of the legislation in
force in your country on the use
of snow chains and the maximum
running speed authorised. Advice on installation
F

If you have to fit the chains during
a journey

, stop the vehicle on a flat
surface on the side of the road.
F

Apply the parking brake and
position any wheel chocks to
prevent movement of your vehicle.
F


Fit the chains following the
instructions provided by the
manufacturer

.
F

Move of
f gently and drive for a
few moments, without exceeding
30
mph (50 km/h).
F

Stop your vehicle and check that
the snow chains are correctly
tightened.It is recommended that before you
leave, you practise fitting the snow
chains on a level and dry surface.
u se only the chains designed to be
fitted to the type of wheel fitted to your
vehicle:
For more information on snow chains,
contact a P
eugeo T dealer or a
qualified workshop.
o

riginal tyre size Maximum link
size.
195/65 R15
9 mm
195/70 R15
205/65 R15
215/55 R16
215/50 R17
Avoid driving with chains on roads
that have been cleared of snow,
to avoid damaging your vehicle's tyres
and the road surface. If your vehicle
is fitted with alloy wheels, check that
no part of the chain or its fixings is in
contact with the wheel rim.
8
QuICK HeLP
Snow chains

180
CHANgINg A Bu LB
type A
All glass bulb: pull gently
as it is fitted by pressure.
type C
Halogen bulb: release the
retaining spring from its
housing.
type B
Bayonet bulb: press
on the bulb then turn it
anticlockwise.

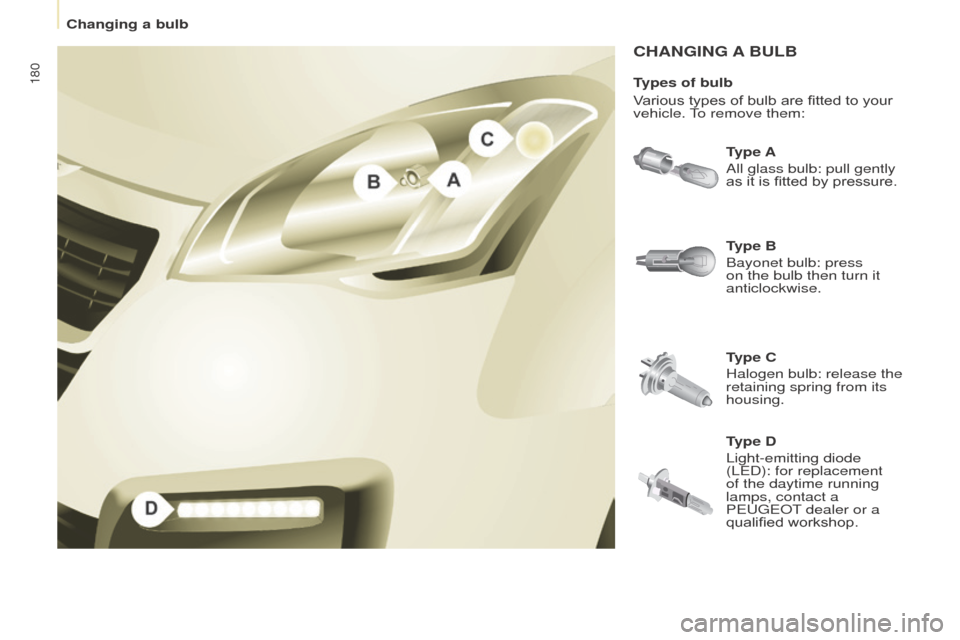

types of bulb
V

arious types of bulb are fitted to your
vehicle. To remove them:
type D
Light-emitting diode
(L

e D): for replacement
of the daytime running
lamps, contact a
P
eugeo T dealer or a
qualified workshop.
Changing a bulb

181
2. Sidelamps
type A
, W5W - 5W
-

Remove the cover by pullin
g the
flexible rubber tab.
-

Remove the bulb holder fitted by
pressure by pullin

g the connector.
-

Change the bulb.
-


Ensure that the cover is refitted
correctly all round to assure correct
sealing.

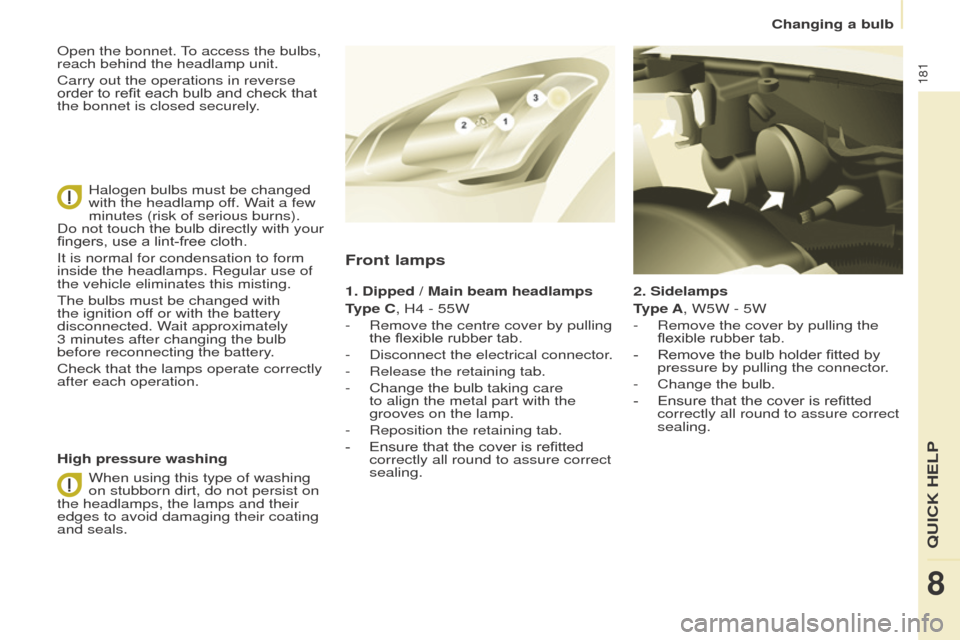

Front lamps
1. Dipped / Main beam headlamps
type C
, H4 - 55W
-

Remove the centre cover by pullin
g
the flexible rubber tab.
-

Disconnect the electrical connector
.
-

Release the retaining tab.
-


Change the bulb taking care
to align the metal part with the
grooves on the lamp.
-


Reposition the retaining tab.
-


Ensure that the cover is refitted
correctly all round to assure correct
sealing.
High pressure washing
o

pen the bonnet. To access the bulbs,
reach behind the headlamp unit.
Carry out the operations in reverse
order to refit each bulb and check that
the bonnet is closed securely.
Halogen bulbs must be changed
with the headlamp off. Wait a few
minutes (risk of serious burns).
Do not touch the bulb directly with your
fingers, use a lint-free cloth.
It is normal for condensation to form
inside the headlamps. Regular use of
the vehicle eliminates this misting.
The bulbs must be changed with
the ignition off or with the battery
disconnected. Wait approximately
3

minutes after changing the bulb
before reconnecting the battery.
Check that the lamps operate correctly
after each operation.
When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the lamps and their
edges to avoid damaging their coating
and seals.
8
QuICK HeLP
Changing a bulb

182

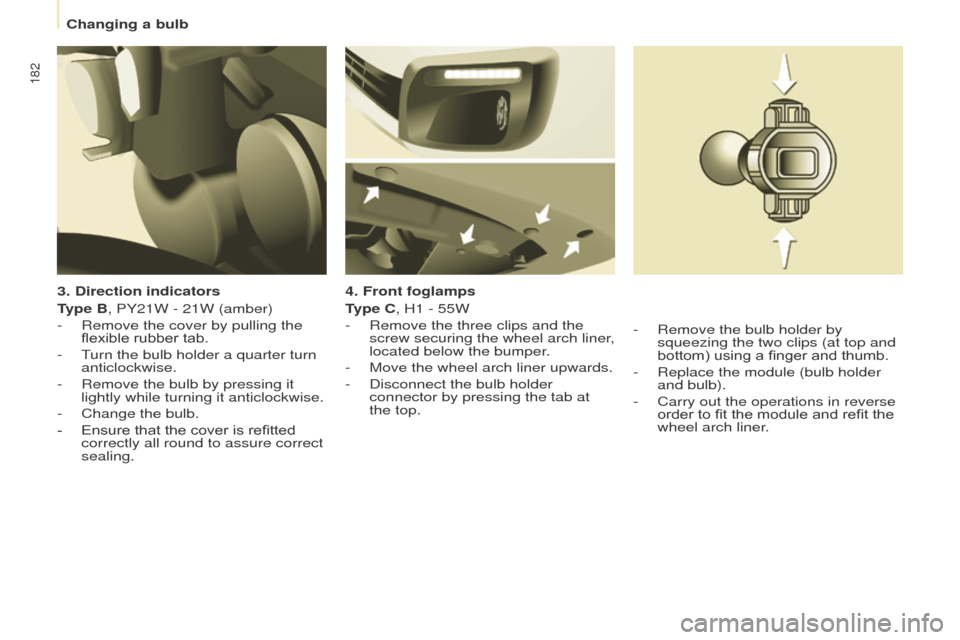

3. Direction indicators
type B
, PY21W - 21W (amber)
-

Remove the cover by pullin
g the
flexible rubber tab.
-

T
urn the bulb holder a quarter turn
anticlockwise.
-

Remove the bulb by pressing it
lightly while turning it anticlockwise.
-


Change the bulb.
-


Ensure that the cover is refitted
correctly all round to assure correct
sealing. 4.

Front foglamps
type C

, H1 - 55W
-

Remove the three clips and the
screw securing the wheel arch liner

,
located below the bumper.
-

Move the wheel arch liner upwards.
-


Disconnect the bulb holder
connector by pressing the tab at
the top.-


Remove the bulb holder by
squeezing the two clips (at top and
bottom) using a finger and thumb.
-


Replace the module (bulb holder
and bulb).
-


Carry out the operations in reverse
order to fit the module and refit the
wheel arch liner

.
Changing a bulb

183

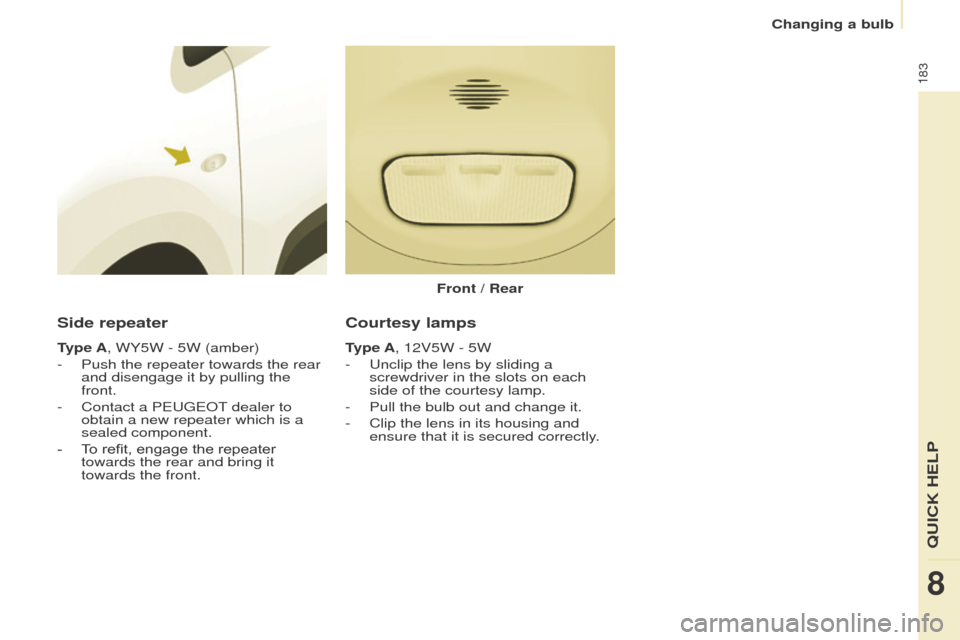

Side repeater
type A, WY5W - 5W (amber)
-
Push the repeater towards the rear
and disengage it by pullin

g the
front.
-

Contact a P
eugeo T dealer to
obtain a new repeater which is a
sealed component.
-

T
o refit, engage the repeater
towards the rear and bring it
towards the front.
Courtesy lamps
type A , 12V5W - 5W
- u nclip the lens by sliding a
screwdriver in the slots on each
side of the courtesy lamp.
-

Pull the bulb out and change it.
-


Clip the lens in its housing and
ensure that it is secured correctly

.
Front / Rear
8
QuICK HeLP
Changing a bulb

184

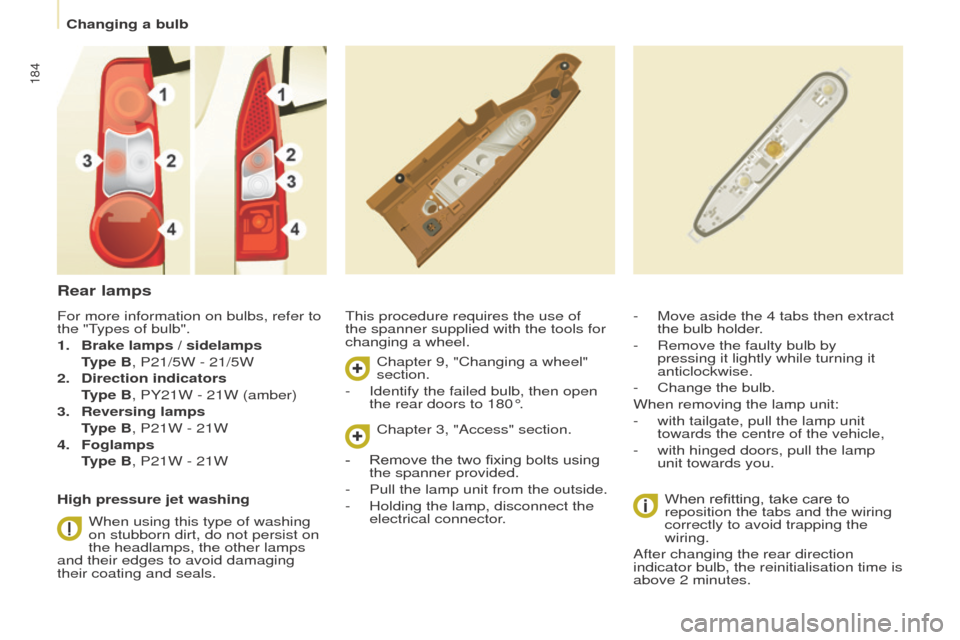

Rear lamps
This procedure requires the use of
the spanner supplied with the tools for
changing a wheel.When refitting, take care to
reposition the tabs and the wiring
correctly to avoid trapping the
wiring.
After changing the rear direction
indicator bulb, the reinitialisation time is
above 2 minutes. - Move aside the 4 tabs then extract
the bulb holder
.
-

Remove the faulty bulb by
pressing it lightly while turning it
anticlockwise.
-


Change the bulb.
When removing the lamp unit:
-


with tailgate, pull the lamp unit
towards the centre of the vehicle,
-


with hinged doors, pull the lamp
unit towards you.
For more information on bulbs, refer to
the "T

ypes of bulb".
1.

Brake lamps / sidelamps


type B

, P21/5W - 21/5W
2.

Direction indicators


type B

, PY21W - 21W (amber)
3.

Reversing lamps


type B

, P21W - 21W
4.

Foglamps


type B

, P21W - 21W
High pressure jet washing When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the other lamps
and their edges to avoid damaging
their coating and seals. Chapter 9, "Changing a wheel"
section.
-

Identify the failed bulb, then open
the rear doors to 180°. Chapter 3, "Access" section.
-


Remove the two fixing bolts using
the spanner provided.
-


Pull the lamp unit from the outside.
-


Holding the lamp, disconnect the
electrical connector

.
Changing a bulb

185
Number plate lamps
- unscrew the two nuts.
-
Push the pins.
-


If necessary
, disconnect the
connector to remove the lamp.
-

Change the bulb.
third brake lamp
type A , W16W - 16Wtype A
, W5W - 5W
With tailgate
-

Disengage the plastic lens using a
screwdriver

.
-

Change the bulb.
-


Replace the plastic lens and press
on it. W

ith hinged doors
-
u
nclip the interior trim.
-

Disconnect the connector by
moving aside its tab.
-


T

urn the bulb holder a quarter turn
anticlockwise.
-

Change the bulb.
-


Put the bulb holder back in place
and reconnect the connector

.
-

Put the trim back in place.
8
QuICK HeLP
Changing a bulb

186

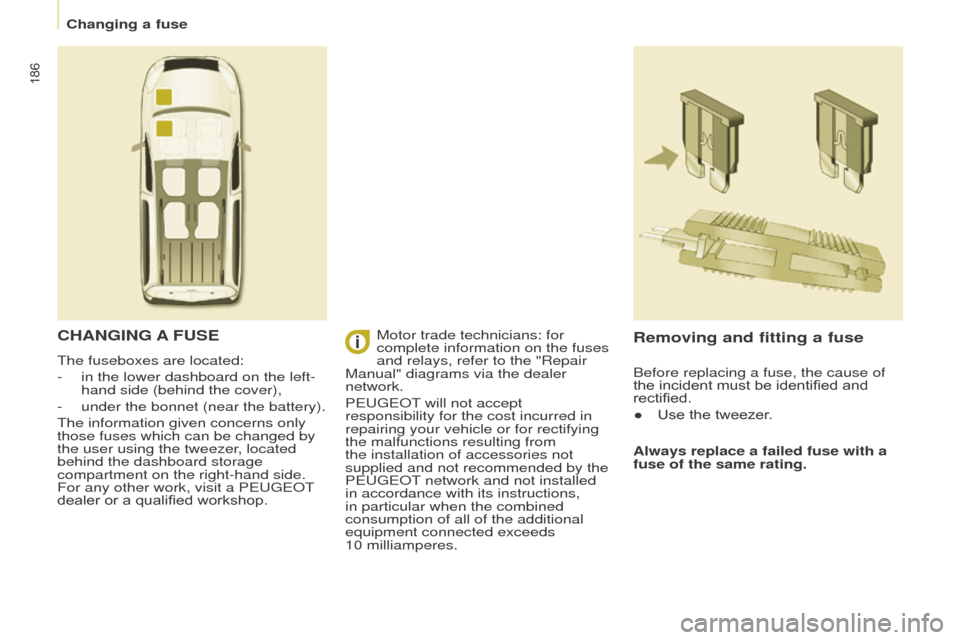

CHANgINg A Fu S e
The fuseboxes are located:
-

in the lower dashboard on the left-
hand side (behind the cover),
-


under the bonnet (near the battery).
The information given concerns only
those fuses which can be changed by
the user using the tweezer

, located
behind the dashboard storage
compartment on the right-hand side.
For any other work, visit a P
eugeo T
dealer or a qualified workshop.
Removing and fitting a fuse
Always replace a failed fuse with a
fuse of the same rating.
Motor trade technicians: for
complete information on the fuses
and relays, refer to the "Repair
Manual" diagrams via the dealer
network.
P
eugeo
T will not accept
responsibility for the cost incurred in
repairing your vehicle or for rectifying
the malfunctions resulting from
the installation of accessories not
supplied and not recommended by the
P
eugeo
T network and not installed
in accordance with its instructions,
in particular when the combined
consumption of all of the additional
equipment connected exceeds
10 milliamperes. Before replacing a fuse, the cause of
the incident must be identified and
rectified.
●

Use the tweezer
.
Changing a fuse

187
Dashboard fuses
Tilt the cover to gain access to the
fuses.Fuses
F Amperes
A Allocation
1 15 Rear wiper
2 - Not used
3 5 Airbag
4 10 Air conditioning, diagnostic socket, mirror control,
headlamp beam
5 30
e

lectric windows
6 30 Locks
7 5Rear courtesy lamp, front map reading lamp, roof
console
8 20 Audio equipment, screen, tyre under-inflation
detection, alarm and siren
9 30 Front and rear 12V socket
10 15 Central column 11 15 Low current ignition switch
12 15 Rain and sunshine sensor, airbag
13 5 Instrument panel
14 15 Parking sensors, digital air conditioning controls,
hands-free phone kit
15 30 Locks
16 - Not used
17 40 Rear screen/mirrors demist/defrost
8
QuICK HeLP
Changing a fuse

188
Passenger compartment fuses
Fuses F Amperes
A Allocation
1 - Not used
2 20 Heated seats
3 - Not used
4 15 Folding mirrors relay
5 15 Refrigeration equipment socket relay
Changing a fuse
