Peugeot Partner Tepee 2016 Owner's Manual

189
Fuses under the bonnet
After opening the bonnet, unclip and tilt
the corresponding box to gain access
to the fuses.Fuses
F Amperes
A Allocation
1 20
e
ngine management
2 15 Horn
3 10 Front and rear wash-wipe pump
4 20 Headlamp wash pump
5 15
e

ngine components
6 10 Steering wheel angle sensor, DSC
7 10 Brake switch, clutch switch
8 25 Starter motor
9 10 Headlamp beam motor, fleet management unit
10 30
e

ngine components
11 40 Not used
12 30 Wipers
13 40 Built-in systems interface
14 30 Pump
15 10 Right-hand main beam headlamp
16 10 Left-hand main beam headlamp
17 15 Right-hand dipped beam headlamp
18 15 Left-hand dipped beam headlamp
8
QuICK HeLP
Changing a fuse

190

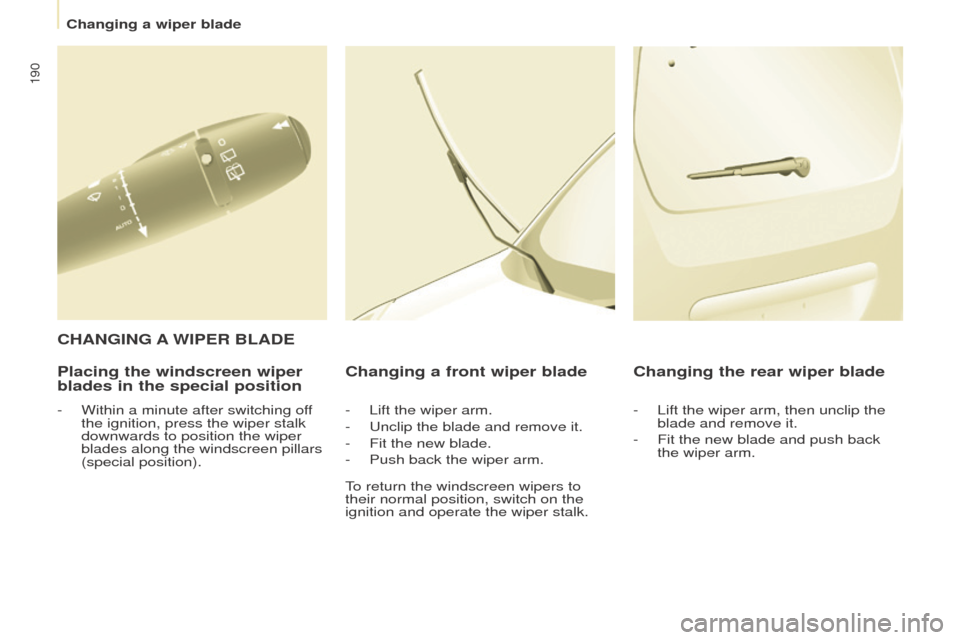

Placing the windscreen wiper
blades in the special positionChanging a front wiper blade
- Lift the wiper arm.
- u nclip the blade and remove it.
-

Fit the new blade.
-


Push back the wiper arm.
Changing the rear wiper blade
- Lift the wiper arm, then unclip the
blade and remove it.
-

Fit the new blade and push back
the wiper arm.
CHANgINg A WIP e R BLAD e
- Within a minute after switching of f
the ignition, press the wiper stalk
downwards to position the wiper
blades along the windscreen pillars
(special position).
To return the windscreen wipers to
their normal position, switch on the
ignition and operate the wiper stalk.
Changing a wiper blade

191
Without lifting (4 wheels on the
road)
You should always use a towing arm.

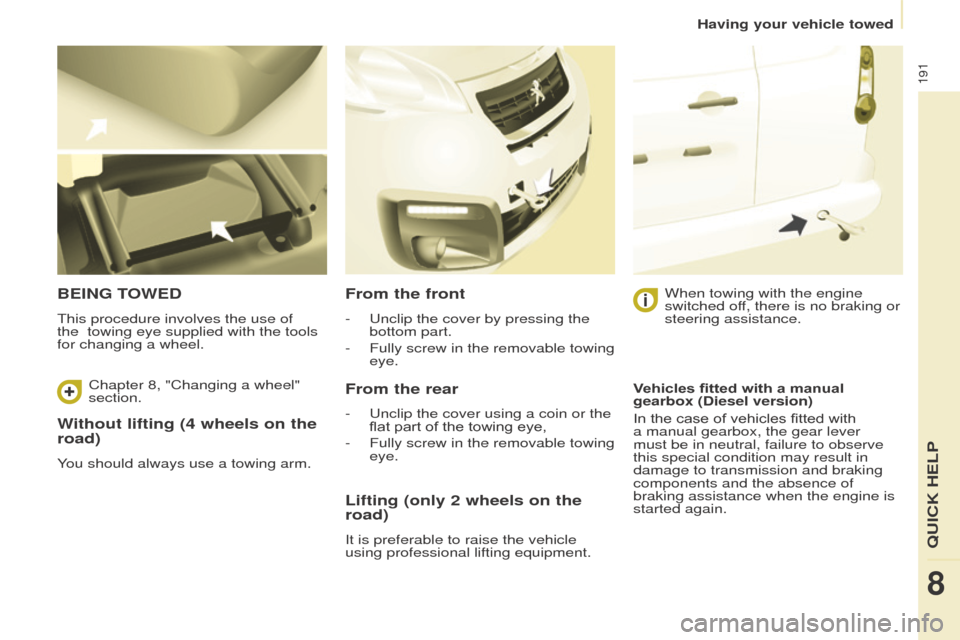

BeINg toWeD
This procedure involves the use of
the towing eye supplied with the tools
for changing a wheel.
From the front
- unclip the cover by pressing the
bottom part.
-

Fully screw in the removable towing
eye.
From the rear
- unclip the cover using a coin or the
flat part of the towing eye,
-

Fully screw in the removable towing
eye. When towing with the engine
switched of

f, there is no braking or
steering assistance.
Lifting (only 2 wheels on the
road)
It is preferable to raise the vehicle
using professional lifting equipment. Vehicles fitted with a manual
gearbox (Diesel version)
In the case of vehicles fitted with
a manual gearbox, the gear lever
must be in neutral, failure to observe
this special condition may result in
damage to transmission and braking
components and the absence of
braking assistance when the engine is
started again.
Chapter 8, "Changing a wheel"
section.
8
QuICK HeLP
Having your vehicle towed

192

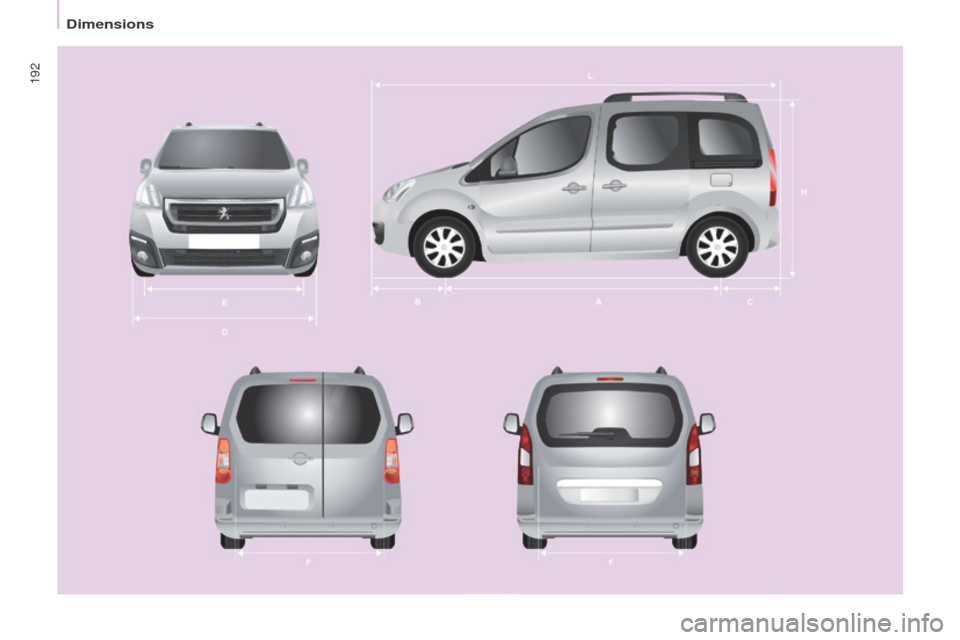

Dimensions

193

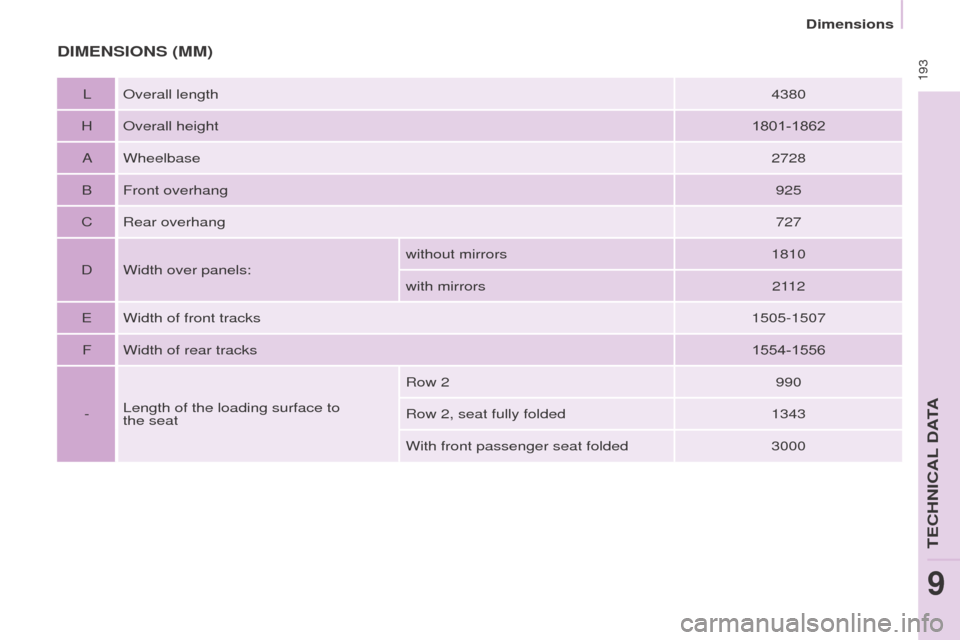

DIMeNSIoNS (MM)
Loverall length 4380
H
o
verall height 1801-1862
A Wheelbase 2728
B Front overhang 925
C Rear overhang 727
D Width over panels: without mirrors
1810
with mirrors 2112
eWidth of front tracks 1505-1507
F Width of rear tracks 1554-1556
- Length of the loading surface to
the

seat Row 2
990
Row 2, seat fully folded 1343
With front passenger seat folded 3000
Dimensions
TeCHNICAL DATA
9

194

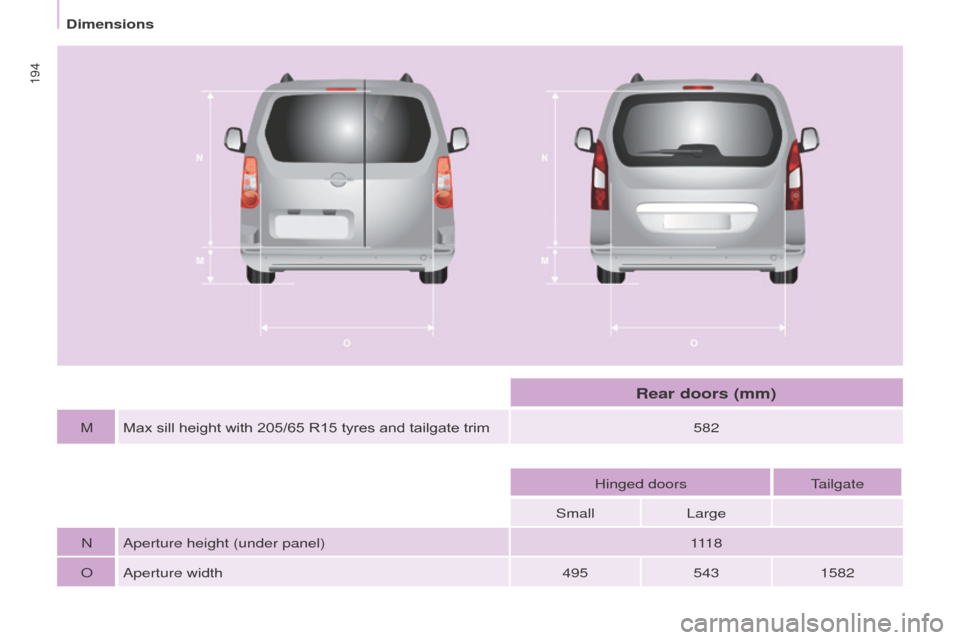

MMax sill height with 205/65 R15 tyres and tailgate trim 582
Hinged doors Tailgate
Small Large
N Aperture height (under panel) 111 8
oAperture width4955431582
Rear doors (mm)
Dimensions

195

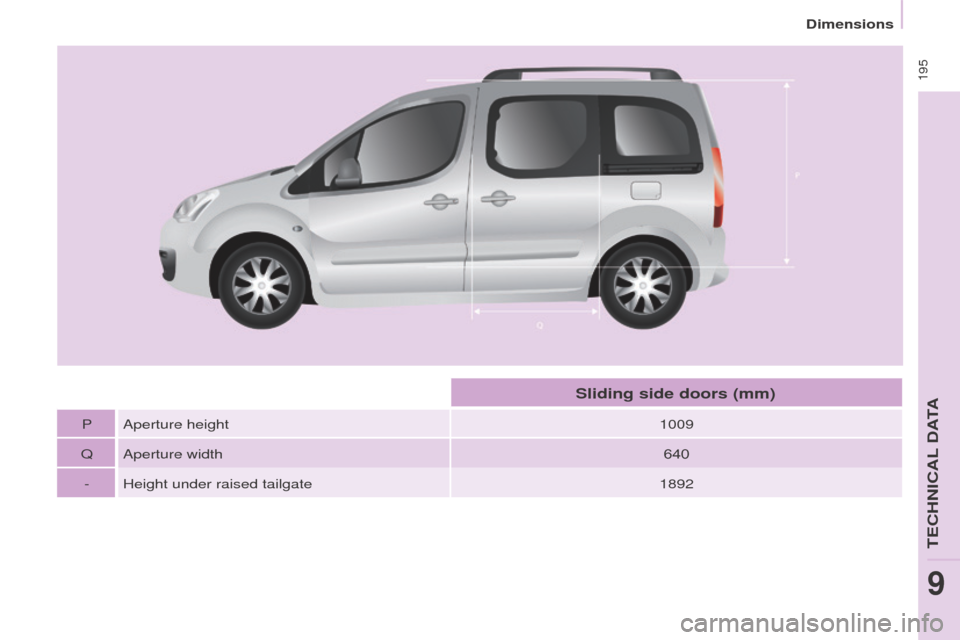

PAperture height 1009
Q Aperture width 640
- Height under raised tailgate 1892
Sliding side doors (mm)
Dimensions
TeCHNICAL DATA
9

196

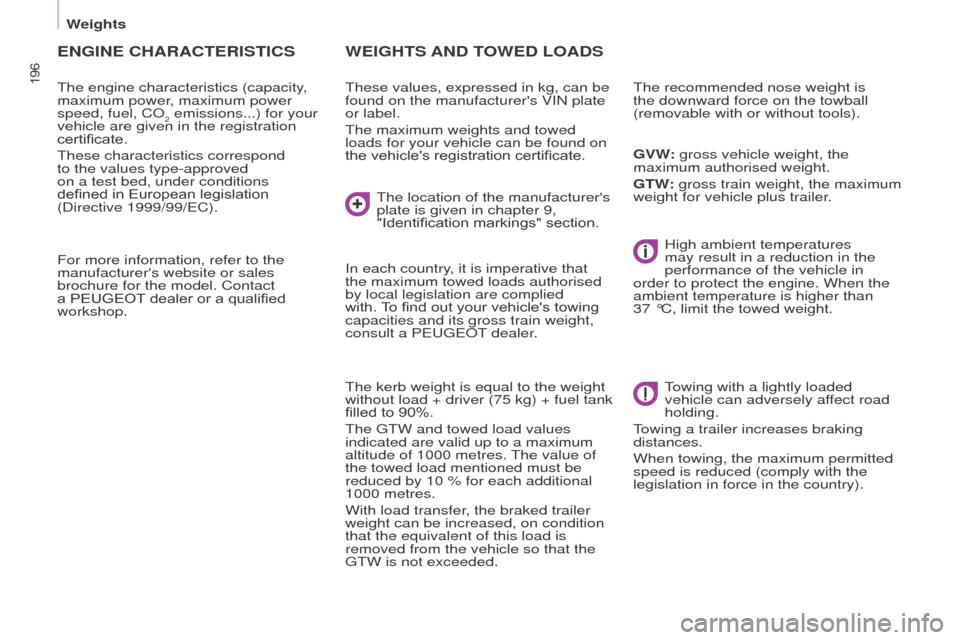

eNgINe CHARACteRIStICS
The engine characteristics (capacity,
maximum power, maximum power
speed, fuel, Co
2 emissions...) for your
vehicle are given in the registration
certificate.
These characteristics correspond
to the values type-approved
on a test bed, under conditions
defined in European legislation
(Directive

1999/99/ e C).
For more information, refer to the
manufacturer's website or sales
brochure for the model. Contact
a PEUGEOT dealer or a qualified
workshop.
WeIgHtS AND to W e D L o ADS
These values, expressed in kg, can be
found on the manufacturer's VIN plate
or label.
The maximum weights and towed
loads for your vehicle can be found on
the vehicle's registration certificate.
The kerb weight is equal to the weight
without load + driver (75 kg) + fuel tank
filled to 90%.
The
g TW and towed load values
indicated are valid up to a maximum
altitude of 1000 metres. The value of
the towed load mentioned must be
reduced by 10 % for each additional
1000 metres.
With load transfer, the braked trailer
weight can be increased, on condition
that the equivalent of this load is
removed from the vehicle so that the
g

TW is not exceeded. High ambient temperatures
may result in a reduction in the
performance of the vehicle in
order to protect the engine. When the
ambient temperature is higher than
37
°C, limit the towed weight.Towing with a lightly loaded
vehicle can adversely affect road
holding.
Towing a trailer increases braking
distances.
When towing, the maximum permitted
speed is reduced (comply with the
legislation in force in the country). The recommended nose weight is
the downward force on the towball
(removable with or without tools).
g

VW: gross vehicle weight, the
maximum authorised weight.
gt

W: gross train weight, the maximum
weight for vehicle plus trailer.
The location of the manufacturer's
plate is given in chapter 9,
"Identification markings" section.
In each country, it is imperative that
the maximum towed loads authorised
by local legislation are complied
with. To find out your vehicle's towing
capacities and its gross train weight,
consult a P
eugeo T dealer.
Weights

197

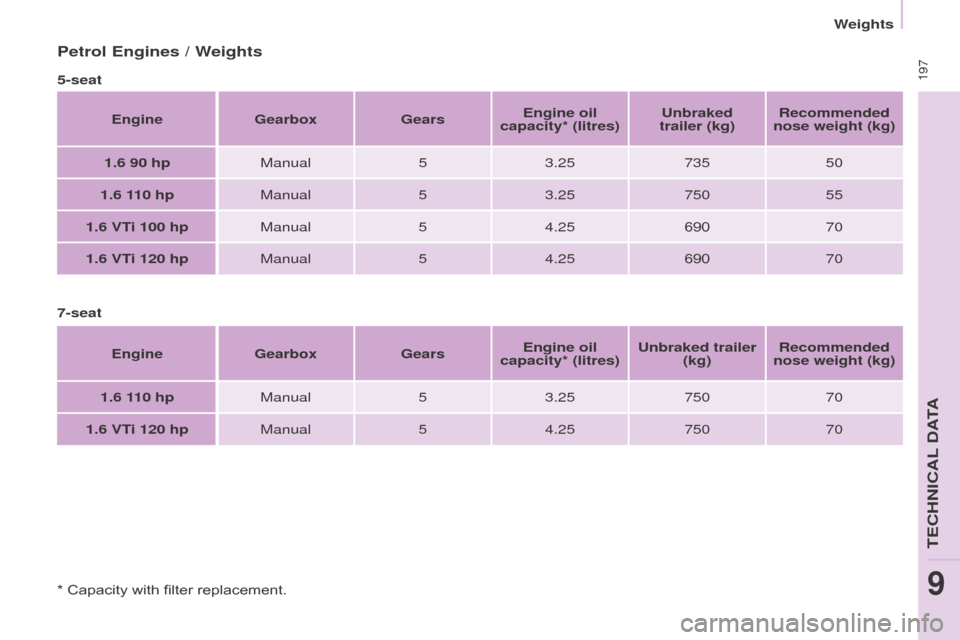

Petrol engines / Weights
5-seat
e
ngine
g
earbox
g
ears
e
ngine oil
capacity* (litres)
u

nbraked
trailer (kg) Recommended
nose weight (kg)
1.6 90 hp Manual 53.25 735 50
1.6 110 hp Manual53.25 750 55
1.6 V
t
i 100 hp Manual 54.25 690 70
1.6 V

t
i 120 hp Manual 54.25 690 70
7-seat
e

ngine
g
earbox
g
ears
e
ngine oil
capacity* (litres)
u

nbraked trailer (kg) Recommended
nose weight (kg)
1.6 110 hp Manual53.25 750 70
1.6 V
t
i 120 hp Manual 54.25 750 70
* Capacity with filter replacement.
TeCHNICAL DATA
9
Weights

198

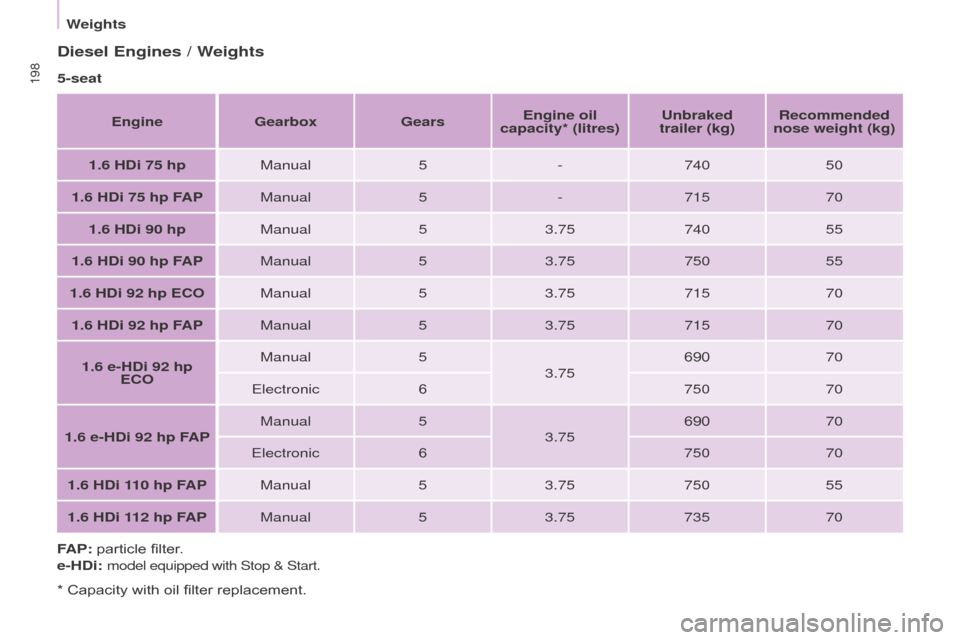

Diesel engines / Weights
5-seat
e
ngine
g
earbox
g
ears
e
ngine oil
capacity* (litres)
u

nbraked
trailer (kg) Recommended
nose weight (kg)
1.6 HDi 75 hp Manual5-740 50
1.6 HDi 75 hp FAP Manual5-715 70
1.6 HDi 90 hp Manual53.75 740 55
1.6 HDi 90 hp FAP Manual53.75 750 55
1.6 HDi 92 hp
e C o
Manual 53.75 715 70
1.6 HDi 92 hp F

APManual 53.75 715 70
1.6 e-HDi 92 hp
e

C o
Manual 5
3.75 690
70
e

lectronic6 75070
1.6 e-HDi 92 hp FAP Manual
5
3.75 690
70
e

lectronic6 75070
1.6 HDi 110 hp FAP Manual53.75 750 55
1.6 HDi 112 hp FAP Manual53.75 735 70
FAP: particle filter.
e-HDi:
model equipped with Stop & Start.
* Capacity with oil filter replacement.
