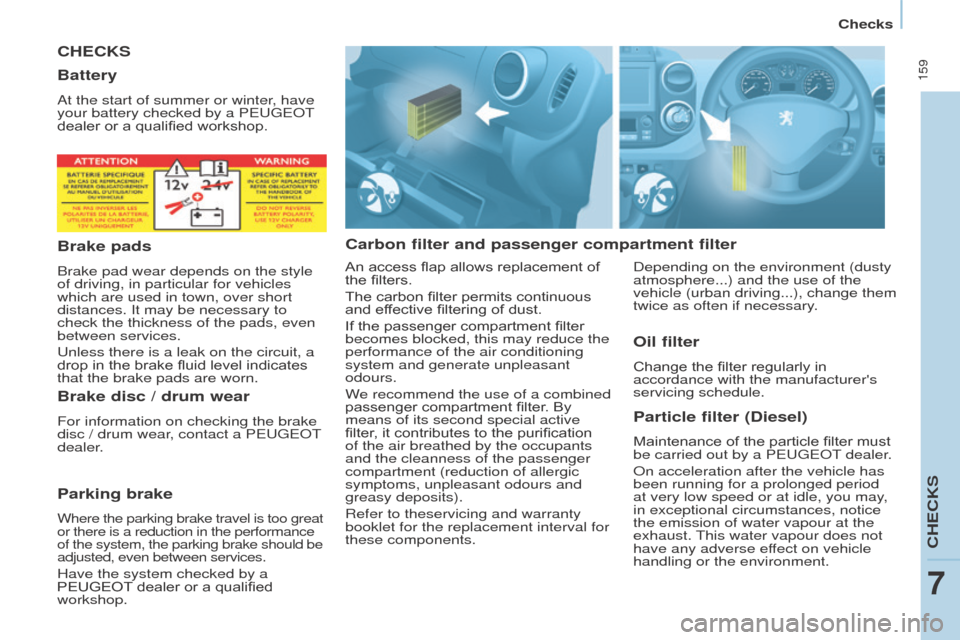

Checks
CHeCKS
Carbon filter and passenger compartment filterParticle filter (Diesel)
Maintenance of the particle filter must
be carried out by a Peugeo T dealer.
o

n acceleration after the vehicle has
been running for a prolonged period
at very low speed or at idle, you may,
in exceptional circumstances, notice
the emission of water vapour at the
exhaust. This water vapour does not
have any adverse effect on vehicle
handling or the environment.
Battery
At the start of summer or winter, have
your battery checked by a P eugeo T
dealer or a qualified workshop.
Brake pads
Brake pad wear depends on the style
of driving, in particular for vehicles
which are used in town, over short
distances. It may be necessary to
check the thickness of the pads, even
between services.
u

nless there is a leak on the circuit, a
drop in the brake fluid level indicates
that the brake pads are worn.
Brake disc / drum wear
For information on checking the brake
disc / drum wear, contact a P eugeo T
dealer.
Parking brake
Where the parking brake travel is too great
or there is a reduction in the performance
of the system, the parking brake should be
adjusted, even between services.
Have the system checked by a
PEUGEOT dealer or a qualified
workshop.
oil filter
Change the filter regularly in
accordance with the manufacturer's
servicing schedule.
An access flap allows replacement of
the filters.
The carbon filter permits continuous
and effective filtering of dust.
If the passenger compartment filter
becomes blocked, this may reduce the
performance of the air conditioning
system and generate unpleasant
odours.
We recommend the use of a combined
passenger compartment filter. By
means of its second special active
filter, it contributes to the purification
of the air breathed by the occupants
and the cleanness of the passenger
compartment (reduction of allergic
symptoms, unpleasant odours and
greasy deposits).
Refer to theservicing and warranty
booklet for the replacement interval for
these components. Depending on the environment (dusty
atmosphere...) and the use of the
vehicle (urban driving...), change them
twice as often if necessary.
CHeCKS
7

160
Checks
good practice
only use products recommended by
P eugeo T or products of equivalent
quality and specification.
In order to optimise the operation
of units as important as the braking
system, P
eugeo T selects and offers
specific products.
Bleeding water from the Diesel
filter Manual gearbox
Have the level checked in accordance with
the manufacturer's servicing schedule.
In order to avoid damaging the
electrical units, high pressure
washing to clean the engine
compartment is strictly prohibited.
After washing the vehicle dampness,
or in winter, ice may form on the brake
discs and pads: braking efficiency may
be reduced. Make some light brake
applications to dry and de-ice the
brakes.
If this warning lamp comes
on, bleed the filter. Otherwise
bleed regularly each time the
engine oil is changed.
HDi engines use advanced
technology

. All work requires
special training, so should be
entrusted to a P
eugeo
T dealer.
Depending on country of sale. To drain the water, unscrew the bleed
screw located on the filter.
o

perate until all of the water no longer
flows in the transparent pipe, then
tighten the bleed screw.

161

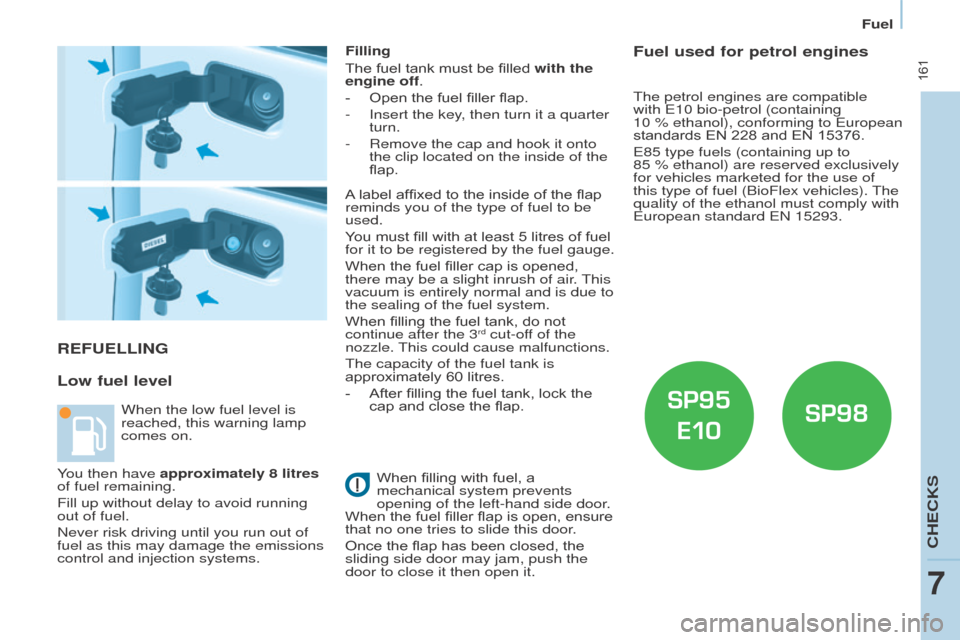

ReFueLLINg
Low fuel level
Filling
The fuel tank must be filled with the
engine off.
-

Open the fuel filler flap.
-


Insert the key
, then turn it a quarter
turn.
-

Remove the cap and hook it onto
the clip located on the inside of the
flap.
When fillin

g with fuel, a
mechanical system prevents
opening of the left-hand side door.
When the fuel filler flap is open, ensure
that no one tries to slide this door.
Once the flap has been closed, the
sliding side door may jam, push the
door to close it then open it.
When the low fuel level is
reached, this warning lamp
comes on. A label affixed to the inside of the flap
reminds you of the type of fuel to be
used.
You must fill with at least 5 litres of fuel
for it to be registered by the fuel gauge.
When the fuel filler cap is opened,
there may be a slight inrush of air. This
vacuum is entirely normal and is due to
the sealing of the fuel system.
When filling the fuel tank, do not
continue after the 3
rd cut-off of the
nozzle. This could cause malfunctions.
The capacity of the fuel tank is
approximately 60 litres.
-

After fillin

g the fuel tank, lock the
cap and close the flap.
Fuel used for petrol engines
The petrol engines are compatible
with e 10 bio-petrol (containing
10
% ethanol), conforming to e uropean
standards EN 228 and EN 15376.
e

85 type fuels (containing up to
85
% ethanol) are reserved exclusively
for vehicles marketed for the use of
this type of fuel (BioFlex vehicles). The
quality of the ethanol must comply with
e

uropean standard e N 15293.
You then have approximately 8 litres
of fuel remaining.
Fill up without delay to avoid running
out of fuel.
Never risk driving until you run out of
fuel as this may damage the emissions
control and injection systems.
CHeCKS
7
Fuel

DIESEL
162
FueL C ut-o FF
In a serious collision, a mechanism
automatically prevents fuel from
reaching the engine.
The flashing of this warning
lamp is accompanied by a
message in the screen.
Check that there is no odour or
leakage of fuel outside the vehicle and
re-establish the fuel supply:
-

switch of
f the ignition
(ST
o

P

position),
-

remove the key
,
-

put the key back in the ignition,
-


switch on the ignition and start.
DIeSeL PRIMIN g P u MPFuel used for Diesel engines
The Diesel engines are compatible with
biofuels which conform to current and
future
e uropean standards (Diesel fuel
which complies with standard
e N 590
mixed with a biofuel which complies
with standard
e N 14214) available at
the pumps (containing up to 7 % Fatty
Acid Methyl
e ster).
B30 biofuel can be used in certain
Diesel engines. However, this use,
even occasional, requires strict
application of the special servicing
conditions. Contact a P
eugeo T
dealer or a qualified workshop.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or diluted,
domestic fuel...) is strictly prohibited
(risk of damage to the engine and fuel
system).
If you run out of fuel, it is necessary to
prime the fuel circuit.
other HDi engines
- Fill the fuel tank with at least
five litres of Diesel.
-

Squeeze and release the manual
priming pump, under the bonnet,
under the protective cover

.
-
o perate the starter until the engine
starts.
BlueHDi engine
- Fill the fuel tank with at least five
litres of Diesel.
-

Switch on the ignition (without
starting the engine).
-


W
ait around 6 seconds and switch
off the ignition.
-

Repeat the operation 10 times.
-

o perate the starter to run the
engine.
Fuel

163

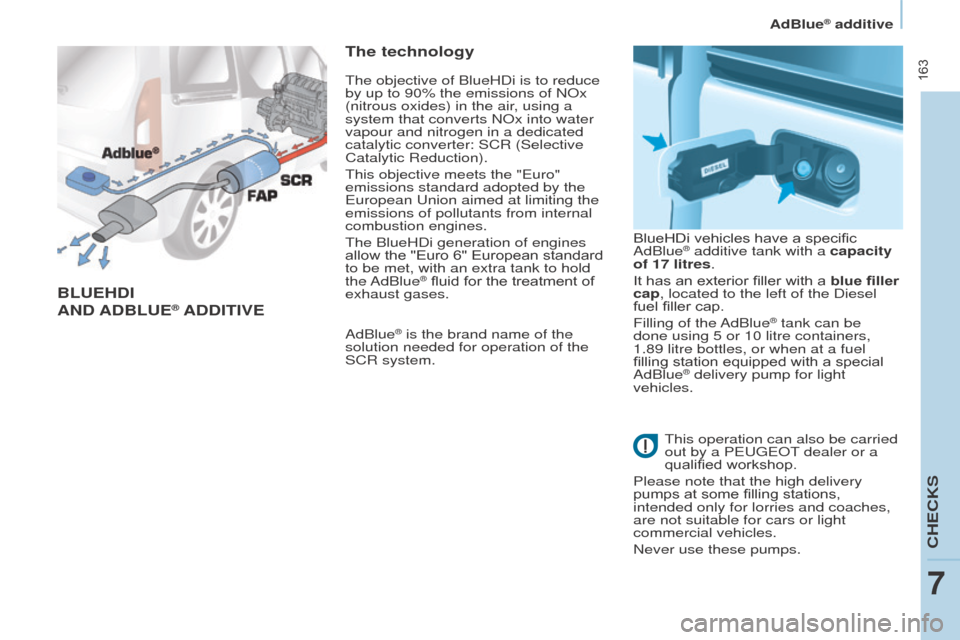

BLueHDI
AND A D B L ue® ADDItIVe
t
he technology
AdBlue® is the brand name of the
solution needed for operation of the
SCR system. BlueHDi vehicles have a specific
AdBlue
® additive tank with a capacity
of 17 litres.
It has an exterior filler with a blue filler
cap, located to the left of the Diesel
fuel filler cap.
Filling of the AdBlue
® tank can be
done using 5 or 10 litre containers,
1.89 litre bottles, or when at a fuel
filling station equipped with a special
AdBlue
® delivery pump for light
vehicles.
The objective of BlueHDi is to reduce
by up to 90% the emissions of N
o
x
(nitrous oxides) in the air, using a
system that converts N
o
x into water
vapour and nitrogen in a dedicated
catalytic converter: SCR (Selective
Catalytic Reduction).
This objective meets the "
e
uro"
emissions standard adopted by the
e

uropean
u
nion aimed at limiting the
emissions of pollutants from internal
combustion engines.
The BlueHDi generation of engines
allow the "Euro 6" European standard
to be met, with an extra tank to hold
the AdBlue
® fluid for the treatment of
exhaust gases.
This operation can also be carried
out by a P
eugeo T dealer or a
qualified workshop.
Please note that the high delivery
pumps at some filling stations,
intended only for lorries and coaches,
are not suitable for cars or light
commercial vehicles.
Never use these pumps.
CHeCKS
7
AdBlue® additive

164

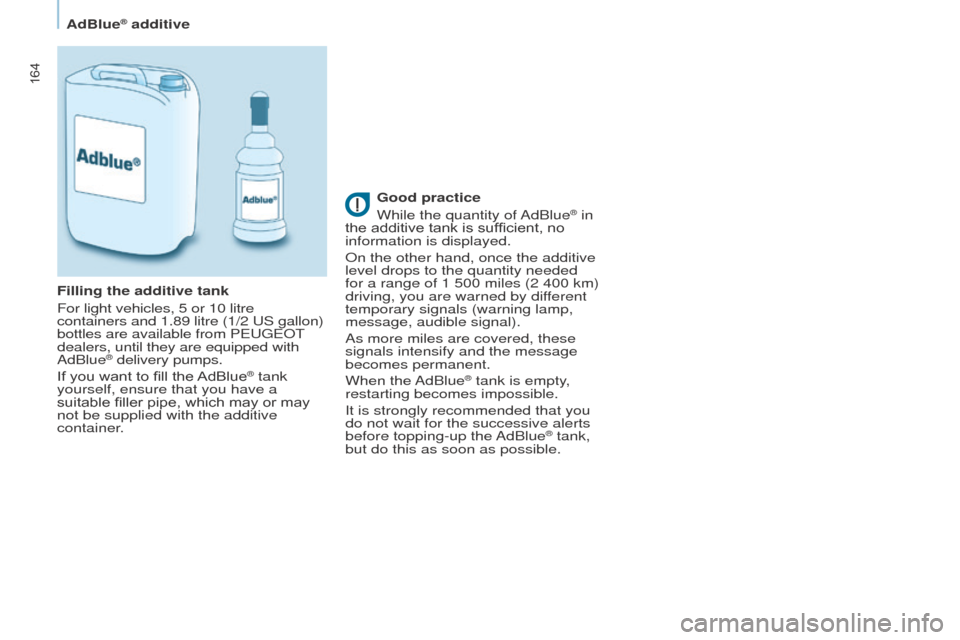

good practice
While the quantity of AdBlue® in
the additive tank is sufficient, no
information is displayed.
o

n the other hand, once the additive
level drops to the quantity needed
for a range of 1 500 miles (2 400 km)
driving, you are warned by different
temporary signals (warning lamp,
message, audible signal).
As more miles are covered, these
signals intensify and the message
becomes permanent.
When the AdBlue
® tank is empty,
restarting becomes impossible.
It is strongly recommended that you
do not wait for the successive alerts
before topping-up the AdBlue
® tank,
but do this as soon as possible.
Filling the additive tank
For light vehicles, 5 or 10 litre
containers and 1.89 litre (1/2
u
S gallon)
bottles are available from P
eugeo
T
dealers, until they are equipped with
AdBlue
® delivery pumps.
If you want to fill the AdBlue® tank
yourself, ensure that you have a
suitable filler pipe, which may or may
not be supplied with the additive
container.
AdBlue® additive

165

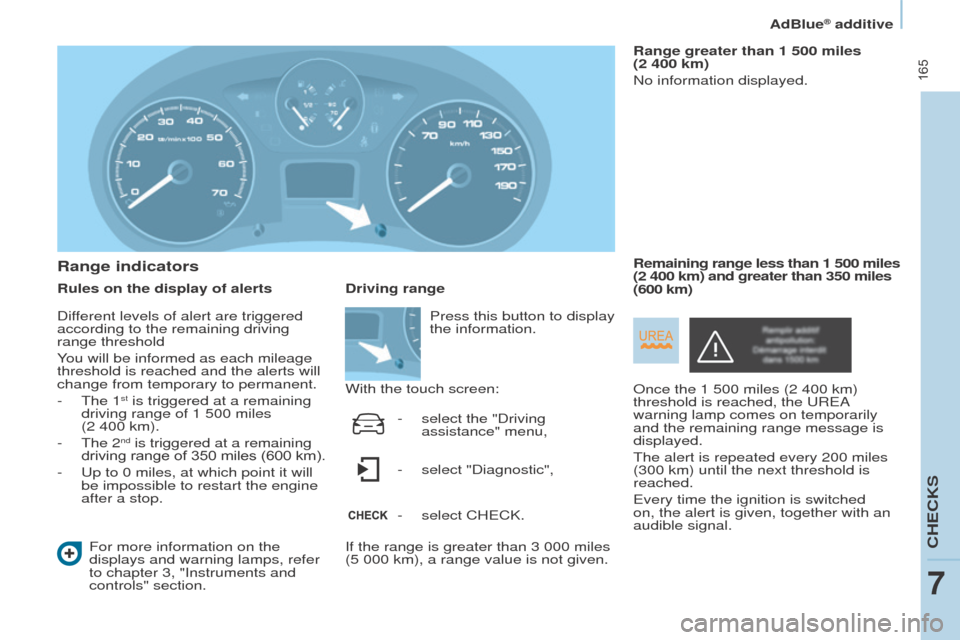

Range indicators
Rules on the display of alertsFor more information on the
displays and warning lamps, refer
to chapter 3, "Instruments and
controls" section. Range greater than 1 500 miles
(2 400 km)
No information displayed.
o

nce the 1 500 miles (2 400 km)
threshold is reached, the
u R e A
warning lamp comes on temporarily
and the remaining range message is
displayed.
The alert is repeated every 200 miles
(300 km) until the next threshold is
reached.
e

very time the ignition is switched
on, the alert is given, together with an
audible signal. Remaining range less than 1 500
miles

(2 400 km) and greater than 350 miles
(600 km)
Driving range
With the touch screen:
If the range is greater than 3 000 miles
(5 000 km), a range value is not given. Press this button to display
the information.
-

select the "Driving
assistance" menu,
-


select "Diagnostic",
-


select CH
e CK.
Different levels of alert are triggered
according to the remaining driving
range threshold
You will be informed as each mileage
threshold is reached and the alerts will
change from temporary to permanent.
-

The 1st is triggered at a remaining
driving range of 1 500 miles
(2 400 km).
-
The 2nd is triggered at a remaining
driving range of 350 miles (600 km).
-
u
p to 0 miles, at which point it will
be impossible to restart the engine
after a stop.
CHeCKS
7
AdBlue® additive

166
Once the 350 miles (600 km) threshold
is reached, the u R e A warning lamp
flashes and the Service warning lamp
comes on, accompanied by a message
on the remaining driving range.
The alert is repeated every 30 seconds
with an update of the remaining driving
range in steps of 30 miles (50 km)
travelled.
e

very time the ignition is switched
on, the alert is given together with an
audible signal.
At 0 miles the system installed in
the vehicle to meet the emissions
standard will prevent engine
starting. The 0 level of AdBlue
® additive has
been reached.
Your vehicle's exhaust emissions no
longer meet the "Euro 6" standard and
the engine will not start.
To be able to restart the vehicle, you
must add at least 4 litres of AdBlue
®.
-

Pour the additive into the tank (by
the filler with the blue cap).
-


Switch on the ignition without
starting.
-


W

ait 10 seconds before starting the
engine.

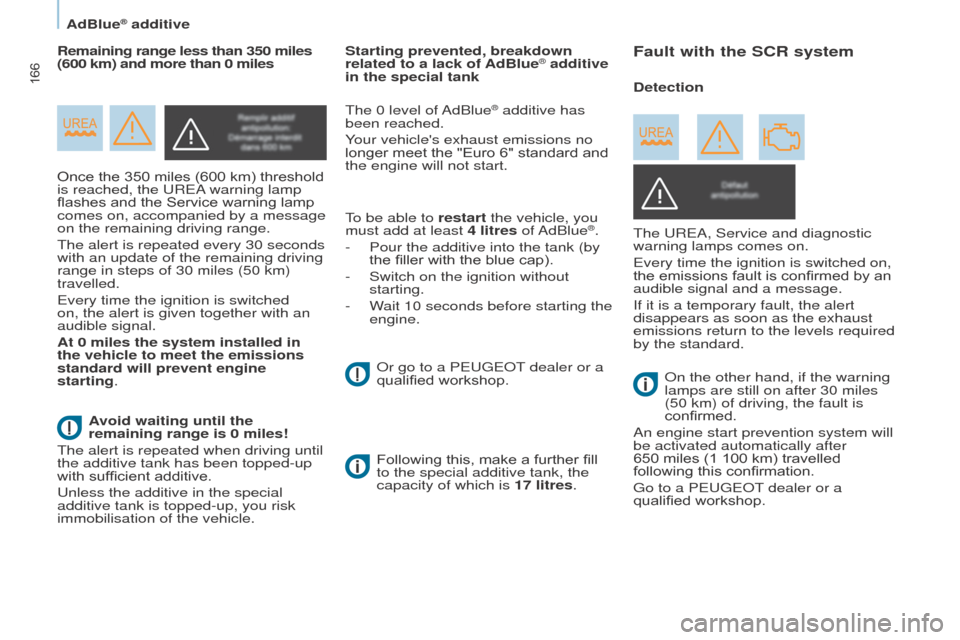

Remaining range less than 350 miles
(600 km) and more than 0 miles
Starting prevented, breakdown
related to a lack of AdBlue
® additive
in the special tank
Avoid waiting until the
remaining range is 0 miles!
The alert is repeated when driving until
the additive tank has been topped-up
with sufficient additive.
u

nless the additive in the special
additive tank is topped-up, you risk
immobilisation of the vehicle. Following this, make a further fill
to the special additive tank, the
capacity of which is 17 litres.Fault with the SCR system
The uReA, Service and diagnostic
warning lamps comes on.
e

very time the ignition is switched on,
the emissions fault is confirmed by an
audible signal and a message.
If it is a temporary fault, the alert
disappears as soon as the exhaust
emissions return to the levels required
by the standard. Detection
o

n the other hand, if the warning
lamps are still on after 30 miles
(50 km) of driving, the fault is
confirmed.
An engine start prevention system will
be activated automatically after
650 miles (1 100 km) travelled
following this confirmation.
g

o to a P eugeo T dealer or a
qualified workshop.
o

r go to a P
eugeo
T dealer or a
qualified workshop.
AdBlue® additive

167

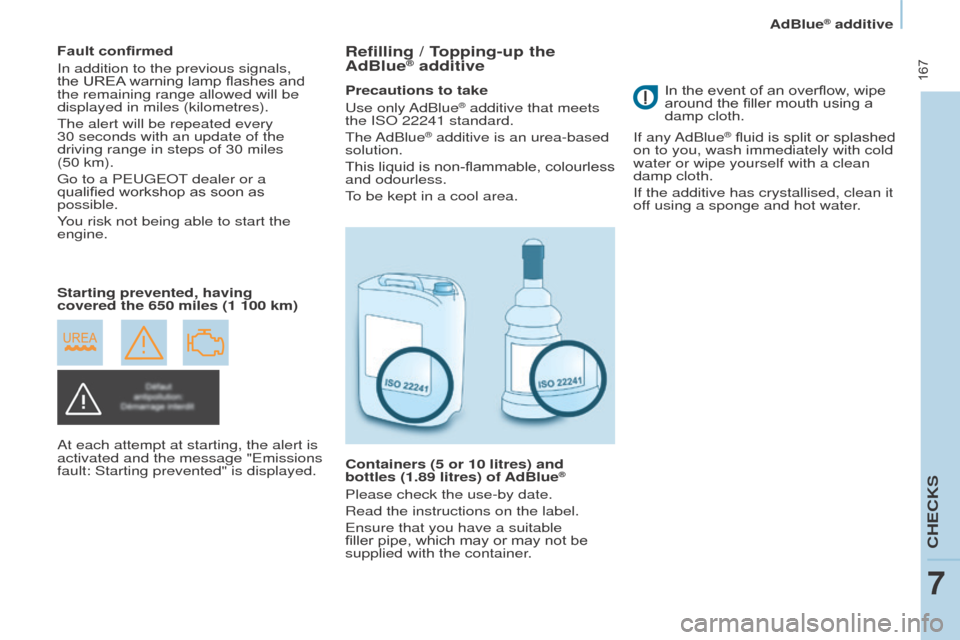

Fault confirmed
In addition to the previous signals,
the UREA warning lamp flashes and
the remaining range allowed will be
displayed in miles (kilometres).
The alert will be repeated every
30 seconds with an update of the
driving range in steps of 30 miles
(50 km).
g
o to a P eugeo T dealer or a
qualified workshop as soon as
possible.
You risk not being able to start the
engine.
Starting prevented, having
covered the 650 miles (1 100 km)
At each attempt at starting, the alert is
activated and the message "
e missions
fault: Starting prevented" is displayed.Refilling / topping-up the
AdBlue® additive
Precautions to take
u

se only AdBlue® additive that meets
the IS
o
22241 standard.
The AdBlue
® additive is an urea-based
solution.
This liquid is non-flammable, colourless
and odourless.
To be kept in a cool area.
Containers (5 or 10 litres) and
bottles (1.89 litres) of AdBlue
®
Please check the use-by date.
Read the instructions on the label.
e

nsure that you have a suitable
filler pipe, which may or may not be
supplied with the container. In the event of an overflow, wipe
around the filler mouth using a
damp cloth.
If any AdBlue
® fluid is split or splashed
on to you, wash immediately with cold
water or wipe yourself with a clean
damp cloth.
If the additive has crystallised, clean it
off using a sponge and hot water.
CHeCKS
7
AdBlue® additive

168

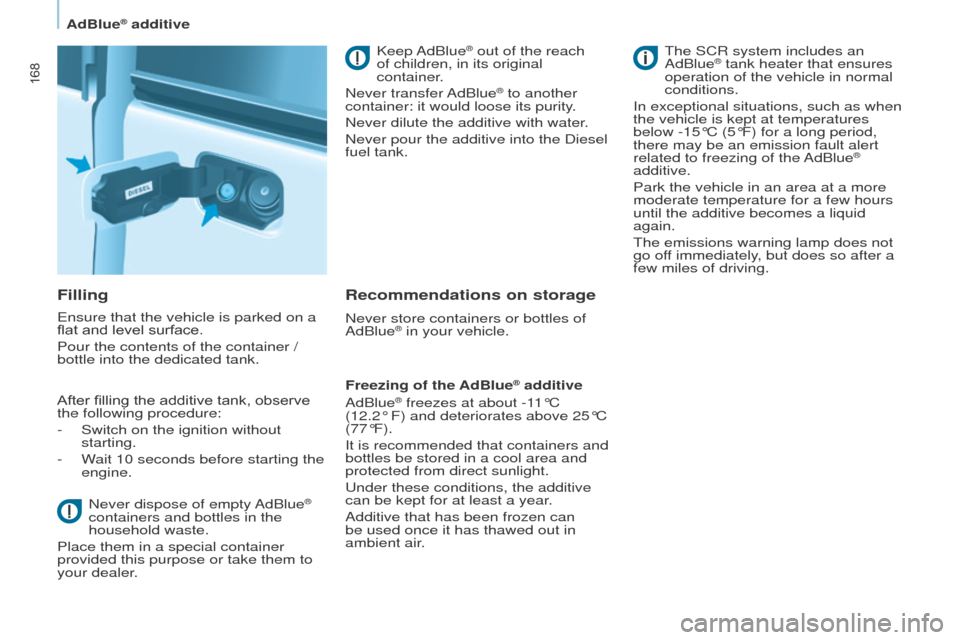

Filling
ensure that the vehicle is parked on a
flat and level surface.
Pour the contents of the container /
bottle into the dedicated tank.
After fillin
g the additive tank, observe
the following procedure:
-

Switch on the ignition without
starting.
-


W
ait 10 seconds before starting the
engine.
Never dispose of empty AdBlue
®
containers and bottles in the
household waste.
Place them in a special container
provided this purpose or take them to
your dealer. Keep AdBlue
® out of the reach
of children, in its original
container.
Never transfer AdBlue
® to another
container: it would loose its purity.
Never dilute the additive with water.
Never pour the additive into the Diesel
fuel tank.
Recommendations on storage
Never store containers or bottles of
AdBlue® in your vehicle.
Freezing of the AdBlue
® additive
AdBlue® freezes at about -11°C
(12.2°

F) and deteriorates above 25°C
(77°F).
It is recommended that containers and
bottles be stored in a cool area and
protected from direct sunlight.
u

nder these conditions, the additive
can be kept for at least a year.
Additive that has been frozen can
be used once it has thawed out in
ambient air. The SCR system includes an
AdBlue
® tank heater that ensures
operation of the vehicle in normal
conditions.
In exceptional situations, such as when
the vehicle is kept at temperatures
below -15°C (5°F) for a long period,
there may be an emission fault alert
related to freezing of the AdBlue
®
additive.
Park the vehicle in an area at a more
moderate temperature for a few hours
until the additive becomes a liquid
again.
The emissions warning lamp does not
go off immediately, but does so after a
few miles of driving.
AdBlue® additive
