Page 61 of 128
22-12-2003
YOUR PARTNER IN DETAIL61
U : seat suitable for the installation of a child seat secured using the seat belt and "universally" approved. "Rear facing" an d
"forward facing" child seats.
(a) Group 0: from birth to 10 kg.
(b) The rules for transporting children on the front passenger seat are specific to each country. Consult the legislation in fo rce
in your country.

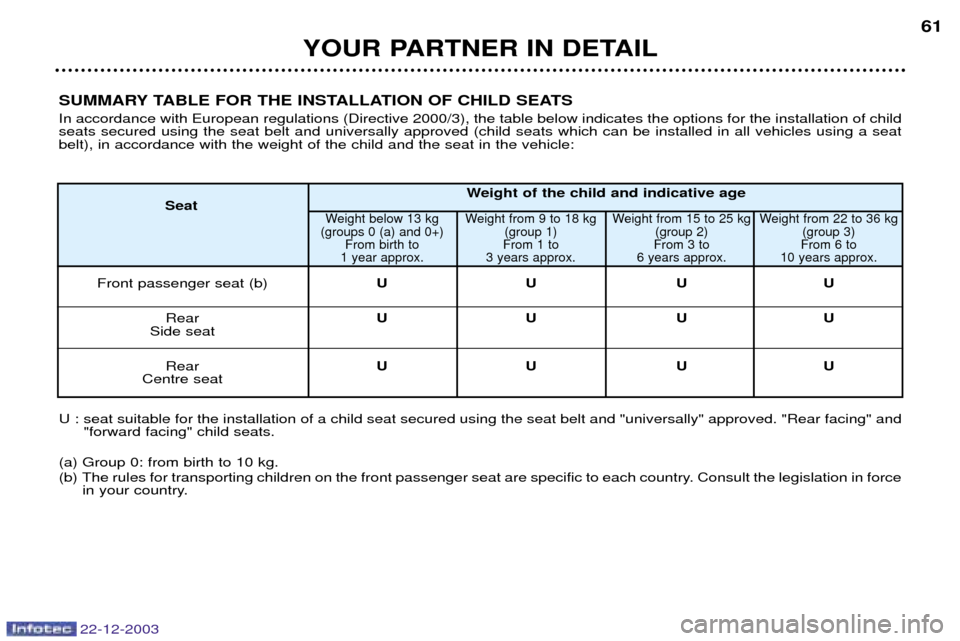

SUMMARY TABLE FOR THE INSTALLATION OF CHILD SEATS In accordance with European regulations (Directive 2000/3), the table below indicates the options for the installation of child seats secured using the seat belt and universally approved (child seats which can be installed in all vehicles using a seatbelt), in accordance with the weight of the child and the seat in the vehicle:
Weight of the child and indicative age
Seat
Weight below 13 kg Weight from 9 to 18 kg Weight from 15 to 25 kg Weight from 22 to 36 kg
(groups 0 (a) and 0+) (group 1) (group 2) (group 3) From birth to From 1 to From 3 to From 6 to
1 year approx. 3 years approx. 6 years approx. 10 years approx.
Front passenger seat (b) UU UU
Rear UU UU
Side seat
Rear UU UU
Centre seat
Page 62 of 128
22-12-2003
YOUR PARTNER IN DETAIL
62

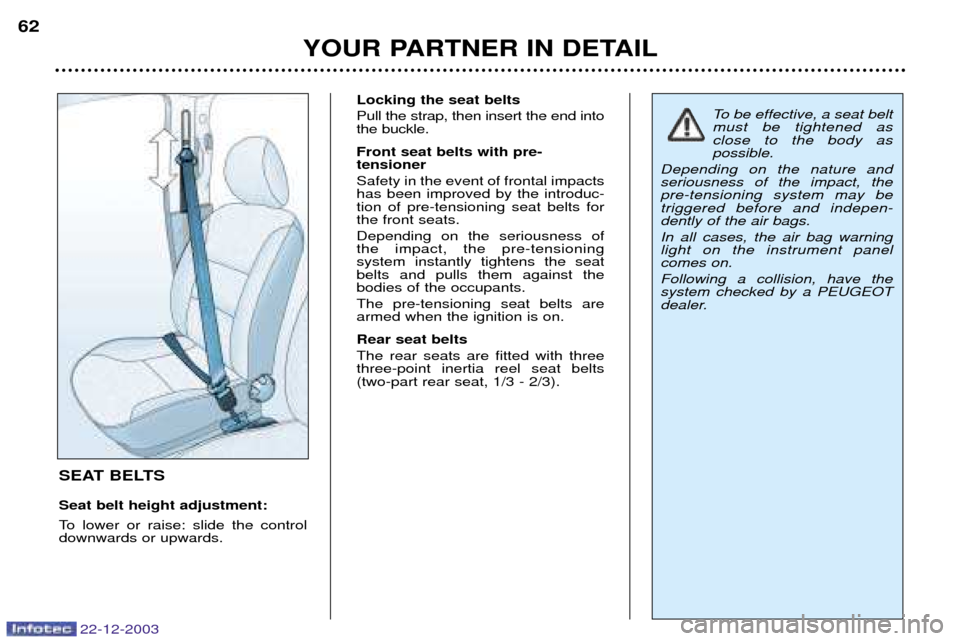

SEAT BELTS Seat belt height adjustment:
To lower or raise: slide the control downwards or upwards. Locking the seat belts Pull the strap, then insert the end into the buckle. Front seat belts with pre- tensioner Safety in the event of frontal impacts has been improved by the introduc-tion of pre-tensioning seat belts forthe front seats. Depending on the seriousness of the impact, the pre-tensioning system instantly tightens the seatbelts and pulls them against thebodies of the occupants. The pre-tensioning seat belts are armed when the ignition is on. Rear seat belts The rear seats are fitted with three three-point inertia reel seat belts(two-part rear seat, 1/3 - 2/3).
To be effective, a seat belt must be tightened asclose to the body as possible.
Depending on the nature andseriousness of the impact, thepre-tensioning system may betriggered before and indepen-dently of the air bags. In all cases, the air bag warning light on the instrument panelcomes on. Following a collision, have the system checked by a PEUGEOT
dealer.
Page 63 of 128
YOUR PARTNER IN DETAIL63
THE KEYS The keys allow you to switch on the ignition and operate the passengerair bag disarming switch as well as toindependently operate the locks onthe doors and the fuel filler cap. Central locking From the front doors, the keys allow you to lock and unlock the doors andtailgate. If one of the doors or the tailgate is open, the central locking does notwork. The remote control performs the same functions at a distance.The remote control Locking Press button
Ato lock the vehicle.
This is confirmed by fixed lighting of the direction indicators for approxi-mately two seconds. Unlocking Press button Bto unlock the vehicle.
This is confirmed by rapid flashing of the direction indicators. Note: if the vehicle is locked and
unlocking is activated inadvertently, unless the doors are opened within30 seconds, the vehicle will lock
automatically. Locating your vehicle
To locate your vehicle, if you have locked it, in a car park: press button A, the courtesy
lights come on and the direction indicators flash for a fewseconds.
Changing the battery of the remote control The information "battery flat" is given by an audible signal accompanied by the message "Remote control
battery flat" on the screen.

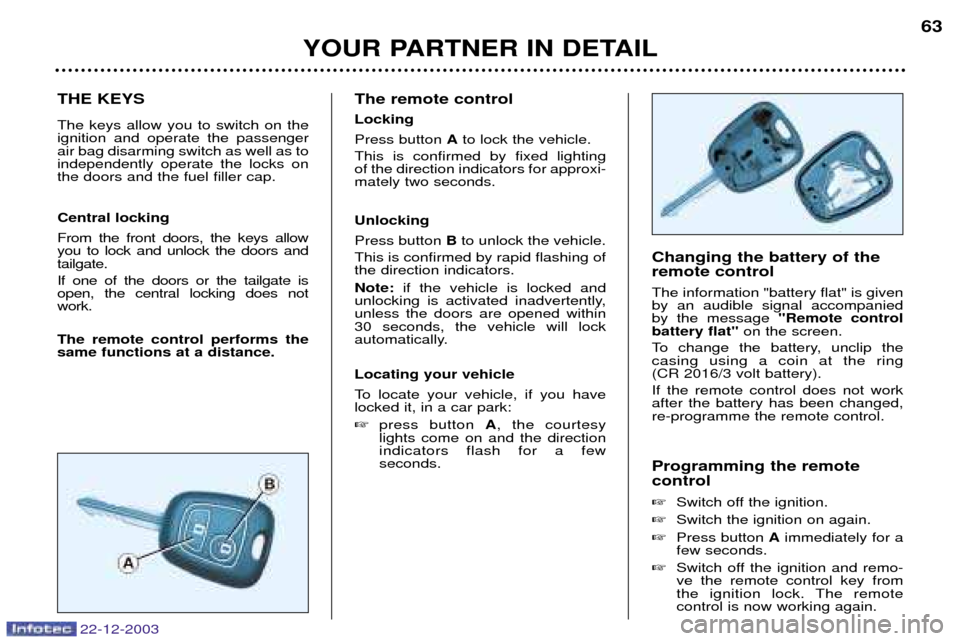

To change the battery, unclip thecasing using a coin at the ring (CR 2016/3 volt battery). If the remote control does not work after the battery has been changed,re-programme the remote control. Programming the remote control Switch off the ignition.
Switch the ignition on again.
Press button Aimmediately for a
few seconds.
Switch off the ignition and remo- ve the remote control key from
the ignition lock. The remotecontrol is now working again.
22-12-2003
Page 64 of 128
YOUR PARTNER IN DETAIL
64
Confidential card The confidential card contains the identification code necessary for anywork carried out by a PEUGEOTdealer on the electronic immobiliser
system. This code is hidden by afilm, which should be removed only if
necessary. Keep your card in a safe place, never inside the vehicle. Key in ignition
A buzzer sounds on opening the
driver's door, if the key has been leftin the ignition.

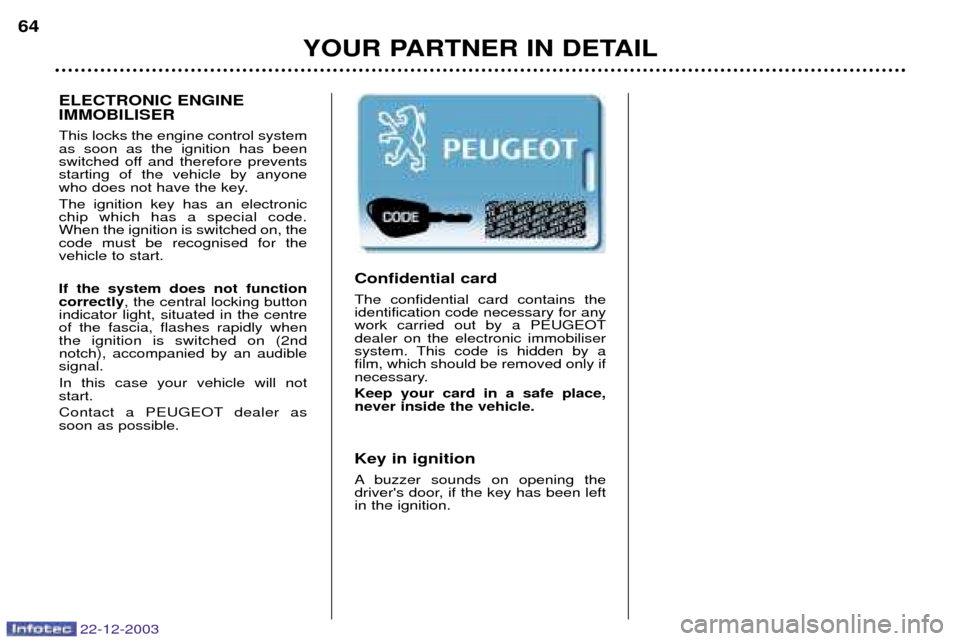

ELECTRONIC ENGINE IMMOBILISER This locks the engine control system as soon as the ignition has been
switched off and therefore preventsstarting of the vehicle by anyone
who does not have the key. The ignition key has an electronic chip which has a special code.When the ignition is switched on, thecode must be recognised for thevehicle to start. If the system does not function correctly
, the central locking button
indicator light, situated in the centreof the fascia, flashes rapidly whenthe ignition is switched on (2ndnotch), accompanied by an audiblesignal. In this case your vehicle will not start.
Contact a PEUGEOT dealer as soon as possible.
22-12-2003
Page 65 of 128
22-12-2003
YOUR PARTNER IN DETAIL65

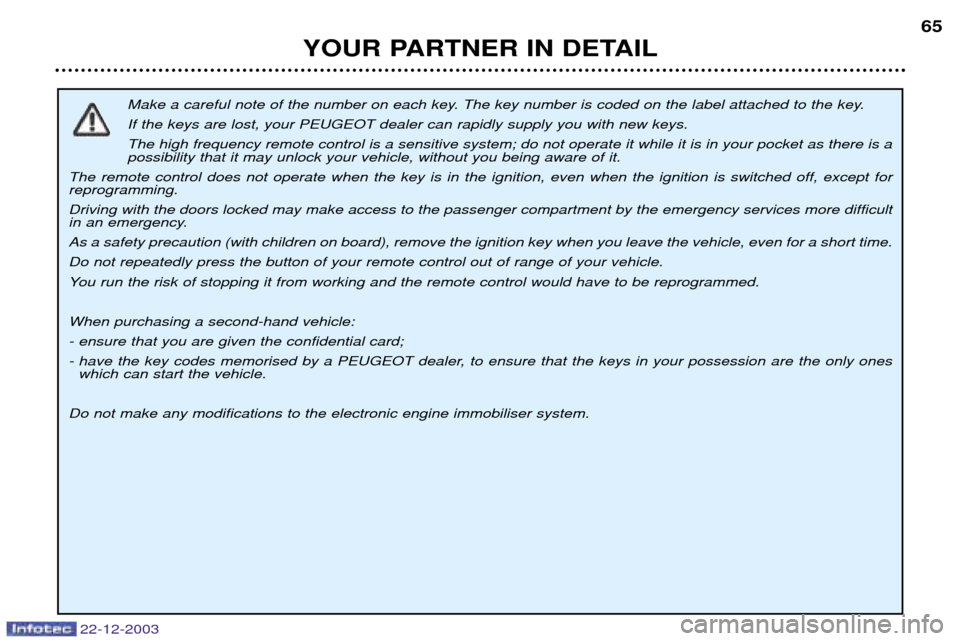

Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the keys are lost, your PEUGEOT dealer can rapidly supply you with new keys.The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle, without you being aware of it.
The remote control does not operate when the key is in the ignition, even when the ignition is switched off, except forreprogramming. Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult
in an emergency. As a safety precaution (with children on board), remove the ignition key when you leave the vehicle, even for a short time.Do not repeatedly press the button of your remote control out of range of your vehicle.
You run the risk of stopping it from working and the remote control would have to be reprogrammed. When purchasing a second-hand vehicle: - ensure that you are given the confidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can start the vehicle.
Do not make any modifications to the electronic engine immobiliser system.
Page 66 of 128
YOUR PARTNER IN DETAIL
64
Confidential card The confidential card contains the identification code necessary for anywork carried out by a PEUGEOTdealer on the electronic immobiliser
system. This code is hidden by afilm, which should be removed only if
necessary. Keep your card in a safe place, never inside the vehicle. Key in ignition
A buzzer sounds on opening the
driver's door, if the key has been leftin the ignition.
ELECTRONIC ENGINE IMMOBILISER This locks the engine control system as soon as the ignition has been
switched off and therefore preventsstarting of the vehicle by anyone
who does not have the key. The ignition key has an electronic chip which has a special code.When the ignition is switched on, thecode must be recognised for thevehicle to start. If the system does not function correctly
, the central locking button
indicator light, situated in the centreof the fascia, flashes rapidly whenthe ignition is switched on (2ndnotch), accompanied by an audiblesignal. In this case your vehicle will not start.
Contact a PEUGEOT dealer as soon as possible.
22-12-2003
Page 67 of 128
22-12-2003
YOUR PARTNER IN DETAIL65
Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the keys are lost, your PEUGEOT dealer can rapidly supply you with new keys.The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle, without you being aware of it.
The remote control does not operate when the key is in the ignition, even when the ignition is switched off, except forreprogramming. Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult
in an emergency. As a safety precaution (with children on board), remove the ignition key when you leave the vehicle, even for a short time.Do not repeatedly press the button of your remote control out of range of your vehicle.
You run the risk of stopping it from working and the remote control would have to be reprogrammed. When purchasing a second-hand vehicle: - ensure that you are given the confidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can start the vehicle.
Do not make any modifications to the electronic engine immobiliser system.
Page 68 of 128
22-12-2003
YOUR PARTNER IN DETAIL
66

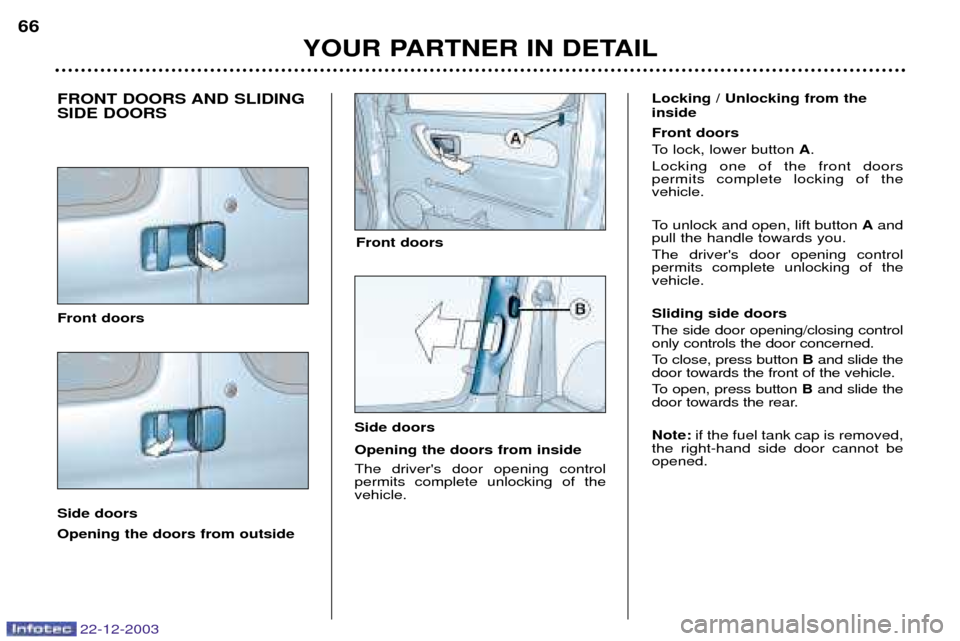

FRONT DOORS AND SLIDING SIDE DOORS Front doors Side doors Opening the doors from outside Locking / Unlocking from the inside Front doors
To lock, lower button
A.
Locking one of the front doors permits complete locking of thevehicle.
To unlock and open, lift button Aand
pull the handle towards you. The driver's door opening control permits complete unlocking of thevehicle. Sliding side doors The side door opening/closing control only controls the door concerned.
To close, press button Band slide the
door towards the front of the vehicle.
To open, press button Band slide the
door towards the rear. Note: if the fuel tank cap is removed,
the right-hand side door cannot be opened.
Side doors Opening the doors from inside The driver's door opening control permits complete unlocking of thevehicle.
Front doors
Page 69 of 128
22-12-2003
YOUR PARTNER IN DETAIL67

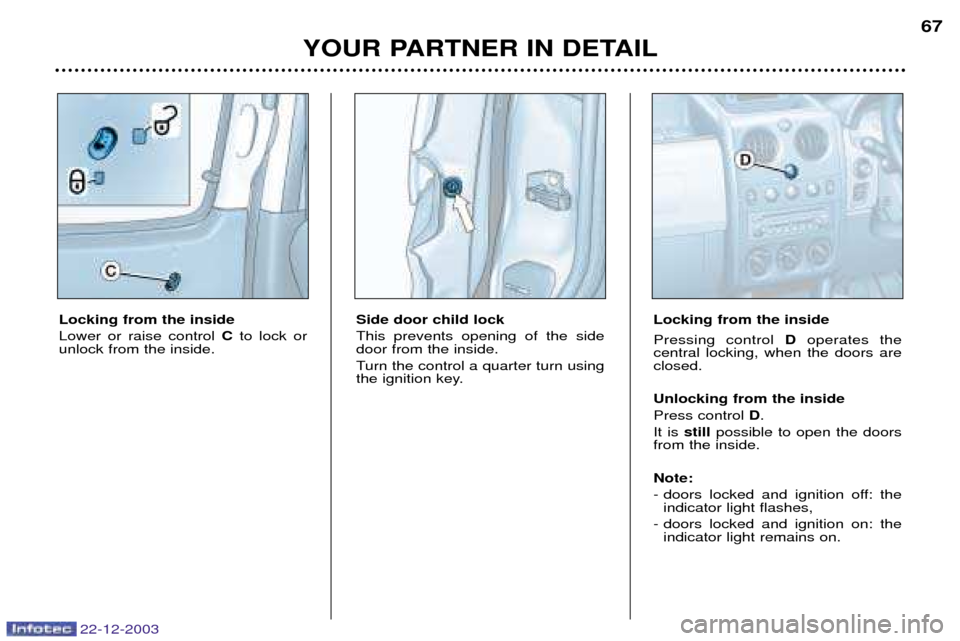

Locking from the inside Lower or raise control
Cto lock or
unlock from the inside. Side door child lockThis prevents opening of the side door from the inside.
Turn the control a quarter turn using
the ignition key.Locking from the inside Pressing control
Doperates the
central locking, when the doors are closed. Unlocking from the inside Press control D.
It is still possible to open the doors
from the inside. Note:
- doors locked and ignition off: the indicator light flashes,
- doors locked and ignition on: the indicator light remains on.
Page 70 of 128
22-12-2003
YOUR PARTNER IN DETAIL
68
REAR DOORS Opening the doors from outside

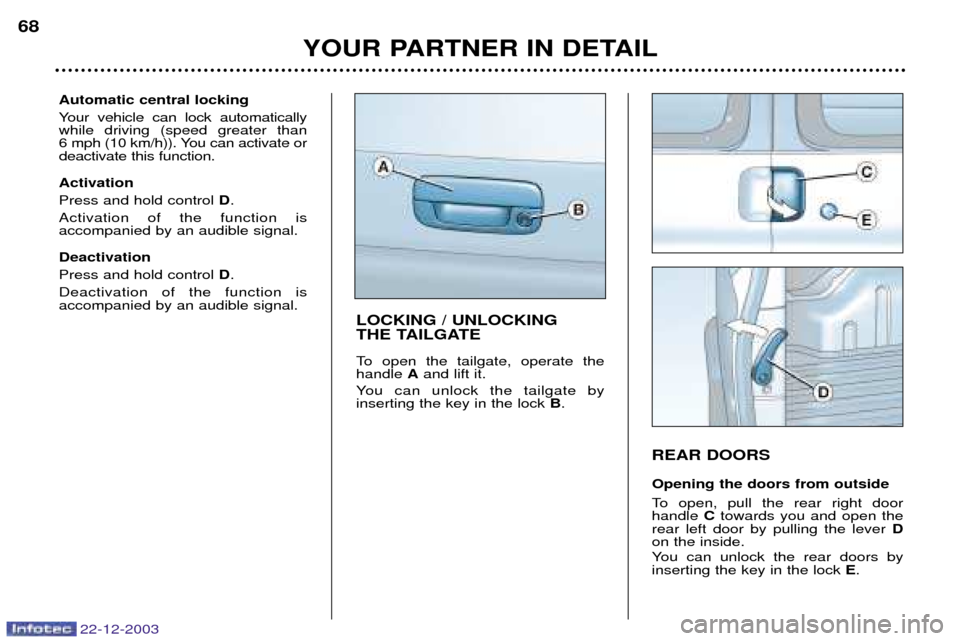

To open, pull the rear right door handle
Ctowards you and open the
rear left door by pulling the lever D
on the inside.
You can unlock the rear doors by inserting the key in the lock E.
LOCKING / UNLOCKING
THE TAILGATE
To open the tailgate, operate the handle Aand lift it.
You can unlock the tailgate by inserting the key in the lock B.
Automatic central locking
Your vehicle can lock automatically while driving (speed greater than
6 mph (10 km/h)). You can activate ordeactivate this function. Activation Press and hold control D.
Activation of the function is accompanied by an audible signal. Deactivation Press and hold control D.
Deactivation of the function is accompanied by an audible signal.
