Main Fuse Block
1 - Air Bag: SIR Components
2 - Backup Lights; Daytime Running (15
Amp.)
Lights Module (Canada); Turn
Flasher
(20 Amp.)
3 - HVAC Selector Switch (Heater/Ail
Conditioner); Rear Defogger
(25 Amp.)
4 - Powertrain Control Module;
Instrument Cluster; PASS-Key
II@
Decoder Module (10 Amp.)
5 - Powertrain Control Module;
PASS-Key
11s Decoder Module;
Fuel Pump Relay (15 Amp.)
;
6 - Brake LightKruise Release
Switch; Hazard Flasher
(20 Amp.)
7 - Power Door Locks; Power Mirrors;
Hatch Release (15 Amp.)
8
- Audio Alarm Module; Base@
Relay; Courtesy Lights: Console
Compartment, Glove Box, Dome,
Trunk, Rear Courtesy, Rearview
Mirror and Radio (15 Amp.)
9 - Audio Alarm Module; Daytime
Running Lights Module (Canada);
Diagnostic Energy Reserve
Module; Instrument Cluster; Remote Lock Control Module
( 10 Amp.)
10 - Exterior Lighting (20 Amp.)
11 - Cigarette Lighter; Horn Relay
12 - Power Seats; Rear Defogger
13 - Brightness Control (5 Amp.)
14 - Windshield Wipermasher
(25 Amp.)
15 - Power Windows, Convertible
Top Switch
(30 Amp. Circuit
Breaker)
Module
(3 Amp.)
(15 Amp.)
(25 Amp.)
(30 Amp. Circuit Breaker)
16 - Diagnostic Energy Reserve
17 - Radio; Steering Wheel Controls
. . ,230
ProCarManuals.com

C B
G H J
Underhood Electrical Center
Fuses
1 - Electronic Brake Control Module
(5 Amp.)
2
- Fog Lamps (20 Amp.)
3 - HeadIight Doors Module (15
4 - Headlight Doors Module (1 5
5 - Anti-Lock Brake System (5 Amp.)
6 - Coolant Fan Relays; EVAP Canister Purge Solenoid; Exhaust
Gas Recirculation; Low Coolant
Relay; Reverse Lockout Solenoid
(10 Amp.)
Amp.)
Amp.)
7 - Air
Injection Pump Assembly;
8 - Not Used
9 - Fuel Injectors (7.5 Amp.)
10 - Fuel Injectors (7.5 Amp.)
11 - VIN Engine Code S: Camshaft
Air
Pump Relay
(20 Amp.)
Position Sensor; Crankshaft Position Sensor; Electronic
Ignition Module
(10 Amp.)
VIN Engine Code P: Ignition
Coil; Ignition Coil Driver
(10 Amp.)
12 - Air Conditioning Compressor
Relay; Cruise Control Switches
and Module
(20 Amp.)
Relays
B - Air Conditioning Compressor
C - Anti-Lock Brake System
D - Primary Coolant Fan (Driver Side)
E - Air Pump
F - Secondary Coolant Fan
(Passenger Side)
G - Traction Control System
H - Fog Lamps
J - Not Used
231 . ..
ProCarManuals.com

Service and Appearance Care
Replacement Bulbs
Ashtray" ......................................................... 194
Automatic Transmission Indicator
...................................... 73
Backup
......................................................... 1156
Center High-Mounted Stoplight
....................................... 921
Cluster
.......................................................... 161
Console
......................................................... 194
Dome
........................................................... 906
Doorcourtesy
..................................................... 74
Fog
............................................................. 885
Front Parking and Turn Signal
....................................... 2397
GloveBox
....................................................... 194
Headlight
..................................................... H-6545
Heater and
A/C Control .............................................. 37
Indicator Lights
.................................................. PC74
Interior Door Handle
................................................ 74
License
.......................................................... 194
Reading
....................................................... 212-2
Rearcourtesy
..................................................... 562
Sidemarker
....................................................... 194
TailOnly
........................................................ 194
Tail/Stop/Turn
................................................... 2057
Trunk
........................................................... 562
Turn Signal Indicators
.............................................. 161
*Manual transmission only
.
... 232
ProCarManuals.com

Capacities and Specifications
Engine
Type VINEngineCodeS
............................................... V6
VIN Engine Code
P ............................................... V8
Fuel Delivery
............................................. Fuel Injection
Valve Arrangement
............................................. In-Head
Piston Displacement VIN Engine Code
S .................................... .207 CID (3.4L)
VIN Engine Code P
..................................... 350 CID (5.7L)
VIN Engine Code
S ............................................. 9.0: 1
VIN Engine Code P ............................................ 10.5: 1
VINEngineCodeS ...................................... 1-2-345-6
VIN Engine Code
P .................................. 1-843-6-5-7-2
Compression Ratio
Firing Order
233. ..
ProCarManuals.com

Service and Appearance Care

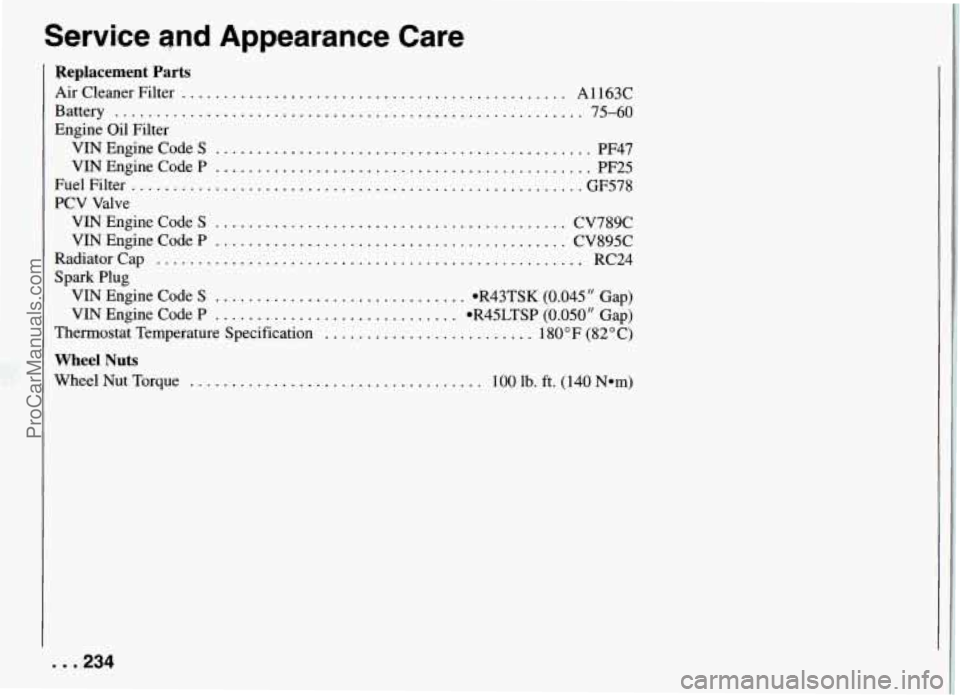

Replacement Parts
Air Cleaner Filter .............................................. A1 163C
Battery
........................................................ 75-60
Engine Oil Filter
VINEngineCodeS
............................................. PF47
FuelFilter
...................................................... GF578
PCV Valve VIN Engine
Code P
............................................. PF25
VIN Engine Code
S .......................................... CV789C
VIN Engine Code P
.......................................... CV895C
VIN Engine Code
S .............................. oR43TSK (0.045" Gap)
VIN Engine Code P
............................. oR45LTSP (0.050" Gap)
Thermostat Temperature Specification
.......................... 180°F (82°C)
Radiatorcap
................................................... RC24
Spark Plug
Wheel Nuts
Wheel Nut Torque ....... ........ ......... 100 lb. ft. (140 Nom)
.. .234
ProCarManuals.com

tNot all air conditioning refrigerants are the same. If the air con\
ditioning system in your
vehicle needs refrigerant, be sure the proper refrigerant is us\
ed. If you’re not sure, ask
your Pontiac dealer.
“Recheck fluid level after filling. See “Automatic Transmission Fluid” in the Index.
235. . .
ProCarManuals.com

Service and Appearance Care
Crankcase
VIN Engine Code S .................................... 4.0 qt. (3.8 L)**
Without Filter Change
................................ 4.0 qt. (3.8 L)**
With Filter Change ................................... 5.0 qt. (4.7 L)**
Fuel Tank ........................................... 15.5 gal. (58.7 L)
Five-Speed
........................................... 5.9 pt. (2.8 L)*
Six-Speed
............................................ 8.0 pt. (3.8 L)*
Rear Axle Lubricant
...................................... 3.5 pt. (1.7L)
VIN Engine Code
P
Manual
Transmission
Vehicle Dimensions
Tread Wheelbase
........................................... 101.1 I‘ (2 566 mm)
Front
.............................................. .60.7“ ( 1 542 mm)
Rear
.............................................. .60.6” (1 540 mm)
Length
............................................... 193.2“ (4 908 mm)
Firebird and Formula
................................. 195.6” (4 968 mm)
Trans Am .......................................... 197.0” (5 005 mm)
Width
............................................... 74.5” (1 893 mm)
Coupe
........................................... 52.0” (1 322 mm)
Convertible ....................................... .52.7” ( 1 340 mm)
Coupe
........................................... .51.7” (1 312 mm)
Convertible
....................................... .52.4“ (1 331 mm)
Height
Firebird and Formula
Trans Am
*Recheck fluid level after filling. See “ManualTransmission Fluid” in the Index.
**Recheck oil level after filling. See “Engine Oil” in the Index.
. . -236
ProCarManuals.com

Belt Routing - L32 (Code S) Engine
I
Belt Routing - LTl (Code P) Engine
237. . . ProCarManuals.com
