PONTIAC FIREBIRD 1998 Owners Manual

I NOTICE:
Spinning your wheels can destroy parts of your
vehicle as
well as the tires. If you spin the wheels
too fast while shifting your transmission back and forth, you can destroy your transmission.
For information about using tire chains on your vehicle,
see “Tire Chains” in the Index.
~ Rocking Your Vehicle To Get It Out
~ First, turn your steering wheel left and right. That will
clear
the area around your front wheels. If your vehicle
has traction control, you should turn the system
off.
(See “Traction Control System’’ in the Index.) Then shift
back and
forth between REVERSE (R) and a forward
gear (or with a manual transmission, between
FIRST (1)
or SECOND (2) and REVERSE (R)), spinning the
wheels as little as possible. Release the accelerator pedal
while you shift, and press lightly on the accelerator
pedal when the transmission
is in gear. If that doesn’t
get
you out after a few tries, you may need to be towed
out. If you do need to be towed out, see “Towing Your
Vehicle” in the Index.
5-42

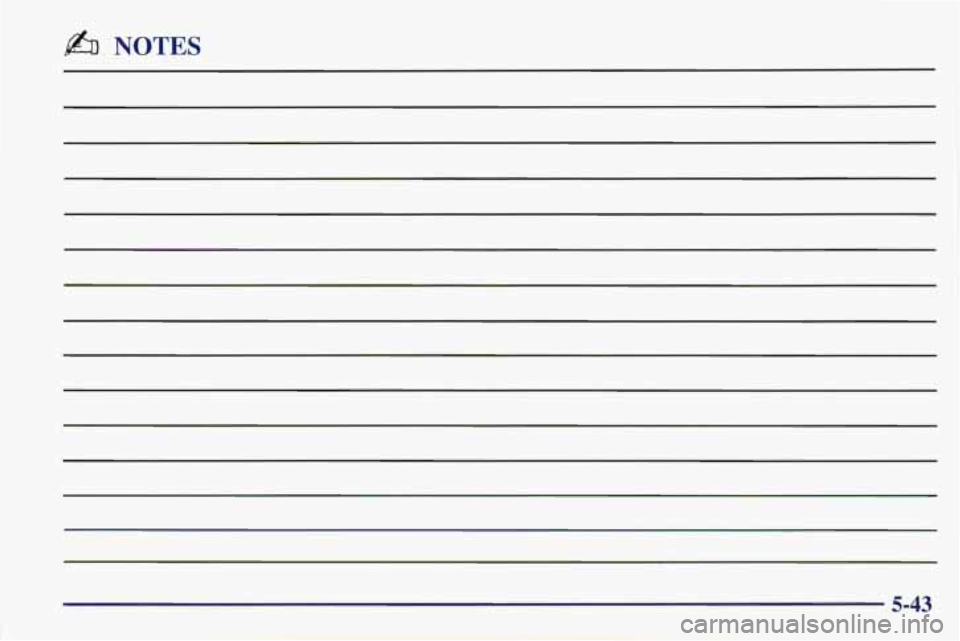

$&I NOTES
5-43

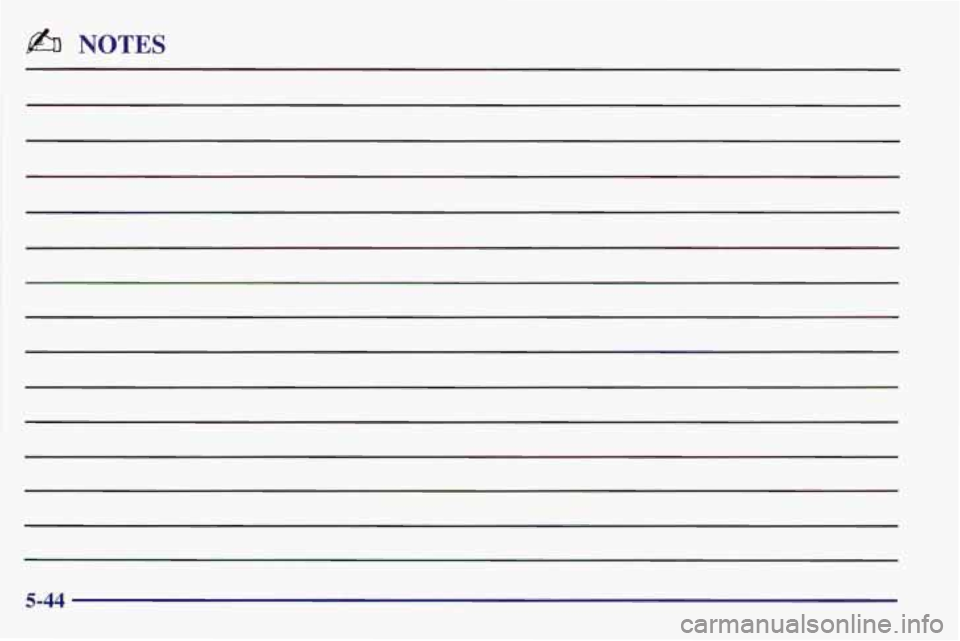

b% NOTES
5-44

Section 6 Service and Appearance Care
Here you will find information about the care of your vehicle. This section begins with service and fuel information,
and then it shows how to check important fluid and lubricant levels. There is also technical information about
your
vehicle, and a part devoted to its appearance care.
6-2
6-3
6-5
6-6
6-8
6-8
6-12
6-18
6-19
6-20
6-24
6-26
6-27
6-3 1
6-32
6-33
Service
Fuel
Fuels
in Foreign Countries
Filling
Your Tank
Filling a Portable Fuel Container Checking Things Under the Hood
Engine Oil
Air Cleaner
Air Filter Replacement
Automatic Transmission Fluid
Manual Transmission Fluid Hydraulic Clutch
Engine Coolant
Power Steering Fluid
Windshield Washer Fluid Brakes 6-37
6-38
6-44
6-53
6-56
6-56
6-57
6-59
6-60
6-6
1
6-62
6-62
6-68
6-68
6-70 Battery
Bulb
Replacement
Tires
Appearance Care
Care of Safety Belts
Cleaning Glass Surfaces
Cleaning the Outside
of Your Vehicle
Cleaning Aluminum
or Chrome Wheels
(If Equipped)
Underbody Maintenance
Appearance Care Materials Chart
Vehicle Identification Number (VIN)
Electrical System
Replacement Bulbs
Capacities and Specifications
Air Conditioning Refrigerants

Service
Your dealer knows your vehicle best and wants you to
be happy with it. We hope you’ll go to your dealer for
all your service needs. You’ll get genuine GM parts and
GM-trained and supported service people.
We hope you’ll want
to keep your GM vehicle all GM.
Genuine
GM parts have one of these marks:
Genuine
GM
Doing Your Own Service Work
If you want to do some of your own service work, you’ll
want to use
the proper Pontiac Service Manual. It tells
you much more about how to service your vehicle than
this manual can. To order the proper service manual, see
“Service and Owner Publications” in the Index.
Your vehicle has an air bag system. Before attempting to
do your own service work, see “Servicing Your Air
Bag-Equipped Vehicle” in the Index.
You should keep a record with
all parts receipts and list
the mileage and the date of any service work you
perform. See “Maintenance Record” in the Index.
6-2 I

You can be injured and your vehicle could be
damaged if you
try to do service work on a
vehicle without knowing enough about it.
0
0
Be sure you have sufficient knowledge,
experience, the proper replacement parts
and tools before you attempt any vehicle
maintenance task.
Be sure to use the proper nuts, bolts and
other fasteners. “English” and ‘5netric”
fasteners can be easily confused.
If you use
the wrong fasteners, parts can later break
or fall off. You could be hurt.
Adding Equipment to the Outside of
Your Vehicle
Things you might add to the outside of your vehicle can
affect the
airflow around it. This may cause wind noise
and affect windshield washer performance. Check with
your dealer before adding equipment to the outside
of
your vehicle.
Fuel
The 8th digit of your vehicle identification number
(VIN) shows the code letter for your engine. You will
find the VIN at the top left of your instrument panel.
(See “Vehicle Identification Number” in the Index.)
If you have the 3800 engine (VIN Code K), use regular
unleaded gasoline rated at
87 octane or higher.
If you have the
5.7L engine (VIN Code G), use
premium unleaded gasoline rated at
91 octane or
higher for best performance. You may use middle
grade or regular unleaded gasolines, but your vehicle
may not accelerate as well.
At a minimum, the gasoline you use should meet specifications ASTM
D48 14 in the United States
and CGSB
3.5-M93 in Canada. Improved gasoline
specifications have been developed by the American
Automobile Manufacturers Association (AAMA) for
better vehicle performance and engine protection.
Gasolines meeting the AAMA specification could
provide improved driveability
and emission control
system protection compared to other gasolines.
6-3

Be sure the posted octane for premium is at least 91 (at
least
89 for middle grade and 87 for regular). If the
octane
is less than 87, you may get a heavy knocking
noise when you drive. If it's bad enough, it can damage
your engine.
If you're using fuel rated at the recommended octane or
higher and you hear heavy knocking, your engine needs service. But don't
worry if you hear a little pinging
noise when you're accelerating or driving up a
hill.
That's normal, and you don't have to buy a higher
octane
fuel to get rid of pinging. It's the heavy, constant
knock that means you have a problem.
If your vehicle is certified to meet California Emission
Standards (indicated on the underhood emission control
label),
it is designed to operate on fuels that meet
California specifications. If such fuels are not available
in states adopting California emissions standards, your
vehicle will operate satisfactorily on fuels meeting
federal specifications, but emission control system performance
may be affected. The malfunction indicator
lamp on your instrument panel may turn on and/or
your vehicle may fail a smog-check test. If this occurs,
return to
your authorized Pontiac dealer for diagnosis
to determine the cause of failure. In the event it is
determined that
the cause of the condition is the type of
fuels used, repairs may not be covered by your warranty.
Some gasolines that are not reformulated for
low
emissions contain an octane-enhancing additive called
methylcyclopentadienyl manganese tricarbonyl (MMT);
ask your service station operator whether or not his fuel
contains
MMT. General Motors does not recommend the
use of such gasolines.
If fuels containing "'I' are used,
spark plug life may be reduced and your emission
control system performance may be affected. The
malfunction indicator lamp on your instrument panel
may
turn on. If this occurs, return to your authorized
Pontiac dealer for service.
6-4

To provide cleaner air, all gasolines in the United States
are now required to contain additives that will help
prevent deposits from forming in your engine and
fuel system, allowing your emission control system
to function properly. Therefore, you should not have
to add anything to the fuel. In addition, gasolines containing oxygenates, such as ethers and ethanol, and
reformulated gasolines may be available in your area to
help clean the air. General Motors recommends that
you
use these gasolines if they comply with the
specifications described earlier.
1 NOTICE:
~ ~~~
Your vehicle was not designed for fuel that
contains methanol. Don’t use it. It can corrode
metal parts in your fuel system and also damage
plastic and rubber parts. That damage wouldn’t
be covered under your warranty.
Fuels in Foreign Countries
If you plan on driving in another country outside the
United States or Canada, the proper fuel may be hard to
find. Never use leaded gasoline or any other fuel not
recommended in the previous text on fuel. Costly repairs
caused by use of improper fuel wouldn’t be covered by
your warranty.
To check on fuel availability, ask an auto club, or
contact a major oil company that does business in the
country where you’ll be driving.
You can also write us at the following address for
advice. Just tell us where you’re going and give your
Vehicle Identification Number (VIN).
General Motors Overseas Distribution Corporation
1908 Colonel Sam Drive
Oshawa, Ontario
L1H 8P7
6-5

Filling Your Tank
The cap is behind a hinged door on the left side of
your vehicle.
I
Gasoline vapor is highly flammable. It burns
violently, and that can cause very
bad injuries.
Don’t smoke
if you’re near gasoline or refueling
your vehicle. Keep sparks, flames and smoking
materials away from gasoline.
While refueling, hang the cap by the tether from the pin
on the fuel door.

To remove the cap, turn it slowly to the left
(counterclockwise). The cap has a spring in it; if you let
go of the cap too soon, it will spring back to the right.
L
If you get gasoline on yourself and then
something ignites
it, you could be badly burned.
Gasoline can spray out on you
if you open the
fuel filler cap too quickly. This spray can happen
if your tank is nearly full, and is more likely in
hot weather. Open the fuel filler cap slowly and
wait for any “hiss” noise to stop. Then unscrew
the cap all the way.
Be careful not to spill gasoline. Clean gasoline from
painted surfaces
as soon as possible. See “Cleaning
the Outside of Your Vehicle” in the Index. When you put the
cap back on, turn it to the right
(clockwise) until you hear
a clicking sound. Make
sure
you fully install the cap. The diagnostic system
can determine if the fuel cap has been left
off or
improperly installed. This would allow fuel to
evaporate into the atmosphere. See “Malfunction
Indicator Lamp” in the Index.
NOTICE:
If you need a new cap, be sure to get the right
type. Your dealer can get one for you.
If you get
the wrong type, it may not fit properly. This may
cause your malfunction indicator lamp to light
and your fuel tank and emissions system may be
damaged. See “Malfunction Indicator Lamp” in
the Index.
6-7
