PONTIAC FIREBIRD 1998 Owners Manual

Removing the Flat Tire and Installing
the Spare Tire
Each wheel has one locknut in place of the standard
wheel nut.
A special wheel lock key (removal tool) and
instructions are located in the center console. Attach
the wheel lock key to the socket of the wheel
wrench. Remove the locking wheel
nut by turning
to the left (counterclockwise).
1. Using the wheel wrench, loosen all the wheel nuts.
Don’t remove them
yet.
5-32

Position the jack under the vehicle. There is a notch in
the vehicle’s rocker flange on the coupe model. Raise
the jack head until
it fits firmly into the notch nearest the
flat tire.
On convertible models, place the jack in a similar location.
5-33

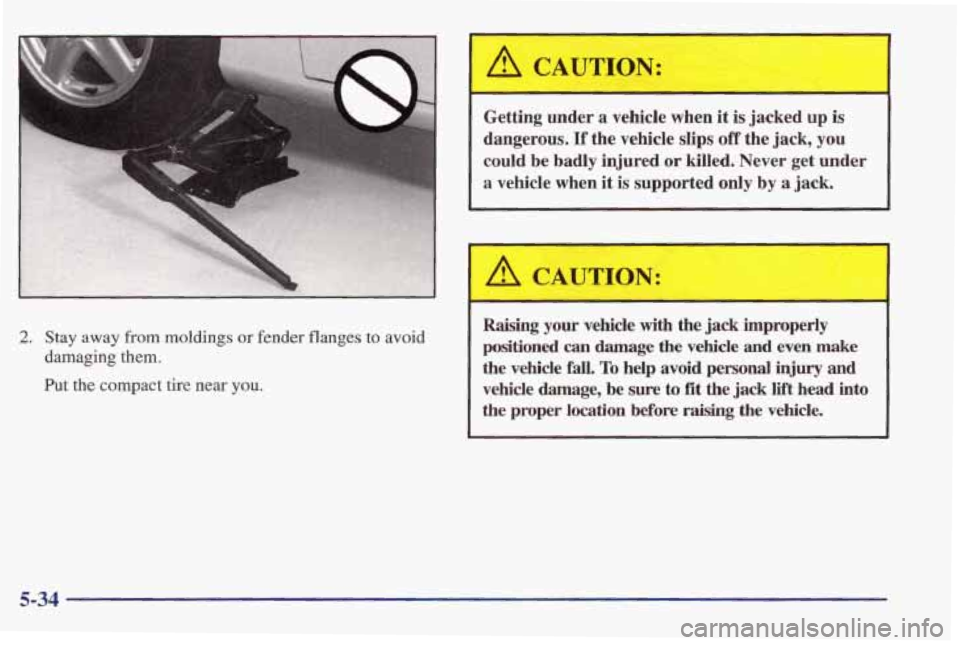

2. Stay away from moldings or fender flanges to avoid
damaging
them.
Put the compact tire near you.
A CAUTION:
Getting under a vehicle when it is jacked up is
dangerous.
If the vehicle slips off the jack, you
could be badly injured
or killed. Never get under
a vehicle when it is supported
only by a jack.
A CAUTION:
I--
Raising your vehicle with the jack improperly
positioned can damage the vehicle and even make
the vehicle fall. To help avoid personal injury and
vehicle damage, be sure to
fit the jack lift head inh
the proper location before raising the vehicle.
5-34

3. Raise the vehicle by rotating the wheel wrench to
the right (clockwise). Raise the vehicle far enough
off the ground so there is enough room for the spare
tire
to fit. Remove all the wheel nuts and take off
the flat tire.
4. Remove any rust or dirt
from the wheel bolts,
mounting surfaces
and
spare wheel.
A CAUTION:
Rust or dirt on the wheel, or on the parts to
which
it is fastened, can make the wheel nuts
become loose after
a time. The wheel could come
off and cause an accident. When you change a
wheel, remove any rust or dirt from the places
where the wheel attaches to the vehicle.
In an
emergency, you can use a cloth or a paper towel
to do this; but be sure
to use a scraper or wire
brush later,
if you need to, to get all the rust or
dirt off.
5-35

1 A CAUTION:
Never use oil or grease on studs or nuts. If you
do, the nuts might come loose. Your wheel could
fall
off, causing a serious accident.
5. Replace the wheel nuts with the rounded end of the
nuts toward the wheel. Tighten each nut
by hand
until the wheel is held against the hub.
6. Lower the vehicle by rotating the wheel wrench to
the left (counterclockwise). Lower the jack
completely.
5-36

7. Tighten the wheel nuts
firmly in a crisscross
sequence as shown.
/! CAUTION:
Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to become loose
and even come
off. This could lead to an accident.
Be sure to use the correct wheel nuts.
If you have
to replace them, be sure to get new
GM original
equipment wheel nuts.
Stop somewhere
as soon as you can and have the
nuts tightened with a torque wrench to 100 lb-ft
(140 N.m).
5-37

NOTICE:
Improperly tightened wheel nuts can lead to
brake pulsation and rotor damage.
To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and to the proper
torque specification.
Don’t try to put
a center cap on your compact spare
tire. It won’t fit. Store the center cap in the rear area
until
you have the flat tire repaired or replaced.
I NOTICE:
Center caps won’t fit on your compact spare. If
you try to put a center cap on your compact
spare, you could damage the cover or the spare.
Storing a Flat or Spare Tire and Tools
A CAUTION:
Storing a jack, a tire or other equipment in the
passenger compartment
of the vehicle could
cause injury.
In a sudden stop or collision, loose
equipment could strike someone. Store all these
in the proper place.
5-38

Replace the jack, wheel wrench and flat tire using the
storage instructions. When
you replace the trim panel,
be sure to tuck it under the weatherstrip.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
Trim Panel
Bolt
Cover
Jack
Wing Nut Adapter
Compact Spare Tire
Full-Size Tire Carpet
Flap
Tire Storage Bolt Convertible
Top Protection
Knob
5-39

Compact Spare Tire
Although the compact spare tire was fully inflated when
your vehicle was new, it can lose air after a time. Check
the inflation pressure regularly. It should be 60 psi
(420 kPa).
After installing the compact spare on your vehicle, you
should stop
as soon as possible and make sure your spare
tire is correctly inflated. The compact spare is made to
perfom well at speeds up
to 65 mph (105 km/h) for
distances
up to 3,000 miles (5 OOO km), so you can finish
your trip and have your full-size tire repaired or replaced
where you want. (When the compact spare is used on the
rear axle, see Notice following.) Of course, it’s best to
replace
your spare with a full-size tire as soon as you can.
Your spare will last longer and be in good shape in case
you need it again.
NOTICE:
If the compact spare is used as a rear tire, do not
drive faster than
50 mph (80 M). Damage to
the rear axle may occur if the compact spare is
driven faster than
50 mph (80 km/h).
NOTICE:
When the compact spare is installed, don’t take
your vehicle through
an automatic car wash with
guide rails. The compact spare can get caught on
the rails. That can damage the tire and wheel,
and maybe other parts of your vehicle.
5-40

Don’t use your compact spare on other vehicles.
And don’t mix your compact spare tire or wheel with
other wheels or tires. They won’t fit. Keep your spare
tire and its wheel together. If You’re Stuck: In Sand, Mud,
Ice or Snow
What you don’t want to do when your vehicle is stuck is
to
spin your wheels too fast. The method known as
“rocking” can help you get out when you’re stuck,
NOTICE: but you must use caution.
Tire chains won’t fit your compact spare. Using
them can damage your vehicle and can damage
the chains too. Don’t use tire chains on your
compact spare.
A CAUTION:
m
If you let your tires spin at high speed, they can
explode, and you or others could
be injured.
And, the transmission or other parts
of the
vehicle can overheat. That could cause an
engine compartment fire or other damage.
When you’re stuck, spin the wheels
as little as
possible. Don’t spin the wheels above
35 mph
(55 kmh) as shown on the speedometer.
5-41
