PONTIAC G8 2009 Owners Manual

Preset 1:Default setting 30 MPH
(48 km/h)
Preset 2:Default setting 45 MPH
(72 km/h)
Preset 3:Default setting 55 MPH
(89 km/h)
Preset 4:Default setting 70 MPH
(113 km/h)
The selection is set automatically
after a few seconds.
The corresponding value of the
presets will be shown on the display.
The preset OverSpeed warnings
can be reprogrammed. See
“Programming the OverSpeed
Presets” later in this section.Manual OverSpeed
To manually set the OverSpeed
warning:
1. Use the thumbwheel to select
Manual for OverSpeed.
2. Press
8to highlight the current
value.
3. Use the thumbwheel to adjust
the value in 5 MPH or km/h
increments and press
8
to conrm the setting.
To set the OverSpeed warning to
the vehicle’s current speed:
1. Use the thumbwheel to select
Manual as described in the
OverSpeed section.
2. Press
8to highlight the current
value.
3. Press and hold
8for more than
3 seconds to set the value to the
nearest 5 MPH or km/h above the
current vehicle’s speed.Programming the OverSpeed
Presets
While the vehicle’s speed is 6 MPH
(10 km/h) or below, each of the
presets can be altered and values
can be stored for future use.
To reprogram the OverSpeed
presets:
1. Use the thumbwheel to select the
desired preset and press
8.
2. Move the thumbwheel up
Qor
down
Rto adjust the value in
1km/h increments.
3. Press
8to conrm the setting.
Instruments and Controls 4-25

Adjusting the Setting During an
OverSpeed Warning
While the OverSpeed warning is
displayed move the thumbwheel up
Qor downRto adjust the
value when in Manual mode or to
select a different preset when
in Preset mode. Press and hold
8
for more than 3 seconds to set
the value to the nearest 5 MPH or
km/h above the current vehicle’s
speed. If Preset mode was selected,
this will change it to Manual mode.
Underspeed Chime
If an OverSpeed warning appeared
and the vehicle’s speed drops
below the set value, you will hear a
chime. The underspeed chime
can be turned on or off through the
vehicle customization. SeeDIC
Vehicle Customization on page 4-31
for more information.
DIC Warnings and
Messages
Messages are displayed on the DIC
to notify the driver that the status
of the vehicle has changed and that
some action may be needed by
the driver to correct the condition.
Multiple messages may appear
one after another.
Some messages may not require
immediate action, but you can press
3or8to acknowledge that
you received the messages and
to clear them from the display.
Some messages cannot be cleared
from the DIC display because
they are more urgent. These
messages require action before they
can be cleared. You should take
any messages that appear on
the display seriously and remember
that clearing the messages will
only make the messages disappear,
not correct the problem.The following are the possible
messages that can be displayed
and some information about them.
!ABS Fault
This message is displayed if there is
a problem with the ABS system.
The ABS light may also turn on
in the instrument panel cluster.
SeeAntilock Brake System (ABS)
Warning Light on page 4-16.
When this message is on, the brake
system will still operate with the
antilock operation disabled.
See your dealer/retailer.
uActive Select On
This message is displayed when
the automatic transmission
active select mode is enabled.
See “Active Select Mode” under
Automatic Transmission Operation
on page 8-6.
4-26 Instruments and Controls

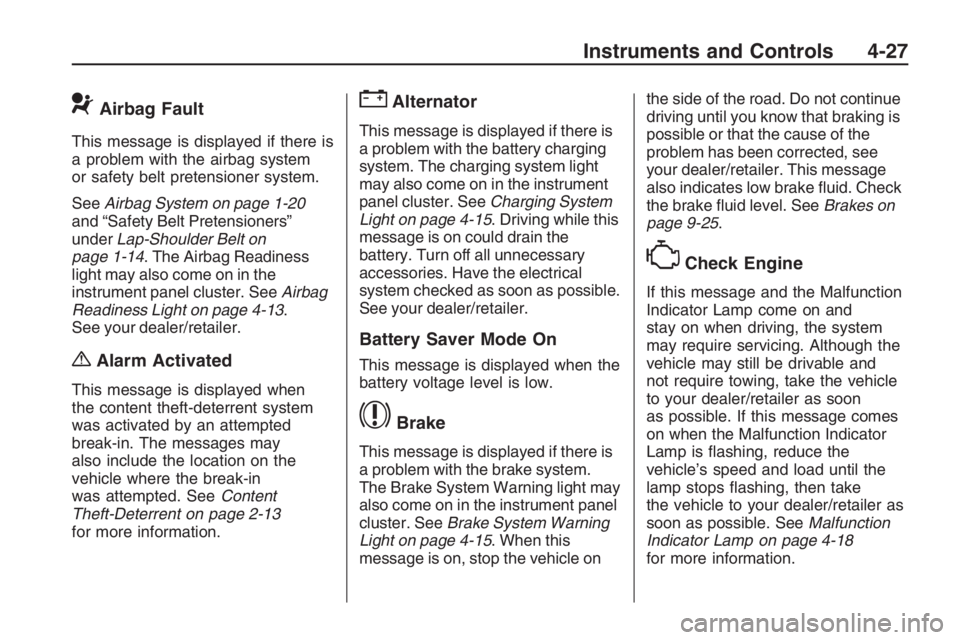

9Airbag Fault
This message is displayed if there is
a problem with the airbag system
or safety belt pretensioner system.
SeeAirbag System on page 1-20
and “Safety Belt Pretensioners”
underLap-Shoulder Belt on
page 1-14. The Airbag Readiness
light may also come on in the
instrument panel cluster. SeeAirbag
Readiness Light on page 4-13.
See your dealer/retailer.
{Alarm Activated
This message is displayed when
the content theft-deterrent system
was activated by an attempted
break-in. The messages may
also include the location on the
vehicle where the break-in
was attempted. SeeContent
Theft-Deterrent on page 2-13
for more information.
"Alternator
This message is displayed if there is
a problem with the battery charging
system. The charging system light
may also come on in the instrument
panel cluster. SeeCharging System
Light on page 4-15. Driving while this
message is on could drain the
battery. Turn off all unnecessary
accessories. Have the electrical
system checked as soon as possible.
See your dealer/retailer.
Battery Saver Mode On
This message is displayed when the
battery voltage level is low.
$Brake
This message is displayed if there is
a problem with the brake system.
The Brake System Warning light may
also come on in the instrument panel
cluster. SeeBrake System Warning
Light on page 4-15. When this
message is on, stop the vehicle onthe side of the road. Do not continue
driving until you know that braking is
possible or that the cause of the
problem has been corrected, see
your dealer/retailer. This message
also indicates low brake uid. Check
the brake uid level. SeeBrakes on
page 9-25.
*Check Engine
If this message and the Malfunction
Indicator Lamp come on and
stay on when driving, the system
may require servicing. Although the
vehicle may still be drivable and
not require towing, take the vehicle
to your dealer/retailer as soon
as possible. If this message comes
on when the Malfunction Indicator
Lamp is ashing, reduce the
vehicle’s speed and load until the
lamp stops ashing, then take
the vehicle to your dealer/retailer as
soon as possible. SeeMalfunction
Indicator Lamp on page 4-18
for more information.
Instruments and Controls 4-27

:Check Oil
This message is displayed if the oil
pressure or oil level is low. Stop
when safe, turn off the engine and
check the engine oil level. See
Engine Oil on page 9-8. Do not run
the engine when this warning is
illuminated. If the oil level is normal,
have the system checked at your
dealer/retailer.
You can press
3or8to
acknowledge that you received the
message, but
:Check Oil will
continue to appear in the bottom of
the DIC display until the vehicle
has been serviced.
X Contact Dealer
This message is displayed when
there is a fault in the instrument
panel, see your dealer/retailer.
You can press
3or8to
acknowledge that you received the
message, butXService willcontinue to appear in the bottom of
the DIC display until the vehicle
has been serviced.
ICruise On, Cruise Off,
Cruise Active, and Cruise
Inactive
These messages display the
status of the cruise control system.
SeeCruise Control on page 4-5
for more information.
Engine Immobilized Refer to
Owners Manual
This message is displayed when the
engine has been shutdown due to
the theft-deterrent system. See
Immobilizer Operation on page 2-12
for more information.
You can press
3or8to
acknowledge that you received the
message, but
AEng Immo will
continue to appear in the bottom of
the DIC display until the vehicle
has been serviced.
BEngine Temp
(Temperature) Hot
This message is displayed when the
engine coolant temperature is
excessively hot. Stop the vehicle as
soon as it is safe to do so. See
Engine Overheating on page 9-20.
You can press
3or8to
acknowledge that you received the
message, but
BTemp Hot will
continue to appear in the bottom of
the DIC display until the vehicle
has been serviced.
.Low Fuel
This message is displayed when the
fuel level is low.
You can press
3or8to
acknowledge that you received the
message, but
.Low Fuel will
continue to appear in the bottom of
the DIC display until the fuel
tank has been lled above the low
fuel level.
4-28 Instruments and Controls

yOverSpeed
This message is displayed when the
vehicle’s speed is greater than
the set OverSpeed value. See
“OverSpeed” underDIC Operation
and Displays on page 4-22.
You can press
8or move the
thumbwheel up
Qor downRto
acknowledge that you received
the message, but OverSpeed will
continue to appear in the bottom of
the DIC display as long as the
vehicle’s speed exceeds the
preset value.
$Park Brake
This message is displayed if the
parking brake is applied when you
are driving. Release the parking
brake. SeeParking Brake on
page 8-11.
Replace Battery in Remote Key
This message is displayed when the
battery in the remote keyless entry
transmitter needs to be replaced.
See your dealer/retailer to replace
the battery.
You can press
3or8to
acknowledge that you received the
message, but
QKey Batt will
continue to appear in the bottom
of the DIC display until the battery
has been replaced.
wRest Reminder
This feature reminds the driver
that they may have been driving
for too long without a break.
When the ignition is turned on, a
timer starts counting. After two hours
of continuous driving, the rest
reminder ashes to alert the driver.The Rest Reminder message is
displayed until
3or8are
pressed. The rest reminder
reappears after 20 minutes
accompanied by a chime, unless
the ignition has been turned off.
For information on how to turn the
rest reminder on and off, seeDIC
Vehicle Customization on page 4-31.
{Safety Mode Active and
Power Reduced
These messages display alternately
when there is a problem with the
engine control system, see your
dealer/retailer.
You can press
3or8to
acknowledge that you received the
message, but
{Safety will
continue to appear in the bottom of
the DIC display until the vehicle
has been serviced.
Instruments and Controls 4-29

Service Charging System
This message is displayed when
there is a fault in the battery charging
system, see your dealer/retailer.
You can press
3or8to
acknowledge that you received the
message, but
"Low Batt will
continue to appear in the bottom of
the DIC display until the vehicle
has been serviced.
:Service Engine Oil
This message is displayed when the
engine oil needs to be changed.
When you change the engine oil,
be sure to reset the Oil Life System.
SeeEngine Oil Life System on
page 9-10for information on how to
reset the message. SeeEngine
Oil on page 9-8andScheduled
Maintenance on page 11-4for
more information.
vService Vehicle Soon
This message is displayed when
there is a problem with the vehicle,
see your dealer/retailer.
You can press
3or8to
acknowledge that you received the
message, but
*Service will
continue to appear in the bottom of
the DIC display until the vehicle
has been serviced.
DSport Shift
This message is displayed when the
automatic transmission is operating
in sport shift mode.
SeeAutomatic Transmission
Operation on page 8-6.
LStability Ctrl (Control)
Assistance
This message is displayed when the
Electronic Stability Program (ESP®)
is actively helping the vehicle
with road grip and stability.
ESP CTRL appears at the bottom of
the display and remains illuminated
as long as the ESP is actively
helping with road grip and stability.
SeeElectronic Stability Program
on page 8-19.
FStability Ctrl (Control) Off
This message is displayed when the
ESP has been turned off.
SeeElectronic Stability Program
on page 8-19. If this message is
displayed and you have not turned
off the ESP, it means there is a
problem with the ESP, see your
dealer/retailer.
4-30 Instruments and Controls

You can press3or8to
acknowledge that you received
the message, but ESP OFF will
continue to appear in the bottom of
the DIC display until the vehicle
has been serviced.
7Check XX Tire Pressure
This message is displayed when the
ination pressure is low or very
low in the indicated tire.
You can press
3or8to
acknowledge that you received the
message, but
7LF Tire,7RF Tire,
7LR Tire, or7RR Tire will continue
to appear in the bottom of the DIC
display until the tire pressure is at a
normal level. SeeTire Pressure
Monitor System on page 9-52
for more information.
7Tire Pressure System Fault
This message is displayed when
there is a problem with the Tire
Pressure Monitor System.
You can press
3or8to
acknowledge that you received the
message, but
7Tire Fault will
continue to appear in the bottom
of the DIC display until the tire
pressure is at a normal level.
SeeTire Pressure Monitor System
on page 9-52for more information.
xVery Low Fuel
This message is displayed when the
fuel level is very low.
You can press
3or8to
acknowledge that you received the
message, but
.V.Low Fuel will
continue to appear in the bottom of
the DIC display until enough fuel
tank has been lled above the
low fuel level.
DIC Vehicle
Customization
Your vehicle has features that you
can customize through the DIC.
Using the Customization Menu
Press3until you see Customize
Options and then press
8.
The customization options will only
be available when the vehicle
speed is less than 6 mph (10 km/h).
If the vehicle is moving faster
than that the display will show
Not Available.
Move the thumbwheel up
Qor
down
Rto scroll through the
available options. Press
8to select
an item. To exit the current menu,
or go back, use the thumbwheel
to select
qat the top of the screen
and then press
8.
Instruments and Controls 4-31

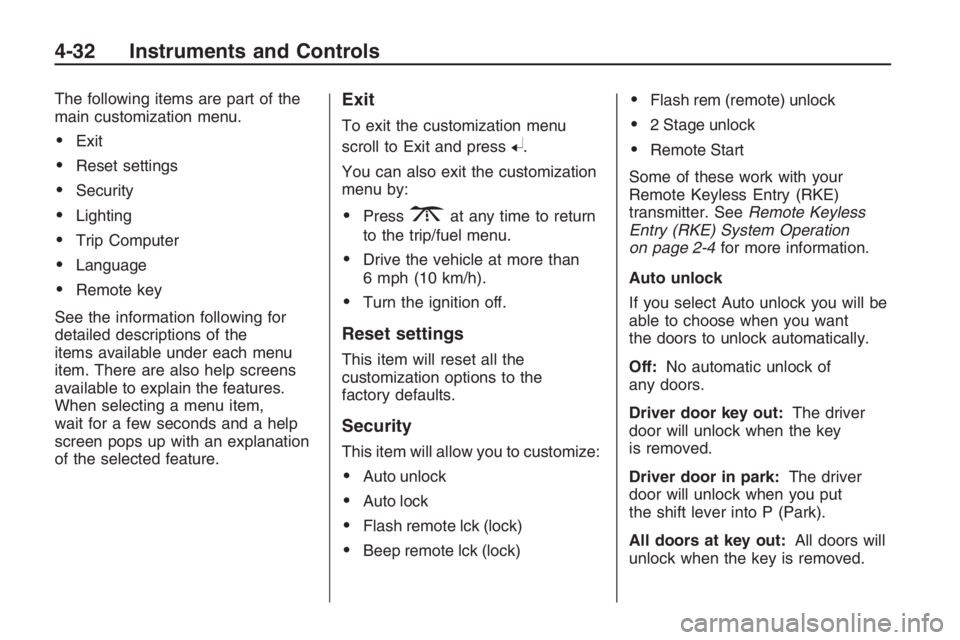

The following items are part of the
main customization menu.
Exit
Reset settings
Security
Lighting
Trip Computer
Language
Remote key
See the information following for
detailed descriptions of the
items available under each menu
item. There are also help screens
available to explain the features.
When selecting a menu item,
wait for a few seconds and a help
screen pops up with an explanation
of the selected feature.
Exit
To exit the customization menu
scroll to Exit and press
8.
You can also exit the customization
menu by:
Press3at any time to return
to the trip/fuel menu.
Drive the vehicle at more than
6 mph (10 km/h).
Turn the ignition off.
Reset settings
This item will reset all the
customization options to the
factory defaults.
Security
This item will allow you to customize:
Auto unlock
Auto lock
Flash remote lck (lock)
Beep remote lck (lock)
Flash rem (remote) unlock
2 Stage unlock
Remote Start
Some of these work with your
Remote Keyless Entry (RKE)
transmitter. SeeRemote Keyless
Entry (RKE) System Operation
on page 2-4for more information.
Auto unlock
If you select Auto unlock you will be
able to choose when you want
the doors to unlock automatically.
Off:No automatic unlock of
any doors.
Driver door key out:The driver
door will unlock when the key
is removed.
Driver door in park:The driver
door will unlock when you put
the shift lever into P (Park).
All doors at key out:All doors will
unlock when the key is removed.
4-32 Instruments and Controls

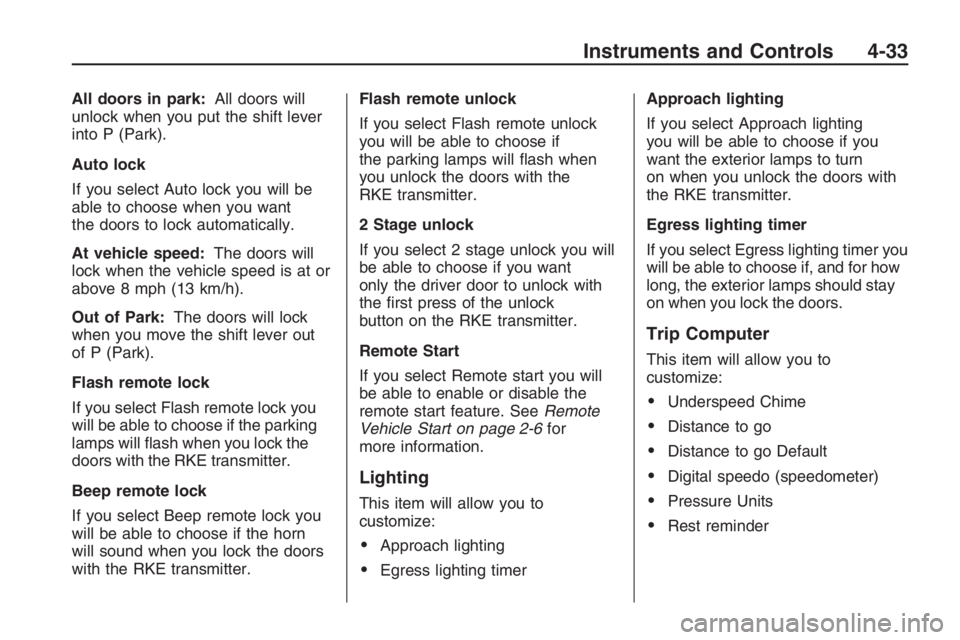

All doors in park:All doors will
unlock when you put the shift lever
into P (Park).
Auto lock
If you select Auto lock you will be
able to choose when you want
the doors to lock automatically.
At vehicle speed:The doors will
lock when the vehicle speed is at or
above 8 mph (13 km/h).
Out of Park:The doors will lock
when you move the shift lever out
of P (Park).
Flash remote lock
If you select Flash remote lock you
will be able to choose if the parking
lamps will ash when you lock the
doors with the RKE transmitter.
Beep remote lock
If you select Beep remote lock you
will be able to choose if the horn
will sound when you lock the doors
with the RKE transmitter.Flash remote unlock
If you select Flash remote unlock
you will be able to choose if
the parking lamps will ash when
you unlock the doors with the
RKE transmitter.
2 Stage unlock
If you select 2 stage unlock you will
be able to choose if you want
only the driver door to unlock with
the rst press of the unlock
button on the RKE transmitter.
Remote Start
If you select Remote start you will
be able to enable or disable the
remote start feature. SeeRemote
Vehicle Start on page 2-6for
more information.
Lighting
This item will allow you to
customize:
Approach lighting
Egress lighting timerApproach lighting
If you select Approach lighting
you will be able to choose if you
want the exterior lamps to turn
on when you unlock the doors with
the RKE transmitter.
Egress lighting timer
If you select Egress lighting timer you
will be able to choose if, and for how
long, the exterior lamps should stay
on when you lock the doors.
Trip Computer
This item will allow you to
customize:
Underspeed Chime
Distance to go
Distance to go Default
Digital speedo (speedometer)
Pressure Units
Rest reminder
Instruments and Controls 4-33

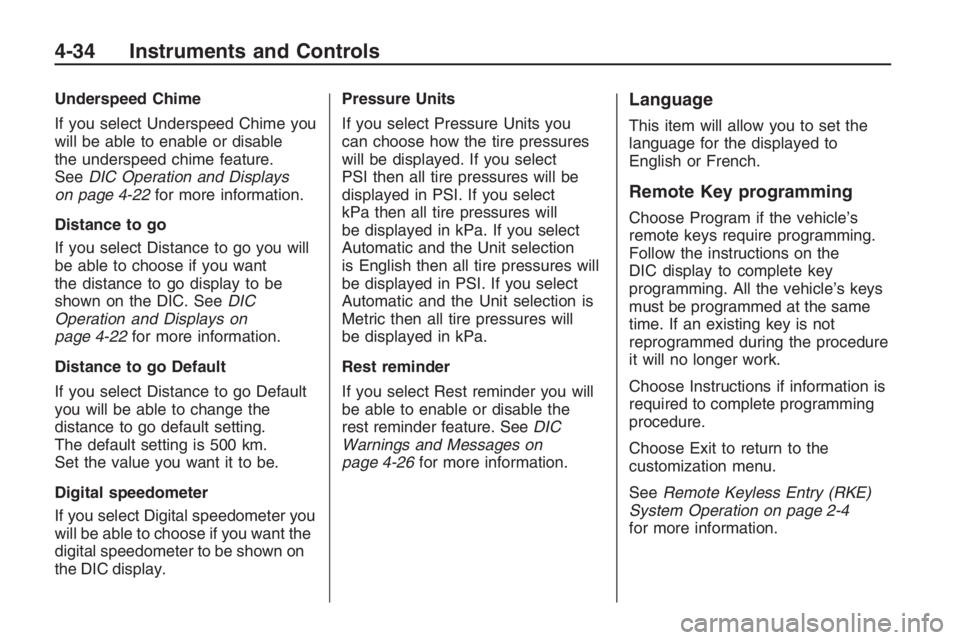

Underspeed Chime
If you select Underspeed Chime you
will be able to enable or disable
the underspeed chime feature.
SeeDIC Operation and Displays
on page 4-22for more information.
Distance to go
If you select Distance to go you will
be able to choose if you want
the distance to go display to be
shown on the DIC. SeeDIC
Operation and Displays on
page 4-22for more information.
Distance to go Default
If you select Distance to go Default
you will be able to change the
distance to go default setting.
The default setting is 500 km.
Set the value you want it to be.
Digital speedometer
If you select Digital speedometer you
will be able to choose if you want the
digital speedometer to be shown on
the DIC display.Pressure Units
If you select Pressure Units you
can choose how the tire pressures
will be displayed. If you select
PSI then all tire pressures will be
displayed in PSI. If you select
kPa then all tire pressures will
be displayed in kPa. If you select
Automatic and the Unit selection
is English then all tire pressures will
be displayed in PSI. If you select
Automatic and the Unit selection is
Metric then all tire pressures will
be displayed in kPa.
Rest reminder
If you select Rest reminder you will
be able to enable or disable the
rest reminder feature. SeeDIC
Warnings and Messages on
page 4-26for more information.Language
This item will allow you to set the
language for the displayed to
English or French.
Remote Key programming
Choose Program if the vehicle’s
remote keys require programming.
Follow the instructions on the
DIC display to complete key
programming. All the vehicle’s keys
must be programmed at the same
time. If an existing key is not
reprogrammed during the procedure
it will no longer work.
Choose Instructions if information is
required to complete programming
procedure.
Choose Exit to return to the
customization menu.
SeeRemote Keyless Entry (RKE)
System Operation on page 2-4
for more information.
4-34 Instruments and Controls
