PONTIAC G8 2009 Owners Manual

Radio(s)
Radio with Single CD Player
Infotainment 6-3

The vehicle has one of these radios
as its audio system.
Playing the Radio
}(Power):Press to turn the
system on and off.
Radio with Single CD Player
Volume: The volume knob
is located on the center of the radio.
Turn to adjust the volume.
0(Mute): Press to immediately
stop the volume. While the volume
is off, MUTED displays.
To cancel Mute, do one of the
following:
Press0again
Increase the radio volume
Turn the radio off and on
Radio with Six-Disc CD Player
6-4 Infotainment

Radio with Six-Disc CD Player
u(Volume/Mute):Turn to adjust
the volume. Press to immediately
stop the volume. While the volume
is off, MUTED displays.
To cancel Mute, do one of the
following:
Pressu.
Increase the radio volume.
Turn the radio off and on.
Finding a Station
BAND:Press BAND to select
between FM1, FM2, AM, XM1, XM2.
If the radio is in ASM (Auto Station
Memory) mode ASM appears on the
display and FM ASM, and AM ASM
can be selected.
r[(Tune):Press to tune the
radio frequency down or up. When
the XM Category setting is ON, only
stations in the chosen category can
be selected.
gl(Seek):Press to seek to the
previous or next station, or to select
the previous or next XM Category.
The radio can seek stations with a
weak or strong signal within the
selected band. Limit the automatic
seek from nding stations with a
weak or a strong signal by using
the Auto/Local/Distance feature.
See Auto/Local/Distance Selection,
for more information.
Auto/Local/Distant Selection:
The LO (Local) option reduces the
radio’s automatic seek tuning
sensitivity in FM and AM modes.
LO only allows the radio to seek
stations with a strong signal.
If a strong station cannot be found,
switch the radio to DX (Distant) so
that stations with weaker signals can
be found. The Auto (Automatic)
option will search for local stations
rst. If no stations can be found, the
radio searches for all stations.The Local/Distant feature has no
effect when the ASM search feature
is being used.
This feature does not function with
the XM radio stations.
To use Local/Distant on the radio
with a single CD player:
1. Press the volume knob to enter
the Option Menu.
2. Turn the volume knob until
SEEK SENS (seek sensitivity)
highlights.
3. Press the volume knob to enter
the SEEK SENS setting.
4. Turn the volume knob and
highlight either LO, DX, or AUTO.
5. Press the volume knob to
save and exit the setting.
6. Select the BACK option or wait
eight seconds to exit the menu.
Infotainment 6-5

To use Local/Distant on the radio
with a six-disc CD player:
1. Press the MENU knob to enter
the Option Menu.
2. Turn the MENU knob until Seek
Sens highlights.
3. Press the MENU knob to enter
the Seek Sens setting.
4. Turn the MENU knob and
highlight either Local, Distance,
or Auto.
5. Select the BACK option or wait
eight seconds to exit the menu.
Selecting an XM Category
To select an XM Category on the
radio with a single CD player:
1. Press the volume knob to enter
the Option Menu.
2. Turn the volume knob until
XM CATEGORY highlights.3. Press the volume knob to enter
the XM CATEGORY setting.
4. Turn the volume knob and
highlight the desired category.
5. Press the volume knob to save
and exit the setting.
6. Select the BACK option or wait
eight seconds to exit the menu.
To select an XM Category on the
radio with a six-disc CD player:
1. Press the MENU knob to enter
the Option Menu.
2. Turn the MENU knob until
XM Category highlights.
3. Press the MENU knob to enter
the XM Category setting.
4. Turn the MENU knob and
highlight the desired category.
5. Select the BACK option or wait
eight seconds to exit the menu.XM Satellite Radio Service
XM is a satellite radio service
that is based in the 48 contiguous
United States and 10 Canadian
provinces. XM Satellite Radio has
a wide variety of programming
and commercial-free music,
coast-to-coast, and in digital-quality
sound. During your trial or when you
subscribe, you will get unlimited
access to XM Radio Online for when
you are not in the vehicle. A service
fee is required to receive the XM
service. For more information,
contact XM at xmradio.com or call
1-800-929-2100 in the U.S. and
xmradio.ca or call 1-877-438-9677
in Canada.
XM Theftlock
The XM receiver may go into
theftlock mode when operating
the radio in one hour logic mode.
If this happens, turn the key to
ACC/ACCESSORY or ON/RUN
position to exit XM receiver
theftlock mode.
6-6 Infotainment

Setting Preset Stations
Up to 42 stations (six FM1, six FM2,
six AM, six FM ASM, six AM ASM,
six XM1, and six XM2), can be
programmed.
1. Press BAND to select FM1, FM2,
AM,XM1,orXM2.
2. Tune to a station.
3. For the radio with a single CD
player, press and hold one of
the six numbered pushbuttons
until the selected station displays
and a beep sounds.
4. For the radio with a six-disc CD
player, press and hold one of
the six softkeys until the selected
preset number displays and a
beep sounds.
5. Repeat the steps to store the
other presets.
6. Repeat the steps for the other
radio bands.ASM (Automatic Station Memory):
ASM searches and stores six FM
and six AM stations with the
strongest signal. To use ASM:
1. Press BAND to select FM or AM.
2. Press ASM for at least
two seconds until a beep
sounds. SEARCH displays
on the radio, followed by the
number of stations found.
3. The radio will automatically store
the six strongest stations found
as ASM presets.
Press the ASM button to alternate
between the ASM radio stations and
preset radio stations.
ASM displays on the radio when
using the ASM presets.
ASM does not delete previously
stored stations in FM1, FM2, or AM.
ASM does not function with XM
radio stations.
Setting the Tone (Bass/Treble)
The tone can be set independently
for each source: FM, AM, and CD.
The source must be active to set
the tone.
Bass and Treble can be adjusted
between−6 through +6.
To adjust the bass and treble on the
radio with a single CD player:
1. Press the volume knob to enter
the Option Menu, AUDIO is
highlighted.
2. Press the volume knob to enter
the AUDIO Menu.
3. Turn the volume knob until BASS
or TREBLE highlights.
4. Press the volume knob to enter
the BASS or TREBLE settings.
5. Turn the volume knob to adjust
the BASS or TREBLE setting.
6. Press the volume knob to save
and exit the setting.
7. Select the BACK option or wait
eight seconds to exit the menu.
Infotainment 6-7

To adjust the bass and treble on the
radio with a six-disc CD player:
1. Press the MENU knob to enter
the Option Menu, Audio is
highlighted.
2. Press the MENU knob to enter
the Audio menu.
3. Turn the MENU knob until Bass
or Treble highlights.
4. Press the MENU knob to enter
the Bass or Treble settings.
5. Turn the MENU knob to adjust
the Bass or Treble setting.
6. Press the MENU knob to save
and exit the setting.
7. Select the Back option or wait
eight seconds to exit the menu.
The Bass and Treble cannot be
adjusted while the Equalizer is
being used.Loudness Contour Circuit:
The Loudness Contour Circuit
automatically boosts the bass and
treble response at low volume levels.
The Loudness Contour Circuit
cannot be adjusted on the
base radio.
To adjust the Loudness Contour
Circuit on the radio with a
six-disc CD player:
1. Press the MENU knob to enter
the Option Menu, Audio is
highlighted.
2. Press the MENU knob to enter
the Audio menu.
3. Turn the MENU knob until
Loudness highlights.
4. Press the MENU knob to enter
the Loudness settings.
5. Turn the MENU knob to turn the
Loudness setting On or Off.
6. Press the MENU knob to save
and exit the setting.
7. Select the Back option or wait
eight seconds to exit the menu.Adjusting the Speakers
(Balance/Fade)

Balance can be adjusted from
L6 (left) to R6 (right)
Fade can be adjusted from
F6 (front) to R6 (rear)
To adjust the balance and fade on
the radio with a single CD player:
1. Press the volume knob to
enter the Option Menu, AUDIO
is highlighted.
2. Press the volume knob to enter
the AUDIO Menu.
3. Turn the volume knob until
BALANCE or FADE highlights.
4. Press the volume knob to enter
the BALANCE or FADE settings.
5. Turn the volume knob to adjust
the BALANCE or FADE setting.
6. Press the volume knob to save
and exit the setting.
7. Select the BACK option or wait
eight seconds to exit the menu.
6-8 Infotainment

To adjust the balance and fade on
the radio with a six-disc CD player:
1. Press the MENU knob to enter
the Option Menu, Audio is
highlighted.
2. Press the MENU knob to enter
the Audio menu.
3. Turn the MENU knob until
Balance or Fader highlights.
4. Press the MENU knob to enter
the Balance or Fader settings.
5. Turn the MENU knob to adjust
the Balance or Fader setting.
6. Press the MENU knob to save
and exit the setting.
7. Select the Back option or wait
eight seconds to exit the menu.
EQ (Equalizer):Radios with
the equalizer feature have
ve preprogrammed equalizer
curves.
Press the EQ button to select
between: Rock, Classical, Pop,
Vocal, Jazz and Off.To adjust the Equalizer setting on the
radio with a six-disc CD player using
the menu:
1. Press the MENU knob to enter
the Option Menu, Audio is
highlighted.
2. Press the MENU knob to enter
the Audio menu.
3. Turn the MENU knob until
Equalizer highlights.
4. Press the MENU knob to enter
the Equalizer settings.
5. Turn the MENU knob to adjust
the Equalizer setting.
6. Press the MENU knob to save
and exit the setting.
7. Select the Back option or wait
eight seconds to exit the menu.
Eq Boost can be changed
from−2 to +2 on the radio with
a six-disc CD player only.To adjust the amount of boost for
each EQ setting on the radio with a
six-disc CD player:
1. Press the MENU knob to enter
the Option Menu, Audio is
highlighted.
2. Press the MENU knob to enter
the Audio menu.
3. Turn the MENU knob until
Eq Boost highlights.
4. Press the MENU knob to enter
the Eq Boost settings.
5. Turn the MENU knob to adjust
the Eq Boost setting.
6. Press the MENU knob to save
and exit the setting.
7. Select the Back option or
wait eight seconds to exit
the menu.
Infotainment 6-9

Radio Message
Security Lockout Active:This
message displays when the
coded security system has been
activated. Take the vehicle to your
dealer/retailer for service.
Radio Messages for XM Only
SeeXM Radio Messages on
page 6-24later in this section for
further detail.
Using the CD Player
The CD player plays standard sized
CDs. Using CDs of a different size
can damage the drive or disc,
even if an adapter is used.
The CD player has a memory
buffer that holds approximately
seven seconds of music to prevent
interruption while driving over bumpy
surfaces. If the interruption lasts
longer than seven seconds, the
memory buffer can become emptyand playback will be interrupted until
the player has time to refocus, read
the disc, and ll the buffer again.
When the player reaches the end of
a CD, it automatically returns to
the start and plays the CD again.
CDs can be loaded with the
ignition and the radio on or off.
CDs will stay in the player if the
ignition or radio is turned off.
If the CD was the last source
selected, it resumes playing
when the radio is turned on.
Loading CDs
To load a CD with the radio with a
single CD player:
1. Insert a CD label side up
partway into the slot.
2. The CD player will pull the CD
in and begin playing if the radio
is on.To load CDs with the radio with a
six-disc CD player:
#LOAD:Press to load CDs
into the CD player. The display
shows DISC and six numbers that
correspond to the six CD storage
locations. When a storage location
has no disc loaded a dash displays.
To insert one CD:
1. Press
#LOAD and Insert Disc
displays.
2. The load indicator light ashes,
and the radio beeps twice.
3. Insert a CD label side up partway
into the slot.
4. The CD player will pull the CD
in and begin playing if the
radio is on.
6-10 Infotainment

To insert multiple CDs:
1. Press and hold
#LOAD for
more than two seconds, a
beep sounds and Loading All
Discs displays.
2. The display, the beeps, and the
load indicator light prompts
when to insert each CD.
3. Insert a CD label side up
partway into the slot.
4. The CD player will pull the CD
in and begin playing if the
radio is on.
The load function is canceled when:
A CD has not been inserted
for 10 seconds.
ZEJECT is pressed.
The radio is turned off.Ejecting CDs
ZEJECT:Press to stop a CD
while it is playing or to eject a CD
when it is not playing. Eject can be
activated with the ignition and the
radio off. If an ejected CD is not
removed with 10 seconds, it will be
automatically pulled back into the
player.
To eject a single CD with the radio
with a six-disc CD player:
1. Press
ZEJECT.
2. Press the numbered or softkey
that the disc is assigned to
within 3 seconds.To eject all CDs with the radio with
a six-disc CD player:
1. Press and hold
ZEJECT for
more than two seconds, a
beep sounds and Ejecting All
Discs displays.
2. The display, the beeps, and the
load indicator light prompts
when to remove each CD.
The eject function is canceled when:
A CD has not been removed
for 10 seconds.
#LOAD is pressed.
The radio is turned off.
Infotainment 6-11

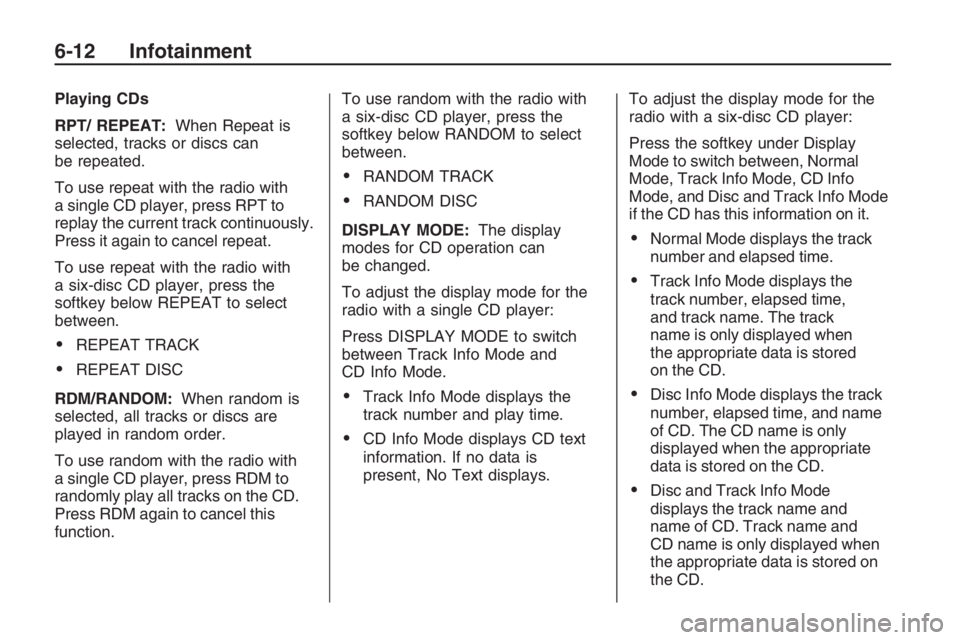

Playing CDs
RPT/ REPEAT:When Repeat is
selected, tracks or discs can
be repeated.
To use repeat with the radio with
a single CD player, press RPT to
replay the current track continuously.
Press it again to cancel repeat.
To use repeat with the radio with
a six-disc CD player, press the
softkey below REPEAT to select
between.
REPEAT TRACK
REPEAT DISC
RDM/RANDOM:When random is
selected, all tracks or discs are
played in random order.
To use random with the radio with
a single CD player, press RDM to
randomly play all tracks on the CD.
Press RDM again to cancel this
function.To use random with the radio with
a six-disc CD player, press the
softkey below RANDOM to select
between.
RANDOM TRACK
RANDOM DISC
DISPLAY MODE:The display
modes for CD operation can
be changed.
To adjust the display mode for the
radio with a single CD player:
Press DISPLAY MODE to switch
between Track Info Mode and
CD Info Mode.
Track Info Mode displays the
track number and play time.
CD Info Mode displays CD text
information. If no data is
present, No Text displays.To adjust the display mode for the
radio with a six-disc CD player:
Press the softkey under Display
Mode to switch between, Normal
Mode, Track Info Mode, CD Info
Mode, and Disc and Track Info Mode
if the CD has this information on it.
Normal Mode displays the track
number and elapsed time.
Track Info Mode displays the
track number, elapsed time,
and track name. The track
name is only displayed when
the appropriate data is stored
on the CD.
Disc Info Mode displays the track
number, elapsed time, and name
of CD. The CD name is only
displayed when the appropriate
data is stored on the CD.
Disc and Track Info Mode
displays the track name and
name of CD. Track name and
CD name is only displayed when
the appropriate data is stored on
the CD.
6-12 Infotainment
