ESP PONTIAC G8 2009 Owners Manual

Questions and Answers About
Safety Belts
Q:
Will I be trapped in the vehicle
after a crash if I am wearing a
safety belt?
A:Youcouldbe — whether you are
wearing a safety belt or not. But
your chance of being conscious
during and after an accident, so
youcanunbuckle and get out, is
muchgreater if you are belted.
And you can unbuckle a safety
belt, even if you are upside down.
Q:If my vehicle has airbags,
why should I have to wear
safety belts?
A:Airbags are supplemental
systems only; so they workwith
safety belts — not instead of
them. Whether or not an airbag is
provided, all occupants still have
to buckle up to get the most
protection. That is true not only in
frontal collisions, but especially in
side and other collisions.
Q:If I am a good driver, and I
never drive far from home,
why should I wear safety
belts?
A:You may be an excellent driver,
but if you are in a crash — even
one that is not your fault — you
and your passenger(s) can be
hurt. Being a good driver does not
protect you from things beyond
your control, such as bad drivers.
Most accidents occur within
25 miles (40 km) of home. And
the greatest number of serious
injuries and deaths occur at
speeds of less than 40 mph
(65 km/h).
Safety belts are for everyone.
How to Wear Safety Belts
Properly
This section is only for people of
adult size.
Be aware that there are special
things to know about safety
belts and children. And there are
different rules for smaller children
and infants. If a child will be riding in
the vehicle, seeOlder Children on
page 1-34orInfants and Young
Children on page 1-36. Follow those
rules for everyone’s protection.
It is very important for all occupants
to buckle up. Statistics show that
unbelted people are hurt more often
in crashes than those who are
wearing safety belts.
Occupants who are not buckled up
can be thrown out of the vehicle
in a crash. And they can strike
others in the vehicle who are
wearing safety belts.
1-8 Seats and Restraints

Doors and Locks
Door Locks
{CAUTION
Unlocked doors can be dangerous.
Passengers, especially
children, can easily open the
doors and fall out of a moving
vehicle. When a door is
locked, the handle will not
open it. You increase the
chance of being thrown out of
the vehicle in a crash if the
doors are not locked. So, wear
safety belts properly and lock
the doors whenever you drive.
(Continued)
CAUTION (Continued)
Young children who get into
unlocked vehicles may be
unable to get out. A child can
be overcome by extreme heat
and can suffer permanent
injuries or even death from
heat stroke. Always lock your
vehicle whenever you leave it.
Outsiders can easily enter
through an unlocked door
when you slow down or stop
your vehicle. Locking your
doors can help prevent this
from happening.
Manual Door Locks
Unlock the driver door manually
from the outside using the key.
Turn the key counter-clockwise once
to unlock the driver door, and twice
to unlock all doors.
Lock all doors manually from the
outside by turning the key clockwise.
Lock and unlock the doors
manually from inside the vehicle
using the knob on the door. Do not
use the manual door lock knob
when the door is open.
2-8 Keys, Doors and Windows

There is an emergency trunk
release handle located inside the
trunk on the trunk latch. Access the
release handle by folding the rear
seat center seatback. SeeRear
Seat Operation on page 1-5. Pull the
release handle to open the trunk
from the inside.
The release can also be pulled from
inside the trunk.
Theft-Deterrent
Systems
Vehicle theft is big business,
especially in some cities.
This vehicle has theft-deterrent
features, however, they do not
make it impossible to steal.
Immobilizer
This device complies with Part 15 of
the FCC Rules. Operation is subject
to the following two conditions:
1. This device may not cause
interference.
2. This device must accept any
interference received, including
interference that may cause
undesired operation.This device complies with RSS-210
of Industry Canada. Operation is
subject to the following two
conditions:
1. This device may not cause
interference.
2. This device must accept any
interference received, including
interference that may cause
undesired operation of the
device.
Changes or modications to
this system by other than an
authorized service facility could
void authorization to use this
equipment.
Keys, Doors and Windows 2-11

How to Detect a Tamper
Condition
IfKis pressed and the horn sounds,
an attempted break-in has occurred
while the system was armed.
If the alarm has been activated, the
Alarm Activated message appears
followed by a message showing
what location set off the alarm.
If there is more than one, all will
appear. Each message appears for
about one second and returns to
the Alarm Activated message.
SeeDIC Warnings and Messages
on page 4-26for additional
information.
Windows
{CAUTION
Leaving children, helpless adults,
or pets in a vehicle with the
windows closed is dangerous.
They can be overcome by
the extreme heat and suffer
permanent injuries or even death
from heat stroke. Never leave a
child, a helpless adult, or a pet
alone in a vehicle, especially with
the windows closed in warm or
hot weather.
2-14 Keys, Doors and Windows

If the vehicle is in cruise control
and the Electronic Stability
Program (ESP) becomes active,
the cruise control automatically
disengages. SeeElectronic
Stability Program on page 8-19.
When road conditions allow the
cruise control can be used again.
Resuming a Set Speed
If the cruise control is set at a
desired speed and then the brakes
are applied or the
OQbutton
is pressed once, the cruise control
shuts off.
Once the vehicle speed is
21 mph (33 km/h) (V6 engines)
or 24 mph (38 km/h) (V8 engines) or
greater, turn the band briey to
RES+ position. The vehicle returns
to the previously set speed and
stays there.Increasing Speed While Using
Cruise Control
There are two ways to go to a
higher speed:
Turn theIband up to the
RES+ position. Hold it there until
the desired speed is reached,
then release it.
To increase the vehicle speed in
very small amounts, turn the
band to RES+ briey and then
release it. Each time this is done,
the vehicle goes about 1 mph
(1.6 km/h) faster.
Reducing Speed While Using
Cruise Control
There are two ways to reduce the
vehicle speed while using cruise
control:
Turn theIband down to the
SET−position. Hold it there
until the lower speed desired is
reached, then release it.
To slow down in very small
amounts, turn the band to SET−
briey and then release it.
Each time this is done, the
vehicle will go about 1 mph
(1.6 km/h) slower.
Passing Another Vehicle While
Using Cruise Control
Use the accelerator pedal to
increase the vehicle speed.
When you take your foot off the
pedal, the vehicle slows down to
the cruise control speed set earlier.
Using Cruise Control on Hills
How well the cruise control works
on hills depends upon the vehicle
speed, load, and the steepness of
the hills.
When going up steep hills,
you might have to step on the
accelerator pedal to maintain the
vehicle speed.
4-6 Instruments and Controls

Preset 1:Default setting 30 MPH
(48 km/h)
Preset 2:Default setting 45 MPH
(72 km/h)
Preset 3:Default setting 55 MPH
(89 km/h)
Preset 4:Default setting 70 MPH
(113 km/h)
The selection is set automatically
after a few seconds.
The corresponding value of the
presets will be shown on the display.
The preset OverSpeed warnings
can be reprogrammed. See
“Programming the OverSpeed
Presets” later in this section.Manual OverSpeed
To manually set the OverSpeed
warning:
1. Use the thumbwheel to select
Manual for OverSpeed.
2. Press
8to highlight the current
value.
3. Use the thumbwheel to adjust
the value in 5 MPH or km/h
increments and press
8
to conrm the setting.
To set the OverSpeed warning to
the vehicle’s current speed:
1. Use the thumbwheel to select
Manual as described in the
OverSpeed section.
2. Press
8to highlight the current
value.
3. Press and hold
8for more than
3 seconds to set the value to the
nearest 5 MPH or km/h above the
current vehicle’s speed.Programming the OverSpeed
Presets
While the vehicle’s speed is 6 MPH
(10 km/h) or below, each of the
presets can be altered and values
can be stored for future use.
To reprogram the OverSpeed
presets:
1. Use the thumbwheel to select the
desired preset and press
8.
2. Move the thumbwheel up
Qor
down
Rto adjust the value in
1km/h increments.
3. Press
8to conrm the setting.
Instruments and Controls 4-25

Service Charging System
This message is displayed when
there is a fault in the battery charging
system, see your dealer/retailer.
You can press
3or8to
acknowledge that you received the
message, but
"Low Batt will
continue to appear in the bottom of
the DIC display until the vehicle
has been serviced.
:Service Engine Oil
This message is displayed when the
engine oil needs to be changed.
When you change the engine oil,
be sure to reset the Oil Life System.
SeeEngine Oil Life System on
page 9-10for information on how to
reset the message. SeeEngine
Oil on page 9-8andScheduled
Maintenance on page 11-4for
more information.
vService Vehicle Soon
This message is displayed when
there is a problem with the vehicle,
see your dealer/retailer.
You can press
3or8to
acknowledge that you received the
message, but
*Service will
continue to appear in the bottom of
the DIC display until the vehicle
has been serviced.
DSport Shift
This message is displayed when the
automatic transmission is operating
in sport shift mode.
SeeAutomatic Transmission
Operation on page 8-6.
LStability Ctrl (Control)
Assistance
This message is displayed when the
Electronic Stability Program (ESP®)
is actively helping the vehicle
with road grip and stability.
ESP CTRL appears at the bottom of
the display and remains illuminated
as long as the ESP is actively
helping with road grip and stability.
SeeElectronic Stability Program
on page 8-19.
FStability Ctrl (Control) Off
This message is displayed when the
ESP has been turned off.
SeeElectronic Stability Program
on page 8-19. If this message is
displayed and you have not turned
off the ESP, it means there is a
problem with the ESP, see your
dealer/retailer.
4-30 Instruments and Controls

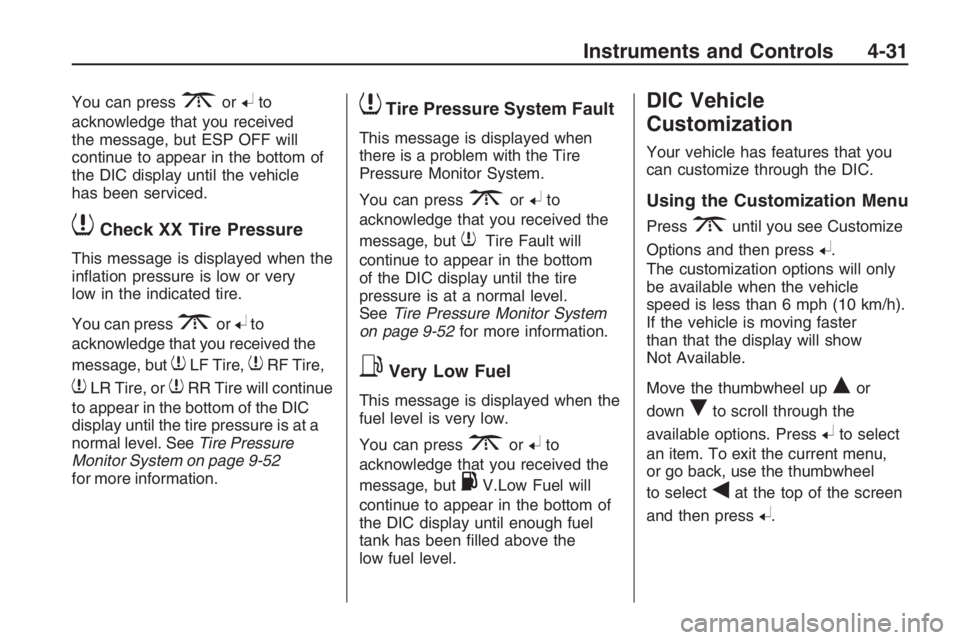

You can press3or8to
acknowledge that you received
the message, but ESP OFF will
continue to appear in the bottom of
the DIC display until the vehicle
has been serviced.
7Check XX Tire Pressure
This message is displayed when the
ination pressure is low or very
low in the indicated tire.
You can press
3or8to
acknowledge that you received the
message, but
7LF Tire,7RF Tire,
7LR Tire, or7RR Tire will continue
to appear in the bottom of the DIC
display until the tire pressure is at a
normal level. SeeTire Pressure
Monitor System on page 9-52
for more information.
7Tire Pressure System Fault
This message is displayed when
there is a problem with the Tire
Pressure Monitor System.
You can press
3or8to
acknowledge that you received the
message, but
7Tire Fault will
continue to appear in the bottom
of the DIC display until the tire
pressure is at a normal level.
SeeTire Pressure Monitor System
on page 9-52for more information.
xVery Low Fuel
This message is displayed when the
fuel level is very low.
You can press
3or8to
acknowledge that you received the
message, but
.V.Low Fuel will
continue to appear in the bottom of
the DIC display until enough fuel
tank has been lled above the
low fuel level.
DIC Vehicle
Customization
Your vehicle has features that you
can customize through the DIC.
Using the Customization Menu
Press3until you see Customize
Options and then press
8.
The customization options will only
be available when the vehicle
speed is less than 6 mph (10 km/h).
If the vehicle is moving faster
than that the display will show
Not Available.
Move the thumbwheel up
Qor
down
Rto scroll through the
available options. Press
8to select
an item. To exit the current menu,
or go back, use the thumbwheel
to select
qat the top of the screen
and then press
8.
Instruments and Controls 4-31

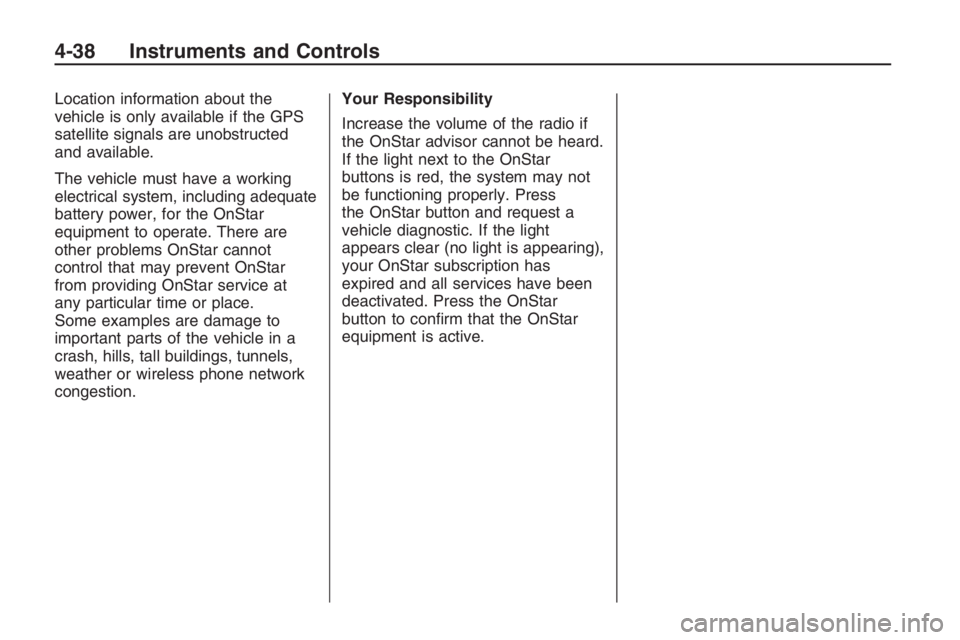

Location information about the
vehicle is only available if the GPS
satellite signals are unobstructed
and available.
The vehicle must have a working
electrical system, including adequate
battery power, for the OnStar
equipment to operate. There are
other problems OnStar cannot
control that may prevent OnStar
from providing OnStar service at
any particular time or place.
Some examples are damage to
important parts of the vehicle in a
crash, hills, tall buildings, tunnels,
weather or wireless phone network
congestion.Your Responsibility
Increase the volume of the radio if
the OnStar advisor cannot be heard.
If the light next to the OnStar
buttons is red, the system may not
be functioning properly. Press
the OnStar button and request a
vehicle diagnostic. If the light
appears clear (no light is appearing),
your OnStar subscription has
expired and all services have been
deactivated. Press the OnStar
button to conrm that the OnStar
equipment is active.
4-38 Instruments and Controls

To adjust the bass and treble on the
radio with a six-disc CD player:
1. Press the MENU knob to enter
the Option Menu, Audio is
highlighted.
2. Press the MENU knob to enter
the Audio menu.
3. Turn the MENU knob until Bass
or Treble highlights.
4. Press the MENU knob to enter
the Bass or Treble settings.
5. Turn the MENU knob to adjust
the Bass or Treble setting.
6. Press the MENU knob to save
and exit the setting.
7. Select the Back option or wait
eight seconds to exit the menu.
The Bass and Treble cannot be
adjusted while the Equalizer is
being used.Loudness Contour Circuit:
The Loudness Contour Circuit
automatically boosts the bass and
treble response at low volume levels.
The Loudness Contour Circuit
cannot be adjusted on the
base radio.
To adjust the Loudness Contour
Circuit on the radio with a
six-disc CD player:
1. Press the MENU knob to enter
the Option Menu, Audio is
highlighted.
2. Press the MENU knob to enter
the Audio menu.
3. Turn the MENU knob until
Loudness highlights.
4. Press the MENU knob to enter
the Loudness settings.
5. Turn the MENU knob to turn the
Loudness setting On or Off.
6. Press the MENU knob to save
and exit the setting.
7. Select the Back option or wait
eight seconds to exit the menu.Adjusting the Speakers
(Balance/Fade)

Balance can be adjusted from
L6 (left) to R6 (right)
Fade can be adjusted from
F6 (front) to R6 (rear)
To adjust the balance and fade on
the radio with a single CD player:
1. Press the volume knob to
enter the Option Menu, AUDIO
is highlighted.
2. Press the volume knob to enter
the AUDIO Menu.
3. Turn the volume knob until
BALANCE or FADE highlights.
4. Press the volume knob to enter
the BALANCE or FADE settings.
5. Turn the volume knob to adjust
the BALANCE or FADE setting.
6. Press the volume knob to save
and exit the setting.
7. Select the BACK option or wait
eight seconds to exit the menu.
6-8 Infotainment
